1998 ATV 500 4X4 (98A4G-1998) Page 1 of 94

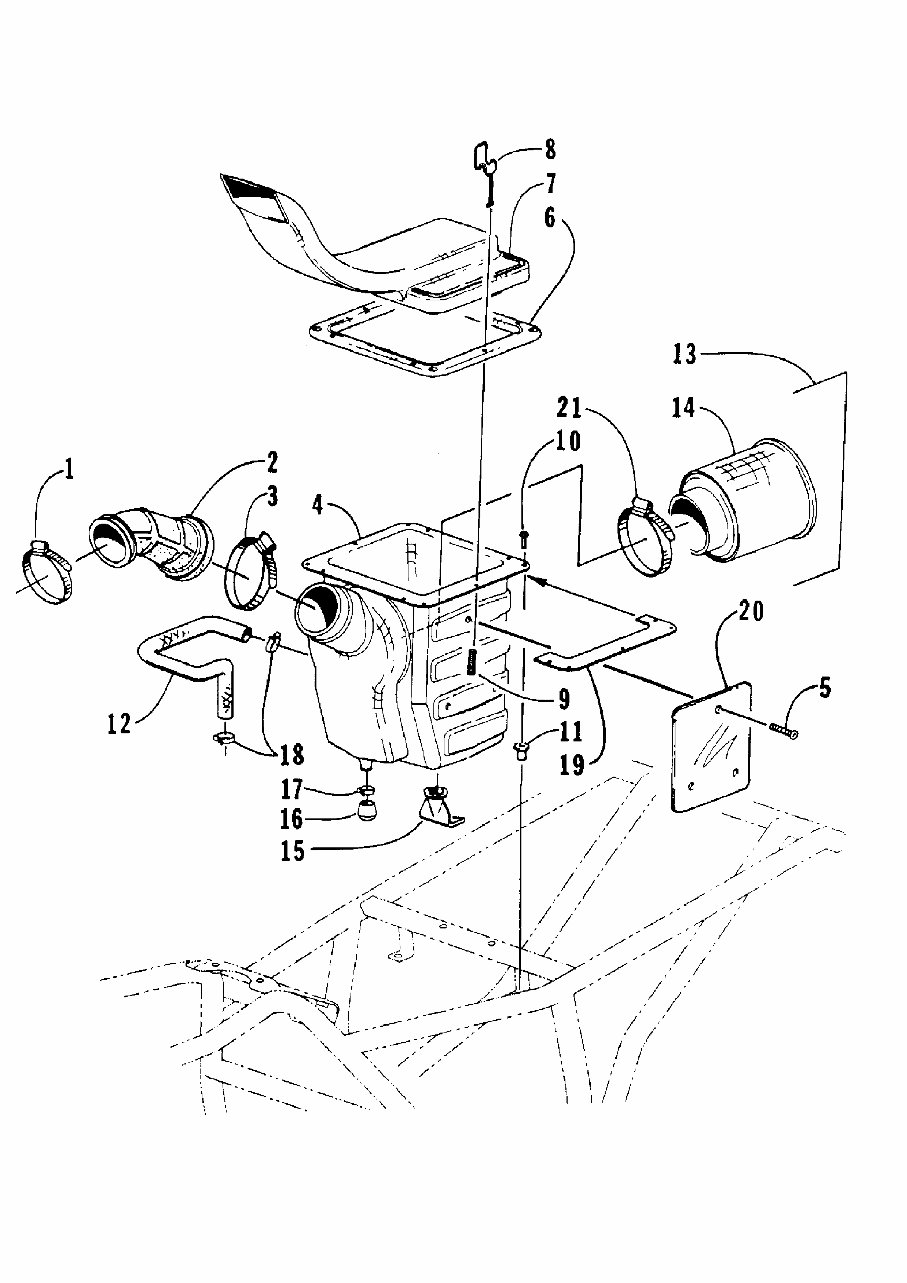

AIR INTAKE ASSEMBLY
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
1998 ATV 500 4X4 (98A4G-1998) Page 2 of 94
AIR INTAKE ASSEMBLY
Ref # Part Number Qty Description S/P/F
1 0423-066 Clamp 1
2 0470-305 Boot, Air Cleaner 1
3 0423-018 Clamp 1
4 0470-337 Housing, Air Cleaner 1
5 0623-301 Screw, Self-Tapping 3 /P
6 0470-343 Gasket, Air Cleaner 1
7 0470-342 Snorkel, Air Cleaner 1 S
8 0470-307 Clamp, Air Cleaner 4
9 0423-037 Spring, Air Cleaner 4
10 0623-121 Screw, Machine 4
11 0123-010 Nut, Expansion 4 /P
12 0410-004 Hose, Crankcase Vent 1
13 0470-322 Filter, Air Cleaner (inc. 14) 1 S
14 0470-332 Sleeve, Filter 1
15 0470-309 Valve, Air Cleaner 1 S
16 1673-272 Cap, Fitting - Air Cleaner 1 /P
17 0423-047 Clamp, Hose 1
18 0423-045 Clamp, Hose - Spring 2
19 0470-351 Support, Air Cleaner Flange 2
20 0406-356 Plate, Heat - Air Intake 1
21 0423-082 Clamp, Air Cleaner 1
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
1998 ATV 500 4X4 (98A4G-1998) Page 3 of 94

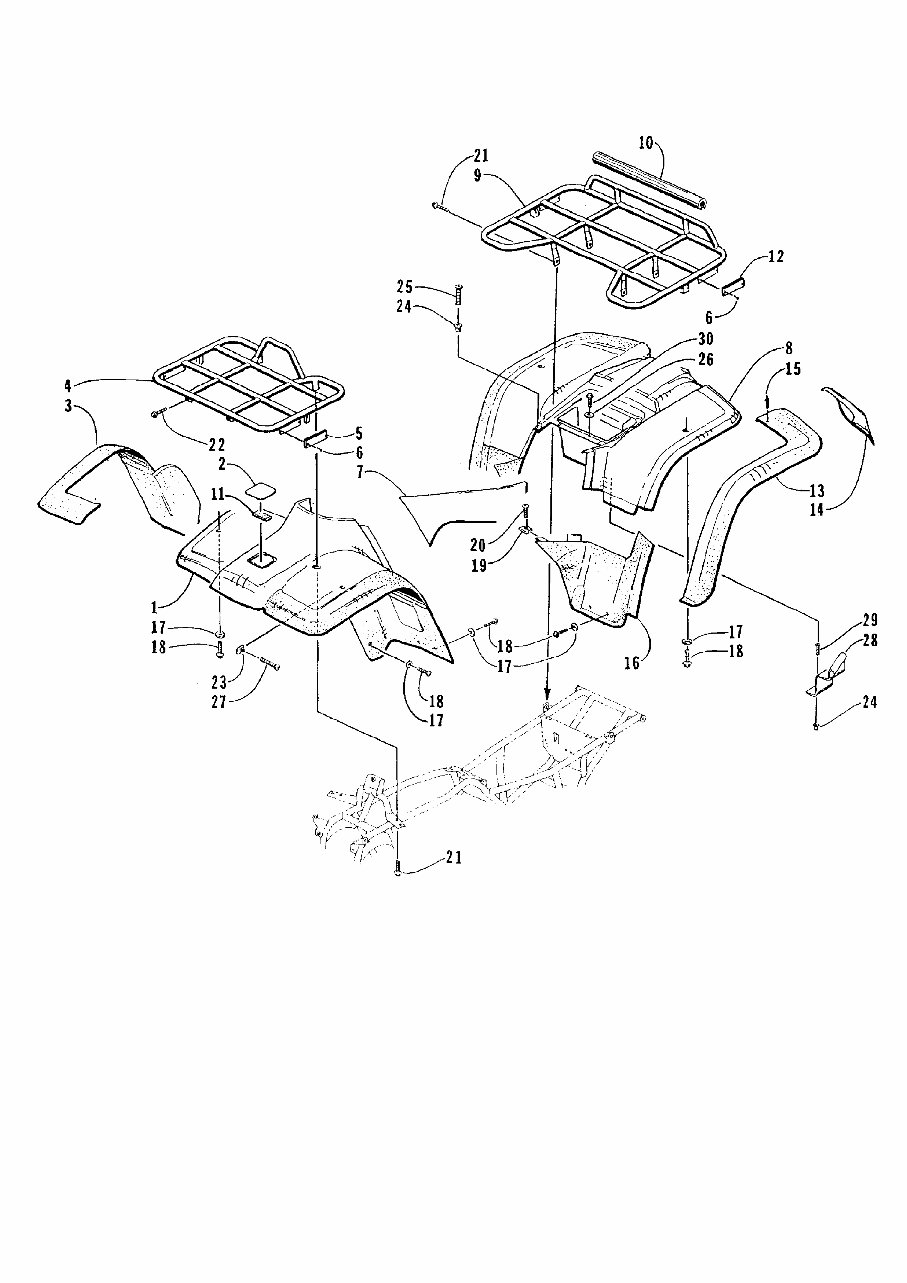

BODY PANEL ASSEMBLY
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
1998 ATV 500 4X4 (98A4G-1998) Page 4 of 94
BODY PANEL ASSEMBLY
Ref # Part Number Qty Description S/P/F
1 0506-156 Panel, Fender - Front (500) 1 S
2 0506-145 Cover, Access (500) 1 S
3 0406-080 Flare - Front Right 1 /P
3 0406-081 Flare - Front Left 1 /P
4 0506-104 Rack - Front (500) 1 S
5 0606-526 Reflector - Amber 2
6 0623-269 Clip, Retaining 8
7 0506-164 Panel, Side - Right (500) 1
7 0506-165 Panel, Side - Left (500) 1
8 0506-157 Panel, Fender - Rear (500) 1
9 0506-103 Rack - Rear (500) 1 S
10 0406-293 Wrap, Tube - Rear Rack 1
11 0417-002 Foam, Access Panel 1
12 0606-029 Reflector - Red 2
13 0406-082 Flare, Rear Right 1
13 0406-083 Flare, Rear Left 1
14 0406-086 Mud Flap - Right 1
14 0406-087 Mud Flap - Left 1
15 0423-046 Rivet, Plastic 56
16 0406-084 Fender Extension - Rear Right 1
16 0406-085 Fender Extension - Rear Left 1
17 0423-010 Washer, Body 16
18 8474-616 Screw, Machine 16
19 0423-060 Clip, Tinerman 2
20 0623-309 Screw, Self-Tapping 2
21 8409-020 Screw, Cap 6 /P
22 8408-812 Screw, Cap 2
23 0423-031 Nut, Speed 2
24 0123-010 Nut, Expansion 3 /P
25 0423-068 Screw, Machine 2
26 0623-184 Washer 1
27 8477-616 Screw, Machine 2
28 0406-297 Plate, Heat - Rear Panel 1
29 0123-549 Screw, Machine 1 /P
30 8476-616 Screw, Machine 1
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
1998 ATV 500 4X4 (98A4G-1998) Page 5 of 94
CAM CHAIN ASSEMBLY
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
1998 ATV 500 4X4 (98A4G-1998) Page 6 of 94
CAM CHAIN ASSEMBLY
Ref # Part Number Qty Description S/P/F
1 3402-353 Chain, Cam (500) 1
2 3402-355 Guide, Chain (500) 1
3 3402-356 Tensioner, Chain (500) 1
4 3423-074 Screw, Cap 1
5 3003-188 Washer 1 S/P
6 3402-136 Adjuster, Tensioner - Assembly 1
7 3402-137 Gasket 1
8 3004-475 Screw, Cap 2 S
9 3003-290 Gasket 2 /P
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
1998 ATV 500 4X4 (98A4G-1998) Page 7 of 94

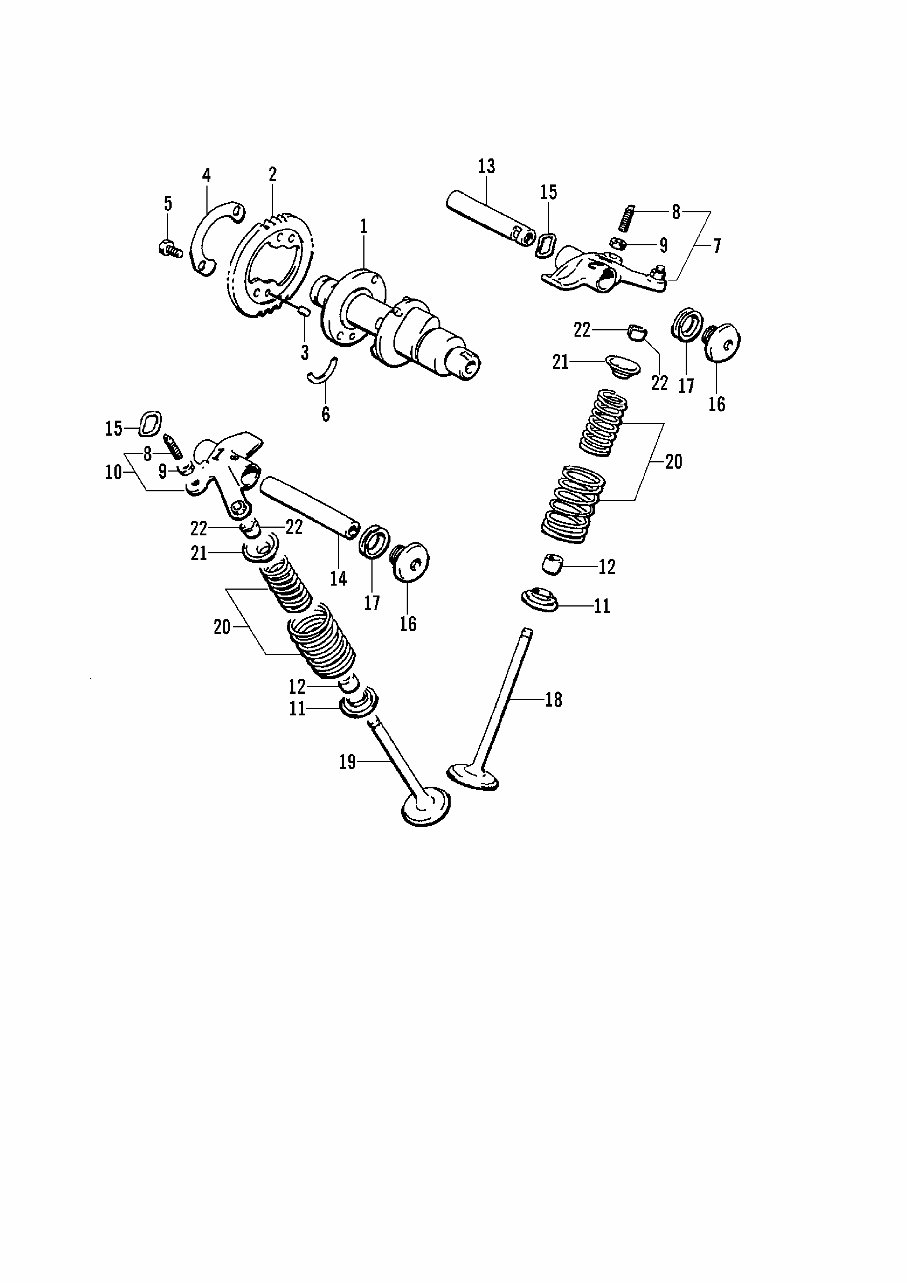

CAM SHAFT VALVE ASSEMBLY
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
1998 ATV 500 4X4 (98A4G-1998) Page 8 of 94
CAM SHAFT VALVE ASSEMBLY
Ref # Part Number Qty Description S/P/F
1 3402-027 Cam Shaft 1 S
2 3402-352 Sprocket (500) (500) 1
3 3423-047 Pin 1
4 3423-073 Washer 1
5 3423-013 Screw, Cap 2 S
6 3423-071 C-Ring 1 /P
7 3402-138 Arm, Valve Rocker (inc. 8-9) 1 S
8 3423-075 Screw, Cap 2
9 3423-076 Nut 2
10 3402-139 Arm, Valve Rocker (inc. 8-9) 1
11 3402-148 Seat, Spring 4
12 3402-078 Seal, Oil 4
13 3402-140 Shaft, Rocker Arm 1
14 3402-141 Shaft, Rocker Arm 1
15 3423-031 Washer 2
16 3402-040 Plug, Shaft 2 /P
17 3402-012 Gasket 2
18 3402-142 Valve, Intake 2 S
19 3402-143 Valve, Exhaust 2
20 3402-144 Spring, Valve - Set 4
21 3402-146 Retainer, Spring 4 S
22 3402-147 Cotter, Valve 8
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
1998 ATV 500 4X4 (98A4G-1998) Page 9 of 94

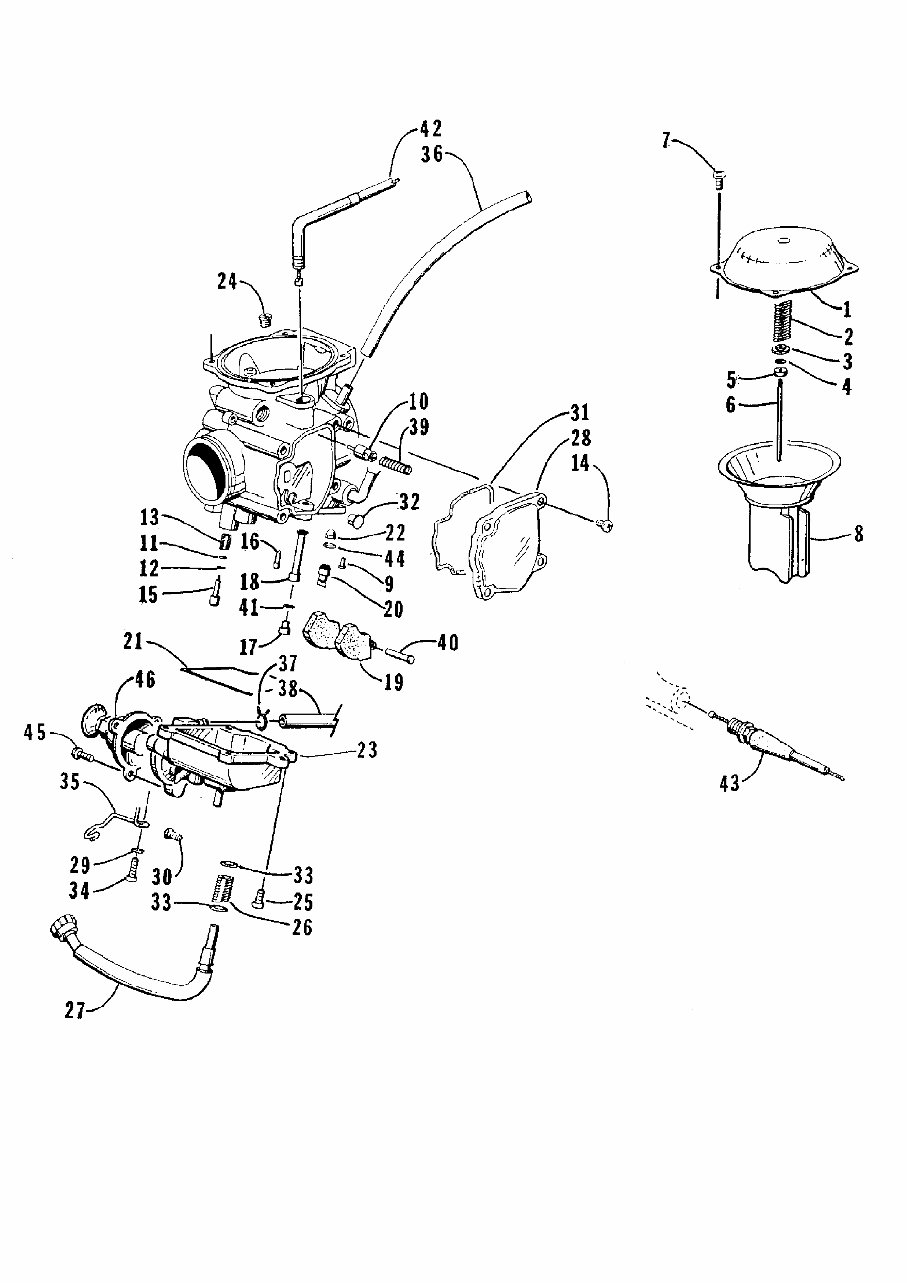

CARBURETOR
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
1998 ATV 500 4X4 (98A4G-1998) Page 10 of 94
CARBURETOR
Ref # Part Number Qty Description S/P/F
0470-361 Complete Asseembly (500) 1
1 4505-001 Cover Assembly 1
2 4505-046 Spring (500) 1 /P
3 4505-003 Ring 1
4 4505-004 E-Ring 1 S
5 4505-005 Ring 1
6 4505-020 Jet Needle 1 /P
7 4505-007 Screw 4 S
8 4505-008 Diaphram (500) 1 S
9 4505-009 Screw 1
10 4505-010 Plunger Assembly (500) 1
11 4505-011 O-Ring 1 /P
12 4505-012 Washer 1
13 4505-013 Spring 1
14 4505-014 Screw 4
15 4505-016 Screw, Pilot (500) 1 /P
16 4505-017 Jet, Pilot 55 (500) 1
17 4505-080 Jet, Main 150 1
17 4505-047 Jet, Main 145 1
18 4505-006 Needle Jet P-7 1 /P
19 4505-021 Float Assembly 1
20 4505-022 Seat, Valve 2.0 1
21 4505-044 O-Ring, Bowl 1
22 4505-045 Filter 1
23 4505-049 Chamber, Float 1
24 4505-038 Jet, Pilot - Air (500) 1 S
25 4505-025 Screw 3
26 4505-026 Spring 1
27 4505-027 Cable Adjust - Assembly 1
28 4505-028 Cover 1
29 4505-029 Washer 1
30 4505-030 Screw 1
31 4505-031 O-Ring 1
32 4505-032 Guide, Cable 1
33 4505-033 Washer 2
34 4505-042 Screw 1
35 4505-034 Clip 1 /P
36 4505-035 Hose 2
37 4505-053 Clip 2
38 4505-052 Hose 1 S
39 4505-039 Spring 1 /P
40 6505-153 Pin 1
41 6505-006 Washer 1
42 0487-001 Cable, Throttle 1
43 0487-002 Cable, Choke 1
44 4505-048 O-Ring 1 S
45 4505-051 Screw, Cap 3
46 4505-050 Cover Assembly, Primer 1
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
