2000 300 4X4 (RED) (A2000ATF4AUSR) Page 1 of 85

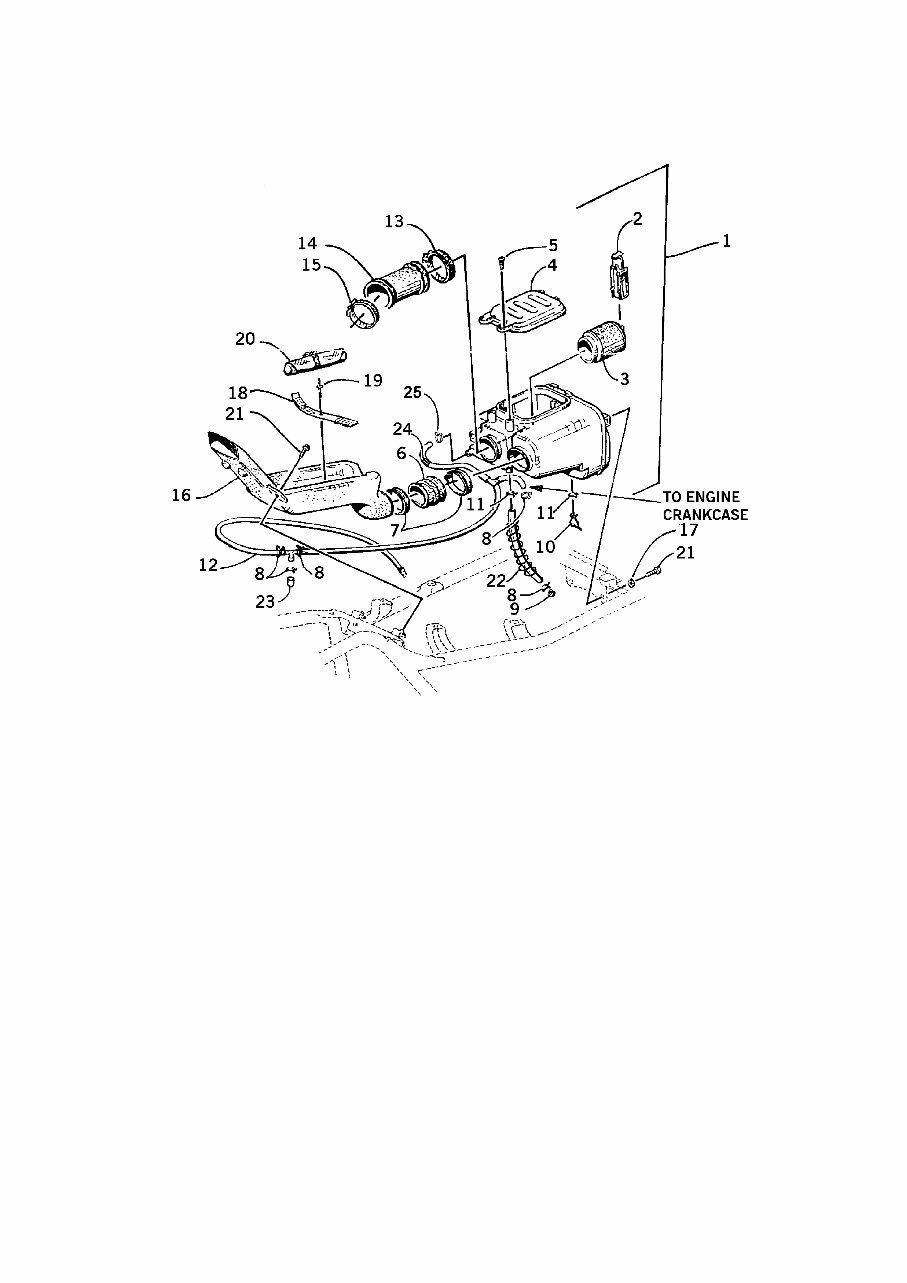

AIR INTAKE ASSEMBLY
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
![Arctic Cat 2000 300 4X4 RED A2000ATF4AUSR [Parts Manual] preview img 2](https://cdn.static-repo.emanualonline.com/Other/NASa/16/377651-Arctic-Cat_300-4X4_RED_A2000ATF4AUSR_2000_EPC/2/2.jpg)
2000 300 4X4 (RED) (A2000ATF4AUSR) Page 2 of 85
AIR INTAKE ASSEMBLY
Ref # Part Number Qty Description S/P/F
1 3570-001 Intake, Air - Assembly (inc. 2-5) 1 /P
2 3402-330 Slider, Retainer - Filter 1
3 0470-355 Filter, Air Cleaner 1
3 0470-356 Sleeve, Filter 1
4 3402-331 Cap 1
5 8477-610 Screw, Cap 2
6 3423-329 Joint 1
7 3423-311 Clamp 2
8 3423-313 Clip 6
9 0423-127 Plug, Drain 1
10 0470-349 Valve, Air Cleaner 1 S
11 0423-047 Clamp 2
12 3470-004 Tube, Crankcase Breather 1
13 3402-236 Clamp 1 /P
14 0470-347 Boot, Air Cleaner 1
15 3402-235 Clamp 1
16 0570-019 Snorkel, Air Intake 1
17 8053-212 Washer, Lock - External Tooth 1 /P
18 0406-379 Strap, Tool Kit 1 /P
19 0423-046 Rivet, Plastic 1
20 0444-079 Kit, Tool 1 S/P
21 8476-616 Screw, Cap 5
22 0423-128 Spring, Vent Tube 1
23 3402-334 Plug, Breather 1
24 3470-002 Valve, Check 1
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
![Arctic Cat 2000 300 4X4 RED A2000ATF4AUSR [Parts Manual] preview img 3](https://cdn.static-repo.emanualonline.com/Other/NASa/16/377651-Arctic-Cat_300-4X4_RED_A2000ATF4AUSR_2000_EPC/3/3.jpg)
2000 300 4X4 (RED) (A2000ATF4AUSR) Page 3 of 85
BODY PANEL ASSEMBLY
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
![Arctic Cat 2000 300 4X4 RED A2000ATF4AUSR [Parts Manual] preview img 4](https://cdn.static-repo.emanualonline.com/Other/NASa/16/377651-Arctic-Cat_300-4X4_RED_A2000ATF4AUSR_2000_EPC/4/4.jpg)
2000 300 4X4 (RED) (A2000ATF4AUSR) Page 4 of 85
BODY PANEL ASSEMBLY
Ref # Part Number Qty Description S/P/F
1 0506-257 Panel, Fender - Front (4x4) (Red) 1
2 0506-153 Cover, Access (Red) 1 S
3 0506-274 Flare - Front Right (4x4) 1
3 0506-275 Flare - Front Left (4x4) 1
4 0506-409 Rack - Front (4x4) 1
5 0606-526 Reflector, Front - Amber 2
6 0623-269 Clip, Retaining 8
7 0506-242 Panel, Side - Right (Red) 1
7 0506-243 Panel, Side - Left (Red) 1
8 0506-258 Panel, Fender - Rear (4x4) (Red) 1 /P
9 0506-190 Rack - Rear (4x4) 1 /P
10 0406-293 Wrap, Tube - Rear Rack 1
11 0417-002 Foam, Access Panel 1
12 0606-029 Reflector, Rear - Red 2
13 0406-082 Flare - Rear Right (4x4) 1
13 0406-083 Flare - Rear Left (4x4) 1
14 0406-460 Mud Flap - Right (4x4) 1
14 0406-461 Mud Flap - Left (4x4) 1
15 0423-046 Rivet, Plastic (4x4) 58
16 0506-160 Fender Extension - Rear Right (4x4) 1
16 0506-161 Fender Extension - Rear Left (4x4) 1
17 0623-362 Rivet, Plastic 2
18 0423-101 Screw, Machine 0
19 0423-060 Clip, Tinerman 2
20 0623-309 Screw, Self-Tapping 2
21 8409-020 Screw, Cap 6 /P
22 8408-812 Screw, Cap 2
23 0423-031 Nut, Speed 2
24 0123-010 Nut, Expansion 2 /P
25 0423-068 Screw, Machine 2
27 8476-616 Screw, Machine 2
28 0406-374 Panel, Deflector 2
31 0619-230 Foil (3 in. x 24 in.) 1 /P/F
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
![Arctic Cat 2000 300 4X4 RED A2000ATF4AUSR [Parts Manual] preview img 5](https://cdn.static-repo.emanualonline.com/Other/NASa/16/377651-Arctic-Cat_300-4X4_RED_A2000ATF4AUSR_2000_EPC/5/5.jpg)
2000 300 4X4 (RED) (A2000ATF4AUSR) Page 5 of 85

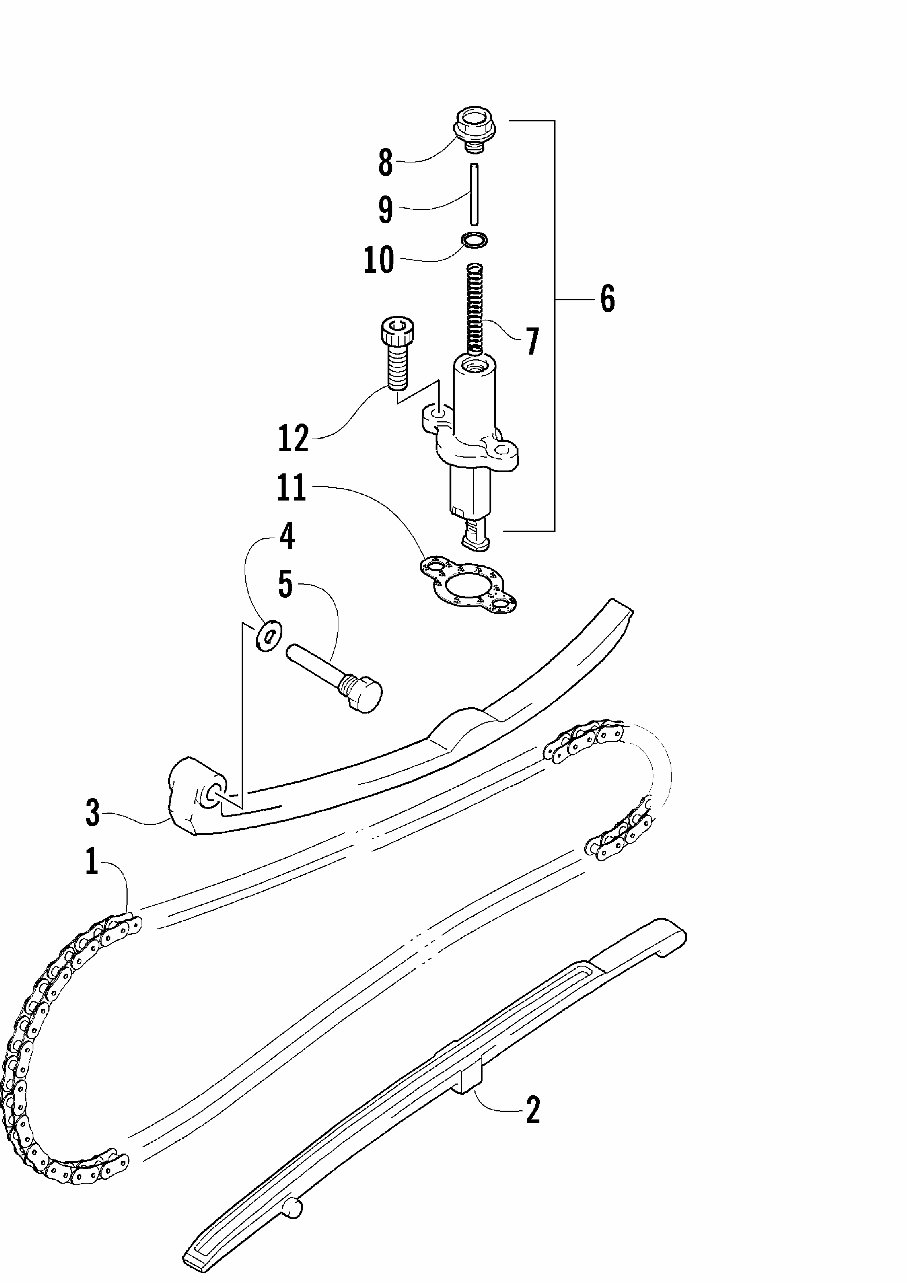

CAM CHAIN ASSEMBLY
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
![Arctic Cat 2000 300 4X4 RED A2000ATF4AUSR [Parts Manual] preview img 6](https://cdn.static-repo.emanualonline.com/Other/NASa/16/377651-Arctic-Cat_300-4X4_RED_A2000ATF4AUSR_2000_EPC/6/6.jpg)
2000 300 4X4 (RED) (A2000ATF4AUSR) Page 6 of 85
CAM CHAIN ASSEMBLY
Ref # Part Number Qty Description S/P/F
1 3402-281 Chain, Camshaft (300) 1
2 3402-277 Guide, Camshaft Chain (300) 1
3 3402-282 Tensioner, Camshaft Chain (300) 1
4 3003-188 Washer 1 S/P
5 3423-074 Screw, Cap 1
6 3402-283 Adjuster, Tensioner - Assembly (inc. 7-10) 1
7 3402-284 Spring 1
8 3402-285 Plug 1
9 3402-286 Bar 1
10 3423-286 O-Ring 1
11 3402-287 Gasket, Adjuster 1
12 3004-576 Screw, Cap 2 S
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
![Arctic Cat 2000 300 4X4 RED A2000ATF4AUSR [Parts Manual] preview img 7](https://cdn.static-repo.emanualonline.com/Other/NASa/16/377651-Arctic-Cat_300-4X4_RED_A2000ATF4AUSR_2000_EPC/7/7.jpg)
2000 300 4X4 (RED) (A2000ATF4AUSR) Page 7 of 85

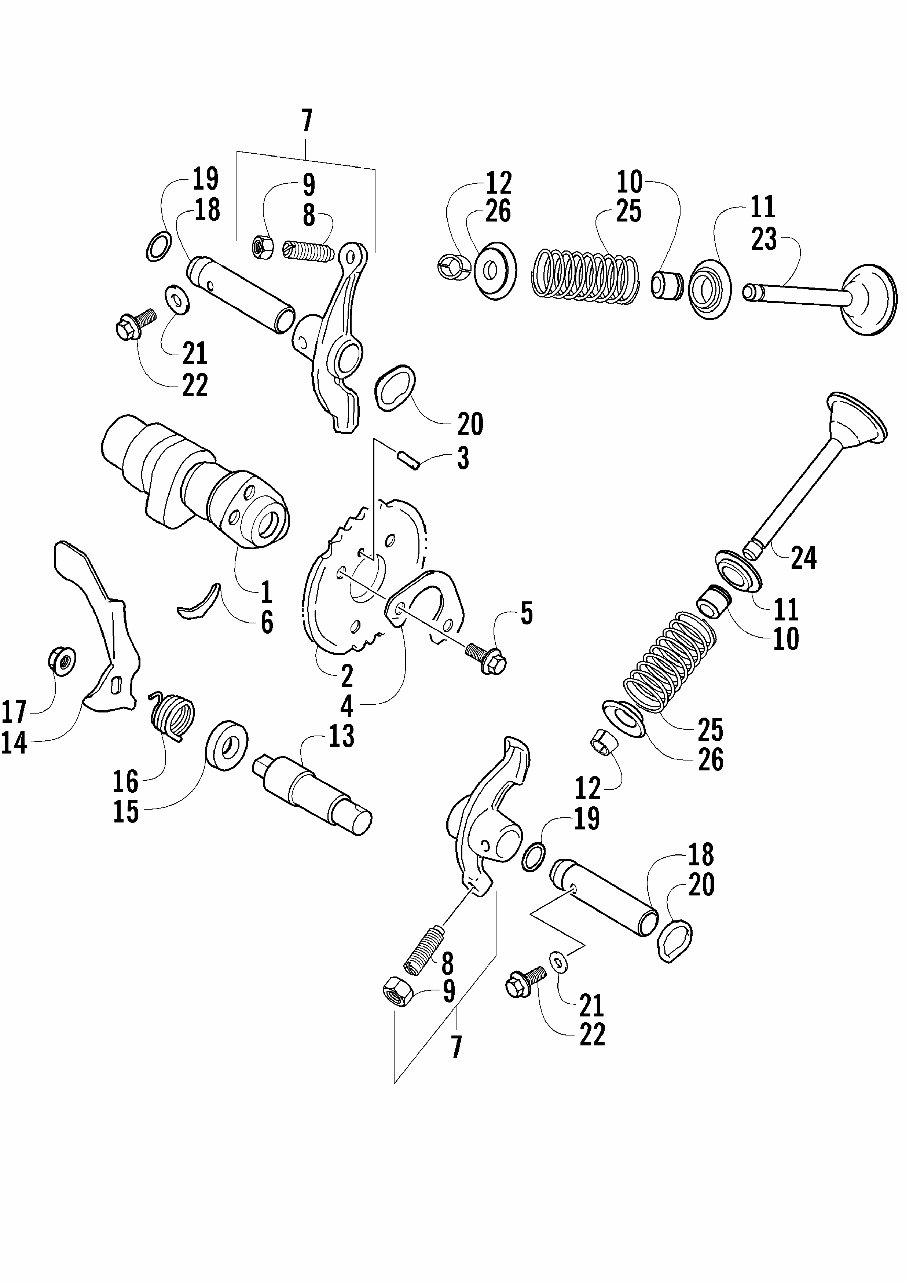

CAMSHAFT/VALVE ASSEMBLY
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
![Arctic Cat 2000 300 4X4 RED A2000ATF4AUSR [Parts Manual] preview img 8](https://cdn.static-repo.emanualonline.com/Other/NASa/16/377651-Arctic-Cat_300-4X4_RED_A2000ATF4AUSR_2000_EPC/8/8.jpg)
2000 300 4X4 (RED) (A2000ATF4AUSR) Page 8 of 85
CAMSHAFT/VALVE ASSEMBLY
Ref # Part Number Qty Description S/P/F
2 3402-275 Camshaft (300) 1
2 3402-326 Sprocket (300) 1 S
3 3423-047 Pin 1
4 3423-284 Washer 1 S
5 3423-013 Screw 2 S
6 3423-071 C-Ring 1 /P
7 3402-288 Arm, Valve Rocker (inc. 8-9) 2
8 3423-287 Screw, Cap 2
9 3423-288 Nut 2
10 3402-226 Seal, Oil 2
11 3402-294 Seat, Valve Spring (300) 2
12 0693-281 Cotter, Valve 4 /P
13 3402-295 Shaft, Decompression Lever 1
14 3402-296 Lever, Decompression 1
15 3402-225 Seal, Oil 1
16 3402-242 Spring 1
17 3004-326 Nut 1 S/P
18 3402-289 Shaft, Rocker Arm 2
19 3423-052 O-Ring 2
20 3423-259 Washer 2
21 3003-290 Gasket 2 /P
22 3004-376 Screw, Cap 2 S/P
23 3402-290 Valve, Intake 1
24 3402-291 Valve, Exhaust 1
25 3402-292 Spring, Valve - Set (300) 2
26 3402-293 Retainer, Spring (300) 2 S
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
![Arctic Cat 2000 300 4X4 RED A2000ATF4AUSR [Parts Manual] preview img 9](https://cdn.static-repo.emanualonline.com/Other/NASa/16/377651-Arctic-Cat_300-4X4_RED_A2000ATF4AUSR_2000_EPC/9/9.jpg)
2000 300 4X4 (RED) (A2000ATF4AUSR) Page 9 of 85
CARBURETOR
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
![Arctic Cat 2000 300 4X4 RED A2000ATF4AUSR [Parts Manual] preview img 10](https://cdn.static-repo.emanualonline.com/Other/NASa/16/377651-Arctic-Cat_300-4X4_RED_A2000ATF4AUSR_2000_EPC/10/10.jpg)
2000 300 4X4 (RED) (A2000ATF4AUSR) Page 10 of 85
CARBURETOR
Ref # Part Number Qty Description S/P/F
0470-348 Complete Assembly (300) 1
1 4505-069 Cover - Assembly 1
2 4505-002 Spring 1
3 4505-003 Ring 1
4 4505-004 E-Clip 1 S
5 4505-005 Ring 1
6 4505-061 Jet Needle J8-4D28-3 1 /P
7 4505-007 Screw 4 S
8 4505-058 Diaphragm 1
9 4505-009 Screw 1
10 4505-067 Plunger Assembly 1
11 4505-011 O-Ring 1 /P
12 4505-012 Washer 1
13 4505-013 Spring 1
14 4505-014 Screw 4
15 4505-016 Screw, Pilot 1 /P
16 4505-059 Jet, Pilot 45 1
17 4505-060 Jet, Main 137.5 (300) 1
17 4505-019 Jet, Main 142.5 1 F
18 4505-057 Needle Jet P-8M 1 /P
18 4505-099 Needle Jet P-6M 1
19 4505-021 Float Assembly 1
20 4505-022 Seat, Valve 2.0 (With Needle) 1
21 4505-044 O-Ring, Float Chamber 1
22 4505-045 Filter 1
23 4505-023 Chamber, Float 1
24 4505-024 Jet, Pilot - Air 1 /P
25 4505-025 Screw 3
26 4505-026 Spring 1
27 4505-062 Adjuster, Cable - Assembly 1
28 4505-028 Cover 1
29 4505-029 Washer 1
30 4505-030 Screw 1
31 4505-031 O-Ring, Cover 1
32 4505-032 Guide, Cable 1
33 4505-033 Washer 2
34 4505-042 Screw 1
35 4505-065 Clip 1
36 4505-064 Hose 2
37 6505-875 O-Ring 1 /P
38 0487-008 Cable, Choke 1
39 4505-039 Spring 1 /P
40 4505-040 Pin 1
41 6505-006 Washer 1
42 0487-007 Cable, Throttle 1
43 4505-063 Clip 1
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
