G8_EH
A1

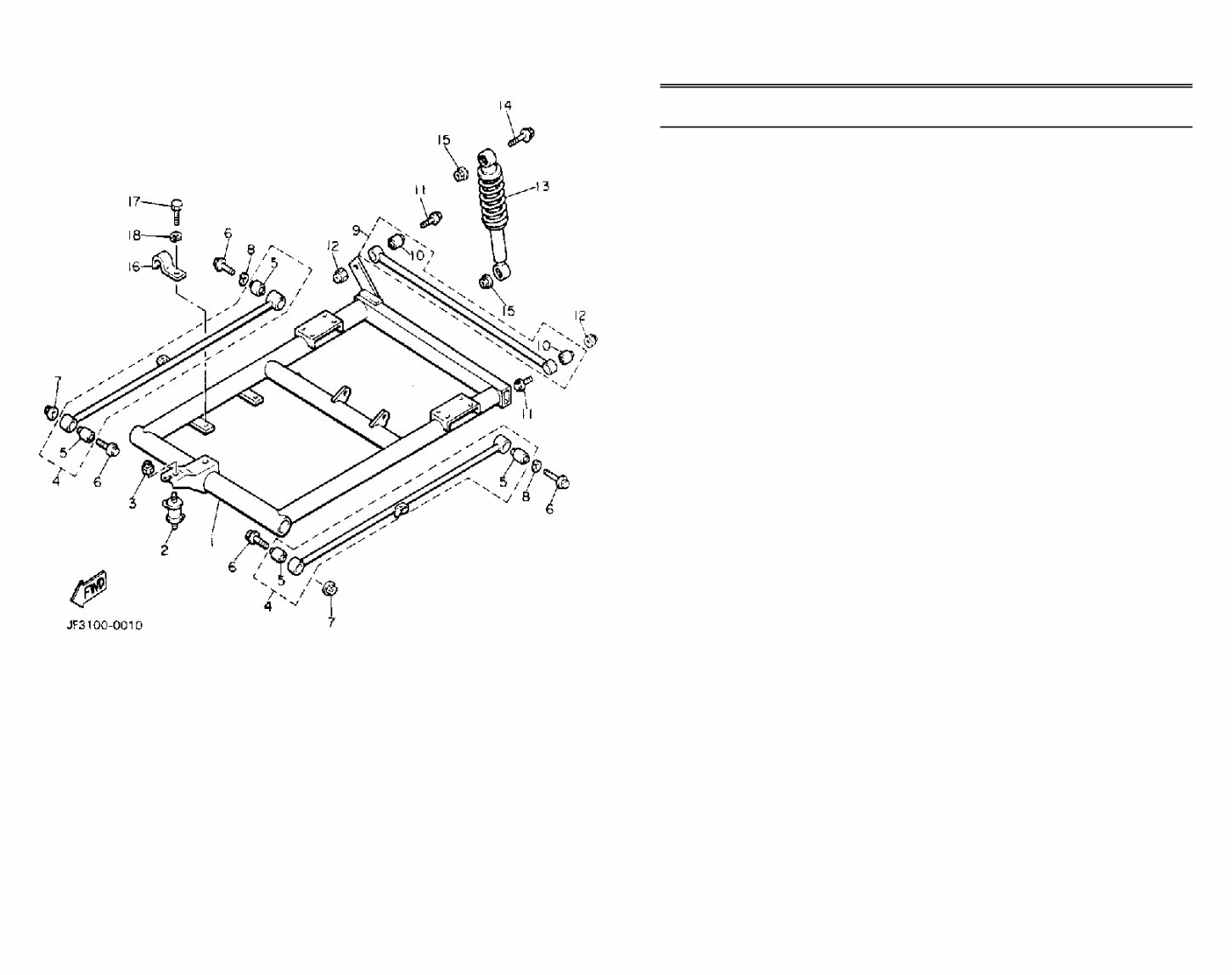

1 JF3-F2110-00-00 REAR ARM COMP. . . . . . . . . . 1
2 J50-22123-00-00 BUSH 1 . . . . . . . . . . . . . . . . . . 1
3 90185-10115-00 NUT, SELF-LOCKING . . . . . . . . 2
4 J50-22171-00-00 ARM, REAR 1 . . . . . . . . . . . . . 2
5 J50-22124-00-00 . BUSH 2 . . . . . . . . . . . . . . . . . 2
6 95812-12065-00 BOLT, FLANGE . . . . . . . . . . . . 4
7 90185-12072-00 NUT, SELF-LOCKING . . . . . . . . 2
8 92901-12100-00 WASHER, SPRING . . . . . . . . . . 2
9 JF2-22172-00-00 ARM, REAR 2 . . . . . . . . . . . . . 1
10 J50-22124-00-00 . BUSH 2 . . . . . . . . . . . . . . . . . 2
11 95812-12065-00 BOLT, FLANGE . . . . . . . . . . . . 2
12 90185-12072-00 NUT, SELF-LOCKING . . . . . . . . 2
13 JF3-22210-01-00 SHOCK ABSORBER
ASSEMBLY, REAR . . . . . . . . . 2
14 95812-12065-00 BOLT, FLANGE . . . . . . . . . . . . 2
15 90185-12072-00 NUT, SELF-LOCKING . . . . . . . . 4
16 90462-20186-00 CLAMP . . . . . . . . . . . . . . . . . . 2
17 97013-06012-00 BOLT . . . . . . . . . . . . . . . . . . . . 2
18 92995-06100-00 WASHER, SPRING . . . . . . . . . . 2
REAR SHOCKS
Ref. Part
No. Number Description Qty Remarks
A2
G8_EH
1 JF3-F2501-10-00 FRAME COMP. . . . . . . . . . . . . 1
2 JF2-F254R-00-00 SUPPORT, BODY MOUNTING . 1
3 95811-08016-00 BOLT, FLANGE . . . . . . . . . . . . 2
4 JF2-7814A-00-00 SEAL, BODY UPPER . . . . . . . . 4
FRAME
Ref. Part
No. Number Description Qty Remarks
A3
G8_EH

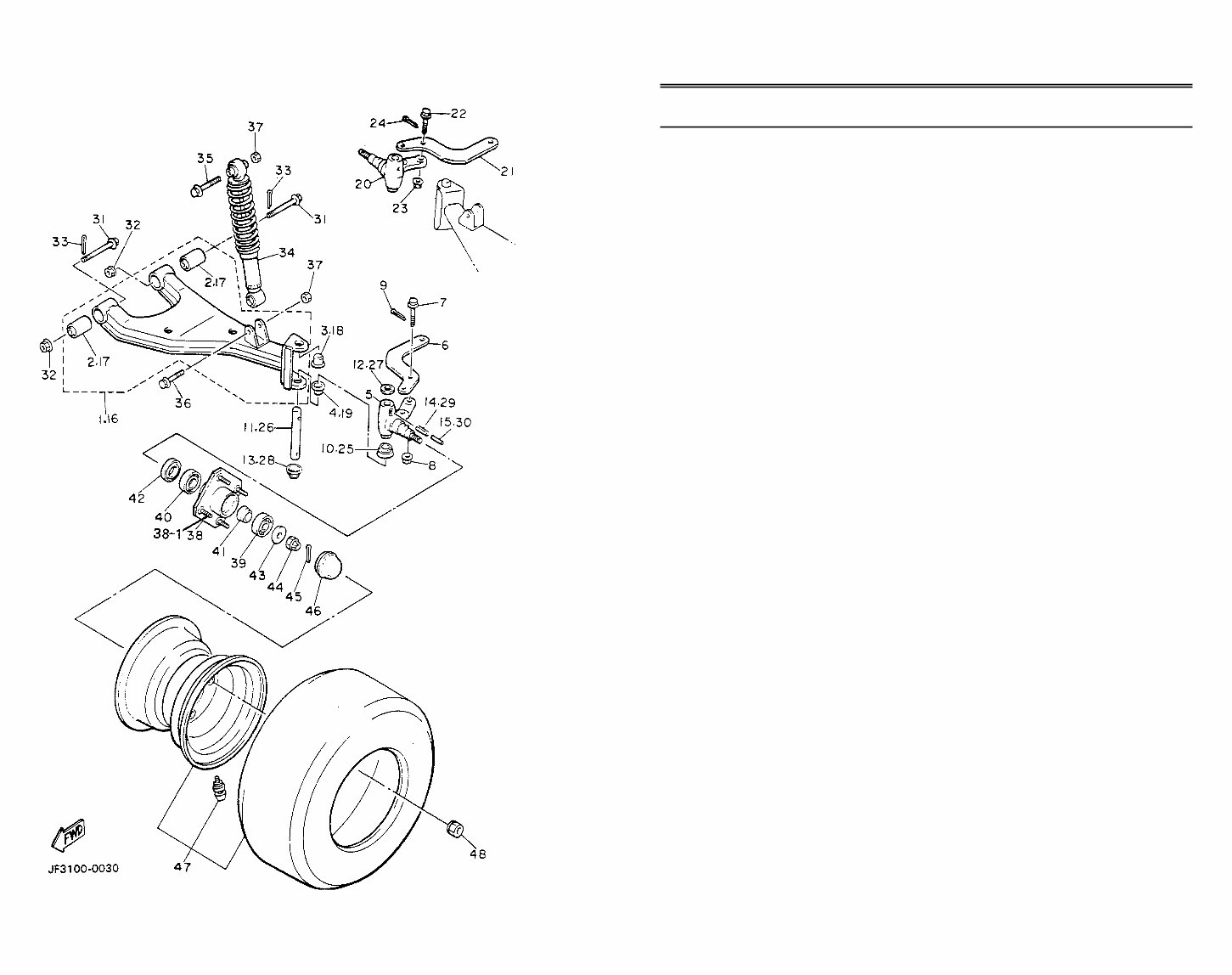

1 JF2-F3570-00-00 FRONT LOWER ARM COMP.
(LEFT) . . . . . . . . . . . . . . . . . . . 1
2 J38-23526-00-00 . BUSH . . . . . . . . . . . . . . . . . . . 2
3 90338-17225-00 PLUG . . . . . . . . . . . . . . . . . . . . 1
4 90386-15139-00 BUSH . . . . . . . . . . . . . . . . . . . . 1
5 J38-23511-01-00 KNUCKLE, STEERING 1 . . . . . 1
6 J38-23512-02-00 ARM, KNUCKLE 1 . . . . . . . . . . 1
7 90105-10360-00 BOLT, FLANGE . . . . . . . . . . . . 2
8 90185-10115-00 NUT, SELF-LOCKING . . . . . . . . 2
9 91401-25020-00 PIN, COTTER . . . . . . . . . . . . . . 2
10 J38-23527-00-00 SEAL, DUST . . . . . . . . . . . . . . 1
11 J55-F3516-00-00 KING PIN, STEERING
KNUCKLE . . . . . . . . . . . . . . . . 1 J38-23516-00
12 90201-156J2-00 WASHER, PLAIN . . . . . . . . . . . 1
13 J38-23528-00-00 SEAL, DUST . . . . . . . . . . . . . . 1
14 91609-60028-00 PIN, SPRING . . . . . . . . . . . . . . 1
15 91609-35028-00 PIN, SPRING . . . . . . . . . . . . . . 1
16 JF2-F3580-00-00 FRONT LOWER ARM COMP.
(RIGHT) . . . . . . . . . . . . . . . . . . 1
17 J38-23526-00-00 . BUSH . . . . . . . . . . . . . . . . . . . 2
18 90338-17225-00 PLUG . . . . . . . . . . . . . . . . . . . . 1
19 90386-15139-00 BUSH . . . . . . . . . . . . . . . . . . . . 1
20 J38-23521-01-00 KNUCKLE, STEERING 2 . . . . . 1
21 J38-23512-02-00 ARM, KNUCKLE 1 . . . . . . . . . . 1
22 90105-10360-00 BOLT, FLANGE . . . . . . . . . . . . 2
23 90185-10115-00 NUT, SELF-LOCKING . . . . . . . . 2
24 91401-25020-00 PIN, COTTER . . . . . . . . . . . . . . 2
25 J38-23527-00-00 SEAL, DUST . . . . . . . . . . . . . . 1
26 J55-F3516-00-00 KING PIN, STEERING
KNUCKLE . . . . . . . . . . . . . . . . 1 J38-23516-00
CONTINUED ON NEXT FRAME ➤
FRONT SUSPENSION-WHEEL
Ref. Part
No. Number Description Qty Remarks
A4
G8_EH
27 90201-156J2-00 WASHER, PLAIN . . . . . . . . . . . 1
28 J38-23528-00-00 SEAL, DUST . . . . . . . . . . . . . . 1
29 91609-60028-00 PIN, SPRING . . . . . . . . . . . . . . 1
30 91609-35028-00 PIN, SPRING . . . . . . . . . . . . . . 1
31 90105-10357-00 BOLT, FLANGE . . . . . . . . . . . . 4
32 90185-10115-00 NUT, SELF-LOCKING . . . . . . . . 4
33 91401-25020-00 PIN, COTTER . . . . . . . . . . . . . . 4
34 JF3-23350-01-00 SHOCK ABSORBER
ASSEMBLY . . . . . . . . . . . . . . . 2
35 97002-10065-00 BOLT . . . . . . . . . . . . . . . . . . . . 2
36 97012-10050-00 BOLT (97002-10050-00) . . . . . . 2
37 95601-10100-00 NUT, U (95602-10100-00) . . . . . 4
38 JG5-WF511-00-00 HUB . . . . . . . . . . . . . . . . . . . . . 2
39 93306-20437-00 BEARING . . . . . . . . . . . . . . . . . 2
40 93306-00511-00 BEARING . . . . . . . . . . . . . . . . . 2
41 90387-241M7-00 COLLAR . . . . . . . . . . . . . . . . . 2
42 93102-30083-00 SEAL, OIL . . . . . . . . . . . . . . . . 2
43 90209-32271-00 WASHER . . . . . . . . . . . . . . . . . 2
44 95601-14100-00 NUT, U (95602-14100-00) . . . . . 2
45 91401-25020-00 PIN, COTTER . . . . . . . . . . . . . . 2
46 J17-25118-00-00 COVER, HUB DUST . . . . . . . . . 2
47 JF2-F5100-00-00 FRONT WHEEL ASSEMBLY- 8 2
48 90179-12262-00 NUT . . . . . . . . . . . . . . . . . . . . . 8
38-1 90114-12800-00 . BOLT, RIBBED NECK . . . . . . 8
FRONT SUSPENSION-WHEEL
Ref. Part
No. Number Description Qty Remarks
A5
G8_EH

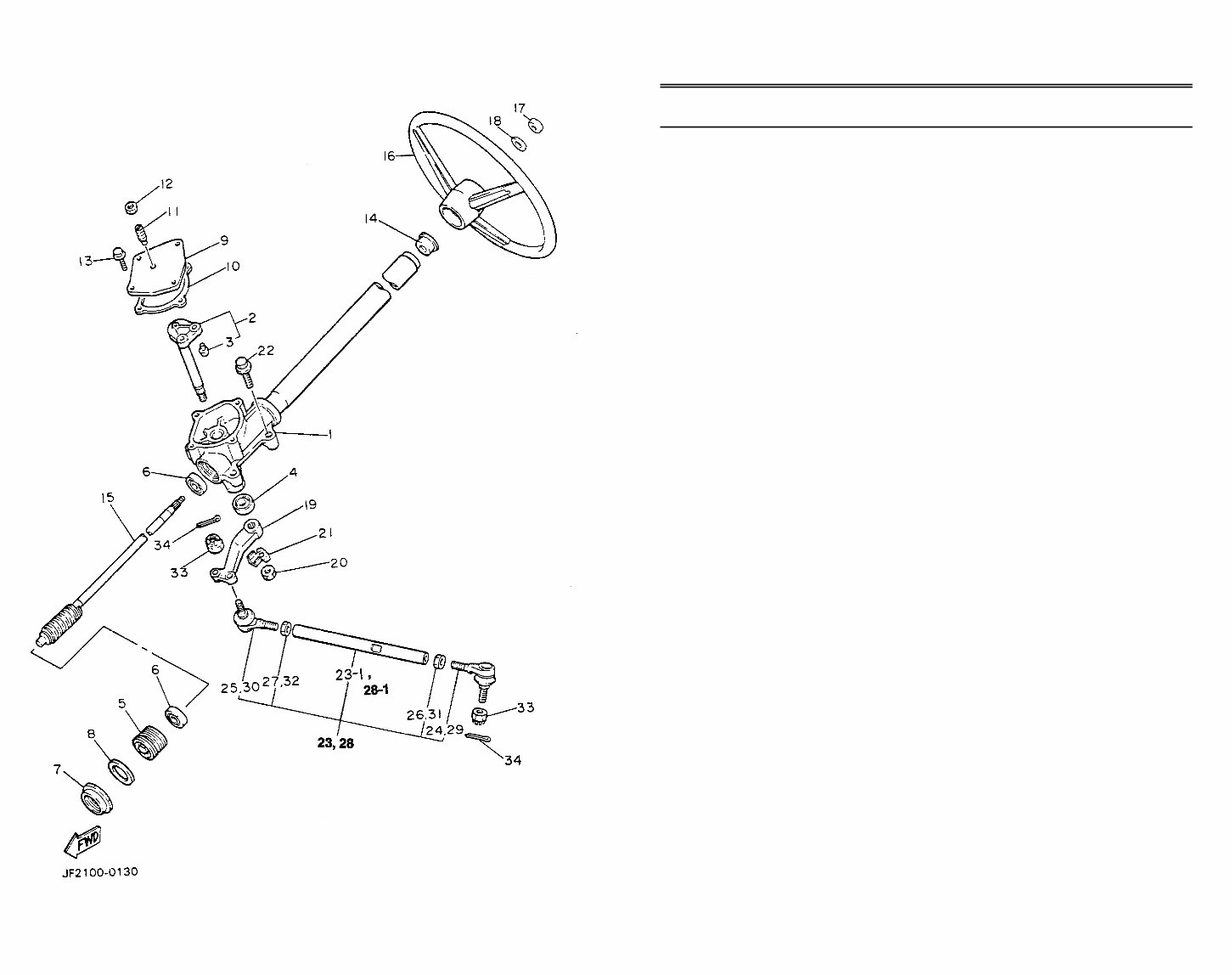

1 JG5-F3811-00-00 COLUMN, STEERING . . . . . . . . 1
2 J38-23816-00-00 ARM, PITMAN . . . . . . . . . . . . . 1
3 J38-23836-00-00 . PIN, PITMAN . . . . . . . . . . . . . 2
4 93102-22314-00 SEAL, OIL . . . . . . . . . . . . . . . . 1
5 J55-F3876-00-00 BOLT . . . . . . . . . . . . . . . . . . . . 1
6 93332-00010-00 BEARING . . . . . . . . . . . . . . . . . 2
7 J10-23877-00-00 NUT . . . . . . . . . . . . . . . . . . . . . 1
8 J10-23444-00-00 WASHER . . . . . . . . . . . . . . . . . 1
9 J55-23818-00-00 COVER, STEERING . . . . . . . . . 1
10 J38-23462-00-00 SEAL, STEERING
(J38-23462-01-00) . . . . . . . . . . . 1
11 J10-23459-00-00 BOLT . . . . . . . . . . . . . . . . . . . . 1
12 90170-08024-00 NUT, HEX. . . . . . . . . . . . . . . . . 1
13 95811-06020-00 BOLT, FLANGE . . . . . . . . . . . . 4
14 J38-23814-00-00 HOLDER, HANDLE UPPER . . . 1
15 J10-23840-00-00 STEERING SHAFT . . . . . . . . . . 1
16 JF2-F3838-00-00 WHEEL, STEERING . . . . . . . . . 1
17 90185-12119-00 NUT, SELF-LOCKING . . . . . . . . 1
18 92901-12200-00 WASHER, WAVE . . . . . . . . . . . 1
19 J38-23826-01-00 ARM, IDLER . . . . . . . . . . . . . . . 1
20 95701-16300-00 NUT, FLANGE . . . . . . . . . . . . . 1
21 90215-16252-00 WASHER, TONGUE . . . . . . . . . 1
22 95812-10050-00 BOLT, FLANGE . . . . . . . . . . . . 4
23 JF2-F3830-00-00 TIE ROD ASSEMBLY . . . . . . . . 1
24 J38-23841-01-00 . JOINT, UNIVERSAL 1 . . . . . . 1
25 J38-23845-01-00 . JOINT, UNIVERSAL 2 . . . . . . 1
26 90170-12055-00 . NUT . . . . . . . . . . . . . . . . . . . . 1
27 90170-12054-00 . NUT . . . . . . . . . . . . . . . . . . . . 1
28 JF2-F3850-00-00 TIE ROD ASSEMBLY . . . . . . . . 1
CONTINUED ON NEXT FRAME ➤
STEERING
Ref. Part
No. Number Description Qty Remarks
A6
G8_EH
29 J38-23841-01-00 . JOINT, UNIVERSAL 1 . . . . . . 1
30 J38-23845-01-00 . JOINT, UNIVERSAL 2 . . . . . . 1
31 90170-12055-00 . NUT . . . . . . . . . . . . . . . . . . . . 1
32 90170-12054-00 . NUT . . . . . . . . . . . . . . . . . . . . 1
33 95601-10100-00 NUT, U (95602-10100-00) . . . . . 4
34 91401-25020-00 PIN, COTTER . . . . . . . . . . . . . . 4
G8E-PARTS-BO-AR ASSEMBLY, HARDWARE . . . . OPTIONAL PART
23-1 J38-23831-02-00 . ROD, TIE . . . . . . . . . . . . . . . . 1
28-1 J38-23837-02-00 . ROD, TIE 2 . . . . . . . . . . . . . . . 1
STEERING
Ref. Part
No. Number Description Qty Remarks
A7
G8_EH

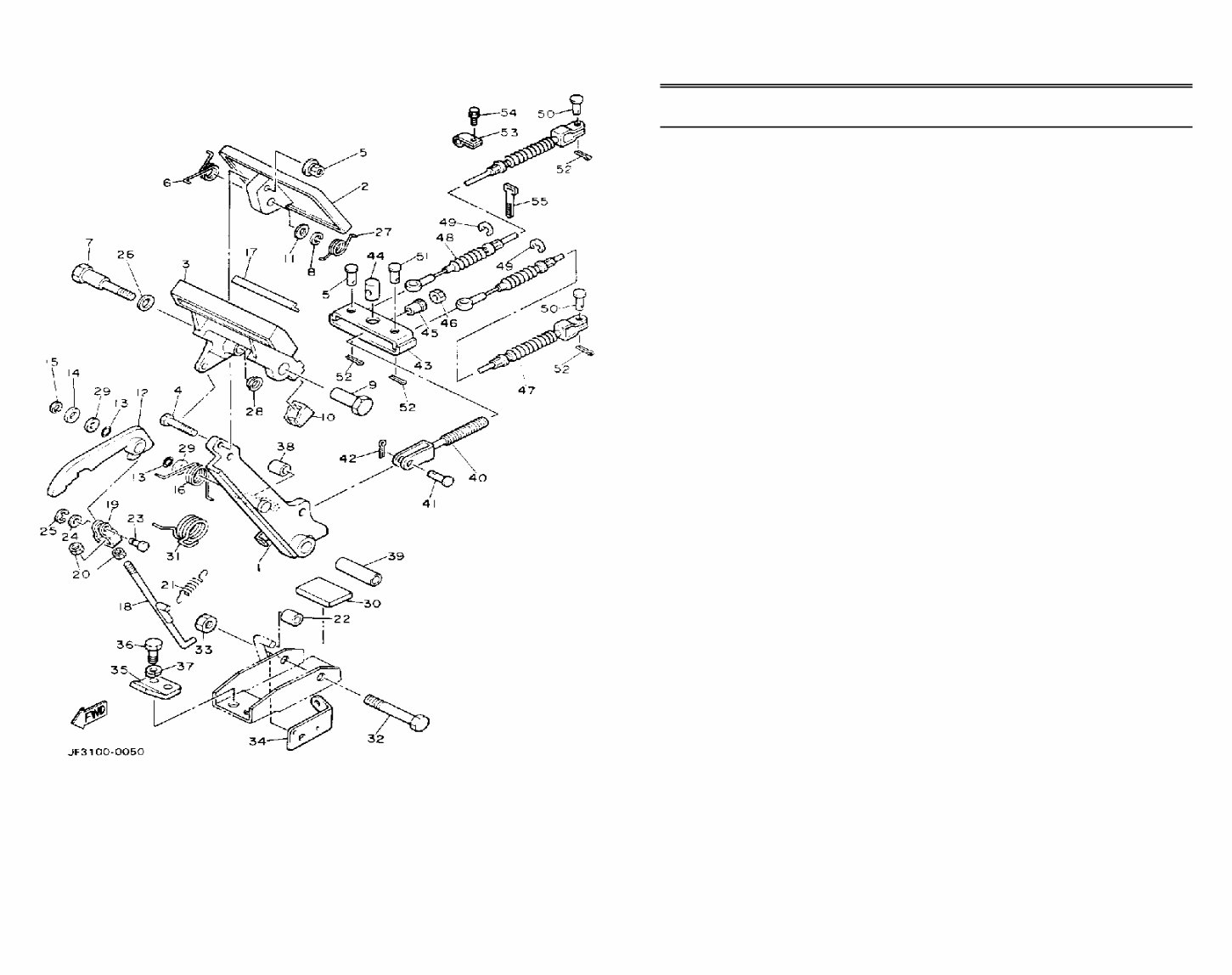

1 J46-27250-01-00 BRAKE ARM CMPLT . . . . . . . . 1
2 J10-27211-00-00 PEDAL, BRAKE . . . . . . . . . . . . 1
3 J17-25670-01-00 PARKING PEDAL COMP. . . . . . 1
4 90101-06555-00 BOLT, HEX. . . . . . . . . . . . . . . . 1
5 90179-07564-00 NUT . . . . . . . . . . . . . . . . . . . . . 1
6 90508-23542-00 SPRING, TORSION . . . . . . . . . 1
7 90109-08669-00 BOLT . . . . . . . . . . . . . . . . . . . . 1
8 92990-08100-00 WASHER . . . . . . . . . . . . . . . . . 1
9 90179-08378-00 NUT . . . . . . . . . . . . . . . . . . . . . 1
10 J17-25679-01-00 DAMPER . . . . . . . . . . . . . . . . . 2
11 92990-08200-00 WASHER, PLAIN . . . . . . . . . . . 1
12 J17-W2561-00-00 SECTOR, PARKING BRAKE . . 1
13 J17-27221-00-00 SEAL, SHAFT . . . . . . . . . . . . . 2
14 92990-10600-00 WASHER, PLATE . . . . . . . . . . . 1
15 99080-07600-00 CIRCLIP (E) . . . . . . . . . . . . . . . 1
16 90508-14548-00 SPRING, TORSION . . . . . . . . . 1
17 J17-25672-01-00 PAD, PARKING . . . . . . . . . . . . 1
18 J17-27231-02-00 ROD, BRAKE . . . . . . . . . . . . . . 1
19 J17-27232-00-00 END, ROD . . . . . . . . . . . . . . . . 1
20 95380-06700-00 NUT . . . . . . . . . . . . . . . . . . . . . 2
21 90506-12277-00 SPRING, TENSION . . . . . . . . . . 1
22 J17-25673-00-00 DAMPER, BRAKE . . . . . . . . . . 1
23 J17-27228-00-00 PIN, LINK JOINT . . . . . . . . . . . 1
24 92901-05600-00 WASHER, PLATE . . . . . . . . . . . 1
25 99080-04600-00 CIRCLIP (E) . . . . . . . . . . . . . . . 1
26 90201-123F2-00 WASHER, PLAIN . . . . . . . . . . . 1
27 90508-26557-00 SPRING, TORSION . . . . . . . . . 1
28 90380-12105-00 BUSH, SOLID . . . . . . . . . . . . . . 1
29 90201-104G8-00 WASHER, PLAIN . . . . . . . . . . . 2
CONTINUED ON NEXT FRAME ➤
BRAKE
Ref. Part
No. Number Description Qty Remarks
A8
G8_EH
30 J17-27245-00-00 PAD, BRAKE PEDAL . . . . . . . . 1
31 90508-40543-00 SPRING, TORSION . . . . . . . . . 1
32 90101-10447-00 BOLT, HEX. . . . . . . . . . . . . . . . 1
33 95601-10100-00 NUT, U (95602-10100-00) . . . . . 1
34 J55-2252M-00-00 BRACKET, . . . . . . . . . . . . . . . . 1
35 J17-27246-00-00 NAIL, BRAKE . . . . . . . . . . . . . . 1
36 97313-08020-00 BOLT, HEXAGON . . . . . . . . . . 2
37 92990-08100-00 WASHER . . . . . . . . . . . . . . . . . 2
38 J17-25673-00-00 DAMPER, BRAKE . . . . . . . . . . 1
39 90387-107F8-00 COLLAR . . . . . . . . . . . . . . . . . 1
40 JF2-25685-00-00 ROD . . . . . . . . . . . . . . . . . . . . . 1
41 91701-10022-00 PIN . . . . . . . . . . . . . . . . . . . . . 1
42 91490-30030-00 PIN, COTTER . . . . . . . . . . . . . . 1
43 JF2-25681-00-00 EQUALIZER, BRAKE . . . . . . . . 1
44 90249-14129-00 PIN . . . . . . . . . . . . . . . . . . . . . 1
45 90179-08261-00 NUT . . . . . . . . . . . . . . . . . . . . . 1
46 95303-08700-00 NUT . . . . . . . . . . . . . . . . . . . . . 1
47 JF2-F6341-00-00 CABLE, BRAKE . . . . . . . . . . . . 1
48 JF2-F6351-00-00 CABLE, BRAKE . . . . . . . . . . . . 1
49 99001-09600-00 CIRCLIP . . . . . . . . . . . . . . . . . . 4
50 91701-08018-00 PIN . . . . . . . . . . . . . . . . . . . . . 2
51 91701-08026-00 PIN . . . . . . . . . . . . . . . . . . . . . 2
52 91490-25020-00 PIN, COTTER . . . . . . . . . . . . . . 4
53 90461-12117-00 CLAMP . . . . . . . . . . . . . . . . . . 2
54 95811-06012-00 BOLT, FLANGE . . . . . . . . . . . . 2
55 25G-83936-01-00 BAND, SWITCH CORD . . . . . . . 1
BRAKE
Ref. Part
No. Number Description Qty Remarks
A9
G8_EH
1 J17-27208-00-00 BACKING PLATE SUB
ASSEMBLY 1 (R.H) . . . . . . . . . 1
2 J55-W2536-00-00 BRAKE SHOE SET . . . . . . . . . 1
3 J17-27206-00-00 ANCHOR BODY COMP. . . . . . . 1
4 J38-27204-00-00 LEVER ASSEMBLY 1 . . . . . . . . 1
5 J55-25358-00-00 . SPRING LEVER . . . . . . . . . . . 1
6 J10-27281-00-00 SPRING, SHOE CLAMP . . . . . . 2
7 J10-27282-00-00 PIN, SHOE HOLD DOWN . . . . . 2
8 90506-20281-00 SPRING, TENSION . . . . . . . . . . 1
9 90506-26191-00 SPRING, TENSION . . . . . . . . . . 1
10 J55-27270-00-00 ADJUSTER ASSEMBLY . . . . . . 1
11 J10-27286-00-00 COVER, DUST . . . . . . . . . . . . . 1
12 92995-06100-00 WASHER, SPRING . . . . . . . . . . 2
13 95380-06600-00 NUT . . . . . . . . . . . . . . . . . . . . . 2
14 90201-121H8-00 WASHER, PLATE . . . . . . . . . . . 1
15 90201-121H9-00 WASHER, PLATE . . . . . . . . . . . 1
16 97011-08016-00 BOLT . . . . . . . . . . . . . . . . . . . . 4
17 92990-08100-00 WASHER . . . . . . . . . . . . . . . . . 4
BRAKE 2
Ref. Part
No. Number Description Qty Remarks
A10
G8_EH
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$32.99
Viewed 82 Times Today
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$32.99
This Parts Manual is an invaluable resource for anyone involved in vehicle repair and maintenance. It features detailed illustrations and Exploded Parts Diagrams, providing a comprehensive overview of all the parts in your vehicle. Whether you are a professional mechanic or a DIY enthusiast, this manual is perfect for disassembly, repair, and reassembly, with all part numbers conveniently listed in sections.
The clear and accessible language makes it easy for anyone to follow, with helpful illustrations, part numbers, and descriptions to assist you in finding the right part. You can easily locate the replacement part you need, note down the part number, and either visit your local dealer or search online for significant cost savings compared to dealer prices.
With the ability to print any necessary page at your convenience, there's no need to spend extra money on having someone else print it for you. The manual is compatible with all PC and MAC computers, and you can access it instantly after payment, eliminating the need for shipping costs.
Language: English
Requirements: Adobe Reader
Say goodbye to paying full dealer prices and enjoy free instant access to this valuable manual. Simply click on the Instant Button above and receive the Parts Manual securely and instantly after payment.
