G2_A5_G2_A
A1
1 J38-11102-00-00 CYLINDER HEAD ASSEMBLY . 1
2 99510-12016-00 PIN, DOWEL . . . . . . . . . . . . . . 2
3 95811-08070-00 BOLT, FLANGE . . . . . . . . . . . . 3
4 95811-08045-00 BOLT, FLANGE . . . . . . . . . . . . 3
5 J38-11181-00-00 GASKET, CYLINDER HEAD 1 . 1
6 95612-08618-00 BOLT, STUD . . . . . . . . . . . . . . 2
7 NGK-B5ES0-00-00 PLUG, SPARK (NGK B5ES) . . . 1
8 J38-11191-00-00 COVER, CYLINDER HEAD 1 . . 1
9 J38-11116-00-00 . JOINT, BREATHER . . . . . . . . 2
10 J38-24461-00-00 . PIPE, JOINT . . . . . . . . . . . . . . 1
11 J38-11193-00-00 GASKET, head cover 1 . . . . . . 1
12 91316-06025-00 BOLT . . . . . . . . . . . . . . . . . . . . 4
13 92990-06600-00 WASHER, PLATE . . . . . . . . . . . 4
14 90445-130F8-00 HOSE . . . . . . . . . . . . . . . . . . . . 1
15 90467-11044-00 CLIP . . . . . . . . . . . . . . . . . . . . 2
CYLINDER
Ref. Part
No. Number Description Qty Remarks
A2
G2_A5_G2_A
1 J38-11400-00-00 CRANKSHAFT ASSEMBLY . . . 1
2 7A9-11633-00-00 . PIN, PISTON . . . . . . . . . . . . . 1
93450-19047-00 . CIRCLIP . . . . . . . . . . . . . . . . . 1
93450-19047-00 . CIRCLIP . . . . . . . . . . . . . . . . . 2
99999-01891-00 PISTON (STD)
(J38-11631-00-A0) . . . . . . . . . . 1 UR STD
99999-01892-00 PISTON (0.25MM O/S)
(J38-11635-00) . . . . . . . . . . . . . 1 Alt. Part
99999-01893-00 PISTON (0.50MM O/S)
(J38-11636-00) . . . . . . . . . . . . . 1 Alt. Part
J38-11631-01-A0 . PISTON (STD) . . . . . . . . . . . . 1
J38-11635-01-00 . PISTON (0.25MM O/S) . . . . . . 1
J38-11636-01-00 . PISTON (0.50MM O/S) . . . . . . 1
JA9-11633-00-00 . PIN, piston . . . . . . . . . . . . . . . 1
3 J38-11610-00-00 PISTON RING SET (STD) . . . . . 1 UR
J38-11610-10-00 PISTON RING SET
(0.25MM O/S) . . . . . . . . . . . . . . 1 Alt. Part
4 2F1-11633-00-00 PIN, piston . . . . . . . . . . . . . . . . 1
5 93450-19052-00 CIRCLIP, INNER . . . . . . . . . . . . 2
6 J38-11650-00-00 CONNECTING ROD ASSEMBLY 1
7 J38-11654-00-00 . BOLT, CONNECTING ROD . . 2
8 90179-08327-00 . NUT . . . . . . . . . . . . . . . . . . . . 2
9 J38-11656-00-00 BEARING, CON-ROD . . . . . . . . 2 UR Brown
J38-11656-10-00 BEARING, CON-ROD . . . . . . . . 2 UR Black
J38-11656-20-00 BEARING, CON-ROD . . . . . . . . 2 UR Blue
10 J38-11657-00-00 SPLASHER, OIL . . . . . . . . . . . . 1
11 90280-16053-00 KEY, WOODRUFF
(90280-05048-00) . . . . . . . . . . . 1
12 92901-16100-00 WASHER, SPRING . . . . . . . . . . 1
13 90170-16182-00 NUT, HEXAGON . . . . . . . . . . . . 1
CONTINUED ON NEXT FRAME ➤

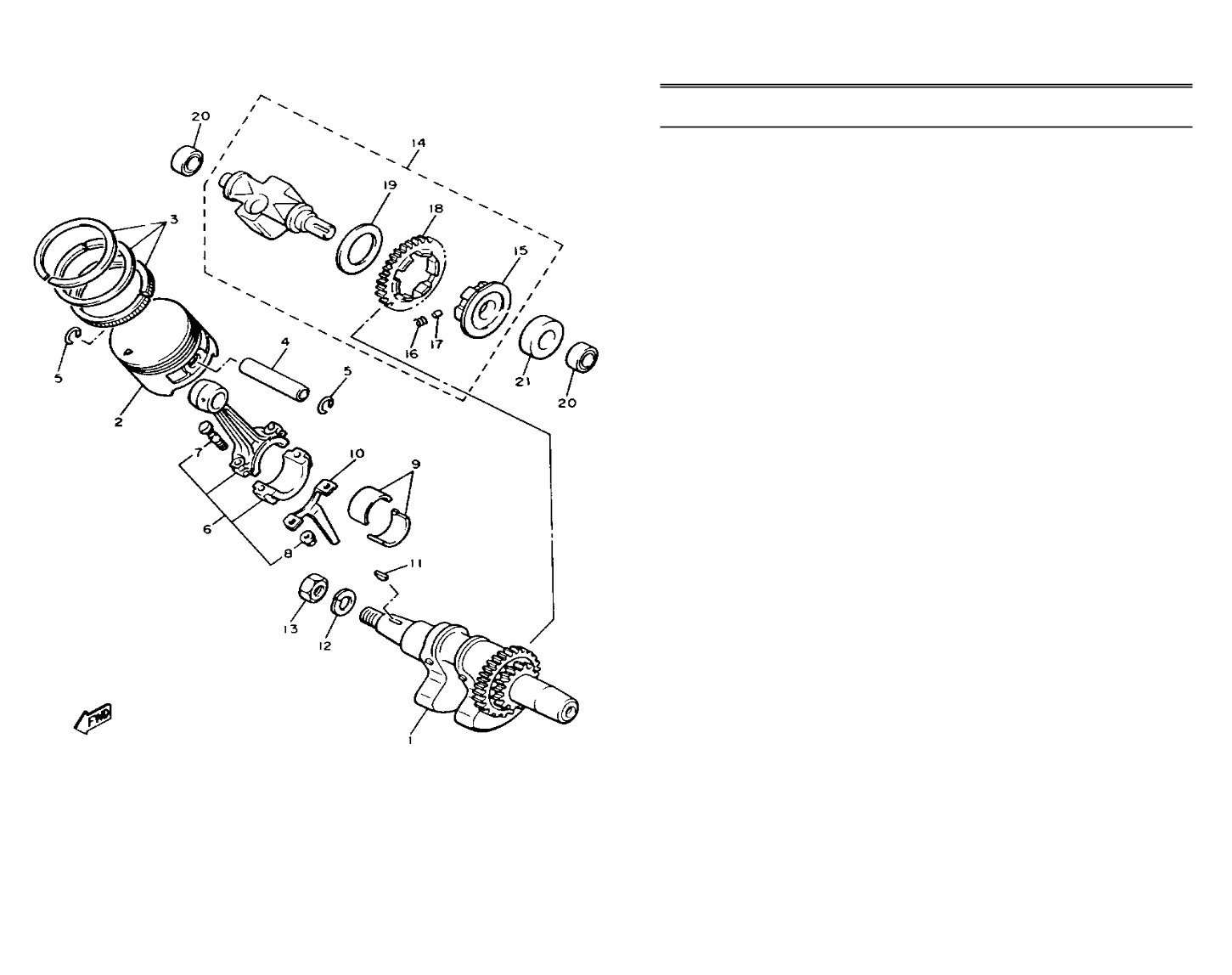

CRANKSHAFT - PISTON
Ref. Part
No. Number Description Qty Remarks
A3
G2_A5_G2_A
14 J38-11500-00-00 BALANCER ASSEMBLY . . . . . 1
15 25G-11496-00-00 . BOSS, buffer . . . . . . . . . . . . . 1
16 90501-21133-00 . SPRING, COMPRESSION . . . . 6
17 93605-10090-00 . PIN, DOWEL . . . . . . . . . . . . . 3
18 J38-11531-00-00 . GEAR, BALANCE WT . . . . . . 1
19 90201-201G9-00 . WASHER, PLATE . . . . . . . . . . 1
20 93318-31507-00 BEARING, cylindrical . . . . . . . . 2
21 90387-152M7-00 COLLAR . . . . . . . . . . . . . . . . . 1
CRANKSHAFT - PISTON
Ref. Part
No. Number Description Qty Remarks
A4
G2_A5_G2_A
1 99999-01846-00 VALVE, intake (J38-12111-00) . 1
J38-12111-01-00 . VALVE, INTAKE . . . . . . . . . . . 1
J38-12117-01-00 . RETAINER, VALVE SPR . . . . 1
J38-12118-00-00 . COTTER, VALVE . . . . . . . . . . 1
2 99999-01847-00 VALVE, exhaust (J38-12121-00) 1
J38-12117-01-00 . RETAINER, VALVE SPR . . . . 1
J38-12121-01-00 . VALVE, EXHAUST . . . . . . . . . 1
3 90501-264A9-00 SPRING, COMPRESSION . . . . . 2
4 J38-12117-00-00 RETAINER, valve spring . . . . . 2
5 4G0-12118-00-00 COTTER, VALVE . . . . . . . . . . . 4
6 J38-12219-00-00 SEAT, spring . . . . . . . . . . . . . . 1
7 J38-12151-00-00 ARM, valve rocker . . . . . . . . . . 1
8 J38-12161-00-00 ARM, valve rocker 2 . . . . . . . . 1
9 J38-12156-00-00 SHAFT, ROCKER 2 . . . . . . . . . 1
10 J38-12154-00-00 ROD, VALVE PUSH . . . . . . . . . 2
11 J38-12153-00-00 LIFTER, VALVE . . . . . . . . . . . . 2
12 J38-12171-00-00 CAMSHAFT 1 . . . . . . . . . . . . . . 1
13 J38-12159-00-00 SCREW, VALVE ADJUSTING . . 2
14 J38-12152-00-00 SUPPORT, ROCKER ARM . . . . 1
15 95811-06030-00 BOLT, FLANGE (95802-06030) . 2
16 91810-09014-00 PIN, DOWEL . . . . . . . . . . . . . . 2
17 90201-127J1-00 WASHER, plate . . . . . . . . . . . . 1
18 5H0-12119-00-00 SEAL, VALVE STEM . . . . . . . . 1
19 90170-06128-00 NUT . . . . . . . . . . . . . . . . . . . . . 2

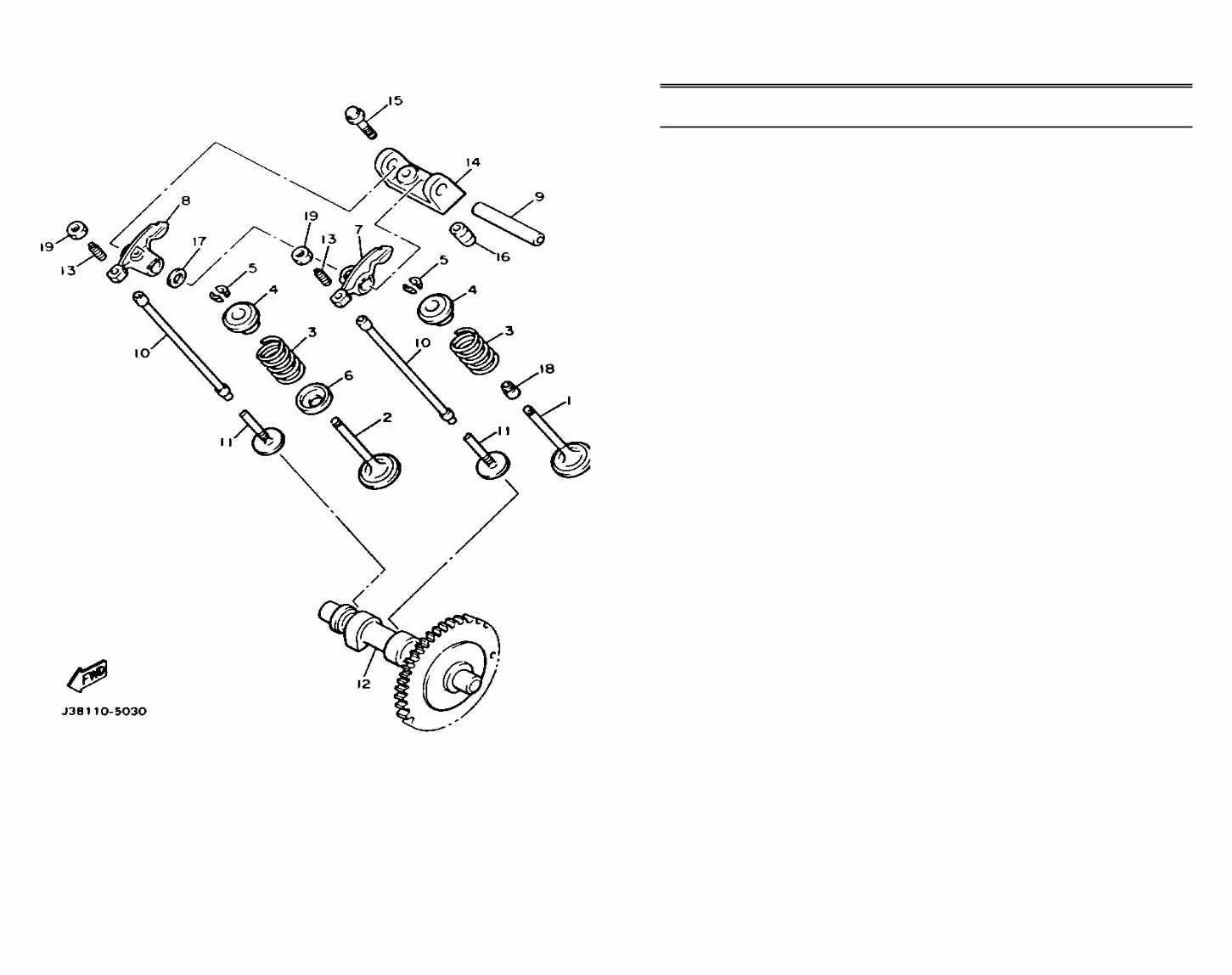

VALVE
Ref. Part
No. Number Description Qty Remarks
A5
G2_A5_G2_A
1 97780-60116-00 . SCREW, TAPPING . . . . . . . . . 4
99999-01691-00 CASE, fan (J38-12621-00) . . . . 1
J38-12621-01-00 . CASE, FAN . . . . . . . . . . . . . . 1
2 95811-06020-00 BOLT, FLANGE . . . . . . . . . . . . 9
3 J38-12640-00-00 FAN CASE COVER COMP. . . . 1
4 J38-12651-01-00 AIR SHROUD, CYLINDER 1 . . . 1
5 J38-12652-00-00 AIR SHROUD, CYLINDER 2 . . . 1
6 98503-06014-00 SCREW, PAN HEAD
(92501-06015) . . . . . . . . . . . . . 4
7 92990-06600-00 WASHER, PLATE . . . . . . . . . . . 4
8 90465-10129-00 CLAMP . . . . . . . . . . . . . . . . . . 1
9 90109-06513-00 BOLT . . . . . . . . . . . . . . . . . . . . 4
10 J38-12631-00-00 DEFLECTOR 1 . . . . . . . . . . . . . 1
11 90267-48086-00 RIVET, BLIND . . . . . . . . . . . . . 2
12 90201-04325-00 WASHER, PLATE . . . . . . . . . . . 2
13 (90464-13066-00) CLAMP . . . . . . . . . . . . . . . . . . 1

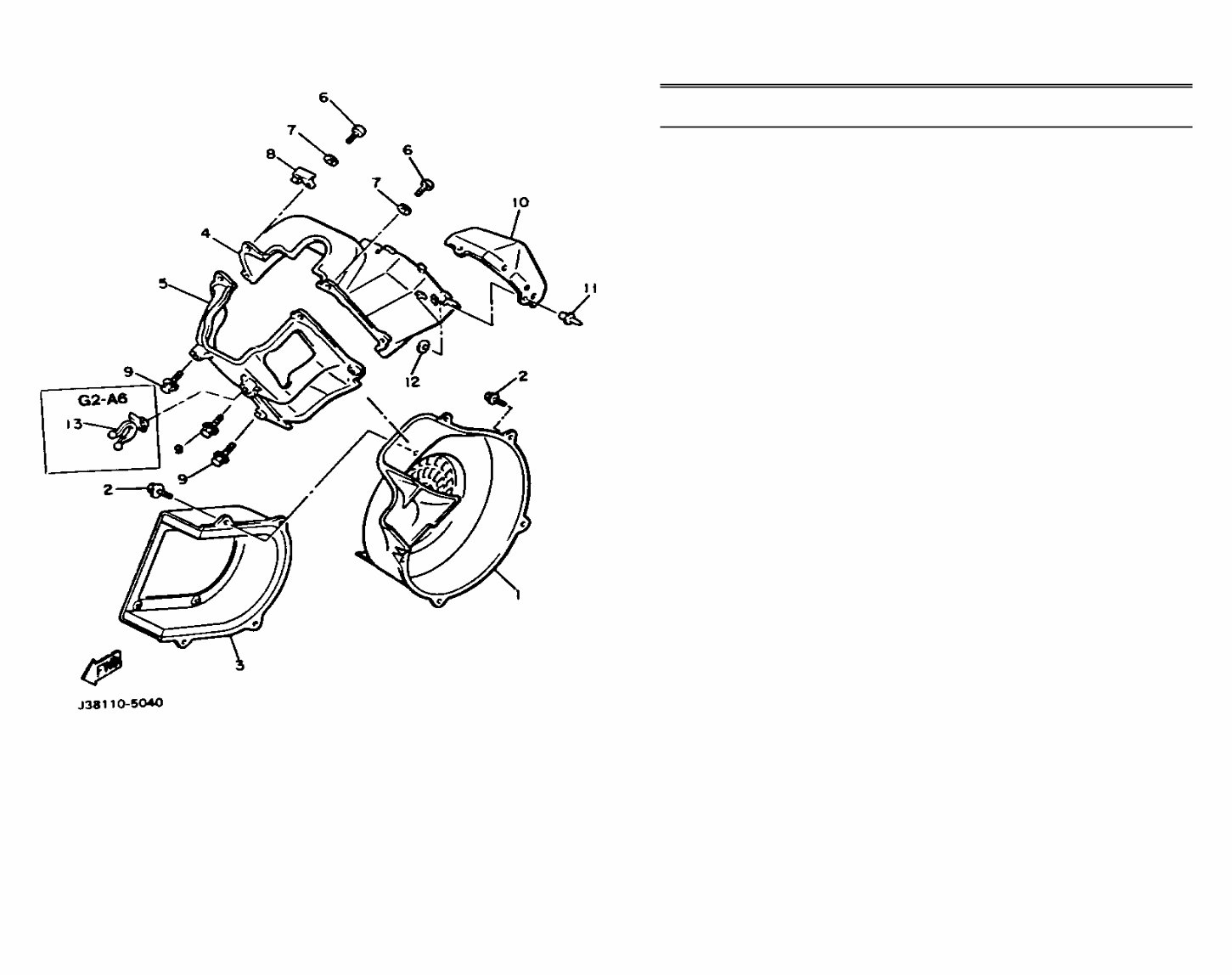

AIR SHROUD - FAN
Ref. Part
No. Number Description Qty Remarks
A6
G2_A5_G2_A
1 J38-13556-00-00 GASKET, MANIFOLD . . . . . . . . 1
2 J38-13596-00-00 JOINT, CARBURETOR 2 . . . . . 1
3 J38-13557-00-00 GASKET . . . . . . . . . . . . . . . . . 1
4 98580-06030-00 SCREW PAN HEAD . . . . . . . . . 2
5 92995-06100-00 WASHER, SPRING
(92990-06100-00) . . . . . . . . . . . 2
6 92990-06600-00 WASHER, PLATE . . . . . . . . . . . 2
7 95601-06200-00 NUT, U FLANGE . . . . . . . . . . . 2
8 J38-14453-01-00 JOINT, AIR CLEANER 1 . . . . . . 1
9 90460-43279-00 CLAMP, HOSE . . . . . . . . . . . . . 1
10 90460-53239-00 CLAMP, HOSE . . . . . . . . . . . . . 1
11 J38-14410-01-00 AIR CLEANER ASSEMBLY 1 . . 1
12 90480-14100-00 . GROMMET . . . . . . . . . . . . . . . 2
13 J38-14412-02-00 . CAP, CLEANER CASE 1 . . . . 1
14 55K-14476-00-00 . SEAL . . . . . . . . . . . . . . . . . . . 1
15 J38-14450-00-00 . ELEMENT ASSEMBLY, AIR
CLEANER . . . . . . . . . . . . . . . 1
16 J38-14484-00-00 . PLATE, CLEANER CASE
FITTING . . . . . . . . . . . . . . . . . 1
17 J38-14479-00-00 . FUNNEL . . . . . . . . . . . . . . . . . 1
18 J38-14419-00-00 . PIPE . . . . . . . . . . . . . . . . . . . 1
19 90480-18277-00 . GROMMET . . . . . . . . . . . . . . . 1
20 90480-13238-00 . GROMMET . . . . . . . . . . . . . . . 2
21 J10-14436-00-00 . HOOK . . . . . . . . . . . . . . . . . . 4
22 J38-14416-00-00 . GASKET, AIR CLEANER . . . . 1
23 J38-1441F-00-00 . PARTN, AIR CLNR CSAIR
CLEANER CASE . . . . . . . . . . 1
24 90267-40073-00 . RIVET, BLIND . . . . . . . . . . . . 4
25 J10-14417-00-00 . COVER 1 . . . . . . . . . . . . . . . . 1
26 J38-1446A-00-00 . SURGE TANK ASSEMBLY . . . 1
CONTINUED ON NEXT FRAME ➤

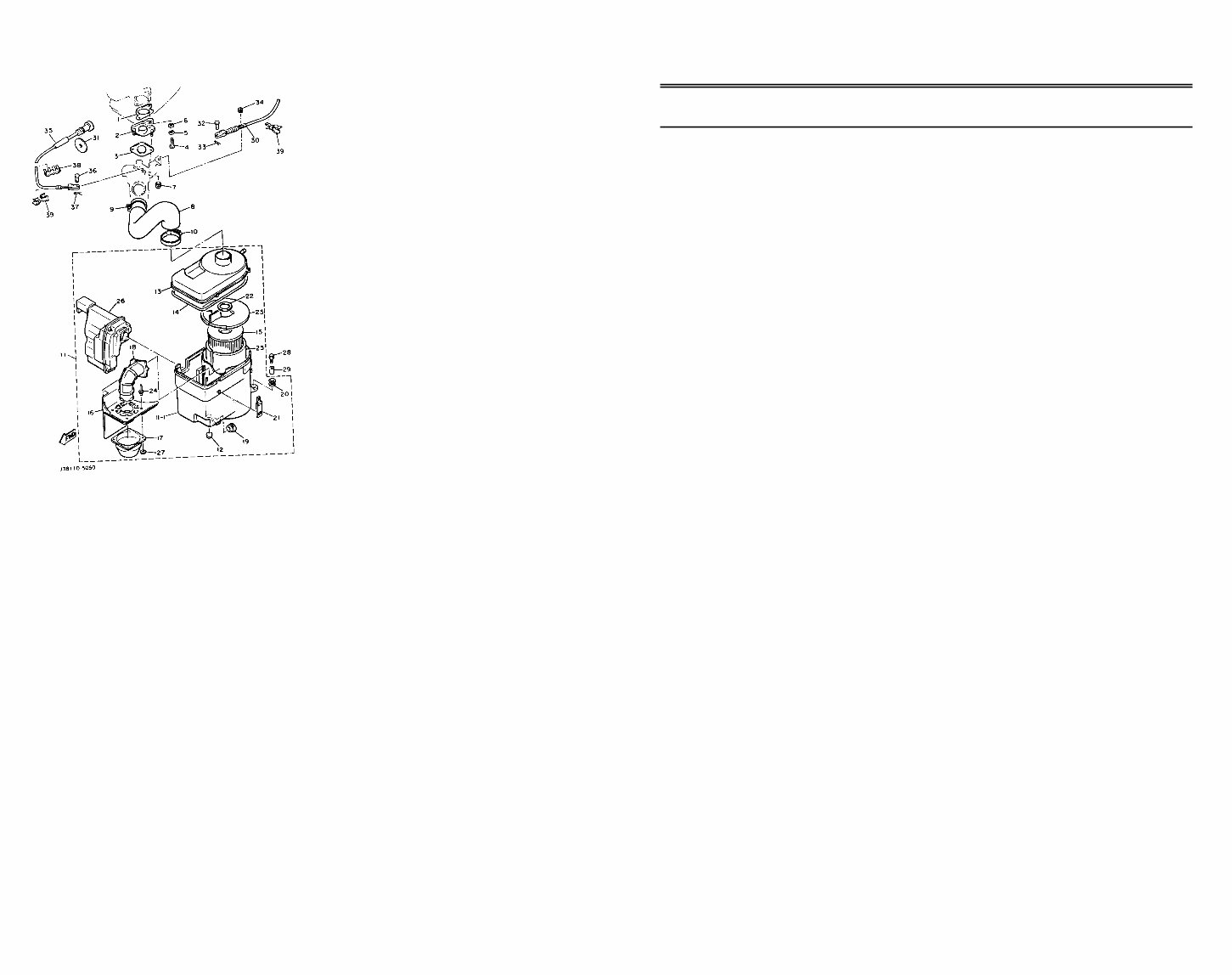

AIR FILTER
Ref. Part
No. Number Description Qty Remarks
A7
G2_A5_G2_A
27 92990-04200-00 . WASHER, PLAIN . . . . . . . . . . 4
28 90119-06097-00 BOLT, WITH WASHER . . . . . . . 2
29 90387-07390-00 COLLAR . . . . . . . . . . . . . . . . . 2
30 J38-26312-00-00 CABLE, THROTTLE 2 . . . . . . . 1
31 90201-114E6-00 WASHER, PLATE . . . . . . . . . . . 1
32 91701-05010-00 PIN, CYLINDER. HEAD . . . . . . 2
33 90468-10050-00 CLIP . . . . . . . . . . . . . . . . . . . . 2
34 99080-07600-00 CIRCLIP . . . . . . . . . . . . . . . . . . 1
35 JF2-F6331-00-00 CABLE, STARTER 1 . . . . . . . . 1
36 91701-05010-00 PIN, CYLINDER. HEAD . . . . . . 1
37 90468-10050-00 CLIP . . . . . . . . . . . . . . . . . . . . 1
38 90468-07179-00 CLIP . . . . . . . . . . . . . . . . . . . . 1
39 90468-80181-00 CLIP . . . . . . . . . . . . . . . . . . . . 2
11-1 J38-14411-00-00 . CASE, AIR CLEANER 1 . . . . . 1
AIR FILTER
Ref. Part
No. Number Description Qty Remarks
A8
G2_A5_G2_A
1 J38-14101-00-00 CARBURETOR ASSEMBLY 1 . 1
2 98501-05010-00 . SCREW, PAN HEAD . . . . . . . 1
3 92990-05100-00 . WASHER, SPRING . . . . . . . . . 1
4 J10-14243-00-00 . PLATE . . . . . . . . . . . . . . . . . . 1
5 75G-14211-00-00 . SCREW, PILOT ADJUSTING . 1
6 620-14212-00-00 . SPRING, PILOT ADJUSTING . 2
7 J10-14122-00-00 . SCREW, THROTTLE . . . . . . . 1
8 J38-14186-00-00 . PIN, FLOAT . . . . . . . . . . . . . . 1
9 J38-14185-00-00 . FLOAT . . . . . . . . . . . . . . . . . . 1
10 620-14142-67-00 . JET, PILOT (#67.5) . . . . . . . . . 1 Alt. Part
620-14142-72-00 . JET, PILOT (#72.5) . . . . . . . . . 1 Std
11 J38-14133-00-00 . SPRING, THROTTLE STOP . . 1
12 J38-14581-00-00 . BRACKET . . . . . . . . . . . . . . . 1
13 98580-06010-00 . SCREW, PAN HEAD . . . . . . . 1
14 92995-06100-00 . WASHER, SPRING
(92990-06100-00) . . . . . . . . . . 1
15 98701-05008-00 . SCREW, FLAT HEAD . . . . . . . 2
16 J38-14291-00-00 . BRACKET 1 . . . . . . . . . . . . . . 1
17 3G2-1423E-41-00 . JET, MAIN (#103.8) . . . . . . . . 1 Alt. Part
3G2-1423E-42-00 . JET, MAIN (#106.3) . . . . . . . . 1 Std
18 796-14184-00-00 . GASKET, FLOAT CHMBR . . . 1
19 127-14198-00-00 . GASKET . . . . . . . . . . . . . . . . 1
20 7R1-14162-00-00 . BOLT, HOLDING . . . . . . . . . . 1
21 J10-14597-00-00 . WASHER . . . . . . . . . . . . . . . . 1
22 J38-14150-00-00 . NEEDLE ASSEMBLY . . . . . . . 1
23 J10-14131-00-00 SPRING, THROTTLE . . . . . . . . 1 OPTIONAL PART
J10-14535-00-00 BUSHING, THROTTLE SHAFT . 1 OPTIONAL PART
J10-14582-00-00 ARM, CHOKE . . . . . . . . . . . . . . 1 OPTIONAL PART
J38-14141-00-00 . NOZZLE, MAIN . . . . . . . . . . . 1
CONTINUED ON NEXT FRAME ➤

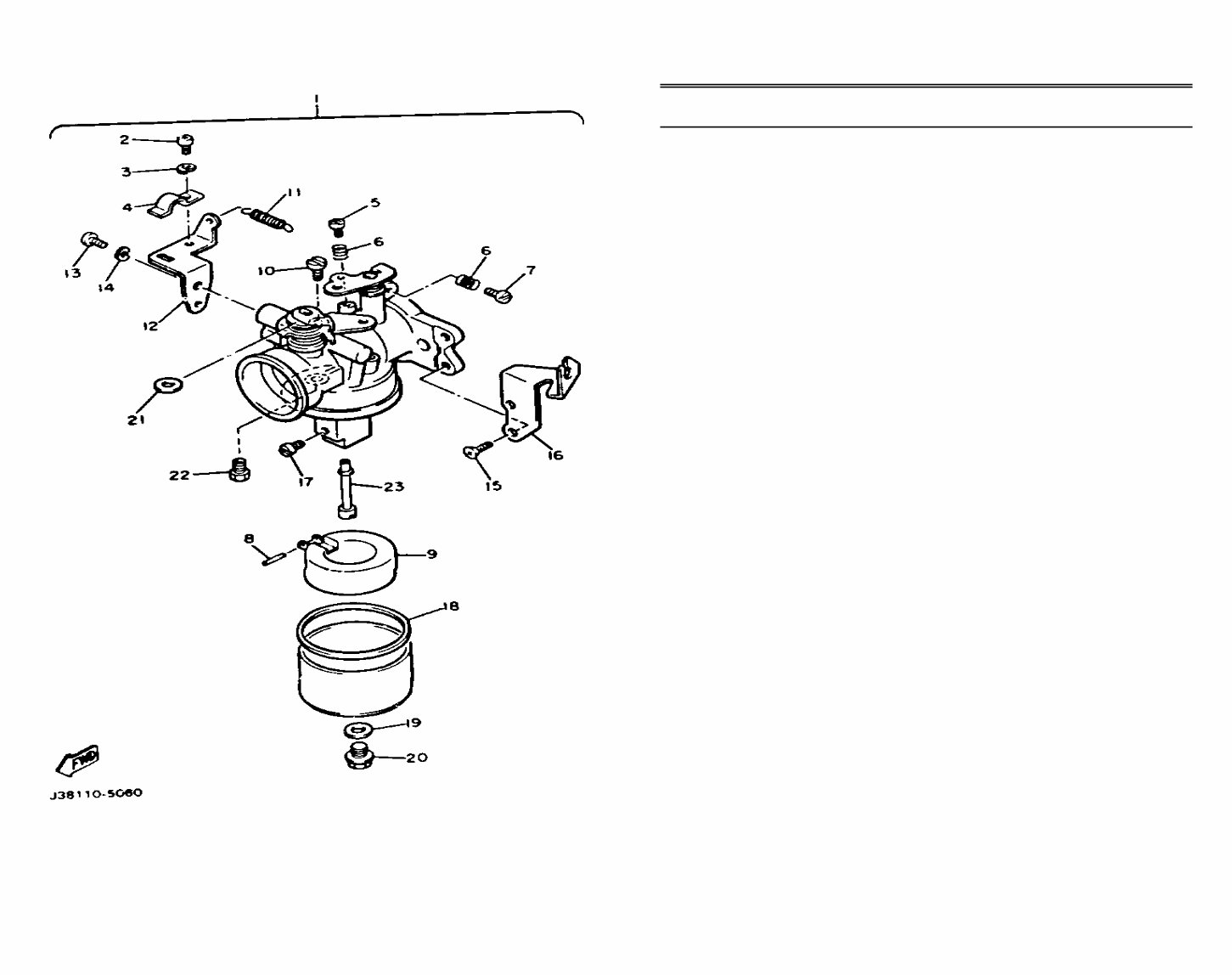

CARBURETOR
Ref. Part
No. Number Description Qty Remarks
A9
G2_A5_G2_A
23 J38-14202-09-00 THROTTLE LEVER COMP . . . . 1 OPTIONAL PART
J38-14218-00-00 SPRING, LOWER CHOKE . . . . 1 OPTIONAL PART
J38-14589-00-00 SPRING, UPPER CHOKE . . . . . 1 OPTIONAL PART
CARBURETOR
Ref. Part
No. Number Description Qty Remarks
A10
G2_A5_G2_A
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$32.99
Viewed 36 Times Today
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$32.99
Yamaha G2A5, G2A Golf Cart Parts Catalog
The Yamaha G2A5, G2A Golf Cart Parts Catalog provides complete exploded diagrams and OEM part numbers for the gasoline-powered G2A5 and G2A models. Designed for mechanics, parts managers, and golf cart owners, this catalog ensures precise parts identification for maintenance, repair, and restoration of Yamaha's classic four-cycle golf carts.
Models Covered:
- Yamaha G2A5 Golf Cart (Gasoline)
- Yamaha G2A Golf Cart (Gasoline)
What’s Inside the Yamaha G2A5, G2A Golf Cart Parts Catalog
This parts catalog includes exploded diagrams, part numbers, and component listings for:
Engine Assembly
Breakdowns of cylinder head, crankshaft, piston assemblies, and related components.
Fuel and Carburetion Systems
Parts for the fuel tank, carburetor, air cleaner assemblies, and intake components.
Electrical System
Listings for ignition coils, starter motors, and related electrical hardware.
Chassis and Frame Components
Frame, body panels, suspension arms, and mounting hardware diagrams.
Steering and Front Suspension
Details for steering shafts, columns, tie rods, and front hub assemblies.
Rear Axle and Differential
Exploded views for rear axle, drive belt, and clutch components.
Brake System
Coverage for brake pedals, cables, drums, brake arms, and springs.
Body and Accessories
Exploded diagrams for seats, panels, controls, and optional accessories.
How to Access the Yamaha G2A5, G2A Parts Catalog
The Yamaha G2A5, G2A Golf Cart Parts Catalog is available for instant download in PDF format. It is compatible with Windows, macOS, iOS, Android, and any device with a PDF reader such as Adobe Reader.
Why This Yamaha G2A5, G2A Parts Catalog is Essential
Access to OEM diagrams and part numbers ensures the correct components are ordered and installed, reducing downtime and repair errors. This catalog is an essential tool for anyone maintaining or restoring Yamaha G2-series gas-powered golf carts.
Get Your Yamaha G2A5, G2A Golf Cart Parts Catalog Today
Download your copy today and simplify your repair and restoration projects with accurate OEM parts diagrams and listings for Yamaha’s iconic G2A5 and G2A gasoline golf carts.
Printable: Yes
Language: English
Compatibility: Works on all devices (Windows, Mac, iOS, Android)
Requirements: PDF reader (e.g., Adobe Reader)
