AIRPLANE PARTS CATALOG SENECA IV PA-34-220T (SERIAL NUMBERS 3447001 THRU 3447029) SENECA V PA-34-220T (SERIAL NUMBERS 3449001 AND UP) PIPER AIRCRAFT, INC. Part Number: 761-887 Revised: January 7, 2021

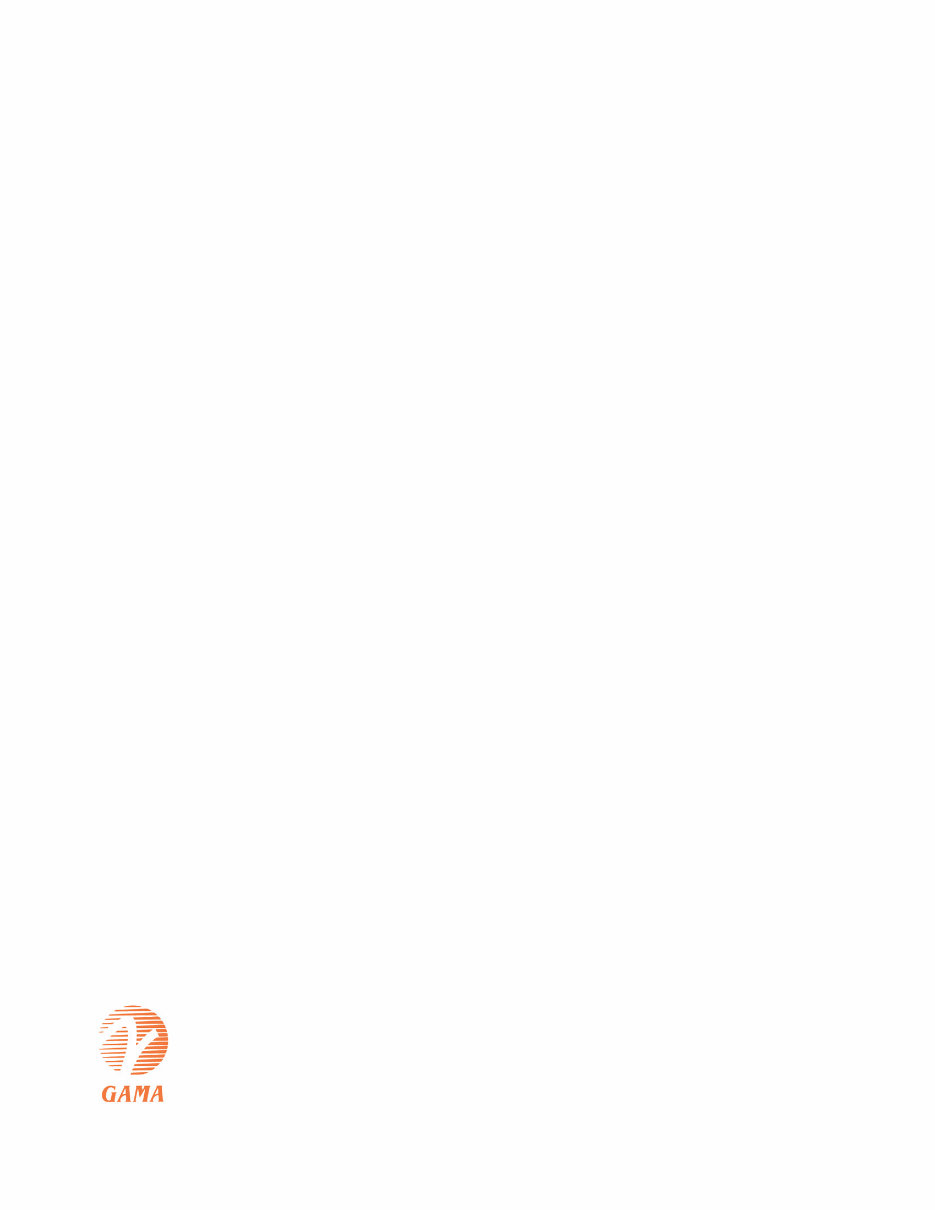

Revised: January 7, 2021 ii Published by Technical Publications © 1996, 1998–1999, 2002–2014, 2018–2021 Piper Aircraft, Inc. 2926 Piper Drive Vero Beach, Florida 32960 U.S.A. Member of GAMA General Aviation Manufacturers Association

Revised: January 7, 2021 iii PIPER AIRCRAFT, INC. PA-34-220T AIRPLANE PARTS CATALOG 1. Definitions A. Revision The data in the revision column is comprised of two elements: (1) A Type of Revision Code: ORG = Original, CR = Complete Revision, and PR = Partial Revision. Partial Revisions (PR) are listed only until the next Complete Revision (CR) is published. Then they are removed. (2) The Revision Date in YYYYMMDD format. The Revision Date is the date placed on each revised page. It exists to separate one version of a page from another. Revision Date does not indicate the calendar date when the revision was actually published and available to the public. However, this is the date that appears in the Current Revision Checklist in the Customer Service Information File. B. Publication Date Publication Date usage has varied over the years. 1937–1996 is unknown. 1997–2013 it generally was synchronized with the revision date regardless of when the revision was published. In mid 2013 and later, the Publication Date is the calendar date when the revision was actually published and available to the public. This date does not appear in the Current Revision Checklist in the Customer Service Information File. 2. Revisions Revisions to this PA-34-220T Seneca IV, V parts catalog (serial numbers 3447001 thru 3447029, 3449001 and up) issued July 12, 1995 are as follows: Revision Date Publication Date ORG 950712 December 11, 1996 CR061210 December 10, 2006 PR070310 March 10, 2007 PR070610 June 10, 2007 PR070910 September 10, 2007 PR071210 December 10, 2007 PR080310 March 10, 2008 PR080610 June 10, 2008 PR080910 September 10, 2008 PR090310 March 10, 2009 PR090910 September 10, 2009 PR091210 December 10, 2009 PR100610 June 10, 2010 PR101210 December 10, 2010 PR110610 June 10, 2011 PR120910 September 10, 2012 PR130208 February 8, 2013 PR130501 May 1, 2013 PR140723 July 23, 2014 PR180316 March 16, 2018 PR191203 December 3, 2019 CR200221 February 21, 2020 PR210107 January 7, 2021 3. Availability This parts catalog, related manuals and inspection reports, service publications (SB, SL, etc.) and other Piper publications are available as described in the Owner Publications Catalog (part of the Customer Service Information File, see below). Consult the “Customer Service Information File” (a free download from the Piper Aircraft, Inc. website at http://www.piper.com/technical- publications-documents/) to verify that you have the latest revision. REVISIONS STATUS

Reissued: February 21, 2020 iv INTRODUCTION This Illustrated Parts Catalog provides simple, positive identification of replacement parts for the Model PA-34-220T Seneca manufactured by Piper Aircraft, Inc. of Vero Beach, Florida. 1. The catalog is divided into fourteen major sections as follows: a. Section I to Xlll inclusive contains all replacement parts for the complete airplane. Each section is subdivided and each division includes an illustration and a parts listing. b. Section XIV is the Miscellaneous Group. This group includes an illustration and parts list for the Placards and Exterior Stencils and a listing of the Piper Service and Optional Equipment Kits, Repair Kits and Special Tools. 2. The following is a brief explanation of the columns in the parts list. (Refer to EXAMPLE below). a. The FIGURE AND INDEX NUMBER column indicates the illustration figure number and its part number index. EXAMPLE: (2-1), the 2 is the figure number and the -1 is the index number. Index numbers preceded by a dash (-) indicate the item is not illustrated in the figure illustration. b. The PART NUMBER column contains the identifying number of the replacement part and this number must be shown on all parts orders. c. Reference information is given in parenthesis in the NOMENCLATURE column under the item nomenclature. Supplemental information pertaining to parts is listed at the bottom of the NOMENCLATURE column under NOTES. d. The NOMENCLATURE column indicates the part name. This name must be shown on all parts orders. e. The NO. REQ. column represents the total quantity of parts per assembly. When the same part appears in two or more figures, the NO. REQ. column shows the notation REF in all figures except the primary appearance of the part, where the number required indicates total assembly quantity of the part. For example, placards are listed throughout the manual as REF except in Figures 104, 104A, 104B and 104C, where the quantity of each placard is listed. The symbol AR listed in this column means As Required. f. The SERIAL NUMBERS AFFECTED column indicates the part application by airplane serial number. g. Item numbers begin with item 1 for the primary part and then are listed as item 5, 10, 15, 20, until all items are assigned an item number. Each part is assigned a unique item number. h. Some item numbers are listed with a letter suffix. These alpha variant items are to identify parts that are used on the left and right of the aircraft or as grouping of hardware parts that are used in the same location. For example, the left flap is item 135 and the right flap is item 135A. A bolt, washer and nut used to attach a component to the aircraft may be listed as items 10, 10A and 10B. i. Metric measurements are given, where applicable, in parenthesis following standard U.S. measurements. j. When shown in the part number column, the term NONPROC refers to a non-procurable item or group of items. It appears for reference purposes only. The nomenclature column will contain information to locate procurable parts of the NONPROC item. EXAMPLE Figure and Part No. SERIAL NUMBERS Index Number NOMENCLATURE Req. AFFECTED Number 2- 1 XXXXX-XX DOOR ASSEMBLY - Baggage compartment X 2 XXXXX-XX * TUBE ASSEMBLY - Baggage door latch X 3 XXXXX-XX * * CLEVIS - Door latch tube assembly X 4 XXXXX-XX * * CLIP - Door latch tube assembly X In the nomenclature column, the next higher assembly relationship of items covered is shown by the degree of indention of each item and is indicated by an asterisk (*). One asterisk signifies one indention, two signifies two indentions, etc. The example listing above is interpreted as follows: If the DOOR ASSEMBLY (not indented) is ordered, it will include the three items indented under the DOOR ASSEMBLY. If the TUBE ASSEMBLY (indented one space) is ordered, it will include the two items indented under the TUBE ASSEMBLY. If you want only a CLEVIS or CLIP, you order only that item. PIPER AIRCRAFT, INC. PA-34-220T AIRPLANE PARTS CATALOG NOTE: DO NOT USE THIS CATALOG FOR RIGGING AND INSTALLATION PURPOSES.

Reissued: February 21, 2020 v 3. Piper Aircraft, Inc. will supply all attaching parts to its customers in any quantity. When purchasing the attaching parts such as nuts, bolts, washers, cotter pins, etc. from Piper Aircraft, Inc., the customer or service center need only order the part(s) needed. However, parts such as rivets or consumables may have requirements in economical measures, such as pounds, gallons, etc. 4. All items of Optional Equipment are contained in the parts list in their proper sequence and sections. These items were not marked optional, since they are fully identified by their descriptions. 5. The Installation Drawings listed at the beginning of each figure are available for purchase. All other drawings are proprietary and not for sale. Contact your local Piper Distributor for more information. ALTERNATE PART NUMBERS The part number received may differ from the part number ordered. Typical part numbers include a 4, 5, or 6 digit base number followed by a 1, 2, or 3 digit suffix; i.e., XXXXX-XXX. Leading zeros may not be present. For example, if you order 86957-003, the part you receive may be marked 86957-3, 86957-03, or 86957-003. Additionally, in some cases, the -XXX part number may be superceded or replaced by a -8XX part number. Typically, the -XXX part is used in production and the -8XX part is used for service. Actual differences between the parts are minor, such as fewer holes, primer applied or not, etc. but the parts are otherwise identical and interchangeable. HOW TO IDENTIFY A PART IF YOU KNOW WHAT IT LOOKS LIKE AND KNOW WHERE IT IS LOCATED 1. Refer to Figure 1 to determine the section number in which the part is used. 2. Refer to the Table of Contents and locate the section. Note the figure numbers that illustrate the various subgroups of this main section. Select the figure title you think might contain the part you wish to identify and proceed to the grid (page) specified. If you don’t find the part on this illustration, try another figure in this group. 3. Refer to Figure and Index Number in the parts listing for description of the part. HOW TO ORDER PARTS When ordering parts for your Piper airplanes, please observe the following instructions: 1. Place your order with your local distributor or service center. 2. Specify the model and serial number of your airplane. 3. Specify Part Number, Name, Type and Quantity Required. 4. Specify the method of shipment — freight, express, parcel post, air express, air freight or air parcel post. Where the nature of the shipment requires it or when no instructions are given, we reserve the right to ship the most suitable way. 5. Request price and delivery information prior to order placement. GENERAL INFORMATION 1. Shortages All orders are checked before leaving our Shipping Department. A packing slip is enclosed with the shipment. Claims for errors or shortages must be made within three days after receipt of orders. 2. Returned Goods No material should be returned without first securing written permission. Material sent in without notice will be held at the owner’s risk for thirty days and will then be disposed of as we see fit. Transportation charges must be prepaid on returned goods or the shipment will be refused. 3. Transportation Liabilities Piper Aircraft, Inc. cannot be held liable for damages to parts in transit from the factory. If a shipment is received in a damaged condition, have the delivery man or transportation company make a notation of the damage and file your claim with the carrier. In case of concealed damage, do not attempt to remove the part from the shipping container, or try to repair the damage, call the carrier and have their claim agent inspect the damage before filing your claim with the carrier. PIPER AIRCRAFT, INC. PA-34-220T AIRPLANE PARTS CATALOG

Reissued: February 21, 2020 vi MODEL SERIAL NUMBER INFORMATION NOTE: The following is provided as a general reference only. The serial numbers of the PA-34-220T Seneca IV aircraft covered by this Parts Catalog are as follows: 1995 Model Year 3447001 thru 3447012 1996 Model Year 3447013 thru 3447029 The serial numbers of the PA-34-220T Seneca V aircraft covered by this Parts Catalog are as follows: 1997 Model Year 3449001 thru 3449041 1998 Model Year 3449042 thru 3449096 1999 Model Year 3449097 thru 3449151 2000 Model Year 3449152 thru 3449195 2001 Model Year 3449196 thru 3449231; 3449233 thru 3449236, and 3449240 2002 Model Year 3449232; 3449237 thru 3449239; 3449241 thru 3449268; 3449270 thru 3449272, and 3449274 2003 Model Year 3449269; 3449273; 3449275 thru 3449300 2004 Model Year 3449301 thru 3449310 2005 Model Year 3449311 thru 3449322 2006 Model Year 3449323 thru 3449346 2007 Model Year 3449347 thru 3449366 2008 Model Year 3449367 thru 3449394 2009 Model Year 3449395 thru 3449403 2010 Model Year 3449404 thru 3449426 2011 Model Year 3449427 thru 3449447 2012 Model Year 3449448 thru 3449463 2013 Model Year 3449464 thru 3449487 2014 Model Year 3449488 thru 3449494 2015 Model Year 3449495 thru 3449506 2016 Model Year 3449507 2017 Model Year 3449508 2018 Model Year 3449509 thru 3449510 2019 Model Year 3449511 thru 3449513 2020 Model Year 3449514 and up SERIAL NUMBER EXPLANATION EXAMPLE 34 47 001 TYPE CERTIFICATE DESIGNATION MODEL SEQUENCE NUMBER MODEL CODE (47 = SENECA IV) (49 = SENECA V) PIPER AIRCRAFT, INC. PA-34-220T AIRPLANE PARTS CATALOG

STANDARD PAINT CHART MFG. PIPER PART NUMBER NO. QUART GALLON EXTERIOR POLYURETHANE ENAMEL (Dupont Imron) Baja Yellow H7850U 4175 461 1175 461 Juneau White H7848U 4175 462 1175 462 Ocala Orange H7857UM 4175 463 1175 463 Madrid Red H7851UM 4175 464 1175 464 Bahama Blue H7853U 4175 465 1175 465 Avocado H7852U 4175 466 1175 466 Las Vegas Gold 5242U 4176 121 1176 121 Dakota Black 99U 4175 467 1175 467 Denver Brown H7859U 4176 122 1176 122 Matador Red H7858U 4175 468 1175 468 Royal Blue H7856U 4175 469 1175 469 Hickory Brown H7855U 4175 470 1175 470 Silver 4531U 4176 123 1176 123 Lime Green H7854U 4175 460 1175 460 Sage Green K7887U 4176 132 1176 132 Firethorn K7888UW 4176 133 1176 133 Buckskin K7890U 4176 135 1176 135 Dark Blue K7891U 4176 136 1176 136 Platinum Gray N7819U 4176 126 1176 126 Sandalwood Tan N7818U 4176 127 1176 127 Dark Claret K7886U 4176 131 1176 131 Burnished Gold N8068U 4763 528 1763 528 Light Blue K8149U 4763 529 1763 529 Dark Saddle N8070U 4763 530 1763 530 Dark Green N8071U 4763 531 1763 531 Saffron K7889UH 4763 532 1763 532 Light Sandalwood W8275 4763 533 1763 533 Light Platinum W8274 4763 534 1763 534 Catalyst (Activator) 912S 4179 950 1179 950 Reducer Y8485S 4179 145 1179 145 Retarder 8100S 4179 599 1179 599 Accelerator 189S 4179 951 POLYURETHANE PRIMER (Dupont Imron) Wash Primer B9287 4170 766 1179 766 Wash Primer Thinner K1733 4179 452 1179 452 Acid Thinner B9289 4179 403 1179 403 INTERIOR INSTRUMENT PANEL Cadet Dark Grey 170 902 Grey II 170 907 NOTE: SEE SERVICE SPARES LETTER 407 FOR AVAILABILITY OF COLOR PAINT FOR THERMOPLASTIC INTERIOR PANELS. PIPER AIRCRAFT, INC. PA-34-220T AIRPLANE PARTS CATALOG Reissued: February 21, 2020 vii

THIS PAGE INTENTIONALLY LEFT BLANK Reissued: February 21, 2020 viii PIPER AIRCRAFT, INC. PA-34-220T AIRPLANE PARTS CATALOG

TABLE OF CONTENTS FIGURE NUMBER FIGURE TITLE GRID NUMBER 1 Complete Airplane ........................................................................................................................... xiv SECTION I WING GROUP 2 Wing Installation............................................................................................................................... 1-2 3 Wing Leading Edge Assembly ......................................................................................................... 1-10 4 Wing Trailing Edge Assembly .......................................................................................................... 1-14 5 Aileron Assembly ............................................................................................................................. 1-20 6 Flap Assembly ................................................................................................................................. 1-22 SECTION II FUSELAGE GROUP 7 Fuselage Assembly - Complete ....................................................................................................... 2-2 8 Fuselage Nose Cone Assembly....................................................................................................... 2-6 9 Fuselage Upper Forward Cockpit Assembly.................................................................................... 2-8 10 Fuselage Upper Center Cockpit Assembly ...................................................................................... 2-14 11 Fuselage Upper Aft Cockpit Assembly ............................................................................................ 2-18 12 Fuselage Lower Forward Cockpit Assembly.................................................................................... 2-20 13 Fuselage Lower Aft Cockpit Assembly ............................................................................................ 2-24 14 Fuselage Aft Section ........................................................................................................................ 2-28 15 Fuselage Forward Cabin Door ......................................................................................................... 2-32 16 Fuselage Aft Cabin Door.................................................................................................................. 2-38 17 Fuselage Aft Cargo Door ................................................................................................................. 2-42 18 Fuselage Forward Baggage Door Assembly ................................................................................... 2-44 19 Fuselage Enclosure Installation ....................................................................................................... 2-48 SECTION III TAIL SURFACES GROUP 20 Tail Surfaces Installation .................................................................................................................. 3-2 21 Stabilator Assembly ......................................................................................................................... 3-6 22 Fin Assembly ................................................................................................................................... 3-10 23 Rudder Assembly............................................................................................................................. 3-12 SECTION IV LANDING GEAR GROUP 24 Nose Gear Installation ..................................................................................................................... 4-2 25 Nose Gear Assembly ....................................................................................................................... 4-6 26 Nose Wheel Assembly ..................................................................................................................... 4-10 27 Main Gear Installation ...................................................................................................................... 4-12 28 Main Gear Assembly........................................................................................................................ 4-16 29 Main Wheel Assembly ..................................................................................................................... 4-20 30 Brake Assembly ............................................................................................................................... 4-22 31 Nose and Main Landing Gear Door Actuation Installations ............................................................. 4-24 32 Brake System Installation ................................................................................................................ 4-28 33 Toe Brake Installation ...................................................................................................................... 4-32 34 Toe Brake Master Cylinder Assembly.............................................................................................. 4-34 PIPER AIRCRAFT, INC. PA-34-220T AIRPLANE PARTS CATALOG Reissued: February 21, 2020 ix

Reissued: February 21, 2020 x TABLE OF CONTENTS FIGURE NUMBER FIGURE TITLE GRID NUMBER SECTION V CABIN EQUIPMENT GROUP 35 Forward Baggage Compartment Finishing Installation .................................................................... 5-2 36 Cockpit Finishing Installation ........................................................................................................... 5-6 37 Window Shades and Reveals Installation ........................................................................................ 5-16 38 Carpet Installation ............................................................................................................................ 5-18 39 Forward Fresh Air Duct and Headliner Installation .......................................................................... 5-20 40 Front Seats Installation .................................................................................................................... 5-24 40A Amsafe Three-Point Seatbelt Airbag ............................................................................................... 5-30 41 Club Seating Installation .................................................................................................................. 5-32 42 Center Seats Installation .................................................................................................................. 5-36 43 Rear Seats Installation ..................................................................................................................... 5-38 43A Entertainment Console (Serial Numbers 3449001 and up) ............................................................. 5-40 SECTION VI INSTRUMENTS GROUP 44 Instrument Panel Installation (Serial Numbers 3447001 thru 3447029) .......................................... 6-2 44A Instrument Panel Installation (Serial Numbers 3449001 thru 3449458) .......................................... 6-6 44B Instrument Panel Installation (with Entegra and with G600) ............................................................ 6-10 44C Instrument Panel Installation Seneca V G1000 (Serial Numbers 3449459, 3449467 thru 3449508)......................................................................... 6-14 44D Standby Instrument and Remote Sensor Module System Installation Seneca V G1000 ................ 6-22 44E Instrument Panel Installation G1000 NXi (Serial Numbers 3449509 and up) .................................. 6-26 45 Gyro Vacuum System Installation (Serial Numbers 3447001 thru 3447029) .................................. 6-32 45A Gyro Vacuum System Installation (Serial Numbers 3449001 and up)............................................. 6-34 46 Pitot Static System Installation......................................................................................................... 6-42 46A Pitot Static System Installation Seneca V G1000 (Serial Numbers 3449459, 3449467 and up) ..... 6-50 46B Pitot Static System Installation Seneca V G1000 NXi (Serial Numbers 3449509 and up) .............. 6-56 SECTION VII POWERPLANT GROUP 47 Powerplant Installation ..................................................................................................................... 7-2 48 Engine Instrument Lines Installation, Seneca IV (3447001 thru 3447029) ...................................... 7-8 48A Engine Instrument Lines Installation, Seneca V (3449001 and up) ................................................. 7-12 49 Engine Baffle Installation, Seneca IV (3447001 thru 3447029) ....................................................... 7-16 49A Engine Baffle Installation, Seneca V (3449001 and up) .................................................................. 7-20 50 Engine Cowl Assembly, Seneca IV (3447001 thru 3447029) .......................................................... 7-24 50A Engine Cowling Assembly, Seneca V (3449001 and up) ................................................................ 7-28 51 Cowl Flap Installation ....................................................................................................................... 7-32 52 Two Blade Propeller Assembly (Hartzell) ........................................................................................ 7-34 53 Three Blade Propeller Assembly (McCauley) .................................................................................. 7-38 54 Propeller Synchrophaser System Installation .................................................................................. 7-40 55 Propeller Unfeathering System Installation ...................................................................................... 7-42 56 Engine Controls Installation ............................................................................................................. 7-44 57 Quadrant Assembly ......................................................................................................................... 7-50 58 Nacelle Installation ........................................................................................................................... 7-54 PIPER AIRCRAFT, INC. PA-34-220T AIRPLANE PARTS CATALOG
