XS1100E
A1

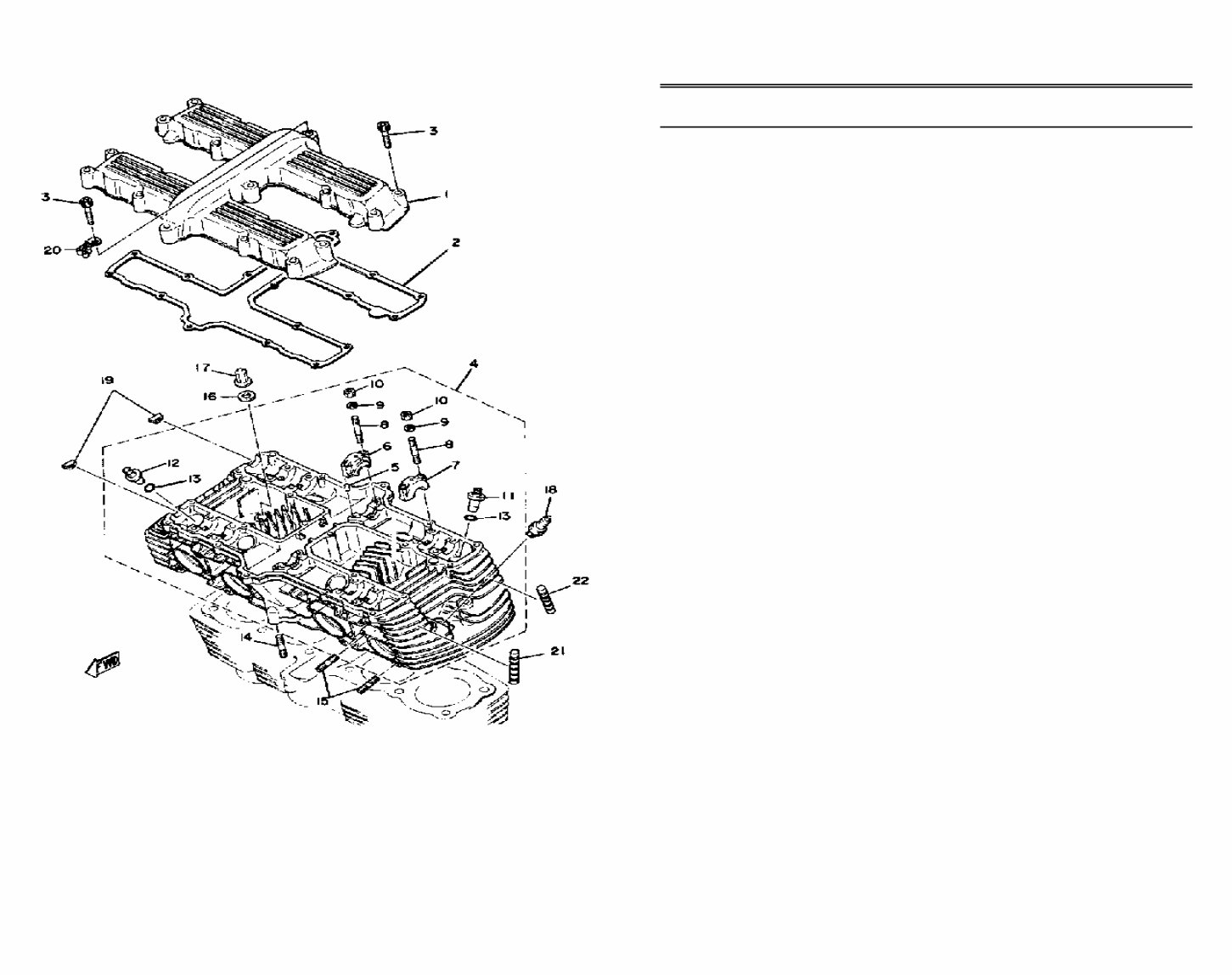

1 2H7-11191-00-00 COVER, CYLINDER.HEAD 1 . . 1
2 2H7-11193-00-00 GASKET, HD.COVER 1 . . . . . . 1
3 91311-06035-00 BOLT, SOCKET HEAD . . . . . . . 20 M6-35L
4 (2H7-11110-00-00) CYLINDER HEAD ASSEMBLY . 1
5 93603-09004-00 . PIN, DOWEL . . . . . . . . . . . . . 4
6 1J7-12173-10-00 . CAP, CAMSHAFT 1 . . . . . . . . 2
7 1J7-12183-10-00 . CAP, CAMSHAFT 2 . . . . . . . . 8
8 (3H5-W0001-90-00) GASKET KIT XS11 0 . . . . . . . .
90116-06228-00 . BOLT, STUD . . . . . . . . . . . . . 20 M6-44L
9 90201-06431-00 . WASHER, PLATE
(90201-06037-00 ) . . . . . . . . . 20
10 95380-06600-00 . NUT . . . . . . . . . . . . . . . . . . . . 20
11 1J7-11133-10-00 . GDE, INTK VLV 1 O/S . . . . . . 4
12 1J7-11134-10-00 . GDE, EXST VLV 1 O/S . . . . . . 4
13 93210-11313-00 . O-RING . . . . . . . . . . . . . . . . . 8
14 90116-08161-00 BOLT, STUD . . . . . . . . . . . . . . 2 M8-39L
15 95611-08625-00 BOLT, STUD . . . . . . . . . . . . . . 8 M8-25L
16 90201-10131-00 WASHER, PLATE . . . . . . . . . . . 12
17 90176-10049-00 NUT, CROWN . . . . . . . . . . . . . 12
18 (3H5-W0001-90-00) GASKET KIT XS11 0 . . . . . . . . SEE GRID I-1 FORKIT
COMPONENT PART
NGK-BP6ES-00-00 NGK BP6ES 4PK
(94701-00000-04) . . . . . . . . . . . 4 U.R.
19 1J7-11138-00-00 PLUG . . . . . . . . . . . . . . . . . . . . 2
20 90465-10129-00 CLAMP . . . . . . . . . . . . . . . . . . 1
21 2H7-11161-00-00 ABSORBER 1 . . . . . . . . . . . . . 2
22 (2H7-11162-00-00) ABSORBER 2 . . . . . . . . . . . . . 2
CYLINDER HEAD COVER-CYLINDER HEA
Ref. Part
No. Number Description Qty Remarks
A2
XS1100E

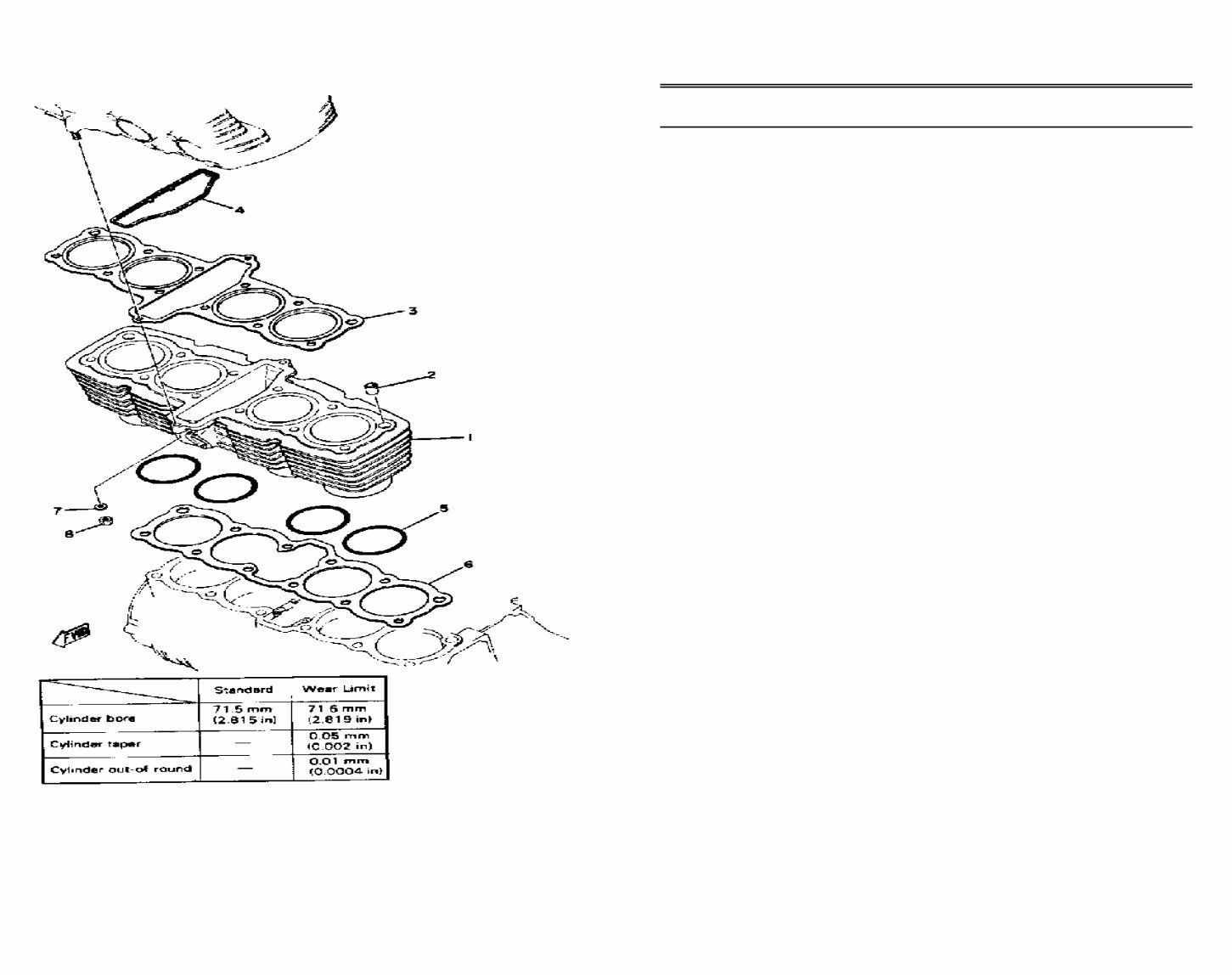

1 (2H7-11310-00-00) CYLINDER . . . . . . . . . . . . . . . . 1
2 99530-14016-00 PIN, DOWEL . . . . . . . . . . . . . . 2
3 2H7-11181-02-00 GASKET, CYLINDER HEAD 1 . 1
4 (2H7-11355-00-00) SEAL, CYLINDER 1 . . . . . . . . . 1 N/A - NOTE 1
5 93210-77363-00 O-RING . . . . . . . . . . . . . . . . . . 4
6 2H7-11351-01-00 GASKET, CYLINDER . . . . . . . . 1
7 90201-084G3-00 WASHER, PLATE . . . . . . . . . . . 2
8 95333-08600-00 NUT . . . . . . . . . . . . . . . . . . . . . 2
CYLINDER
Ref. Part
No. Number Description Qty Remarks
A3
XS1100E

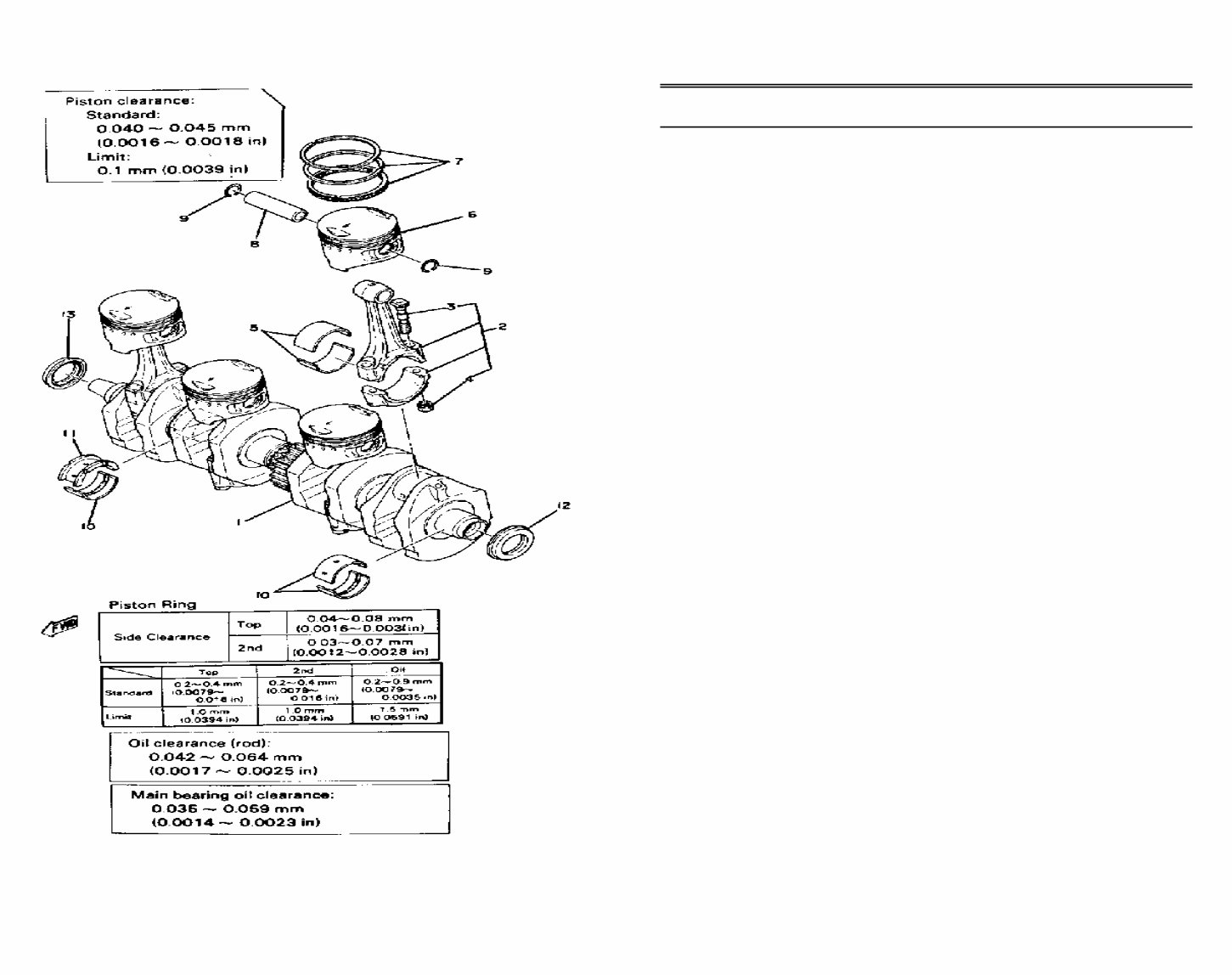

1 2H7-11411-02-00 CRANKSHAFT . . . . . . . . . . . . . 1
2 1J7-Y1165-01-00 CONNECTING ROD ASSEMBLY 4
3 1J7-11654-00-00 . BOLT, CON ROD . . . . . . . . . . 8
4 90170-09192-00 . NUT, HEXAGON . . . . . . . . . . . 8
5 2F3-11656-00-00 PLANE BRNG, CON ROD . . . . 8 U.R. BLUE
2F3-11656-10-00 PLANE BRNG, CON ROD . . . . 8 U.R. BLACK
2F3-11656-20-00 PLANE BRNG, CON ROD . . . . 8 U.R. BROWN
2F3-11656-30-00 PLANE BRNG, CON ROD . . . . 8 U.R. GREEN
2F3-11656-40-00 PLANE BRNG, CON ROD . . . . 8 U.R. YELLOW
6 (2H7-11637-04-00) PISTON 3 O/S 0. 5 . . . . . . . . . . 4 ALTERNATE PART
(2H7-11638-04-00) PISTON 4 O/S 1. 0 . . . . . . . . . . 4
(2H7-11638-04-00) PISTON 4 O/S 1. 0 . . . . . . . . . . 4 ALTERNATE PART
2H7-11631-04-46 PISTON STD . . . . . . . . . . . . . . 4
2H7-11635-04-00 PISTON 1 O/S 0. 5 . . . . . . . . . . 4 ALTERNATE PART
2H7-11636-04-00 PISTON 2 O/S 0. 0 . . . . . . . . . . 4 ALTERNATE PART
7 3J2-11610-00-00 PISTON RINGSET STD . . . . . . 4
3J2-11610-10-00 PISTON RINGSET 1ST . . . . . . . 4 ALTERNATE PART
3J2-11610-20-00 PISTON RINGSET 2ND . . . . . . 4 ALTERNATE PART
3J2-11610-30-00 PISTON RINGSET 3RD . . . . . . 4 ALTERNATE PART
3J2-11610-40-00 PISTON RINGSET 4TH . . . . . . . 4 ALTERNATE PART
8 2H7-11633-01-00 PIN, PISTON . . . . . . . . . . . . . . 4
9 90468-12069-00 CLIP . . . . . . . . . . . . . . . . . . . . 8
10 2H7-11416-01-00 PLANE BRNG, CRSF
1CRANKSHAFT 1 . . . . . . . . . . 9 U.R.äBLUE
2H7-11416-11-00 PLANE BRNG, CRSF
1CRANKSHAFT 1 . . . . . . . . . . 9 U.R.äBLACK
2H7-11416-21-00 PLANE BRNG, CRSF
1CRANKSHAFT 1 . . . . . . . . . . 9 U.R.äBROWN
2H7-11416-31-00 PLANE BRNG, CRSF
1CRANKSHAFT 1 . . . . . . . . . . 9 U.R.äGREEN
CONTINUED ON NEXT FRAME ➤
CRANK - PISTON
Ref. Part
No. Number Description Qty Remarks
A4
XS1100E
10 2H7-11416-41-00 PLANE BRNG, CRSF
1CRANKSHAFT 1 . . . . . . . . . . 9 U.R.äYELLOW
11 (2H7-11417-41-00) PLANE BRNG, CRSF 2 . . . . . . 1 U.R.äYELLOW
2H7-11417-11-00 PLANE BRNG, CRSF 2 . . . . . . 1 U.R.äBLACK
2H7-11417-11-00 PLANE BRNG, CRSF 2 . . . . . . 1 U.R.äBLUE
2H7-11417-31-00 PLANE BRNG, CRSF 2 . . . . . . 1 U.R.äBROWN
2H7-11417-31-00 PLANE BRNG, CRSF 2 . . . . . . 1 U.R.äGREEN
CRANK - PISTON
Ref. Part
No. Number Description Qty Remarks
A5
XS1100E

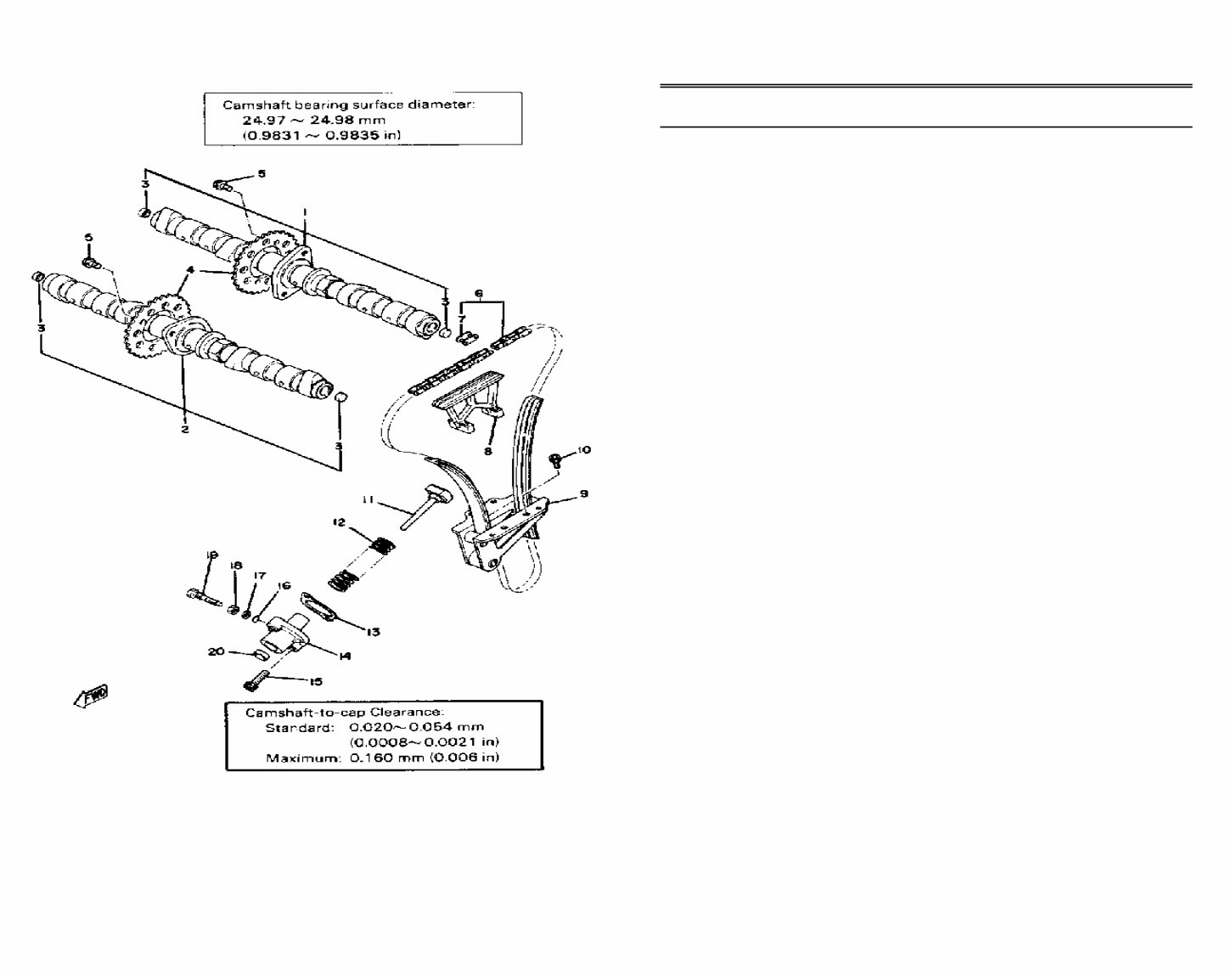

1 2H7-12171-01-00 CAMSHAFT 1 (2H7-12170-00) . 1
2 (2H7-12181-01-00) CAMSHAFT 2 . . . . . . . . . . . . . . 1
3 (90331-10011-00) PLUG, TIGHT . . . . . . . . . . . . . . 4
4 1L9-12176-00-00 SPROCKET, CAM CHAIN . . . . . 2
5 90105-07087-00 BOLT, WASHER BASED . . . . . 4 M7-11L
6 94500-02128-00 CHAIN . . . . . . . . . . . . . . . . . . . 1
7 94600-02001-00 . JOINT, CHAIN (BF05M) . . . . . 1
8 2H7-12241-00-00 GUIDE, STOPPER 2 . . . . . . . . . 1
9 2H7-12250-04-00 CHAIN DAMPER ASSEMBLY . . 1
10 91311-06016-00 BOLT, SOCKET HEAD . . . . . . . 4
11 2H7-12217-01-00 ROD, CHN TENSIONER . . . . . . 1
12 90501-16493-00 SPRING, COMPRESSION . . . . . 1
13 2H7-12213-00-00 GASKET, TENSNR CASE . . . . 1
14 2H9-12212-00-00 CASE, CHAIN TENSNR . . . . . . 1
15 91311-06025-00 BOLT, SOCKET HEAD . . . . . . . 2
16 93210-06632-00 O-RING . . . . . . . . . . . . . . . . . . 1
17 92901-06600-00 WASHER . . . . . . . . . . . . . . . . . 1
18 95303-08700-00 NUT . . . . . . . . . . . . . . . . . . . . . 1
19 90109-08442-00 BOLT . . . . . . . . . . . . . . . . . . . . 1
20 90338-14004-00 PLUG, SPEC’’L SHAPE . . . . . . 1
CAMSHAFT-CHAIN TENSION
Ref. Part
No. Number Description Qty Remarks
A6
XS1100E

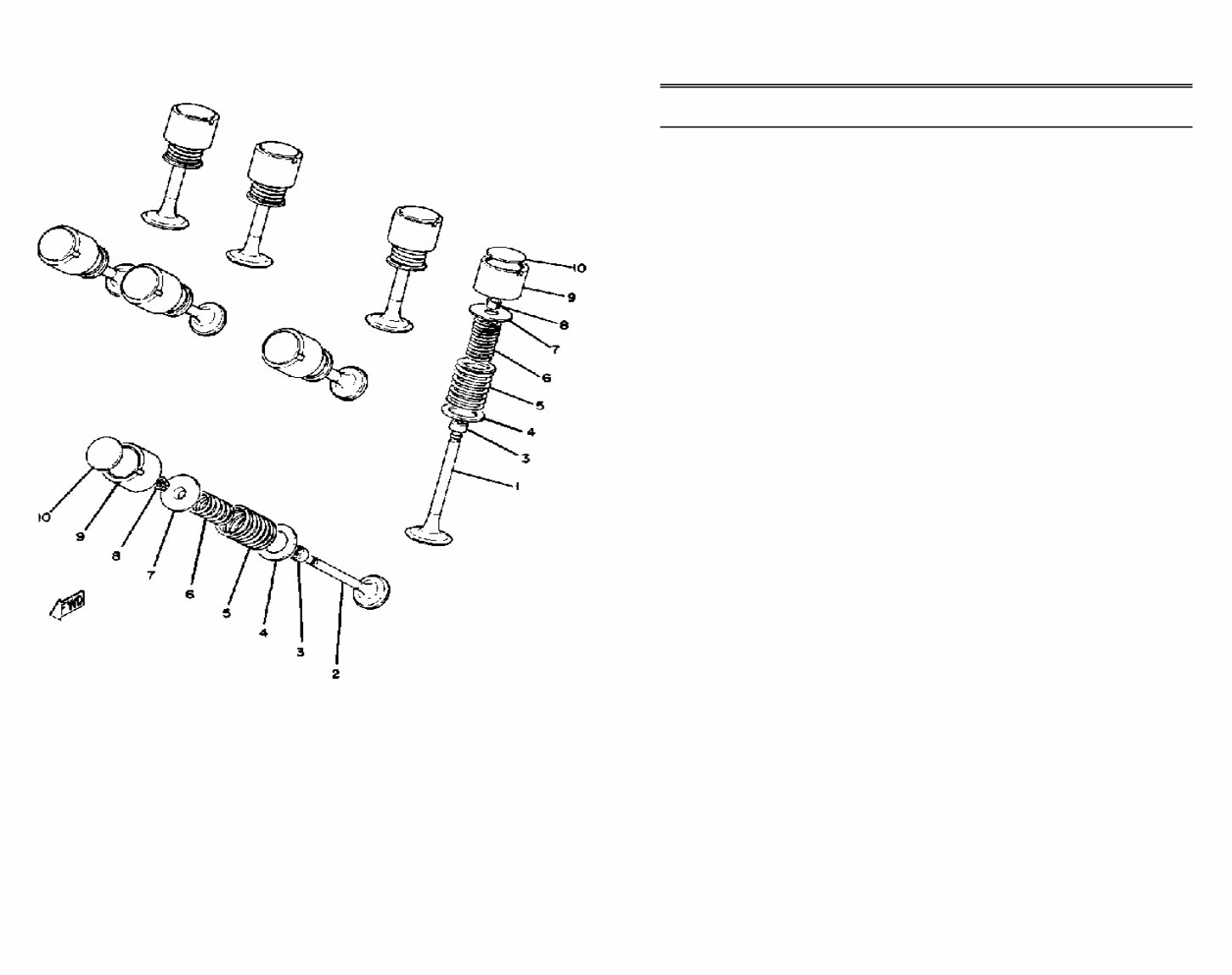

1 1J7-12111-01-00 VALVE, INTAKE 1 . . . . . . . . . . 4
2 12R-12121-00-00 VALVE, EXHAUST . . . . . . . . . . 4
3 1J7-12119-01-00 SEAL, VALVE STEM . . . . . . . . 8
4 1J7-12116-00-00 SEAT, VALVE SPRING . . . . . . . 8
5 90501-39414-00 SPRING, COMPRESSION . . . . . 8
6 90501-28415-00 SPRING, COMPRESSION . . . . . 8
7 2F3-12117-00-00 RETAINER, VALVE SPRING . . 8
8 1J7-12118-00-00 COTTER, VALVE . . . . . . . . . . . 16
9 31A-12153-00-E0 LIFTER, VALVE (4H7-12153-01) 8
10 1J7-12169-01-00 PAD, ADJUSTING 2.00 (2.00) . . 8 U.R.
1J7-12169-11-00 PAD, ADJUSTING 2.05 (2.05) . . 8 U.R.
1J7-12169-21-00 PAD, ADJUSTING 2.10 (2.10) . . 8 U.R.
1J7-12169-31-00 PAD, ADJUSTING 2.15 (2.15) . . 8 U.R.
1J7-12169-41-00 PAD, ADJUSTING 2.20 (2.20) . . 8 U.R.
1J7-12169-51-00 PAD, ADJUSTING 2.25 (2.25) . . 8 U.R.
1J7-12169-61-00 PAD, ADJUSTING 2.30 (2.30) . . 8 U.R.
1J7-12169-71-00 PAD, ADJUSTING 2.35 (2.35) . . 8 U.R.
1J7-12169-81-00 PAD, ADJUSTING 2.40 (2.40) . . 8 U.R.
1J7-12169-91-00 PAD, ADJUSTING 2.45 (2.45) . . 8 U.R.
1J7-12169-A1-00 PAD, ADJUSTING 2.50 (2.50) . . 8 U.R.
1J7-12169-E1-00 PAD, ADJUSTING 2.55 (2.55) . . 8 U.R.
1J7-12169-F1-00 PAD, ADJUSTING 2.60 (2.60) . . 8 U.R.
1J7-12169-G1-00 PAD, ADJUSTING 2.65 (2.65) . . 8 U.R.
1J7-12169-H1-00 PAD, ADJUSTING 2.70 (2.70) . . 8 U.R.
1J7-12169-J1-00 PAD, ADJUSTING 2.75 (2.75) . . 8 U.R.
1J7-12169-K1-00 PAD, ADJUSTING 2.80 (2.80) . . 8 U.R.
1J7-12169-L1-00 PAD, ADJUSTING 2.85 (2.85) . . 8 U.R.
1J7-12169-M1-00 PAD, ADJUSTING 2.90 (2.90) . . 8 U.R.
1J7-12169-N1-00 PAD, ADJUSTING 2.95 (2.95) . . 8 U.R.
CONTINUED ON NEXT FRAME ➤
VALVE
Ref. Part
No. Number Description Qty Remarks
A7
XS1100E
10 1J7-12169-R1-00 PAD, ADJUSTING 3.00 (3.00) . . 8 U.R.
1J7-12169-T1-00 PAD, ADJUSTING 3.05 (3.05) . . 8 U.R.
1J7-12169-U1-00 PAD, ADJUSTING 3.10 (3.10) . . 8 U.R.
1J7-12169-V1-00 PAD, ADJUSTING 3.15 (3.15) . . 8 U.R.
1J7-12169-W1-00 PAD, ADJUSTING 3.20 (3.20) . . 8 U.R.
VALVE
Ref. Part
No. Number Description Qty Remarks
A8
XS1100E

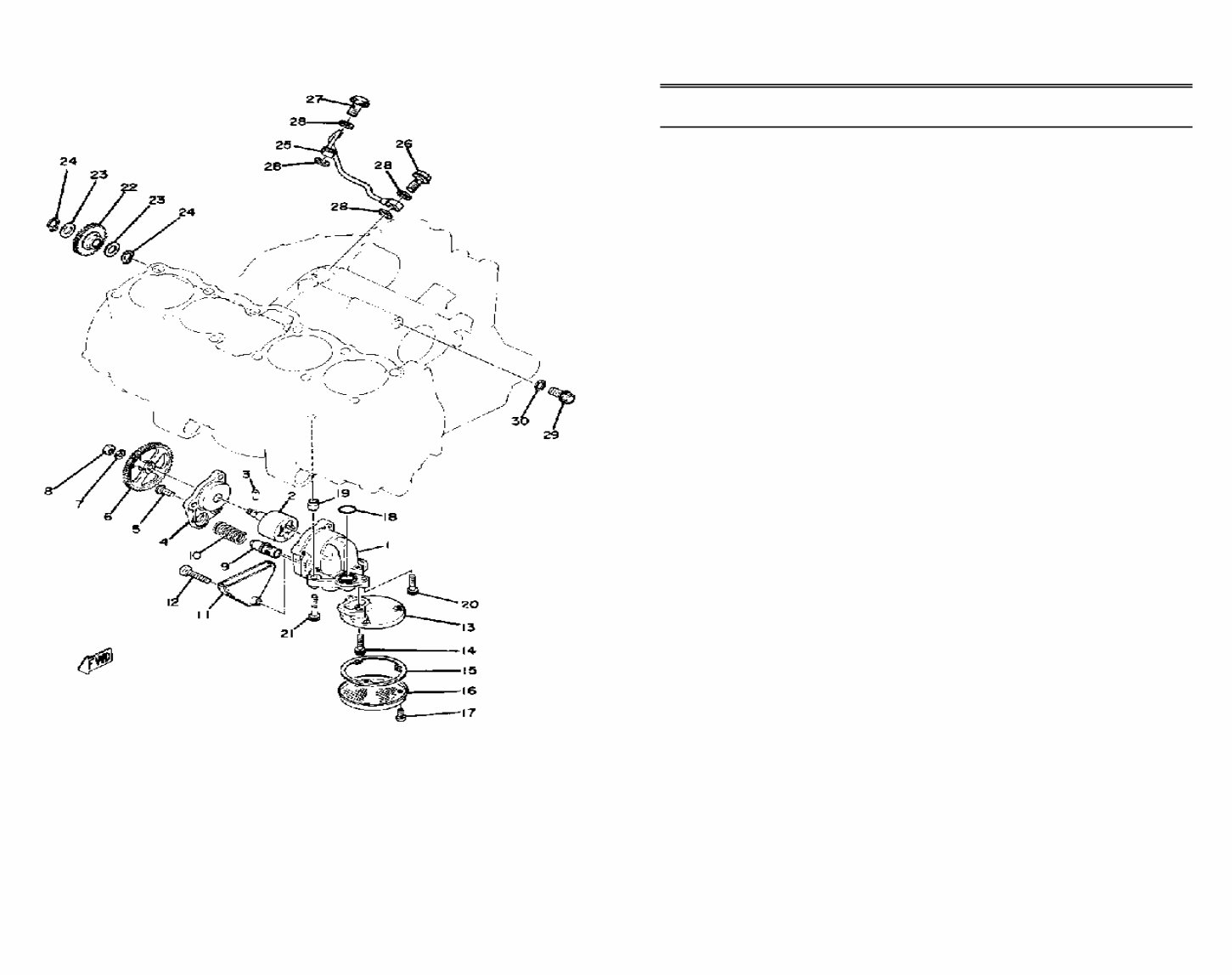

1 2H7-13336-00-00 HOUSING, ROTOR . . . . . . . . . . 1
2 2H7-13330-00-00 PUMP SHAFT ASSEMBLY . . . . 1
3 93603-12007-00 PIN, DOWEL . . . . . . . . . . . . . . 1
4 (2H7-13316-00-00) COVER, PUMP . . . . . . . . . . . . . 1
5 90149-06126-00 SCREW, SPEC’’L SHAPE . . . . 3
6 2H7-13325-00-00 GEAR, PUMP DRIVEN . . . . . . . 1
7 92995-06100-00 WASHER, SPRING . . . . . . . . . . 1
8 95380-06600-00 NUT . . . . . . . . . . . . . . . . . . . . . 1
9 2H7-13483-00-00 PLUNGER, RELIEF . . . . . . . . . 1
10 90501-18499-00 SPRING, COMPRESSION . . . . . 1
11 (2H7-13327-00-00) COVER, PUMP GEAR . . . . . . . 1
12 91311-06035-00 BOLT, SOCKET HEAD . . . . . . . 1
13 (2H7-13412-00-00) HOUSING, STRAINER . . . . . . . 1
14 91311-06025-00 BOLT, SOCKET HEAD . . . . . . . 2
15 1J7-13415-00-00 SEAL, OIL STRAINER . . . . . . . 1
16 2F3-13411-00-00 STRAINER, OIL . . . . . . . . . . . . 1
17 98580-05012-00 SCREW, PAN HEAD . . . . . . . . 3
18 93210-18319-00 O-RING . . . . . . . . . . . . . . . . . . 1
19 99510-10114-00 PIN, DOWEL . . . . . . . . . . . . . . 2
20 91311-06025-00 BOLT, SOCKET HEAD . . . . . . . 1
21 91311-06035-00 BOLT, SOCKET HEAD . . . . . . . 2
22 2H7-13341-00-00 GEAR, OIL PUMP IDLE . . . . . . 1
23 90201-12471-00 WASHER, PLATE . . . . . . . . . . . 2
24 99009-12400-00 CIRCLIP . . . . . . . . . . . . . . . . . . 2
25 2H7-13161-00-00 PIPE, DELIVERY 1 . . . . . . . . . . 1
26 90401-10004-00 BOLT, UNION . . . . . . . . . . . . . 1
27 90401-10013-00 BOLT, UNION (371-13166-00) . . 1
28 90430-10171-00 GASKET . . . . . . . . . . . . . . . . . 4
29 90401-10051-00 BOLT, UNION . . . . . . . . . . . . . 1
CONTINUED ON NEXT FRAME ➤
OIL PUMP
Ref. Part
No. Number Description Qty Remarks
A9
XS1100E
30 90430-10171-00 GASKET . . . . . . . . . . . . . . . . . 1
OIL PUMP
Ref. Part
No. Number Description Qty Remarks
A10
XS1100E
