16P-496-103 Game No. 496 December, 1979 Wiffierm4 ELECTRONICS, INC. INSTRUCTION BOOKLET This booklet provides game operation, bookkeeping, game adjustment, and diagnostic procedures for GORGAR. For installation and special maintenance information refer to the blue-covered game manual. For detailed information refer to Williams Solid State Flipper Maintenance Manual. SPECIAL CONSIDERATIONS WHEN REPLACING CIRCUIT BOARDS CPU Board I. For memory protection feature, revision level 6 CPU Boards (batteries located on lower right corner of board) must be used. Revision level 4 CPU Boards equipped with IC14 and IC16 sockets may be used but the memory protection feature is lost. 2. Must be equipped with green-labeled GORGAR PROMs or game ROM and green-labeled flipper ROMs. 3. When Game ROM is used, jumper J3 must be connected and J4 removed. Sound Board 1. Model D 8224 required for speech. 2. Must be jumpered for white-labeled sound ROM operation and be equipped with Sound ROM 2. (Jumpers W2, W5, W7, W9, W10, and W15 connected; W3, W4, W6, W8, W 11, yvi2, and W13 removed) Power SuppI3, Board I. Fuse F4 (15A SB) for flipper solenoids and magnet must be installed. Optional Speech Module i'. Requires 5T4961 (IC7). 5T4962 (IC5), and 5T4963 (IC6) speech ROMs.

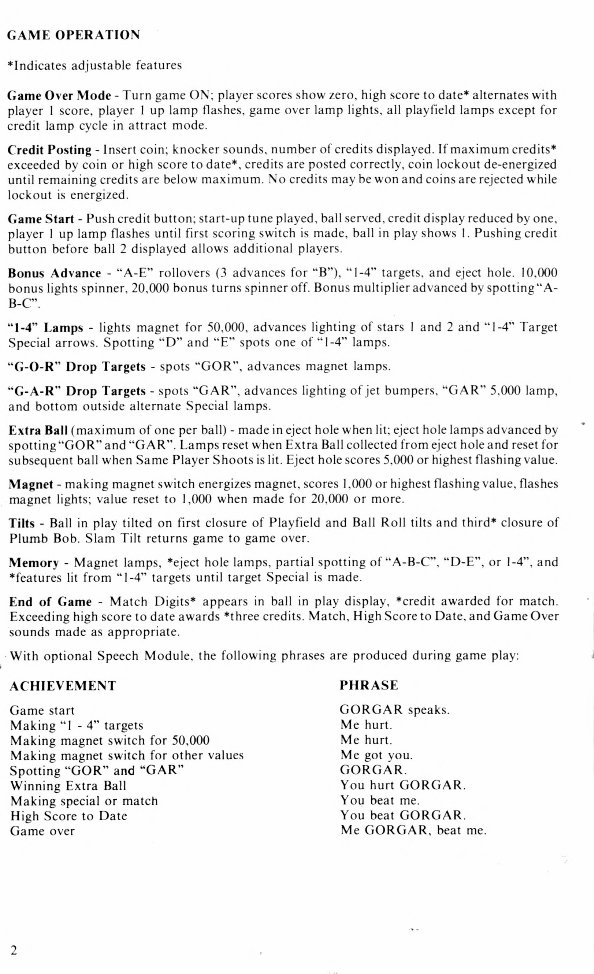

GAME OPERATION *Indicates adjustable features Game Over Mode - Turn game ON; player scores show zero, high score to date* alternates with player 1 score, player 1 up lamp flashes, game over lamp lights, all playfield lamps except for credit lamp cycle in attract mode. Credit Posting - Insert coin; knocker sounds, number of credits displayed. If maximum credits* exceeded by coin or high score to date*, credits are posted correctly, coin lockout de-energized until remaining credits are below maximum. No credits may be won and coins are rejected while lockout is energized. Game Start - Push credit button; start-up tune played, ball served, credit display reduced by one, player 1 up lamp flashes until first scoring switch is made, ball in play shows I. Pushing credit button before ball 2 displayed allows additional players. Bonus Advance - "A-E" rollovers (3 advances for "B"), "1-4" targets, and eject hole. 10,000 bonus lights spinner, 20,000 bonus turns spinner off. Bonus multiplier advanced by spotting "A- B-C". "1-4" Lamps - lights magnet for 50,000, advances lighting of stars 1 and 2 and "1-e Target Special arrows. Spotting "D" and "E" spots one of "1-4" lamps. "G-O-R" Drop Targets - spots "GOR", advances magnet lamps. "G-A-R" Drop Targets - spots "GAR", advances lighting of jet bumpers, "GAR" 5,000 lamp, and bottom outside alternate Special lamps. Extra Ball (maximum of one per ball) - made in eject hole when lit; eject hole lamps advanced by spotting "GOR" and "GAR". Lamps reset when Extra Ball collected from eject hole and reset for subsequent ball when Same Player Shoots is lit. Eject hole scores 5,000 or highest flashing value. Magnet - making magnet switch energizes magnet, scores 1,000 or highest flashing value, flashes magnet lights; value reset to 1,000 when made for 20,000 or more. Tilts - Ball in play tilted on first closure of Playfield and Ball Roll tilts and third* closure of Plumb Bob. Slam Tilt returns game to game over. Memory - Magnet lamps, *eject hole lamps, partial spotting of "A-B-C", "D-E", or 1-4", and *features lit from "1-4" targets until target Special is made. End of Game - Match Digits* appears in ball in play display, *credit awarded for match. Exceeding high score to date awards *three credits. Match, High Score to Date, and Game Over sounds made as appropriate. With optional Speech Module, the following phrases are produced during game play: ACHIEVEMENT PHRASE Game start GORGAR speaks. Making "1 - 4" targets Me hurt. Making magnet switch for 50,000 Me hurt. Making magnet switch for other values Me got you. Spotting "GOR" and "GAR" GORGAR. Winning Extra Ball You hurt GORGAR. Making special or match You beat me. High Score to Date You beat GORGAR. Game over Me GORGAR, beat me. 2

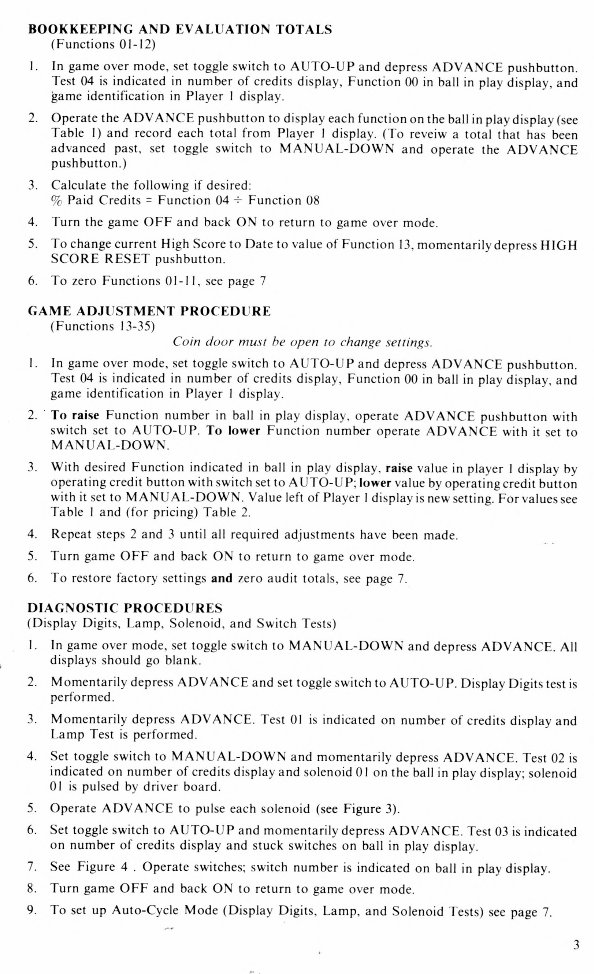

BOOKKEEPING AND EVALUATION TOTALS (Functions 01-12) 1. In game over mode, set toggle switch to AUTO-UP and depress ADVANCE pushbutton. Test 04 is indicated in number of credits display, Function 00 in ball in play display, and game identification in Player I display. 2. Operate the ADVANCE pushbutton to display each function on the ball in play display (see Table 1) and record each total from Player I display. (To reveiw a total that has been advanced past, set toggle switch to MANUAL-DOWN and operate the ADVANCE pushbutton.) 3. Calculate the following if desired: % Paid Credits = Function 04 ÷ Function 08 4. Turn the game OFF and back ON to return to game over mode. 5. To change current High Score to Date to value of Function 13, momentarily depress HIGH SCORE RESET pushbutton. 6. To zero Functions 01-11, see page 7 GAME ADJUSTMENT PROCEDURE (Functions 13-35) Coin door must be open to change settings. I. In game over mode, set toggle switch to AUTO-UP and depress ADVANCE pushbutton. Test 04 is indicated in number of credits display, Function 00 in ball in play display, and game identification in Player I display. 2. To raise Function number in ball in play display, operate ADVANCE pushbutton with switch set to AUTO-UP. To lower Function number operate ADVANCE with it set to MANUAL-DOWN. 3. With desired Function indicated in ball in play display, raise value in player 1 display by operating credit button with switch set to AUTO-UP; lower value by operating credit button with it set to MANUAL-DOWN. Value left of Player I display is new setting. For values see Table 1 and (for pricing) Table 2. 4. Repeat steps 2 and 3 until all required adjustments have been made. 5. Turn game OFF and back ON to return to game over mode. 6. To restore factory settings and zero audit totals, see page 7. DIAGNOSTIC PROCEDURES (Display Digits, Lamp, Solenoid, and Switch Tests) I. In game over mode, set toggle switch to MANUAL-DOWN and depress ADVANCE. All displays should go blank. 2. Momentarily depress ADVANCE and set toggle switch to AUTO-UP. Display Digits test is performed. 3. Momentarily depress ADVANCE. Test 01 is indicated on number of credits display and Lamp Test is performed. 4. Set toggle switch to MANUAL-DOWN and momentarily depress ADVANCE. Test 02 is indicated on number of credits display and solenoid 01 on the ball in play display; solenoid 01 is pulsed by driver board. 5. Operate ADVANCE to pulse each solenoid (see Figure 3). 6. Set toggle switch to AUTO-UP and momentarily depress ADVANCE. Test 03 is indicated on number of credits display and stuck switches on ball in play display. 7. See Figure 4 . Operate switches; switch number is indicated on ball in play display. 8. Turn game OFF and back ON to return to game over mode. 9. To set up Auto-Cycle Mode (Display Digits, Lamp, and Solenoid Tests) see page 7. 3

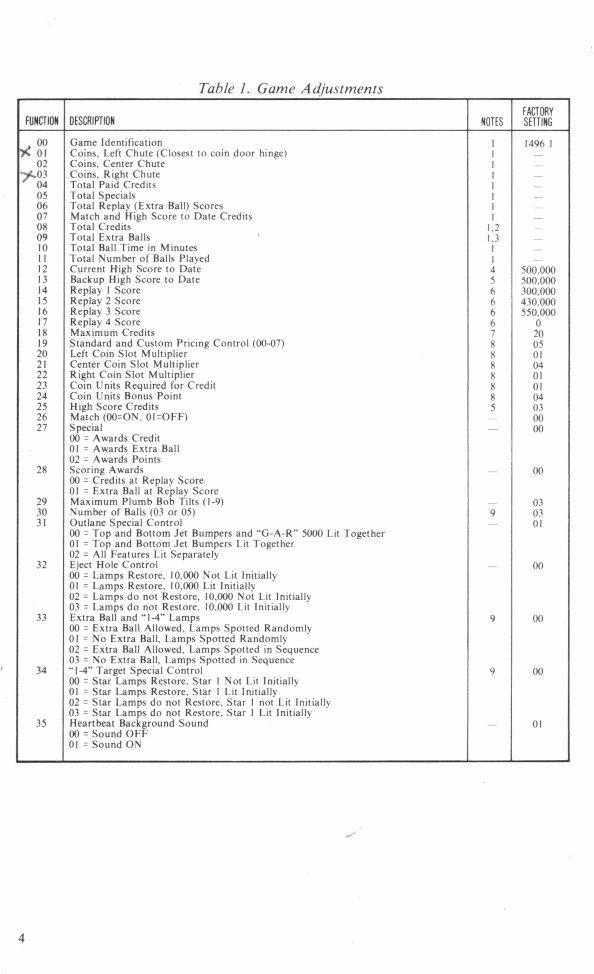

Table 1. Game Adjustments FUNCTION DESCRIPTION NOTES FACTORY SETTING 00 GameIdentification 1496 I 01 Coins, Left Chute (Closest to coin door hinge) I - 02 Coins, Center Chute I -- $03 Coins, Right Chute I 04 Total Paid Credits I 05 Total Specials I - 06 Total Replay (Extra Ball) Scores 07 Match and High Score to Date Credits I - 08 Total Credits 1,2 - 09 Total Extra Balls 1,3 - 10 Total Ball Time in Minutes ii Total Number of Balls Played I - 12 Current High Score to Date 4 500.000 13 Backup High Score to Date 5 500,000 14 Replay I Score 6 300,000 15 Replay 2 Score 6 430.000 16 Replay 3 Score 6 550,000 17 Replay 4 Score 6 0 18 Maximum Credits 7 20 19 Standard and Custom Pricing Control (00-07) 8 05 20 Left Coin Slot Multiplier 8 01 21 Center Coin Slot Multiplier 8 o 22 Right Coin Slot Multiplier 8 01 23 Coin Units Required for Credit 8 01 24 Coin Units Bonus Point 8 04 25 High Score Credits 5 03 26 Match (00ON. 0IOFF) - 00 27 Special 00 00 = Awards Credit 01 = Awards Extra Ball 02 = Awards Points 28 Scoring Awards - 00 00 = Credits at Replay Score 01 = Extra Ball as Replay Score 29 Maximum Plumb Bob Tilts (1-9) - 03 30 Number of Balls (03 or 05) 9 03 31 Outlane Special Control 01 00 = lop and Bottom Jet Bumpers and "G-A-R" 5000 Lit Together 01 = lop and Bottom Jet Bumpers Lit Together 02 = All Features Lit Separately 32 Eject Hole Control 00 00 = Lamps Restore, 10,000 Not Lit initially 01 = Lamps Restore, 10,000 Lit Initially 02 = Lamps do not Restore. 10.000 Not Lit Initially 03 r Lamps do not Restore. 10,000 Lit initially 33 Extra Ball and "14" Lamps IX) 00 = Extra Ball Allowed, Lamps Spotted Randomly 01 = No Extra Ball, Lamps Spotted Randomly 02 = Extra Ball Allowed, Lamps Spotted in Sequence 03 = No Extra Ball, Lamps Spotted in Sequence 34 "1-4" Target Special Control ' xl 00 = Star Lamps Restore, Star I Not Lit Initially 01 = Star Lamps Restore, Star I Lit Initially 02 = Star Lamps do not Restore. Star I not Lit Initially 03 = Star Lamps do not Restore. Star I Lit Initially 35 Heartbeat Background Sound 00 = Sound OFF 01 = Sound ON

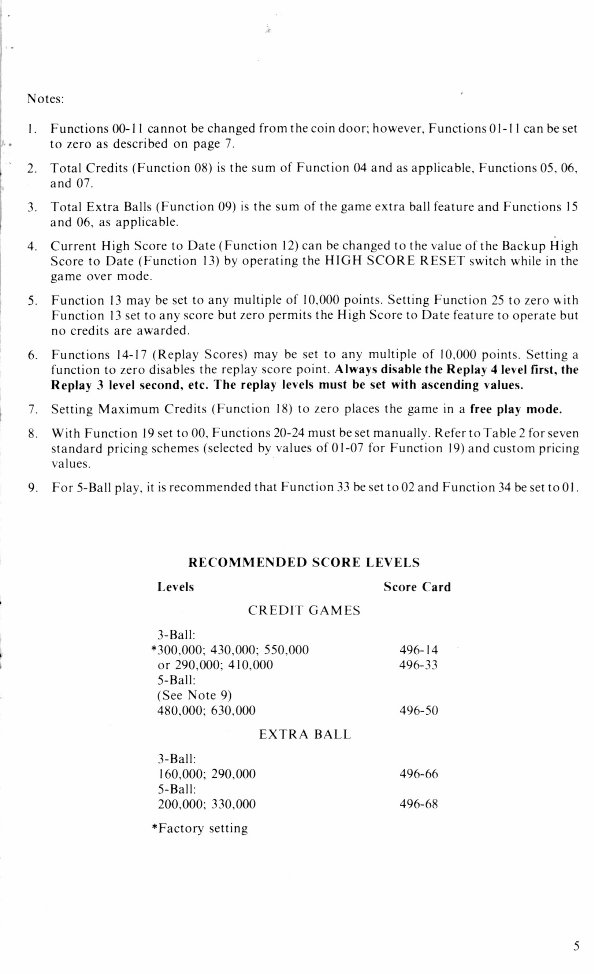

Notes: I. Functions 00-11 cannot be changed from the coin door; however, Functions 0 I- I I can be set • to zero as described on page 7. 2. Total Credits (Function 08) is the sum of Function 04 and as applicable, Functions 05, 06, and 07. 3. Total Extra Balls (Function 09) is the sum of the game extra ball feature and Functions 15 and 06, as applicable. 4. Current High Score to Date (Function 12) can be changed to the value of the Backup High Score to Date (Function 13) by operating the HIGH SCORE RESET switch while in the game over mode. 5. Function 13 may be set to any multiple of 10,000 points. Setting Function 25 to zero uith Function 13 set to any score but zero permits the High Score to Date feature to operate but no credits are awarded. 6. Functions 14-17 (Replay Scores) may be set to any multiple of 10,000 points. Setting a function to zero disables the replay score point. Always disable the Replay 4 level first, the Replay 3 level second, etc. The replay levels must be set with ascending values. 7. Setting Maximum Credits (Function 18) to zero places the game in a free play mode. 8. With Function 19 set to 00, Functions 20-24 must be set manually. Refer to Table 2 for seven standard pricing schemes (selected by values of 01-07 for Function 19) and custom pricing values. 9. For 5-Ball play, it is recommended that Function 33 be set to 02 and Function 34 be set to 01. RECOMMENDED SCORE LEVELS Levels Score Card CREDIT GAMES 3-Ball: *300,000; 430,000; 550,000 496-14 or 290,000; 410,000 496-33 5-Ball: (See Note 9) 480,000; 630,000 496-50 EXTRA BALL 3-Ball: 160,000; 290,000 496-66 5-Ball: 200,000; 330,000 496-68 *Factory setting 5

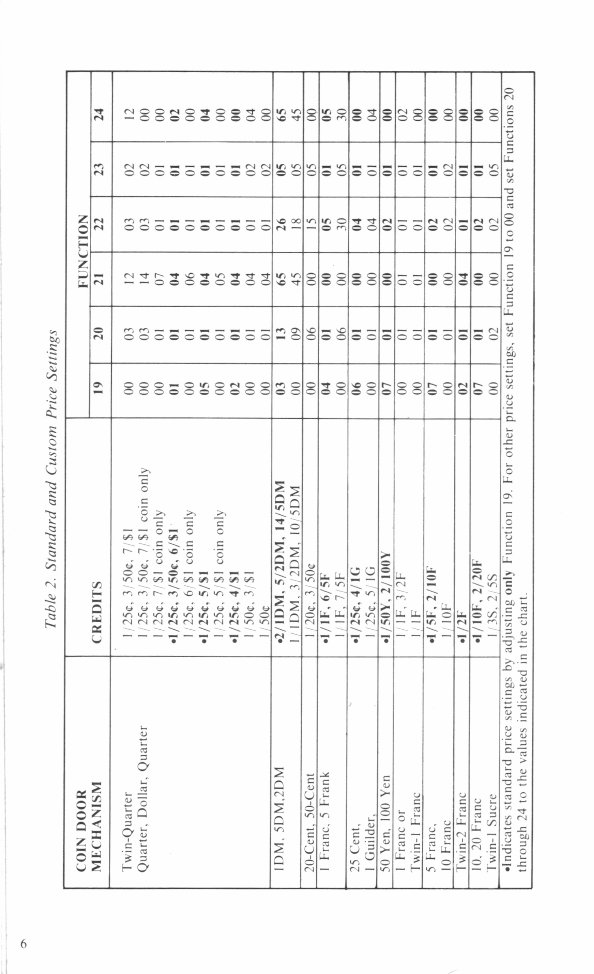

It E 12 C ri ----- c - P1 C C C C C C C C C C C C C C C C C C C C C C C C C Ca - - --—e.r CCCCCCCCCCf--CrCCCCCCCCCC ---------- z — 4-4 — — C C C C C C C C 'C C C C C C I S C C C C C 6T. IS - U. Ca 88 88 - . .2 0' 0 0 a C C — C — ri C C LI.. cr .LL. c fl W) 'f Ifi W) WI 'fi WI 0 0 C p, C . LI.. WI fl C LI.. LI.. LL. C C vi . — rr —WI--WI— rc . . . .— -.-- . -.--- S S .--------- ..-.--- -... S --- • . U ---------- .9 - et (.J._ > ) U Z 03 U LC C r.i-

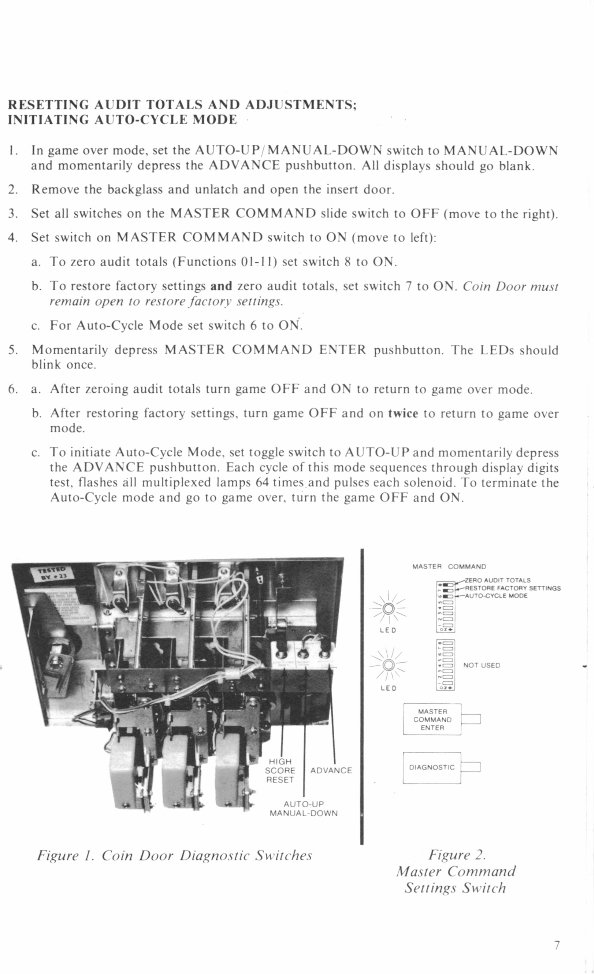

MASTER COMMAND RO AUDIT TOTALS (STORE FACTORY SET,NOS I / • AUTO.CYCL€ MODE -- : LEO --0.. NOT USED LED : SE: Ec T E RESETTING AUDIT TOTALS AND ADJUSTMENTS; INITIATING AUTO-CYCLE MODE I. In game over mode, set the AUTO-UP/MANUAL-DOWN switch to MANUAL-DOWN and momentarily depress the ADVANCE pushbutton. All displays should go blank. 2. Remove the backglass and unlatch and open the insert door. 3. Set all switches on the MASTER COMMAND slide switch to OFF (move to the right). 4. Set switch on MASTER COMMAND switch to ON (move to left): a. To zero audit totals (Functions 01711) set switch 8 to ON. b. To restore factory settings and zero audit totals, set switch 7 to ON. Coin Door must remain open to restore factory settings. c. For Auto-Cycle Mode set switch 6 to ON. 5. Momentarily depress MASTER COMMAND ENTER pushbutton. The LEDs should blink once. 6. a. After zeroing audit totals turn game OFF and ON to return to game over mode. b. After restoring factory settings, turn game OFF and on twice to return to game over mode. c. To initiate Auto-Cycle Mode, set toggle switch to AUTO-UP and momentarily depress the ADVANCE pushbutton. Each cycle of this mode sequences through display digits test, flashes all multiplexed lamps 64 timesand pulses each solenoid. To terminate the Auto-Cycle mode and go to game over, turn the game OFF and ON. Figure!. Coin Door Diagnostic Switches Figure 2. Master Command Settings Switch 7

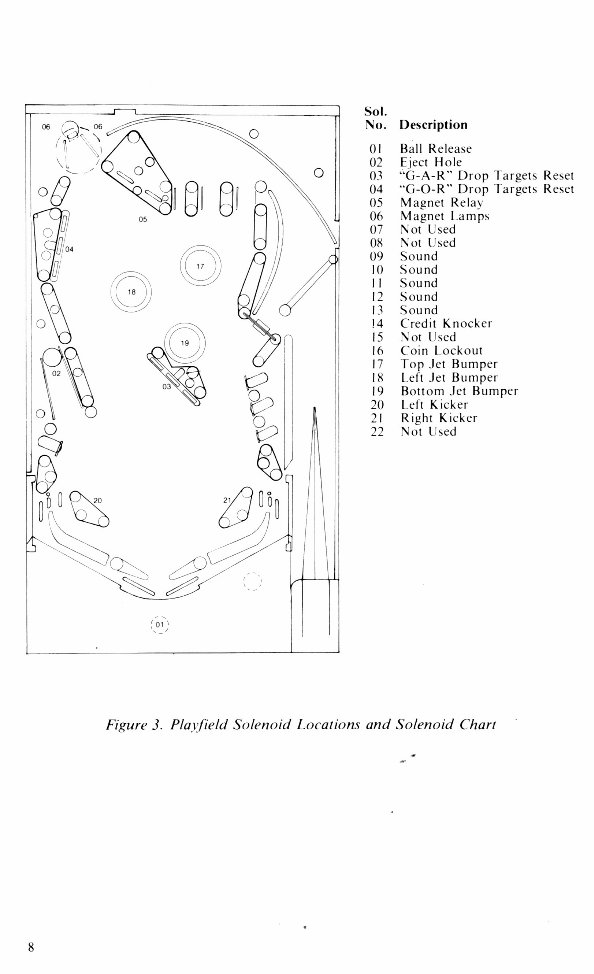

Sol. No. Description 01 Ball Release 02 Eject Hole 03 "G-A-R" Drop Targets Reset 04 "G-O-R" Drop Targets Reset 05 Magnet Relay 06 Magnet Lamps 07 Not Used 08 Not Used 09 Sound 0 Sound I Sound 2 Sound 3 Sound 4 Credit Knocker 5 Not Used 6 Coin Lockout 7 Top Jet Bumper 8 Left Jet Bumper 9 Bottom Jet Bumper 20 Left Kicker 21 Right Kicker 22 Not Used Figure 3. Playfield Solenoid Locations and Solenoid Chart 8

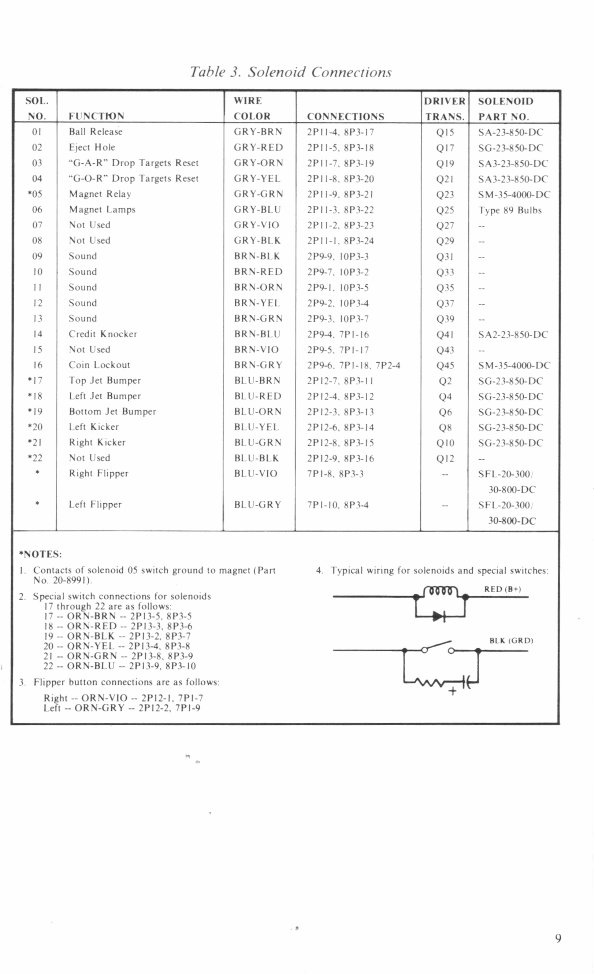

Table 3. Solenoid Connections SOL. NO. FUNCTION WIRE COLOR CONNECTIONS DRIVER TRANS SOLENOID PART NO. Ol Ball Release GRY-BRN 2P11-4. 8P3-17 Q15 SA-23-850-DC 02 Eject Hole GRY-RED 2Pll-5, 8P3-18 017 SG-23-850-DC 03 "G-A-R" Drop Targets Reset GRY-ORN 2PII-7. 8P3-19 Q19 SA3-23-850-DC 04 "G-0-R - Drop Targets Reset GRY-YEL 2P11-8. 8P3-20 021 SA3-23-850-DC 05 Magnet Relay GRY-GRN 2P11-9. 8P3-21 Q23 SM-35-4000-DC 06 Magnet Lamps GRY-BLU 2P 11-3. 8P3-22 Q25 Type 89 Bulbs 07 Not Used GRY-VlO 2P11-2. 8P3-23 Q27 -- 08 Not Used GRY-BLK 2Pll-1. 8P3-24 Q29 - 09 Sound BRN-BLK 2P9-9. 1OP3-3 Q31 - 10 Sound BRN-RED 2P9-7, 10P3-2 Q33 - II Sound BRN-ORN 2P9-l. 10P3-5 Q35 - 12 Sound BRN-YEL 2P9-2. 1OP3-4 Q37 - 13 Sound BRN-GRN 2P9-3, 10P3-7 Q39 -- 14 Credit Knocker BRN-BLU 2P9-4. 7P1-16 Q41 SA2-23-850-DC 15 Not Used BRN-VIO 2P9-5. 7P1-17 Q43 - 16 Coin Lockout BRN-GRY 2P9-6. 7P1-18. 7P2-4 Q45 SM-35-4000-DC 17 Top Jet Bumper BLU-BRN 2P 12-7. 8P3-1 I Q2 SG-23-850-DC 18 Left Jet Bumper BLU-RED 21`12-4, 8P3-12 Q4 SG-23-850-DC 19 Bottom Jet Bumper BLU-ORN 2P12-3, 8P3-13 Q6 SG-23-850-DC 20 Left Kicker BLU-YEL 2P12-6. 8P3-14 Q8 SG-23-850-DC 21 Right Kicker BLU-GRN 21`12-8. 8P3-15 QIO SG-23-850-DC 22 Not Used BLU-BLK 2P12-9, 8P3-16 Q12 - Right Flipper BLU-VlO 7P1-8. 8P3-3 - SFL-20-300/ 30-800-DC Left Flipper BLU-GRY 7P1-10. 8P3-4 - SFL-20-300/ 30-800-DC NOTES: I. Contacts of solenoid 05 switch ground to magnet (Part 4. Typical wiring for solenoids and special switches: No. 20-8991). RED(B+) 2. Special switch connections for solenoids ________________(001FI _ 17 through 22 are as follows: 17— ORN-BRN - 21`13-5. 8P3-5 18— ORN-RED - 2P13-3, 8P3-6 19— ORN-BLK - 21`13-2. 8P3-7 HLK (ORD) 20— ORN-YEL - 2P13-4, 8P3-8 21 - ORN-GRN - 21`13-8. 8P3-9 22— ORN-BLU - 2Pl3-9. 8P3-I0 3. Flipper button connections are as follows: Right -- ORN-VIO - 2P12-1. 7Pl-7 Left ORN-GRY 2P12-2. 7PI-9 - -

Switch No. Function (Score) 01 Plumb Bob Tilt 02 Ball Roll Tilt 03 Credit Button 04 Right Coin Switch 05 Center Coin Switch 06 Left Coin Switch 07 Slam Tilt 08 High Score Reset 09 Outhole 0 Left Outside Rollover (5000) 1 "D" Rollover (3000) 2 Left Kicker(10) 3 Lower Left Standup (1000) 4 "I" Target (1000/2000) 5 Eject Hole (5000/Lit Value) 6 Middle Left Standup (10) 7 Upper Left Standup (10) 8 "G" Drop Target (1000) 9 "0" Drop Target (1000) 20 "R" Drop Target (1000) 21 "G-O-R" Drop Targets Series (5000) 22 "G-O-R" Drop Targets Standup (10) 23 Magnet Switch (1000/Lit Value) 24 Middle Lower Standup (50) 25 Middle Upper Standup (50) 26 "A" Rollover (1000) 27 "B" Rollover (1000) 28 "C" Rollover (1000) 29 Playfield Tilt 30 Spinner (100/1000) 31 "2" Target (1000/ 2000) 32 "3" Target (1000/2000) 33 "4" Target (1000/2000) 34 Right Outside Rollover (5000) 35 "E" Rollover (3000) 36 Right Kicker (10) 37 Left Jet Bumper (100/1000) 38 Top Jet Bumper (100/1000) 39 Bottom Jet Bumper (100/1000) 40 "G-A-R" Drop Targets Standup (10) 41 "G" Drop Target (1000/5000) 42 "A" Drop Target (1000/5000) 43 "R" Drop Target (1000/5000) 44 "G-A-R" Drop Targets Series (5000) Note: Second score value is lit or flashing value Figure 4. Playfield Switch Locations and Switch Chart I0
