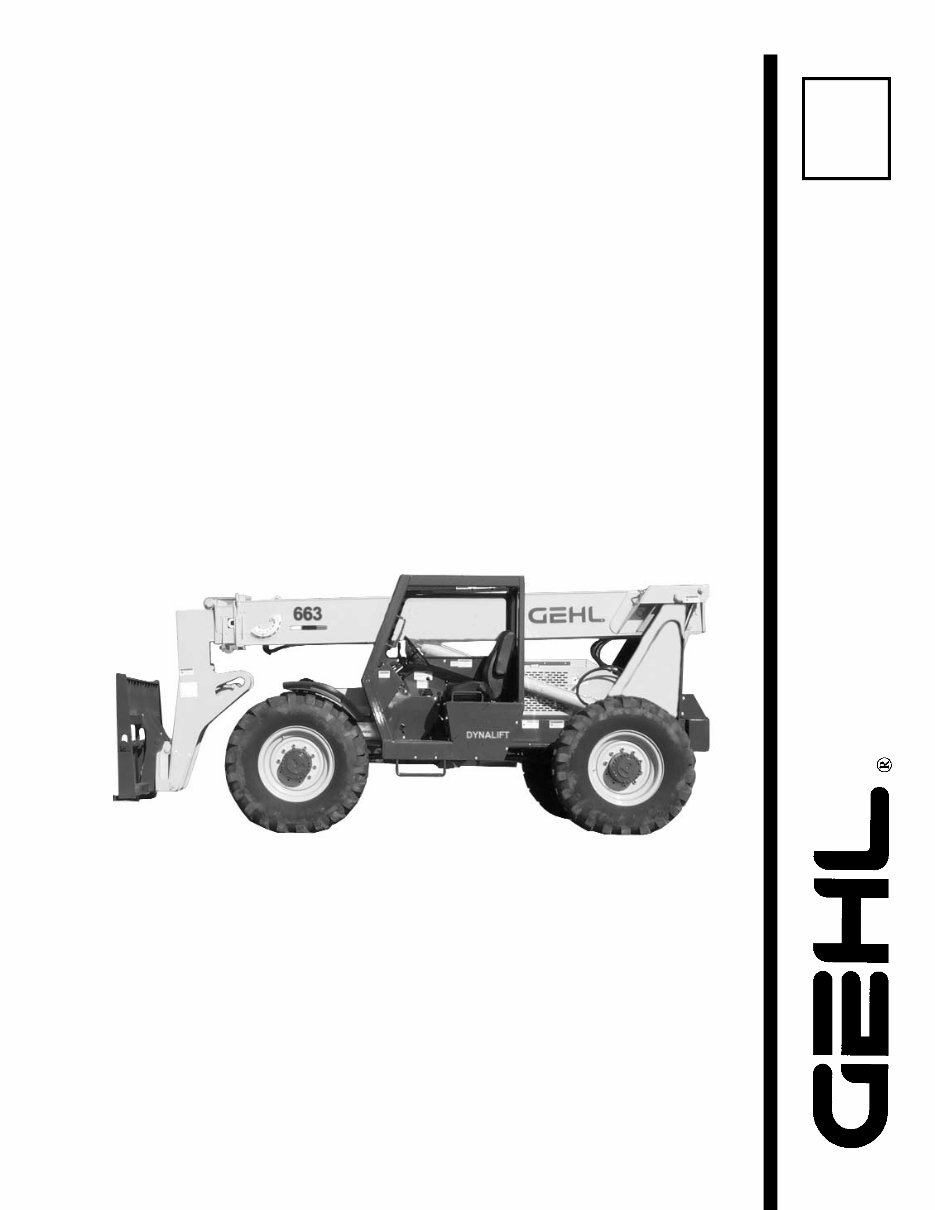

663 Telescopic Handler PARTS MANUAL Form No. 913213

913213/AP0204 PRINTED IN U.S.A. Introduction 663 Telescopic Handler The table of contents page shows the page location of various component groups on the machine. When ordering service parts, specify the correct part number, full description, quantity required, and the unit model and serial number. Model and serial numbers for this unit are stamped on a plate located inside the operator’s station. The serial number is also stamped on the top front frame. The following reference shows the breakdown of the serial number: “Right” and “left” are determined from a position standing behind the unit and facing the direction of travel. GEHL Company reserves the right to make changes or improvements in the design or construction of any part of the unit without incurring the obligation to install such changes on any unit previously delivered. Grease fittings and common attaching hardware, such as cotter pins, set screws, woodruff keys, screws, nuts, etc., are included in the parts list, indented below the part it is (they are) associated with, but NOT illustrat- ed, except where a particular routing or special fas- tening arrangement MUST be maintained. The hardware listed is for mounting purposes and is NOT included when the part is ordered for replacement. Standard attaching hardware torque values are provided on the inside Back Cover. Unless otherwise specified, all cap screws are Grade 5, cadmium or zinc plated; hexagon nuts for Grade 5 cap screws or bolts are Grade A. 663 J U 02 4600 Model Year (T=02, U=03, etc.) Month Unit Number Engine

PRINTED IN U.S.A. 1 913213/AP0204 663 Telescopic Handler Introduction List of Abbreviations Used in this Manual AN Acorn Nut AR As Required ASY Assembly BHB Button Head Bolt CB Carriage Bolt CN Castellated Nut CYL Cylinder CS Cap Screw (Hexagon Head) DIA Diameter FHMS Flat Head Machine FLN Flanged Flexlock Nut FLS Flanged Lock Screw FT Foot or Feet GR Grade HLN Hexlock Nut HYD Hydraulic JD John Deere JN Jam Nut L Lock (Washer) LH Left Hand LT Left N Nut (Plain Hex) NA Not Applicable NSS Not Sold Separately NIN Nylon Insert Lock Nut NPTF National Pipe Threaded Fitting P Plain (Washer) PB Plow Bolt PHS Pan Head Screw RH Right Hand RHMS Round Head Machine Screw RHSMS Round Head Sheet Metal Screw RNF Retained Nut Fastener RT Right SHCS Socket Head Cap Screw SHSS Socket Head Set Screw SFN Serrated Flange Nut SHSS Square Head Set Screw STS Self-Thread Screw Hex. Washer Head THMS Truss-Head Machine Screw TRS Thread Roll Screw W/ With WN Wing Nut Size & Part No. Size & Part No. Description Description #10-32 N L50050 1/4 L L50139 1/4-20 NIN L520003 1/4 P L50137 1/4-20 SFN L50051 5/16 L L50143 5/16-18 N L50230 5/16-18 NIN L520004 5/16 P L50141 5/16-18 RNF L530004 5/16-18 SFN L50056 3/8-16 L L50147 3/8-16 N L50066 3/8-16 NIN L520005 3/8-16 P L50145 3/8-16 SFN L50061 3/8-16 WN L530003 7/16 L L50150 7/16-14 NIN L50517 7/16 P L50149 1/2-13 NIN L520019 1/2 P L50151 5/8 L L50156 5/8-11 N L50081 3/4-10 N L50086 3/4-10 NIN L50519 3/4 P L50147 1-8 JN L50145 TABLE OF STANDARD WASHERS, NUTS FILTER REFERENCE Engine Oil S/N 4658 and up; with JD 4045 Turbo . . . . . . . . L99420 S/N 4868 and up; with JD 4045 Natural Thru S/N 4657; with JD 4039 Turbo . . . . . . . . . . L94746 Thru S/N 4867; with JD 4039 Natural With Perkins Engine. . . . . . . . . . . . . . . . . . . . . . . 078849 Engine Fuel S/N 4366 and up; with JD engine . . . . . . . . . . . . L98978 Thru S/N 4365; with JD engine . . . . . . . . . . . . . . L98600 S/N 4302 and up; with Perkins engine . . . . . . . . L88976 Thru S/N 4301; with Perkins engine . . . . . . . . . . 078850 Engine Air Turbo charged engines . . . . . . . . . . . . . . . . . . . L120037 Naturally Aspirated engines . . . . . . . . . . . . . . . L120054 Transmission Oil . . . . . . . . . . . . . . . . . . . L99184 Hydraulic Oil . . . . . . . . . . . . . . . . . . . . . . L97489 (units with Autotroll). L98725

913213/AP0204 2 PRINTED IN U.S.A. Table of Contents 663 Telescopic Handler Page Introduction Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Decal Application and Paint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Decal Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Operator’s Station Outside Area and Inner Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Cab Group without (Optional) Air Conditioning (Part 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Cab Group without (Optional) Air Conditioning (Part 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Air Conditioning Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 Dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 Steering Column and Shifter Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Floor Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 Chassis, Covers and Tanks Frame Area (Front) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28 Frame Area (Rear) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 Hoods and Covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32 Fuel Tank/ Battery Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34 Hydraulic Tank Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36 Power Train Engine - External Components/Fuel Lines Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38 Turbo Engine - Air Intake Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40 Natural Engine - Air Intake Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42 Engine - Exhaust Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44 Radiator/Coolers Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46 Transmission - Components Group (including Drive Shafts) (S/N 4307 and up) . . . . . . . . . . . . . . . .48 Transmission - Components Group (including Drive Shafts) (Thru S/N 4306 and up) . . . . . . . . . . . .50 Axles and Service Brakes Power Brake/Master Cylinder Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52 Planetary and Wheel Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54 Brake Caliper Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56 Outer Knuckle End Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58 Differential Carrier Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60 Boom Components Outer Boom Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62 Intermediate Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64 Inner Boom Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66 Standard Carriage Attachment Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68 Fork Shift Carriage Attachment Group (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

PRINTED IN U.S.A. 3 913213/AP0204 663 Telescopic Handler Table of Contents Page Boom Components (continued) Rotate Carriage Attachment Group (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72 Swing Carriage Attachment Group (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74 Truss Boom and Bucket Attachment Group (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76 Hydraulics Winch Attachment Plumbing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78 Hydraulic Pump Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80 Joystick / Manifold Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82 Brake Control Plumbing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84 Steering Plumbing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86 Boom Extend/Lift Plumbing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88 Boom Carrier Tilt/Slave/Auxilary Plumbing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90 Hydraulic Components (Breakdown) Steer Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92 Frame Level Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94 Boom Lift Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96 Boom Extend Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .98 Boom Slave Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100 Attachment Tilt Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102 Fork Shift Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .104 Rotate Carriage Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .106 Swing Carriage Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .108 Hydraulic Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .109 Steer Select Valve (S/N 4312 and up) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .110 Steer Select Valve (Thru S/N 4311) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .111 Boom Extend/Lift Joystick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112 Tilt/Rotate Joystick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .114 Frame Level Control Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .116 Power Steering Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117 Priority Flow Divider . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118 Flow Divider . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .119 Dual Relief Valve (S/N 4938 and up) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120 Dual Relief Valve (Thru S/N 4937) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .121 Joystick Releif Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .122 Winch Releif Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .123 Autotroll Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .124 Hydraulic Plumbing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .126 Boom Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .128 Numerical Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .130

913213/AP0204 4 PRINTED IN U.S.A. GENERAL INFORMATION Decal locations information is provided to assist in the proper selection and application of new decals, in the event the original decals become damaged or the machine is repainted. For correct replacement of decals compare the location illustrations to your machine before starting to refinish the unit. Check off each required decal using the illustration reference number to find the part number, description and quantity in the list. Refer to the appropriate illustrations for replacement locations. NEW DECAL APPLICATION Before applying the new decals, surfaces must be free from dirt, dust, grease and other foreign material. To apply a solid-formed decal, remove the smaller portion of the decal backing paper and apply this part of the exposed adhesive backing to the clean surface while maintaining proper position and alignment. Slowly peel off the other portion of the backing paper while applying hand pressure to smooth out decal surface. To apply a die-cut decal, first remove the backing paper. Then, properly orient and position the decal onto the clean mounting surface. After the decal is firmly applied and smoothly pressed down, remove the front covering paper. PAINT FINISH Use this list to order paint for refinishing: Units Thru S/N 4310 903891 Six (12 oz. Spray Cans) Industrial Yellow Units S/N 4311 and up 906213 One gallon Construction Yellow 906317 One gallon Charcoal Paint 906323 One quart Charcoal Gray 906214 Six (12 oz. Spray Can) Constr. Yellow 906318 Six (12 oz. Spray Can) Charcoal Gray Decal Kits L500174 Thru S/N 4310 L98860 S/N 4311 and up NOTE: Decals may be purchased in kits or individually. CAUTION ALWAYS read and follow the safety precau- tions on decals. Replace decals if they are damaged, or if the unit is repainted. If repaint- ing, BE SURE that all applicable decals are affixed in their proper locations. Decals 663 Telescopic Handler

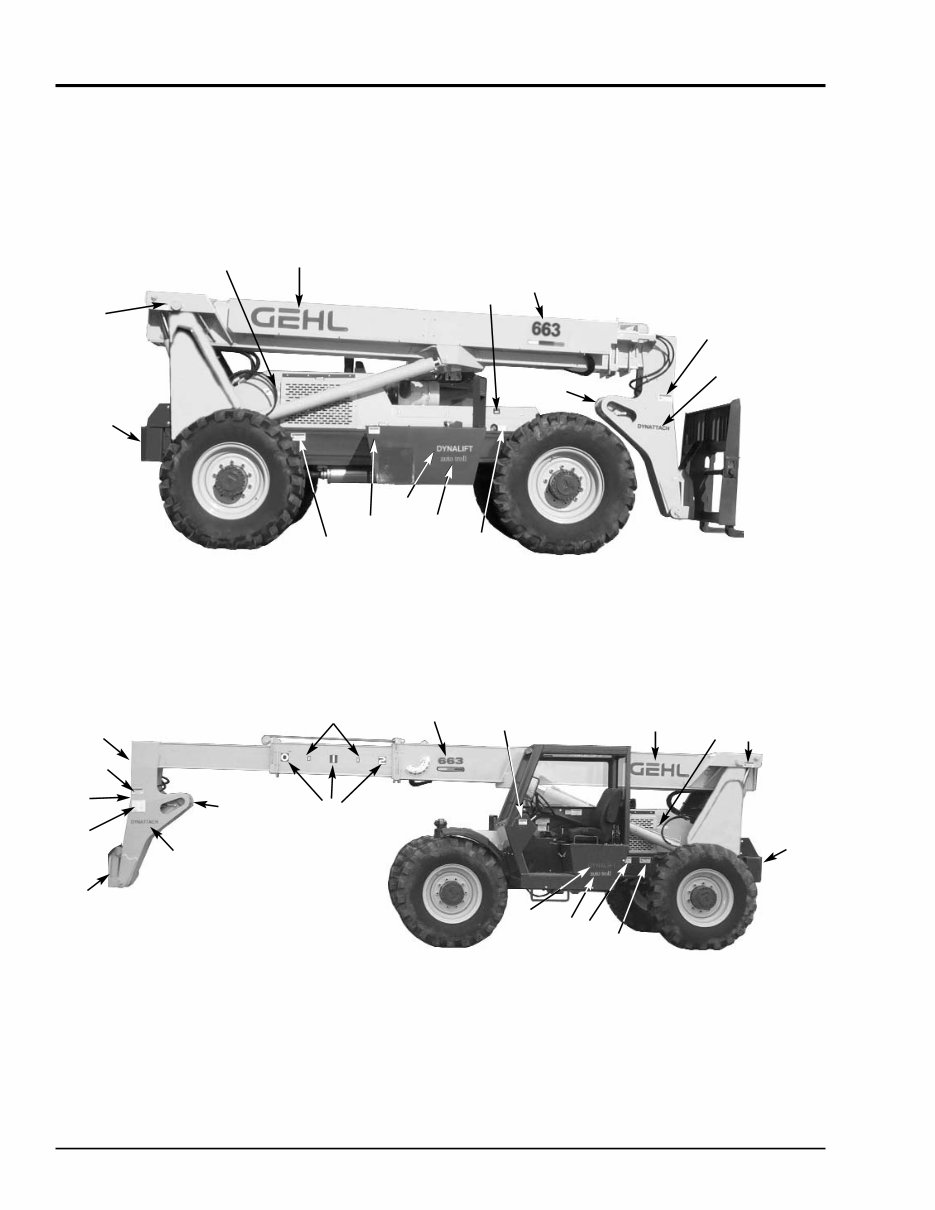

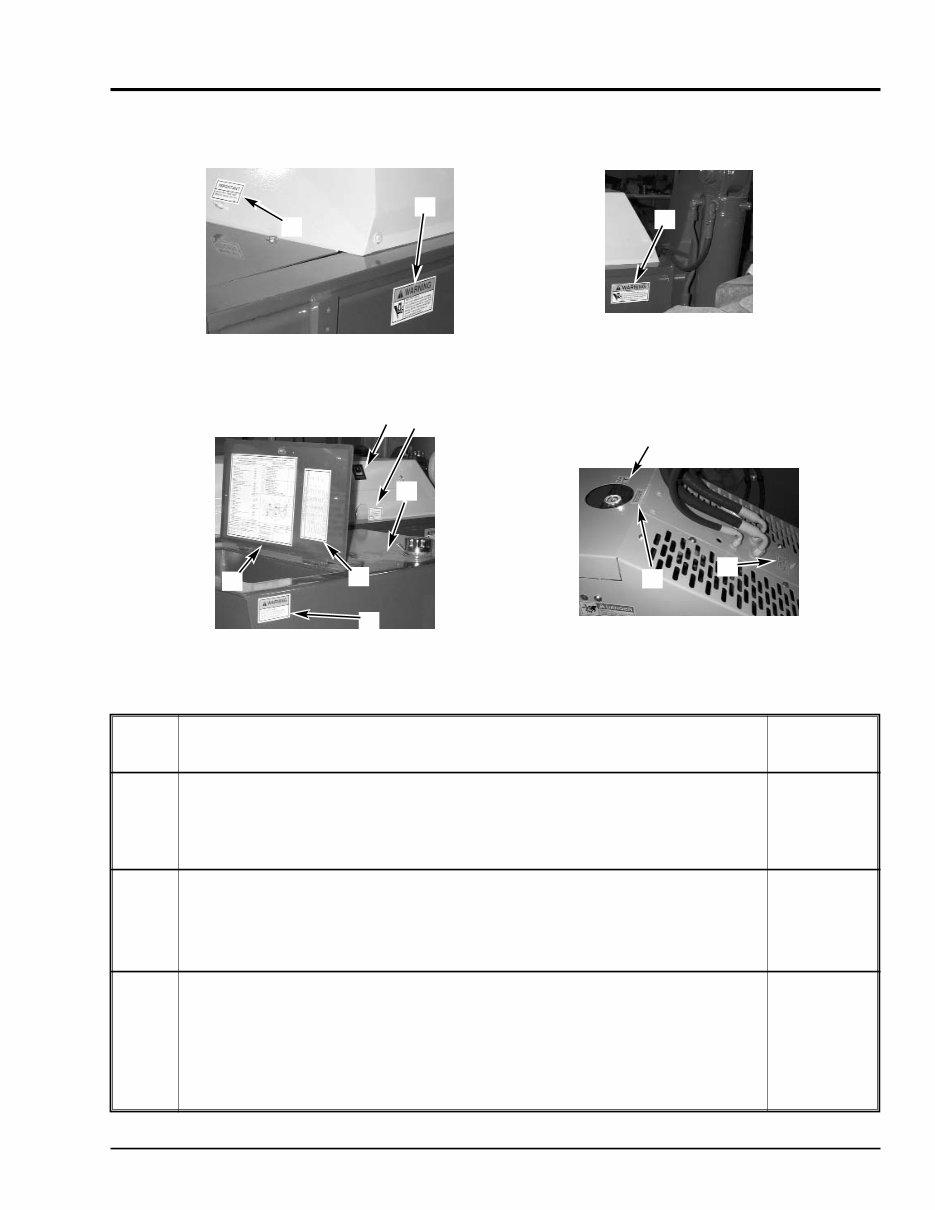

PRINTED IN U.S.A. 5 913213/AP0204 663 Telescopic Handler Decals 2 2 1 3 4 8 5 9 10 1 REF. DESCRIPTION 663 NO. PART NO. 01 GREASE DAILY L65920 02 WARNING - PINCH POINT L65927 03 LUBE CHART L65931 04 FILTER CHART (S/N 4311 and up) L68083 05 WARNING - NO RIDERS L65932 06 HYDRAULIC OIL FILL 072794 07 HYDRAULIC OIL LEVEL L65921 08 DIESEL FUEL 072797 09 COOLANT UNDER PRESSURE 072798 10 ANTI-FREEZE 056859 DECAL LOCATIONS - FRAME AND CHASIS 6 7 FRONT COVER AND FRAME - LEFT SIDE REAR COVER AND FRAME - LEFT SIDE RIGHT SIDE - TOOL BOX AND FUEL TANK REAR COVER - TOP

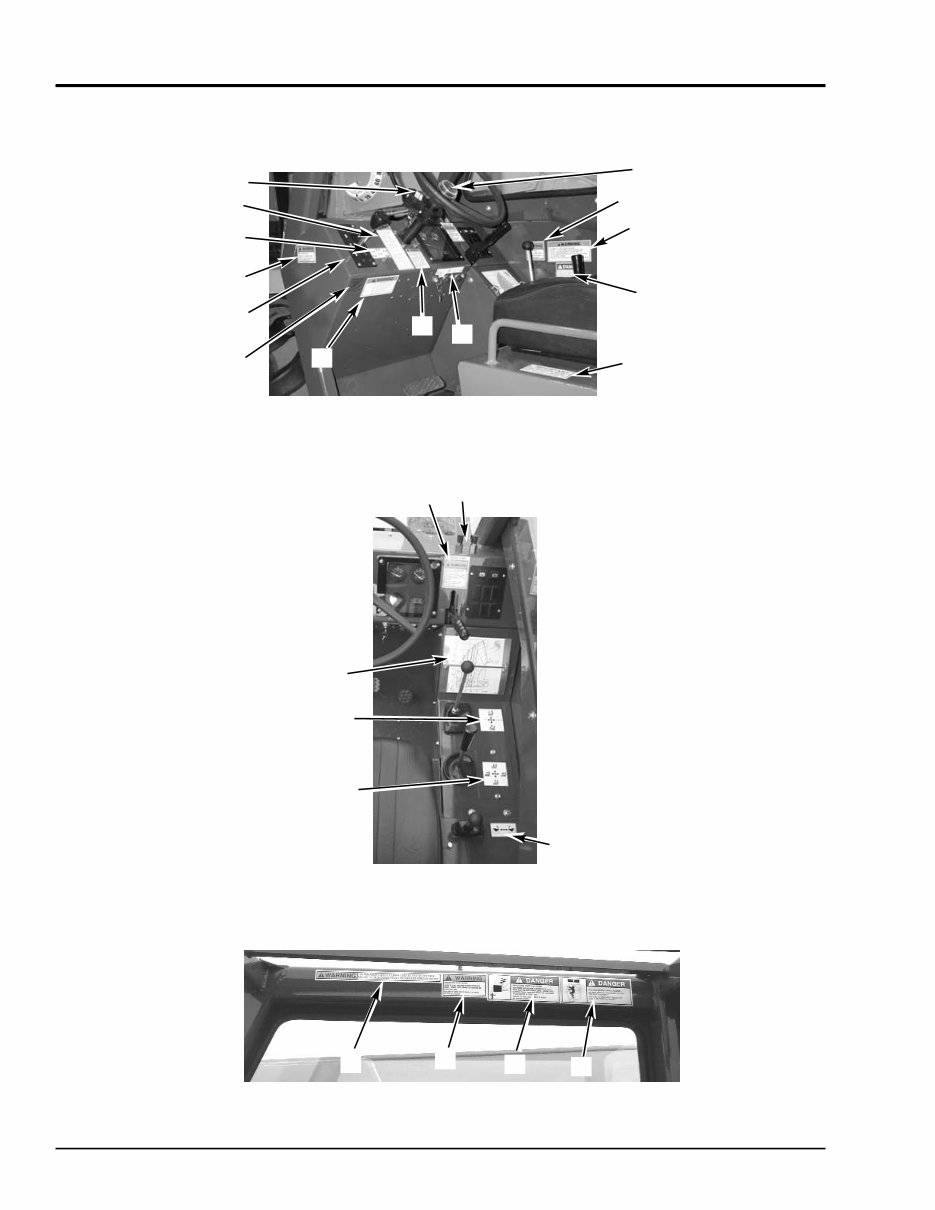

913213/AP0204 6 PRINTED IN U.S.A. Decals 663 Telescopic Handler 8 11 2 3 21 12 15 14 13 5 20 1 22 6 7 9 10 19 16 17 18 4 a OPERATOR’S STATION - DASH AREA OPERATOR’S STATION - CONTROL PANEL OPERATOR’S STATION - UPPER RIGHT CAB AREA DECAL LOCATIONS - OPERATOR’S STATION 4 b 23

PRINTED IN U.S.A. 7 913213/AP0204 663 Telescopic Handler Decals REF. DESCRIPTION 663 NO. PART NO. 01 DANGER - PERSONNEL LIFT L65928 02 WARNING - OPERATOR L63690 03 STEER SELECT L64814 04 a F-N-R SHIFT (attached to shifter) L68295 04 b F-N-R SHIFT (attached to panel next to shifter) (not shown) L60936 1-2-3 SHIFT (attached to panel next to shifter) (not shown) L64945 05 STEERING WHEEL 2.0” DIA. 101545 06 HYDRAULIC PRESSURE SETTINGS L64643 07 WARNING - PARK BRAKE L65925 08 c STANDARD CARRIAGE LOAD CHART L66596 ROTATING CARRIAGE LOAD CHART L66599 BUCKET LOAD CHART L66600 TRUSS BOOM LOAD CHART L66602 WINCH LOAD CHART L66601 09 ATTACHMENT CONTROL L65208 10 BOOM CONTROL L64812 11 FRAME LEVEL CONTROL L64810 12 MADE IN USA 137654 13 a IGNITION/START/HORN L68513 IGNITION/HORN L68052 13 b IGNITION/START BUTTON L64815 PARK BRAKE LIGHT / HORN BUTTON L64816 14 WARNING - SEAT BELT L65440 15 OPERATOR MANUAL INSIDE L65922 16 WARNING - CARRY LOAD LOW 093475 17 WARNING - MACHINE LEVEL L65930 18 DANGER - HIGH VOLTAGE L65929 19 DANGER - PANEL IN PLACE L65948 20 WARNING - TRUSS BOOM TILT L66042 21 WARNING NO RIDERS L65932 22 BRAKE FLUID LEVEL L65934 23 WARNING - BACKUP ALARM L500445 00 CLUTCH DUMP (not shown) L64797 a S/N 4306 and up b Thru S/N 4305 c For a complete set of load chart decals including the metal load chart plates, u-bolts and nuts; order part #L66603 Loadchart Assembly DECAL LOCATIONS - OPERATOR’S STATION

913213/AP0204 8 PRINTED IN U.S.A. 1 Decals 663 Telescopic Handler S/N 4307 and S/N 4314 and Up DECAL LOCATIONS - FRAME AND BOOM 14 13 11 5 16 12 1 15 9 10 1 2 3 2 1 12 1 11 3 10 9 7 8 6 1 5 4 17 7 18 19 6
