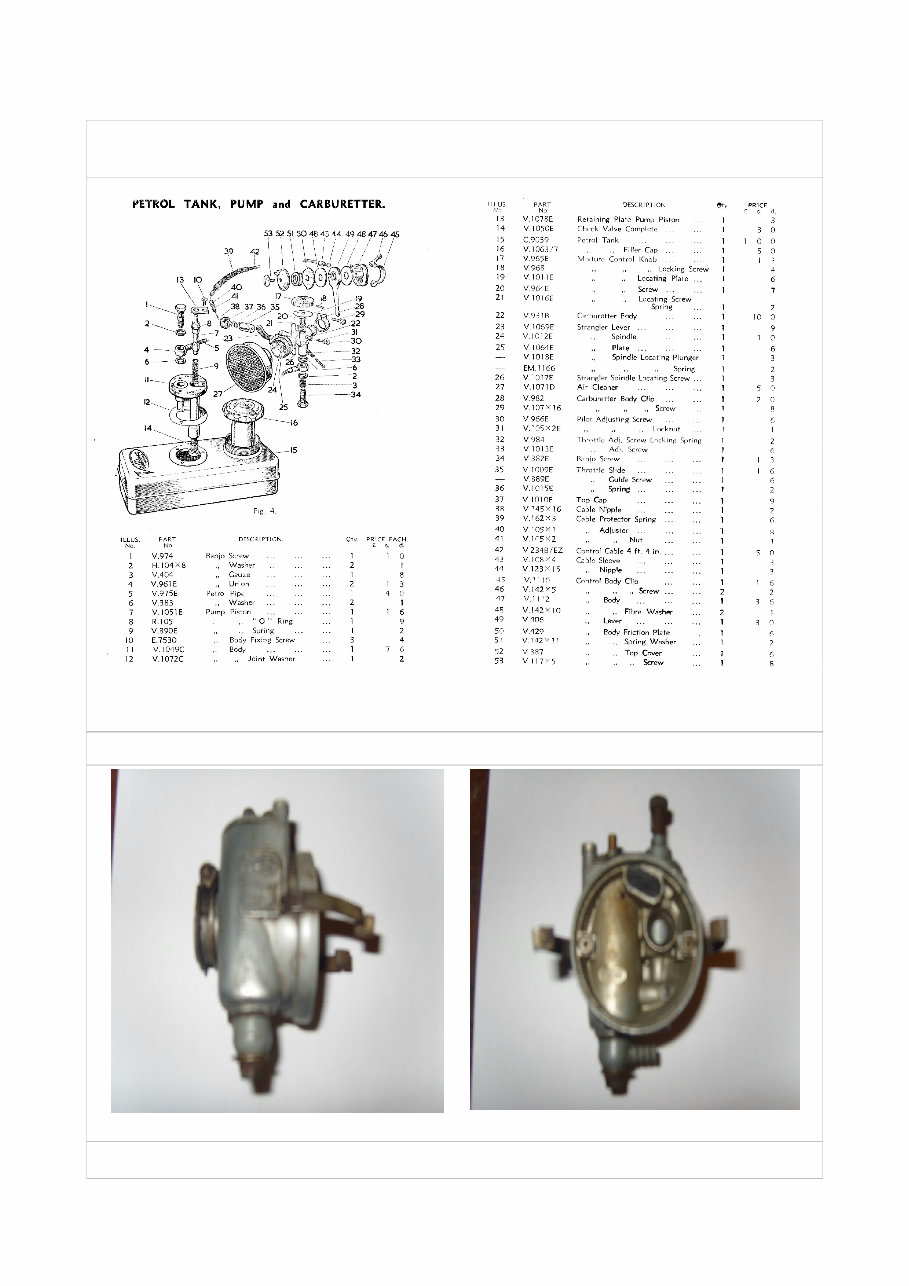

Villiers Carburettor Repair and service Author Steve Richardson © 2010 The Villiers Carburettor has been been used on many Types of engine in the last century. Not only on the Villiers brand of engine. Motorcycles and Mopeds the likes of James, Dot, Greeves, Frances Barnett, Excelcior, Ambassador, Bond, Cotton, Cycle master, Norman, Panther,Sun, and many more. Villiers History Click Here. 100's of Thousands of these machines were produced from the early 1900's to the early 70s. An enormous amount of industrial stationary engines also in the 100s of thousands were produced in the same time frame. This ebook has been compiled to assist mechanics identify and repair Villiers Carburettors. Parts Lists with numbers and Carburettor diagrams and Photos are included to assist with identification. Villiers SL 10 Carburettor Early Direct injection type DN 2527 SL10 carburettors with no float chambers. Fuel is fed direct to the carburettor and regulated via one Screw in needle jet. Single choke leaver and a simple butterfly operation. Traditional Oil soaked Two stroke Air filter which screws to the carburettor body. Villiers Type DN 2527 - SL10 The Type DN is not a conmen carburettor found on small engines only. It has a 14mm bore. 11 mm long needle. 3 mm to zero taper and screws directly into the fuel inlet. The carburettor is not unlike the Wal Phillips fuel injector in appearance. Villiers History Click Here. Early Villiers engines the mark IV 269cc and The Mark VII – C 147cc introduced in 1913 by the Villiers Engineering Co They Had a Bore of 70mm with a non detachable cylinder head made from cast iron as was the engines piston. These models are known as the mark 1. In 1913 to 1932 Villiers added the mark II to mark V.

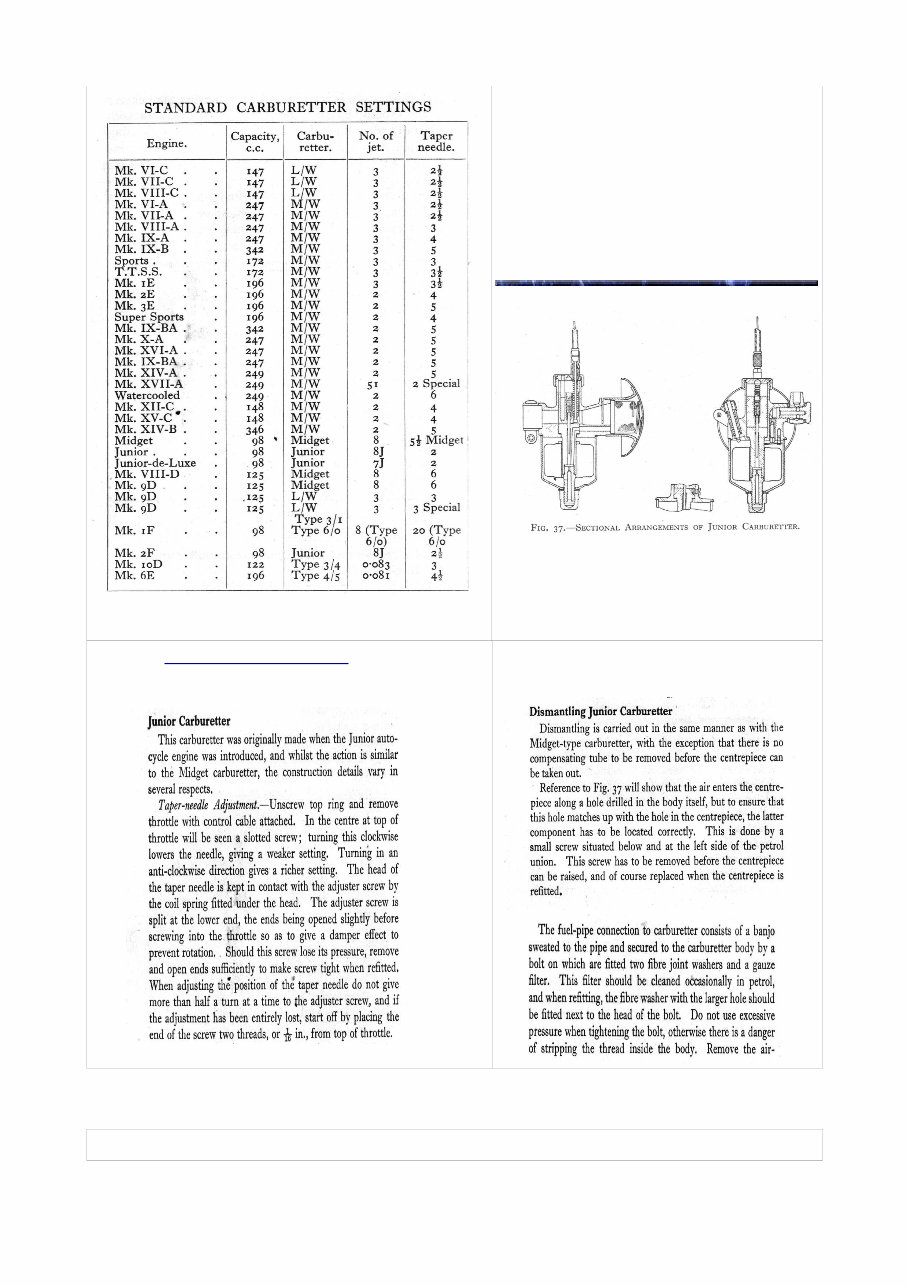

Villiers Standard Carburettor Table Giving Taper needle sizes Engine Type, Capacity and ID carburettor letter Note this dose not cover all Villiers Carburettors. The Basic layout of the Villiers junior carburettor Villiers Junior Manual Villiers Junior Carburettor The Villiers Junior Engine Servicing Villiers Air Cleaners

Servicing Villiers Air Cleaners Villiers air filters are of the Oil whetted type. The filter should be washed in petrol every 2000 miles then allowed to dry. Then dipped in a light engine oil for a few minuets. Allow the filter to drain then refit. Villiers Carburettor Parts lists Types S22 Villiers S 22 Carburettor

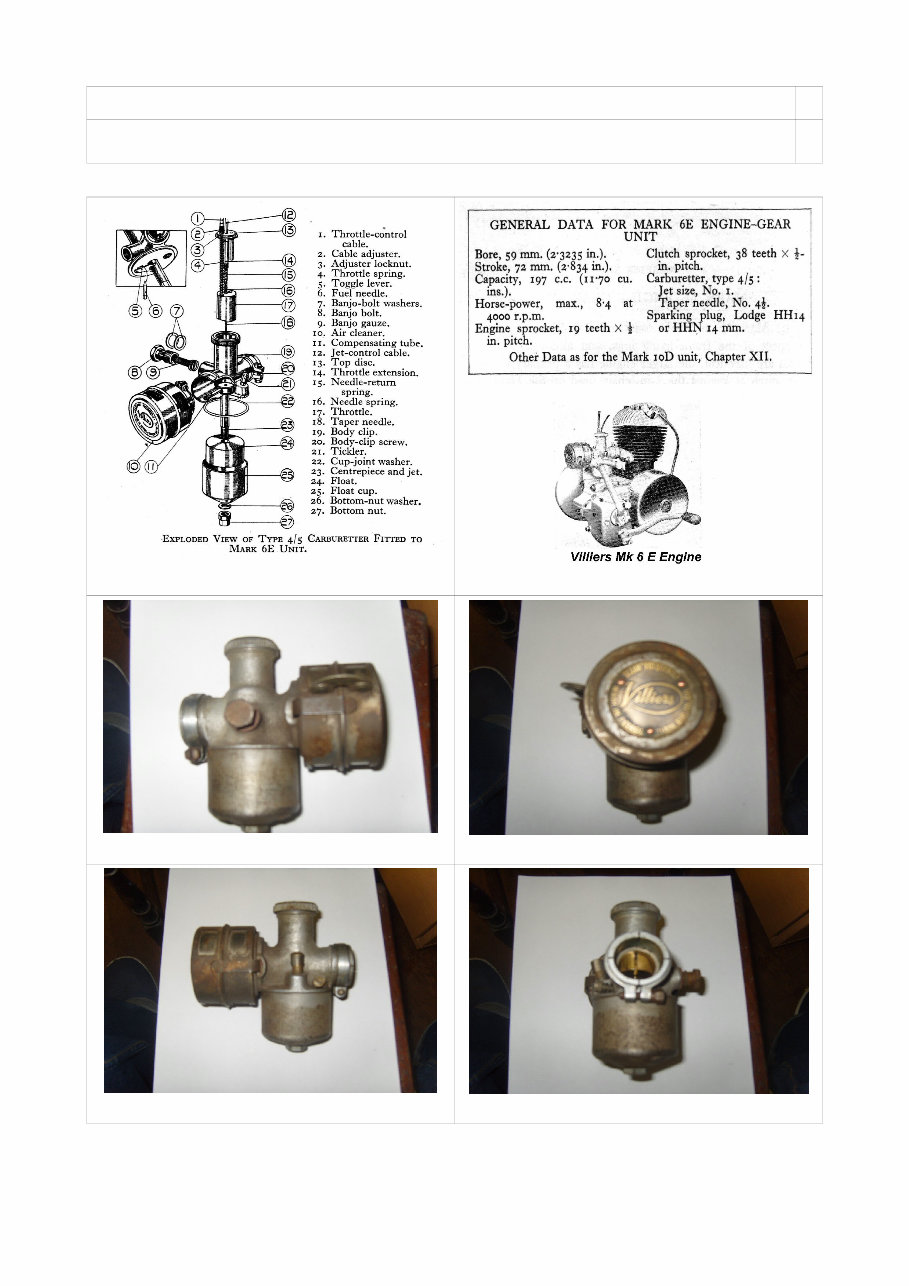

Villiers 6 E Engines

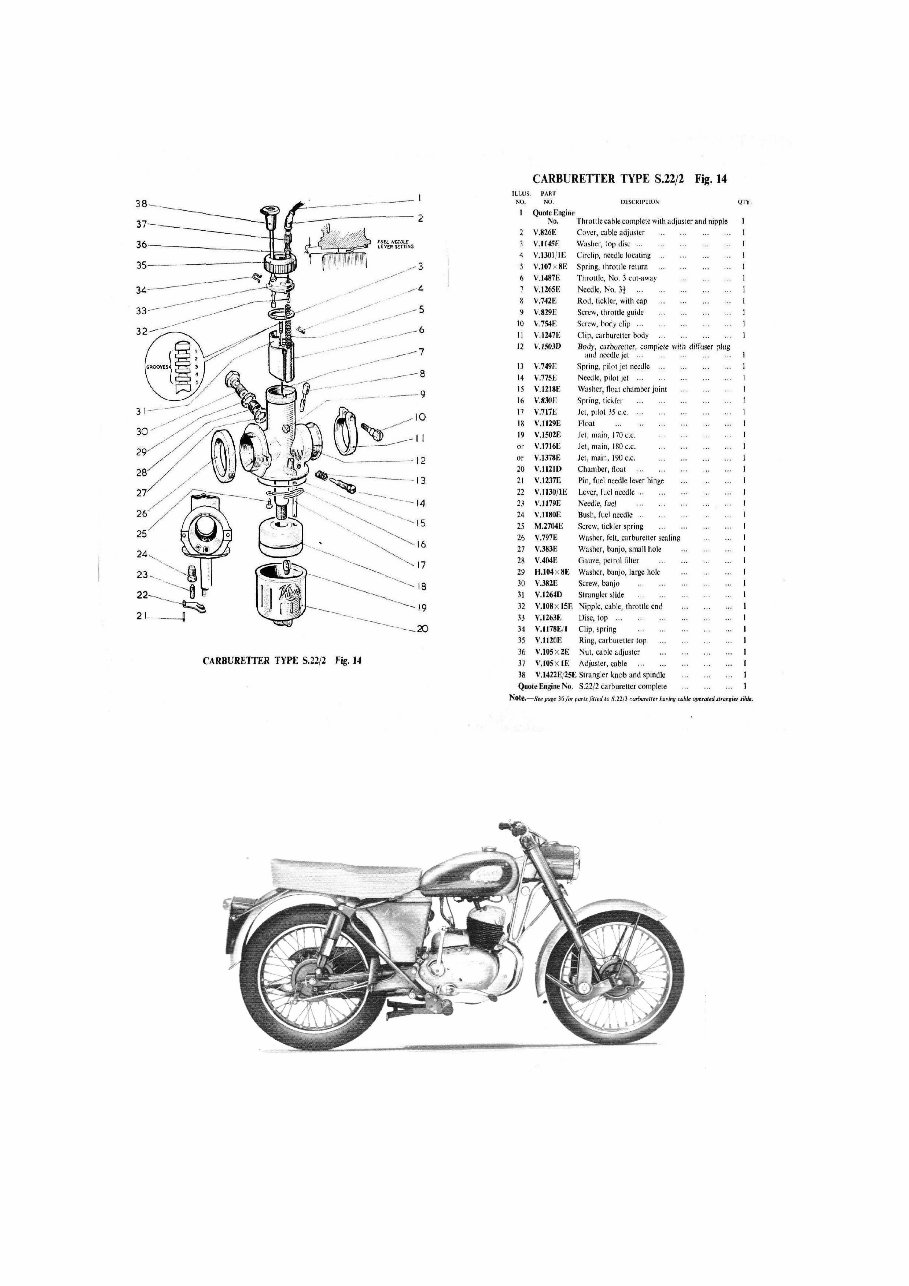

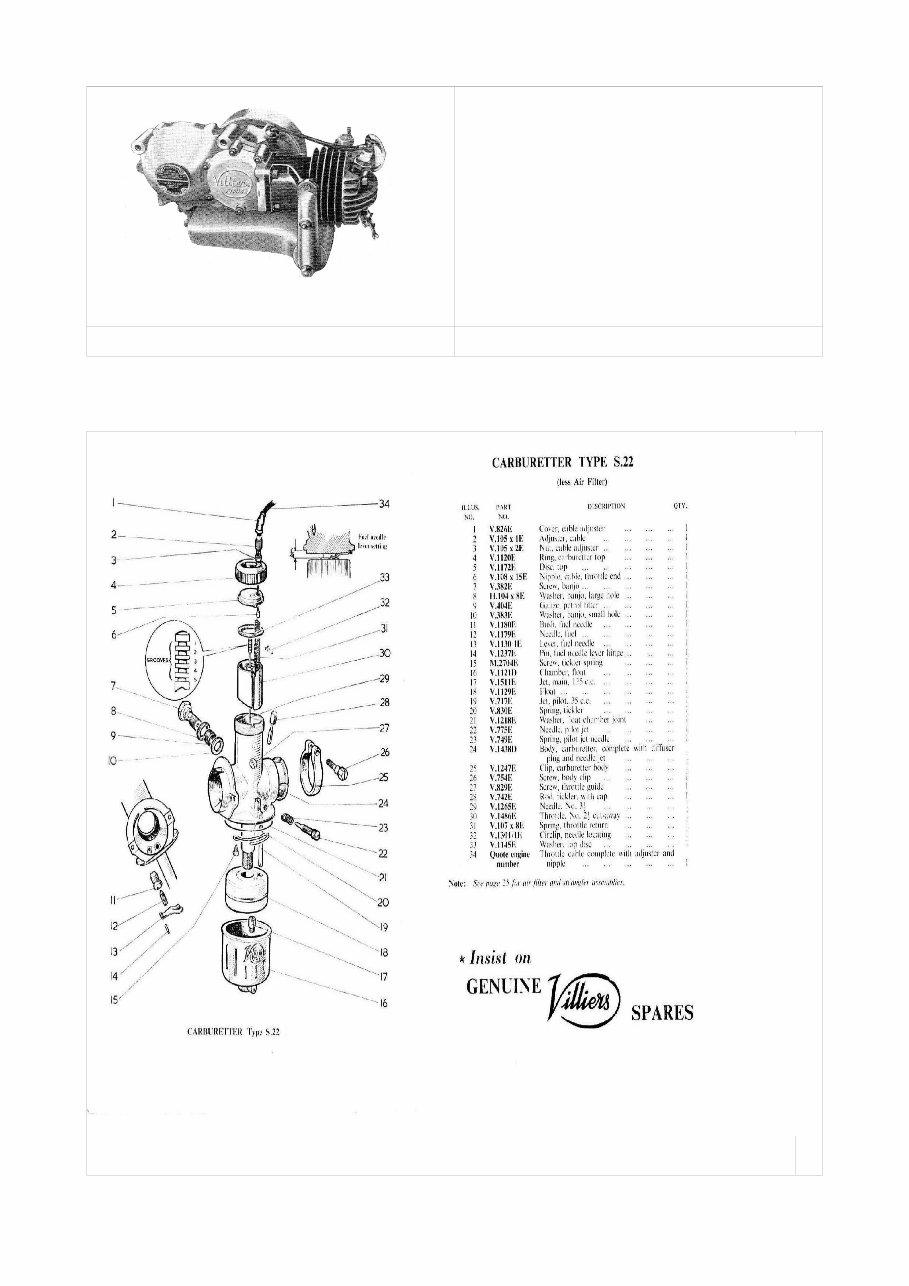

Villiers Type S22 Carburettor as fitted to the 2T Engine The Greeves Sport Twin with Villiers 2T Engine Villiers 2T engines were fitted to many British Two strokes of the 50s and 60s

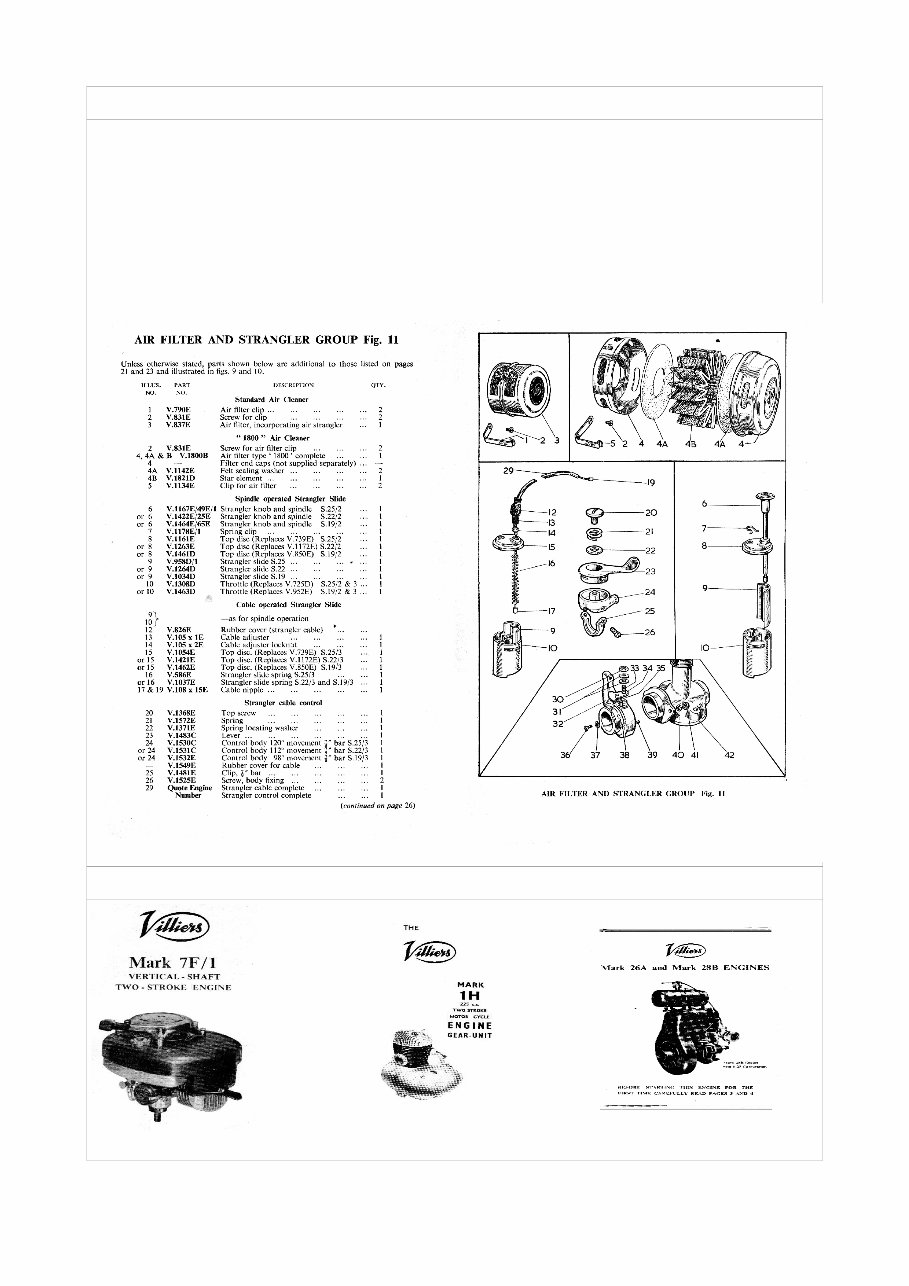

Air Filters and Stranglers Air filter Villiers 9e 2L 31c Motorcycle Engines Mark 7F Mark 1H Mark 26A 28B

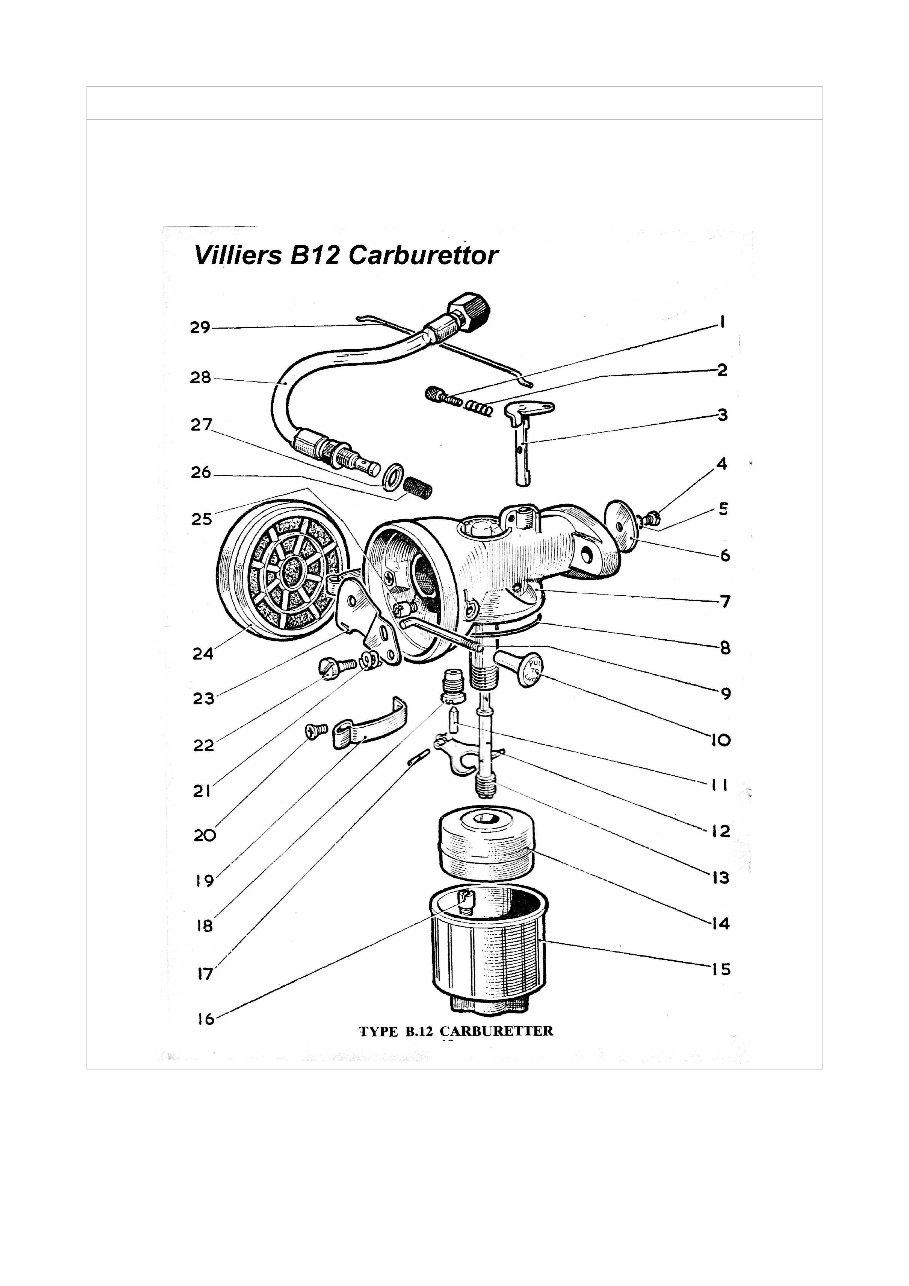

Villiers 4G Type SL10 Small bore carburettor Villiers Type S10 Carburettors Villiers B12 Carburettor

In memory of All Neal ... Warlord and 1% er RIP 2010

Villiers Mk F7 Carburettor

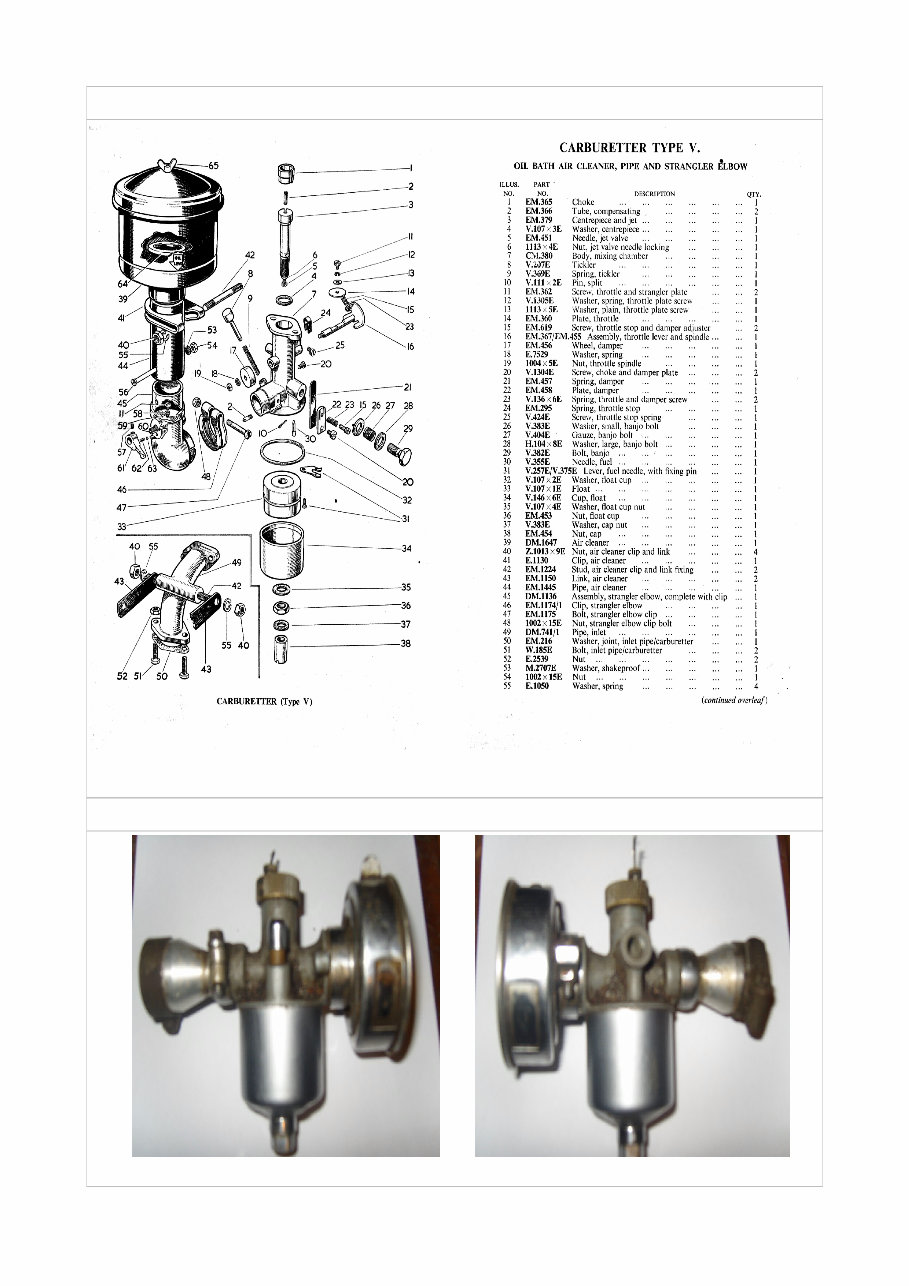

Villiers Type 5 Carburettor Villiers Mk II Carburettor with Tapered Manifold
