Product Catalog \ AGRICULTURAL \ AGRICULTURE \ ROUGH TERRAIN FORK LIFT \ 940 4WD 00825400-
00825483,01280000-01281999,01483000-01483999,01484000-01484181,02228008-02228489 RTFL 9812/9000 \ A
ATTACHMENTS \ A01 SHOVELS

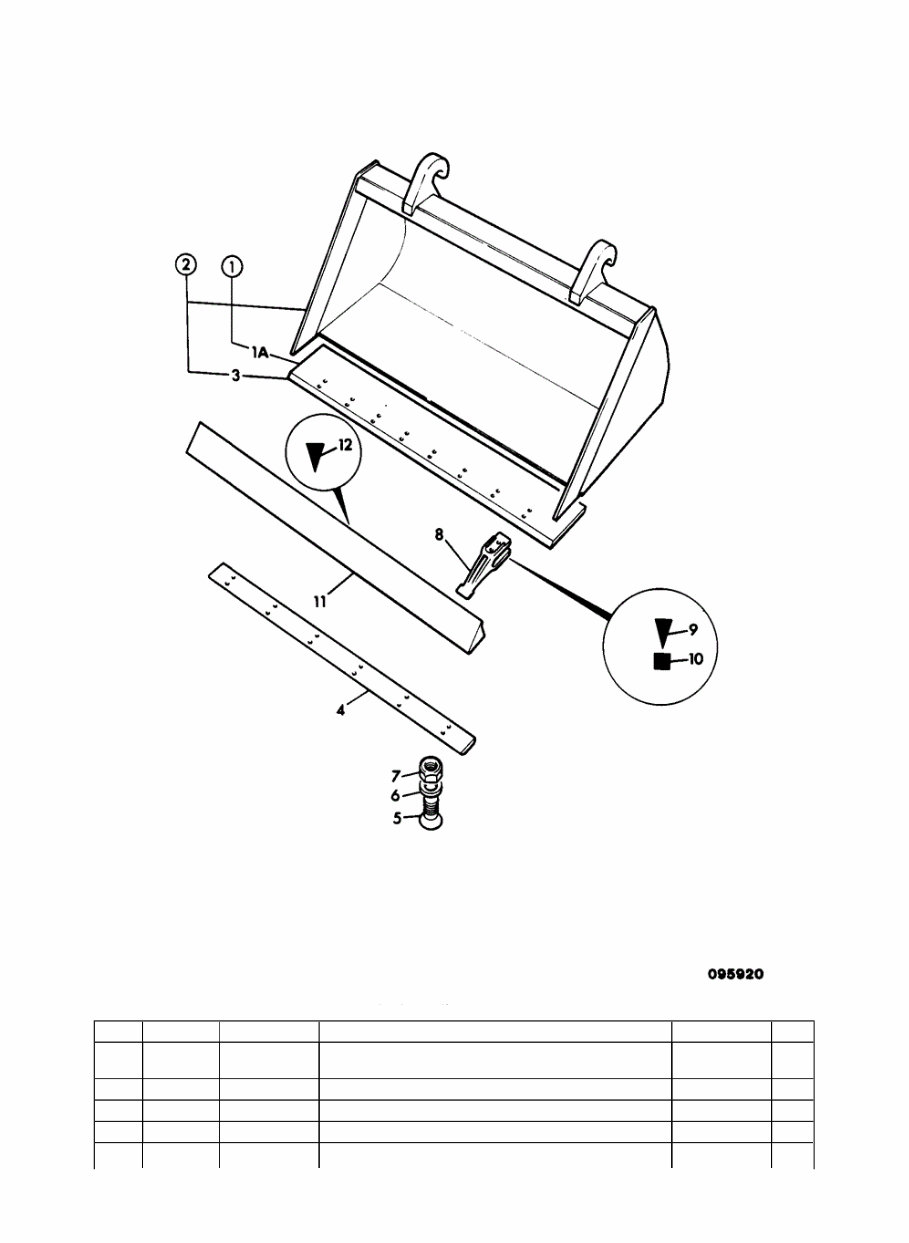

9812/9000 A1-1-1 SHOVEL GP 0.9CU.M AND 1.0CU.M QH
MOUNTED,547/43100,547/42900
2016/5/21 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=e01fbba...
Item Part # Change No Description Usage Code QTY
1 547/43100
Shovel 0.9cu.m c/w bolt on teeth
Includes items 8,9,10
A 1
1 547/42900 Shovel 0.9cu.m without teeth B 1
1A :547/37701 Toeplate 2286mm wide 18 HOLES (Weld-In) A 1
1A :547/42601 Toeplate 2286mm wide 2 holes (Weld-In) B 1
Shovel 1.0cu.m c/w bolt on teeth
2016/5/21 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=e01fbba...
2 547/43200 Includes items 8,9,10 1
2 547/42700 Shovel 1.0cu.m without teeth 1
3 :547/37701 Toeplate 2286mm wide 18 HOLES (Weld-In) 1
4 547/37801 Toeplate 2286mm wide 8 holes (Bolt-On) Reversible 1
5 826/00217 Ploughbolt 3/4UNF x 2-1/4" 12
6 1416/0011 Washer 12
7 1340/0702Z Nut thin (3/4" UNF) 1
8 531/03205 Tooth 0
9 826/00303 Bolt Plough 0
10 1340/0701Z Nut 3/4 0
11 120/37800 Guard 1
12 1305/0414Z Setscrew (1/2" UNF x 2") 2
2016/5/21 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=e01fbba...
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ ROUGH TERRAIN FORK LIFT \ 940 4WD 00825400-
00825483,01280000-01281999,01483000-01483999,01484000-01484181,02228008-02228489 RTFL 9812/9000 \ A
ATTACHMENTS \ A01 SHOVELS

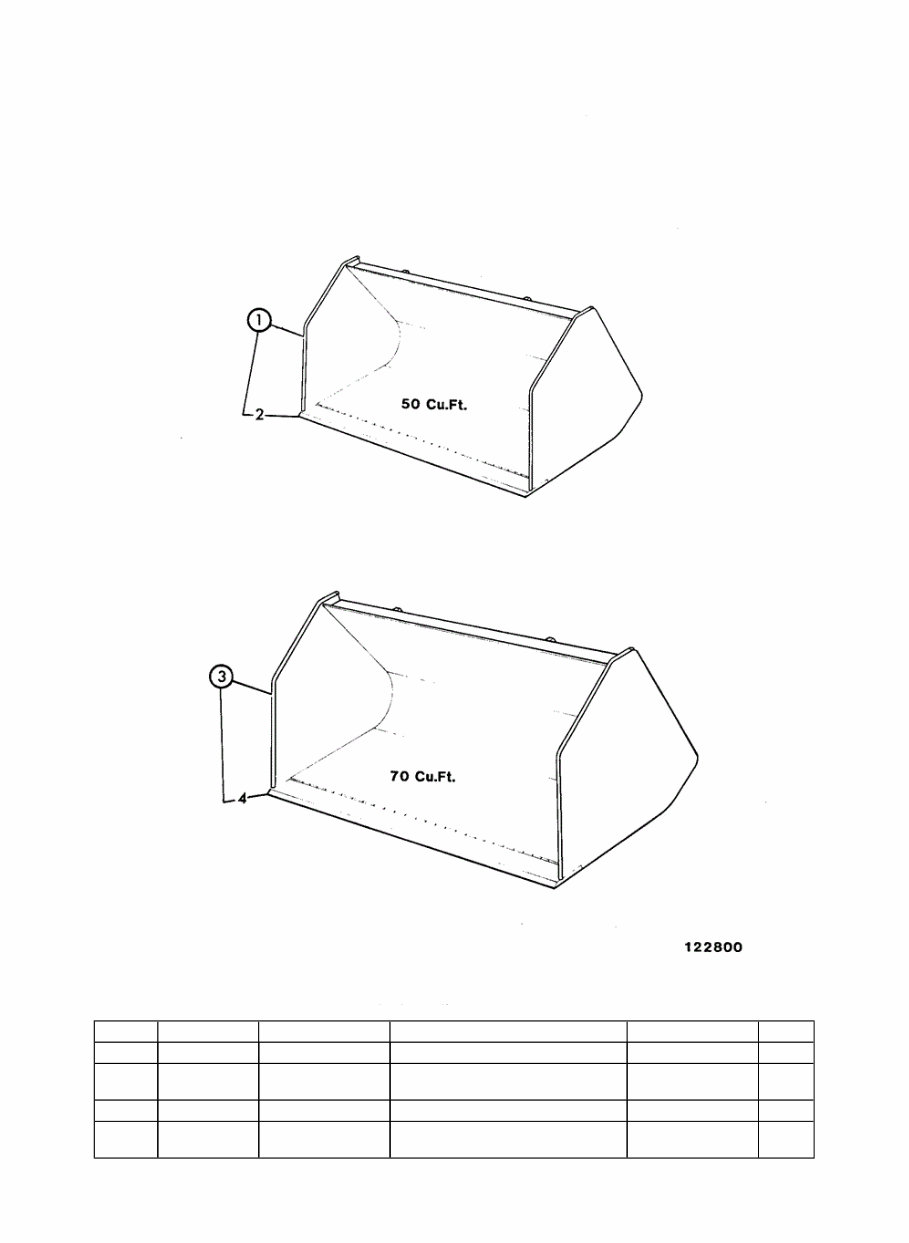

9812/9000 A1-2-1 SHOVEL GRAIN QUICK HITCH MOUNTED
547/42200,547/44300
2016/5/21 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=3a25f7e...
Item Part # Change No Description Usage Code QTY
1 547/44200 Bucket grain 50cu ft 1
2 ****
'See Remark'
Toeplate
1
3 547/44300 Bucket grain 70cu ft 1
4 ****
'See Remark'
Toeplate
1
2016/5/21 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=3a25f7e...
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ ROUGH TERRAIN FORK LIFT \ 940 4WD 00825400-
00825483,01280000-01281999,01483000-01483999,01484000-01484181,02228008-02228489 RTFL 9812/9000 \ A
ATTACHMENTS \ A01 SHOVELS

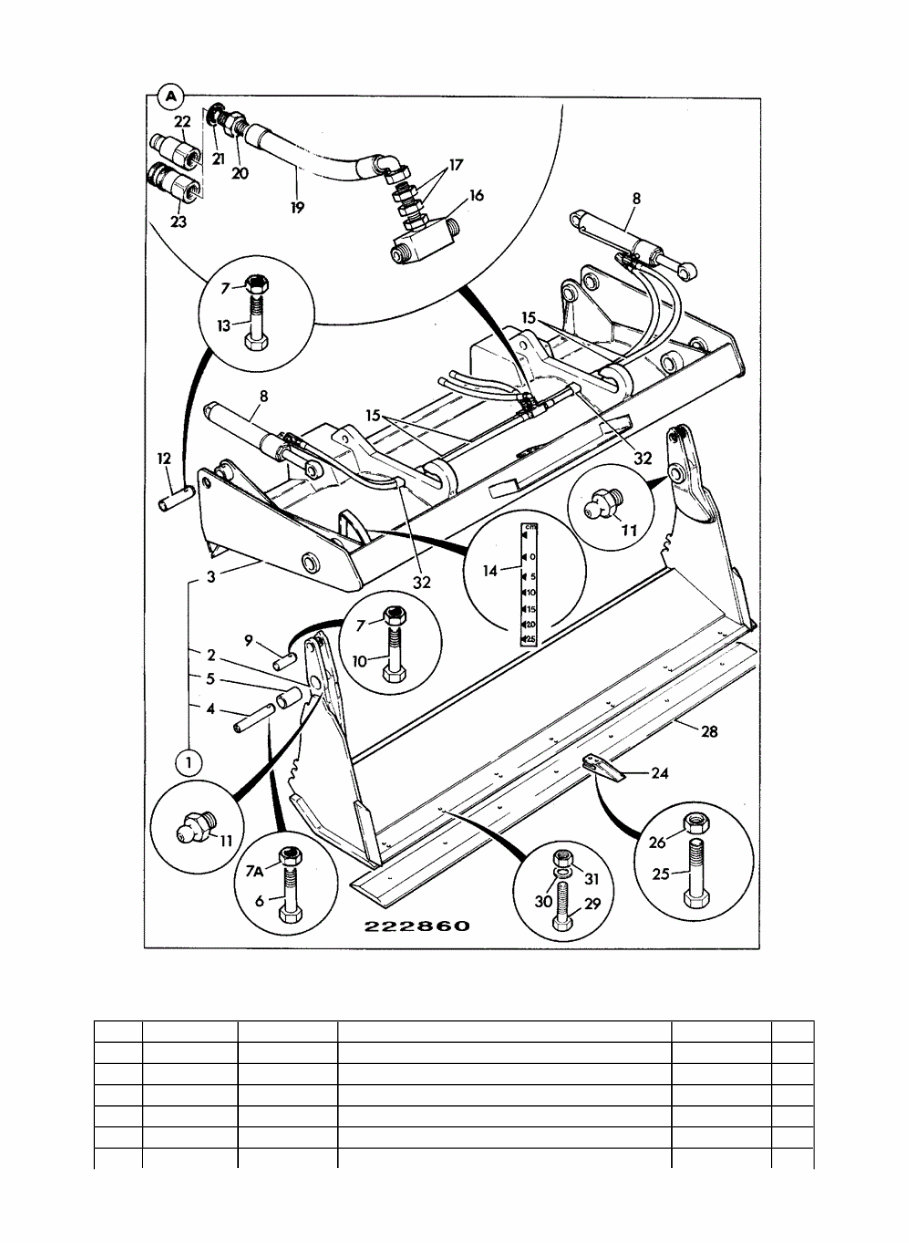

9812/9000 A1-3-1 SHOVEL, CLAM, 6 IN 1 545/47106
2260MM (7'5") WIDE QH MOUNTED
2016/5/21 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=d055b42...
Item Part # Change No Description Usage Code QTY
A 545/47106 Shovel clam,6 in 1 2260mm wide 1
1 :545/47109 Clam jaw & backblade assembly 1
2 ::125/50200 Jaw clamshovel 1
3 ::545/47105 Backblade 6 n 1 shovel 1
4 ::811/80007 Pin pivot 2
2016/5/21 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=d055b42...
5 ::1208/0023 Bush 2
6 ::1305/3226Z Bolt 2
7 ::1340/0203Z Nut Lock 3/8" UNF 2
8 ::556/60051
Ram clamshovel yellow
See Index E4 for details
P/Ex 2
9 :811/80016 Pin pivot 2
10 :1305/3126Z Bolt 2
11 :1450/0001 Nipple Grease, Straight 1/8 BSP 2
12 :811/80018 Pin pivot 2
13 :1305/3222Z Bolt 3/8 2
14 :817/03808 Label indicator 1
15 :612/00200 Hose 4
16 :816/00330 Connector Tee 2
17 :816/10023 Adapter bulkhead 2
18 :816/00330 Connector Tee 2
19 :612/28900 Hose 2
20 :1604/0003 Adapter Male/Male 2
21 :1406/0015 Washer Bonded 3/8" 2
22 :45/908600 Coupling male 3/8"BSP, c/w 2x 2203/0033 circlips 1
23 :45/908700 Coupling female 3/8"BSP c/w 2x circlip 2203/0043 1
24 531/03205 Tooth 8
25 826/00303 Bolt Plough 16
26 1340/0701 Nut 16
28 993/99391 Toeplate 2235mm wide 8 hole (Bolt-On) Reversible 1
29 826/00217 Ploughbolt 3/4UNF x 2-1/4" 7
30 1416/0011 Washer 7
31 1340/0701 Nut 7
32 647/02704 Tube pvc 2
2016/5/21 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=d055b42...
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ ROUGH TERRAIN FORK LIFT \ 940 4WD 00825400-
00825483,01280000-01281999,01483000-01483999,01484000-01484181,02228008-02228489 RTFL 9812/9000 \ A
ATTACHMENTS \ A01 SHOVELS

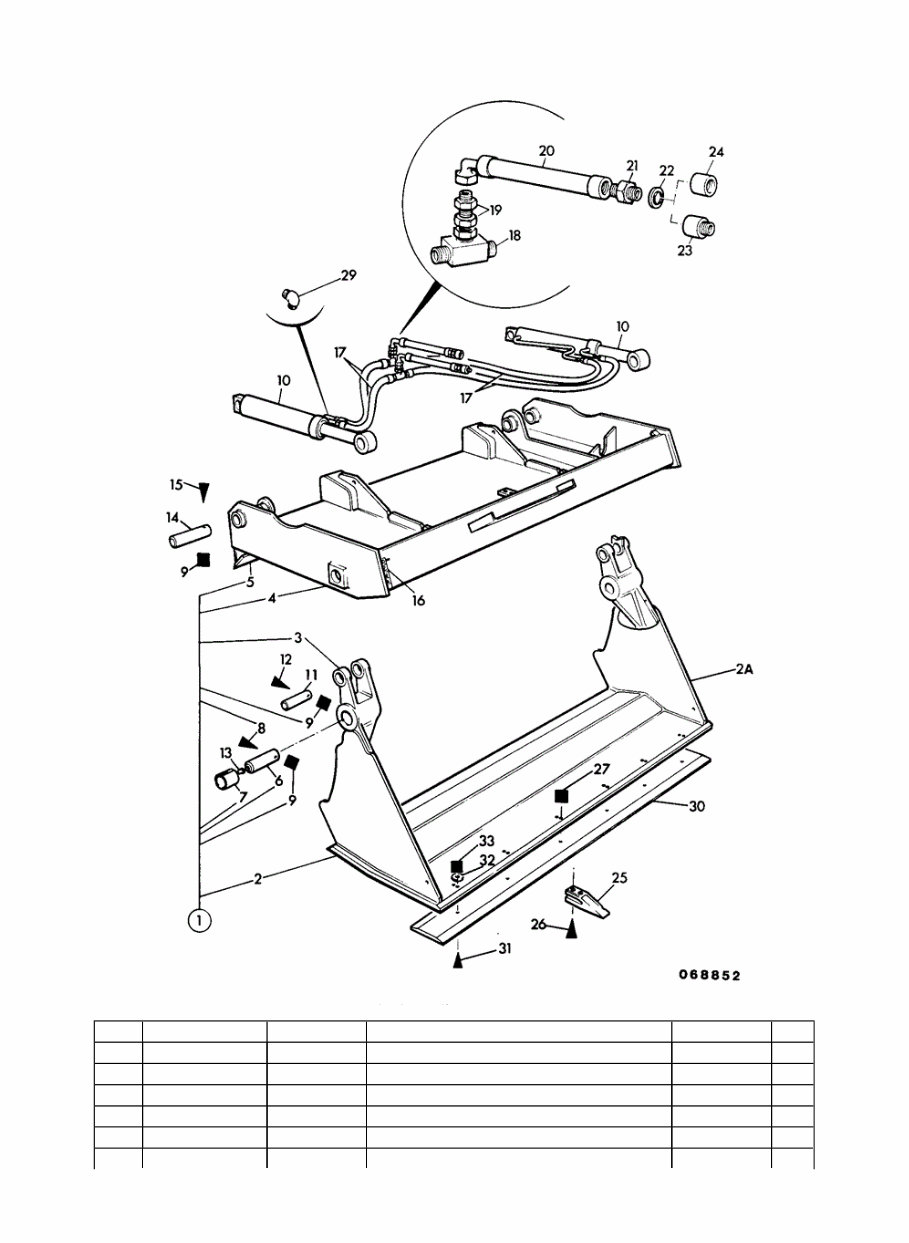

9812/9000 A1-3-10 SHOVEL, CLAM, 6 IN 1 547/36600
2260MM (7'5") WIDE QH MOUNTED
2016/5/21 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=be32c1d...
Item Part # Change No Description Usage Code QTY
A 547/36600 Shovel clam 6 in 1 1
1 :545/47000 Clam jaw & backblade assembly 1
2 ::531/72800 Clam 2253mm (7'4") wide 1
2A :::531/53701 Toeplate 2260mm wide 18 holes 1
3 :531/37902 Pivot casting 2
2016/5/21 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=be32c1d...
