21

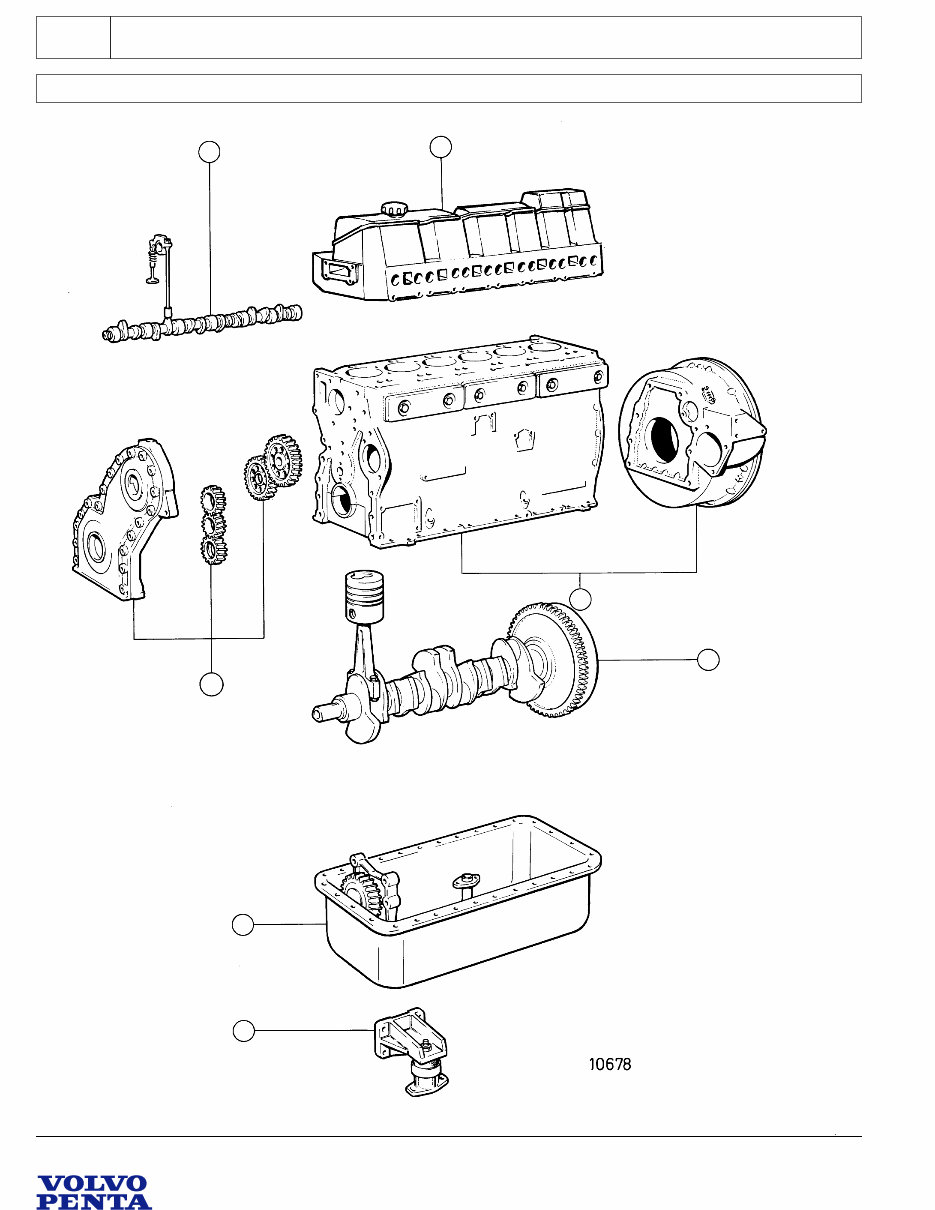

Engine with Installation Components: A
TMD41B
Upd: 4/18/2016 10678 7745920 - 21 - 20498
TMD41B, D41B, TAMD41B, AD41B, AD41BJ
4
1
7
6
3
2
5
Engine with Installation Components: A
21
TMD41B
7745920 - 21 - 20498 10678 Upd: 4/18/2016
TMD41B, D41B, TAMD41B, AD41B, AD41BJ
REF QTY DESCRIPTION SEE SEC. NOTES
1 1 cylinder head 20494
2 1 cylinder block and flywheel cover
20495
3 1 crankshaft and related parts
20496
4 1 camshaft and valve mechanism
20497
5 1 timing gear cover and gears
20499
6 1 lubricating system 20500
7 1 engine mounts Std
20503
20506
20507
20508
20505
21
Engine with Installation Components: B
D41B
Upd: 4/18/2016 10678 7745920 - 21 - 20498B
TMD41B, D41B, TAMD41B, AD41B, AD41BJ
4
1
7
6
3
2
5
Engine with Installation Components: B
21
D41B
7745920 - 21 - 20498B 10678 Upd: 4/18/2016
TMD41B, D41B, TAMD41B, AD41B, AD41BJ
REF QTY DESCRIPTION SEE SEC.
1 1 cylinder head 20494
2 1 cylinder block and flywheel cover
3 1 crankshaft and related parts
4 1 camshaft and valve mechanism
5 1 timing gear cover and gears
6 1 lubricating system 20500
7 1 engine mounts 20504
21
Engine with Installation Components: C
TAMD41B
Upd: 4/18/2016 10678 7745920 - 21 - 20498C
TMD41B, D41B, TAMD41B, AD41B, AD41BJ
4
1
7
6
3
2
5
Engine with Installation Components: C
21
TAMD41B
7745920 - 21 - 20498C 10678 Upd: 4/18/2016
TMD41B, D41B, TAMD41B, AD41B, AD41BJ
REF QTY DESCRIPTION SEE SEC. NOTES
1 1 cylinder head 20494
2 1 cylinder block and flywheel cover
3 1 crankshaft and related parts
4 1 camshaft and valve mechanism
5 1 timing gear cover and gears
6 1 lubricating system 20500
7 1 engine mounts Std
1 engine mounts PRM, early type
1 engine mounts PRM, late type
1 engine mounts SOLAS
21
Engine with Installation Components: D
AD41B
Upd: 4/18/2016 10678 7745920 - 21 - 20498D
TMD41B, D41B, TAMD41B, AD41B, AD41BJ
4
1
7
6
3
2
5
Engine with Installation Components: D
21
AD41B
7745920 - 21 - 20498D 10678 Upd: 4/18/2016
TMD41B, D41B, TAMD41B, AD41B, AD41BJ
REF QTY DESCRIPTION SEE SEC. NOTES
1 1 cylinder head 20494
2 1 cylinder block and flywheel cover
3 1 crankshaft and related parts
4 1 camshaft and valve mechanism
5 1 timing gear cover and gears
6 1 lubricating system 20500
7 1 engine mounts 20504
1 engine mounts For drive shaft installation
21

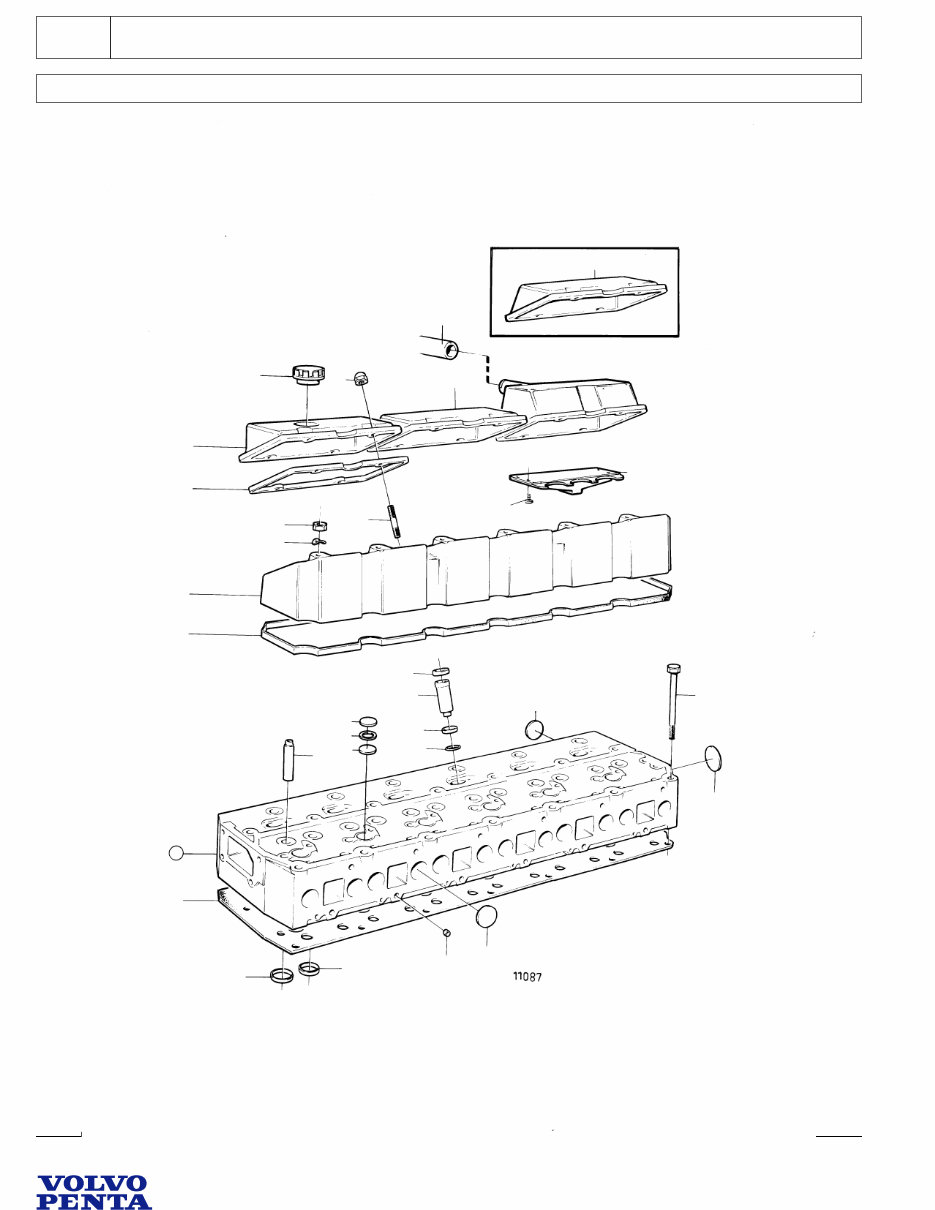

Cylinder Head: A
TMD41B
Upd: 4/18/2016 11087 7745920 - 21 - 20494
TMD41B, D41B, TAMD41B, AD41B, AD41BJ
23A
29
19
4
28
27
23
20
24
21
25
22
26
18
16
17
6 15
10
11
5
12
11 13
2
3
1
14
10
7
8
9
Cylinder Head: A
21
TMD41B
7745920 - 21 - 20494 11087 Upd: 4/18/2016
TMD41B, D41B, TAMD41B, AD41B, AD41BJ
REF PART NO. QTY DESCRIPTION SEE SEC. NOTES
1 3803199 1 Cylinder head (859891)
2 419653 12 Valve guide
3 968955 1 Expansion plug
4 838619 6 Retainer
5 838896 6 Sealing ring
6 861255 6 Spray sleeve (838609)
7 967853 12 Cap plug
8 858331 6 Valve seat, exhaust Std D
9 860035 6 Valve seat, inlet Std D
10 477026 13 Expansion plug
11 967948 12 Expansion plug
12 949329 6 Gasket
13 838821 6 O-ring
14 858992 1 Gasket
Bulletin 44-29A 44-29A-EN Cylinder Head Gasket
15 838775 27 Flange screw
16 838649 1 Valve cover Obsolete part
17 838653 1 Gasket
18 941907 4 Spring washer Early type
19 945408 4 Flange nut
20 860541 1 Valve cover Replaced by 860542, 860601 & 977771
860542 1 Valve cover
21 860601 1 Insert
22 977771 4 Flange screw
23 838650 1 Valve cover
24 (838651) 1 Valve cover Obsolete part
25 838654 3 Gasket
26 953034 12 Stud
27 968458 12 Flange cap nut
28 3547599 1 Oil filler cap
29 860606 1 Hose
