AD31L-A, AD31P-A, AD41L-A, AD41P-A, D41L-A, TAMD31L-A, TAMD31M-A, TAMD31P-A,
TAMD31S-A, TAMD41H-A, TAMD41H-B, TAMD41P-A, TAMD41L

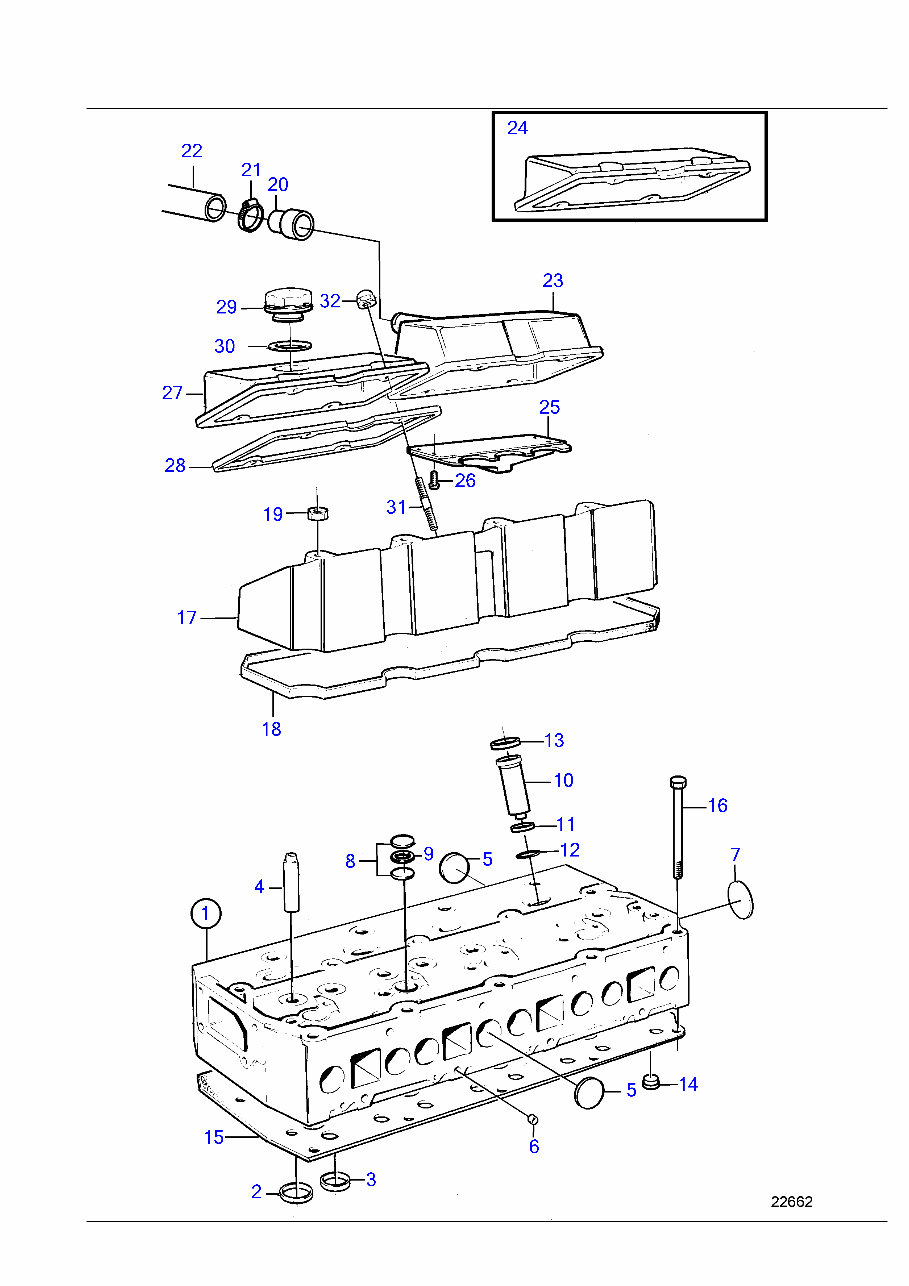

22662
Ref 1664 Page |000
21 Cylinder Head: A
AD31L-A, TAMD31L-A, TAMD31M-A, TMD31L-A
Ref Part No. Qty Description Notes
1 3803306 1 Cylinder head SN-2203129975, (860646)
SN2203129976-2203135150, (3581588)
SN-2203129780, (861629)
SN2203129781-2203135150, (3581552)
2 858331 4 Valve seat, exhaust
3 860035 4 Valve seat, intake
4 3582561 8 Valve guide
5 477026 9 Expansion plug
6 967853 8 Cap plug
7 968955 1 Expansion plug
8 967948 8 Expansion plug
9 949329 4 Gasket
10 861255 4 Spray sleeve SN-2203129975
3581536 4 Spray sleeve SN2203129976-2203135150
11 838896 4 Sealing ring
12 838821 4 O-ring
13 838619 4 Retainer
14 465420 4 Jet
15 3582432 1 Cylinder head gasket
16 838775 19 Flange screw
17 (838648) 1 Valve cover Obsolete part
18 838652 1 Gasket
19 945408 4 Flange nut
20 861114 1 Protecting sleeve Not for SOLAS
861114 1 Protecting sleeve Not for SOLAS
21 943472 1 Hose clamp
22 946234 X Tube L=720mm not for SOLAS
23 860541 1 Valve cover Not for SOLAS, Replaced by 860542, 860601 & 977771
860542 1 Valve cover
24 838650 1 Valve cover SOLAS
25 860601 1 Insert Not for SOLAS
26 977771 4 Flange screw
27 (838651) 1 Valve cover Obsolete part
28 838654 2 Gasket
29 1275403 1 Oil filler cap
30 1275379 1 Gasket
31 1542380 8 Stud
32 968458 8 Flange cap nut
UPD:3/21/2018 7742700- 21- 1664
AD31L-A, AD31P-A, AD41L-A, AD41P-A, D41L-A, TAMD31L-A, TAMD31M-A, TAMD31P-A,
TAMD31S-A, TAMD41H-A, TAMD41H-B, TAMD41P-A, TAMD41L
22662
Ref 1664B Page |000B
21 Cylinder Head: B
AD31P-A, TAMD31P-A
Ref Part No. Qty Description Notes
1 3803306 1 Cylinder head SN-2203129975, (860646)
2 858331 4 Valve seat, exhaust
3 860035 4 Valve seat, intake
4 3582561 8 Valve guide
5 477026 9 Expansion plug
6 967853 8 Cap plug
7 968955 1 Expansion plug
8 967948 8 Expansion plug
9 949329 4 Gasket
10 3581536 4 Spray sleeve
11 838896 4 Sealing ring
12 838821 4 O-ring
13 838619 4 Retainer
14 465420 4 Jet
15 3582432 1 Cylinder head gasket
16 838775 19 Flange screw
17 (838648) 1 Valve cover Obsolete part
18 838652 1 Gasket
19 945408 4 Flange nut
20 861114 1 Protecting sleeve Not for SOLAS
861114 1 Protecting sleeve Not for SOLAS
21 943472 1 Hose clamp
22 946234 X Tube L=720mm not for SOLAS
23 860541 1 Valve cover Not for SOLAS, Replaced by 860542, 860601 & 977771
860542 1 Valve cover
25 860601 1 Insert Not for SOLAS
26 977771 4 Flange screw
27 (838651) 1 Valve cover Obsolete part
28 838654 2 Gasket
29 1275403 1 Oil filler cap
30 1275379 1 Gasket
31 1542380 8 Stud
32 968458 8 Flange cap nut
UPD:3/21/2018 7742700- 21- 1664B
AD31L-A, AD31P-A, AD41L-A, AD41P-A, D41L-A, TAMD31L-A, TAMD31M-A, TAMD31P-A,
TAMD31S-A, TAMD41H-A, TAMD41H-B, TAMD41P-A, TAMD41L
22662
Ref 1664C Page |000C
21 Cylinder Head: C
TAMD31S-A
Ref Part No. Qty Description Notes
1 3803306 1 Cylinder head SN-2203129975, (860646)
2 858331 4 Valve seat, exhaust
3 860035 4 Valve seat, intake
4 3582561 8 Valve guide
5 477026 9 Expansion plug
6 967853 8 Cap plug
7 968955 1 Expansion plug
8 967948 8 Expansion plug
9 949329 4 Gasket
10 3581536 4 Spray sleeve
11 838896 4 Sealing ring
12 838821 4 O-ring
13 838619 4 Retainer
14 465420 4 Jet
15 3582432 1 Cylinder head gasket
16 838775 19 Flange screw
17 (838648) 1 Valve cover Obsolete part
18 838652 1 Gasket
19 945408 4 Flange nut
20 861114 1 Protecting sleeve Not for SOLAS
861114 1 Protecting sleeve Not for SOLAS
21 943472 1 Hose clamp
22 946234 X Tube L=720mm not for SOLAS
23 860541 1 Valve cover Not for SOLAS, Replaced by 860542, 860601 & 977771
860542 1 Valve cover
25 860601 1 Insert Not for SOLAS
26 977771 4 Flange screw
27 (838651) 1 Valve cover Obsolete part
28 838654 2 Gasket
29 1275403 1 Oil filler cap
30 1275379 1 Gasket
31 1542380 8 Stud
32 968458 8 Flange cap nut
UPD:3/21/2018 7742700- 21- 1664C
AD31L-A, AD31P-A, AD41L-A, AD41P-A, D41L-A, TAMD31L-A, TAMD31M-A, TAMD31P-A,
TAMD31S-A, TAMD41H-A, TAMD41H-B, TAMD41P-A, TAMD41L

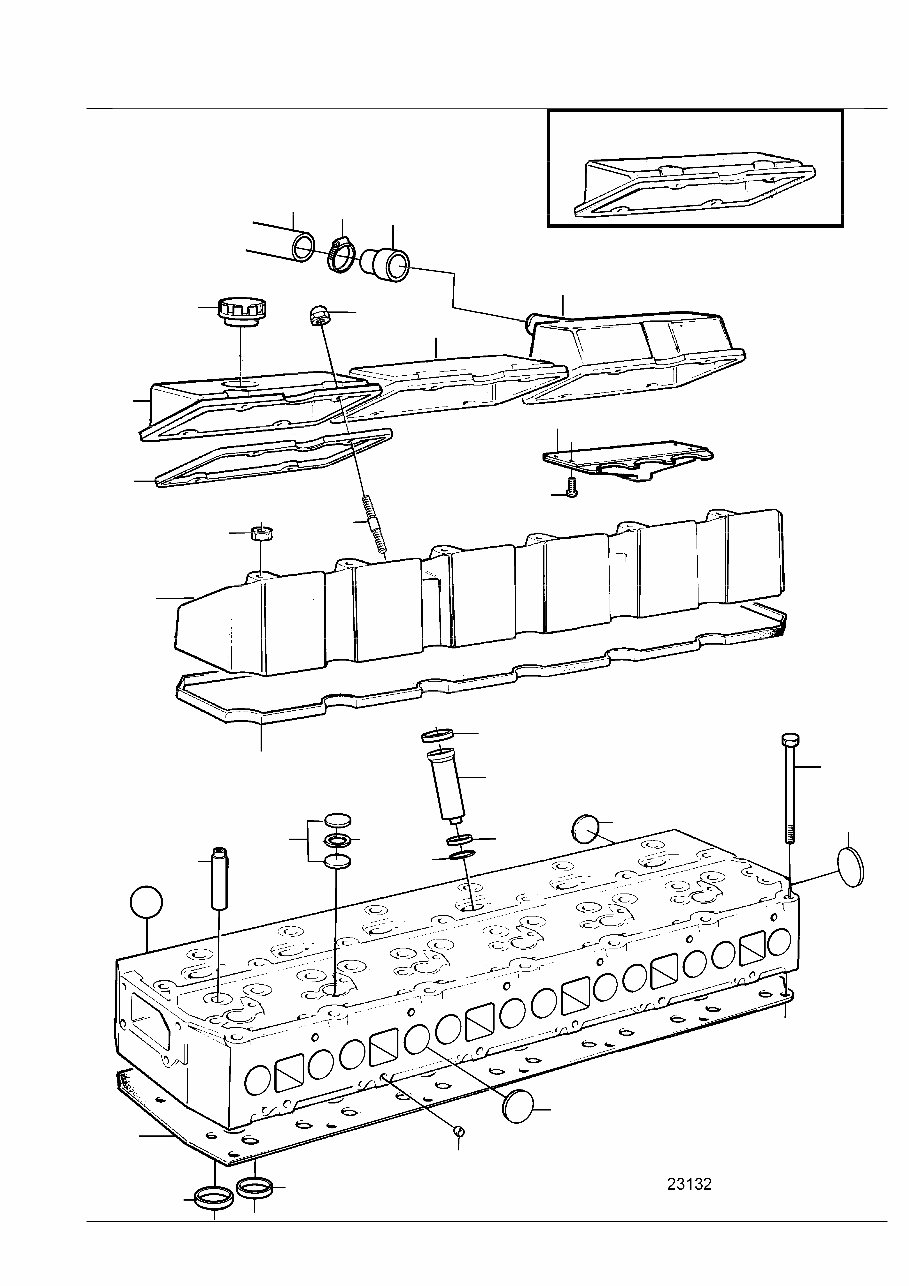

23132
21
31
30
29
19
28
27
20
24
22
25
23
26
18
16
4
15 17
6
3
10
10
12 5
11
13
2
1
14
7
8
9
Ref 1665 Page |001
21 Cylinder Head: A
TAMD41H-A, TAMD41H-B, TAMD41P-A, TAMD41L-A, TAMD41M-A, TMD41L-A
Ref Part No. Qty Description Notes
1 861300 1 Cylinder head SN-2204158807, Repl by 3581554
3581554 1 Cylinder head SN2204158808-2204168098, Repl by 3583900
3583900 1 Cylinder head SN2204168099-, Replaced by 3803308
3803308 1 Cylinder head, exch SN2204168099-, Replaced by 3803308
3803308 1 Cylinder head
2 3582561 12 Valve guide
3 968955 1 Expansion plug
4 838619 6 Retainer
5 838896 6 Sealing ring
6 861255 6 Spray sleeve SN-2204158807, For cylinder head 861300
3581536 6 Spray sleeve SN2204158808-
7 967853 12 Cap plug
8 858331 6 Valve seat, exhaust
9 860035 6 Valve seat, intake
10 477026 13 Expansion plug
11 967948 12 Expansion plug
12 949329 6 Gasket
13 838821 6 O-ring
14 3583786 1 Cylinder head gasket
15 838775 27 Flange screw
16 838649 1 Valve cover
17 838653 1 Gasket
18 945408 4 Flange nut
19 860541 1 Valve cover Not for SOLAS, Replaced by 860542, 860601 & 977771
860542 1 Valve cover
20 838650 1 Valve cover
21 838650 1 Valve cover SOLAS
22 860601 1 Insert
23 977771 4 Flange screw
24 (838651) 1 Valve cover Obsolete part
25 838654 3 Gasket
26 1542380 12 Stud
27 968458 12 Flange cap nut
28 1275403 1 Oil filler cap
29 861114 1 Protecting sleeve Not for SOLAS
30 943472 1 Hose clamp Not for SOLAS
31 946234 X Tube L=670mm not for SOLAS
UPD:3/21/2018 7742700- 21- 1665
AD31L-A, AD31P-A, AD41L-A, AD41P-A, D41L-A, TAMD31L-A, TAMD31M-A, TAMD31P-A,
TAMD31S-A, TAMD41H-A, TAMD41H-B, TAMD41P-A, TAMD41L
23132
21
31
30
29
19
28
27
20
24
22
25
23
26
18
16
4
15 17
6
3
10
10
12 5
11
13
2
1
14
7
8
9
Ref 1665B Page |001B
21 Cylinder Head: B
AD41L-A, AD41P-A, D41L-A
Ref Part No. Qty Description Notes
1 861300 1 Cylinder head SN-2204158807, Repl by 3581554
3581554 1 Cylinder head SN2204158808-2204168098, Repl by 3583900
3583900 1 Cylinder head SN2204168099-, Replaced by 3803308
3803308 1 Cylinder head, exch SN2204168099-, Replaced by 3803308
3803308 1 Cylinder head
2 3582561 12 Valve guide
3 968955 1 Expansion plug
4 838619 6 Retainer
5 838896 6 Sealing ring
6 861255 6 Spray sleeve SN-2204158807, For cylinder head 861300
3581536 6 Spray sleeve SN2204158808-
7 967853 12 Cap plug
8 858331 6 Valve seat, exhaust
9 860035 6 Valve seat, intake
10 477026 13 Expansion plug
11 967948 12 Expansion plug
12 949329 6 Gasket
13 838821 6 O-ring
14 3583786 1 Cylinder head gasket
15 838775 27 Flange screw
16 838649 1 Valve cover
17 838653 1 Gasket
18 945408 4 Flange nut
19 860541 1 Valve cover Not for SOLAS, Replaced by 860542, 860601 & 977771
860542 1 Valve cover
20 838650 1 Valve cover
22 860601 1 Insert
23 977771 4 Flange screw
24 (838651) 1 Valve cover Obsolete part
25 838654 3 Gasket
26 1542380 12 Stud
27 968458 12 Flange cap nut
28 1275403 1 Oil filler cap
29 861114 1 Protecting sleeve Not for SOLAS
30 943472 1 Hose clamp Not for SOLAS
31 946234 X Tube L=670mm not for SOLAS
UPD:3/21/2018 7742700- 21- 1665B
