2018 PCM Marine Engines H5 & H6

Direct Injection OWNERS Product Technical Specifications PERFORMANCE TO MOVE YOU 03/18

2 PCM 5 YEAR / 1000 HOUR TRANSFERABLE LIMITED WARRANTY Pleasurecraft Marine Engine Co., through its PCM Engines Division (“PCM”), warrants its new products to be free from defects in material and workmanship under normal use and service conditions. This warranty is extended only to the first registered owner or registered user, as well as all subsequent users who comply with PCM’s warranty transfer policy and receive PCM’s approval of warranty transfer. The obligation of PCM under this warranty shall be limited to the repair or replacement with new or reconditioned components, at PCM’s option, of any product, or parts thereof, which have failed during the warranty coverage period specified below and are demonstrated upon examination to have failed due to defective material and/or workmanship. WARRANTY COVERAGE; TRANSFER; WARRANTY PERIOD This warranty is extended to the first registered owner or registered user purchasing the engine at retail, as well as all subsequent users who, in accordance with PCM’s warranty transfer policy and warranty transfer approval, must notify PCM within 30 days of any subsequent sale of the product at which time PCM will review for an approval of the transfer of any remaining portion of warranty coverage. To obtain a PCM Warranty Transfer Application, contact your local Pleasurecraft dealer or PCM’s Warranty Services Department at (803) 345-0050. Certification of an inspection of the product by an authorized technician and payment of a warranty transfer fee are required to be submitted with the Application. All components, other than those itemized below and those components that are warranted by PCM’s suppliers, are warranted, solely for non-commercial use, for a period of 5 years or 1,000 hours of use, whichever first occurs, from the earlier of (1) the date of sale to the first registered owner or registered user, or (2) from the date the engine is first placed into service for demonstration or any other purpose prior to the sale of the engine to the first owner purchasing the engine at retail. Commercial use is defined as, but not limited to, use of the product by ski schools, for promotional use, for athletes’ boats, for rentals, etc. In the case of commercial use of the product, the term of this warranty shall be for a period of 5 years or 1,000 hours of use, whichever occurs first, from the earlier of (1) the date in which the engine is first registered, or (2) within 30 days from the date the boat was manufactured. Components not covered under this warranty: (1) Water pump impellers are not covered by this warranty. (2) Seals, gaskets, O-rings, and other materials affected by time are not covered by this warranty if their effectiveness is reduced by an extended storage period prior to sale or use of the product. (3) Items such as, but not limited to, lubricants, spark plugs and other items which are frequently replaced as part of routine maintenance. NO OTHER WARRANTY GIVEN The obligations set forth in the preceding paragraphs are PCM’s sole obligation and the owner’s exclusive remedy. PCM makes no other express warranty. Any implied warranty of merchantability or fitness for a particular purpose that may be applicable to this product is limited in duration to the duration of this warranty. Some States do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. No distributor, dealer, agent or employee of PCM is authorized to grant any other or further warranty or incur any additional warranty obligation on PCM’s behalf in connection with the sale of its products. Any qualification or restriction contained herein which is prohibited by any law of mandatory application shall be deemed to be deleted from this warranty; however, such deletion shall have no effect on the remaining provisions hereof, all of which shall remain in full force and effect. REMEDIES The obligation of PCM set forth in the first paragraph of this warranty shall be the exclusive remedy for any breach of warranty hereunder, and any owner or user’s sole remedy in the event of breach of the warranty is repair or replacement of the product or any warranted part thereof as set forth in this warranty. With this sole exception, PCM shall not be liable for any direct or indirect, incidental or consequential damages, including without limitation, any damages for property damage, loss of use or loss of profits, loss of income, inconvenience, trailering, towing, haul out, launch and/or any other in and out of water expenses, storage charges, dockage charges, expenses to deliver or pick up the product being warranted to and from the dealer, telephone expenses, lodging expenses, travel expenses, mechanic travel time and mileage, damage caused by any occurrence of an insurable nature, rental of substitute equipment of any type, removal and replacement and/or modification of any boat parts to facilitate repairs, moving of furniture, carpets, cleaning, painting, carpenter work, or re-delivery charges. Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Any owner or user hereby waives for himself/herself/itself and his/her/its successor and assigns (a) any and all claims for punitive damages, and (b) all claims of negligence or strict liability or both. In no event will PCM’s liability exceed the purchase price of the product(s) which is actually paid to PCM. OBTAINING PERFORMANCE UNDER WARRANTY PCM’s warranty registration form should be prepared by your selling dealer, executed by you and the dealer, and mailed by you to PCM within 30 days after the date of your purchase of the product. Upon receipt of the warranty registration form, PCM will issue to you a personalized owner’s registration card which will be mailed directly to you. If the owner’s registration card is not received within 8 weeks after the date of purchase, please write to PCM at the address set forth below. At the time that a claim for warranty service is made, the owner’s registration card should be presented to the person or entity providing warranty service. Authorized PCM dealers or distributors are entitled to be reimbursed by PCM for some or all of the expense of warranty repairs; thus, service under the terms of this warranty will be performed by an authorized PCM dealer or distributor without charge for established flat rate labor or replacement parts, other than items not covered by the warranty, such as, but not limited to, water pump impellers, seals, gaskets, O-rings and other materials affected by time if their effectiveness is reduced by an extended storage period prior to sale or use of the product, and lubricants, spark plugs and other items which are frequently replaced as part of routine maintenance. Charges for additional non-warranty work and/or additional dealer charges for labor relative to warranty work in excess of flat rate must be paid for by the owner. Prior authorization in writing must be obtained from PCM for any warranty repairs over $50.00 and in all cases where the owner fails to establish the purchase and warranty expiration dates with the owner’s registration card sent upon receipt of the warranty registration form by PCM. While failure to present the owner’s registration card will not prevent you from obtaining coverage hereunder, this warranty shall not be effective and, therefore, cannot be honored until the product purchase date can be confirmed by PCM. If the card is lost, communicate with PCM at the address listed below, and, for a processing fee of $10.00, a new owner’s registration card will be issued to you. Any questions concerning service, parts or this warranty should be directed to your selling dealer. If your dealer is unable to assist or if you relocate, if you are traveling or if you need a referral to your nearest dealer, contact: Pleasurecraft Marine Engine Co., P.O. Drawer 369, Little Mountain, SC 29075 ((803) 345-0050). FAILURES EXCLUDED FROM WARRANTY This warranty will not apply to any failure which results from accidents, sinking, fire, neglect, abuse or abnormal service or use, such as racing, towing or operation in water of insufficient depth, or to any failure resulting from improper installation, improper adjustments, repairs or improper delivery service, or to any failure resulting from the use of parts, fuels, oils or lubricants not suitable for use with the product and/or materials or parts not approved by PCM. This warranty does not apply to any engine or drive which has been modified, or altered, or repaired in such a manner as, in the opinion of PCM, to affect its stability, reliability or performance. Further, this warranty will not apply to product failure resulting from (1) use of non-recommended lubricants or fuels, (2) failure to follow maintenance or lubrication schedules, (3) failure caused or contributed to by improper or contaminated fuel, (4) failure caused by water intrusion, salt corrosion to external components, or improper installation or misapplication of the engine or drive, (5) the owner’s or operator’s failure to exercise due or normal care and precaution, (6) failure of components and/or assemblies that are warranted by PCM suppliers, and (7) damage resulting from the owner’s or operator’s failure to timely replace failed water pump impellers, seals, gaskets and O-rings. OWNER’S RESPONSIBILITY Performance under this warranty shall be conditioned upon the first registered owner’s or registered user’s compliance with the following requirements: (1) Owner or user shall verify that the pre-delivery service has been performed, all requested information recorded and that the selling dealer has signed the warranty registration. (2) Owner or user shall promptly mail the warranty registration to PCM after accepting delivery. (3) Owner or user shall follow the instructions in the owner’s manual regarding operation, break-in, lubrication and fuel. (4) Owner or user shall follow or comply with the maintenance schedule, operation limits, and lay up instruction, as outlined in the owner’s manual. Pleasurecraft original equipment genuine marine engine parts should be used whenever service or repairs are performed. CHOICE OF LAW This limited warranty shall be governed by, and construed and interpreted in accordance with, the local laws of the State of Ohio (without application of its conflicts of laws principles), except only to the extent replaced or precluded by other law of mandatory application. GENERAL This warranty gives you specific legal rights, and you may also have other rights which vary from State to State. The PCM Federal/California Emissions Warranty and Federal/California Emissions Control Warranty Statement are separate documents included in the owner’s manual. Any questions concerning the Emissions Warranty can be obtained by calling PCM at (803) 345-0050. PCM’s policy is one of continued improvement of its products, and PCM hereby reserves the right to improve and change the design and production of any of its products without assuming any obligation to modify products previously manufactured and/or sold. Warranty

3 Warranty PCM WARRANTY TRANSFER APPLICATION The remainder of the warranty coverage period of the original Pleasurecraft (“PCM”) limited warranty is transferable within thirty (30) days of date of sale by the original owner/user to a subsequent purchaser for the remainder of the unused portion of the original warranty coverage period, or the remainder of 1,000 hours of use, whichever first occurs. The original date of sale or original in-service date (whichever comes first) begins the warranty coverage period. For commercial use such as, but not limited to, use of the product by ski schools, for promotional use, for athletes’ boats, for rentals, etc., the warranty coverage period starts from the earlier of (1) the date in which the engine is first registered, or (2) within 30 days from the date the boat was manufactured. Direct Sale by Authorized Pleasurecraft Marine Dealer: If the sale is conducted through an authorized Pleasurecraft Marine dealer, the dealer must complete and submit the PCM Warranty Transfer Application, the required engine photographs, Diacom recording and warranty transfer fee. The warranty transfer application will be processed based on the approval of PCM. This inspection will be at the seller or purchaser’s expense. Sale by Private Individual / Non-Authorized Dealer: If the sale is conducted between private individuals, or between a private individual and an unauthorized Pleasurecraft Marine dealer, the engine/drivetrain must be inspected by an authorized Pleasurecraft Marine dealer. This inspection will be at the seller or purchaser’s expense. The dealer must complete and submit the Warranty Transfer Application, the required engine photographs, Diacom recording and warranty transfer fee. The warranty transfer will be processed based on the approval of PCM. The fee for warranty transfer is $400. The transfer fee (via certified check) and Warranty Transfer Application must be submitted to PCM within 30 days of date of sale to: Pleasurecraft Engine Group P.O. Drawer 369 Little Mountain, S.C., 29075 • The new owner will be notified within 10 days of PCM’s receipt of the Warranty Transfer Application form regarding whether the transfer has been approved by PCM. If the transfer is approved, the warranty expiration date will be provided. • A Warranty Registration Card will be issued to the second owner, reflecting the change has been made in PCM’s computer. OUTSIDE THE U.S. AND CANADA, CONTACT YOUR LOCAL PLEASURECRAFT DEALER OR PCM WARRANTY SERVICES AT (803) 345-0050 FOR MORE INFORMATION ON HOW TO APPLY FOR A WARRANTY TRANSFER. IMPORTANT! PURCHASER NOTICE: The inspection below is designed to insure safety and satisfaction. Therefore, we require the following inspection to be performed at your expense, by an authorized Pleasurecraft technician, prior to purchase. By signing below, the technician certifies that he/she has checked the installation and operation of the engine and finds it to be performing properly. All terms in the Limited Warranty located in the Engine Owner’s Manual still apply. ENGINE MODEL: ENGINE SERIAL: TRANS. SERIAL: ENGINE HOURS: HULL SERIAL #: BOAT MANUFACTURED DATE: INSPECTION DATE: Warranty Transfer Inspection Check for Bulletins Trouble Codes Checked Trouble Codes Cleared Belt and Pulley: Inspect for Damage Engine Oil: Check All Fuel Lines: Confirm No Leaks Exhaust Hoses/Clamps: Inspect VDrive Lube: Check All Oil Lines: Confirm No Leaks Record Propeller Size and Rotation Diameter______Pitch______Rotation ______ Transmission Fluid: Check Propshaft Alignment Battery Rating, Charge, and Level: Check All Water Lines: Confirm No Leaks All Drain Plugs: Confirm Proper Installation Engine Compression Cylinder 1 ______ Cylinder 2 ______ Cylinder 3 ______ Cylinder 4 ______ Cylinder 5 ______ Cylinder 6 ______ Cylinder 7 ______ Cylinder 8 ______ Diacom Recording: Ignition ON, Engine OFF Recording (submit with application) (3) Engine Photos: Include engine top, port and starboard (photos must be clear and in good light) I hereby certify the warranty transfer inspection on engine S/N __________ and have corrected any abnormality revealed by this inspection. (Technician signature, Dealer & Date) (Seller’s Signature and Date) (Purchaser’s Signature and Date) DATE OF SALE (2ND Owner) _____/_____/_____ DATE OF SALE (1st Owner/1st Operator) _____/_____/_____ (New Owner) (Previous Owner) NAME: NAME: ADDRESS: ADDRESS: CITY, STATE, ZIP: CITY, STATE, ZIP: EMAIL ADDRESS: By checking this box, you are authorizing PCM to send the email address to receive emails whenever a product bulletin or safety recall affects this product.

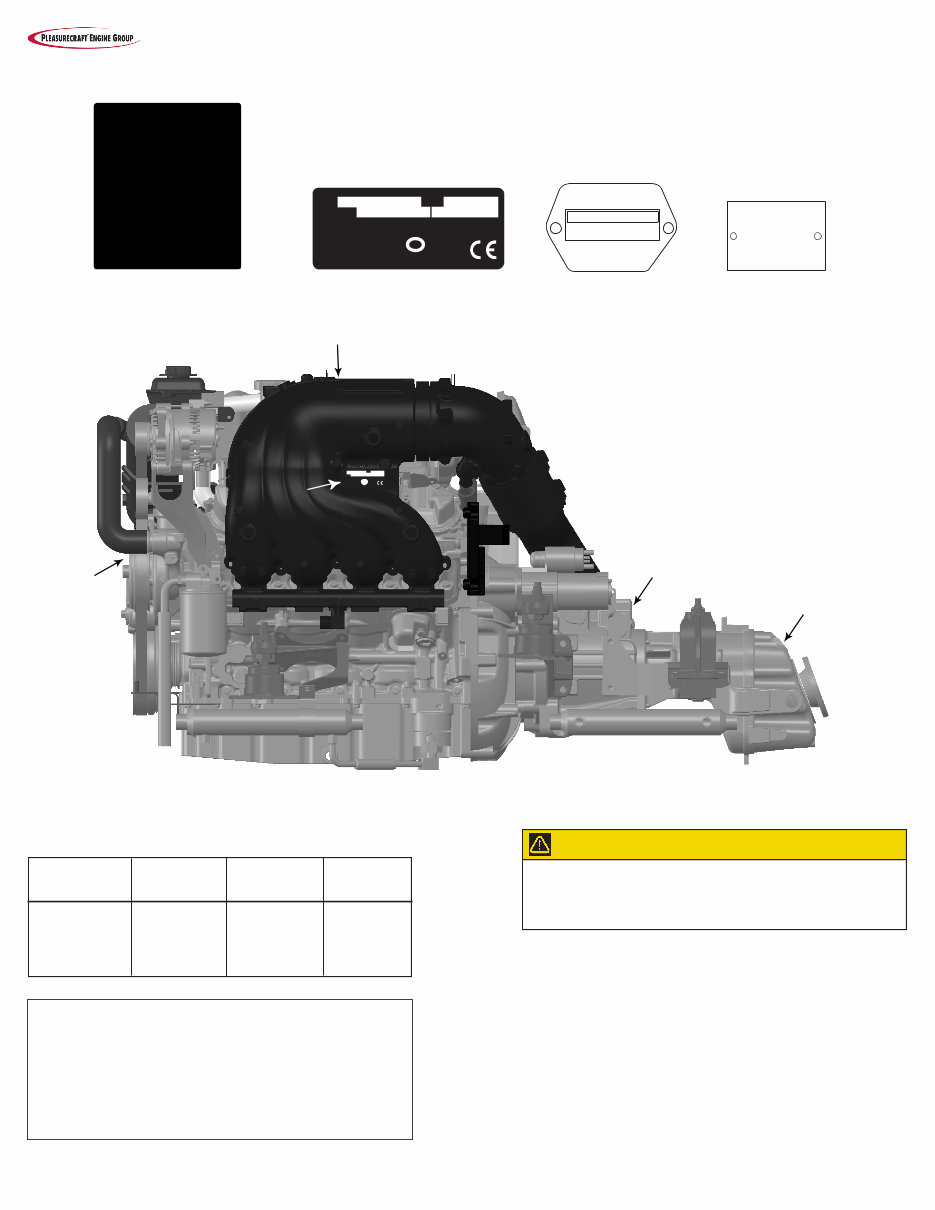

4 Warranty 1. ENGINE SPECIFICATION DECAL 2. ENGINE IDENTIFICATION DECAL 3. TRANSMISSION IDENTIFICATION PLATE 5.3L and 6.2L Direct Injection FUEL RECOMMENDATION Unleaded 87 Octane (minimum) ENGINE OIL 15W-40 above 50 degrees F See Owners Manual MARINE GEAR OIL RECOMMENDATION Dexron III SPARK PLUG P/N AND GAP R030013 - 0.040" MAXIMUM ENGINE SPEED (WOT) 5200-5600 RPM (5500 RPM Preferred) MAXIMUM CONTINUOUS CRUISE 4200 RPM 1-8-7-2-6-5-4-3 Firing Order ENGINE COOLANT Dex-CoolTM Long Life FUEL PRESSURE - SEE OWNERS MANUAL p m I r o ! t n a t S y e e O r u o t l a u n a M s ' r e n w r u s n i o p s e h t t a h t e c i f i c e s n o i t a f y r o a h e n i g n e r u o v b r o d e g n a h c t o n e t t i m o n e e d e . R143170B MODEL 30-04-E01 RATIO 1:1 SERIAL NO. 3128 Pleasure Craft Engine Group MADE IN U.S.A. 4. VDRIVE IDENTIFICATION PLATE PLEASURECRAFT ENGINE GROUP POWER PLUS RATIO 1.48 16672 MADE IN USA PLEASURECRAFT MARINE ENGINE CO. MODEL FIRING ORDER SERIAL THIS ENGINE CONFORMS TO ALL APPLICABLE U.S. GOVERNMENT STANDARDS AND INTERNATIONAL BODENSEE SHIPPING COMMISSION STANDARD CERTIFICATION NO. M14 34 1 01 01 FOR MARINE ENGINES AT THE DATE OF MANUFACTURE. LITTLE MOUNTIAN, SC 29075 MFR DATE: 1 3 4 2 2 PLEASURECRAFT MARINE ENGINE CO. MODEL FIRING ORDER THIS ENGINE CONFORMS TO ALL APPLICABLE U.S. GOVERNMENT STANDARDS AND INTERNATIONAL BODENSEE SHIPPING COMMISSION STANDARD CERTIFICATION NO. M14 34 1 01 01 FOR MARINE ENGINES AT THE DATE OF MANUFACTURE. Engine Serial Number and Speciﬁcation Decal Locations ENGINE RPM CHART Minimum Model Full Load Preferred Maximum 5.3L DI 5300 5500 5600 6.2L DI 5300 5500 5600 Prolonged WOT operation will shorten the life of your engine and could cause premature engine failure. Problems caused by prolonged WOT operation are considered abuse and are not covered under the Pleasurecraft Marine Warranty. CAUTION IMPORTANT Your new Pleasurecraft Marine engine incorporates an RPM “MAX GOVERNOR” in order to prevent the engine from over-revving. Operation above the Maximum RPM is not recommended. If your engine is operating above the maximum RPM listed, a higher pitched propeller would be required to lower the engine maximum RPM to the Preferred RPM.

5 TRANSMISSION FLUID CAPACITIES Model All Models Type PCM, 1:1 Ratio 1,2 2.0 Quarts (1.9L) DEXRON III PCM, 1.23:1 Ratio 1,2 2.0 Quarts (1.9L) DEXRON III PowerPlus V-Drive Lubricant Pleasurecraft V-Drive, All Ratios 1,2 1.5 Quarts (1.42L) Pleasurecraft Marine P/N - R190251 1 - Engine Fluid Capacities are dependent on installation angle. DO NOT overfill the crankcase or transmission. Remove excess fluid above the “FULL” mark on the dipstick. Check oil with the boat at its normal, level, at rest position on the water. Ensure that ballast systems (if equipped) and excess water in the bilge have been purged. If the boat is on a trailer, the trailer must be level and adjusted to represent the boat’s normal resting state on the water. Oil capacities are approximate, and may not include capacity needed for transmission cooler and oil lines. Refer to the Checking Fluid Levels instructions and Changing Oils instructions of this manual, for complete instructions, important notes and Cautions for checking engine oil levels. Always use the dipstick to determine the exact quantity of oil required. Add the correct amount of oil to fill to the “FULL” mark on the oil level dipstick. 2 - IMPORTANT: 80 Series PCM 1:1, 1.23:1 and all other transmission fluid levels are checked at operating temperature and immediately after shutdown of the engine. 3 - Fresh Water Cooling systems vary depending on half-systems, full-fresh systems, heaters, hose lengths, etc. System should be completely purged of air and the coolant level should be within the MIN/MAX level of the degas bottle after the engine has been ran at operating temperature and the system is allowed t to cool down overnight. Top off as necessary. ENGINE FLUID CAPACITIES Model 5.3L / 6.2L Direct Injection Crankcase Oil Capacity W / NEW FILTER Start with 6 Quarts (5.7 Liters) 1 Fresh Water Cooling System Capacity Fill Until Completely Purged 3 Engine and Transmission Fluid Capacities WARRANTY NOTICE: PCM Engines reserves the right to refuse warranty on part(s) and/or engine(s) damaged by using improper fuels and engine oils. Oil Change Intervals (Common) Crankcase oil and oil filter change - Recommended intervals: • Initial oil change - 1st 60 days or 5-25 hours of operation, whichever occurs first • Regular oil changes - Every 50 hours of operation or 120 days, whichever occurs first • Heavy Duty High RPM / High Load Use - Every 30 hours of operation or 120 days, whichever occurs first NOTE: Never over-fill the engine with oil. Engines over-filled with oil can cause engine damage.

6 Speciﬁcations MODEL 5.3L DI 6.2L DI CES CES Displacement 5.3L (327 CID) 6.2L (383 CID) Bore 3.78 in. (96.01 mm) 4.06 in. (103.25 mm) Stroke 3.62 in. (92.0 mm) 3.62 in. (92.0 mm) Compression Ratio 11:1 11.5:1 Compression 130 - 215 psi 130 - 215 psi WOT Operating RPM 5300-5600 5300 - 5600 Preferred WOT RPM 5500 5500 Cruising RPM (Max) 4000 4000 Idle RPM (In Gear) Not Adjustable Not Adjustable Oil Pressure @ 25 - 60 psi 25 - 60 psi 2000 RPM (172 - 414 kPa) (172 - 414 kPa) Minimum 22 psi (152 kPa) - 1000 RPM 22 psi (152 kPa) - 1000 RPM Oil Pressure 30 psi (207 kPa) - 2000 RPM 30 psi (207 kPa) - 2000 RPM 33 psi (228 kPa) - 3000 RPM 33 psi (228 kPa) - 3000 RPM Spark Plug P/N R030013 R030013 Spark Plug Gap 0.040 in. 0.040 in. Firing Order 1-8-7-2-6-5-4-3 1-8-7-2-6-5-4-3 Thermostat Vented Thermostat Vented Thermostat Temperatures can vary with Temperatures can vary with pressures pressures Over- Temperature 200° F (93.3° C) 200° F (93.3° C) Electrical System 12 Volt Negative (-) 12 Volt Negative (-) Ground Ground Alternator Rating 100 Amps 100 Amps Ignition Timing Not Adjustable Not Adjustable CAM Retard Not Adjustable Not Adjustable Battery Rating 650 CCA (Minimum) 650 CCA (Minimum) 120 Ah 120 Ah MASTER ENGINE SPECIFICATIONS NOTE: FOR NEW BOAT PROPPING, IT IS RECOMMENDED THAT OEMS PROP TO THE MAXIMUM RPM LISTED.

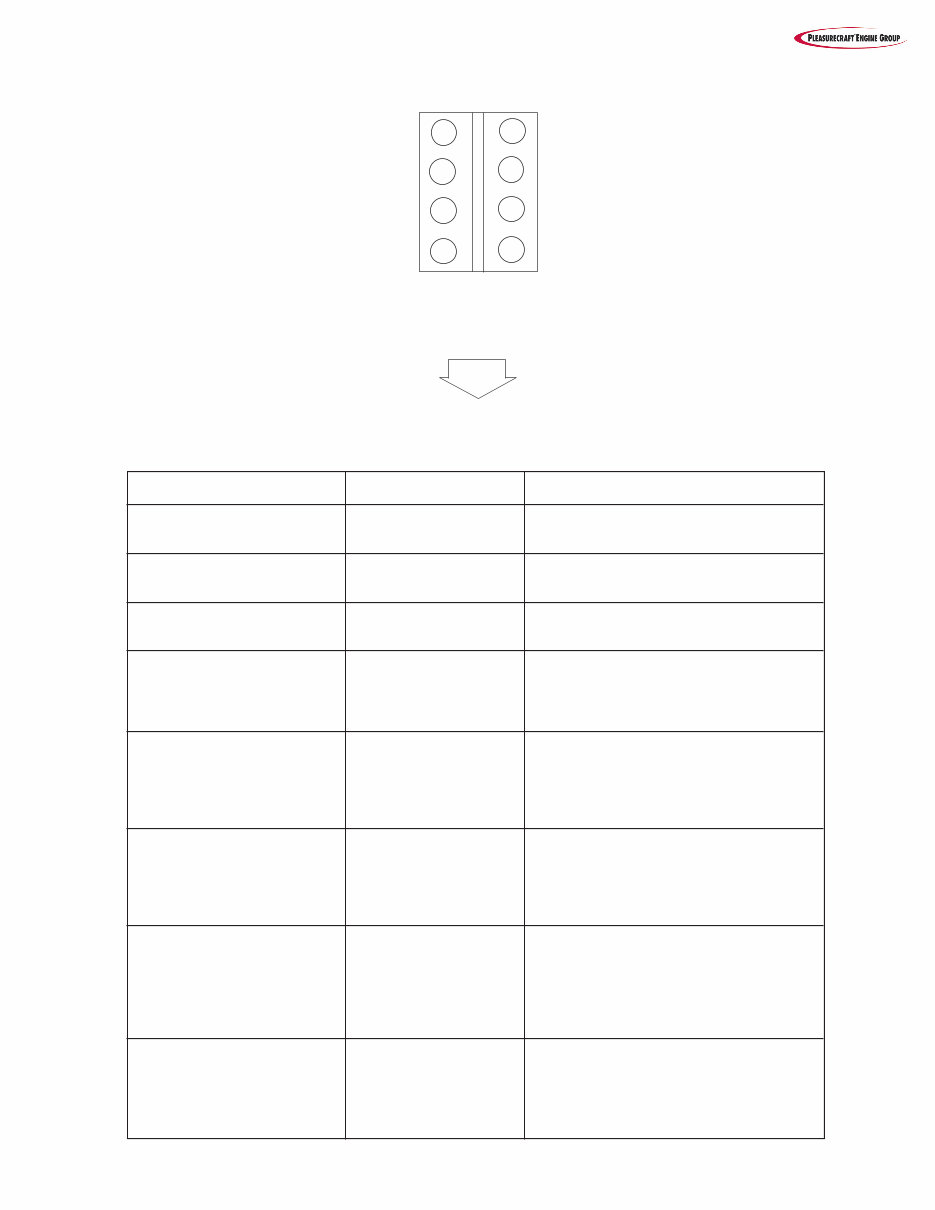

7 MODEL ALL NOTES FCC Fuel Pressure 57-62 psi @ WOT Monitored with sensor and displayed on Diacom Diagnostic Tool. Fuel Rail Operating Pressure 580 psi - 2100 psi Monitored with sensor and displayed on Diacom Diagnostic Tool. Fuel Pressure - LPFP 7 - 9 psi ALL ENGINES (WOT) Coolant Over Temperature 200°F / 215°F Causes engine to go into Power Derate. DTC 116 / 117 MIL and Buzzer Engine Derates Exhaust Manifold Riser 235°F / 245°F Causes engine to go into Power Derate. Temperature Sensors DTC 1415 / 1416 / (Raw Water Applications) 1417 / 1418 MIL and Buzzer Engine Derates Exhaust Manifold Riser 250°F / 258°F Causes engine to go into Power Derate. Temperature Sensors DTC 1415 / 1416 / (Fresh Water Applications) 1417 / 1418 MIL and Buzzer Engine Derates Low Engine Oil Pressure < 5 psi @ idle / Causes engine to go into Power Derate. < 35 psi @ 4000 (Stage 1) < 30 psi @ 4000 (Stage 2) DTC 524 / 520 MIL and Buzzer Engine Derates Closed Loop Control DTC 1155 / 1156 Causes engine to go into Power Derate. Out of Range DTC 1157 / 1158 Adaptive Fuel Control DTC 171 / 172 Causes engine to go into Power Derate. Out of Range DTC 174 / 175 PCM FUEL PRESSURE and ALARM WARNING SPECIFICATIONS IMPORTANT: FUEL PRESSURE VALIDATION MUST BE MADE WITH THE ENGINE UNDER LOAD. 1 3 5 7 2 4 6 8 LH ROTATION FRONT NO DISTRIBUTOR FIRING ORDER: 1-8-7-2-6-5-4-3 FLYWHEEL END OF ENGINE ALL V-8 MODELS Speciﬁcations

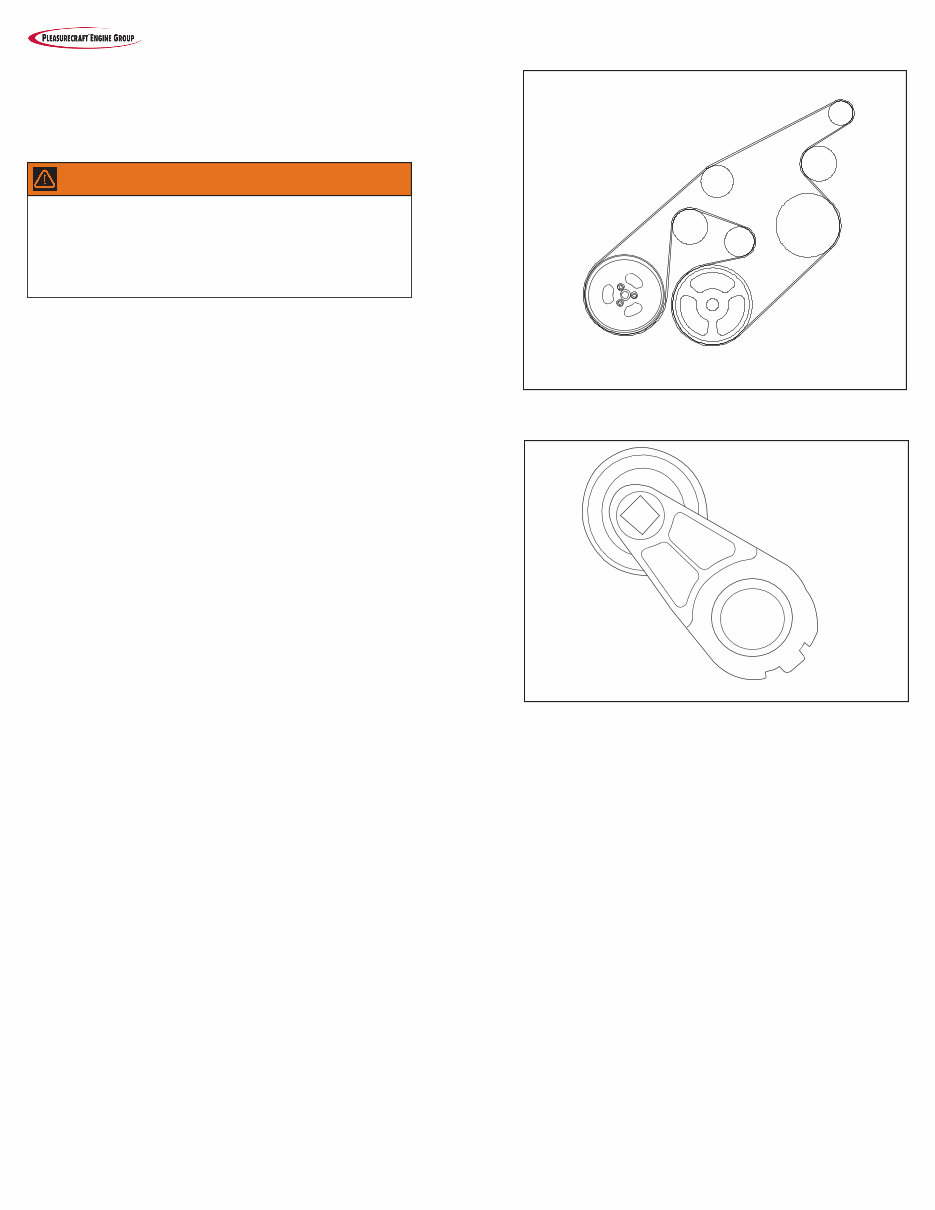

8 Accessory Drive Belt System Belt Tensioner Accessory Drive Belt Configuration DRIVE BELT REPLACEMENT Part Number: R066040 1. Note the routing of the belt before removing. 2. Using a 1/2” drive ratchet, turn the belt tensioner to relieve the tension on the belt. Slide the belt off of the pulleys. Release the tensioner slowly to prevent the tensioner from snapping against its stop, and possibly causing damage to the tensioner. 3. Slide the new belt onto the pulleys using the same routing as noted prior to removal. 4. Compress the belt tensioner, and slide the belt over the tensioner pulley. Release the tension slowly to tension the belt. ACCESSORY DRIVE BELT PCM engines use a single serpentine belt to drive the engine water circulation pump, sea-water pump and the alternator. DRIVE BELT INSPECTION Inspect the drive belt for excessive wear, shredding or missing sections. Inspect the drive belt for contamination from excessive dirt, oil, coolant or other substances that may effect the drive belt operation. If a problem is found, replace the belt after inspecting the following items: • All pulleys and tensioners for signs of misalignment • All pulleys and tensioners for signs of rust or other damage • Bent pulleys or tight bearings in the engine water circulation pump, sea-water pump and alternator Crank Pulley Raw Water Pump Pulley Circulation Pump Pulley Alternator Pulley Idler Idler Idler Tensioner Engine must be shut OFF and the ignition key removed before inspecting the drive belt(s). The drive belt(s) should be checked periodically for condition and tension. If the belt(s) shows signs of cracking, glazing or deterioration, replace with new belt(s). WARNING

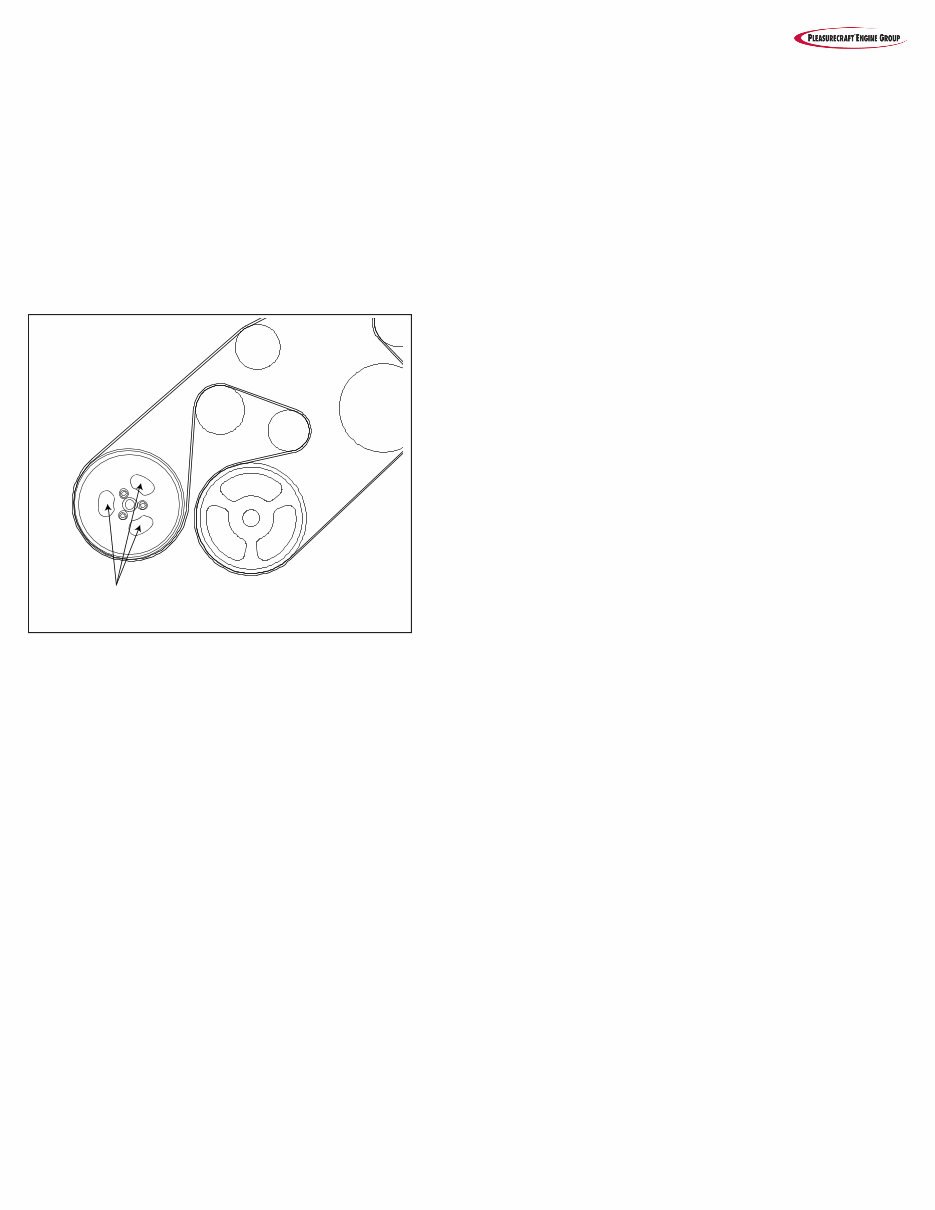

9 Cooling System SERVICING RAW WATER PUMP IMPELLER IMPELLER KIT #: RP061022 The raw water pump impeller should be serviced every 50 hours, or once a year, whichever occurs ﬁrst. See Maintenance Schedule. Locations “A” are access holes in order to loosen the raw water pump attaching bolts. The bolts are secured in the pump by O-rings, and will not fall out during removal. Torque the raw water pump housing attaching bolts to 8.5-9 ft.lbs. (11.5-12 N-M), when re-installing the impeller. Crank Pulley Raw Water Pump Pulley Circulatio Pump Pulley Idler Idler Idle Tensioner A Raw Water Pump Impeller Bolt Locations “A”

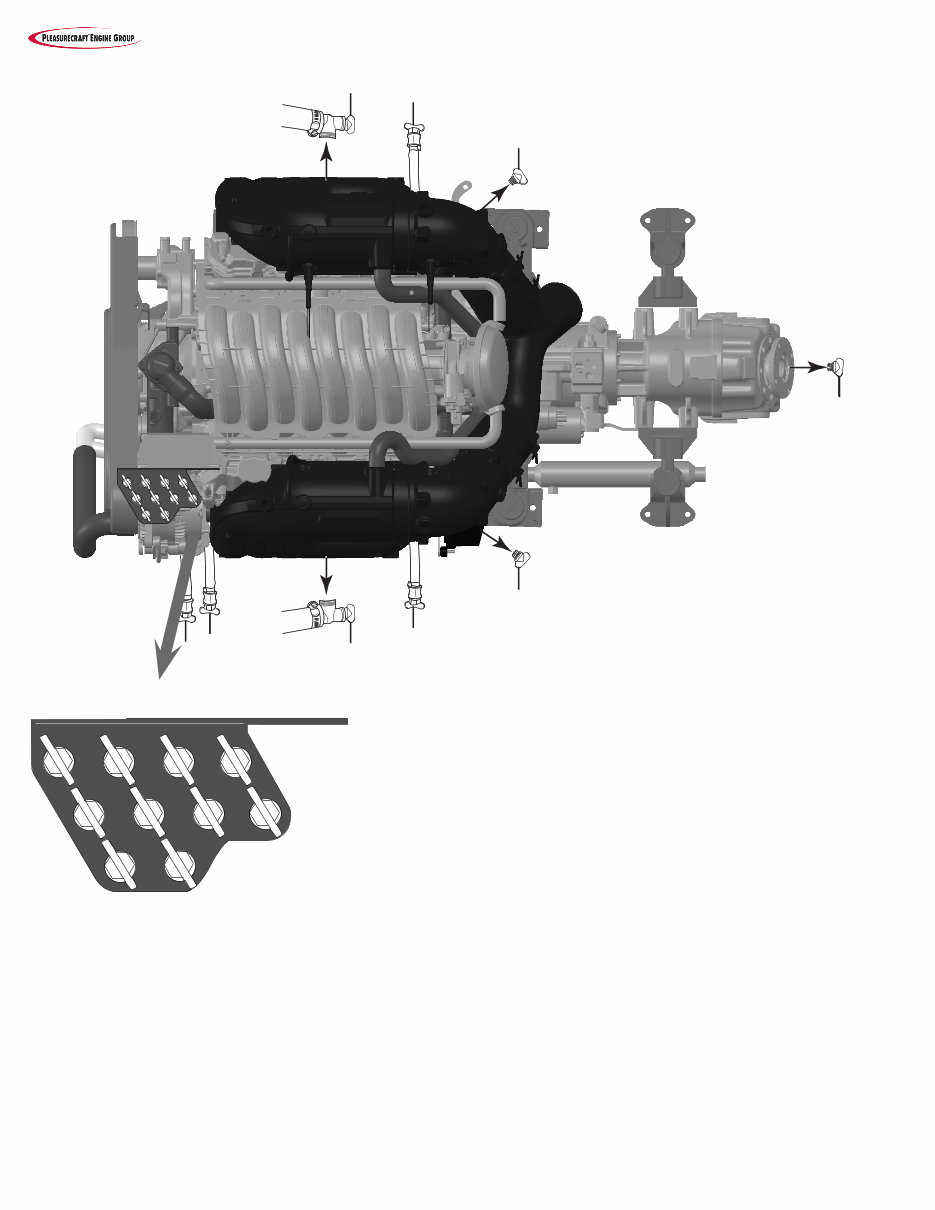

10 Cooling System Drain Locations Raw Water CES 5.3L DI / 6.2L DI V-DRIVE SPARE BLOCK EXHAUST MANIFOLD EXHAUST CORNERS WATER INLET CIRC PUMP 1 2 3 3 4 4 5 5 6 1 - Raw Water Inlet Manifold Hose Plug (1) 2 - Circulation Pump Hose Plug (1) 3 - Exhaust Manifold Plugs (2) 4 - Engine Block (2) 5 - Exhaust Corners (2) 6 - VDrive (1) / SPARE (Direct Drive) SPARE (1) VDrive Applications - 9 plug locations with 1 spare plug DDrive Applications - 8 plug locations with 2 spare plug RAW WATER DRAIN PLUGS A drain plug bracket/holder is mounted above the alternator. This holder is designed to keep your drain plugs organized and secure until they need to be reinstalled. The drain plugs are BLUE for easy identiﬁcation. Some locations have BLUE hoses that have the drain plugs located in the end of the hoses. Each location is identiﬁed above. ANODES There are anodes in the exhaust manifolds.
