30” Freestanding Electric Range SERVICE MANUAL MODEL: LDE3035ST LDE3035SB LDE3035SW CAUTION BEFORE SERVICING THE UNIT, READ THE SAFETY PRECAUTIONS IN THIS MANUAL. Website http://biz.lgservice.com P/NO : MFL37118324 February, 2013 Printed in Korea 삼 흥 정 판 Internal Use Only

This LG Service Manual, “ 30” Freestanding Self-Cleaning Electric Range,” provides the technician with information on the operation and service of the Freestanding Self-Cleaning Electric Range. It is to be used as a training Service Manual. For specific information on the model being serviced, refer to the “Owner’s Manual” or “Tech Sheet” provided with the electric range. SAFETY PRECAUTIONS • Repairs of the appliance should be carried out by a licensed technician only. Incorrect repairs may result in dangerous situations. If you need repairs, contact an LG Service Center or your dealer. • If the power cord is defective, it must be replaced by a qualified service agent with a UL listed range cord. • Electrical leads and cables should not be allowed to touch the oven. • Rating plate is located on the left side of warming drawer. • The power supply of the appliance should be turned off when it is being repaired. FORWARD LG Electronices assumes no responsibility for any repairs made on our products by anyone other than Authorized Service Technicians. WARNING • DISCONNET power supply cord from the outlet before servicing. • Replace all panels and parts before operating. • RECONNECT all grounding devices. - Failure to do so can result in severe personal injury, death or electrical shock. • DO NOT Touch when the oven operates. - The interior parts will be very hot.

(PAGE) GENERAL-------------------------------------------------------------------------------------------- 1-1 ~ 1-5 • Important safety instructions -------------------------------------------------------------------------------------- 1-1 ~ 1-3 • Model & Serial number label and tech sheet locations ----------------------------------------------------------- 1-4 • Specifications ------------------------------------------------------------------------------------------------------------------ 1-5 USING YOUR RANGE ------------------------------------------------------------------------- 2-1 ~ 2-6 • General imformation --------------------------------------------------------------------------------------------------------- 2-1 • Control panel features ---------------------------------------------------------------------------------------------- 2-2 ~ 2-6 - To turn on a SINGLE surface unit (Left Rear, Right Rear, Left Front) - To turn on a DOUBLE surface unit (Right Front) - To turn on a Warming zone (Center) - Setting the Clock - Start, Clean/Off and On/Off pad - To turn On/Off the oven light - Timer On/Off - Setting Pad : 4 types of category 1) Thermostat Adjustment 2) Preheating alarm light On/Off 3) Beeper volume 4) Temperature unit (°F or °C) - Timed Cook, Delayed Timed Cook - Broil - Warm - Proof - Pizza - Sabbath mode - LockOut - Self Clean - Easy Clean COMPONENT ACCESS --------------------------------------------------------------------- 3-1 ~ 3-21 • Component Locations ------------------------------------------------------------------------------------------------------ 3-1 • Removing the Back, Control cover and Key membrane Assembly ------------------------------------------- 3-2 • Removeing the Control Power Supply and Power Control Board (PCB) ----------------------------------- 3-3 • Removing the Surface Element and the Ceramic Glass Cooktop ------------------------------------------- 3-4 • Removing the Door Lath and Upper Door Switch -------------------------------------------------------------------- 3-5 • Removing the Door Lath and Lower Door Switch ------------------------------------------------------------ 3-6 ~ 3-7 • Removing the BROIL element ------------------------------------------------------------------------------------------- 3-8 • Removing the Exposed BAKE element -------------------------------------------------------------------------------- 3-9 • Removing the Hidden BAKE element --------------------------------------------------------------------------------- 3-10 • Removing the Oven light & Socket assembly ---------------------------------------------------------------------- 3-11 • Removing the latch drive assembly ----------------------------------------------------------------------------------- 3-12 - Door locking mechanism ---------------------------------------------------------------------------------------------- 3-12 • Removing the Oven temperature Sensor --------------------------------------------------------------------------- 3-13 • Removing & Replacing the Lift-off Oven Door ----------------------------------------------------------- 3-14 ~ 3-15 • Removing the Upper Oven Door Handle & Glass ------------------------------------------------------- 3-16 ~ 3-17 • Removing the Oven Door Handle & Glass----------------------------------------------------------------- 3-18 ~ 3-19 • Removing the Oven Door Gasket ------------------------------------------------------------------------------------- 3-20 • Removing a Side Panel --------------------------------------------------------------------------------------------------- 3-21 TABLE OF CONTENTS

(Page) COMPONENT TEST ----------------------------------------------------------------------------- 4-1 ~ 4-7 • Door locking Motor --------------------------------------------------------------------------------------------------------- 4-1 • Micro Switch ------------------------------------------------------------------------------------------------------------------- 4-1 • Oven Sensor ----------------------------------------------------------------------------------------------------------------- 4-2 • Door switch ------------------------------------------------------------------------------------------------------------------- 4-2 • Oven lamp -------------------------------------------------------------------------------------------------------------------- 4-2 • Upper oven Broil heater -------------------------------------------------------------------------------------------------- 4-2 • Upper oven Bake heater ------------------------------------------------------------------------------------------------- 4-3 • Lower oven Broil heater --------------------------------------------------------------------------------------------------- 4-3 • Lower oven Bake heater -------------------------------------------------------------------------------------------------- 4-3 • Single surface unit(LR, RR, LF) --------------------------------------------------------------------------------------- 4-4 • Dual surface unit(RF) ----------------------------------------------------------------------------------------------------- 4-5 • Center Rear(CR) Element: Warming Zone (Plane Heater) ------------------------------------------------- 4-6 COMPOSITION OF CONTROL ------------------------------------------------------------- 5-1 ~ 5-5 • Key Matrix ------------------------------------------------------------------------------------------------------------------------ 5-1 • Oven system PCB ------------------------------------------------------------------------------------------------------------- 5-3 • Cooktop system PCB --------------------------------------------------------------------------------------------------------- 5-3 • Oven relay PCB ---------------------------------------------------------------------------------------------------------------- 5-4 • SMPS PCB ---------------------------------------------------------------------------------------------------------------------- 5-4 • Cooktop display ---------------------------------------------------------------------------------------------------------------- 5-5 • Oven display (LED)------------------------------------------------------------------------------------------------------------ 5-5 DIAGNOSIS THROUGH SCHEMATIC ----------------------------------------------------------- 6-1 CHECK THE FAILURE CODE (F-CODE) ------------------------------------------------------- 7-1 SAFETY CAUTION & ERROR CODE SUMMARY ------------------------------------------ 8-1 CHECKING FLOW CHART BY FAILURE -------------------------------------------- 9-1 ~ 9-25 • No display (No Power) ----------------------------------------------------------------------------------------------- 9-1 ~ 9-4 • Oven does not heat -------------------------------------------------------------------------------------------------- 9-5 ~ 9-9 • Cooktop does not heat -------------------------------------------------------------------------------------------- 9-10 ~ 9-13 • Door lock system error -------------------------------------------------------------------------------------------- 9-14 ~ 9-17 • Oven sensing error------------------------------------------------------------------------------------------------- 9-18 ~ 9-20 • Oven hot error ------------------------------------------------------------------------------------------------------ 9-21 ~ 9- 23 • No key input-------------------------------------------------------------------------------------------------------------------- 9-24 • F-11 error (communication error) ---------------------------------------------------------------------------------------- 9-25 TROUBLE SHOOTING --------------------------------------------------------------------- 10-1 ~ 10-3 SCHEMATIC DIAGRAM ------------------------------------------------------------------------------ 11-1 • STRIP CIRCUITS ------------------------------------------------------------------------------------------------- 11-2 ~ 11-6 EXPLODED VIEW -------------------------------------------------------------------------- 12-1 ~ 12-10 REPLACEMENT PARTS LIST ---------------------------------------------------------- 13-1 ~ 13-9

1-1 GENERAL IMPOR IMPORTANT SAFETY INSTRUCTIONS ANT SAFETY INSTRUCTIONS Read and follow all instructions before using your oven to prevent the risk of fire, electric shock, injury to person, or damage when using the range. This guide don’t cover all possible conditions that may occur. For further assistance contact your service agent or manufacturer. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hunt you and others. All safety messages will follow the safety alert symbol and either the word “WARNING” or “CAUTION”. These word means : This symbol will alert you to hazards or unsafe practices which could cause serious bodily harm or death. WARNING This symbol will alert you to hazards or unsafe practices which could cause bodily injury or property damage. CAUTION WARNING • DO NOT step or sit on the door and install the Anti-Tip Bracket packed with range. - The range could be tipped and injury might result from spilled hot liquid, food, or the range itself. • DISCONNET power supply cord from the outlet before servicing. • Replace all panels and parts before operating. • RECONNECT all grounding devices. - Failure to do so can result in severe personal injury, death or electrical shock. • DO NOT touch heating elements or interior surfaces of oven. - Heating element may be hot even though they are dark in color. - Interior surfaces of an oven become hot enough to cause burns. • During and after use, do not touch, or let clothing or other flammable materials contact heating elements or interior surfaces of oven until they have had sufficient time to cool. - Other surfaces of the appliance may become hot enough to cause burns among these surfaces are oven vent openings and surfaces near these openings, oven doors, and windows of oven doors. • DO NOT store items of interest to children in cabinets above a range or on the back guard of a range. - Children climbing on the range to reach items could be seriously injured. CAUTION • Always use Pot Holders or oven mitts when removing food from the Warming Drawer. - You can be burned as cookware and plates will be hot. • Be careful when you work on the electric range handling the sheet metal part. - Sharp edge may be present and you can cut yourself. • Be careful not to bend the fan blade - Failure to do so can result in vibration, noise, and poor performance of convection when operating. • Be careful not to scratch or chip the oven liner paint when you remove the oven light socket in the next step. • Turn power OFF before removing the Warming Drawer. • Be careful when removing and lifting the door. • DO NOT lift the door by the handle. - Failure to do so can result in personal injury as the door is very heavy.

1-2 GENERAL IMPOR IMPORTANT SAFETY INSTRUCTIONS ANT SAFETY INSTRUCTIONS • Be sure your appliance is properly installed and grounded by a qualified technician. • Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be referred to a qualified technician. • Always disconnect power to appliance before servicing by removing the fuse or switching off the circuit breaker To reduce the risk of tipping of the range, the range must be secured by properly installed anti-tip devices. To check if the bracket is installed properly, - Warming drawer : grasp the top rear edge of the Range and carefully attempt to tilt it forward. verify that the anti-tip devices are engaged. - Storage drawer : Remove drawer and verify leveling leg is inserted into and fully secured by the anti-tip devices. Refer to the installation manual for proper anti-tip bracket installation. WARNING • DO NOT touch heating elements or interior surfaces of oven. - Heating element may be hot even though they are dark in color. - Interior surfaces of an oven become hot enough to cause burns. • During and after use, do not touch, or let clothing or other flammable materials contact heating elements or interior surfaces of oven until they have had sufficient time to cool. - Other surfaces of the appliance may become hot enough to cause burns among these surfaces are oven vent openings and surfaces near these openings, oven doors, and windows of oven doors. WARNING • DO NOT store items of interest to children in cabinets above a range or on the back guard of a range. - Children climbing on the range to reach items could be seriously injured. WARNING • DO NOT step or sit on the door and install the Anti-Tip Bracket packed with range. - The range could be tipped and injury might result from spilled hot liquid, food, or the range itself.

1-3 GENERAL SURFACE COOKING UNITS • Use Proper Pan Size – This appliance is equipped with one or more surface units of different sizes. Select utensils having flat bottoms large enough to cover the surface unit heating element. The use of undersized utensils will expose a portion of the heating element to direct contact and may result in ignition of clothing. Proper relationship of utensil to burner will also improve efficiency. • Never Leave Surface Units Unattended at High Heat Settings – Boil overs may cause smoking and greasy spillovers may ignite. • Make Sure Reflector Pans or Drip Bowls Are in Place – Absence of these pans or bowls during cooking may subject wiring or components underneath to damage. • Protective Liners – Do not use aluminum foil to line surface unit drip bowls or oven bottoms, except as suggested in the manual. Improper installation of these liners may result in a risk of electric shock, or fire. • Glazed Cooking Utensils – Only certain types of glass, glass/ceramic, ceramic, earthenware, or other glazed utensils are suitable for range- top service without breaking due to the sudden change in temperature. • Utensil Handles Should Be Turned Inward and Not Extend Over Adjacent Surface Units – To reduce the risk of burns, ignition of flammable materials, and spillage due to unintentional contact with the utensil, the handle of a utensil should be positioned so that it is turned inward, and does not extend over adjacent surface units. • Do Not Soak Removable Heating Elements – Heating elements should never be immersed in water. • Be sure you know which control pads operate each surface unit. Make sure you turned on the correct surface unit. IMPOR IMPORTANT SAFETY INSTRUCTIONS ANT SAFETY INSTRUCTIONS SELF-CLEAN OVENS • Do Not Clean Door Gasket – The door gasket is essential for a good seal. Care should be taken not to rub, damage, or move the gasket. • Do Not Use Oven Cleaners – No commercial oven cleaner or oven liner protective coating of any kind should be used in or around any part of the oven. • Clean in the self-clean cycle only parts listed in this manual. Before self-cleaning the oven, remove the broiler pan and any utensils from the oven. • Never keep pet birds in the kitchen – the health of birds is extremely sensitive to the fumes released during an oven self- clean cycle. Fumes may be harmful or fatal to birds. Move birds to well-ventilated room. • Important Instruction – In the event the self-clean mode “F” code goes on, or three long beeps sound, oven is malfunctioning in the self-clean mode. Turn off or disconnect appliance from power supply and have serviced by a qualified technician. VENTILATING HOODS: • Clean Ventilating Hoods Frequently – Grease should not be allowed to accumulate on hood or filter. • When flaming foods under the hood, turn the fan on. OVEN • Use Care When Opening Door – Let hot air or steam escape before you remove or replace food in the oven • Do Not Heat Unopened Food Containers – Build-up of pressure may cause container to burst and result in injury. • Keep Oven Vent Ducts Unobstructed – the oven vent is located above the left rear surface unit. this area could become hot during oven use. Never block this vent and never place plastic or heat- sensitive items on vent • Placement of Oven Racks – Always place oven racks in desired location while oven is cool. If rack must be moved while oven is hot, do not let potholder contact hot heating element in oven. • Do Not allow aluminum foil or meat probe to contact heating elements. GLASS/CERAMIC COOKING SURFACES • Do Not Cook on Broken Cook-Top – If cook-top should break, cleaning solutions and spillovers may penetrate the broken cooktop and create a risk of electric shock. Contact a qualified technician immediately. • Clean Cook-Top With Caution – If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid steam burn. Some cleaners can produce noxious fumes if applied to a hot surface. DEEP FAT FRYERS: • Use extreme caution when moving the grease kettle or disposing of hot grease. • Do Not Leave Children Alone - Children should not be left alone or unattended in area where appliance is in use. They should never be allowed to sit or stand on any part of the appliance. • Never Use Your Appliance for Warming or Heating the Room. • Storage in or on Appliance – Flammable materials should not be stored in an oven or near surface units. Be sure all packing materials are removed from the appliance before operating it. Keep plastics, clothes and paper away from parts of the appliance that may become hot • Wear Proper Apparel – Loose-fitting or hanging garments should never be worn while using the appliance. • Do Not Use Water on Grease Fires – Turn off oven to avoid spreading the flame. Smother the fire or flame by closing the door or use dry chemical, baking soda or foam- type extinguisher. • Use Only Dry Potholders – Moist or damp potholders on hot surfaces may result in burns from steam. Do not let potholder touch hot heating elements. Do not use a towel or other bulky cloth. WARNING • DISCONNET power supply cord from the outlet before servicing. • Replace all panels and parts before operating. • RECONNECT all grounding devices. - Failure to do so can result in severe personal injury, death or electrical shock.

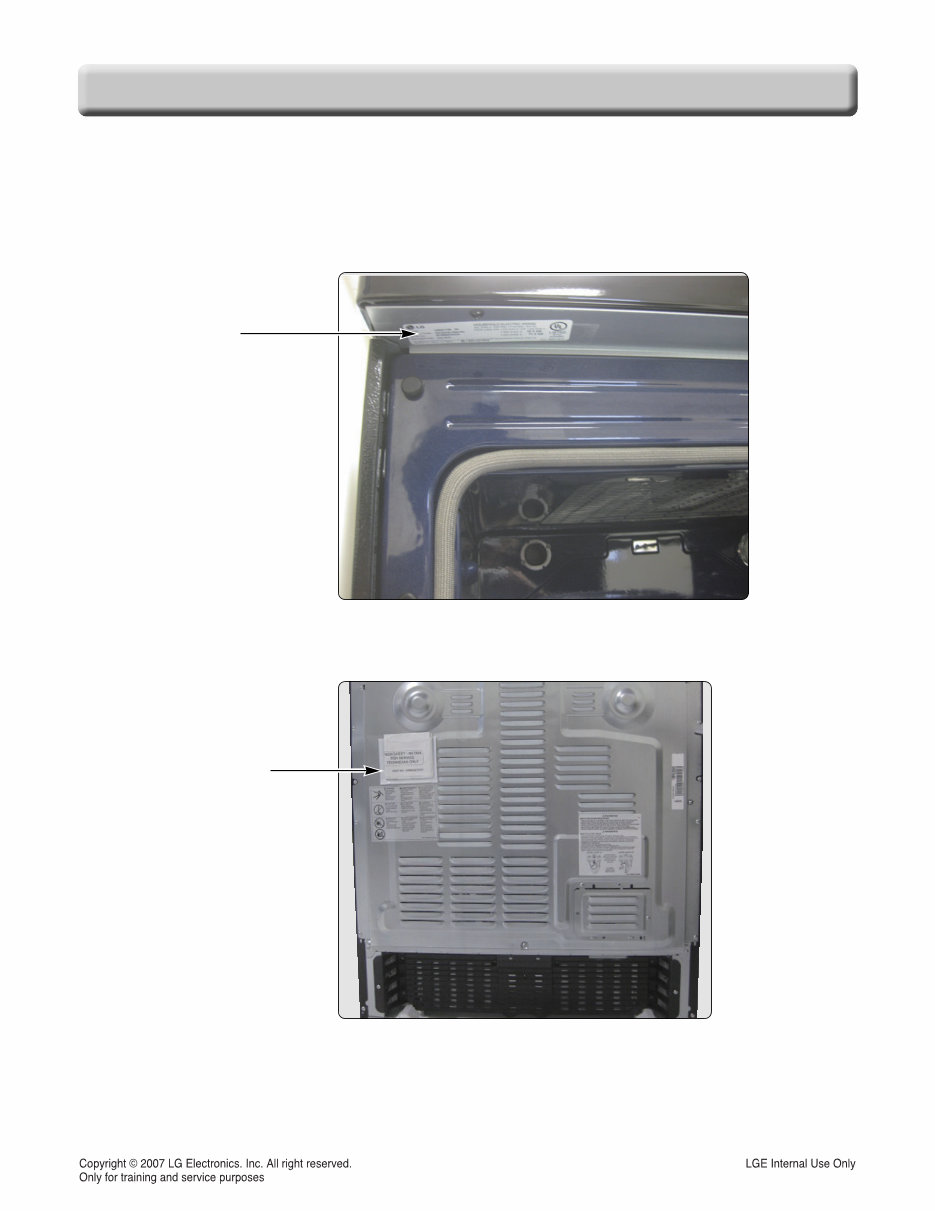

1-4 GENERAL The Model/Serial Number label and Tech Sheet locations are shown below. Model & Serial Number Location MODEL & SERIAL NUMBER LABEL MODEL & SERIAL NUMBER LABEL AND TECH SHEET LOCA AND TECH SHEET LOCATIONS TIONS Tech Sheet Location (On Low Rear Cover)

1-5 GENERAL SPECIFICA SPECIFICATIONS TIONS Model Number LDE3035ST / LDE3035SB / LDE3035SW Category Double oven range Overall Control Cooktop Power Oven Dimensions (inch) Power Width Installation type Color availability Oven Cooktop Display Electronic clock & timer Control lock capability Audible preheat signal Special function Material # of element LR RR CR LF RF Capacity(cu.ft) Broil element Bake element # of Racks Interior oven light Proof Warm Broiler pan Pizza Sabbath mode Upper oven Interior(WxHxD) Lower oven Interior(WxHxD) Exterior-Width Exterior-Height Exterior-Depth Net weight:Lbs(kg) Rating 30" Freestanding STS Keypad(Membrane) Keypad(Membrane) Green LED Yes Yes Yes Setting(5 categories) 1. Thermostat Adjustment 2. Preheating alarm light ON/OFF 3. Adjust beeper volume 4. Select fahrenheit or celsius temperature 5. Change hour mode on Clock Ceramic glass 5 6"-1200W 6"-1200W 7"-100W 9" 2500W 9"/6" 3200W/1400W 2.32(Upper)/4.38(Lower) 3200W(Upper)/3800W(Lower) 2100W(Upper)/2500W(Lower) 1(upper)/2(Lower) 1(upper)/1(Lower) Yes(Lower) Yes(Upper)/Yes(Lower) No Yes(upper)/No(Lower) Yes 24 1 /2 x 8 11 /16 x 18 15 /16 24 1 /2 x 16 5 /16 x 18 15 /16 29 7 /8 36 (cooktop), 47 7 /16 (Back Guard) 25 13 /16 (Door), 28 3 /16 (Handle) 219.8(99.7) 14.4kW(120/240V AC)/10.7kW(120/208V AC)

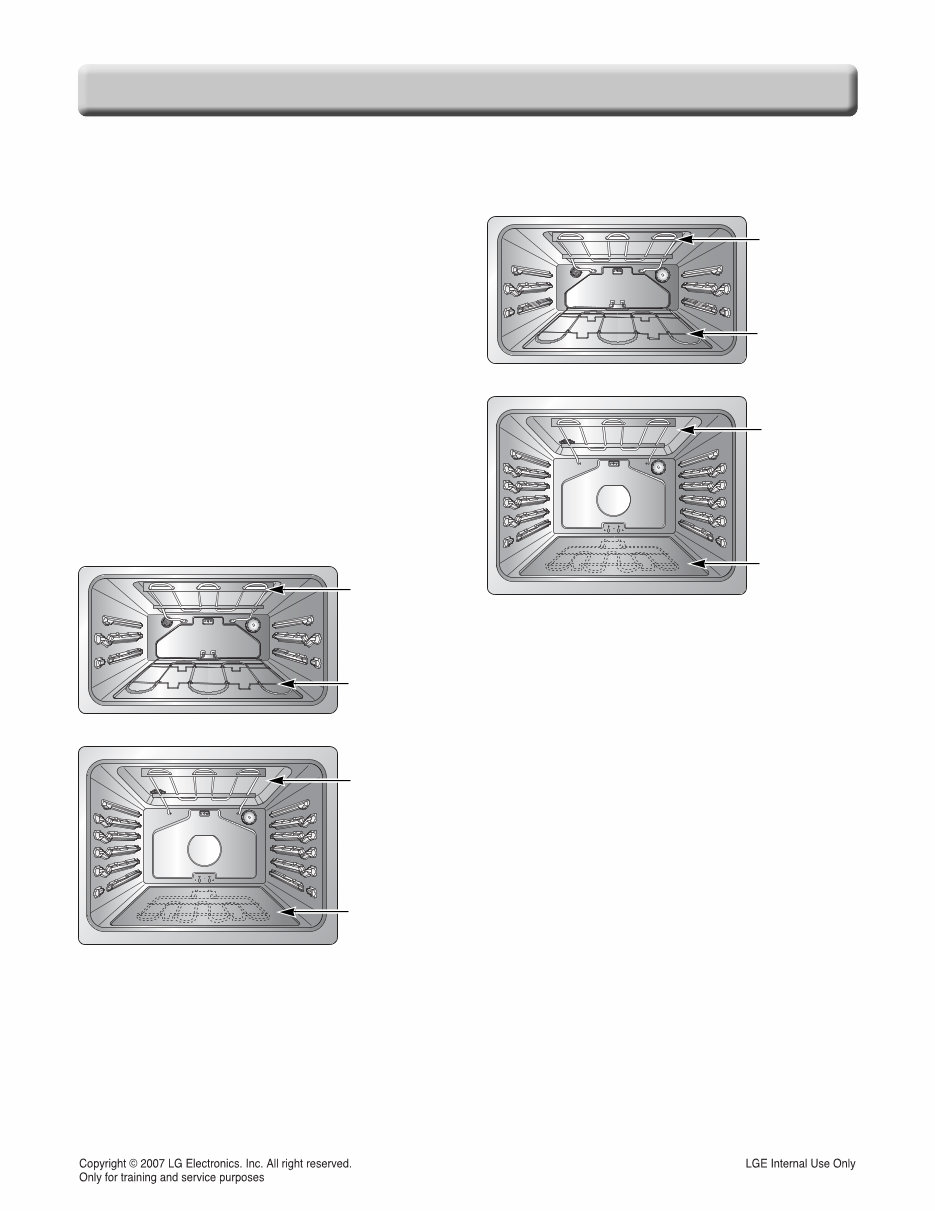

2-1 USING YOUR RANGE GENERAL INFORMA GENERAL INFORMATION TION Rating Label Model numbers are recorded on the rating label. Rating label is located on the upper front left corner of the upper oven frame. It can be seen by opening the upper oven door. Before ordering parts, write down the correct model and serial number from rating label. This avoids incorrect shipments and delays. Please refer to parts reference material when ordering replacement parts. Functional Operation Bake Mode (For both the Upper & Lower oven) Top and hidden bottom elements operate during bake. Bake can be used to cook foods which are normally baked. Oven must be preheated. Broil Mode (For both the Upper & Lower oven) Top element operates during broil. Broil can be used to cook foods which are normally broiled. Preheating is not required when using broil. All foods should be turned at least once except fish, which does not need to be turned. Cooking Guide Refer to the owners manual for recommendations of times and temperatures. Times, rack position, and temperatures may vary depending on conditions and food type. For best results, always check food at minimum time. When roasting, choose rack position based on size of food item. Broil element Hidden bake element Broil element Hidden bake element Low oven Broil element Open bake element Upper oven Low oven Broil element Open bake element Upper oven
