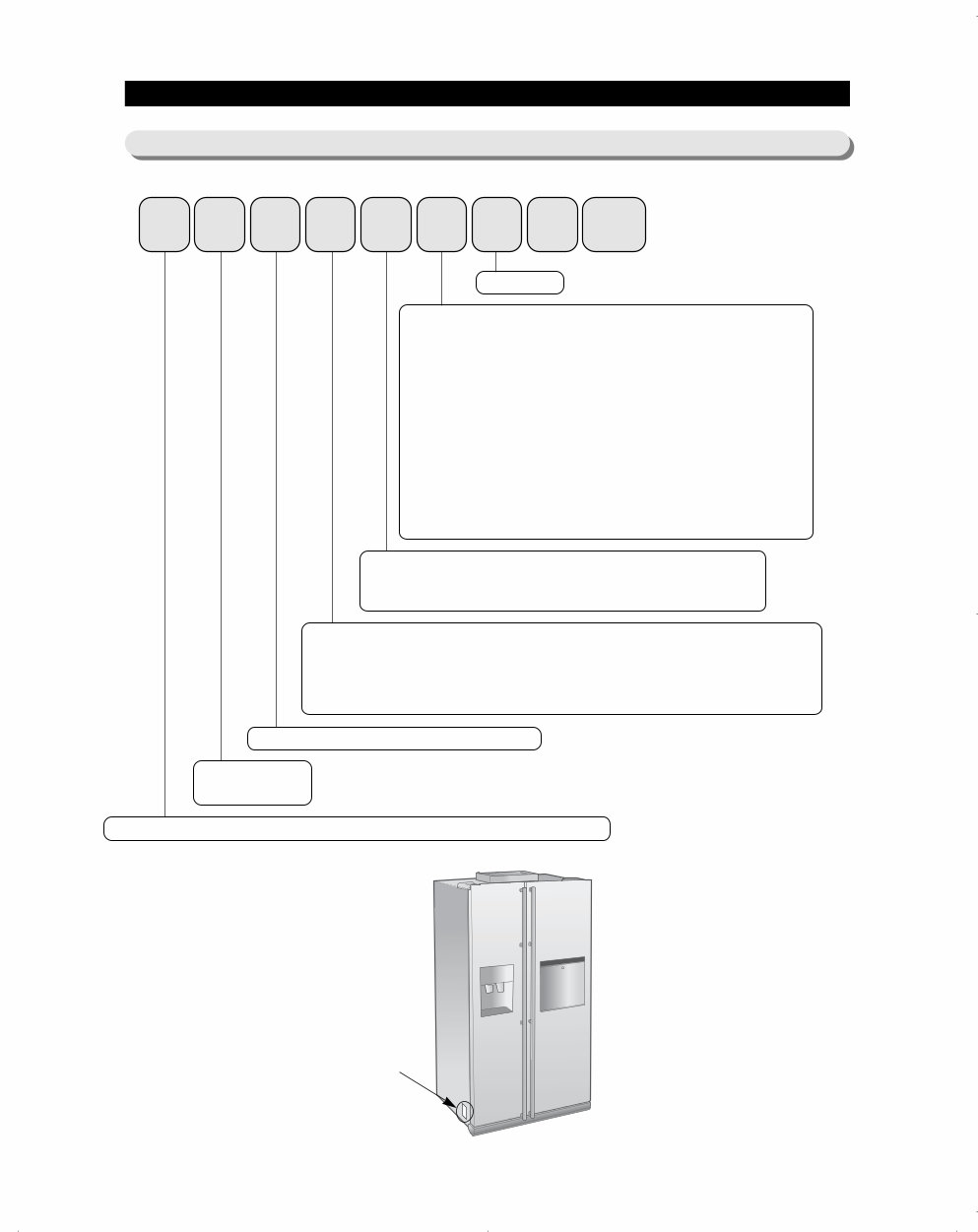

9. REFERENCE INFORMATION BRAND : R-SAMSUNG REFRIGERATOR B-OEM REFRIGERATOR Function F : Full option J : Dispenser + Convertible K :Full + Convertible HANDLE TYPE (DESIGN) U : Square Long Handle (U TYPE) S : Square Short Handle (U TYPE) E : Easy Handle EXTERIOR COLOR SV- CABI : SNOW WHITE(PCM) DOOR : SNOW WHITE(VCM) MH- CABI : Manhattan Silver-(PCM) DOOR : Manhattan Silver (PCM) PS- CABI : Platinum Silver -(PET) DOOR : Platinum Silver (PET) BP- CABI : Empire Black - (PCM) DOOR : All Black (PCM) RS- CABI : Versailles Stainless -(PET) RS- CABI : Versailles Stainless -(PET) BUYER NO. Label Location 9-1) RSJ1 Series (Nomenclature) 133 R S J1 K P PS 1 / *** CATEGORY S : SBS CAPACITY: J1 (21 cu.ft)

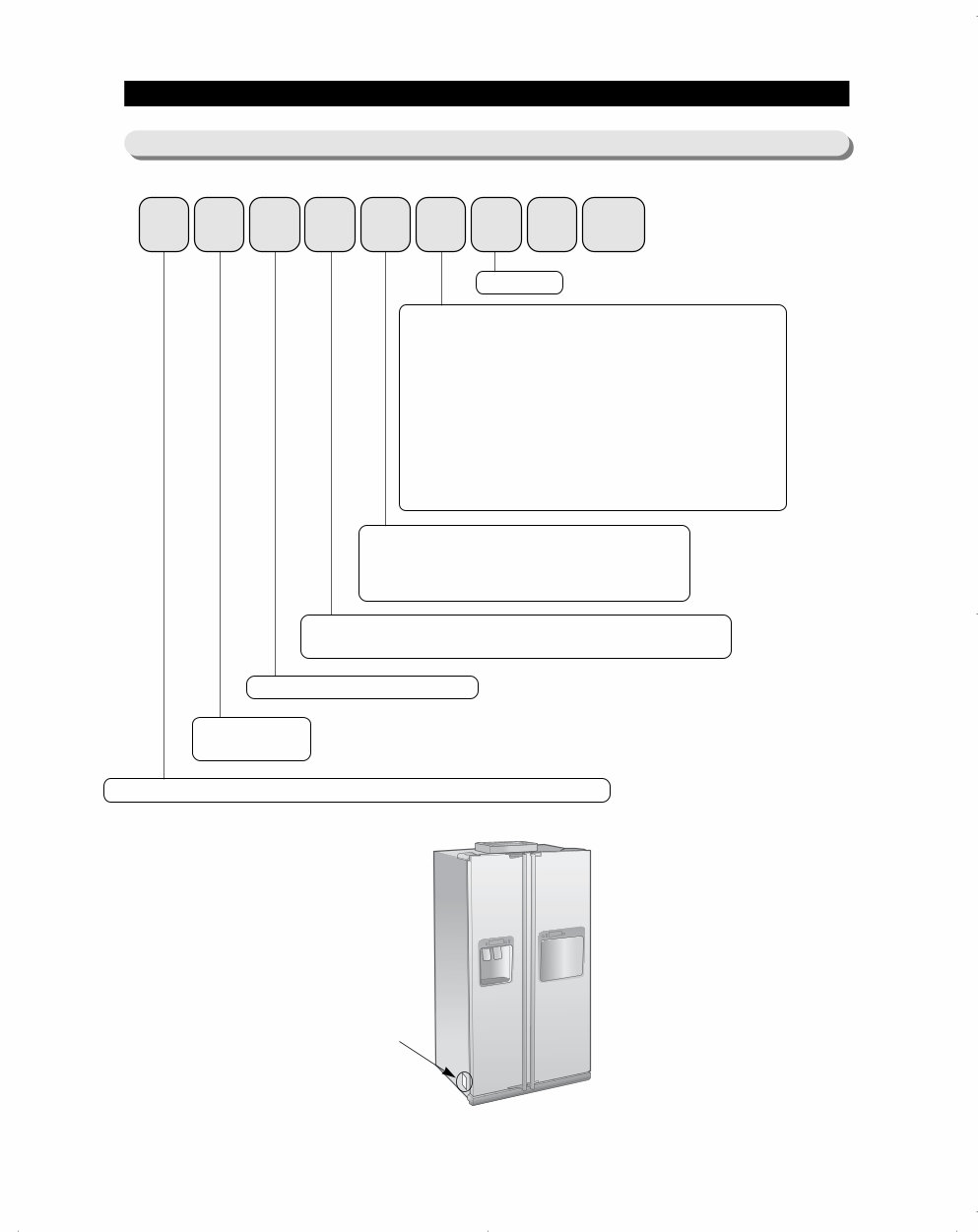

134 REFERENCE INFORMATION BRAND : R-SAMSUNG REFRIGERATOR B-OEM REFRIGERATOR FUNCTION N :BASIC MODEL B :HOME BAR ONLY D :DISPENSER (NO CONVERTIBLE) F :FULL (NO CONVERTIBLE) J :DISPENSER + CONVERTIBLE K :FULL + CONVERTIBLE S :BASIC MODEL + Inverter Comp V : HOME BAR ONLY + Inverter Comp Z :FULL + CONVERTIBLE + Inverter Comp HANDLE TYPE (DESIGN) B : Circle Long Handle (O TYPE) T : Oval Long Handle (ELLIPSE TYPE) E : Easy Handle H : Oval Half Handle (INTERIOR) EXTERIOR COLOR SW- CABI : SNOW WHITE(PCM EMBO) DOOR : SNOW WHITE(PCM) MH- CABI : Manhattan Silver (PCM) DOOR : Manhattan Silver (PCM) PE- CABI : Platinum Silver (PCM EMBO) DOOR : Platinum Silver (PET) IS- CABI : Noble Stainless (PCM) DOOR : INOX (VCM) BP- CABI : All Black (PCM) DOOR : Empire Black (PCM) RS- CABI : Versailles Stainless (PET) DOOR : Real Stainless (coated) BUYER NO. Label Location 9-2) RSH1 Series (Nomenclature) R S H1 K P PS 1 / *** CATEGORY S : SBS CAPACITY : H1 (21 cu.ft), H3 (23 cu.ft)

REFERENCE INFORMATION 9-3) Q & A 135 Problem The refrigerator does not work sufficiently or at all The food in the refrigerator is frozen Unusual noises or sounds are heard The front corners and sides of the cabinet are hot; condensation occurs Ice is not dispensed You can hear water bubbling in the refrigerator There is a bad smell in the refrigerator Frost forms on the wall of the freezer No water is supplied • Disconnected power plug • Is the temperature control on the display panel set to the correct temperature? • Is the refrigerator in direct sunlight or located near a heat source? • Is the back of the refrigerator too close to the wall? • Is the temperature control on the display panel set to the correct temperature? • Is the temperature in the room too low? • Did you store the food with a high water content in the coldest part of the refrigerator. • Is the back of the refrigerator too near to the wall? • Was anything dropped behind or under the refrigerator? • A “ticking” sound may be heard from inside the refrigerator. This is normal and occurs because various accessories contract or expand. • HOT-PIPE is installed in the front corners of refrigerator. That makes refrigerator’s temperature low quickly and save the power consumption. • Condensation can occur when you leave the door open for a long time. • Did you stop the ice making function? • Is there any ice in the storage unit? • Is the water pipe connected and the shut-off valve open? • Is the freezer temperature too warm? • Did you wait for 12 hours after installation of the water supply line before making ice? • The bubbling comes from the refrigerant circulating in the refrigerator and is normal. • Wrap strong smelling food so that it is airtight. Throw away any rotten food. • Is the air vent blocked? • Is the door closed properly? • Is the water pipe connected and the shut-off valve open? • Is the water supply pipe crushed? • Is the water tank frozen because the refrigerator temperature is too low? Select a warmer setting on the display panel. • Check that the power plug is properly connected. • Try setting it to a lower temperature. • Move the refrigerator to the proper location. • Try setting it to a warmer temperature. • Check that the floor is levelled and stable. • Move the refrigerator to the proper location. • Remove the foreign thing. • Normal state • Normal state • See the control panel. • See the ice container. • See the valve. • Set the temperature lower. • Normal state • Allow sufficient space between stored food for efficient air circulation. Possible Causes What To Do

REFERENCE INFORMATION 136 Problem Small or hollow cubes Slow ice cube freezing Orange glow in the freezer Cube dispenser does not work(on some models) Water has poor taste/odor (on some models) Water in first glass is warm (on some models) Water dispenser does not work(on some models) Water spurting from dispenser (on some models) Water is not dispensed (on some models) but icemaker is working Water on kitchen floor or on bottom of freezer No water or ice cube production Water filter clogged. Door left open. Temperature control not set cold enough. Defrost heater is on. Icemaker turned off or water supply turned off. Ice cubes are frozen to icemaker feeler arm. Irregular ice clumps in storage container. Dispenser is LOCKED. Water dispenser has not been used for a long time. Normal when refrigerator is first installed. Water dispenser has not been used for a long time. Water system has been drained. Water supply line turned off or not connected. Water filter clogged. Air may be trapped in the water system. Dispenser is LOCKED. Newly-installed filter cartridge. Water in reservoir is frozen. Refrigerator control setting is too cold. Ice cubes stuck in icemaker. (Green power light on icemaker blinking). Drain in the bottom of the freezer clogged. Cubes jammed in chute. Supply line or shutoff valve is clogged. Water filter clogged. Dispenser is LOCKED. • Replace filter cartridge with new cartridge or with plug. • Check to see if package is holding door open. • See about the controls. • This is normal. • Turn on icemaker or water supply. • Remove cubes and move the feeler arm to the ON position. • Break up with fingertip pressure and discard remaining clumps. • Freezer may be too warm. Adjust the freezer control to a colder setting, one position at a time, until clumps do not form. • Press and hold the CHILD LOCK for 3 seconds. • Dispense water until all water in system is replenished. • Wait 24 hours for the refrigerator to completely cool down. • Dispense water until all water in system is replenished. • Allow several hours for replenished supply to chill. • See Installing the water line. • Replace filter cartridge or remove filter and install plug. • Press the dispenser arm for at least two minutes. • Press and hold the CHILD LOCK pad for 3 seconds. • Run water from the dispenser for 3 minutes (about one and a half gallons). • Call for service. • Set to a warmer setting. • Turn off the icemaker, remove cubes, and turn the icemaker back on. • See Care and cleaning. • Check the lock of filter. • Poke ice through with a wooden spoon. • Call a plumber. • Replace filter cartridge or remove filter and install plug. • Press and hold the CHILD LOCK pad for 3 seconds. Possible Causes What To Do

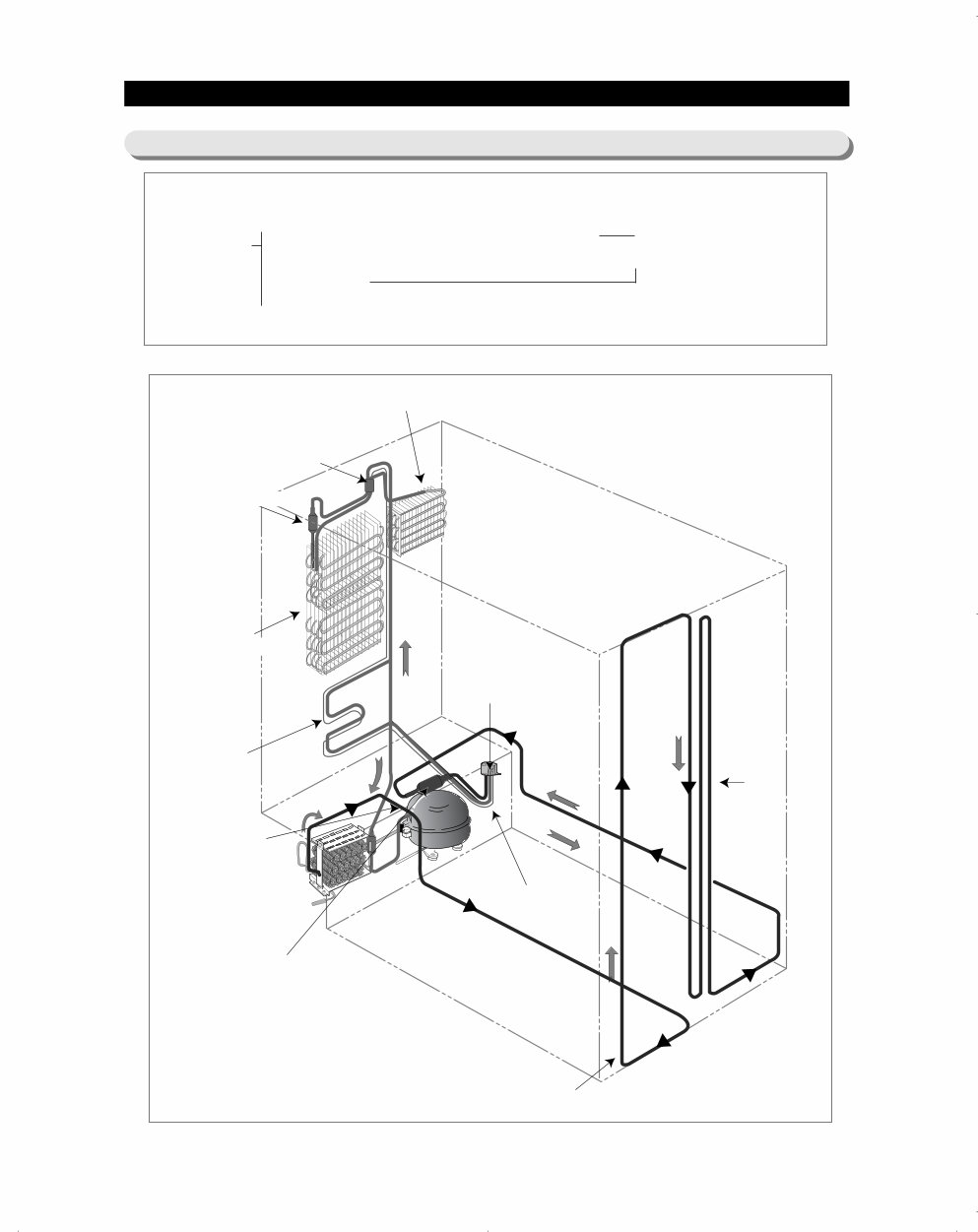

COMPRESSOR → SPIRAL-CONDENSER → FREEZER HOT PIPE → FRIDGE HOT PIPE → DRYER → 3WAY VALVE 137 REFERENCE INFORMATION 9-4) Additional Information-TDM CYCLE FRIDGE EVAPORATOR CONNECTED CAPILLARY FRIDGE,FREEZER CAPILLARY TUBE ACCUMULATOR FREEZER EVAPORATOR SUCTION PIPE DRYER 3WAY VALVE SPIRAL-CONDENSER FREEZER HOT-PIPE FREDGE HOT-PIPE COMPRESSOR FRIDGE CAPILLARY TUBE → FRIDGE EVAPORATOR FREEZER CAPILLARY TUBE → FREEZER EVAPORATOR → ACCUMULATOR → SUCTION PIPE → COMPRESSOR CONNECTED CAPILLARY → → → →
