Exploded Views and Parts List

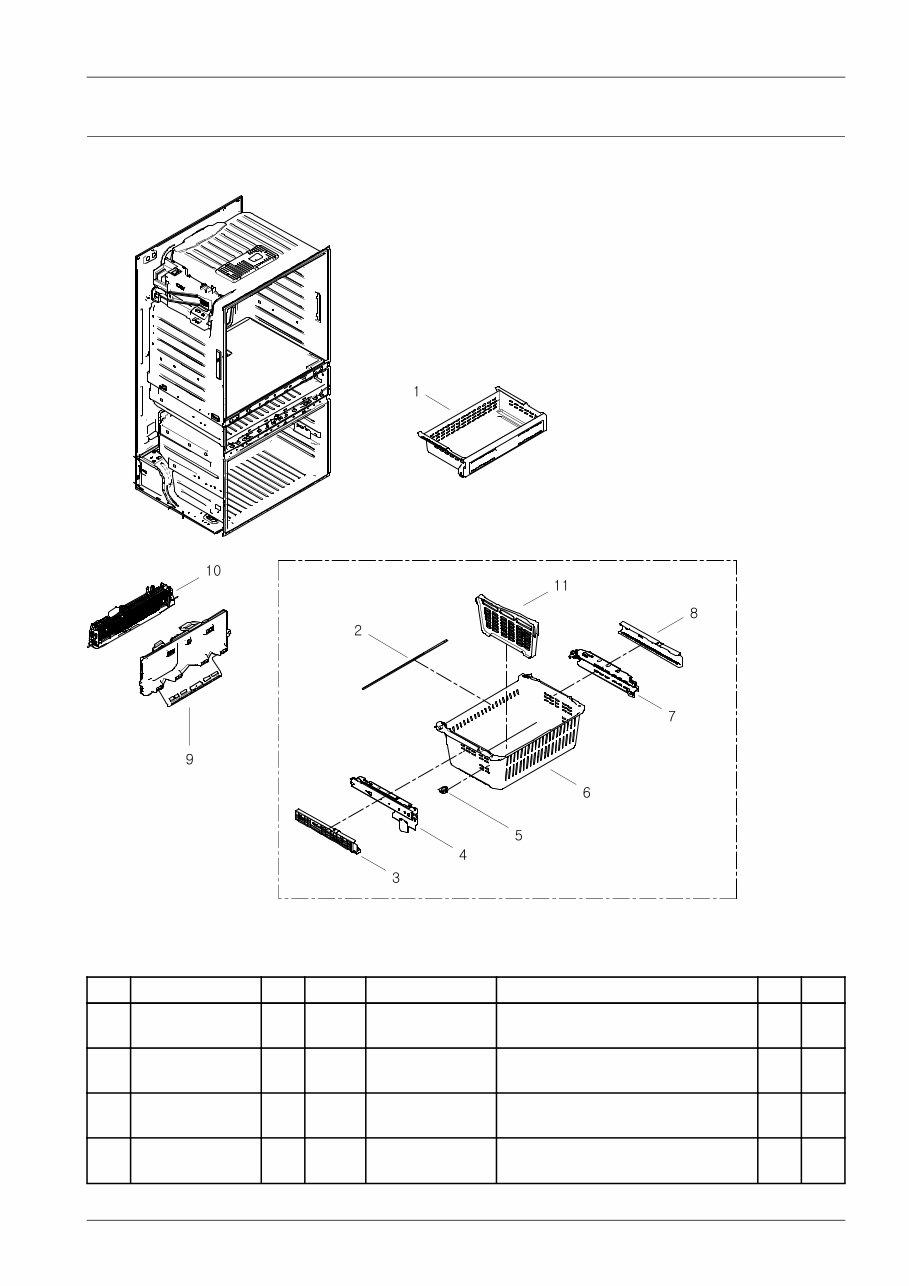

1. FREEZER
Exploded View
Parts List
No. Parent Lvl. Loc. Material Code Description & Specification SNA Qty.
1 DA90-05793A 2 RI242 DA97-08439B ASSY TRAY-FRE UPP; AW3,SHAFT
BLACK
SA 1
2 DA90-05793A 2 RI244 DA66-00437B SHAFT-GEAR;
AW2,SM25C,715.1,-,-,-,BLACK E
SA 1
3 DA90-05793A 2 RI223 DA63-05400A COVER-RAIL LOW L; AW3,ABS,COOL
WHITE(SC-0
SA 1
4 DA90-05793A 2 RI171 DA97-08803A ASSY RAIL-SLIDE LOW L;
AW3,STS430,INTERNA
SA 1
Copyright© 1995-2011 SAMSUNG. All rights reserved. 1
Exploded Views and Parts List
No. Parent Lvl. Loc. Material Code Description & Specification SNA Qty.
5 DA90-05793A 2 RF041 DA34-10120E SWITCH DOOR-F;
-,slide,-,-,250V,-,0.5A,-,
SA 1
6 DA90-05793A 2 RI227 DA97-08401A ASSY TRAY-DRAWER BOX; AW3 SA 1
7 DA90-05793A 2 RG144 DA97-08804A ASSY RAIL-SLIDE LOW R;
AW3,STS430,INTERNA
SA 1
8 DA90-05793A 2 RI224 DA63-05409A COVER-RAIL LOW R;
AW3,ABS,COOL WHITE(SC-0
SA 1
9 DA90-05791A 2 RF005 DA97-08434C ASSY COVER EVAP-FRE; AW3 SA 1
10 DA90-05793A 2 RF011 DA96-00631A ASSY EVAP FRE; AW3
PJT,PIN,120V/180W
SA 1
11 DA90-05793A 2 RI218 DA61-05850A GUIDE-DRAWER BOX;
AW3-PJT,PP,COOL WHITE(S
SA 1
2 Copyright© 1995-2011 SAMSUNG. All rights reserved.
Exploded Views and Parts List

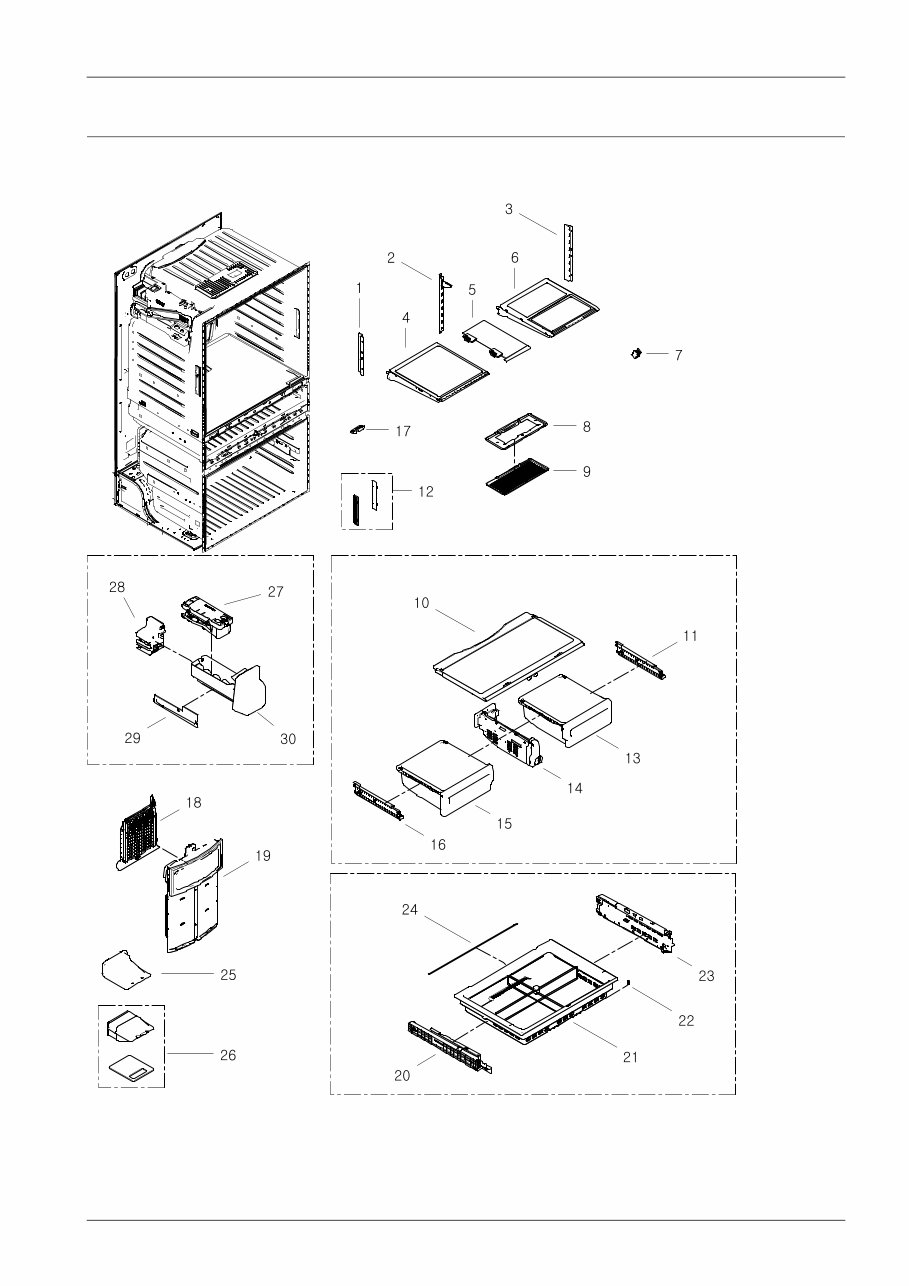

2. REFRIGERATOR
Exploded View
Copyright© 1995-2011 SAMSUNG. All rights reserved. 3
Exploded Views and Parts List
Parts List
No. Parent Lvl. Loc. Material Code Description & Specification SNA Qty.
1 DA90-05789A 2 RI300 DA61-05898A ANGLE-SHELF REF SIDE L;
AW3,CR,T2.5,COOL
SA 1
2 DA90-05789A 2 RI288 DA97-08459A ASSY ANGLE-SHELF REF MID; AW3 SA 1
3 DA90-05789A 2 RI301 DA61-05897A ANGLE-SHELF REF SIDE R;
AW3,CR,T2.5,COOL
SA 1
4 DA90-05789A 2 RU483 DA97-08461A ASSY SHELF-SLIDE REF;
AW3,WELDING SHELF
SNA 2
5 DA90-05789A 2 RI287 DA97-08609A ASSY SHELF-INSERT REF FOLD; AW3 SA 1
6 DA90-05789A 2 RI286 DA97-08463A ASSY SHELF-QUICK SPACE; AW3 SA 1
7 DA90-05793A 2 RI222 DA63-02902B COVER-FIXER HOUSING V;
NEXT-PJT,GALVA,T0.
SA 3
8 DA90-05793A 2 RI246 DA97-08428A ASSY CASE LAMP-REF; AW3,LED
18EA
SNA 1
9 DA90-05793A 2 RG025 DA63-05397A COVER LAMP-REF; AW3,SAN,NTR SA 1
10 DA90-05793A 2 RI449 DA97-08402A ASSY COVER-VEG REF; AW3,REINF
T2.0
SA 1
11 DA90-05793A 2 RR847 DA97-04840A ASSY RAIL-VEG R; AW-PJT,-,-,-,-,- SA 1
12 DA90-05793A 2 RU022 DA63-05431A COVER-LED SIDE; AW3,SAN,NTR SA 2
13 DA90-05793A 2 RI290 DA97-08437A ASSY CASE-VEG R; AW3,New Filter SA 1
14 DA90-05793A 2 RU480 DA97-08520B ASSY CASE-WATER FILTER;
AW3,WHITE,ASSY
SA 1
15 DA90-05793A 2 RI291 DA97-08438A ASSY CASE-VEG L; AW3,New Filter SA 1
16 DA90-05793A 2 RR845 DA97-04839A ASSY RAIL-VEG L; AW-PJT,-,-,-,-,- SA 1
17 DA90-05793A 2 RI211 DA61-04285A GUIDE-FRENCH;
AW2-PJT,PC-ABS,-,-,-,COOL-W
SA 1
18 DA90-05793A 2 RI016 DA96-00660C ASSY EVAP REF; AW2
ND,PIN,120V/120W
SA 1
19 DA90-05791A 2 RI008 DA97-08433C ASSY COVER EVAP-REF; AW3,EXP SA 1
20 DA90-05793A 2 RU004 DA97-08808A ASSY RAIL-SLIDE CONV L;
AW3,STS430,INTERN
SA 1
21 DA90-05793A 2 DA97-08528A ASSY CASE-CONV; AW3 SNA 1
22 DA97-08809A 3 RY482 DA61-02738A MAGNET-ASS'Y; CORE-PJT,Strontium
ferrite,
SA 1
23 DA90-05793A 2 RU005 DA97-08809A ASSY RAIL-SLIDE CONV R;
AW3,STS430,INTERN
SA 1
24 DA90-05793A 2 RU035 DA66-00733A SHAFT-GEAR CONV;
AW3,SM25C,743,BLACK
SA 1
25 DA90-05791A 2 RU016 DA63-05477A COVER MOTOR-DAMPER;
AW3,HIPS,COOL WHITE(S
SA 1
26 DA90-05791A 2 RU003 DA97-08430A ASSY INS-DAMPER CONV; AW3 SA 1
27 DA90-05807A 2 RM061 DA97-07365A ASSY ICE MAKER;
AW-PJT,115V,60Hz,-,-,-
SA 1
28 DA90-05807A 2 RF416 DA97-05246G ASSY CASE-AUGER MOTOR;
AW2,115V/60Hz
SA 1
4 Copyright© 1995-2011 SAMSUNG. All rights reserved.
Exploded Views and Parts List
No. Parent Lvl. Loc. Material Code Description & Specification SNA Qty.
29 DA90-05807A 2 RM038 DA63-03691A COVER-HARNESS ICE ROOM;
AW-PJT,HIPS,COOL-
SA 1
30 DA90-05807A 2 RF304 DA97-11117A ASSY TRAY-ICE BUCKET;
AW-PJT,90,490,WHT,B
SA 1
Copyright© 1995-2011 SAMSUNG. All rights reserved. 5
Exploded Views and Parts List

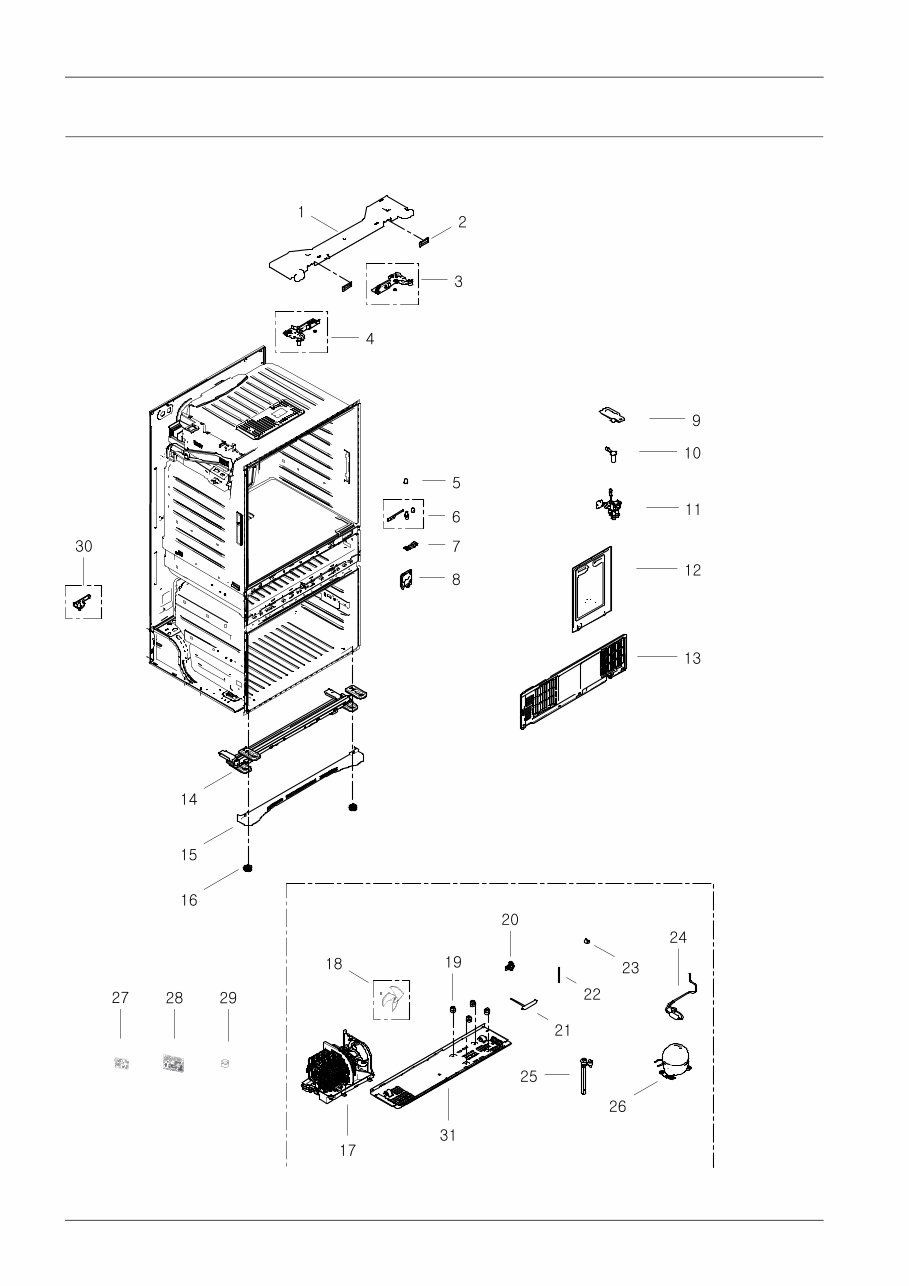

3. CABINET
Exploded View
6 Copyright© 1995-2011 SAMSUNG. All rights reserved.
Exploded Views and Parts List
Parts List
No. Parent Lvl. Loc. Material Code Description & Specification SNA Qty.
1 DA90-05788A 2 RO284 DA97-08448D ASSY TOP-TABLE; AW3,CREMY
STS(SC-02008R)
SA 1
2 DA90-05788A 2 RO184 DA67-02304A CAP-TOP TABLE; AW2
CD,ABS,-,-,-,CREAMY ST
SA 2
3 DA90-05788A 2 RO042 DA97-04875G ASSY HINGE UPP-R;
AW2,-,-,-,-,Creamy-STS,
SA 1
4 DA90-05788A 2 RO041 DA97-07822F ASSY HINGE-UPP L; AW2
CD,T2.9,CREMMY STS,
SA 1
5 DA90-05788A 2 RO163 DA63-02905A GROMMET HINGE-MID,R;
NEXT,POM,T2.0,-,-,-,
SA 2
6 DA90-05788A 2 RR474 DA97-07515A ASSY HINGE MID-R; AW2
CD-PJT,T4.5,-,-,Ni-
SA 1
7 DA90-05807A 2 RY488 DA61-02482B FIXER HOSE; NEXT,HIPS,NTR SA 1
8 DA90-05807A 2 RM074 DA97-08413A ASSY COVER-TUBE FILTER; AW3 SA 1
9 DA90-05807A 2 RO347 DA97-07556A ASSY COVER-PIPE WATER;
AW2-C/D-PJT,-,-,-,
SA 1
10 DA90-05807A 2 RR824 DA97-05362C ASSY PIPE-WATER;
AW-PJT(BEST),CD,TIM
SA 1
11 DA90-05807A 2 RO089 DA97-07827B ASSY VALVE WATER; AW2,110-127V SA 1
12 DA90-05784B 2 RD067 DA97-08442A ASSY COVER PCB PANEL; AW3 SA 1
13 DA90-05784B 2 RH001 DA97-08441A ASSY COVER-COMP; AW3 SA 1
14 DA90-05782A 2 DA97-06487R ASSY CABINET-BOTTOM FRONT;
AW2-ND,THAI-SI
SNA 1
15 DA90-05788A 2 RO287 DA63-04975A COVER-LEG FRONT; AW2
CD,PP,T2.5,-,-,-,-,C
SA 1
16 DA97-06487R 3 RO100 DA61-04977A FOOT-FRONT;
AW2-PJT,PP+MSWR10,-,BLACK,-,-
SA 2
17 DA90-05784B 2 RH003 DA97-08460C ASSY TRAY-DRAIN WATER; AW3,4
DOOR
SNA 1
18 DA90-05784B 2 RR028 DA31-00010D FAN-ASS'Y; -,ET,ZIPEL,ASSY,-,UNIT,
150
SA 1
19 DA90-05784B 2 RH732 DA63-02617A GROMMET COMP;
USP05,EPDM,OD18.5,BLACK
SA 4
20 DA90-05784B 2 RF113 DA97-07070A ASSY MOTOR-STEP VALVE;
CULLINAN,MOLD BRAC
SA 1
21 DA90-05784B 2 RC050 DA62-02614A DRYER-SINGLE;
HAEMIL_10,C1220T,OD18.85,L1
SA 1
22 DA90-05784B 2 RH026 DA73-10190U PIPE-CONNECT DISC,B;
TD-PJT,C1220-T,-,6.3
SA 1
23 DA90-05784B 2 RX042 DA63-40171D GROMMET-SUCT PIPE B; RAIL
L19.5,NR,-,OD20
SA 1
24 DA90-05784B 2 RO079 DA97-08458A ASSY PIPE CONNECT; AW3,4 DOOR SA 1
25 DA90-05784B 2 RZ110 DA97-04049E ASSY CAP-DRAIN; AW3 SA 2
26 DA90-05784B 2 RH002 MKV190CL2B/E01 COMPRESSOR;
115V~60HZ,BLDC,FAN,MKV
SA 1
Copyright© 1995-2011 SAMSUNG. All rights reserved. 7
Exploded Views and Parts List
No. Parent Lvl. Loc. Material Code Description & Specification SNA Qty.
27 RF4287HARS/XAC 1 RO326 DA41-00614B ASSY PCB SUB INVERTER;
AW3-PJT,TOP,FR-4,1
SA 1
28 RF4287HARS/XAC 1 RY075 DA41-00684B ASSY PCB MAIN; AW3-PJT,ASSY
CYCLE,FR-1,21
SA 1
29 DA90-05784B 2 RH015 DA63-01866A COVER RELAY;
NORYL,T2.0,SSEC,BLACK,HOOK
SA 1
30 DA90-05788A 2 RR470 DA97-07514D ASSY HINGE MID-L;
AW2-ND,T4.5,Ni-Cr Plate
SA 1
31 DA90-05784B 2 RO002 DA97-07547A ASSY CHASSIS-COMP;
AW2-CD,-,-,-,-,-,PP+TP
SNA 1
8 Copyright© 1995-2011 SAMSUNG. All rights reserved.
Exploded Views and Parts List

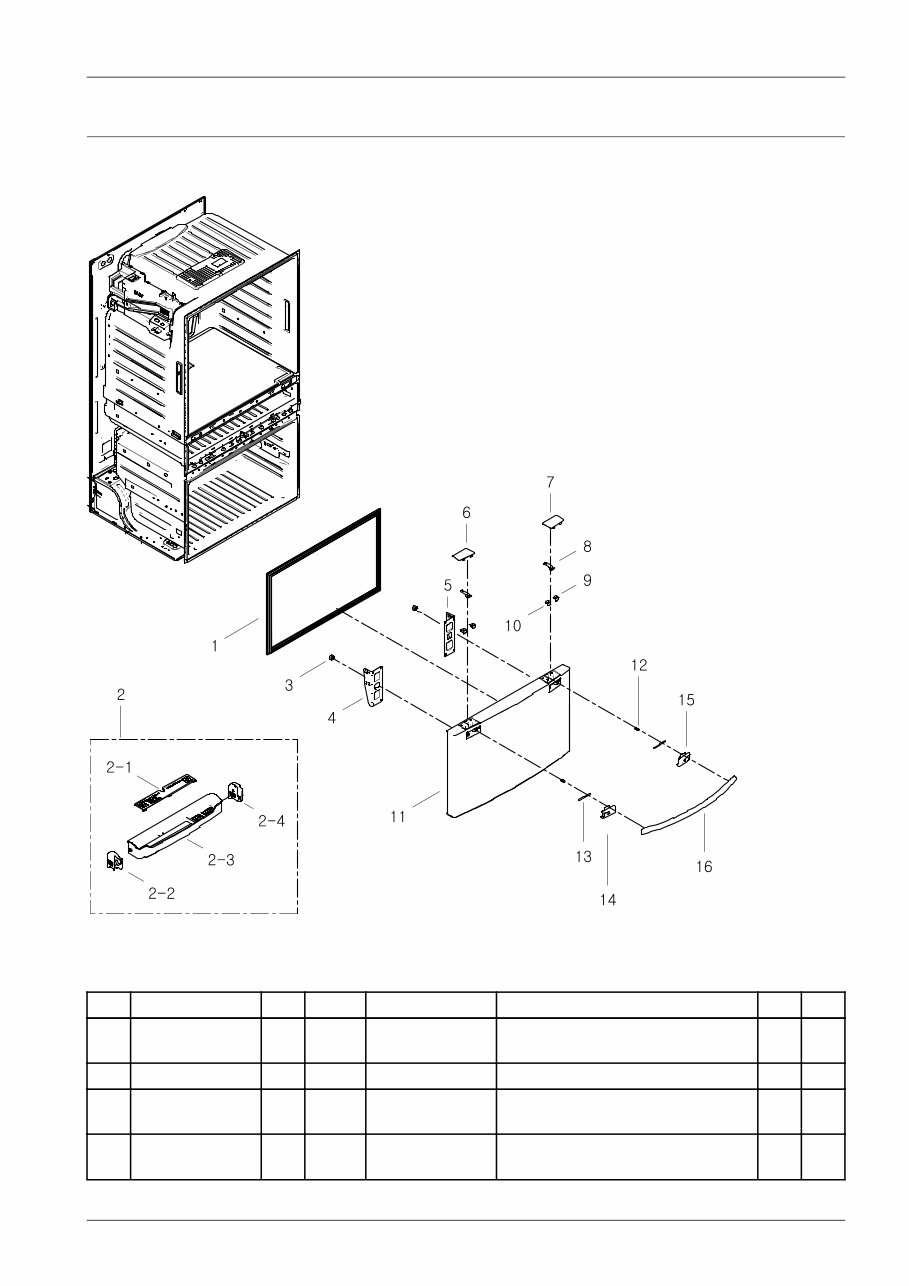

4. FREEZER-DOOR
Exploded View
Parts List
No. Parent Lvl. Loc. Material Code Description & Specification SNA Qty.
1 DA91-03036A 3 RR907 DA97-05557Q ASSY-GASKET DOOR FRE;
AW3_FRE,GRAY
SA 1
2 DA90-05795A 2 RD349 DA97-08407A ASSY GUARD-FRE; AW3 SNA 1
2-1 DA97-08407A 3 RD107 DA63-03459A GUARD-FRE FLIP;
AW-PJT,HIPS(HR-1360),-,-,
SA 1
2-2 DA97-08407A 3 RI214 DA61-05847A SUPPORT-GUARD FRE L;
AW3,HIPS,COOL WHITE(
SA 1
Copyright© 1995-2011 SAMSUNG. All rights reserved. 9
Exploded Views and Parts List
No. Parent Lvl. Loc. Material Code Description & Specification SNA Qty.
2-3 DA97-08407A 3 RD354 DA63-05386A GUARD-FRE; AW3,HIPS,COOL
WHITE(SC-02740R)
SA 1
2-4 DA97-08407A 3 RI216 DA61-05846A SUPPORT-GUARD FRE R;
AW3,HIPS,COOL WHITE(
SA 1
3 DA91-03036A 3 RD086 DA61-02904B SUPPORT-DOOR POSITION,IN;
AW-PJT,HIPS,-,-
SA 2
4 DA91-03036A 3 RD092 DA61-03153B HANGER-RAIL FRONT L;
AW-PJT,SECC1,T2.0,CO
SA 1
5 DA91-03036A 3 RD093 DA61-03155B HANGER-RAIL FRONT R;
AW-PJT,SECC1,T2.0,CO
SA 1
6 DA91-03035E 3 RU020 DA63-05432A COVER-HANDLE L;
AW3,ABS,CREAMY-STS(SC-020
SA 1
7 DA91-03035E 3 RU021 DA63-05433A COVER-HANDLE R;
AW3,ABS,CREAMY-STS(SC-020
SA 1
8 DA91-03035E 3 RU036 DA61-06014A SLIDER-EASY HANDLE;
AW3,POM,CREAMY-STS
SA 2
9 DA91-03035E 3 RU029 DA61-05899A FIXER-SHAFT R; AW3,POM,NTR SA 2
10 DA91-03035E 3 RU028 DA61-05930A FIXER-SHAFT L;
AW3,POM,BLACK(SC-00477R)
SA 2
11 DA91-03036A 3 RD001 DA91-03007A ASSY DOOR FOAM FRE; AW3 SA 1
12 DA91-03035E 3 RD157 DA61-04335B SPRING ETC-EASY HANDLE; 08
AW1,2-PJT,HSWR
SA 1
13 DA91-03035E 3 RD157 DA61-04335B SPRING ETC-EASY HANDLE; 08
AW1,2-PJT,HSWR
SA 1
14 DA91-03035E 3 RU010 DA67-02512A CAP-HANDLE CONV L;
AW3,ABS+PC,CREAMY-STS(
SA 1
15 DA91-03035E 3 RU011 DA67-02513A CAP-HANDLE CONV R;
AW3,ABS+PC,CREAMY-STS(
SA 1
16 DA91-03035E 3 RO392 DA64-02550A HANDLE BAR-FRE;
AW2-PJT,STS304,-,-,730,-,
SA 1
10 Copyright© 1995-2011 SAMSUNG. All rights reserved.
