23118
Engine SM-94
VERSION 2018-1
SPARE PARTS MANUAL
08760 Martorell (Barcelona) Spain
Download the latest version of this manual HERE
- Description: Trade name of the component
- Quantity: Total number of parts used in the assembly of the part represented (may
differ from the total minimum quantities)
Hoses, indicates the total length in meters
The diagrams shown in this catalog of spare parts, have only the purpose to identify
the piece in question, its representation is not meaningful and may differ from the
actual piece.
In case of doubt, contact Solé Diesel, or your authorized dealer.
The parts i / or references in this catalog are subject to change without notice.
SOLÉ, S.A.
C-243b, Km, 2 - P.O. BOX 15
Spare parts requests must be adressed to:
recambios@solediesel.com
Telf.: +34 93 775 44 05
Fax: +34 93 775 30 13
The components shown in the catalog have:
- Figure: Number by which they are represented in scheme
PARTS LIST CATALOGUE
NORMS TO PLACE AN ORDER:
For fast and more efficient service, please specify the following information on spare
parts orders that must be preferably done by FAX or e-mail as specified below:

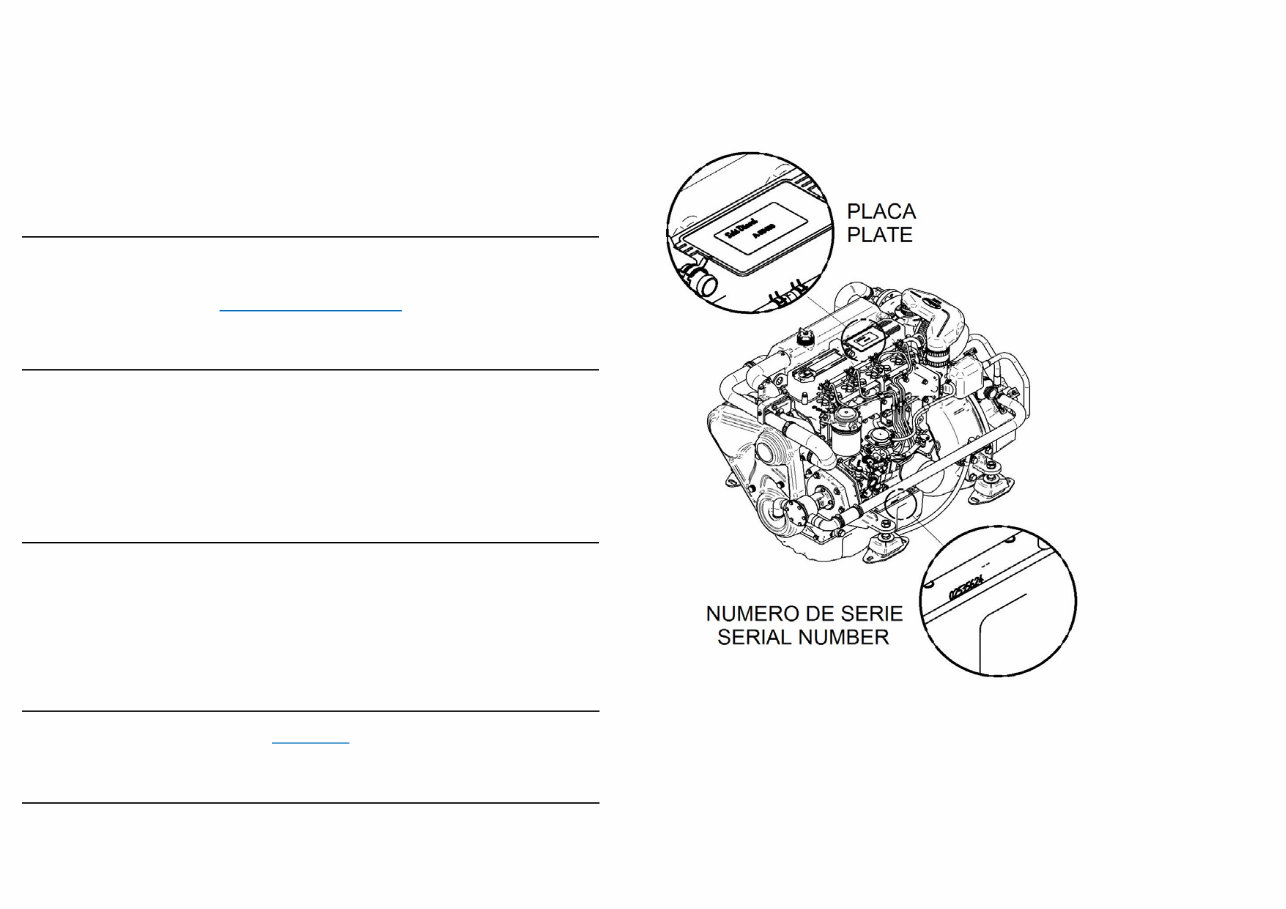

1- Engine model: As shown in identification plate
2- Engine serial number: As shown in identification plate and stamped on crankcase
3- Item description + part number + quantity required
Contents
Electric Selector Valve 12V/24V
Cylinder Head Sheet 1.1/4 Electric Selector Valve 12V/24V (TV)
Rocker Cover & Breather Sheet 1.2/4
Valve Drive Sheet 1.3/4
Timing Parts Intermediate Shaft 2/4 Sheet 1/4
Gear Case Input Shaft 3/4 Sheet 2/4
Cranckcase Output Shaft 4/4 Sheet 3/4
Rear Plate Maintenance Kit Sheet 4/4
Piston & Connectiong Rod Maintenance Kit
Crankshaft & Flywheel
Oil System Sheet 1.1/4
Oil Pan Sheet 1.2/4 Sheet 1/3
Engine Brackets Sheet 1.3/4 Sheet 2/3
Bracket, Engine Control Intermediate Shaft 2/4 Cooling System 3/3
Oil cooler Input Shaft 3/4 Maintenance Kit
Belt Protection Output Shaft 4/4
Maintenance Kit
Sheet 1.1/4
Inlet Sheet 1.2/4
Turbocharger Sheet 1.1/4 Sheet 1.3/4
Spare parts, Turbocharger Sheet 1.2/4 Input Shaft 2/4
Sheet 1.3/4 Intermediate Shaft 3/4
Input Shaft 2/4 Output Shaft 4/4
Water Pump Intermediate Shaft 3/4 Maintenance Kit
Cooler Pipes Output Shaft 4/4
Water Cooler Assy SM-82/94 Maintenance Kit
1" Water Pump, Set Kit Z-Drive VOLVO 280/290 Z=26
Wet Exhaust Kit Z-Drive Volvo 280/290 Z=10
Sheet 1/4 Kit GearBox TM-93
Sheet 2/4 Kit GearBox TM-345/A
Fuel Pipe Sheet 3/4 Kit GearBox TM-170/A/880A
Injection Nozzle Sheet 4/4 Kit GearBox BORG WARNER With Oil Cooler
Fuel Supply Parts Maintenance Kit Kit GearBox BW (Without Oil Cooler)
Kit GearBox ZF-63IV
Kit SAE 7
Kit Alternador 14V/95A Sheet 1/4 Kit GearBox TM-485A1
Electrical Wiring Sheet 2/4 Kit GearBox PRM-500
SVT 30 SM-82/94 Panel Sheet 3/4 Kit Bobtail
Sheet 4/4
Maintenance Kit
Gasket Kit Kit 2nd Alternator 28V/55A
Pipe Rubber Set,Water Line SM-82/SM-94 Kit 2nd Alternator 14V/95A
Gasket Kit Sheet 1/2 Kit 2nd Alternator 28V/140A
Sheet 2/2 Kit Wire Earth Isolated 12V SM-82/94
Mechanical Selector Valve
1
Gearbox TM-485A1
Gearbox TMC-260
Gearbox TM-880A
Kit Gearbox
Electrical System
Gearbox TM-93
Gearbox TM-93A
Gearbox TM-170
TM-345 Gearbox
TM-345A Gearbox
GearBox ZF-63 IV
Engine Body
Inlet & Exhaust
Cooling System
Fuel System
12V Electrical System
Maintenance Kit
Pressure Gauge Kit 10 BAR
Kit Trolling Valve for TM-93/A
Kit Trolling Valve for TM-345/A
Boiler Kit (S)
Kit Trolling Valve for TM-485A1
Kit Trolling Valve for TM-170/A
Exhaust Flange (S)
Kit Dry Exhaust With Flexible Pipe (S)
Kit Dry Exh. Flexible Pipe & Silencer(S)
Pulley 2B (S)
Pulley 2A (S)
Pulley 4A D138 (S)
Kit Power Take-off D40 (S)
Kit Pulley & Power Take-off 2A
Kit Pulley & Power Take-off 2B
Pulley 4B (S)
Pulley 4A D195 (S)
Kit Keel Cooling & Dry Exh.- TM GearBox
SVT 30 Panel 12V + Exh. Temp. Alarm Kit
SVT 30 24V Panel + Exh. Temp. Alarm Kit
Kit 2nd Panel SVT 40 SM-82/94 12V
Kit SDC 2000 SM-82/94 12V
Kit SDC 2000 SM-82/94 24V
Exhaust System
Power Take-off Pulley
Kit Keel Cooling
Kit Instrument Panel SVT
Kits NMEA 2000 - one engine
Other Kits
2
Engine SM-94 Engine Body

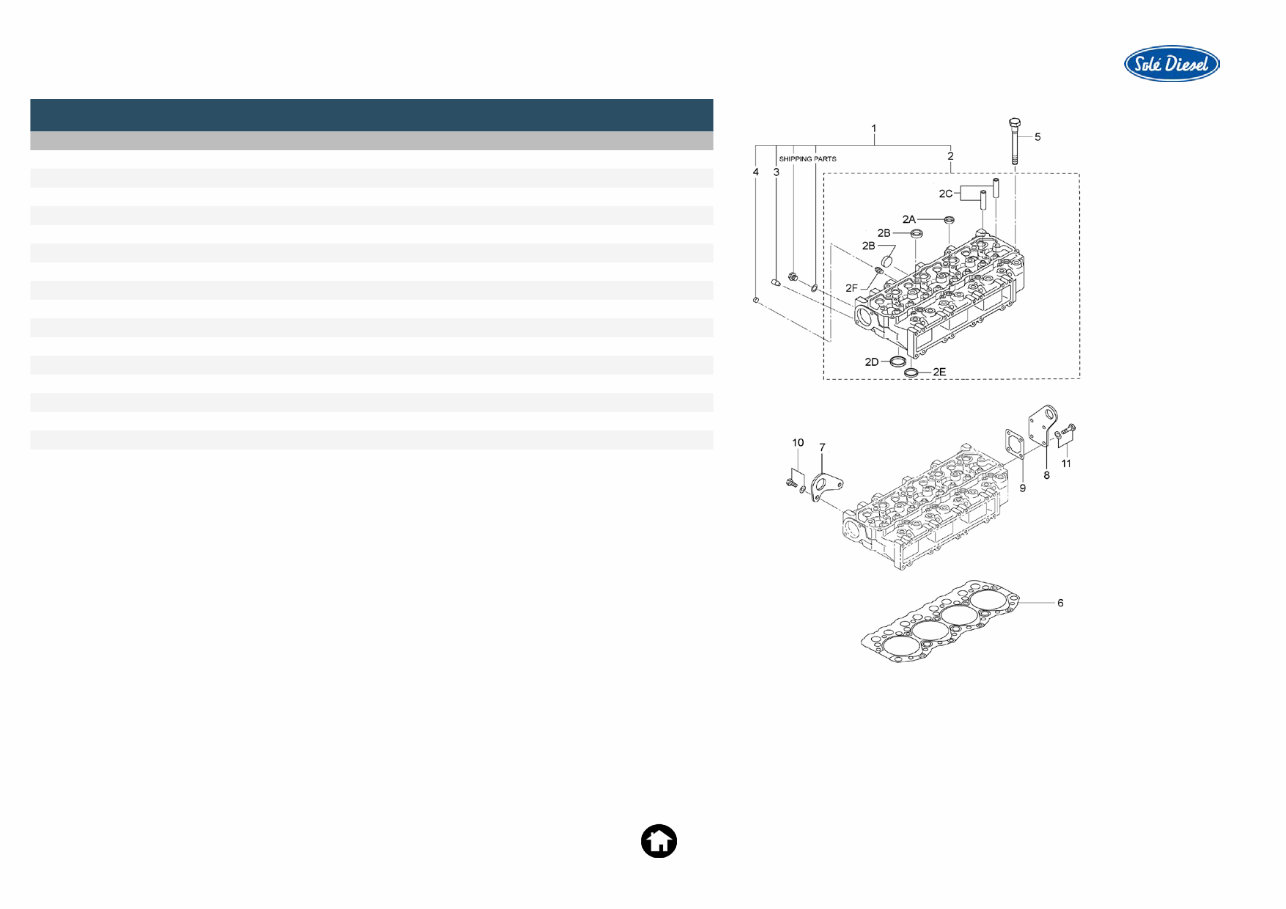

Cylinder Head
FIG. REF. QTY DESCR. FROM UPTO
1 17921001 1 Head Assy, Cylinder
2 (*) 1 Not available [NP]
2A 17220006 12 Cap, SealING
2B 13220012 7 Cap Sealing
2C 17121002 8 Guide,Valve [NP]
2D 17421061 4 Seat,Valve,IN
2E 17421062 4 Seat,Valve,Exhaust
2F 17820011 4 Plug, Tapered [NP]
3 17421046G.3 1 Plug
4 17921013 4 Cap,Sealing
5 17421005 17 Bolt,cylinder head
6 17821004 1 Gasket,Cylinder Head
7 17420014 1 EYE,LIFTING,Front
8 17421018 1 EYE,LIFTING,Head REA
9 17421011 1 Gasket
10 17821012 2 Bolt,W/Washer
11 17421012G.1 4 Bolt W/Washer (Generator)
[NP] Not provided
23118 3
D_MIF1_1_1
Engine SM-94 Engine Body

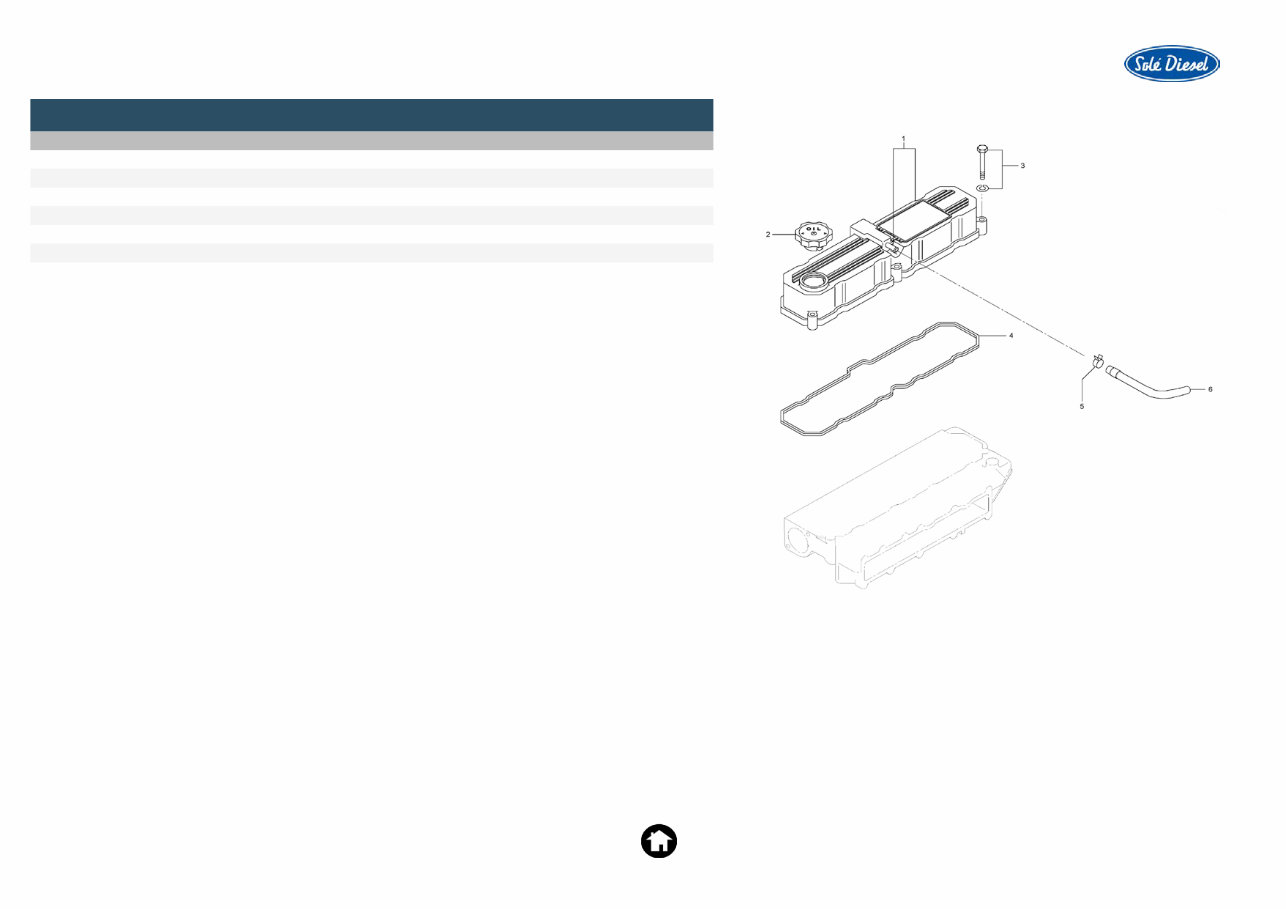

Rocker Cover & Breather
FIG. REF. QTY DESCR. FROM UPTO
1 17821009 1 Cover Assy,Rocker
2 17821003 1 Cap Oil FILLER
3 17421014G.1 5 Bolt W/Washer (Generator)
4 17421010 1 Rocker Cover Gasket
5 17821007 1 Clip,Hose
6 17821006 1 Hose
23118 4
D_MIE1_1_2
Engine SM-94 Engine Body

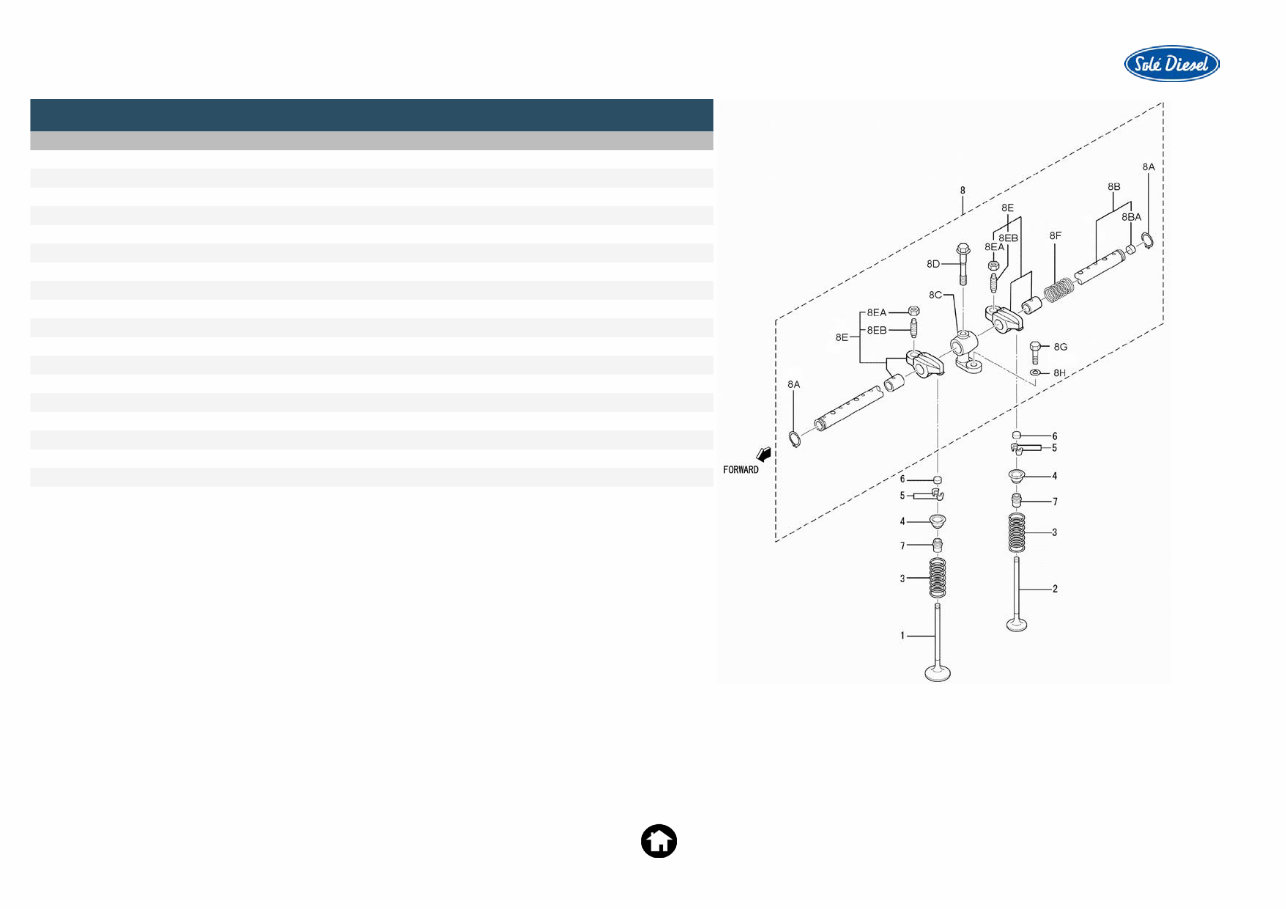

Valve Drive
FIG. REF. QTY DESCR. FROM UPTO
1 17422055 4 Intake Valve
2 17422056 4 Exhaust Valve
3 13322028 8 Spring,valve outler
4 17422058 8 Retainer,Upper
5 17122059 16 COTTER,Valve
6 13322024 8 Cap
7 17422054 8 Seal,Valve Stem
8 (*) 1 Not available [NP]
8A 17222050 2 Ring, SNAP
8B 17422046 1 Shaft Assy,Rocker
8BA 13322023 2 Cap, SealING
8C 17422048 4 Bracket,Rocker Shaft
8D 17422053 4 Bolt,Rocker Bracket
8E 17422142.1 8 Rocker Assy
8EA 17122060 8 Nut
8EB 17122044 8 Screw Adjusting
8F 17422047G.1 3 Spring,Rocker
8G 52102258 4 Bolt DIN 933 M8-25 8.8
8H 53033008 4 Washer GROWER DIN 127-8
[NP] Not provided
23118 5
D_MIE1_1_3
Engine SM-94 Engine Body

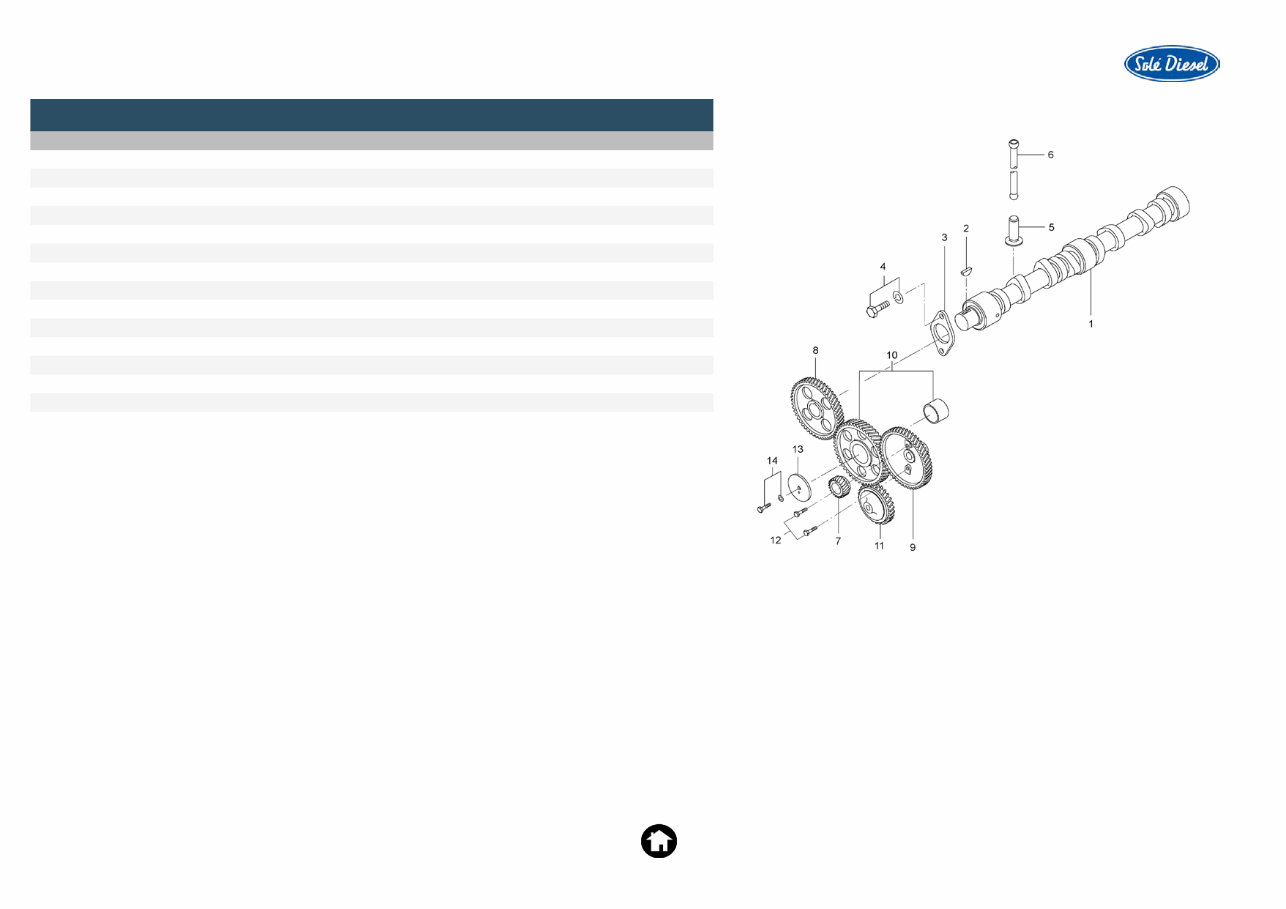

Timing Parts
FIG. REF. QTY DESCR. FROM UPTO
1 17922035 1 Camshaft
2 13322034 1 KEY WOODRUFF
3 17422075 1 Plate,THRUST
4 17422037G.1 2 Bolt W/Washer (Generator)
5 17122061 8 Tappet
6 17122041 8 ROD, push
7 17822019 1 Gear, CrankShaft
8 17422037 1 Gear,CamShaft Z=46
9 17810023 1 Gear, drive
10 17822038 1 Gear,IDLER Assy Z=49
11 17422066 1 Gear,Oil Pump Z=31
12 52103256 2 Bolt DIN 912 M8-15 8.8
13 17122032 1 Plate, thrust
14 17720010 1 Bolt,W/Washer
23118 6
D_MIF1_1_4
Engine SM-94 Engine Body

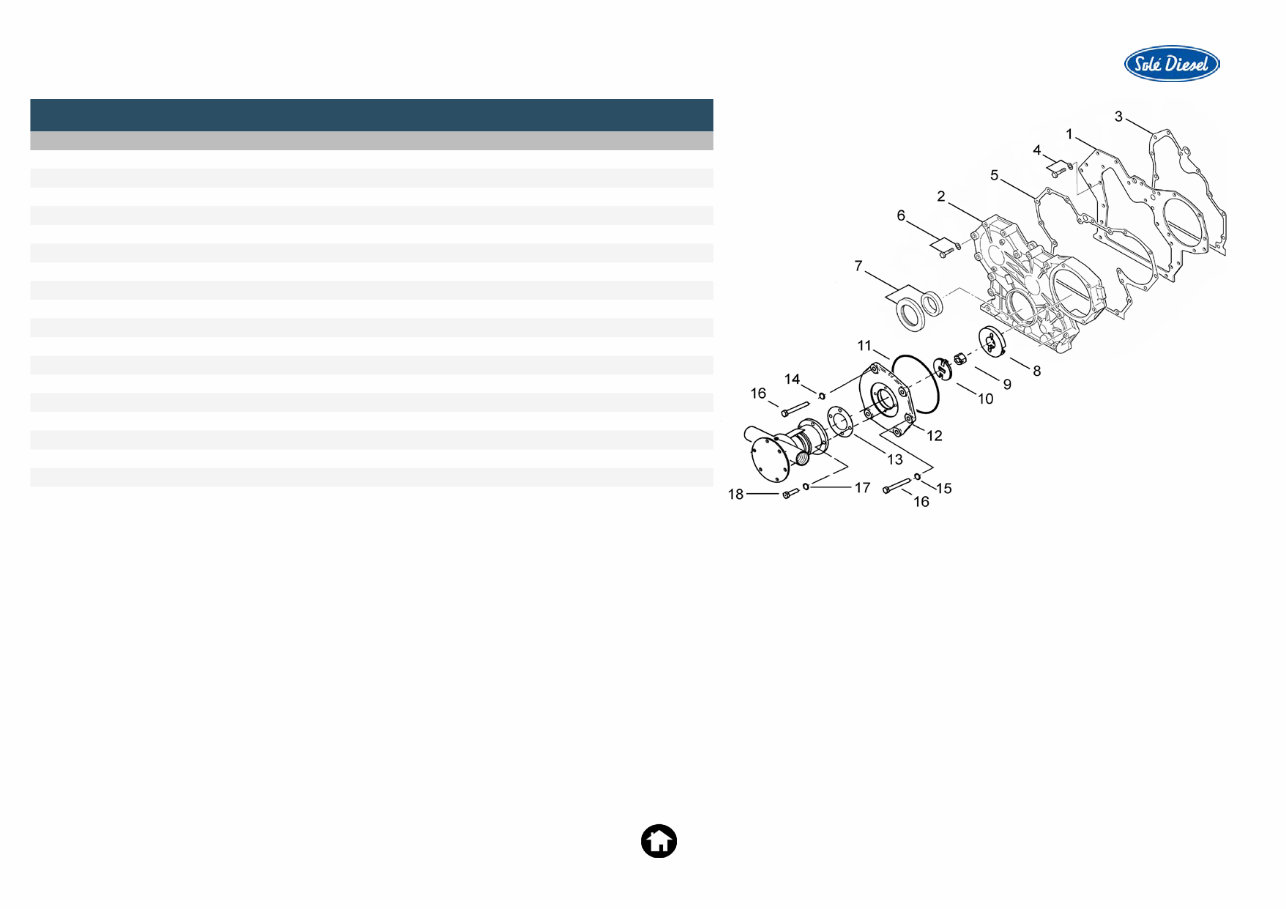

Gear Case
FIG. REF. QTY DESCR. FROM UPTO
1 17420024G.1 1 Plate,Front (Generator)
2 17420035G 1 Case,TIMING Gear
3 17420018 1 Gasket,Front Plate
4 17422037G.1 5 Bolt W/Washer (Generator)
5 17420040 1 Gasket,Gear
6 17520047 13 Bolt,W/Washer
7 17420039.1 1 Seal Assy,Oil
8 17811026 1 DriveR Plate,water pump
9 17825002 1 Nut
10 15310072 1 CrossHead
11 17420047 1 O-Ring D. 140X2
12 17810010 1 Block Water Pump
13 13310013 1 Gasket,water pump
14 53038008 4 Washer DIN 6798-A 8
26/06/2017
15 53033008 1 Washer GROWER DIN 127-8
16 52101269 5 Bolt DIN 931 M8-80 8.8
17 51030006 4 Washer DIN 125-6
18 52103156 4 Bolt DIN 912 M6-16 8.8
23118 7
D_MIE1_1_5
