8817 SPARE PARTS MANUAL Engine Mini-29 v5 VERSION 2017-8

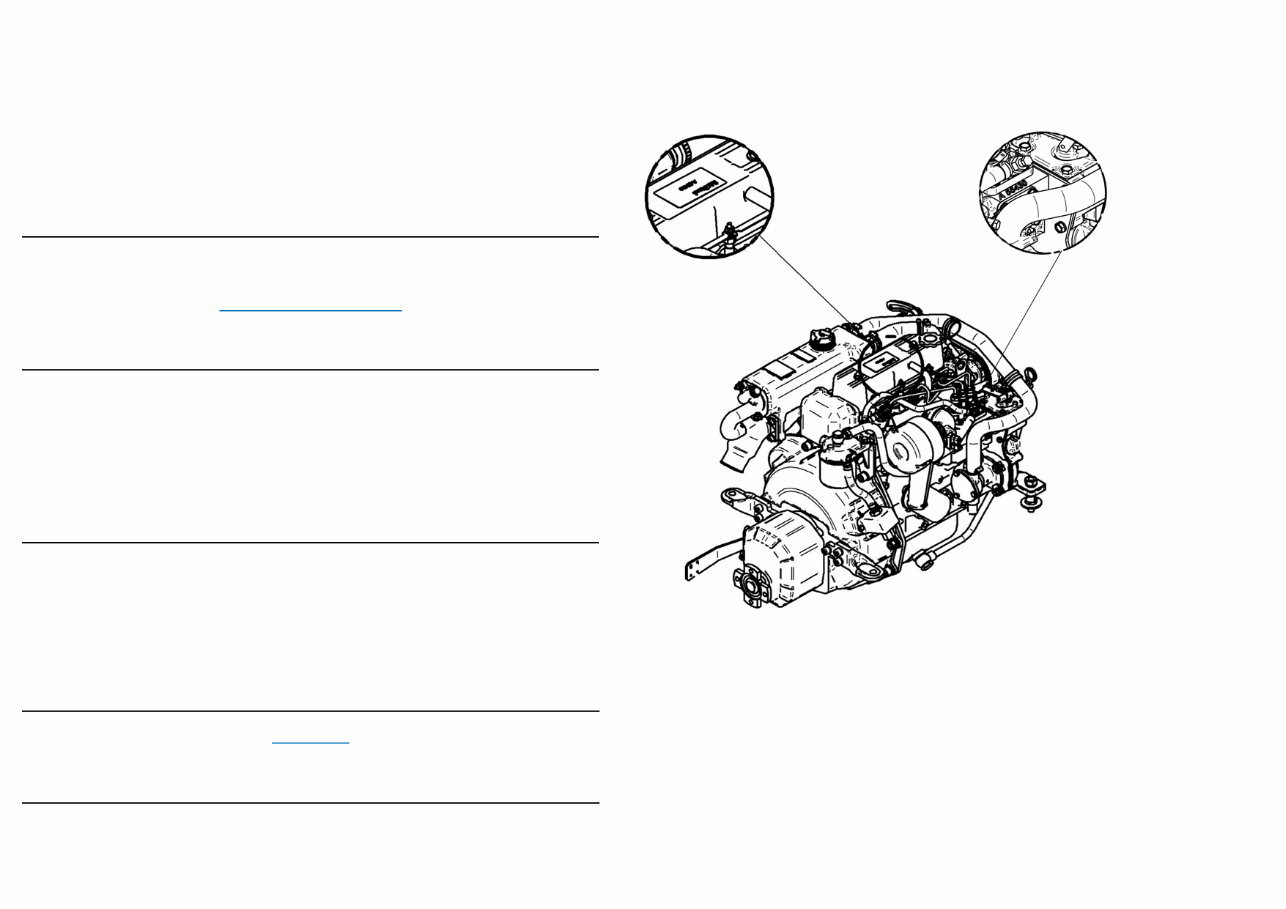

- Figure: Number by which they are represented in scheme PARTS LIST CATALOGUE NORMS TO PLACE AN ORDER: For fast and more efficient service, please specify the following information on spare parts orders that must be preferably done by FAX or e-mail as specified below: 1- Engine model: As shown in identification plate 2- Engine serial number: As shown in identification plate and stamped on crankcase 3- Item description + part number + quantity required Spare parts requests must be adressed to: recambios@solediesel.com Telf.: +34 93 775 44 05 Fax: +34 93 775 30 13 The components shown in the catalog have: 08760 Martorell (Barcelona) Spain Download the latest version of this manual HERE - Description: Trade name of the component - Quantity: Total number of parts used in the assembly of the part represented (may differ from the total minimum quantities) Hoses, indicates the total length in meters The diagrams shown in this catalog of spare parts, have only the purpose to identify the piece in question, its representation is not meaningful and may differ from the actual piece. In case of doubt, contact Solé Diesel, or your authorized dealer. The parts i / or references in this catalog are subject to change without notice. SOLÉ, S.A. C-243b, Km, 2 - P.O. BOX 15

Contents Cylinder Head Kit S-Drive VOLVO 130S Pulley 2B (S) Rocker Cover and Breather Kit S-Drive VOLVO 120S Pulley 2A (S) Valve Drive Kit S-Drive VOLVO 100S Timing Parts Kit S-Drive SD20 YANMAR Gear Case Kit GearBox VOLVO MS-2 & MS-2B Kit Keel Cooling & Dry Exhaust (S) Cranckcase Kit GearBox TMC-40P Version 4/5 Piston & Connectiong Rod Kit GearBox RONIM-5 Crankshaft & Flywheel Kit S-Drive VOLVO 110S TE1 Panel 12V Oil System Kit S-Drive VOLVO 120SB/120SC/120SE Oil Pan Kit S-Drive BUKH DV10 & DV20 Engine Brackets Kit Bobtail SAE-7 Kit SDC 2000 MINI-17/29 12V Kit GearBox TM-345/345A Kit SDC 2000 MINI-17/29 24V Kit GearBox ZF 15 MIV 4 V. Inlet Kit Bobtail Kit GearBox TMC-60 MINI-29 Kit S-Drive SELVA Water Pump Kit GearBox TMC/ZF/PRM Cooler Pipes Kit S-Drive TECHNO.SP60 Cooler Body, Water Cooler Wet Exhaust Price Supplement Panel TE3 MINI-17/29 1/2" Pump Water, Set Kit 2nd Panel TE4 MINI-17/29 12V 1/2" Pump Water, Set Kit 2nd Alternator 28V/55A Fuel Pipe Kit Alternator 14V/95A ISKRA Injection Nozzle Earth Isolated Alternator 14V/95A Kit Fuel Injection Pump Kit 2nd Alternator 14V/90A Governor Parts Kit Wire Earth Isolated Alternator 14V/7 Fuel Supply Parts Kit Water Leak Sensor & Alarm SP60 12V Kit Alternator 14V/75A ISKRA Motor Bracket Width 185/187 Starter Assy Motor Bracket Width 205 Electrical Wiring Front Water Pomp MINI-17/29 Kit(Spline) Deluxe Instrument Panel Boiler Kit (S) SVT 20 MINI-17/29 Panel Pression Gauge Kit SVT 30 MINI-17/29 Panel Kit Trolling Valve for TM-345/A Kit Gasket Exhaust Flange (S) Pipe Rubber Set,Water LINE 4 V. Dry Exhaust SYStem, Elbow (S) Repair Kit Water Pump 1/2" Kit Dry Exh. Flexible Pipe & Silencer(S) 1 Inlet & Exhaust Cooling System Fuel System Electrical System Maintenance Kit Power Take-off Pulley Kit Keel Cooling Instrument panel for engines TE1 Kits NMEA 2000 - one engine Engine Body Kit Gearbox Instruments Panels Electrical System Other Kits Exhaust System

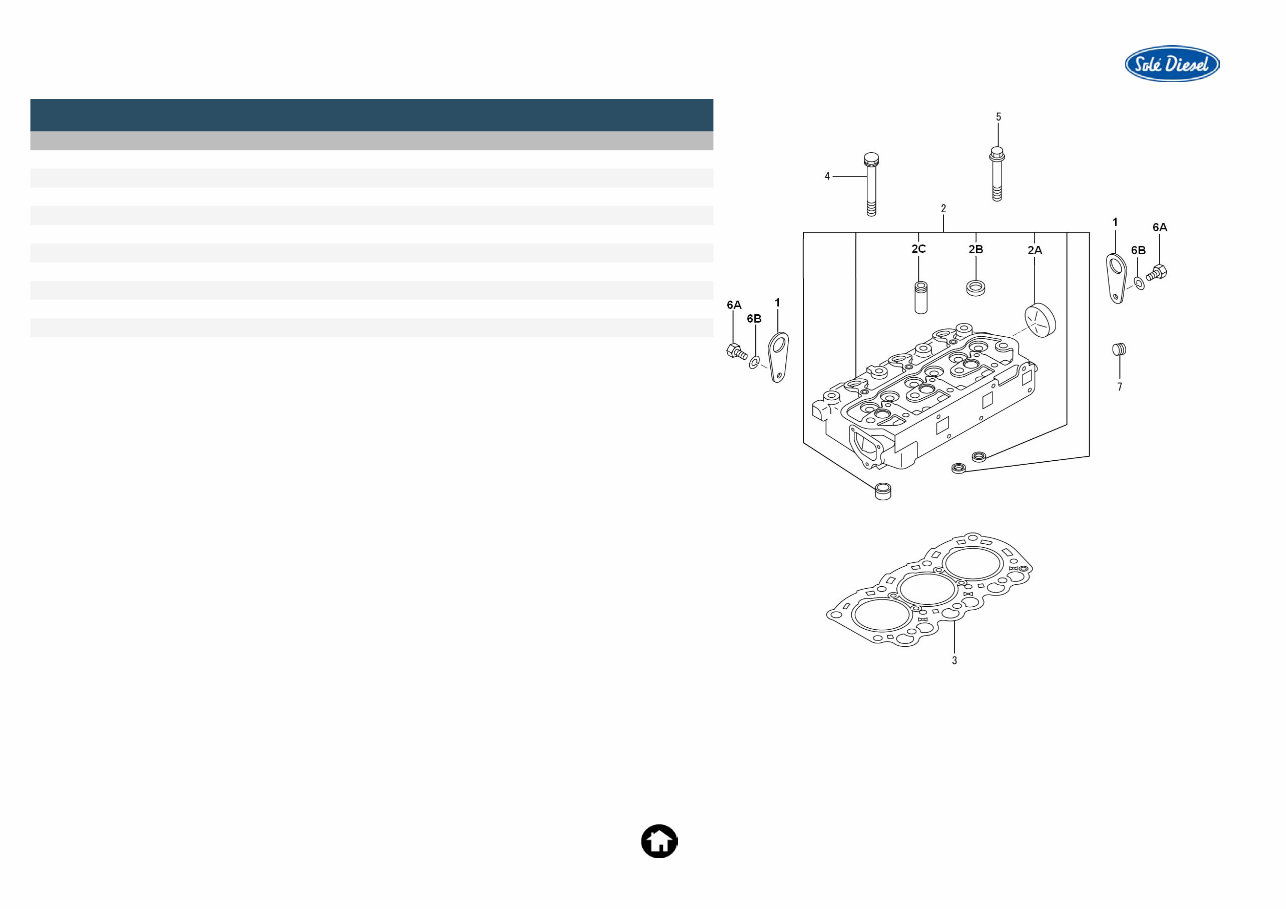

Engine Mini-29 v5 Engine Body Cylinder Head FIG. REF. QTY DESCR. FROM UPTO 1 17610008 2 HANGER,Engine 2 17621001.4 1 Head Assy,Cylinder 2A 13520013 1 Cap,SealING 2B 13821012 3 Cap 2C 17621002.4 6 Guide Valve 3 17621004 1 Gasket,Cylinder Head 4 13821005 8 Bolt,cylinder head 5 17621013.4 3 Bolt,cylinder head [NP] 6A 52102256 2 Bolt DIN 933 M8-15 8.8 6B 53033008 2 Washer GROWER DIN 127-8 7 17621011.4 1 Plug TAPER [NP] Not provided 8817 3 D_MIB1_1_1

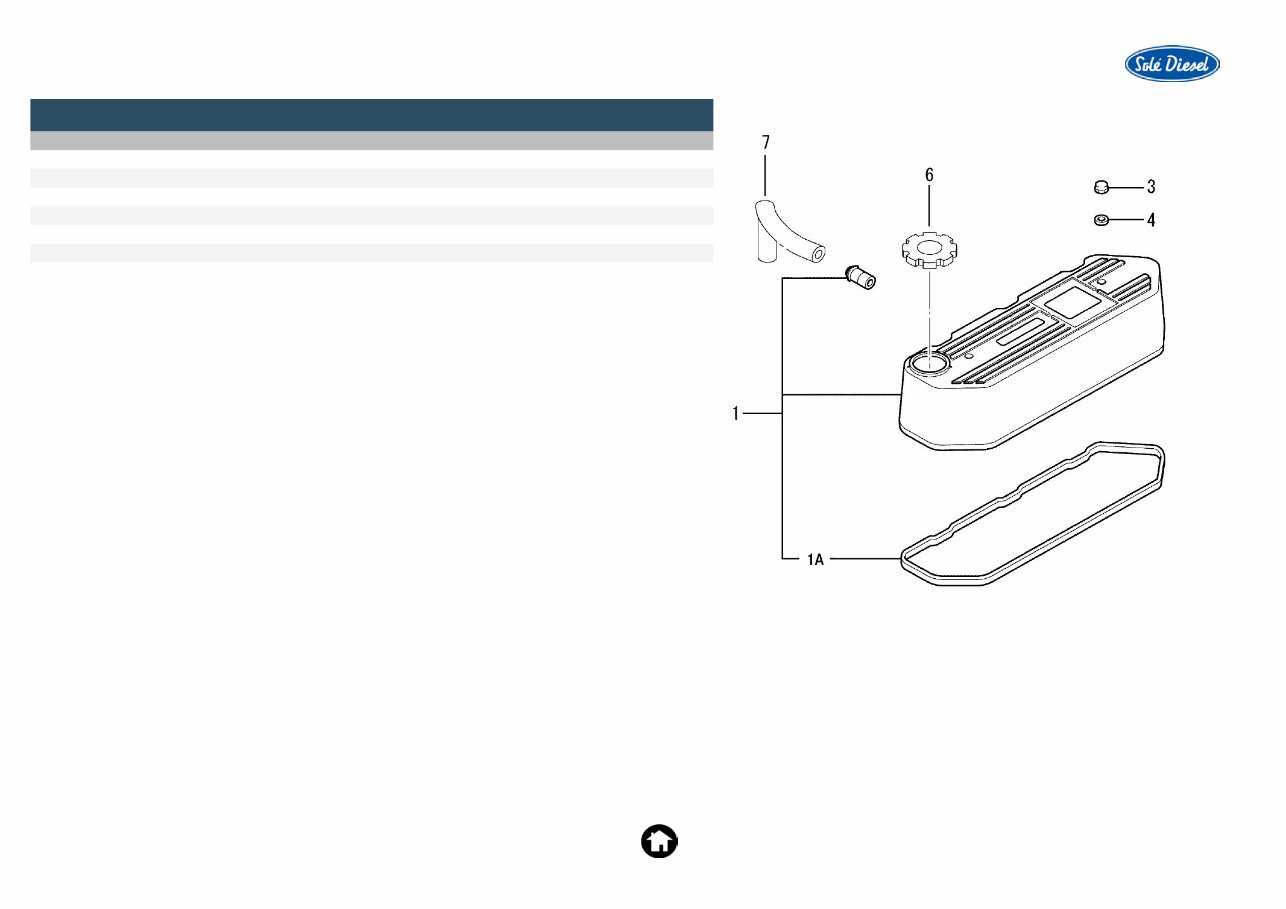

Engine Mini-29 v5 Engine Body Rocker Cover and Breather FIG. REF. QTY DESCR. FROM UPTO 1 17621009 1 Cover Assy,Rocker 1A 17621010 1 Rocker Cover Gasket 3 17621018 2 Nut 4 51030018 2 Washer DIN 125-18 6 17621003 1 Cap Oil FILLER 7 17621006.4 1 Hose BREATHER [NP] Not provided 8817 4 D_MIB1_1_2

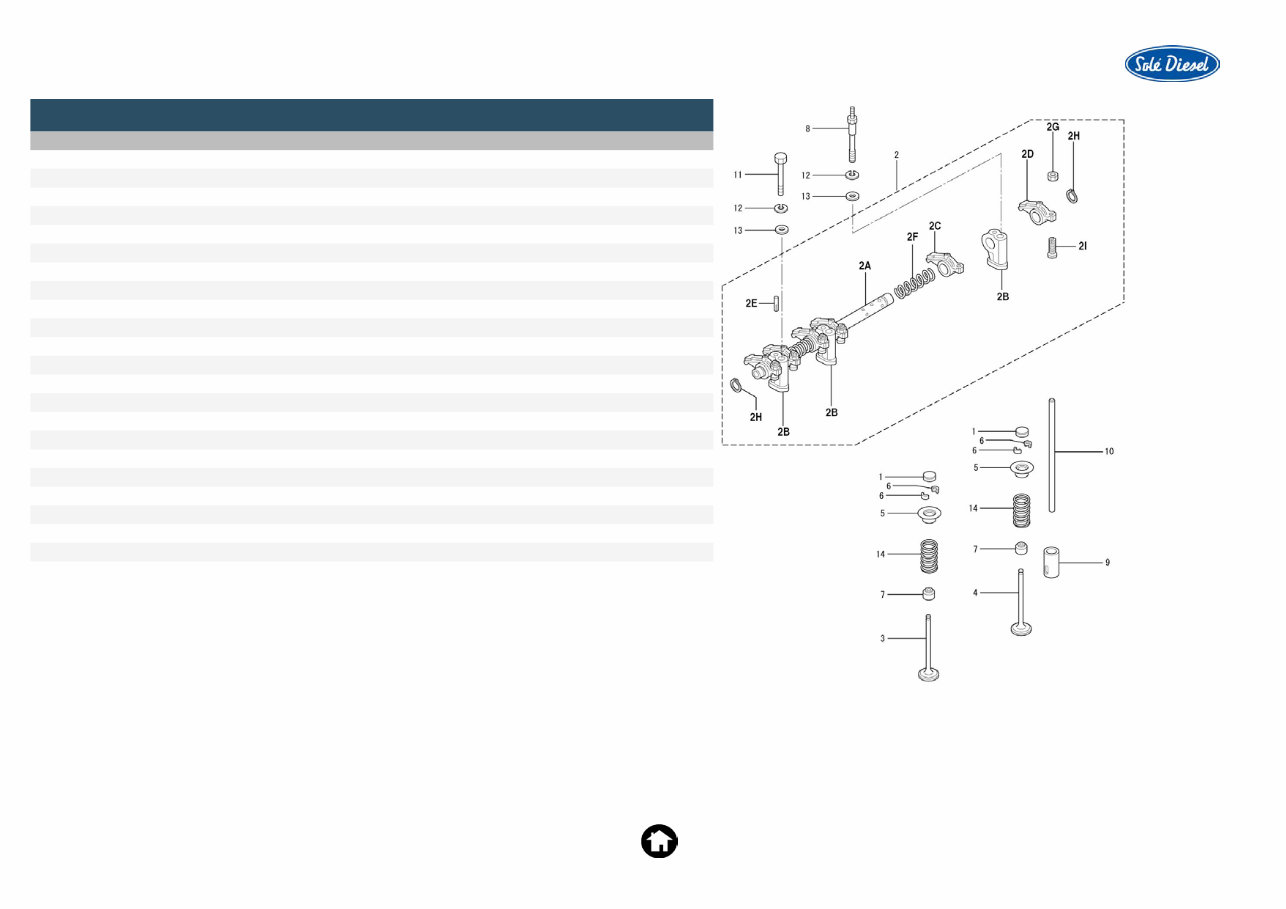

Engine Mini-29 v5 Engine Body Valve Drive FIG. REF. QTY DESCR. FROM UPTO 1 13822069 6 Cap Stem 2 (*) 1 Not available [NP] 2A 17622046 1 Shaft Assy,Rocker 2B 17622048 3 Bracket,Rocker Shaft 2C 17622042 3 ARM,Rocker Inlet 2D 17622045 3 ARM,Rocker Exhaust 2E 17622070.4 1 Pin GROOVED 2F 17622047.4 2 Spring Rocker SHAFT 2G 52120006 6 Nut DIN 934 M6 8.8 2H 53040012 2 CIRClip DIN 471 E-12 2I 13822044 6 Screw Adjusting 3 17622055 3 Intake Valve 4 17622056 3 Exhaust Valve 5 13822058 6 Retainer Valve SP 6 17622059.4 12 LOCK Valve 7 13222054 6 Seal Valve Stem 8 17622053 2 Bolt,Rocker STAY 9 17622061.4 6 Tappet 10 17622041.4 6 ROD PUSH 11 52101265 1 Bolt DIN 931 M8-60 8.8 12 53033008 3 Washer GROWER DIN 127-8 13 17622051.4 3 Washer 14 17622057 6 Spring,Valve [NP] Not provided 8817 5 D_MIB1_1_3

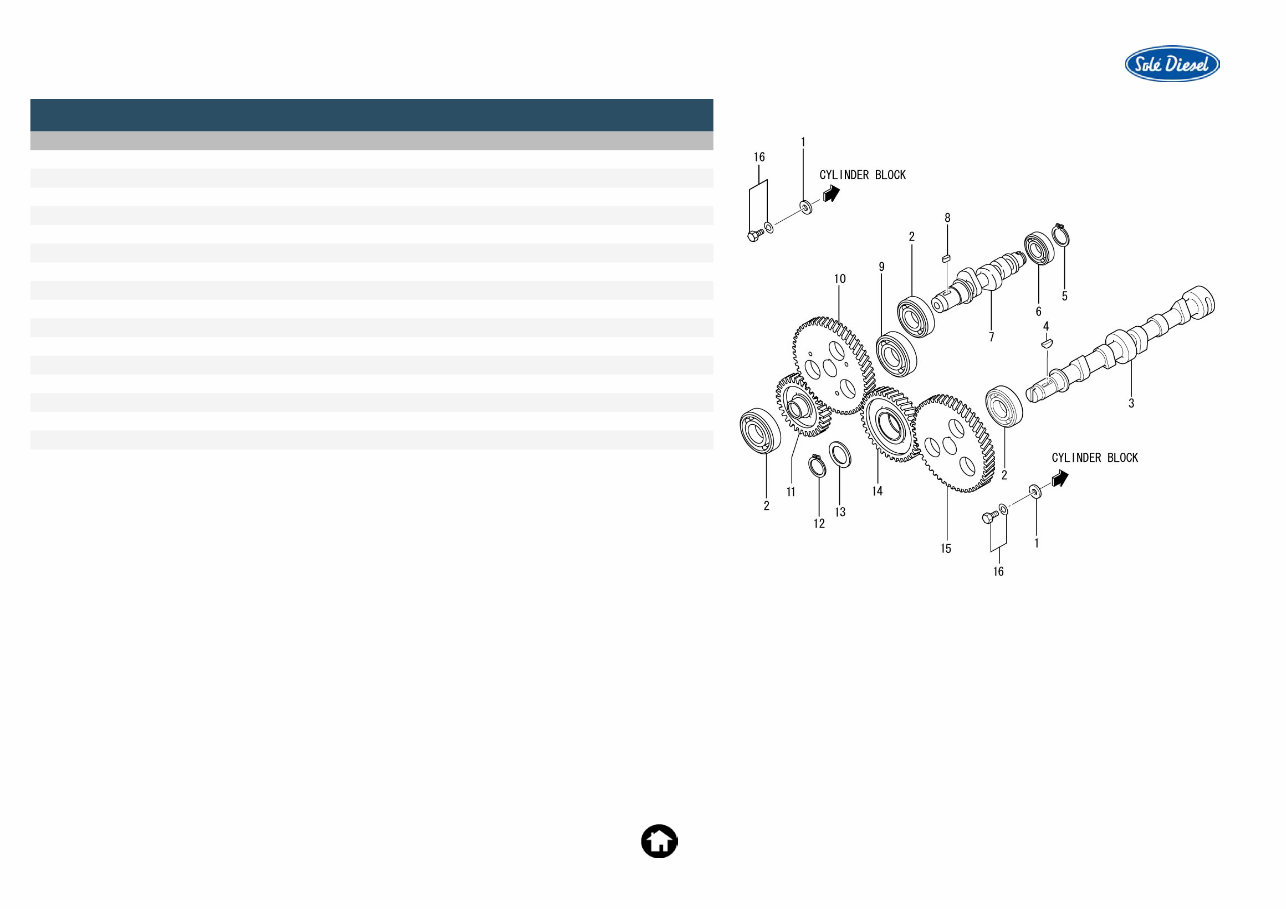

Engine Mini-29 v5 Engine Body Timing Parts FIG. REF. QTY DESCR. FROM UPTO 1 13822033 1 Washer CamShaft Stop 2 17622067.4 1 Bearing Ball 3 17622035 1 CamShaft 4 17622036.4 1 KEY 5 53040016 1 CIRClip DIN 471 E-16 6 17622068.4 1 Bearing Ball 7 (*) 1 Not available [NP] 8 17622060.4 1 Key, Sunk 9 13822066 1 Ball Bearing 6005-C3 10 13822040.4 1 Shaft Fuel Injection Pump [NP] 11 13922065G 1 Gear Oil Pump 12 53040020 1 CIRClip DIN 471 E-20 13 17622034.4 1 Plate DISTANCE 14 17622038.4 1 Gear Assy,IDLER Z=40 15 17622043.4 1 Gear,Fuel INJ.Pump Z=52 16 52102155 1 Bolt DIN 933 M6-12 8.8 [NP] Not provided 8817 6 D_MIB2_1_4

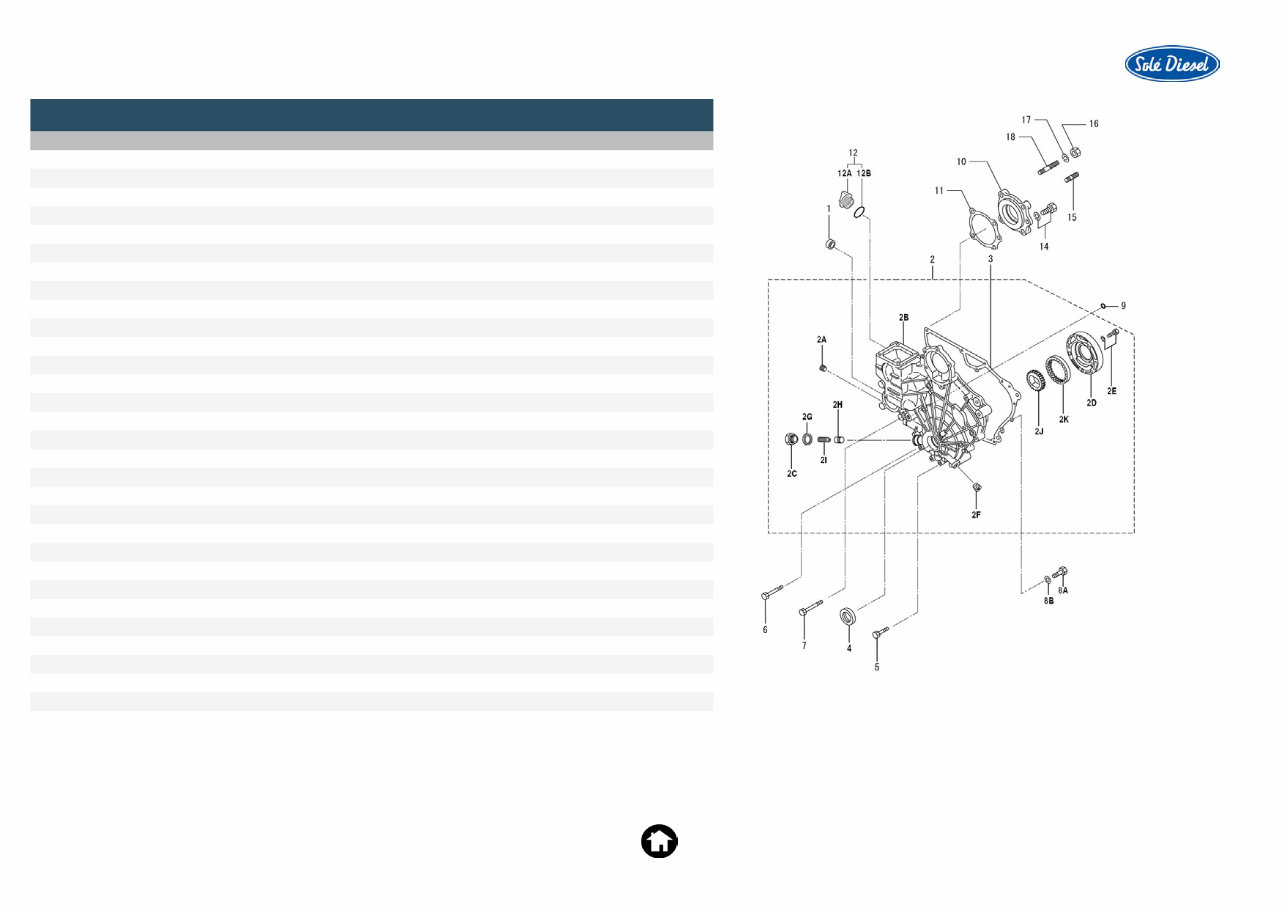

Engine Mini-29 v5 Engine Body Gear Case FIG. REF. QTY DESCR. FROM UPTO 1 13820045 1 Cap SealING (20) 2 17620035.4 1 Case Gear 2A 17621011.4 1 Plug TAPER 2B (*) 1 Not available [NP] 2C 13224045 1 Plug 2D 17620052.4 1 Housing Oil Pump 2E 17221043 3 Bolt,W/Washer 2F 13820013.4 1 Plug 2G 13120032 1 Washer 18-23-1,5 [NP] 2H 13224043 1 Plunger 2I 13824044 1 Spring RELIEF 2J 13820050 1 Gear Oil Pump INN 2K 13820051 1 Gear Oil Pump OUT 3 17620040.4 1 Gasket Gear Case [NP] 4 13820039 1 Oil Seal 5 52102160 3 Bolt DIN 933 M6-35 8.8 6 52102164 4 Bolt DIN 933 M6-55 8.8 7 52102166 1 Bolt DIN 933 M6-65 8.8 CINCADO 8A 52102156 4 Bolt DIN 933 M6-16 8.8 8B 53033006 4 Washer GROWER DIN 127-6 9 13820044 2 O-Ring D. 11X2,5 10 13820037 1 Housing Pump Gear 11 13820038 1 Gasket Housing 12 17621003.4 1 Cap Oil FILLER 12B 13721007 1 O-Ring D. 30X3 14 17122051 1 Bolt, w/washer 15 13220043 1 Stud L 34 16 17120049 4 Nut M8 17 53033008 4 Washer GROWER DIN 127-8 18 13220042 3 Stud L 54 [NP] Not provided 8817 7 D_MIB1_1_5

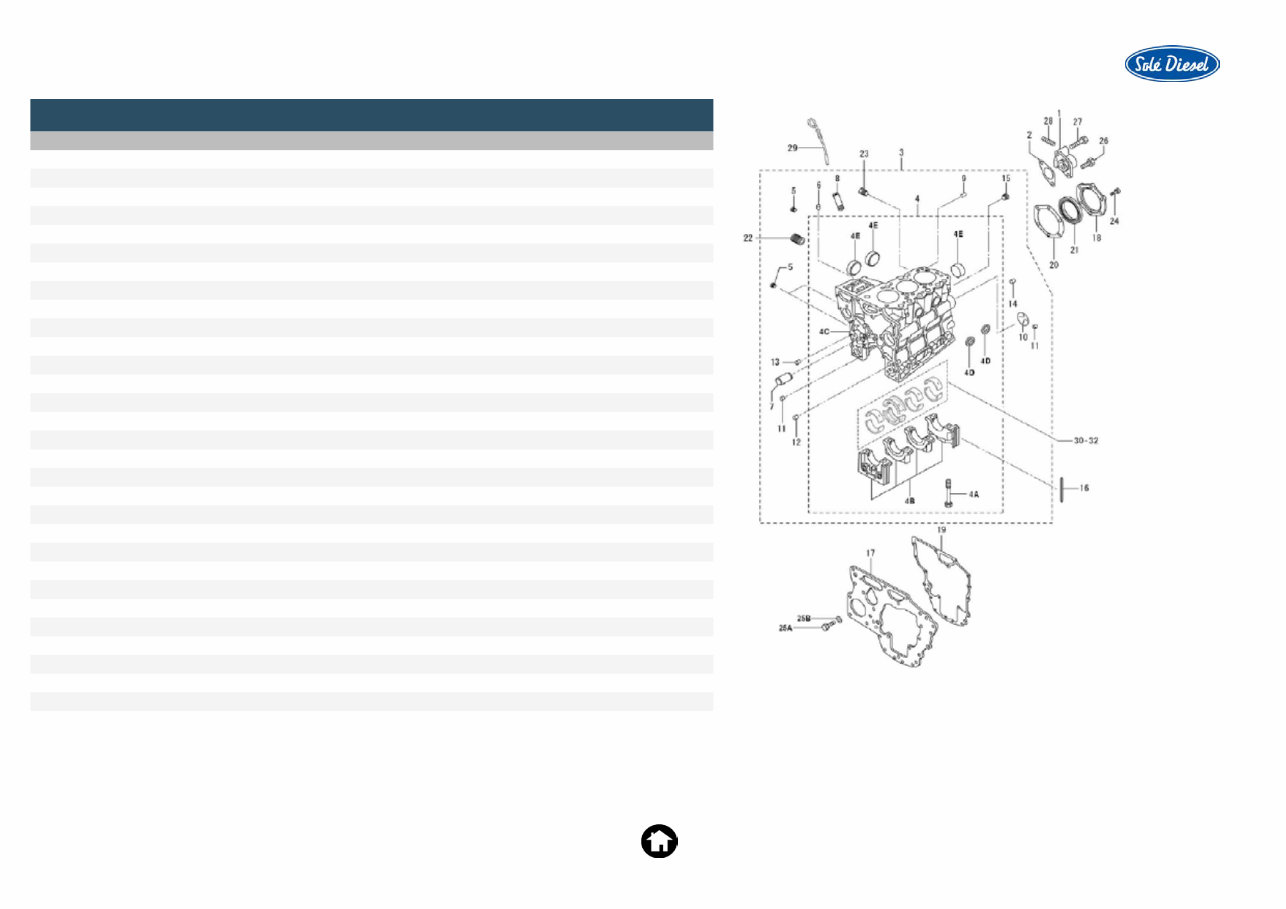

Engine Mini-29 v5 Engine Body Cranckcase FIG. REF. QTY DESCR. FROM UPTO 1 13820011 1 Cover 2 17620012.4 1 Gasket Cover 4A 13820009.1 8 Bolt Bearing Cap 4B (*) 2 Not available [NP] 4D 13220012 2 Cap Sealing 4E 13520013 3 Cap,SealING 5 17620013.4 3 Plug Taper 1/16 6 17620036.4 2 Pin Dowel 7 17620014.4 1 Shaft IDLER 8 17620007.4 1 Guide 9 17620020.4 1 Pin 10 13820013 1 Plug Expansion 11 17620009.4 2 Bushing 12 17620021.4 1 Bushing 13 17620022.4 2 BUSHING,KNOCK 14 17620010.4 3 Bushing 15 17620023.4 1 Plug TAPER 16 13820002 4 Seal Side 17 17620016.4 1 Gasket Oil Seal C 18 13822060.4 1 Key, Sunk 19 17620018.4 1 Gasket Front Plate [NP] 20 17620016.4 1 Gasket Oil Seal C 21 13820008 1 Seal Oil 22 17624047.4 1 Shaft Oil Filter 23 17620024.4 1 Plug TAPER 24 52102157 6 Bolt DIN 933 M6-20 8.8 25 13322074 7 Bolt DIN 933 M6-16 8.8 [NP] 26 13827012 1 Bolt 29 13920003 1 Bearing Set CRANK STD. 30 13920004 1 Bearing Set CRANK +0,25 31 13920005 1 Bearing Set CRANK [NP] Not provided 8817 8 D_MIB2_1_6

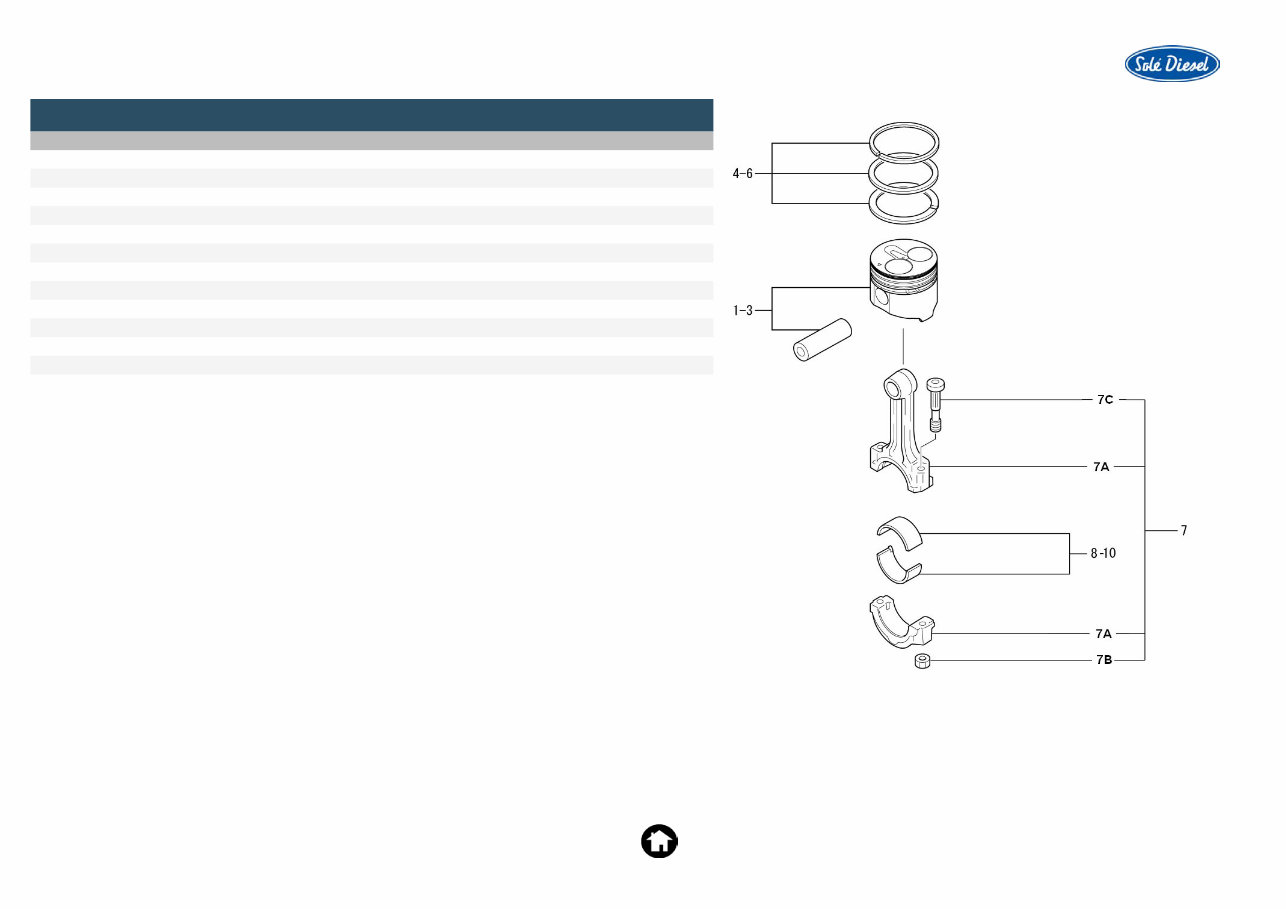

Engine Mini-29 v5 Engine Body Piston & Connectiong Rod FIG. REF. QTY DESCR. FROM UPTO 1 17622001 3 Piston &Pin Set 2 17622002 3 Piston & Pin Set 3 17622003 3 Piston & Pin Set 4 17622006 3 Ring Set,Piston STD. 5 17622007 3 Ring Set,Piston O.S. 0.25 6 17622008 3 Ring Set,Piston O.S. 0.50 7 17622012.4 3 ROD Assy 7A (*) 6 Not available [NP] 7C 13222011 6 Nut,connecting rod 7D 13222013 6 Bolt,connecting rod 8 13822014 3 Bearing Set,CON-ROD STD. 9 13822015 3 Bearing Set,Con-Rod U.S. 0.25 10 13822016 3 Bearing Set,Con-Rod U.S. 0.50 [NP] Not provided 8817 9 D_MIB1_1_8
