141217 Engine MINI-14 VERSION 2017-12 SPARE PARTS MANUAL

08760 Martorell (Barcelona) Spain Download the latest version of this manual HERE - Description: Trade name of the component - Quantity: Total number of parts used in the assembly of the part represented (may differ from the total minimum quantities) Hoses, indicates the total length in meters The diagrams shown in this catalog of spare parts, have only the purpose to identify the piece in question, its representation is not meaningful and may differ from the actual piece. In case of doubt, contact Solé Diesel, or your authorized dealer. The parts i / or references in this catalog are subject to change without notice. SOLÉ, S.A. C-243b, Km, 2 - P.O. BOX 15 Spare parts requests must be adressed to: recambios@solediesel.com Telf.: +34 93 775 44 05 Fax: +34 93 775 30 13 The components shown in the catalog have: - Figure: Number by which they are represented in scheme PARTS LIST CATALOGUE NORMS TO PLACE AN ORDER: For fast and more efficient service, please specify the following information on spare parts orders that must be preferably done by FAX or e-mail as specified below: 1- Engine model: As shown in identification plate 2- Engine serial number: As shown in identification plate and stamped on crankcase 3- Item description + part number + quantity required

Contents Cylinder Head Oil Pan & Gear Case Timing Parts Cranckcase Crankshaft, Piston & Connectiong Rod Oil Sysem Engine Brackets Bracket, Engine Control Inlet Water Pump Cooling System 1 Cooling System 2 Fuel Pipe Fuel Injection Pump Nozzle Governor Parts Electrical System 1 Electrical System 2 Gasket Kit GearBox RONIM III R.2,00 1 GearBox MINI-14 Engine body, MINI-14 Inlet System, MINI-14 Cooling System, MINI-14 Fuel System, MINI-14 Electrical System, MINI-14 Maintenance Kit, MINI-14

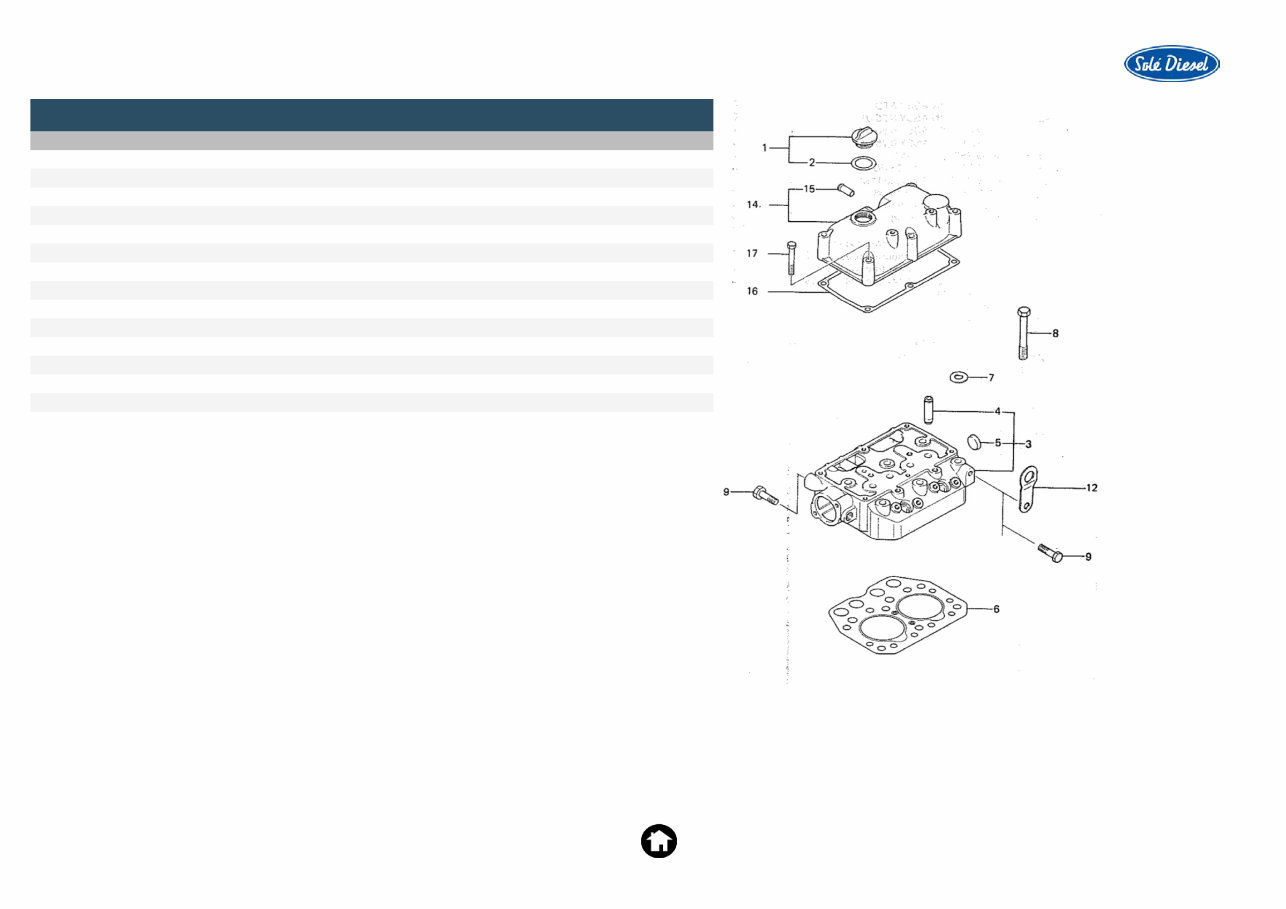

Engine MINI-14 Engine body, MINI-14 Cylinder Head FIG. REF. QTY DESCR. FROM UPTO 1 13521003 1 Cap Oil FILLER 2 13124056 1 Packing [NP] 3 13521001 1 Head Assy CYLINDE 4 13521002 4 Guide Valve [NP] 5 13220012 1 Cap Sealing 6 13521004 1 Gasket Cylinder H 7 13121005 6 Washer FINISHED P 8 13521006 6 Bolt,cylinder head 9 13127007 2 Brace Generator [NP] 12 (*) 2 Not available [NP] 14 13521009 1 Cover Assy Rocker 15 13221017 1 Pipe 16 13521010 1 Gasket Rocker COV 17 13520034 6 Bolt [NP] Not provided 141217 3 D_MI14_1_1

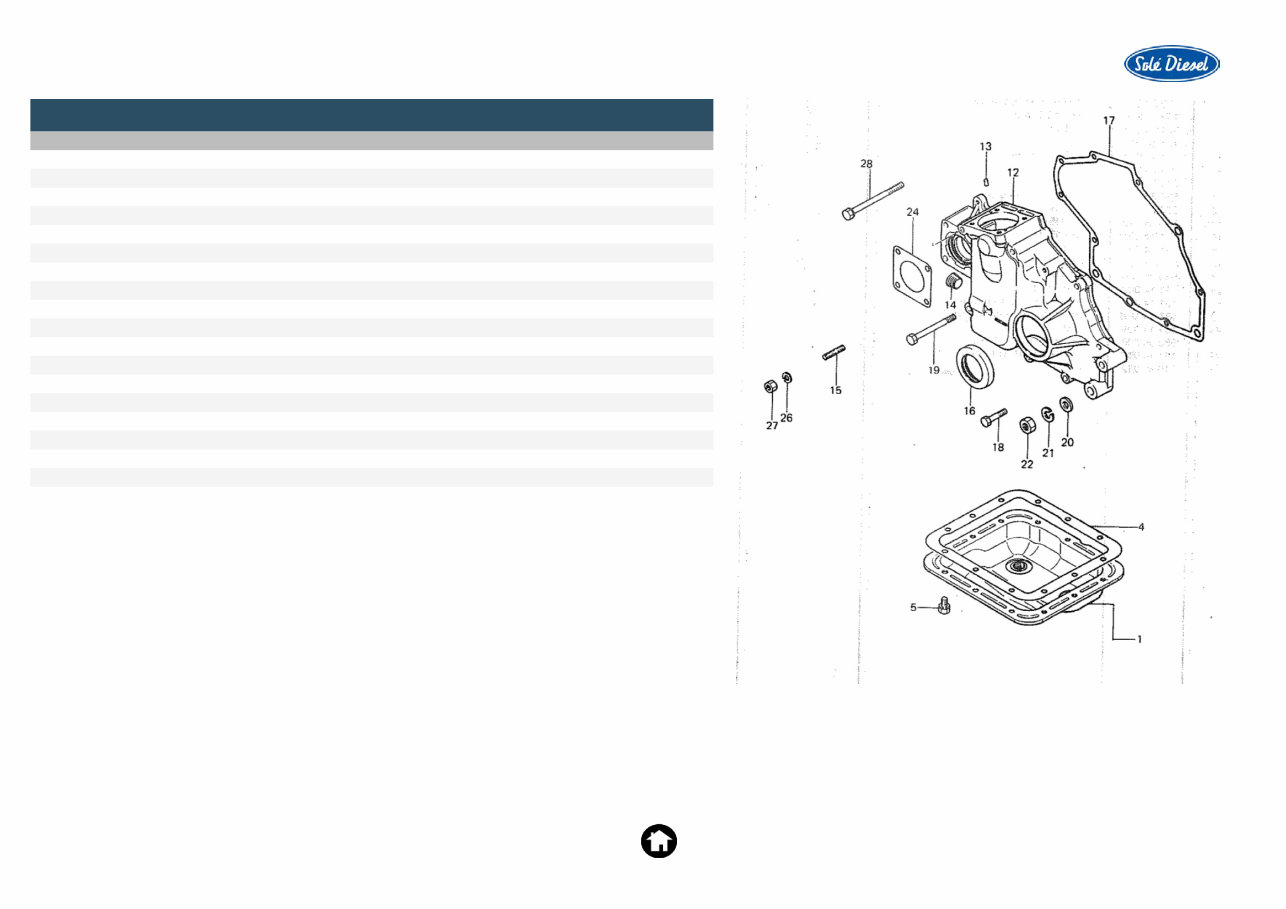

Engine MINI-14 Engine body, MINI-14 Oil Pan & Gear Case FIG. REF. QTY DESCR. FROM UPTO 1 13520030 1 PAN Assy Oil 4 13520032 1 Gasket OilPAN 5 13120034 12 Bolt DIN 933 M8-15 8.8 12 13520034 1 Bolt 13 13120036 2 Pin Dowel [NP] 02/08/2017 13 17620036.4 2 Pin Dowel 02/08/2017 14 13120037 1 Plug TAPER 1/2 15 13120038 2 Stud 16 13120039 1 Seal 0IL 17 13520040 1 Gasket Gear Case 18 13520042 4 Bolt DIN 931 M8-35 8.8 [NP] 19 13520041 2 Bolt 20 13120043 2 Washer DIN 125-12 21 13120044 2 Washer GROWER DIN 127-12 22 13120045 2 Nut DIN 934 M12-1,25 8.8 24 13120047 1 Gasket Water Pump 26 13120049 4 Washer GROWER DIN 127-8 27 13120050 4 Nut DIN 934 M8 8.8 28 13120041 1 Bolt DIN 931 M8-100 8.8 [NP] Not provided 141217 4 D_MI14_1_2

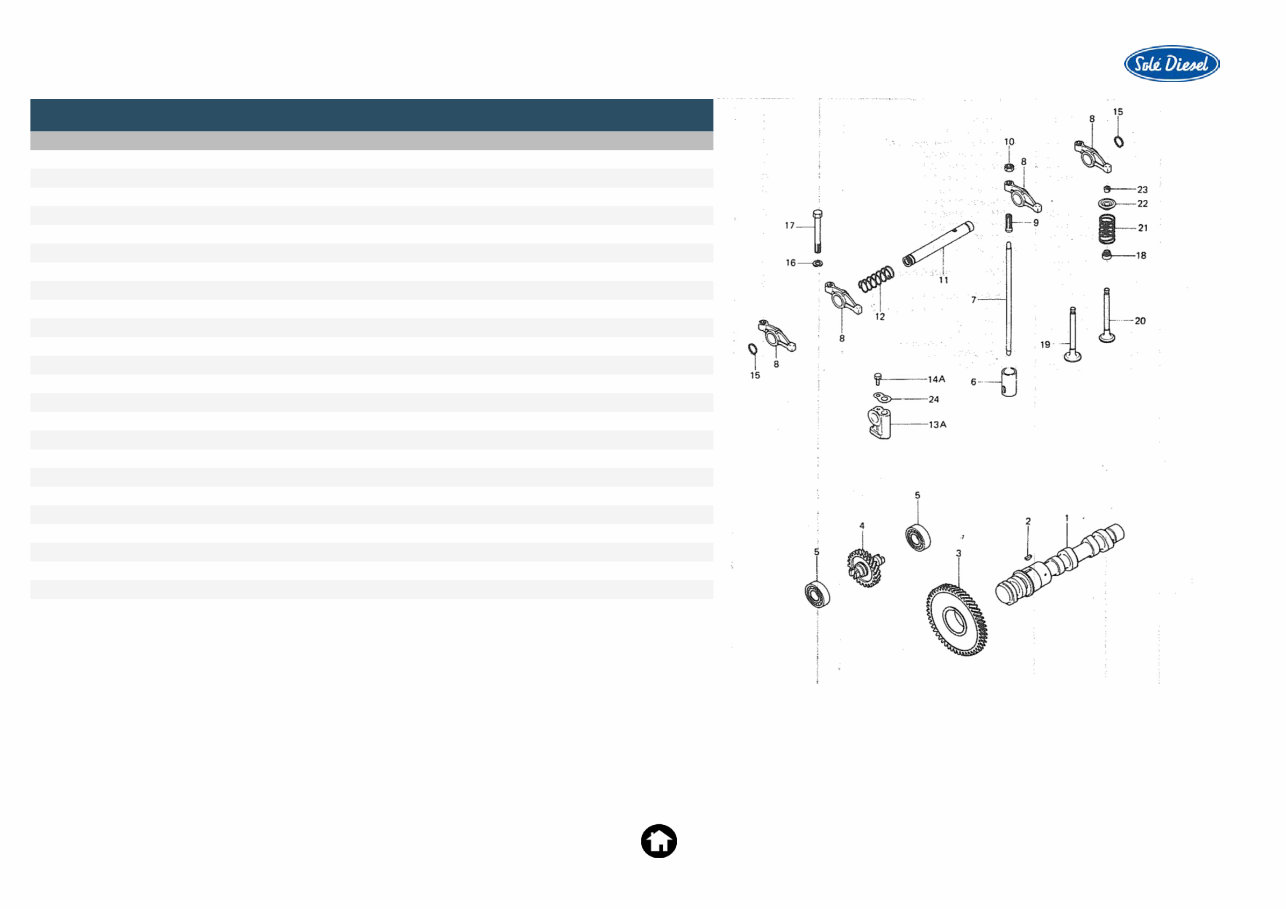

Engine MINI-14 Engine body, MINI-14 Timing Parts FIG. REF. QTY DESCR. FROM UPTO 1 13522035 1 CamShaft 2 13122036 1 KEY 3 13122037 1 Gear Cam Shaft 4 13122038 1 Gear PRESSUR Oil 5 13122039 2 Ball Bearing 6204 6 13222061 4 Tappet 7 13522041 4 ROD PUSH 8 13522042 4 ARM Rocker [NP] 9 13122044 4 Screw Adjusting 10 13122045 4 Nut 11 13522046 1 Shaft Assy 12 13122047 1 Spring 13 13222049 2 STAY Rocker 14 13222064 2 Bolt DIN 933 M6-16 8.8 15 13122051 2 CIRClip DIN 471 E-19 16 13122052 2 Washer GROWER DIN 127-10 17 13522053 2 Bolt 18 13222054 4 Seal Valve Stem 19 13522055 2 Intake Valve 20 13522056 2 Exhaust Valve 21 13222057 4 Spring Valve 22 13222058 4 Retainer 23 13222059 8 Lock Valve 24 13222063 2 Washer Seat [NP] Not provided 141217 5 D_MI14_1_4

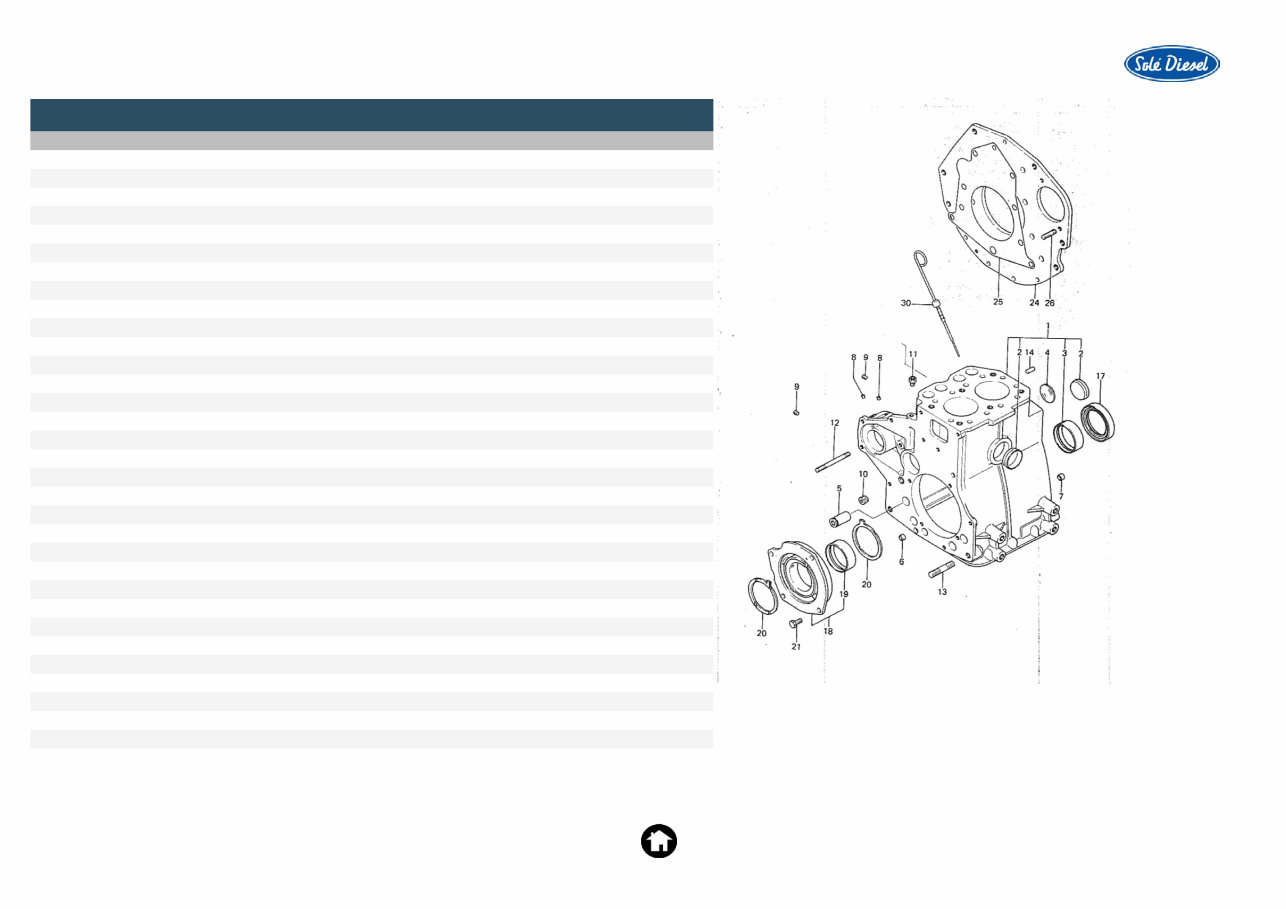

Engine MINI-14 Engine body, MINI-14 Cranckcase FIG. REF. QTY DESCR. FROM UPTO 1 13520001 1 Block SUB Assy CY 2 13520013 2 Cap,SealING 3A 13520003 1 Metal Crank Shaft 3B 13520004 1 METAL 3C 13520005 1 Bearing CRANK SHA 3D 13520006 1 METAL CrankShaft 4 13120007 1 Plug Expansion 5 13120008 1 Shaft GOverNOR GE 6 13120009 2 Bushing 7 13520010 1 KNOCK 8 17820011 2 Plug, Tapered [NP] 12/07/2017 8 13120011 2 Plug, Tapered [NP] 12/07/2017 9 13120012 2 Plug Taper 1/16 [NP] 10 13120013 1 Plug TAPER 1/4 11 13120014 1 Connector 12 13120015 2 Stud 13 13520016 2 Stud 12X60 14 13220020 1 Pin [NP] 02/08/2017 14 17620020.4 1 Pin 02/08/2017 17 13120019 1 Seal Oil 18 13520020 1 Bearing HOUSI 19A 13520003 1 Metal Crank Shaft 19B 13520004 1 METAL 19C 13520005 1 Bearing CRANK SHA 19D 13520006 1 METAL CrankShaft 20 13120025 1 Metal 21 13120026 4 Bolt DIN 933 M8-20 8.8 25 13520025 1 Gasket REAR Plate 26 13520028 1 Stud 27 13520060 1 Pin KNOCK (8X10) 29 13227002 9 Bolt DIN 933 M10-1,25-25 8.8 30 13520029 1 Gauge Oil LEVEL [NP] Not provided 141217 6 D_MI14_1_6

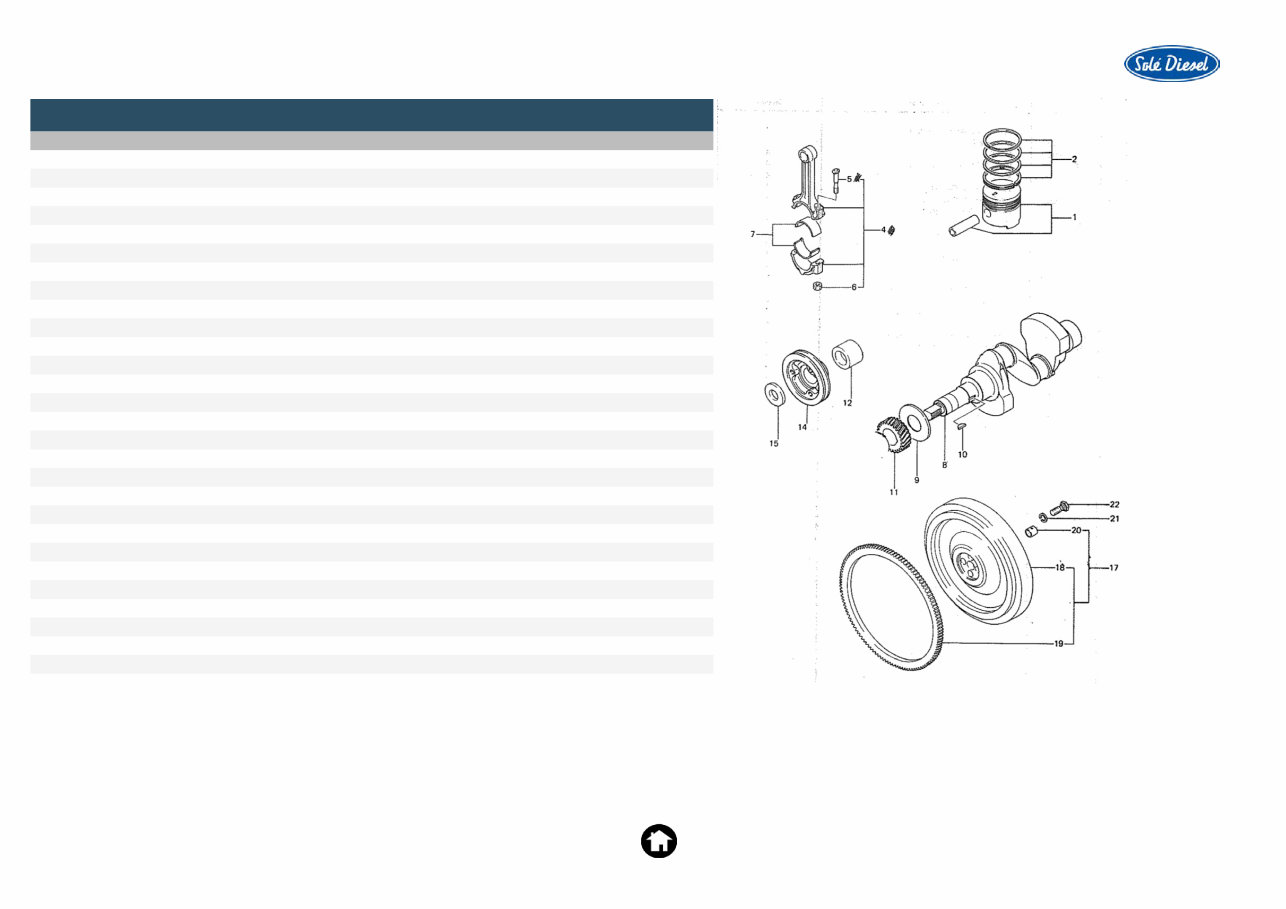

Engine MINI-14 Engine body, MINI-14 Crankshaft, Piston & Connectiong Rod FIG. REF. QTY DESCR. FROM UPTO 1A 13222001 2 Piston & PISTON P STD 1B 13222002 2 Piston & PISTON P 0,25 1C 13222003 2 Piston & PISTON P 0,50 1D 13222004 2 Piston & PISTON P 0,75 2A 13222006 2 Ring Set Piston STD 2B 13222007 2 Ring Set Piston O,25 2C 13222009 2 Ring Set Piston O,75 4 13222012 2 ROD Assy 5 13222013 4 Bolt,connecting rod 6 13222011 4 Nut,connecting rod 7A 13222014 2 METAL Set STD 7B 13222015 2 METAL Set 0.25 7C 13222016 2 METAL Set 0.50 7D 13222017 2 METAL Set 0.75 8 13522018 1 Shaft CRANK 9 13122019 1 Plate CrankShaft 10 13122020 2 Key 11 13122021 1 Gear CrankShaft 12 13522022 1 PIECE DISTANCE 14 13522024 1 Pulley CrankShaft 15 13122025 1 Washer Plain 17 13522027 1 Flywheel Assy [NP] 18 13522028 1 Flywheel [NP] 19 13122029 1 Gear 20 13122032 1 SELFOil D. 16X19X15 21 13122030 4 Washer 22 13122031 4 Bolt NS 13122026 1 Nut [NS] [NP] Not provided [NS] Not shown 141217 7 D_MI14_1_8

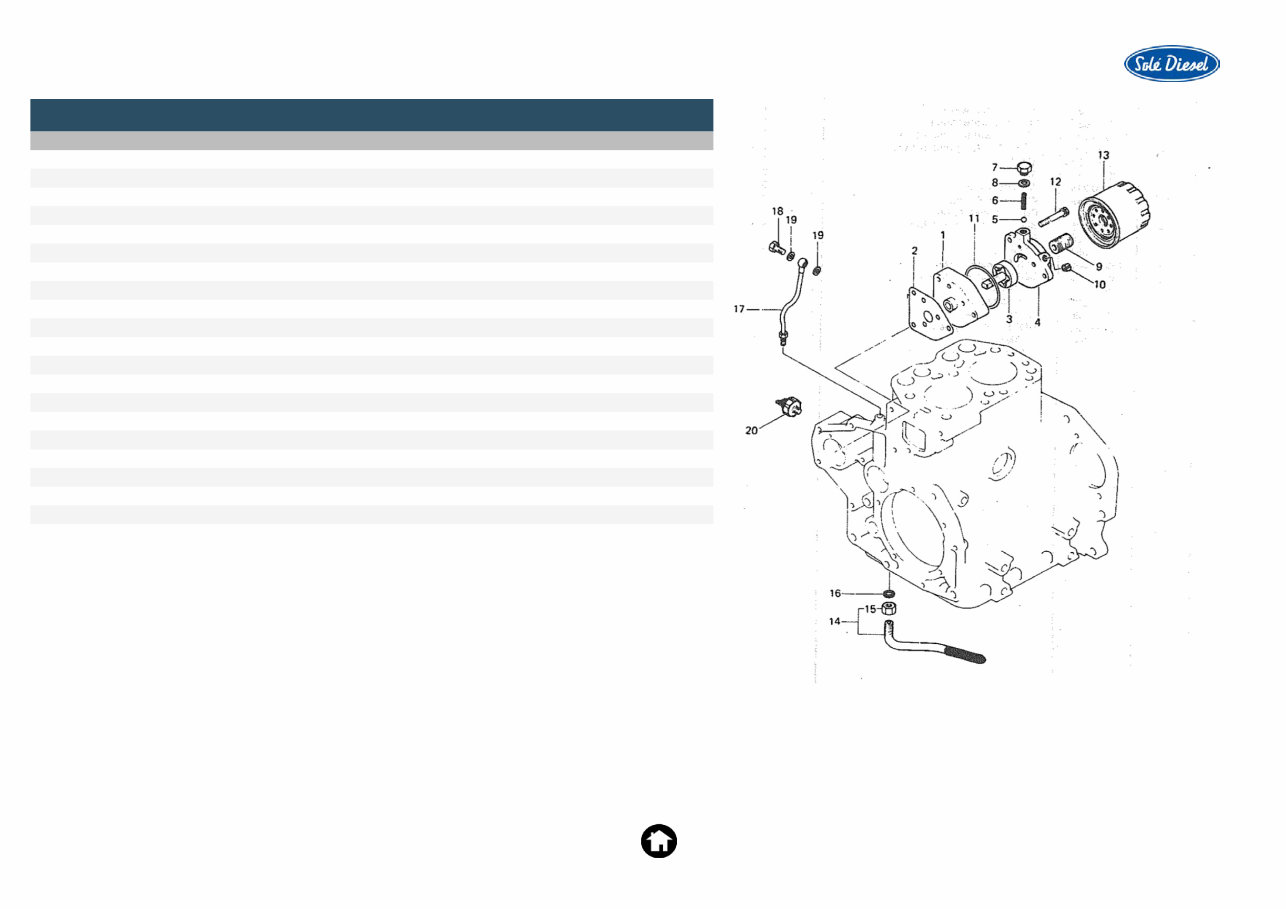

Engine MINI-14 Engine body, MINI-14 Oil Sysem FIG. REF. QTY DESCR. FROM UPTO 1 13124040 1 Body Oil Pump 2 13124041 1 Gasket Oil Pump B 3 13124042 1 Rotor Assy 4 13124061 1 Cover Pump oil 5 13124043 1 Ball 6 13124044 1 Spring Oil RELIEF 7 13124045 1 Plug Screw 8 13124046 1 Gasket 9 13124047 1 Shaft Oil Filter 10 13124048 1 Plug 11 13124049 1 O-Ring D. 68X2 12 13124050 3 Bolt DIN 931 M8-50 8.8 13 13124051 1 Filter Oil Element 14 13524052 1 SCREEN Assy Oil 15 13124053 1 Nut 16 13124001 1 Washer 17 13524057 1 Pipe Assy Oil [NP] 18 13124058 1 Bolt EYE 19 13124059 2 Gasket 20 13124060 1 Switch [NP] Not provided 141217 8 D_MI14_1_10
