2817 SPARE PARTS MANUAL Engine Mini-1 VERSION 2017-8

- Figure: Number by which they are represented in scheme PARTS LIST CATALOGUE NORMS TO PLACE AN ORDER: For fast and more efficient service, please specify the following information on spare parts orders that must be preferably done by FAX or e-mail as specified below: 1- Engine model: As shown in identification plate 2- Engine serial number: As shown in identification plate and stamped on crankcase 3- Item description + part number + quantity required Spare parts requests must be adressed to: recambios@solediesel.com Telf.: +34 93 775 44 05 Fax: +34 93 775 30 13 The components shown in the catalog have: 08760 Martorell (Barcelona) Spain Download the latest version of this manual HERE - Description: Trade name of the component - Quantity: Total number of parts used in the assembly of the part represented (may differ from the total minimum quantities) Hoses, indicates the total length in meters The diagrams shown in this catalog of spare parts, have only the purpose to identify the piece in question, its representation is not meaningful and may differ from the actual piece. In case of doubt, contact Solé Diesel, or your authorized dealer. The parts i / or references in this catalog are subject to change without notice. SOLÉ, S.A. C-243b, Km, 2 - P.O. BOX 15

Contents Block Mounts - Remote control Cylinder - Cylinder Head - Compression R Crankshaft - Connecting Rod - Timing and Regulator - Fuel Control - Injector Rock Cooling System Fuel System - Lubricating System Kit Pump Fuel Injection Pump Injector Body & Nozzle Electrical System Chromed Brass Water Strainer 1/2" Chromed Brass Water Strainer 1" 1 Engine Body Cooling System Fuel System Electrical System Bronze/Brass Water Strainer

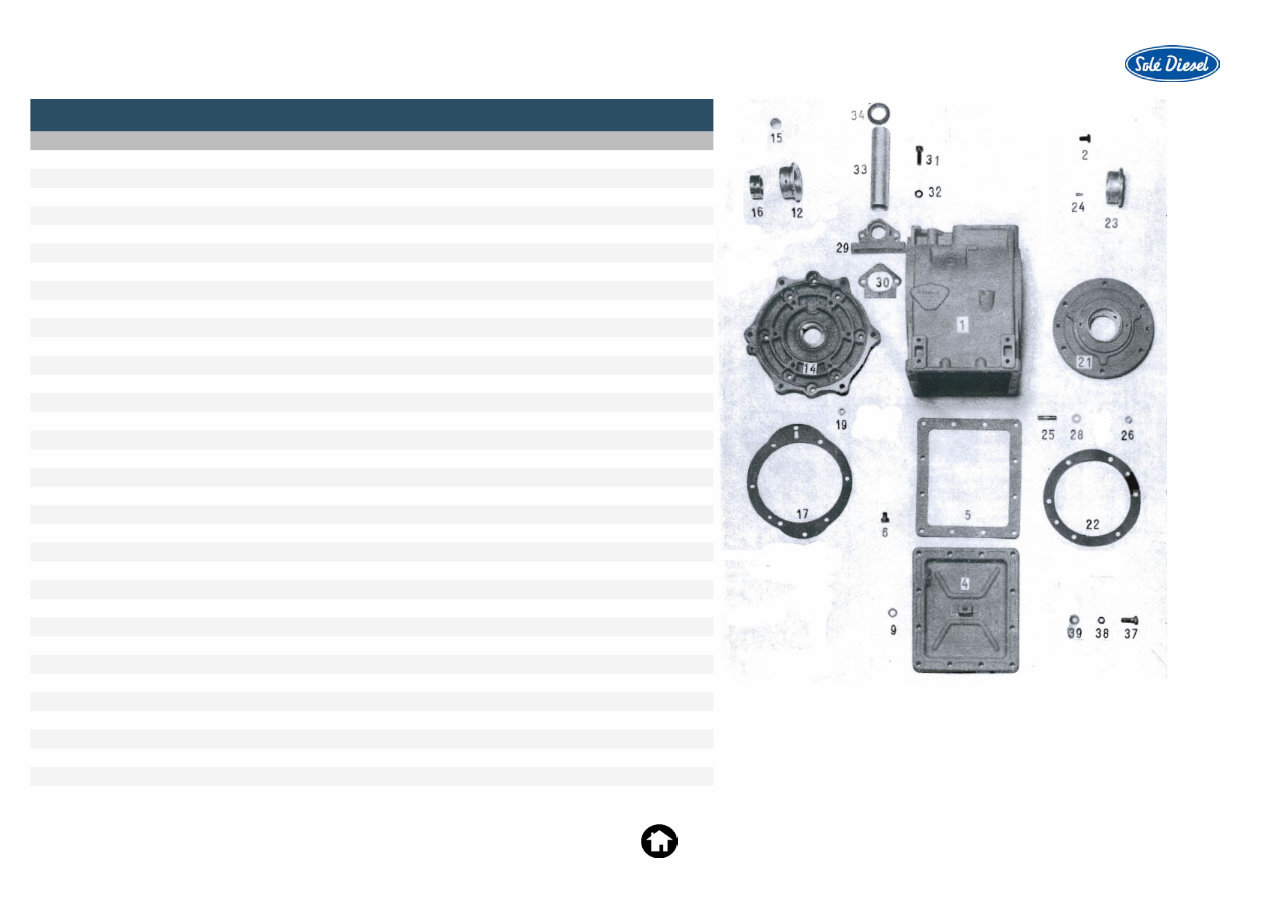

Engine Mini-1 Engine Body Block FIG. REF. QTY DESCR. FROM UPTO 1 12120001 1 Block Assy 2 12120002 1 Screw, Racord 4 12120004 1 PAN Assy,oil 5 12120005 1 Gasket,oil pan 6 52102256 12 Bolt DIN 933 M8-15 8.8 9 56000015 1 Washer 12-19-2 12 12120027 1 Bearing,crankshaft 1 mm 12 12120012 1 Bearing,crankshoft Std D.40 14 12120014 1 MOUSING [NP] 15 12120015 1 Disk,housing 16 12120016 1 Bearing, Crankshaft 17 12120017 1 Gasket,housing 19 12120008 8 Plug,oil drain 21 12120026 1 CRANKSHALT BEAR.MOUNT(COM)1 mm [NP] 21 12120020 1 Cap Assy,bearing 22 12120023 0 Gasket,bearing cap 0,1 mm [VAR] 22 12120022 0 Gasket,bearing cap 0,5 mm [VAR] 23 12120025 1 Bearing,thrust 1 mm D.40 23 12120024 1 Bearing,thrust D.40 24 12120013 1 Pin,crankshoft bearing 25 12120018 6 Stud 26 52120008 6 Nut DIN 934 M8 8.8 28 51030008 6 Washer DIN 125-8 29 12120029 1 Guide,lower 30 12120030 1 Gasket,guide 31 52103258 2 Bolt DIN 912 M8-25 8.8 32 53033008 2 Washer GROWER DIN 127-8 33 12120032 1 Tube,push rod [NP] 34 12120033 2 Seat,Tube 37 52102308 8 Bolt DIN 933 M10-25 8.8 38 53033010 8 Washer GROWER DIN 127-10 39 51030010 8 Washer DIN 125-10 [NP] Not provided NS 52315303 1 Bolt DIN 551 W7/16-8 8.8 [NP] [NS] [NS] Not shown NS 12110100.1 1 Gasket Kit [NS] [VAR] Variable according to repair NS 12110100 1 Gasket Kit MINI 1 [NS] 2817 3 D_LO01_1_1

Engine Mini-1 Engine Body Mounts - Remote control FIG. REF. QTY DESCR. FROM UPTO 1 12110034 1 Bracket,engine 2 12110035 1 Bracket,engine 3 12110046 2 Flexible MOUNT,front 4 12110047 2 Plate [NP] 5 12110048 6 Screw 6 52102358 2 Bolt DIN 933 M12-25 8.8 7 12110050 2 Flexible MOUNT,rear 8 52102306 4 Bolt DIN 933 M10-15 8.8 9 53033010 4 Washer GROWER DIN 127-10 10 12110154 1 Bracket,flex mount 11 12110155 1 Bracket,flox mount 15 12119111 1 BRAKET Assy,engine speed contr 16 52102156 1 Bolt DIN 933 M6-16 8.8 18 14719013 1 Clamp,cable 19 55307104 2 Bolt DIN 86 W3/16-10 20 14719026 1 SPLIT,piece reverser morse 24 12119000 1 Assy Bracket,morse control 24A 12119020 1 Bracket,Gear box control 24B 12119021 1 SUPORT Clamp 25 (*) 1 Not available [NP] 26 52102157 4 Bolt DIN 933 M6-20 8.8 27 52120006 4 Nut DIN 934 M6 8.8 28 51030006 4 Washer DIN 125-6 29 53033006 4 Washer GROWER DIN 127-6 30 14719025 1 Bracket,split piece 31 14719028 1 SPLIT,piece 32 14719027 1 Pin 33 51051107 1 Pin DIN-94 1,6-16 34 52114304 1 Bolt DIN 916 M10-10 UMBR 35 51030005 2 Washer DIN 125-5 [NP] Not provided 2817 4 D_LO01_1_2

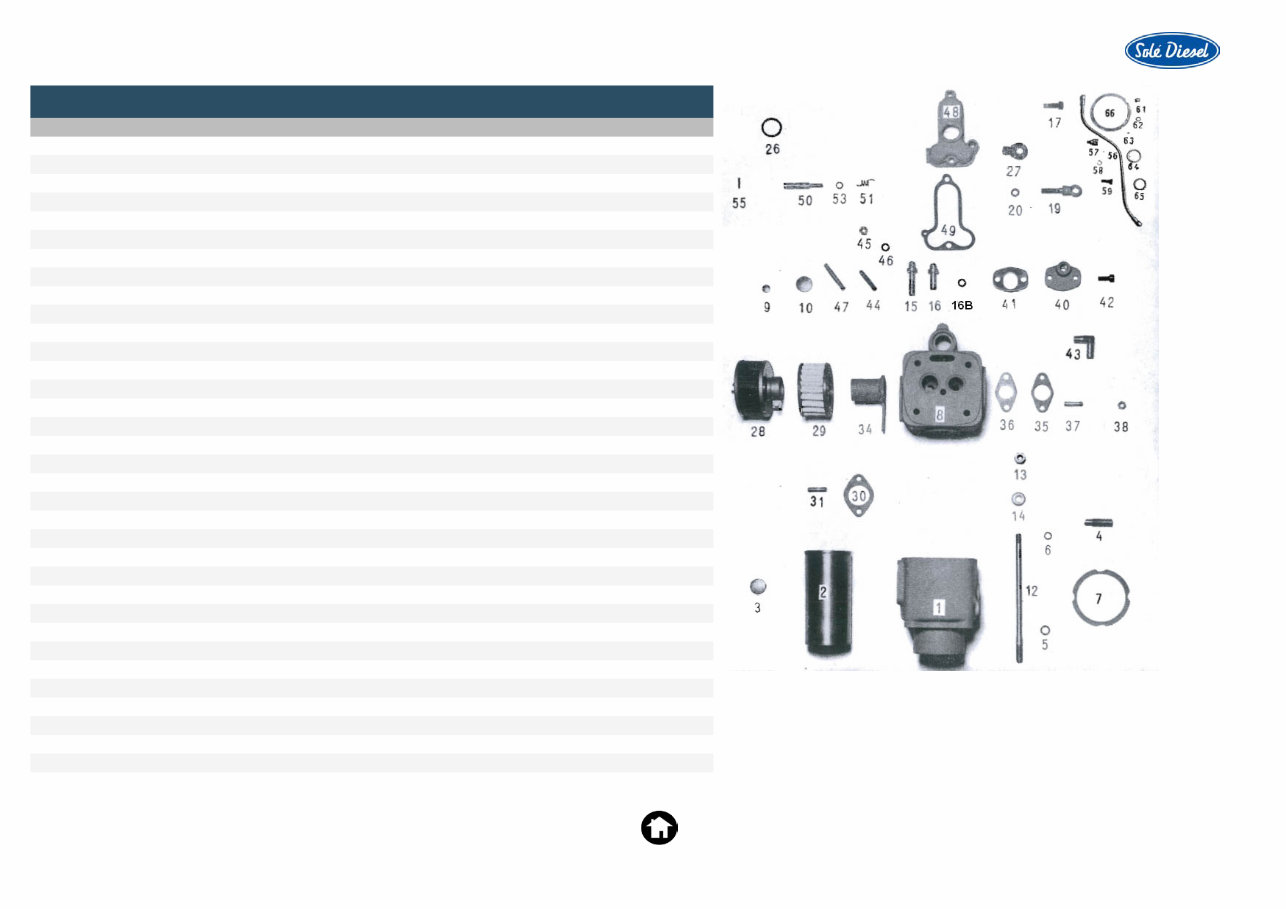

Engine Mini-1 Engine Body Cylinder - Cylinder Head - Compression R FIG. REF. QTY DESCR. FROM UPTO 1 12111002 1 Cylinder 1-4 12111001 1 Cylinder Assy MINI 1 2 12111003 1 Cylinder LINE 80 3 12111004 4 Cap,cylinder 4 12111005 1 Pipe,water inlet 5 12111006 4 O-Ring 6 12111007 4 O-Ring 7 12111008 0 Gasket,cylinder 0,1mm [VAR] 7 12111009 0 Gasket,cylinder 0,3mm [VAR] 8 12111010 1 Cylinder Head Assy MINI-1 9 12121012 1 Disk,cover rocker 10 11111004 1 Cap Sealing 12 12111015 4 Stud,cylinder head 13A 12111016 1 Nut 13B 12121016 3 Nut 14 12121017 4 Washer 10,5-24-5 15 12111018 1 Guide,inlet valve 16 12111019 1 Guide,exhaust valve 16B 12121065 1 Ring,valve guide 17 52103258 1 Bolt DIN 912 M8-25 8.8 19 12121020 1 MANGER,engine 26 12121027 1 Ring,breather valve 27 12121028 1 Plug 28 17610012 1 Air Filter Assy without filter element 08/10/2007 28 12111031 1 Air Filter Assy without filter element 08/10/2007 28 12111029 1 Air Filter Assy without filter element 08/10/2007 30 12111032 1 Gasket,inlet manifold 31 12120018 2 Stud 34 12111033 1 MANI FOld,inlet 35 12111034 1 Plate,exhaust manifold 36 12111035 1 Gasket,exhaust manifold 37 12111066 2 Stud [NP] Not provided 38 52120008 2 Nut DIN 934 M8 8.8 [NS] Not shown 40 12111036 1 Plate,Water Outlet [VAR] Variable according to repair 41 12111037 1 Gasket 2817 5 D_LO01_1_3

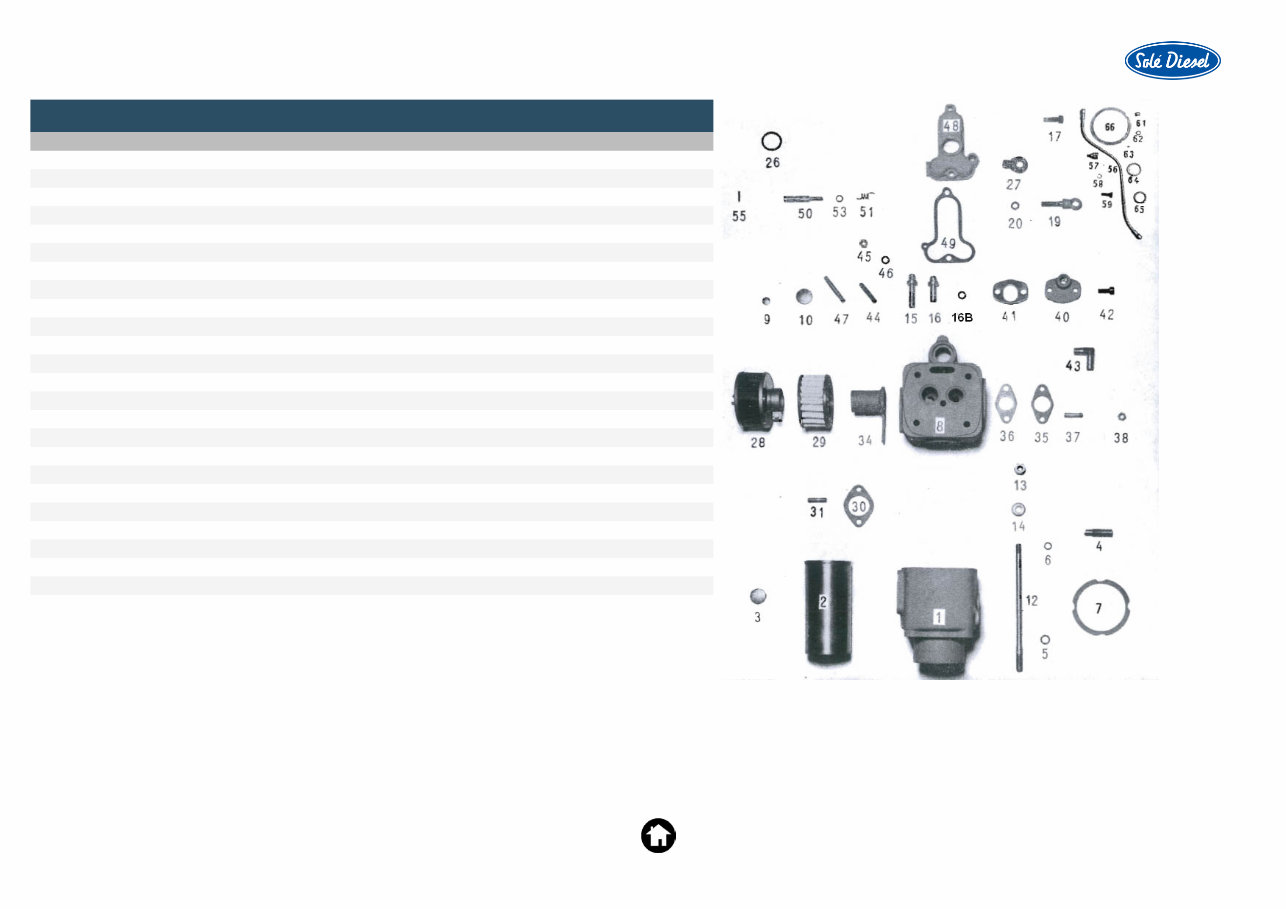

Engine Mini-1 Engine Body Cylinder - Cylinder Head - Compression R FIG. REF. QTY DESCR. FROM UPTO 42 52103257 2 Bolt DIN 912 M8-20 8.8 43 12111082 1 Water Outlet Elbow 44 12121040 1 Stud,nozzle 45 52120006 2 Nut DIN 934 M6 8.8 46 53033008 2 Washer GROWER DIN 127-8 47 12111041 1 Stud,nozzle 48 12121043 1 Cover,rocker 49 12121044 1 Gasket,rocker cover 0,5 mm 50 12121047 1 Cover,rocker [NP] 51 12111048 1 Spring,return 53 12121050 1 O-Ring D. 6,07X1,78 55 53052208 2 Pin DIN 1481 3-16 56 12121053 1 Pipe,lubrication 57 12111054 1 Pipe Coupling 58 57000357 1 Washer 8,2-12-1,5 59 12120002 1 Screw, Racord 61 12111058 1 Cap 62 12111059 1 O-Ring 63 12111060 1 Pin 64 12121061 1 Seat,inlet valve 65 12121062 1 Seat,exhaust valve 66 (*) 1 Not available [NP] NS 12111014 1 Gasket,cylinder head [NS] NS 12121021 1 BREATHER Valve Assy [NS] 2817 6 D_LO01_1_3

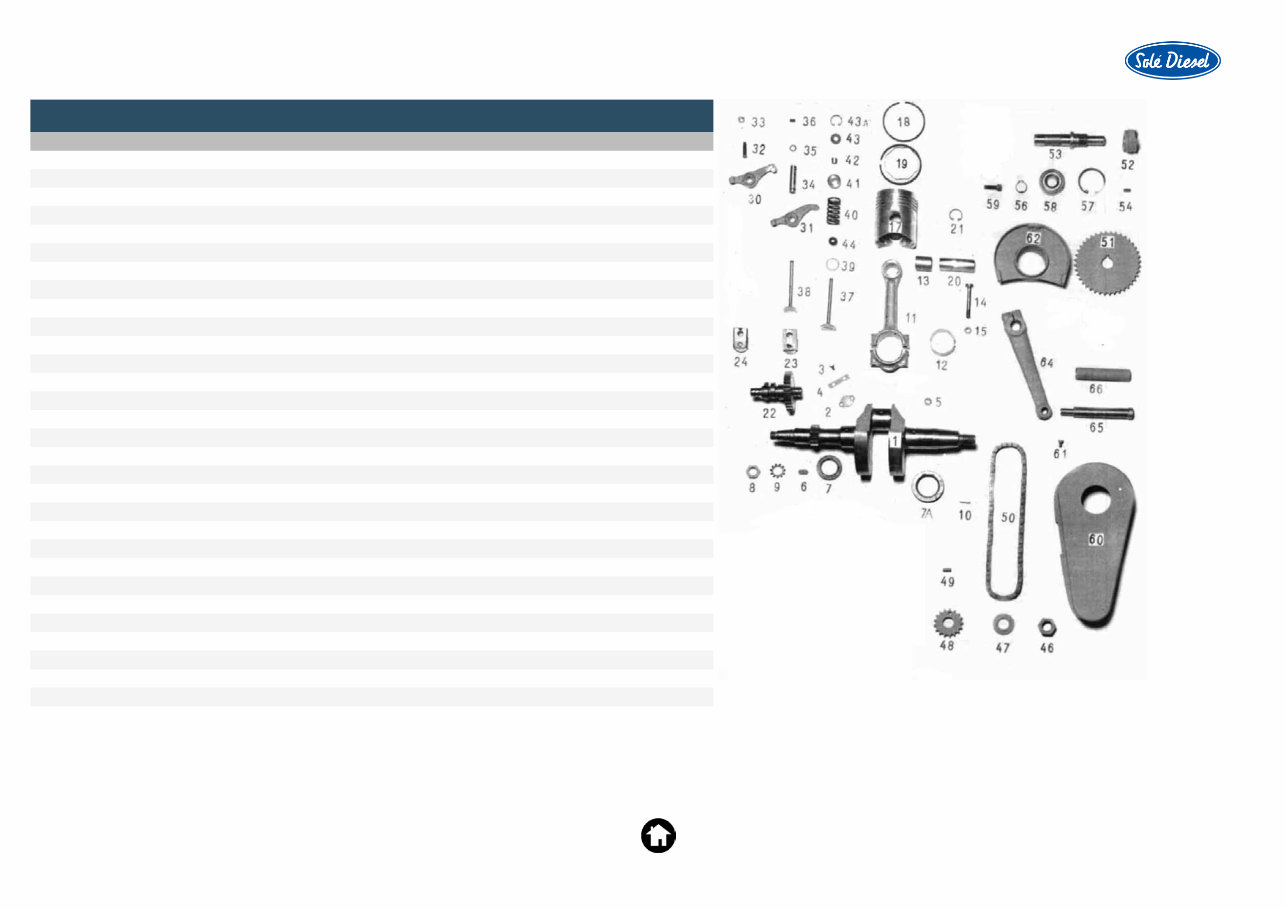

Engine Mini-1 Engine Body Crankshaft - Connecting Rod - Timing and FIG. REF. QTY DESCR. FROM UPTO 1 12122000 1 CrankShaft Assy MINI-2 2 12122002 1 Cover,crankShaft lubr.channel 3 52102106 2 Bolt DIN 933 M5-15 8.8 4 12122004 1 SAFETY STrap 5 12122005 1 Disk,channel seal 6 12122006 1 KEY,woodruff 7 12122007 1 Seal,oil 7A 12122008 1 Seal,oil 8 12122009 1 Nut 9 53038016 1 Washer DIN 6798-A 16 KIT 12122136 1 ARM Assy,rocker 10 12122011 1 KEY,woodruff 11 12122012 1 ROD Assy, connection 12 12122079 2 Case,con rod. 0,25 mm 12 12122080 2 Case,con rod 0,5 mm 12 12122013 2 Bearing,con rod head 13 12122014 1 Bearing,con rod 14 12122015 2 Bolt,con rod 15 12122016 2 Nut 17 12122018 1 Piston Assy 80 MM [NP] 17 12122181 1 Piston Assy (0,5 mm OverSIZE) 18-19 12122023 1 Ring Set.STD 18-19 12122083 1 Ring Set (0,5 mm OverSIZE) 18-19 12122084 1 Ring Set (1 mm OverSIZE) 20 12122021 1 Pin,piston 21 53041023 2 CIRClip DIN 472 I-23 22 12122024 1 CamShaft 23 12122025 1 Tappet,inlet 24 12122026 1 Tappet,exhaust 30 12122036 1 ARM,rocker exhaust 30-36 12122135 1 Rocker ARM Assy 31 12122037 1 ARM,rocker inlet [NP] Not provided 31-33 12122137 1 ARM Assy,rocker inlet [NS] Not shown 32 12122038 2 Screw,adjusting 33 12122039 2 Nut,adjusting 2817 7 D_LO01_1_4

Engine Mini-1 Engine Body Crankshaft - Connecting Rod - Timing and FIG. REF. QTY DESCR. FROM UPTO 34 12122040 1 Shaft Rocker 35 12122041 1 Ring 36 52114153 1 Bolt DIN 916 M6-8 UMBRAC 37 12122043 1 Intake Valve 38 12122044 1 Exhaust Valve 39 12122045 2 Retainer,valve spring 40 12112046 2 Valve Spring 41 12112047 2 Spring CARRIER 42 12112048 4 Valve COLLECT 43 12112049 2 Valve Guide Washer 43A 53041020 2 CIRClip DIN 472 I-20 44 12122050 1 Seal,valve 46 12122053 1 Nut,flywheel 47 12122054 1 Washer DIN 2093-40x20,4x2,25 48 12112055 1 Small STARTING PinION 49 12112056 1 PinION PIN 50 12112057 1 STARTING Chain 51 12112058 1 LARGE STARTING PinION 52 11113035 1 Nut,pawl 53 12112060 1 Shaft COLLAR 54 12112061 1 LARGE PinION KEY 56 53040020 1 CIRClip DIN 471 E-20 57 53041047 2 CIRClip DIN 472 I-47 58 34711014 2 Ball Bearing 6204-2RSH 59 52103258 4 Bolt DIN 912 M8-25 8.8 60 12112067 1 Chain GUARD [NP] 61 52102156 1 Bolt DIN 933 M6-16 8.8 62 12112069 1 Guard Mount 64 12112071 1 Handle Arm 66 12112073 1 GRIP Tube NS 12112171 1 STARTING Handle [NS] 2817 8 D_LO01_1_4

Engine Mini-1 Engine Body Regulator - Fuel Control - Injector Rock FIG. REF. QTY DESCR. FROM UPTO 1 12123001 1 Shaft,governor 2 12123002 1 Nut 3 12123009 1 Washer 4 12123003 1 Gear,governor [NP] 5 12123004 1 Plate 6 12123005 2 SCREN 7 12123006 1 Plate 8 12123007 6 Ball,governor [NP] 9 12123008 1 MOUSING,governor 11 (*) 1 Not available [NP] 12 12123010 1 Bracket 13 12123013 1 Bolt 16 12123016 1 Yoke,governor 17 12123017 3 Spring GOverNOR 18 12123018 1 Spacer 19 51102106 1 Bolt DIN 933 M5-15 8.8 20 12123020 1 Bolt Spring 22 12123021 1 Shaft,governor lever 23 53042007 1 CIRClip DIN 6799 7 24 12123023 0 Lever,governor [VAR] 25 12123024 1 Pin 26 12123025 1 Lever,engine speed control 27 12123027 1 Spring GOverNOR 28 12123028 1 Washer 29 12123029 1 Pin,governor Shaft 30 12123031 1 Bracket,stop [NP] 31 12123032 0 Gasket,collar 0,5 mm [VAR] 31 12123085 0 Gasket Support 1 MM [NP] [VAR] 32A 52102156 1 Bolt DIN 933 M6-16 8.8 32C 12113051 1 Stop Handle CATCH 33 53033006 2 Washer GROWER DIN 127-6 36 12123038 1 Spring [NP] Not provided 37 12123039 1 AuxiliarY Fuel Mechanism [NP] [NS] Not shown 38 12123040 1 Gasket,stop bracket [NP] 14/03/2017 [VAR] Variable according to repair 39 12123041 1 Pin [NP] 2817 9 D_LO01_1_5
