Perkins 404D-22T Diesel Engine OEM Service & Repair Manual

SEBU8311-02 January 2010 Operation and Maintenance Manual 402D-403D-404D Industrial Engine GG (Engine) GH (Engine) GJ (Engine) GK (Engine) GL (Engine) GM (Engine) GN (Engine) GP (Engine) GQ (Engine) GS (Engine)

Important Safety Information Most accidents that involve product operation, maintenance and repair are caused by failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing potentially hazardous situations before an accident occurs. A person must be alert to potential hazards. This person should also have the necessary training, skills and tools to perform these functions properly. Improper operation, lubrication, maintenance or repair of this product can be dangerous and could result in injury or death. Do not operate or perform any lubrication, maintenance or repair on this product, until you have read and understood the operation, lubrication, maintenance and repair information. Safety precautions and warnings are provided in this manual and on the product. If these hazard warnings are not heeded, bodily injury or death could occur to you or to other persons. The hazards are identified by the “Safety Alert Symbol” and followed by a “Signal Word” such as “DANGER”, “WARNING” or “CAUTION”. The Safety Alert “WARNING” label is shown below. The meaning of this safety alert symbol is as follows: Attention! Become Alert! Your Safety is Involved. The message that appears under the warning explains the hazard and can be either written or pictorially presented. Operations that may cause product damage are identified by “NOTICE” labels on the product and in this publication. Perkins cannot anticipate every possible circumstance that might involve a potential hazard. The warnings in this publication and on the product are, therefore, not all inclusive. If a tool, procedure, work method or operating technique that is not specifically recommended by Perkins is used, you must satisfy yourself that it is safe for you and for others.You should also ensure that the product will not be damaged or be made unsafe by the operation, lubrication, maintenance or repair procedures that you choose. The information, specifications, and illustrations in this publication are on the basis of information that was available at the time that the publication was written. The specifications, torques, pressures, measurements, adjustments, illustrations, and other items can change at any time. These changes can affect the service that is given to the product. Obtain the complete and most current information before you start any job. Perkins dealers or Perkins distributors have the most current information available. When replacement parts are required for this product Perkins recommends using Perkins replacement parts. Failure to heed this warning can lead to prema- ture failures, product damage, personal injury or death.

SEBU8311-02 3 Table of Contents Table of Contents Foreword ................................................................. 4 Safety Section Safety Messages .................................................... 5 General Hazard Information ................................... 7 Burn Prevention ...................................................... 8 Fire Prevention and Explosion Prevention .............. 8 Crushing Prevention and Cutting Prevention ........ 10 Before Starting Engine ........................................... 11 Engine Starting ...................................................... 11 Engine Stopping .................................................... 11 Electrical System .................................................. 12 Product Information Section Model Views ......................................................... 13 Product Identiﬁcation Information ........................ 23 Operation Section Lifting and Storage ................................................ 25 Gauges and Indicators .......................................... 28 Features and Controls .......................................... 29 Engine Starting ..................................................... 30 Engine Operation .................................................. 33 Engine Stopping ................................................... 34 Cold Weather Operation ....................................... 35 Maintenance Section Reﬁll Capacities .................................................... 39 Maintenance Recommendations .......................... 58 Maintenance Interval Schedule ............................ 60 Warranty Section Warranty Information ............................................ 92 Index Section Index ..................................................................... 93

4 SEBU8311-02 Foreword Foreword Literature Information This manual contains safety, operation instructions, lubrication and maintenance information. This manual should be stored in or near the engine area in a literature holder or literature storage area. Read, study and keep it with the literature and engine information. English is the primary language for all Perkins publications. The English used facilitates translation and consistency. Some photographs or illustrations in this manual show details or attachments that may be different from your engine. Guards and covers may have been removed for illustrative purposes. Continuing improvement and advancement of product design may have caused changes to your engine which are not included in this manual. Whenever a question arises regarding your engine, or this manual, please consult with your Perkins dealer or your Perkins distributor for the latest available information. Safety This safety section lists basic safety precautions. In addition, this section identifies hazardous, warning situations. Read and understand the basic precautions listed in the safety section before operating or performing lubrication, maintenance and repair on this product. Operation Operating techniques outlined in this manual are basic. They assist with developing the skills and techniques required to operate the engine more efficiently and economically. Skill and techniques develop as the operator gains knowledge of the engine and its capabilities. The operation section is a reference for operators. Photographs and illustrations guide the operator through procedures of inspecting, starting, operating and stopping the engine. This section also includes a discussion of electronic diagnostic information. Maintenance The maintenance section is a guide to engine care. The illustrated, step-by-step instructions are grouped by service hours and/or calendar time maintenance intervals. Items in the maintenance schedule are referenced to detailed instructions that follow. Recommended service should be performed at the appropriate intervals as indicated in the Maintenance Interval Schedule. The actual operating environment of the engine also governs the Maintenance Interval Schedule. Therefore, under extremely severe, dusty, wet or freezing cold operating conditions, more frequent lubrication and maintenance than is specified in the Maintenance Interval Schedule may be necessary. The maintenance schedule items are organized for a preventive maintenance management program. If the preventive maintenance program is followed, a periodic tune-up is not required. The implementation of a preventive maintenance management program should minimize operating costs through cost avoidances resulting from reductions in unscheduled downtime and failures. Maintenance Intervals Perform maintenance on items at multiples of the original requirement. We recommend that the maintenance schedules be reproduced and displayed near the engine as a convenient reminder. We also recommend that a maintenance record be maintained as part of the engine's permanent record. Your authorized Perkins dealer or your Perkins distributor can assist you in adjusting your maintenance schedule to meet the needs of your operating environment. Overhaul Major engine overhaul details are not covered in the Operation and Maintenance Manual except for the interval and the maintenance items in that interval. Major repairs should only be carried out by Perkins authorized personnel. Your Perkins dealer or your Perkins distributor offers a variety of options regarding overhaul programs. If you experience a major engine failure, there are also numerous after failure overhaul options available. Consult with your Perkins dealer or your Perkins distributor for information regarding these options. California Proposition 65 Warning Diesel engine exhaust and some of its constituents are known to the State of California to cause cancer, birth defects, and other reproductive harm. Battery posts, terminals and related accessories contain lead and lead compounds. Wash hands after handling.

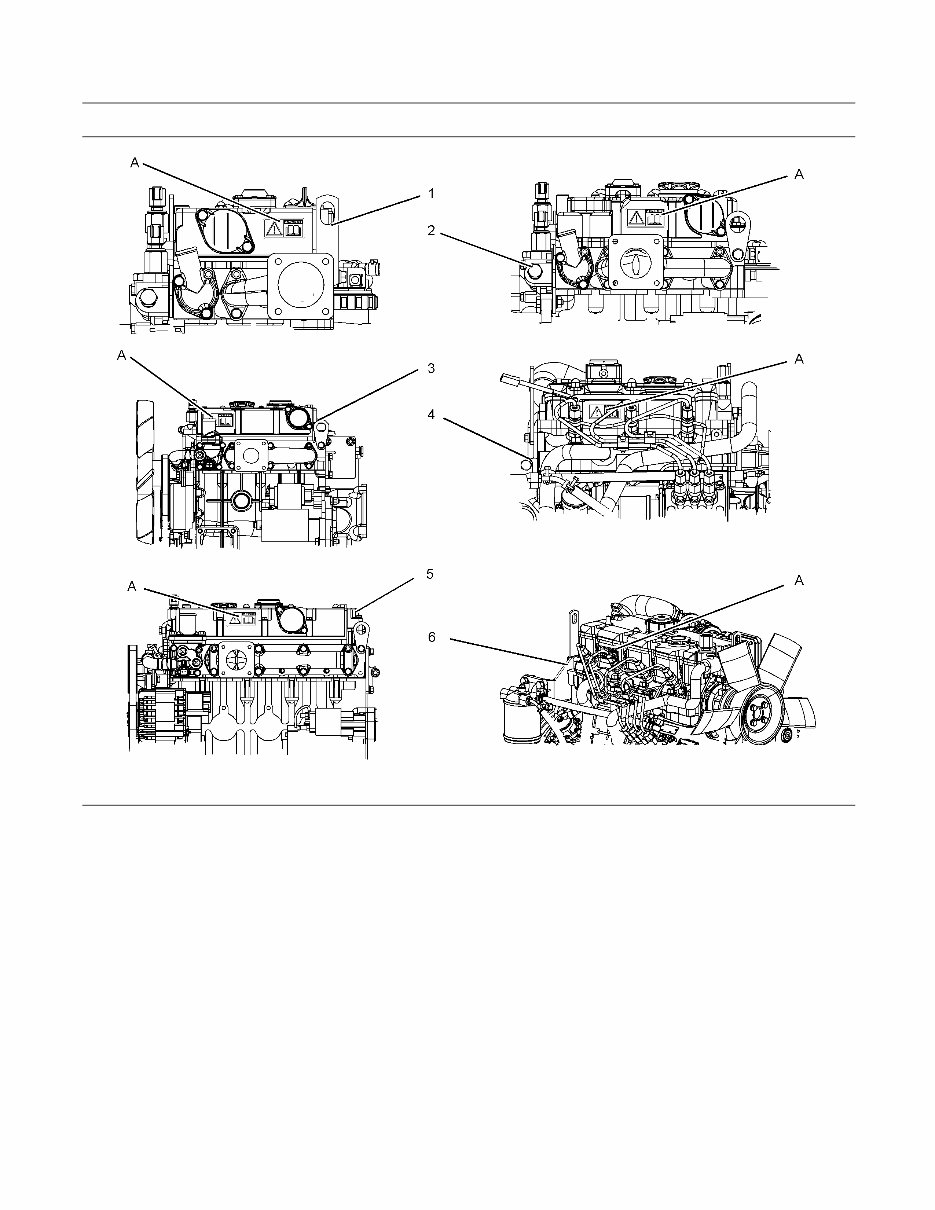

SEBU8311-02 5 Safety Section Safety Messages Safety Section i02959960 Safety Messages There may be several speciﬁc warning signs on your engine. The exact location and a description of the warning signs are reviewed in this section. Please become familiar with all warning signs. Ensure that all of the warning signs are legible. Clean the warning signs or replace the warning signs if the words cannot be read or if the illustrations are not visible. Use a cloth, water, and soap to clean the warning signs. Do not use solvents, gasoline, or other harsh chemicals. Solvents, gasoline, or harsh chemicals could loosen the adhesive that secures the warning signs. The warning signs that are loosened could drop off of the engine. Replace any warning sign that is damaged or missing. If a warning sign is attached to a part of the engine that is replaced, install a new warning sign on the replacement part. Your Perkins dealer or your distributor can provide new warning signs. (A) Universal Warning Do not operate or work on this equipment unless you have read and understand the instructions and warnings in the Operation and Maintenance Manuals. Failure to follow the instructions or heed the warnings could result in serious injury or death. g01154807 Illustration 1 Typical example Warning label (A) is installed in different locations. The location will change according to the physical size of the engine.

Perkins 404D-22T Diesel Engine OEM Service & Repair Manual

You're Reading a Preview

Perkins 404D-22T Diesel Engine OEM Service & Repair Manual

Manuals included in this bundle:

What’s Inside the Perkins 404D-22T Service & Repair Manual

Fuel System Service

Injection Components

Turbocharger and Exhaust

Valve and Cylinder Head Work

Engine Assembly and Mounting

Lubrication and Cooling Systems

Camshaft and Crankshaft Service

Flywheel and Housing Components

Pistons and Connecting Rods

Electrical and Charging Systems

Temperature and Pressure Controls

General Engine Components

Index Section

Why Use the Perkins 404D-22T OEM Manual Bundle?

Format & Compatibility

Download the Perkins 404D-22T Diesel Engine Manual Bundle Now
