Onan Engine P224G, OL24, LX990 Parts Manual

   Engine Parts Catalog         LX990 OL24 P224G

The following symbols are used in Onan manuals to alert users to the potentially dangerous condi- tions relating to maintenance of equipment and re- placement of parts. Please read and observe. This symbol warns of immedi- ate hazards which will result in severe personal injury or death. This symbol refers to a hazard or unsafe practice which can result in severe personal injury or death. This symbol refers to a hazard or unsafe practice which can result in severe personal injury or product or property damage. To avoid errors or delay in filling your parts order, always give the MODEL, SPEC NO. and SERIAL NO. from the Onan nameplate. For handy reference, insert your nameplate in- formation in the spaces below. MODEL AND SPEC NO. SERIAL NO. DIGITAL CONTROL SOFTWARE VERSION AND DA TE (IF APPLICABLE) Contact with USED ENGINE OILS has been identified by a United States federal agency and some USA state agencies as causing CANCER or REPRODUCTIVE TOXICITY . When checking or changing engine oils take all necessary precautions not to ingest, breathe the fumes or contact the used oil. Contact with ASBESTOS has been identified by a United States federal agency and some USA state agencies as causing CANCER or REPRODUCTIVE TOXICITY. When handling engine gaskets take all necessary precautions not to ingest, breathe or contact the dust from the gaskets! Use adequate ven- tilation and wear protective gloves, masks and clothing! Contact with BENZINE and LEAD, found in gasoline, fuel additives and solvents has been identified by a United States federal agency and some USA state agencies as causing CANCER or REPRODUC- TIVE TOXICITY . When checking, draining or adding gasoline and fuel additives or using solvents take all necessary precautions not to ingest, breathe the fumes or contact the liquids. Use adequate ventila- tion and wear protective gloves, masks and protective clothing! PSP-1 Service and repair of Onan equipment must be performed by trained, experienced personnel only. Im- proper service or repair may result in property damage, severe personal injury or death. Do not use this catalog as a guide to servicing your equipment. Read and follow the IMPORT ANT SAFETY INSTRUC- TIONS in the Service Manual appropriate for the equipment you are working on.

1 Introduction This parts manual applies to the Performer engine as listed in the Engine Data T able. Parts are arranged in groups of related items and each illustrated part is identified by a reference number corresponding to the same reference number in the parts list. Parts illustrations are typical. Throughout this manual, right and left sides are determined by facing the flywheel end (FRONT) of the Engine. Using the MODEL and SPECIFICA TION NUMBER from the nameplate, consult the SALES OPTION CODE T ABLE in the back of the book to identify factory installed parts that are unique to your engine. (Note: The diagonal line (/) in the model and specification number separates engine characteristics from the specification number and letter . The specification number denotes customer requested features. The specification letter advances (A to B, B to C, etc.) with major manufacturing changes.) Engine Data Table Model Rating P224G–I/* 24 Horsepower OL24/* 24 Horsepower LX990/* 24 Horsepower

Index 2 Adapter Assy , Oil Fill, 14 Adapter , Bearing Plate, 9 Adapter , Clutch, 42 Adapter, Exhaust, 53 Adapter , Governor Arm, 29 Adapter , Hydraulic Pump, 9 Adapter , Oil Filter , 15 Adapter , Oilcap, 14 Adapter , Remote Air Cleaner , 20 Arm Assy , Governor Control, 29 Arm, Governor , 17 Arm, Governor Control, 29 Ball, Governor , 10 Ball, Governor Shaft Bearing, 17 Base, Oil, 13 Bearing, Camshaft, 7 Bearing, Connecting Rod Half, 7 Bearing, Cylinder Block Flanged Sleeve, 7 Bearing, Governor Shaft, 17 Bearing, Rear Crankshaft, 7 Block, Cylinder , 7 Bracket Assembly, Governor , 33 Bracket, Cable, 29 Bracket, Choke, 36 Bracket, Choke Cable (Front Pull), 34 Bracket, Choke Cable (Rear Pull), 35 Bracket, Coil Mounting, 51 Bracket, Fill Tube, 14 Bracket, Fuel Line, 29, 33 Bracket, Fuel T ank, 43 Bracket, Governor , 41 Bracket, Governor Adjust, 29, 31 Bracket, Governor Control Mounting, 29 Bracket, Lifting, 29 Bracket, LP Converter Kit, 38 Bracket, Muffler , 53 Bracket, Solenoid, 36 Bracket, Two Speed Governor , 33 Bracket, Two Speed Governor Solenoid, 33 Bushing, Control Arm, 29 Bushing, Governor Control, 29 Bushing, Piston Pin, 7 Bushing, Two Speed Governor Control, 33 Cable Assy , Two Speed Governor , 33 Cable, Spark Plug, 51 Camshaft, 10 Cap, Breather , 7 Cap, Exhaust V alve, 7 Cap, Fuel Fitting, 54 Cap, Fuel T ank, 43 Cap, Oil Fill, 14 Cap, Starter Solenoid, 39, 40 Cap, V acuum Port, 17 Capacitor , Air Cleaner Adapter Mounted, 19 Capacitor , Ignition Coil Bracket Mounted, 51 Capacitor , Remote Air Cleaner Mounted, 20 Carburetor, Emissions, 25 Carburetor , LP , 26 Carburetor, LPG Emissions, 37 Carburetor , Spec B Gasoline (Components), 23 Carburetor , Spec C Gasoline (Components), 24 Carburetor ,Begin Spec G (Components), 25 Choke, Manual, 41 Clamp, Muffler , 53 Cleaner , Air , 19 Cleaner , Remote Air , 21 Clip, Choke Cable, 34 Clip, Lock, 36 Clutch, 42 Coil, Battery Ignition, 51 Control, Ignition, 17 Converter , LPG, 38 Cover , Air Cleaner , 19 Cover , Air Cleaner Element, 19 Cover, Exhaust Tube, 53 Cover , Inner Air Cleaner , 19 Cover , V alve Compartment, 7 Crankshaft, 11 Cup, Governor , 10 Cup, Oil Pump Intake, 13 Decal, Control Panel, 41 Definitions, Sales Option Code, 62 Drain, Oil Filter , 15 Elbow, Brass (LP), 26 Elbow, Carburetor Inlet, 43 Elbow, LOPKO Street, 45 Elbow, LP Converter Kit Brass, 38 Elbow, Oil Filter Street, 15 Elbow, Remote Air Cleaner Air Inlet, 20, 21 Element, Air Cleaner , 19 Element, Remote Air Cleaner , 21 Exhaust System, 53 Filter , Breather Tube, 7 Filter , Fuel, 54 Filter , Oil, 15 Filter , Remote Air Cleaner Breather Tube, 20 Fitting, Barbed, 22 Flywheel, 12 Gasket, Bearing Plate, 7 Gasket, Carburetor , 37 Gasket, Carburetor Mounting, 23 Gasket, Carburetor Mounting (Dual Fuel), 27 Gasket, Carburetor Mounting (LP), 26 Gasket, Carburetor Mounting (Spec B), 23 Gasket, Carburetor Mounting (Spec C), 24 Gasket, Cylinder Head, 7 Gasket, Exhaust Manifold, 53 Gasket, Intake Manifold, 37 Gasket, Oil Base, 13 Gasket, Oil Base Plug, 13

Index 3 Gasket, Oil Filter , 15 Gasket, Oil Filter Adapter , 15 Gasket, Plate, 9 Gasket, Valve Cover , 7 Gear , Camshaft, 10 Gear, Crankshaft, 11 Gear , Flywheel Ring, 12 Gearcase, 17 Governor , Two Speed, 33 Grommet, Rubber , 19, 31 Grommet, Two Speed Governor Fuel Line Bracket, 33 Guard, Stationary , 31 Guide, Valve, 7 Harness, Control Panel Wiring, 41 Harness, Control Wiring, 50 Harness, Engine Wiring, 47, 49 Harness, LOPKO Wiring, 48 Head, Cylinder , 7 Hose, Air Cleaner Breather , 19 Hose, Air Inlet (Dual Fuel), 27 Hose, Air Inlet (LP), 26 Hose, Breather , 37 Hose, Breather (Gasoline), 22 Hose, Breather (LP), 26 Hose, Fuel (Dual Fuel), 27 Hose, Fuel (Gasoline), 22 Hose, Fuel Pump, 54 Hose, LP Fuel, 26 Hose, LPG, 37 Hose, Remote Air Cleaner Breather , 20 Housing, Air Cleaner , 19 Housing, Air Cylinder , 29 Housing, Blower , 29 Hub, Governor Cup, 10 Indicator , Oil Fill, 14 Insert, V alve Seat, 7 Insulator , Ignition Module, 17 Jet, Idle (Dual Fuel), 27 Jet, Idle (Spec B), 23 Jet, Idle (Spec C), 24 Jet, Main Fuel High Altitude, 25 Jet, Power (Spec B), 23 Jet, Power (Spec C), 24 Joint, Ball, 31, 36 Key , 41 Key , Blower Wheel Machine, 12 Key , Camshaft Gear Woodruff, 10 Key, Clutch Drive, 42 Key, Crankshaft Gear , 11 Key, Crankshaft Woodruff, 11 Key , Flywheel, 12 Kit , Front Pull Governor , 29 Kit, 2 Speed, Solenoid Governor , 33 Kit, 35 Amp Alternator , 17 Kit, 4 Pin Harness Connector , 47 Kit, 4 Wire, 6 Pin Wiring Harness, 47 Kit, 6 Pin Harness Connector , 47 Kit, Air Cleaner , 19, 20 Kit, Alternator T erminal, 17 Kit, Carburetor Repair (Begin Spec G), 25 Kit, Carburetor Repair (Spec B), 23 Kit, Carburetor Repair (Spec C), 24 Kit, Choke Lever (Spec B), 23 Kit, Choke Lever (Spec C), 24 Kit, Choke Shaft (Spec B), 23 Kit, Choke Shaft (Spec C), 24 Kit, Clutch, 42 Kit, Complete Engine Gasket, 7 Kit, Control Panel, 41 Kit, Cylinder Head Removal Gasket, 7 Kit, Electric Fuel Pump, 32 Kit, Exhaust Adapter , 53 Kit, Exhaust Cover & Support, 53 Kit, Float (Spec B), 23 Kit, Float (Spec C), 24 Kit, Front /Rear Outlet Muffler , 53 Kit, Front Pull Choke, 34 Kit, Fuel Cut–off Solenoid (Spec C), 24 Kit, Fuel T ank, 43 Kit, Gasket, 55 Kit, Left Front Side or Right Rear Side Manifold, 53 Kit, Low Oil Pressure , 45 Kit, LPG Conversion, 37 Kit, LPG Converter , 38 Kit, Muffler , 53 Kit, Oil Pump Gasket, 9 Kit, Piston Ring, 9 Kit, PTO – 1” Shaft, 12 Kit, PTO – 7” Pilot Adapter , 9 Kit, PTO Bearing Plate Adapter , 9 Kit, PTO Electric Clutch Adapter , 42 Kit, PTO Front Pulley , 12 Kit, PTO Spacer , 12 Kit, Remote Choke, 36 Kit, Remote Elbow, 21 Kit, Right Front Side or Left Rear Side Manifold, 53 Kit, Side Pull Governor , 29 Kit, Starter Brush, 40 Kit, Starter Bushing, 40 Kit, Starter Cap, 39 Kit, Starter Clutch, 40 Kit, Starter Dust Seal, 40 Kit, Starter Hardware, 40 Kit, Starter Mounting Bracket, 40 Kit, Starter Shift Lever , 40 Kit, Starter Solenoid, 40 Kit, Stationary Grill, 31 Kit, Throttle Shaft (Spec B), 23 Kit, Throttle Shaft (Spec C), 24 Knob, Air Cleaner , 19

Index 4 Label, Blank Kit Number , 17 Label, Blank Kit Number , 9, 12, 19, 20, 21, 38, 41, 47 Label, Kit Number (Emissions), 37 Labels, 55 Laber , Blank Kit Number , 31 Lever , Choke (Front Pull), 34 Lever , Choke (Remote), 36 Lever , Control, 41 Lever, Governor , 31 Line, Flex Oil, 15 Line, Fuel, 43 Line, Pulse, 54 Link, Choke (Front Pull), 34 Link, Choke (Remote), 36 Link, Governor Control, 29 Lock, V alve Spring, 7 Manifold, Intake (Gasoline), 22 Manifold, Intake (LP), 26 Manifold, LH Exhaust, 53 Manifold, RH Exhaust, 53 Mixer , LPG (Dual Fuel), 27 Muffler , 53 O’Ring, Oil Fill Cap, 14 O–Ring, Oil Fill Adapter , 14 Paint, 55 Panel Assy , Control, 41 Panel, Control, 41 Pin, Bearing Stop, 7 Pin, Center , 10 Pin, Choke Swivel Cotter (Front Pull), 34 Pin, Cotter , 29 Pin, Cotter (Two Speed Governor), 33 Pin, Gearcase Alignment, 7 Pin, Governor Cup Stop Dowel, 17 Pin, Piston, 9 Piston, 9 Plate, Air Deflector , 19 Plate, Ignition Plunger Cover , 9 Plate, Rear Bearing, 7 Plug, Black Nylon Stationary Guard, 29 Plug, Blower Housing Hole, 31 Plug, Countersunk (LOPKO), 15 Plug, Cylinder Block Core Hole, 7 Plug, Cylinder Block Expansion, 7 Plug, Expansion, 17, 25 Plug, Fuel T ank Drain, 43 Plug, Governor Cap, 33 Plug, Hole, 20 Plug, Oil Base, 13 Plug, Spark, 51 Plunger, Bypass V alve, 9 Precleaner , Remote Air Cleaner , 21 Pulley, Drive, 12 Pump, Fuel, 54 Pump, Oil, 9 Pump, V acuum Fuel, 54 Rectifier, LOPKO, 50 Rectifier , Silicon, 47 Regulator , Voltage, 17, 29 Repair Kit, Solenoid V alve, 25 Repair Package, Accelerator Pump, 25 Repair Package, Float and Gasket, 25 Ring, Camshaft Retaining, 10 Ring, Crankshaft Retaining, 11 Ring, Piston Retaining, 9 Rod, Choke, 36 Rod, Connecting, 9 Rod, Governor , 31 Rod, Governor Control, 22, 31 Rotator , V alve, 7 Rotor , Ignition, 51 Sales Option Code Definitions, 62 Sales Option Code T able, 56 Screen, Breather Tube, 7 Seal, Breather Cap O’Ring, 7 Seal, Crankshaft Oil, 7, 17 Seal, Governor Shaft Oil, 17 Seal, Intake V alve, 7 Seal, Oil Fill Adapter , 14 Seal, Oil Fill Tube, 14 Seal, Remote Air Cleaner O’Ring, 20 Sealant, Thread, 55 Shaft, Governor , 17 Shaft, PTO, 12 Sheet, Instruction, 12, 17, 39, 41, 47 Shim, Crankshaft Thrust, 7 Shutoff, LP Converter Kit Fuel Solenoid, 38 Solenoid, Fuel Cutoff (Spec B), 23 Solenoid, Remote Choke, 36 Solenoid, Two Speed Governor , 33 Spacer , Air Cleaner , 19 Spacer , Air Cleaner (Gasoline), 19 Spacer , Air Cleaner (LP), 26 Spacer , Air Intake, 37 Spacer, Crankshaft, 11 Spacer , PTO, 12 Spring, Bypass V alve, 9 Spring, Governor , 29 Spring, Governor , 41 Spring, Governor (Low Speed), 33 Spring, Governor Rod, 22 Spring, Idle Setting, 29 Spring, V alve, 7 Starter , 39 Starter (Components), 40 Stator , 17 Stator , Alternator , 17 Strap, Fuel T ank, 43 Support, Air Cleaner , 19 Support, Exhaust Cover , 53

Index 5 Switch, High T emperature Cutoff, 9 Switch, Ignition, 41 Switch, LOPKO, 45 Swivel, Choke Lever (Front Pull), 34 Swivel, Choke Lever (Two Speed), 33 Swivel, Throttle Lever , 29 System, Gasoline Fuel, 22 System, LP Fuel, 26 T able, Sales Option Code, 56 T ank, Fuel, 43 T appet, V alve, 7 Tube, Air Intake, 19, 37 Tube, Breather (Dual Fuel), 27 Tube, Crankcase Oil, 7 Tube, Cylinder Block Breather , 7 Tube, Exhaust, 53 Tube, Idle Feed (Dual Fuel), 27 Tube, Oil Fill, 14 Tube, Remote Air Cleaner Breather , 20 Tube, Remote Air Cleaner Induction, 21 Tube, V acuum Port, 17 V alve, Breather , 7 V alve, Exhaust, 7 V alve, Float, 25 V alve, Intake, 7 V alve, Shutoff, 43 Wrapper , Air Cleaner Element, 19 Y oke, Governor Shaft, 17

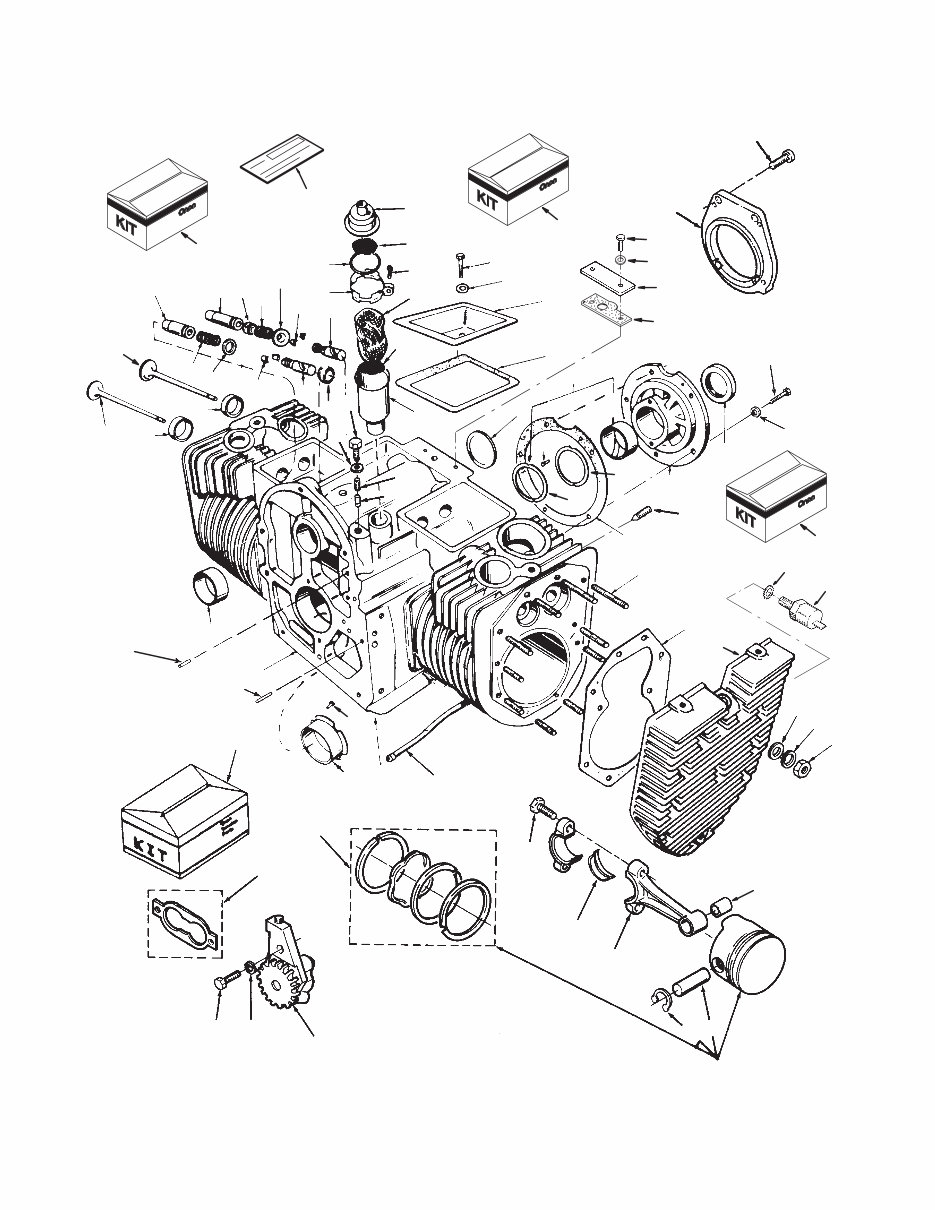

6 Cylinder Block 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 68 69 72 73 74 75 27 26 33 28 18 63 65 66 67 62 64 70 71 , 29 76 77

7 Cylinder Block REF PART QTY PART REF PART QTY PART NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION 1 1 Block, Cylinder (See Short Block Catalog #932–0109) (Includes Parts Marked *) 2 123–0954 1 Cap and V alve, Breather 3 123–0952 1 *Tube, Breather 4 123–1417 1 Filter , Breather Tube 5 Cover , V alve Compartment 110–1624–01 2 Spec B,E 110–3616–02 1 Spec C,D 110–1624–01 1 Spec C,D 6 110–3575 2 Gasket, Valve Cover 7 517–0048–01 1 * Plug, Expansion (Plated) 8 110–3604 2 Seal, Intake V alve 9 110–2987 2 Gasket, Cylinder Head 10 110–3549 2 Head, Cylinder 11 809–0035 1 Screw, Breather Clamp (#8 x 3/4”) 12 Bearing, Rear Crankshaft 101–0804 1 * Standard 101–0804–02 1.002” Undersize 101–0804–10 1.010” Undersize 101–0804–20 1.020” Undersize 101–0804–30 1.030” Undersize 13 104–0575 2 *Washer , Crankshaft Bearing Thrust 14 101–0809 1 * Gasket, Bearing Plate 15 Plate, Rear Bearing 101–0439–01 1 * Code 1 1AH,11AW 101–0430–01 1 SAE–B – Code 1 1AR 101–0437–01 1 SAE–A – Code 1 1AP 101–0793–02 1 Begin Spec E 16 101–0405 2 * Bearing, Camshaft 17 509–0041 1 Seal, Crankshaft Oil (Rear) 18 516–0072 4 * Pin, Bearing Stop 19 800–0051–01 5 Screw, Cap – Hex Head (3/8–16 x 1–1/4”) Loctite Patch 20 526–0063 2 Washer , Flat – Copper (1/4” Screw) 21 120–0680 1 *Tube, Crankcase Oil 22 V alve, Intake 110–3569 2 Spec B,C 110–1718 2 Begin Spec E 23 Valve, Exhaust 110–3570 2 Spec B,C 110–1719 2 Begin Spec E 24 Insert, V alve Seat – Exhaust 110–1716 2 * Standard 110–1716–02 2 .002” Oversize 110–1716–05 2 .005” Oversize 110–1716–10 2 .010” Oversize 110–1716–25 2 .025” Oversize 110–3655–25 2 .025” Oversize 25 Insert, V alve Seat – Intake (Zinc Plated) 110–3655 2 * Standard 110–3655–02 2 .002” Oversize 110–3655–05 2 .005” Oversize 110–3655–10 2 .010” Oversize 26 * Guide, V alve 110–3167 2 Exhaust 110–3168 2 Intake 27 110–0539 4 Spring, V alve 28 Lock, V alve Spring 110–3572 8 Spec B,C 110–0639 8 Spec E 29 115–0006 4 T appet, V alve 30 Rotator , V alve 110–0904 2 Spec B,C (Intake) 110–0904 4 Begin Spec E 31 800–0011 2 Screw, Cap – Hex Head (1/4–20 x 2”) 32 123–0951 1 Clamp, Loop – Breather Tube Cap 33 123–0958 2 Screen, Breather Tube 34 509–0117 1 Seal, O–Ring – Breather Cap 35 Bearing, Half – Connecting Rod 114–0188 4 Standard 114–0188–02 4 .002” Undersize 114–0188–10 4 .010” Undersize 114–0188–20 4 .020” Undersize 114–0188–30 4 .030” Undersize 36 * Stud, Cylinder Head Mounting 520–0919 8 3/8 x 2–19/32” (Install 4 Bottom Holes – RH, LH Heads) 520–0876 4 3/8 x 2–3/4” (Install 2 T op Holes – RH, LH Heads) 520–0918 8 3/8 x 3” (Install 4 Middle Holes – RH, LH Heads) 37 Bearing, Sleeve – Flanged 101–0805 1 * Standard 101–0805–02 1 .002” Undersize 101–0805–10 1 .010” Undersize 101–0805–20 1 .020” Undersize 101–0805–30 1 .030” Undersize 38 104–0776 AR *Shim, Crankshaft Thrust (.005”) 39 516–0141 2 *Pin, Gearcase Alignment 40 104–0091 20 Nut, Hex (Special) 41 114–0036 2 Bushing, Piston Pin 42 526–0402 5 Washer , Flat (3/8”) 43 110–3571 2 Cap, V alve – Exhaust (Spec B and C only) 44 526–0250 20 Washer , Flat – Heat Treated (3/8” Screw) 45 851–0029 24 Washer, Compression (Special) 46 517–0067 1 Plug, Core Hole 47 Kit, Gasket 168–0190 1 Cylinder Head Removal 168–0191 1 Complete Engine 48 110–0893 2 Washer, Exhaust V alve Spring Retainer (Spec B and C only) 49 800–0007 2 Screw, Cap – Hex Head (1/4–20 x 1”)

8 Cylinder Block 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 68 69 72 73 74 75 27 26 33 28 18 63 65 66 67 62 64 70 71 , 29
