MAN Main Engine 5S70MC - 2 - Maintenance Manual

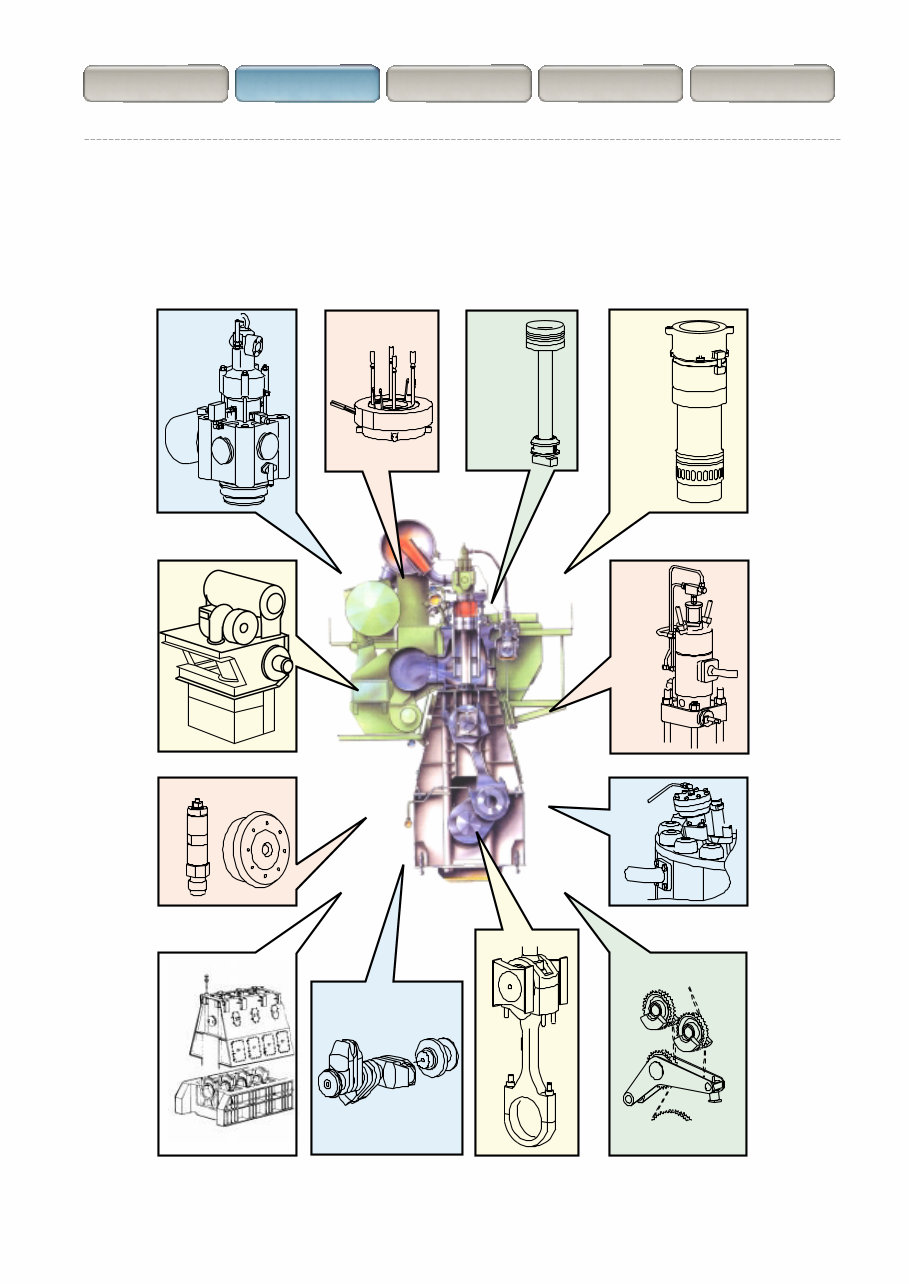

Index for Maintenance Manual (Volume II) Operation Maintenance Components Description Accessory 1 Accessory 2 908 901 902 903 910 909 911 907 906 904 905 912 913

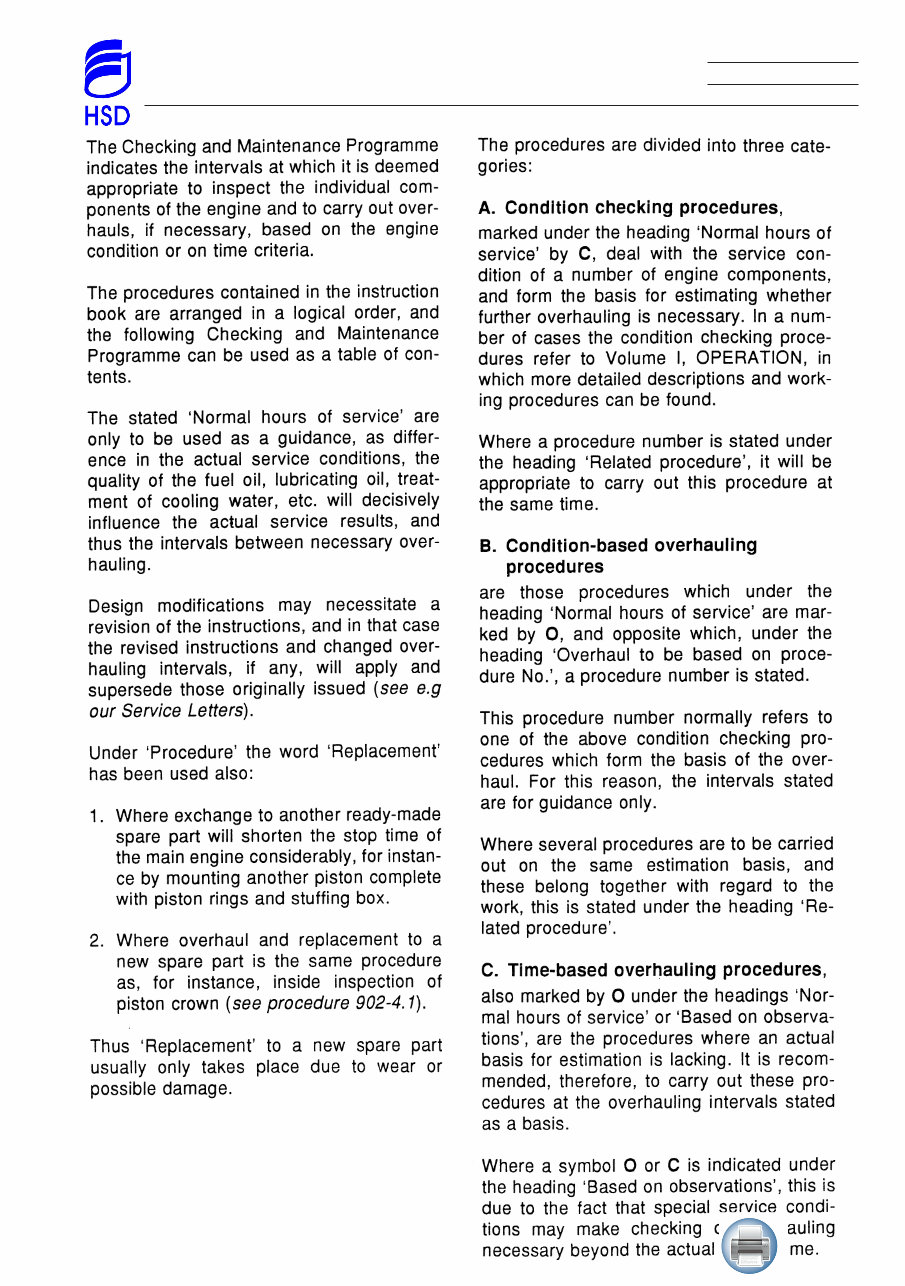

This book forms part of a set of books consisting of three volumes entitled: Vol. I OPERATION Vol. II MAINTENANCE Vol. III COMPONENTS, DESCRIPTIONS The purpose of these books is to provide general guidance on operation and maintenance and to describe the constructional features of a standard version of an HSD ENGINE Co., Ltd. main diesel engine. Deviations may be found in a specific plant. In addition, the books can be used for ref- erence purposes, for instance in correspondence and when ordering spare parts. It is essential that the following data is stated in spare parts orders as it is used by us to ensure the supply of the correct parts for the individual engines: 1. Name of vessel 2. Engine No. built by 3. Plate No. 4. Part No. 5. Quantity required (and description) Example: M/S Nybo – 7730 B&W – P90201-0036 – 059 10 off (piston ring) Furthermore, to ensure optimum efficiency, reliability and lifetime of the engine and its components, only original spare parts should be used. The designation “D” used in texts and illustrations refers to the information given on the data sheets inserted in the respective books. As reliable and economical operation of the diesel engines is conditional on the correct operation and maintenance, it is essential that the engine room personnel are fully acquainted with the contents of this book. This book is subject to copyright protection. The book must not, either wholly or partly, be cop- ied, reproduced, made public or in any other way made available to a third party without the written consent of this effect from MAN B&W Diesel A/S. HSD ENGINE Co., Ltd. 69-3, Sinchon-dong, Technical Service : +82 55 260 6181 Changwon-City Parts Sales : +82 55 260 6374 Kyungnam, Korea Telefax : +82 55 260 6772/3 Instructions for Main Engine Type S70MC

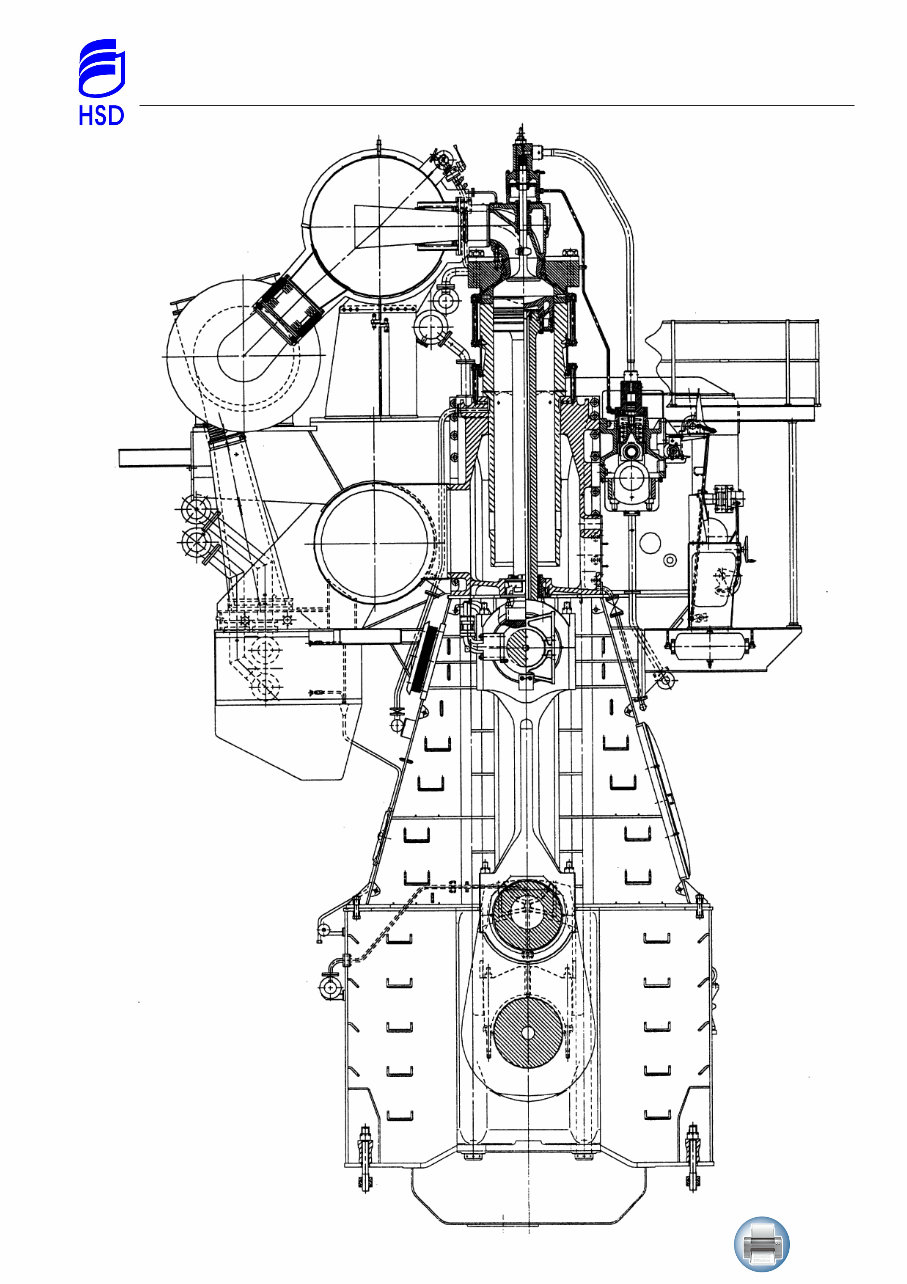

Plate 90001-43 Cross Section through Engine

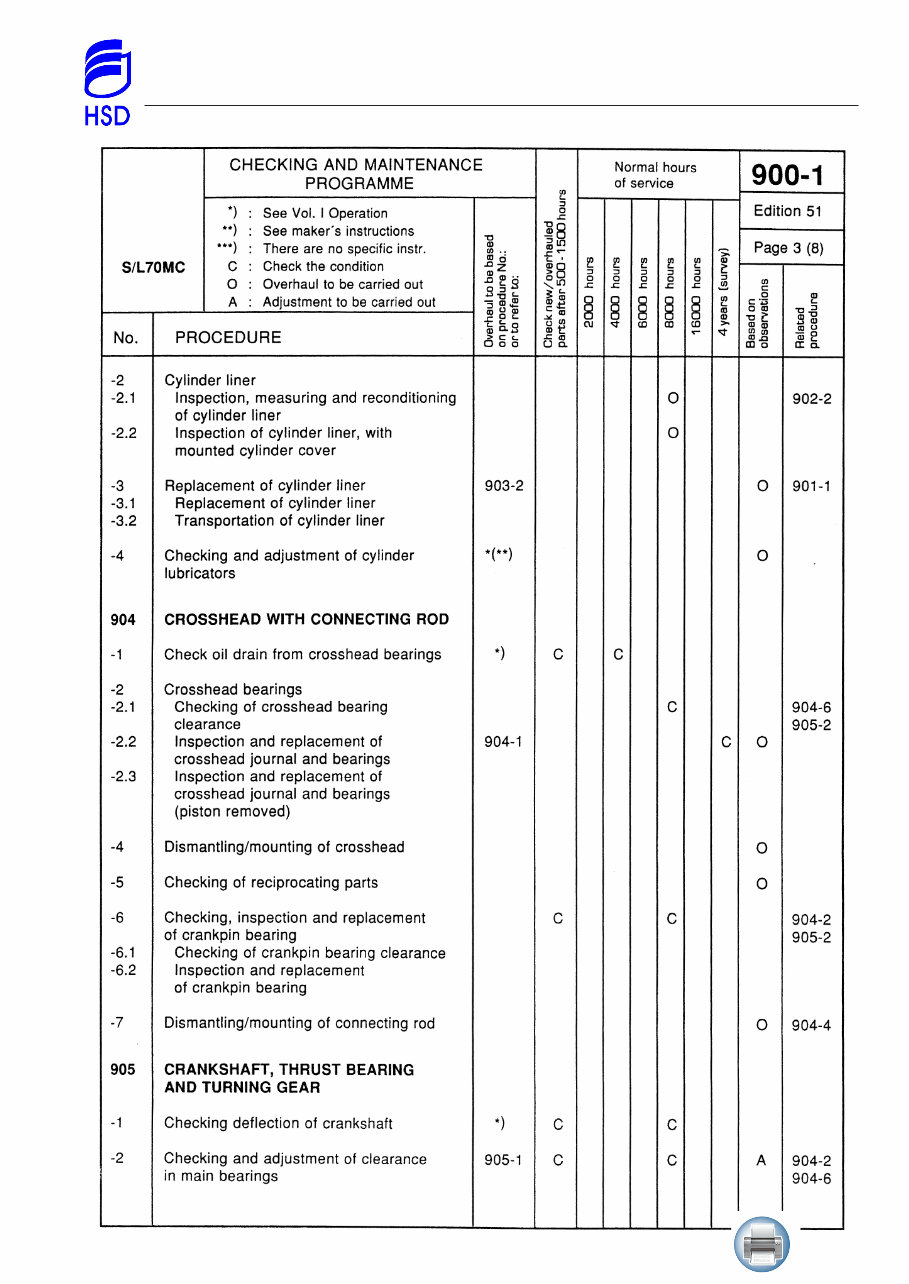

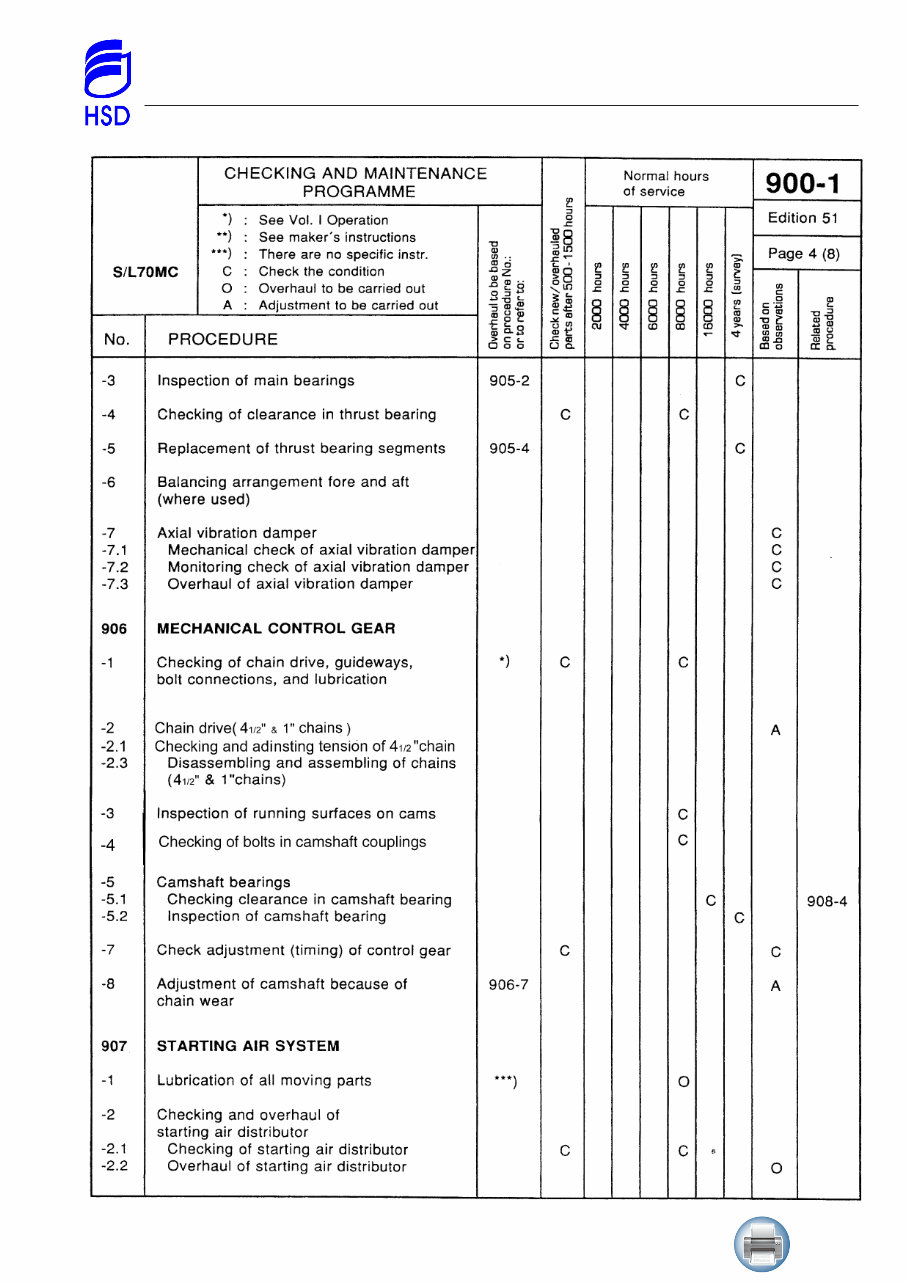

Plate 900-1 Edition 51 Page 1 (8) Checking and maintenance Programme and list of working procedures

MAN Main Engine 5S70MC - 2 - Maintenance Manual
