www.hyundai-engine.com
HiMSEN Dual Fuel Engine
Hi -touch M arine & S tationary EN gine
H35DF( V)
copyright â“’ 2014 Hyundai Heavy Industries
www.hhi.co.kr
www.hyundai-engine.com
A02-137-02 SEP. 2014
Contents subject to change without prior notice.
1000, Bangeojinsunhwan-doro,
Dong-gu, Ulsan, South Korea
Marine Engine & Machinery Sales Dep’t (Domestic)
Tel : +82-52-202-7291 ~ 9
E-mail : k110@hhi.co.kr
Marine Engine & Machinery Sales Dep’t (International)
Tel : +82-52-202-7281 ~ 9
E-mail : k150@hhi.co.kr
Engine Power Plant Dep’t
Tel : +82-52-202-7302, 7303
E-mail : k120hhi@hhi.co.kr
HHI-EMD
Korean-English 24/7 Call Center
+1-212-845-9803
Anytime, Anywhere, Any matters
Easy and convenient access!
(Korean-speaking agent is available
during Korean business hours)
â– Specific Lubricating Oil Consumption: 0.5 g/kWh
(Tolerance: +25% depending on the operating conditions and 100% load)

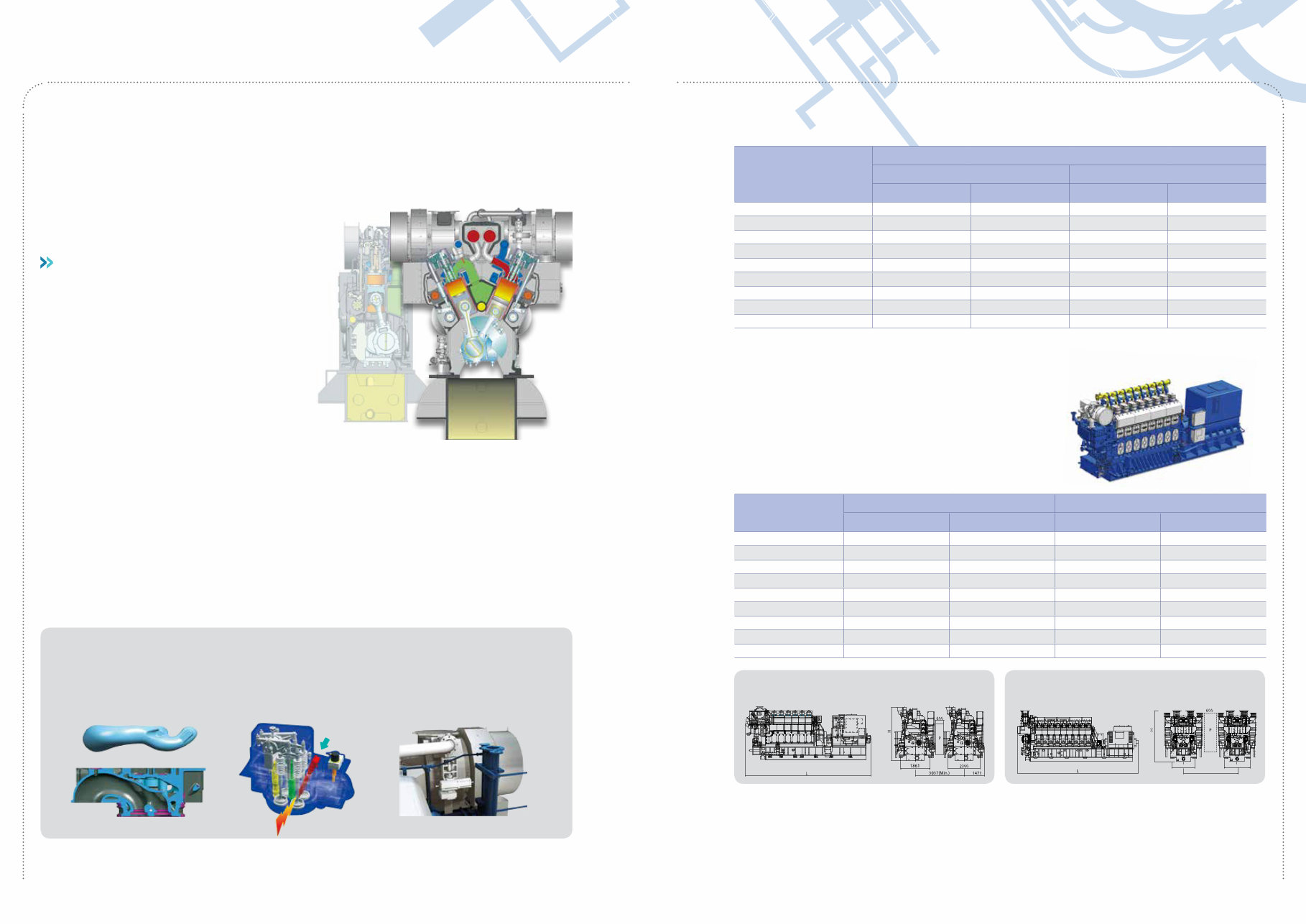

Engine Type
Dimension (mm) Dry Weight (ton)
L H Engine Gen-Set
6H35DF 8,890 4,367 34.7 69.6
7H35DF 9,486 4,538 39.6 78.1
8H35DF 10,196 4,538 42.5 83.0
9H35DF 11,189 4,538 45.6 90.1
12H35DFV 10,384 4,723 58.0 110.8
14H35DFV 11,155 4,723 65.3 123.3
16H35DFV 11,393 4,723 71.1 132.9
18H35DFV 12,444 4,794 78.3 143.2
20H35DFV 13,003 4,794 86.0 155.9
â– Dimensions & Weights
â– Rated Power of Gen-Set at 100% Load
Engine Type
Rated Output (kW)
720 rpm / 60 Hz 750 rpm / 50 Hz
Engine Generator Engine Generator
6H35DF 2,880 2,779 2,880 2,779
7H35DF 3,360 3,242 3,360 3,242
8H35DF 3,840 3,706 3,840 3,706
9H35DF 4,320 4,169 4,320 4,169
12H35DFV 5,760 5,558 5,760 5,558
14H35DFV 6,720 6,485 6,720 6,485
16H35DFV 7,680 7,411 7,680 7,411
18H35DFV 8,640 8,338 8,640 8,338
20H35DFV 9,600 9,264 9,600 9,264
Remarks
• The alternator outputs are calculated for an efficiency of 96.5%.
L - Type V - Type
H35DF
HiMSEN Family
. . .
Earth Friendly Engine
MicroPilot System
- High pressure injection
- Controllable fuel quantity
AFR Control
- Quick response for operation
- Efficiency, NOx control
Cylinder Head
- Optimized port design
- High mixture flow
Major Advantages : Smart Electronic Engine Control System with Excellent Reliability
Design Philosophy
H35DF of HiMSEN Family has simple and smart
design which is suitable for marine & stationary power
generation application with gas diesel fuel with high
reliability and performance. The key features are:
Economical and Ecological Engine with higher
efficiency and lower emission, etc., which is based on
the following specific designs;
- Optimized turbocharging with enhanced Miller Cycle.
-
Reliable and Practical Engine
- Number of engine components is minimized for
customer preference.
- Most of the components are directly accessible for
easier maintenance.
No. of Cylinder In-line type 6, 7, 8, 9
No. of Cylinder V-type 12, 14, 16, 18, 20
Rated Speed 720 / 750 rpm
Power per Cylinder 480 kW
Cylinder Bore 350 mm
Piston Stroke 400 mm
Mean Piston Speed 9.6 / 10.0 m/s
Mean Effective Pressure 20.8 / 20.0 bar
Compression Ratio 12.5 : 1
2256 2650
4405(Min.)
Lowest NOx emission satisfied with Tierâ…¡(Diesel
mode) and Tier â…¢(Gas mode) without after-treatment
device.
MP injector
Remarks
• All dimensions and weight are approximate value and subject to change without prior notice.
• Free passage way, P, between engines, width 600 mm and height 2,000 mm.
3
2
