Ford 6.8L WSG-1068 V10 Master Parts Catalog
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
1
INSTRUCTIONS
READ CAREFULLY BEFORE USING THIS MANUAL
This manual was developed to assist Engine Distributors Inc customers in assembling
and servicing the WSG-1068 Engine and Production Groups. It is designed to allow
these customers an easy step-by-step procedure in completing their assembly task.
This manual is designed to be an assembly and service parts manual.
Assure this manual is made available to your assembly and parts personnel.
The illustrations contained in this manual are typical and are intended for service and
installation of Ford supplied base engine and Phase II assembly groups only.
The engineering group worksheet information has been incorporated with the
illustration.
Components are identified in the illustration using the service base part number.
Parts contained as well as assembly sequences for a particular group are listed in the
corresponding chart.
Observe and employ all critical torque specifications, notes and references.
Note: The descriptions and specifications contained in this manual were in
effect at the time the book was released for printing. Ford Motor Company
reserves the right to discontinue models at any time, or change specifications
or design, without notice and without incurring obligation.
Reproduction in any manner, in whole or in part, is prohibited.
Engine Distributors Inc.
400 University Court
Blackwood, NJ 08012
2
INDEX
PAGE
INSTRUCTIONS ......................................................................................................... 1

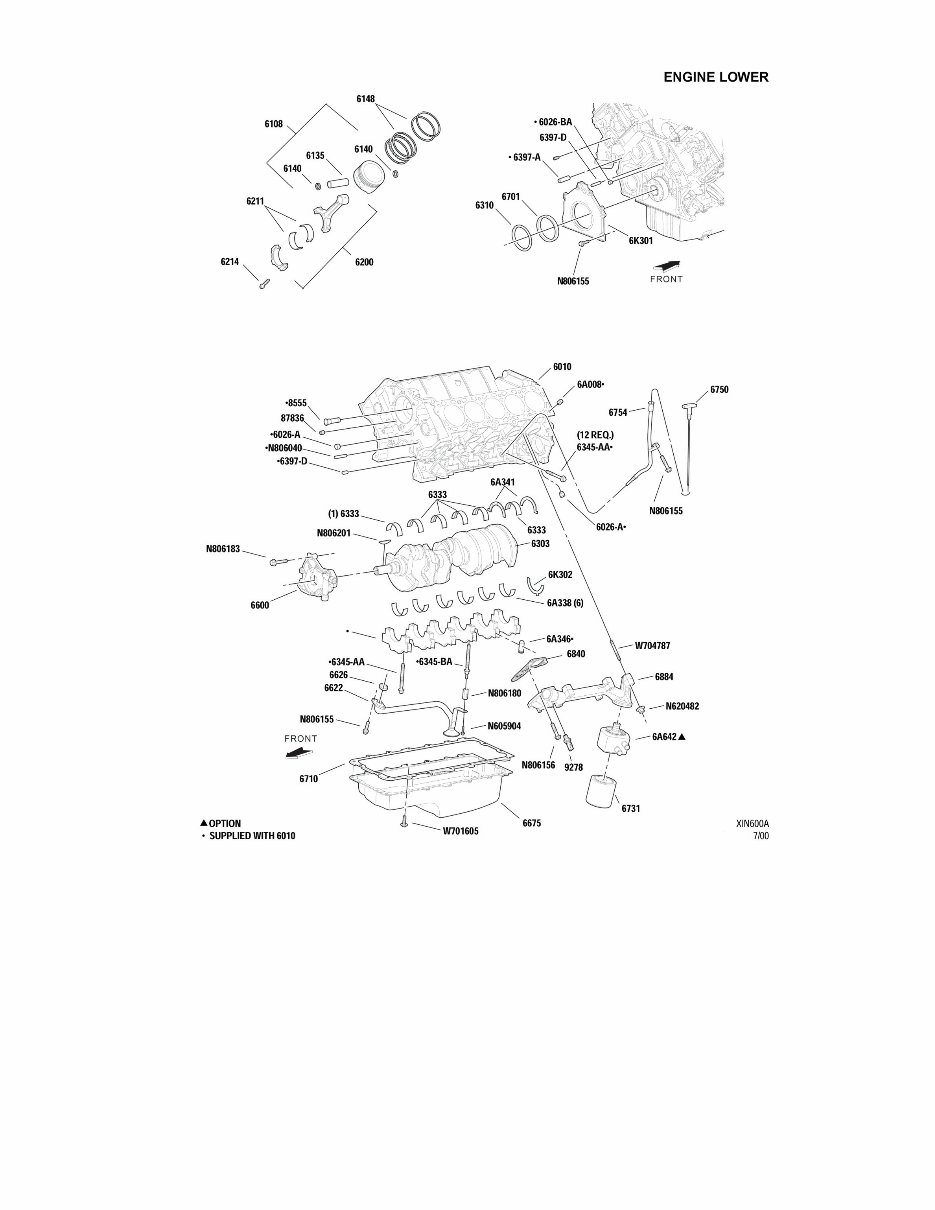

Engine Lower ...................................................................................................................... 3

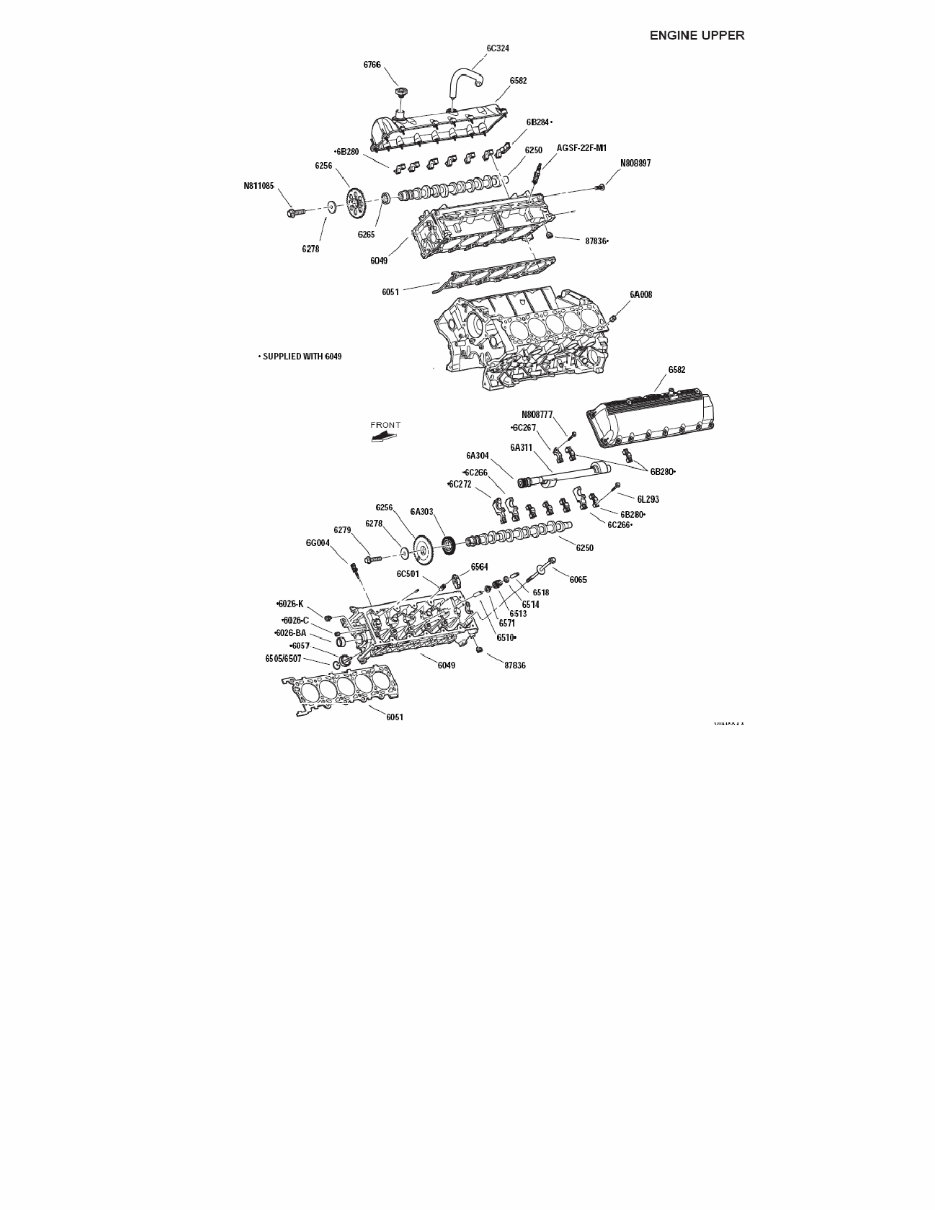

Engine Upper ...................................................................................................................... 7
Engine Front...................................................................................................................... 11
Cooling System ................................................................................................................. 13
Intake & Ignition System.................................................................................................... 15
Exhaust Components & Lifting Eyes ............................................................................ 17
Flywheel & Housing ......................................................................................................... 21
Starter Motor ..................................................................................................................... 25
Front End Accessory Drive ................................................................................................ 27
Alternator .......................................................................................................................... 29
GCP (ECU) & Harness ...................................................................................................... 31
Mixer, DEPR, and Vapor Regulator ................................................................................... 33
Governor & Intake Adapters .............................................................................................. 35
Lockoff Values .................................................................................................................. 36
Catalyst Muffler and Oxygen Sensors ............................................................................... 37
Fuel Pump, Fuel Block, and Lines ..................................................................................... 38
Fuel Rail and Injectors ....................................................................................................... 39
Radiator and Bell Housing ................................................................................................. 41
Coolant Bypass Components ............................................................................................ 43
Torque Specifications ....................................................................................................... 46

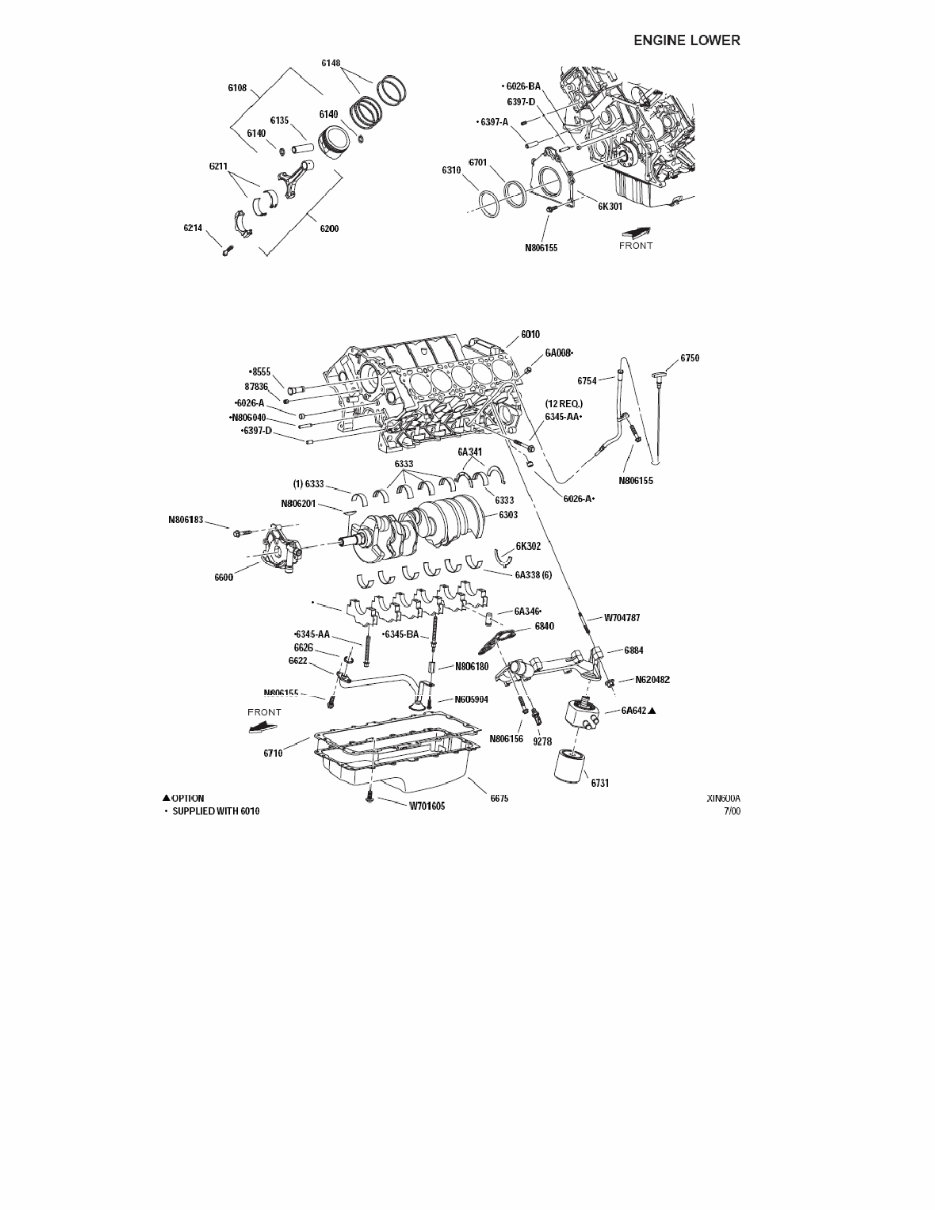

3

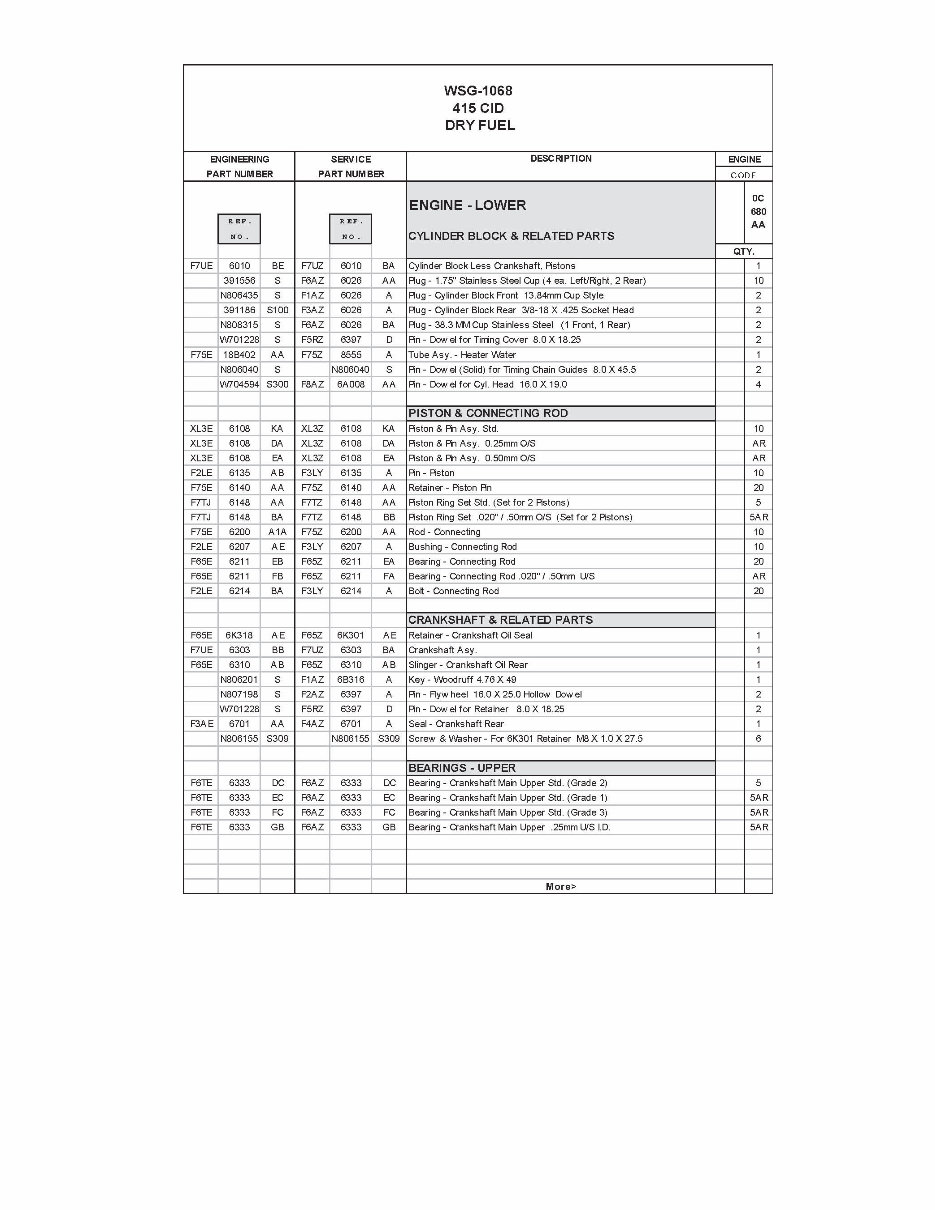

4
WSG-1068 Catalog
5
WSG-1068 Catalog
6

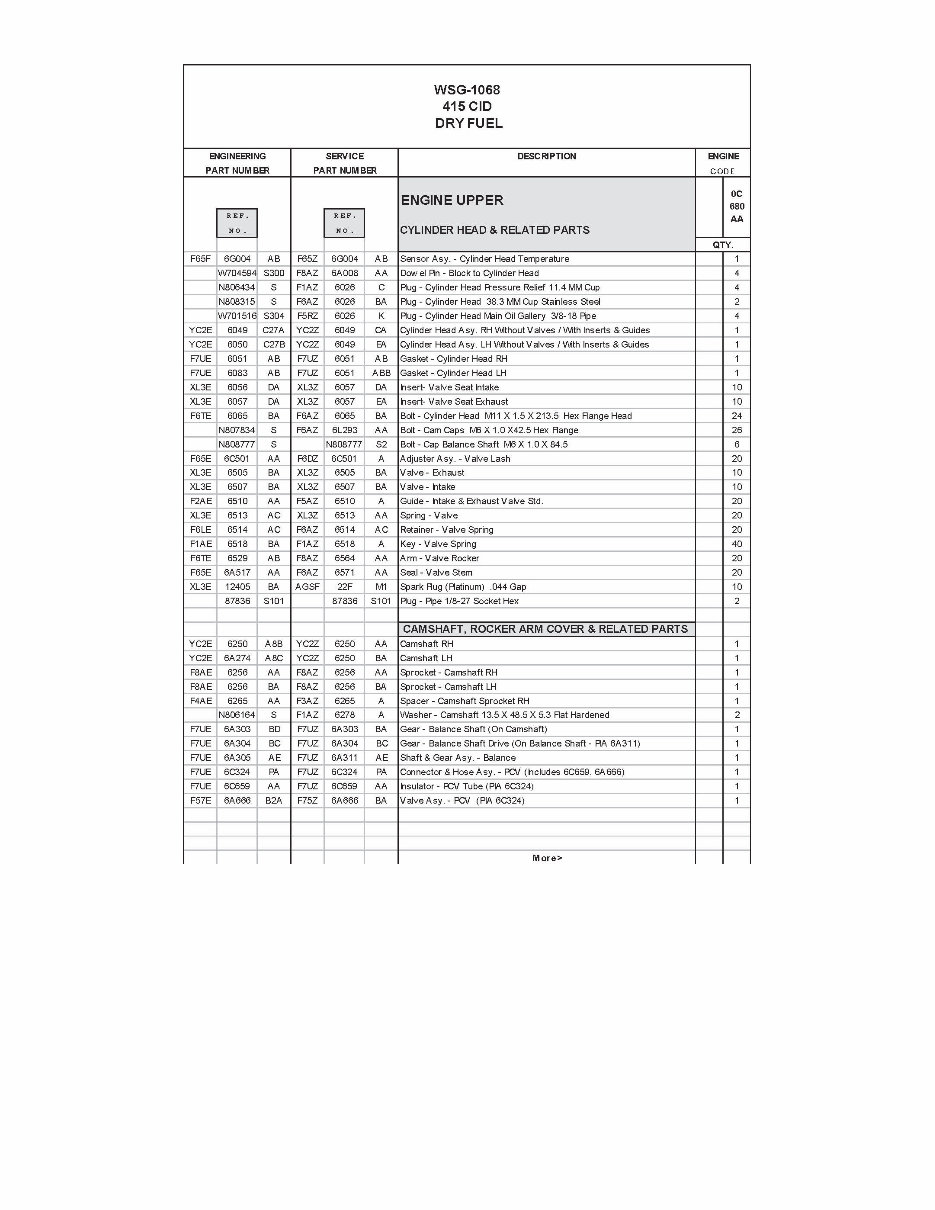

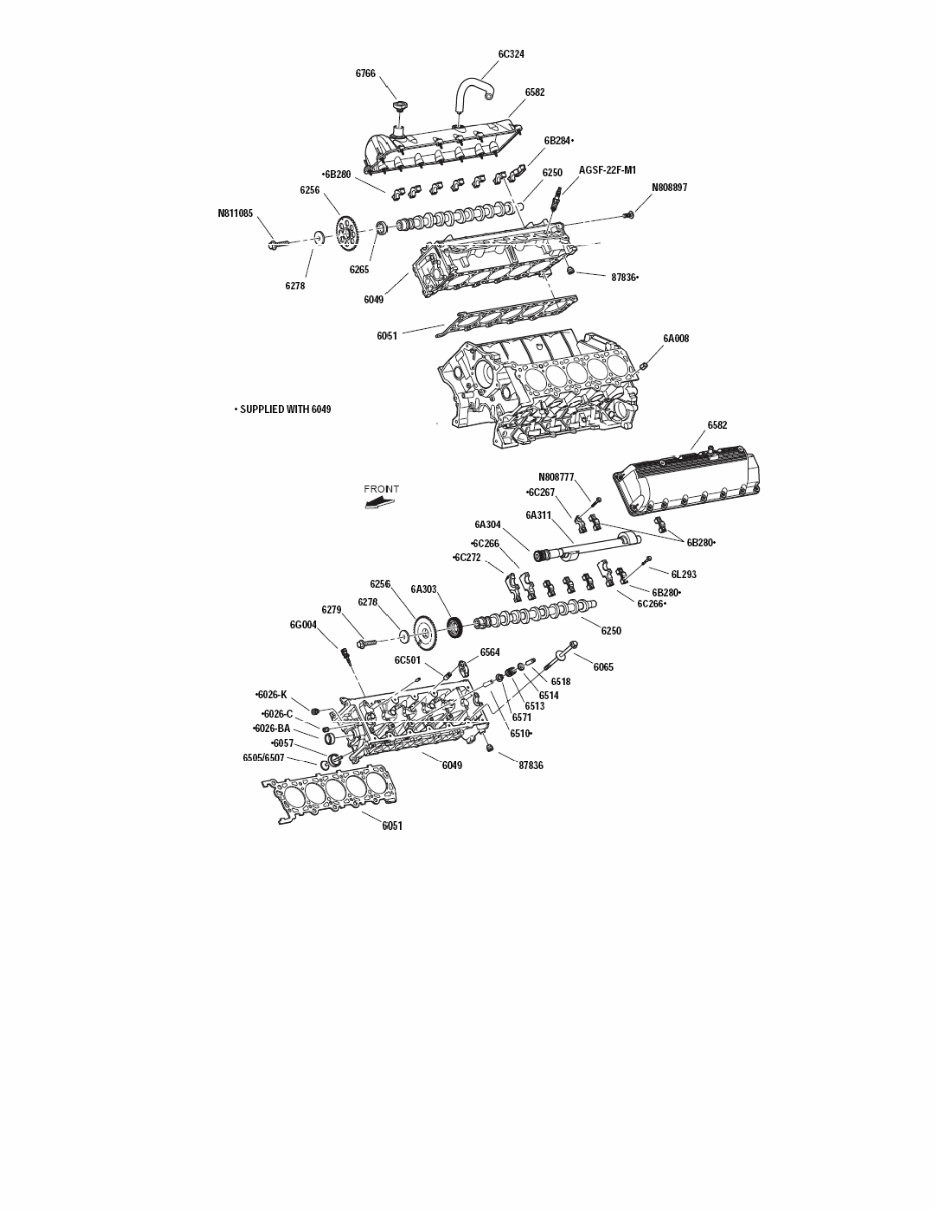

7
8
WSG-1068 Catalog

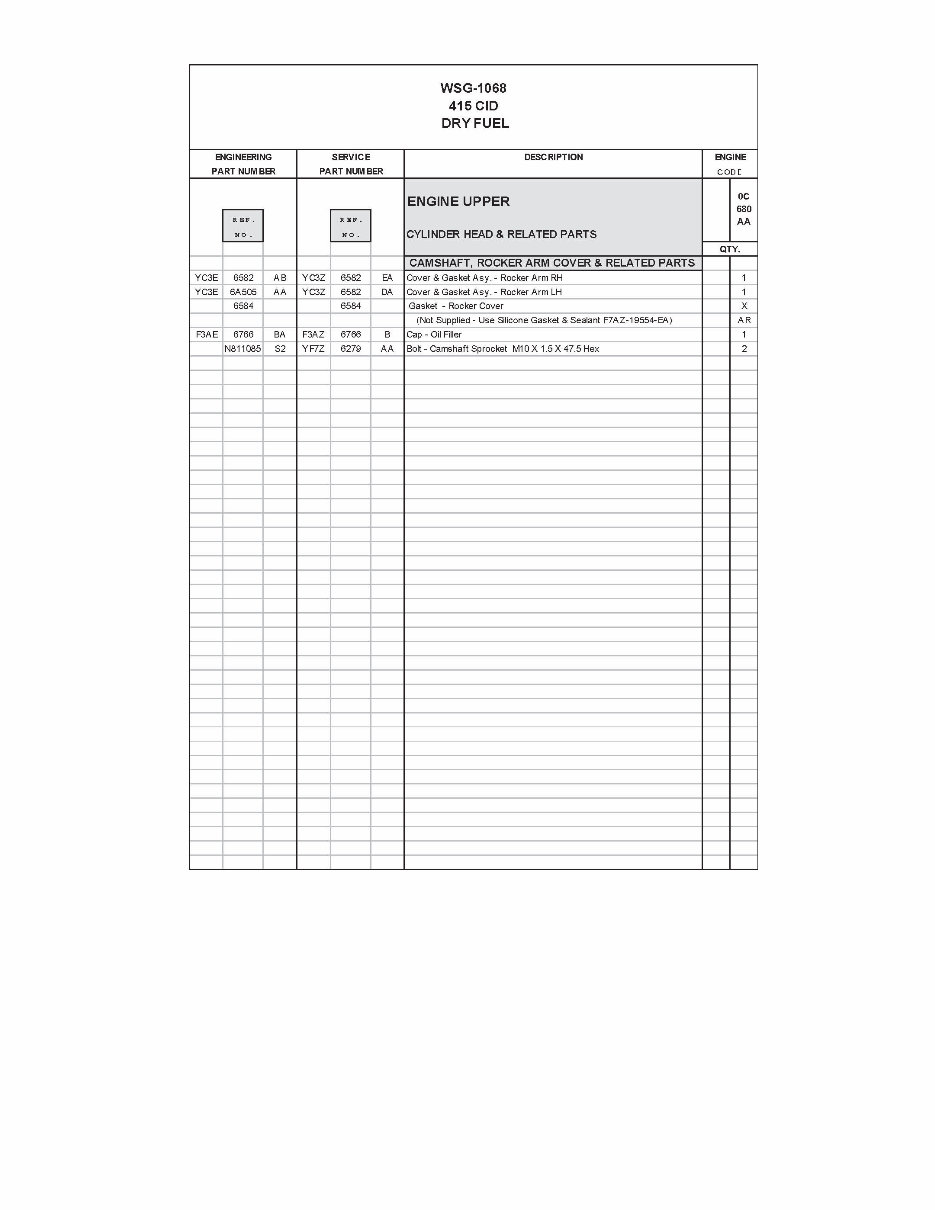

9
10
WSG-1068 Catalog
