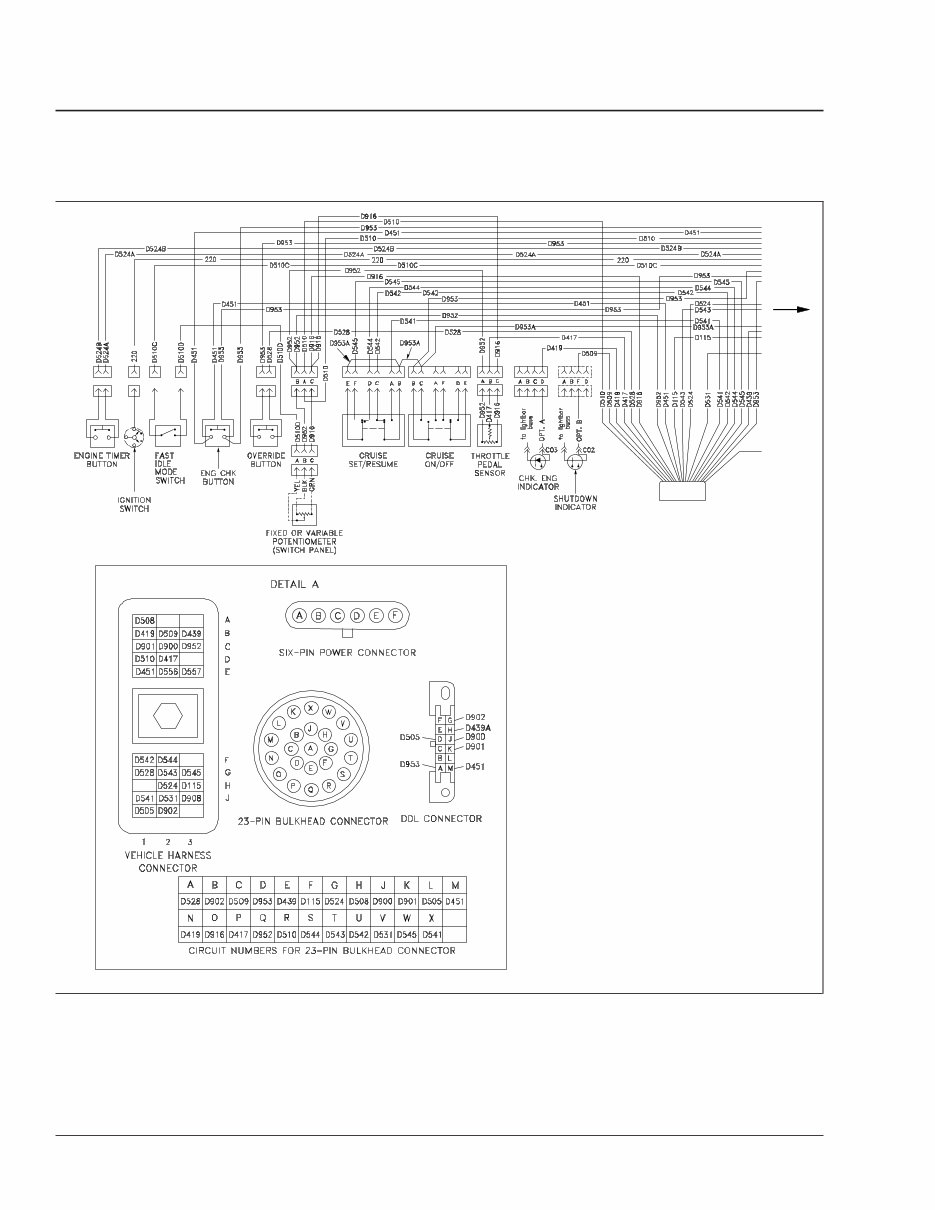

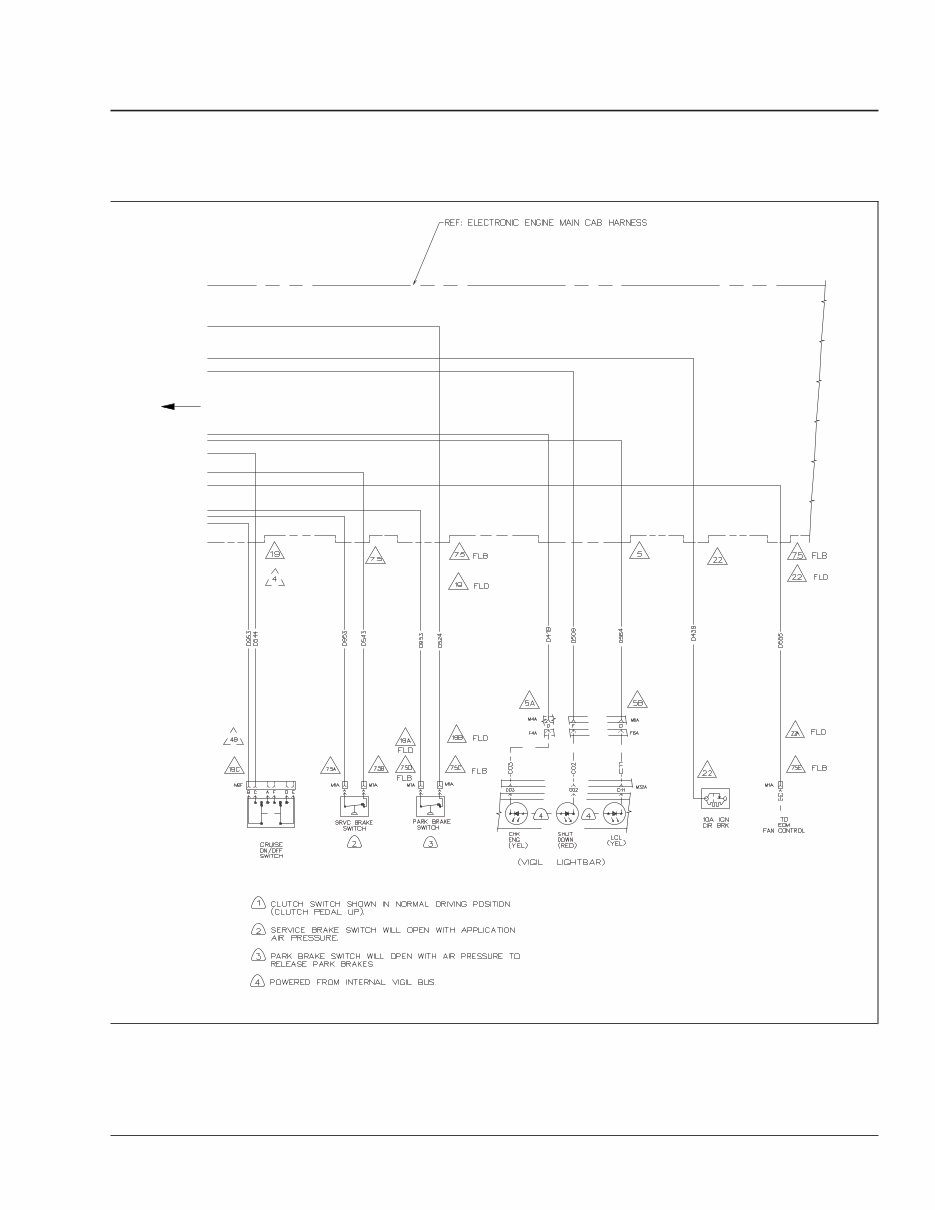

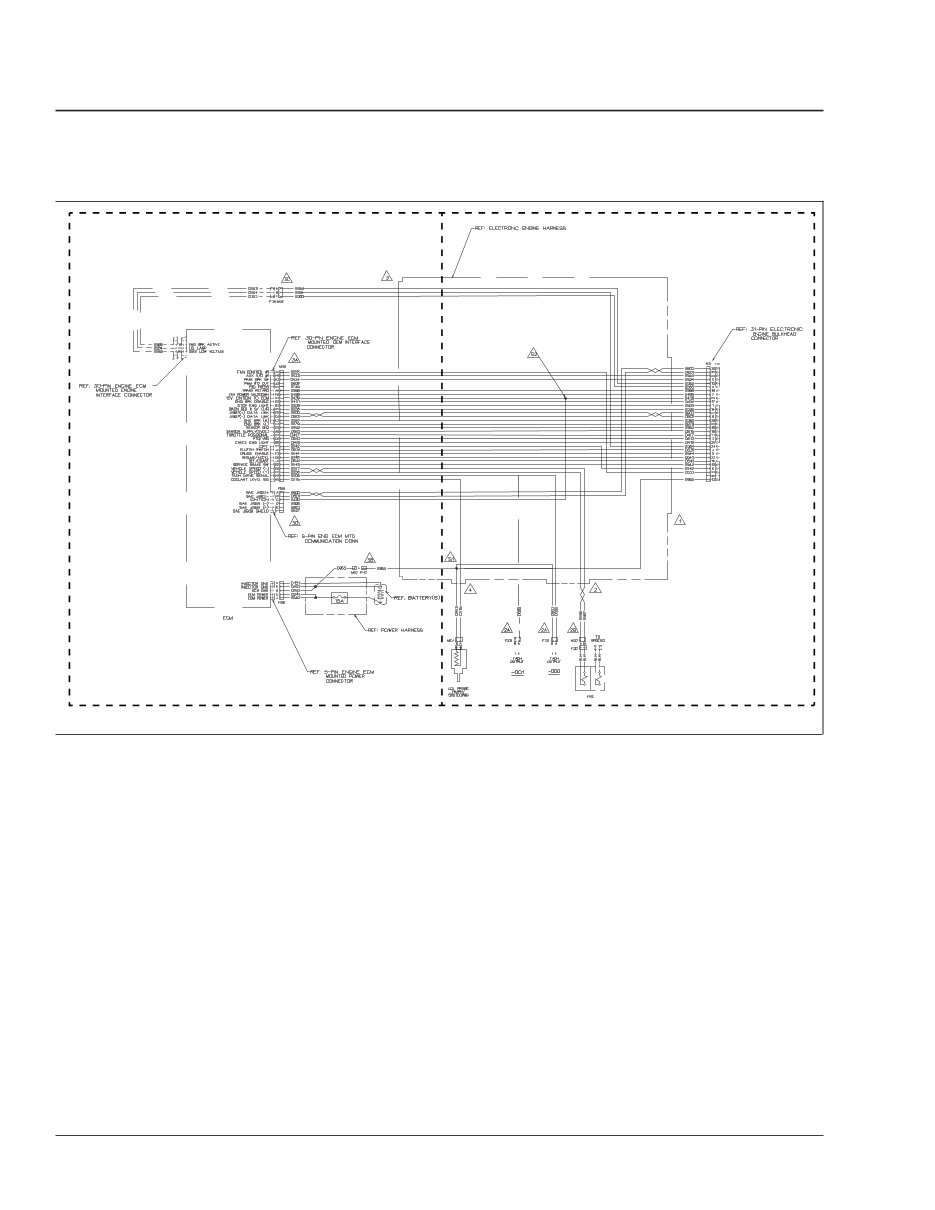

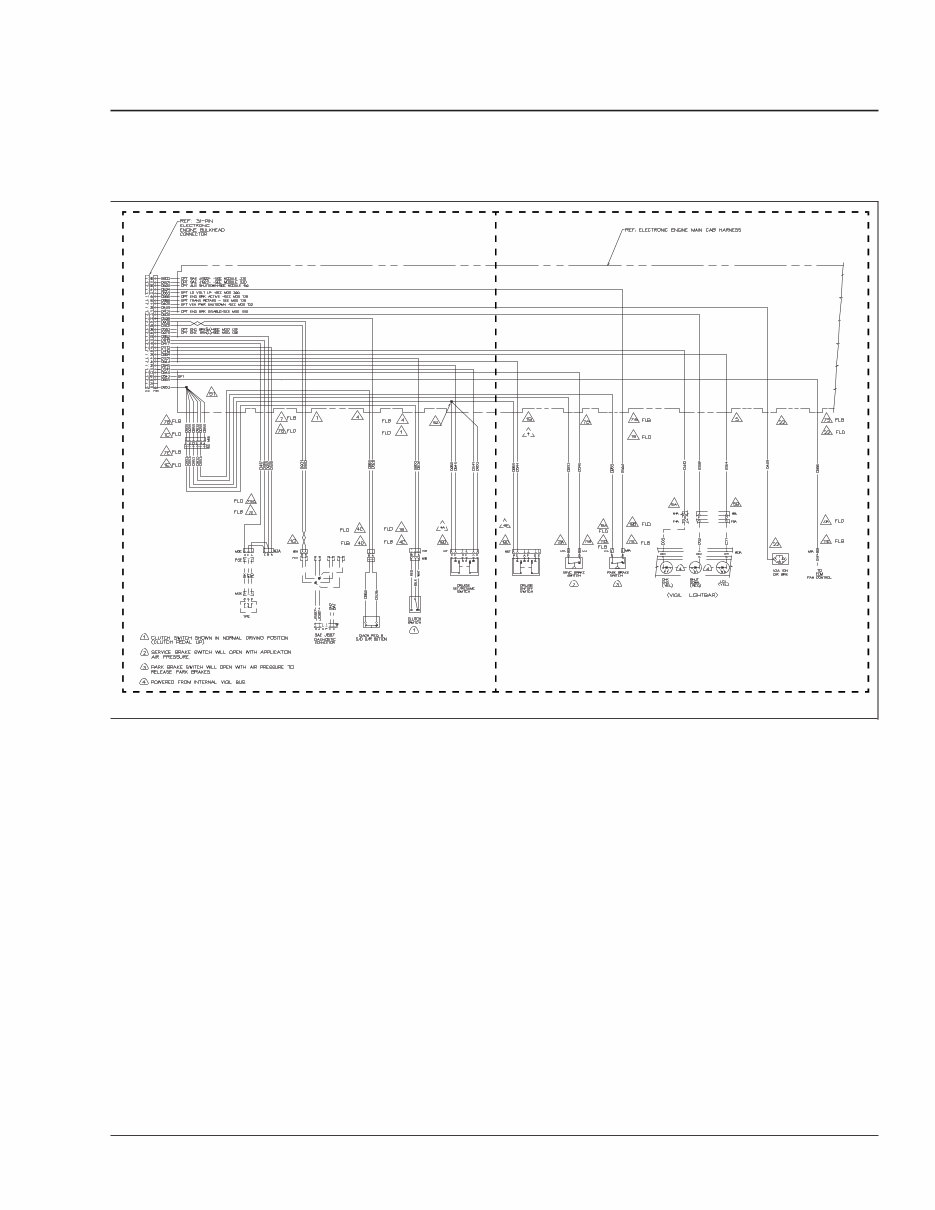

See Fig. 1 for a full view of the Detroit Diesel Elec- tronic Controls (DDEC) II wiring diagram. See Fig. 2 and Fig. 3 for partial (detailed) views of the full view of the DDEC II wiring diagram. See Fig. 4 for a full view of the DDEC III wiring diagram (the engine side). See Fig. 5 and Fig. 6 for partial (detailed) views of the full view of the DDEC III wiring diagram (the engine side). See Fig. 7 for a full view of the DDEC III wiring diagram (the cab side). See Fig. 8 and Fig. 9 for partial (detailed) views of the full view of the DDEC III wiring diagram (the cab side). See Fig. 10 for a full view of the Electronic Data Monitor (EDM) wiring diagram. See Fig. 11 and Fig. 12 for partial (detailed) views of the full view of the EDM wiring diagram. See Fig. 13 for the Jake brake as used with DDEC III wiring diagram. 03/03/2000 f540732 Fig. 3 Fig. 2 WATER LEVEL PROBE NOTE: Connector end views are shown from the cable insertion end. Fig. 1, DDEC II Wiring Diagram Detroit Diesel Electronic Controls (DDEC ® ) Wiring 54.17 Specifications Heavy-Duty Trucks Service Manual, Supplement 23, December 1999 400/1

02/09/94 f540680 NOTE: Connector end views are shown from the cable insertion end. Fig. 3 Fig. 2, DDEC II Wiring Diagram (enlarged portion of Figure 1) Detroit Diesel Electronic Controls (DDEC ® ) Wiring 54.17 Specifications Heavy-Duty Trucks Service Manual, Supplement 23, December 1999 400/2

10/09/98 f540679 WATER LEVEL PROBE Fig. 2 Fig. 3, DDEC II Wiring Diagram (enlarged portion of Figure 1) Detroit Diesel Electronic Controls (DDEC ® ) Wiring 54.17 Specifications Heavy-Duty Trucks Service Manual, Supplement 23, December 1999 400/3

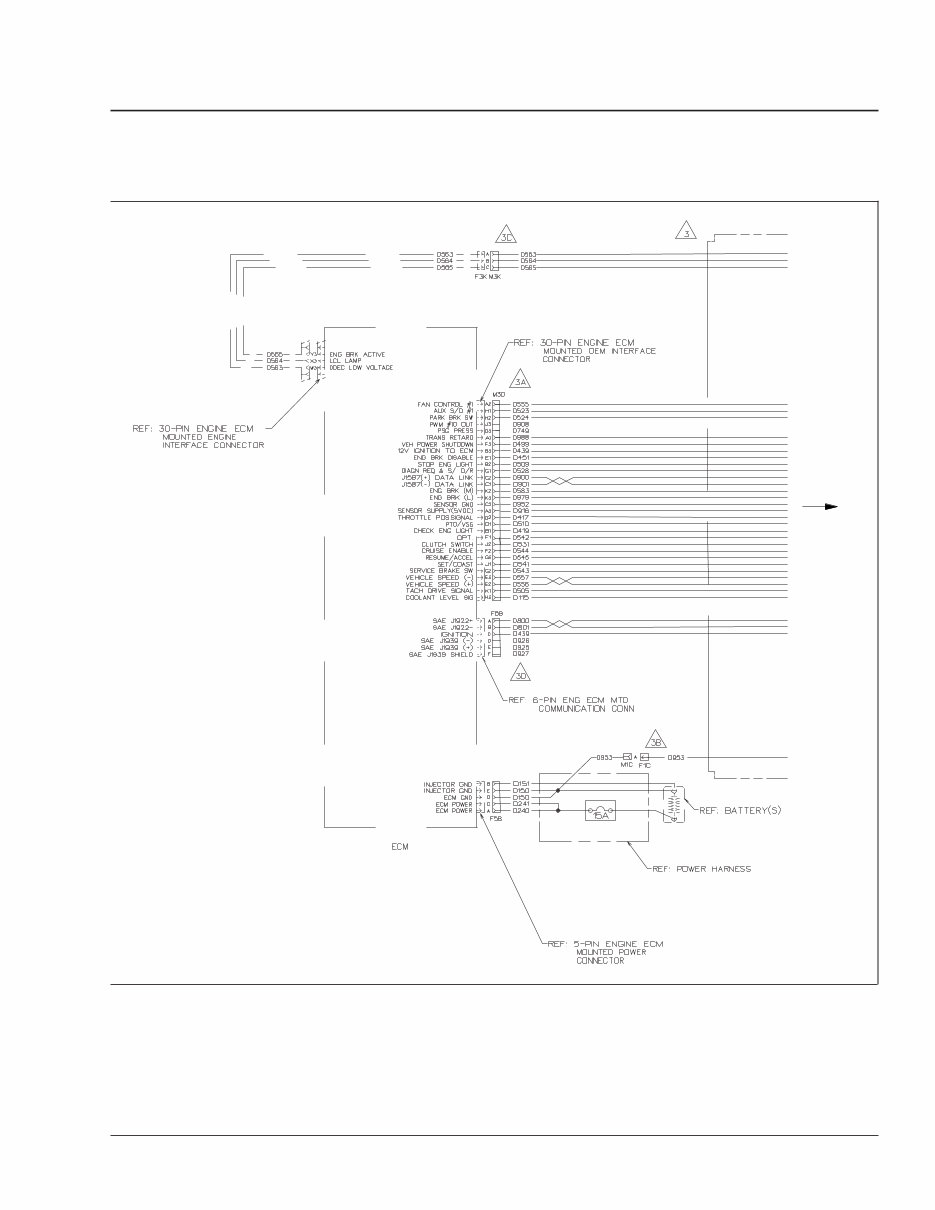

02/16/94 f540720 Fig. 5 Fig. 6 Reference Diagram: D06-21255 Chg. Ltr. C Fig. 4, Detroit Diesel Series 50 and 60 Engines With DDEC III Wiring Diagram (engine-harness side) Detroit Diesel Electronic Controls (DDEC ® ) Wiring 54.17 Specifications Heavy-Duty Trucks Service Manual, Supplement 23, December 1999 400/4

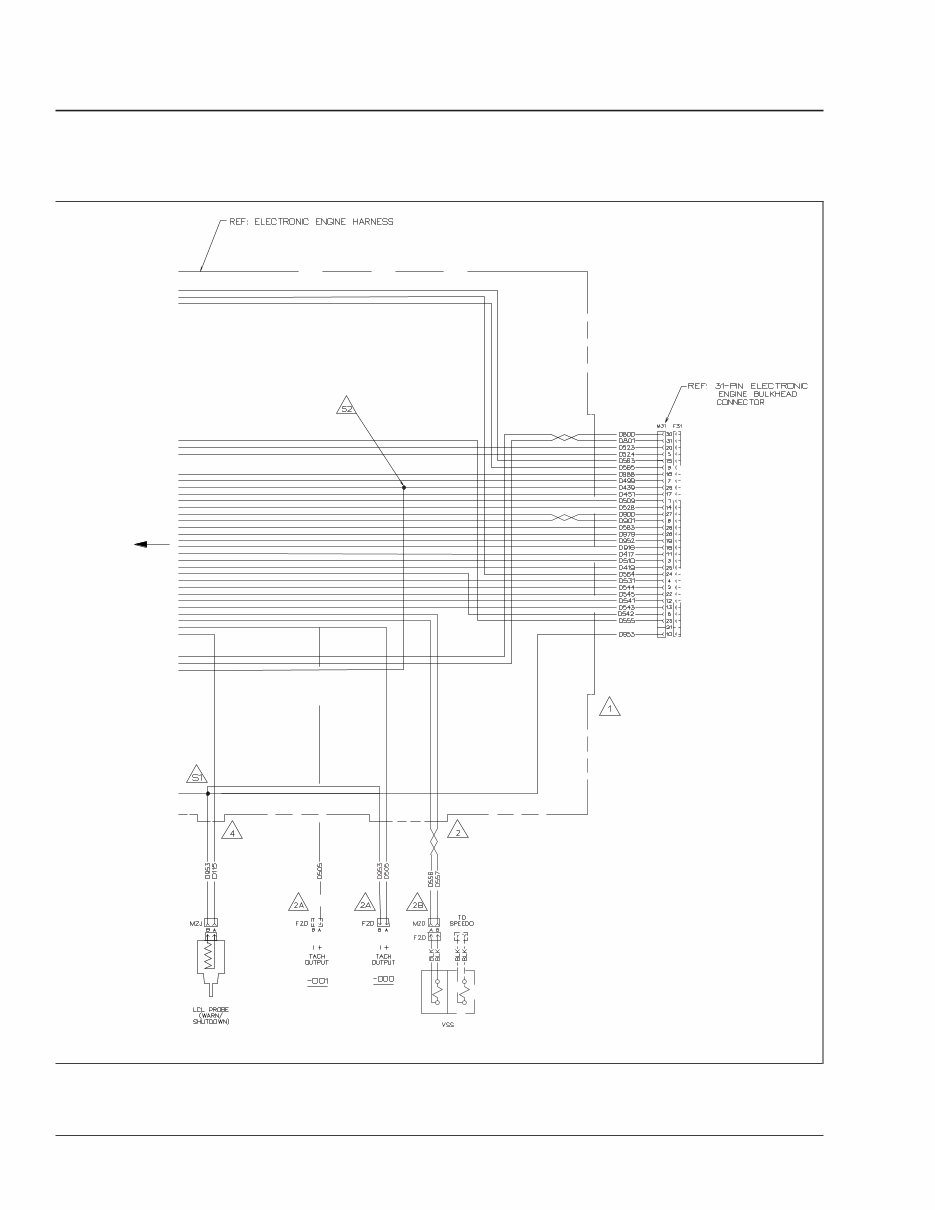

02/16/94 f540721 Fig. 6 Fig. 5, Detroit Diesel Series 50 and 60 Engines With DDEC III Wiring Diagram (enlarged portion of Figure 4) Detroit Diesel Electronic Controls (DDEC ® ) Wiring 54.17 Specifications Heavy-Duty Trucks Service Manual, Supplement 23, December 1999 400/5

02/16/94 f540722 Fig. 5 Reference Diagram: D06-21255 Chg. Ltr. C Fig. 6, Detroit Diesel Series 50 and 60 Engines With DDEC III Wiring Diagram (enlarged portion of Figure 4) Detroit Diesel Electronic Controls (DDEC ® ) Wiring 54.17 Specifications Heavy-Duty Trucks Service Manual, Supplement 23, December 1999 400/6

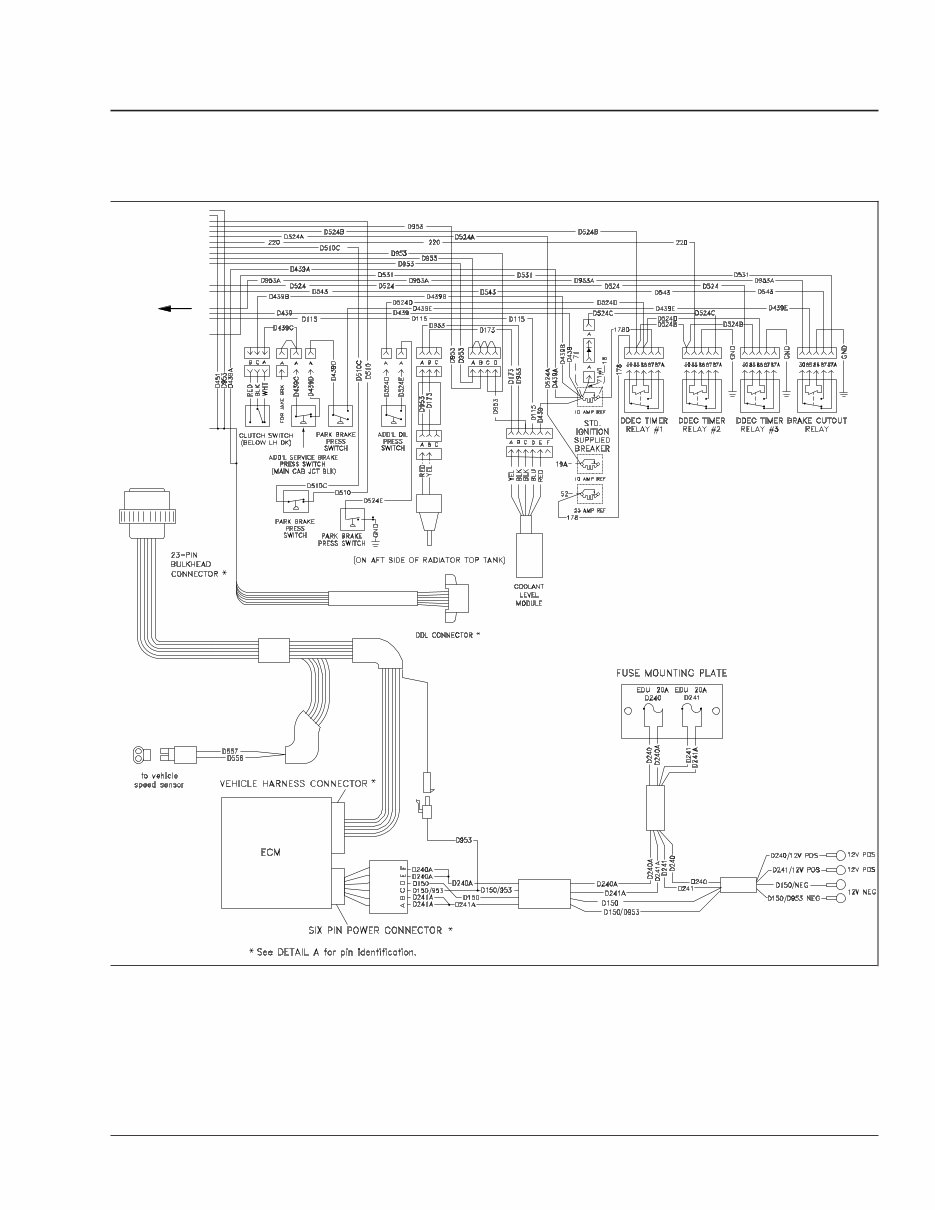

f540717 Fig. 8 Fig. 9 01/26/94 Reference Diagram: D06-21255 Chg. Ltr. C Fig. 7, Detroit Diesel Series 50 and 60 Engines With DDEC III Wiring Diagram (cab-harness side) Detroit Diesel Electronic Controls (DDEC ® ) Wiring 54.17 Specifications Heavy-Duty Trucks Service Manual, Supplement 23, December 1999 400/7

02/16/94 f540718 Fig. 9 Fig. 8, Detroit Diesel Series 50 and 60 Engines With DDEC III Wiring Diagram (enlarged portion of Figure 7) Detroit Diesel Electronic Controls (DDEC ® ) Wiring 54.17 Specifications Heavy-Duty Trucks Service Manual, Supplement 23, December 1999 400/8

02/16/94 f540719 Fig. 8 Reference Diagram: D06-21255 Chg. Ltr. C Fig. 9, Detroit Diesel Series 50 and 60 Engines With DDEC III Wiring Diagram (enlarged portion of Figure 7) Detroit Diesel Electronic Controls (DDEC ® ) Wiring 54.17 Specifications Heavy-Duty Trucks Service Manual, Supplement 23, December 1999 400/9

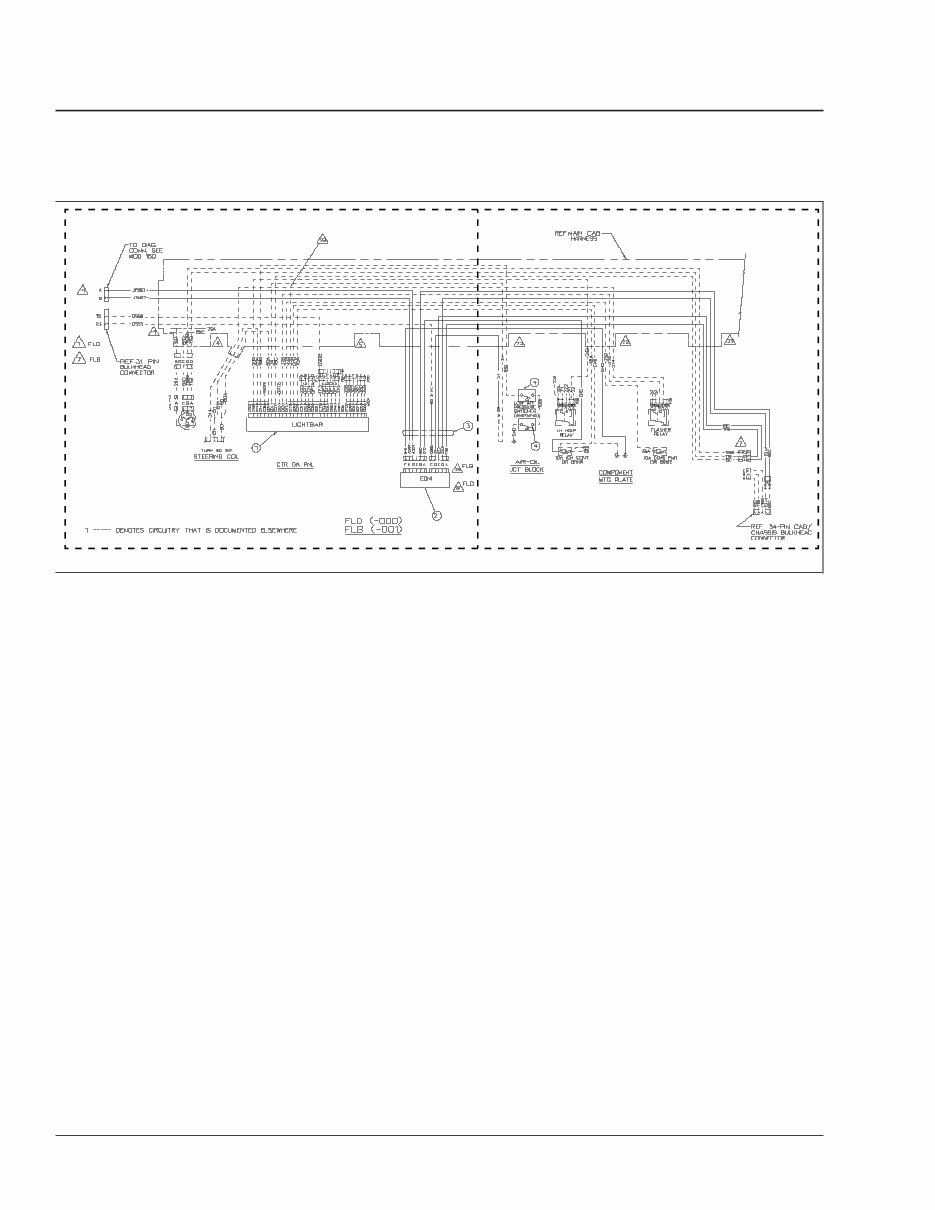

f540723 Fig. 11 Fig. 12 02/16/94 Reference Diagram: D06-21410 Fig. 10, Electronic Data Monitor (EDM) Wiring Diagram, Detroit Diesel Series 50 and 60 Engines With DDEC III Detroit Diesel Electronic Controls (DDEC ® ) Wiring 54.17 Specifications Heavy-Duty Trucks Service Manual, Supplement 23, December 1999 400/10
