63 669 - 41- 1% Parts Catalog KT19 VME L270 L270B THE FOLLOWING FILTERS CAN BE PURCHASED THRU VME PARTS NORTH AMERICA: FILTER PART NUMBER FUEL 12003653 LUBE 12000200 LUBE-BYPASS 11996228 WATER-FOR FLUSHING 12967020 WATER-FOR SERVICING 12968028

Cummins Engine Co., Inc. New Parts Warranty Heavy Duty COVERAGE PRODUCTS WARRANTED These warranties apply to New Parts marketed by Cummins for its engines (except those for A, B, and C series engines). They apply anywhere in the world where service is available through a Cummins distributor or full service dealer.* BASE WARRANTY The Base Warranty covers any failures of parts on or after March 31, 1986, which result, under normal use and service, from defects in workmanship or material (Warrantable Failures). The coverage on cylinder kits designated by Cummins as "Premium Plus" extends two years, 200,000 miles (321,870 kilometers) or 7,200 hours of operation, whichever occurs first, from the date of first installation. The coverage on other parts extends one year, 100,000 miles (160,935 kilometers) or 3,600 hours of operation, whichever occurs first, from the date of first installation. EXTENDED MAJOR COMPONENTS WARRANTY The Extended Major Components Warranty covers Warrantable Failures on or after March 31, 1986, of engine cylinder blocks, crankshafts, flangeless NT camshafts** and connecting rods (Covered Parts). Bushing and bearing failures are not included. This coverage begins with the expiration of the Base Warranty and ends three years, 300,000 miles (482,805 kilometers) or 10,800 hours of operation, whichever occurs first, from the date of first installation. Both the Base Warranty and Extended Major Components Warranty apply to all Owners in the chain of distribution, and coverage continues to all subsequent Owners until the end of the respective periods of coverage. CUMMINS RESPONSIBILITIES DURING THE BASE WARRANTY Cummins will pay for all parts and labor needed to repair the damage to the engine resulting from the Warrantable Failure. All labor costs will be paid in accordance with Cummins published Standard Repair Operation guidelines. Cummins will pay for the lubricating oil, antifreeze, filter elements, and other maintenance items that are not reusable due to the Warrantable Failure. Cummins will pay reasonable labor costs for engine removal and reinstallation when necessary to make the warranty repair. When the parts are installed in a non-automotive engine, Cummins will pay reasonable travel expenses for mechanics to and from the engine site, or the repair dock in the case of a marine engine, including meals, mileage and lodging when it is necessary for mechanics to make on-site warranty repairs. DURING THE EXTENDED MAJOR COMPONENTS WARRANTY Cummins will pay for the Covered Part and for any Covered Part damaged by a Warrantable Failure of another Covered Part. OWNER RESPONSIBILITIES DURING THE BASE WARRANTY Before expiration of the warranty, Owner must give notice to a Cummins distributor or full service dealer* of a failure considered to be warrantable and have the repair performed by such facility. If the part was installed in an automotive engine, the Owner must deliver the engine to the repair location. If installed in a marine engine, Owner is responsible for the cost of towing the boat to . e repair dock and for any associated docking and harbor charges. Owner is responsible for the cost of lubricating oil, antifreeze, filter elements and other maintenance items replaced during warranty repairs except where such items are not reusable due to a Warrantable Failure. DURING THE EXTENDED MAJOR COMPONENTS WARRANTY Before expiration of the warranty, Owner must give notice to a Cummins distributor or full service dealer* of a failure considered to be warrantable and deliver the defective and damaged Covered Parts to such facility. Owner is responsible for the cost of all parts needed for the repair except for the defective Covered Part and for any Covered Part damaged by a Warrantable Failure of another Covered Part. Owner is responsible for the cost of all labor needed to repair the engine, including the labor to remove and reinstall the engine. When Cummins elects to repair a part instead of replacing it, Owner is not responsible for the labor needed to repair the part. Owner is responsible for the cost of lubricating oil, antifreeze, filter elements and other maintenance items replaced during the repair. DURING BOTH WARRANTIES At the time when the parts are installed, Owner is responsible for the preparation of a written record containing the following: (1) the date of installation of the parts; (2) the engine serial number; (3) the engine miles, hours or kilometers of operation; (4) the parts installed, and (5) the location of the parts in the engine. The purpose of this record is to protect Owner's interests and support any claim for a Warrantable Failure. Owner is responsible for the operation and maintenance of the engine as specified in Cummins Operation and Maintenance Manuals. Owner is responsible for communication expenses, meals, lodging and similar costs incurred by Owner as a result of a Warrantable Failure. Owner is responsible for non-engine repairs and for "down time" expenses, cargo damage and all business costs and losses resulting from a Warrantable Failure. CUMMINS IS NOT RESPONSIBLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. LIMITATIONS Cummins is not responsible for failures resulting from Owner or Operator abuse or neglect, such as: operation without adequate coolant, fuel or lubricants; overfueling; overspeeding; lack of maintenance of lubricating, cooling or air intake systems; improper storage, starting, warm-up, run-in or shutdown practices. Cummins is also not responsible for failures caused by incorrect fuel, or by water, dirt or other contaminants in the fuel. Cummins does not warrant parts supplied by Cummins which bear the name of another company. These parts are warranted by their manufacturers and not by Cummins. This category of parts includes, but is not limited to: hydraulic pumps, alternators, starters, fans, air conditioning compressors, clutches, steering pumps, transmissions, torque converters, marine gears, air cleaners, filters and non-Cummins air compressors, power steering pumps, and engine compression brakes. Parts provided may be new Cummins, Cummins approved rebuilt parts, or repaired parts. Cummins is not responsible for failures resulting from the use of parts not approved by Cummins. Before a claim for excessive oil consumption will be considered, Owner must submit adequate documentation to show that consumption exceeds Cummins published standards. This warranty does not apply to parts furnished by Cummins at no charge to the Owner. Page ii

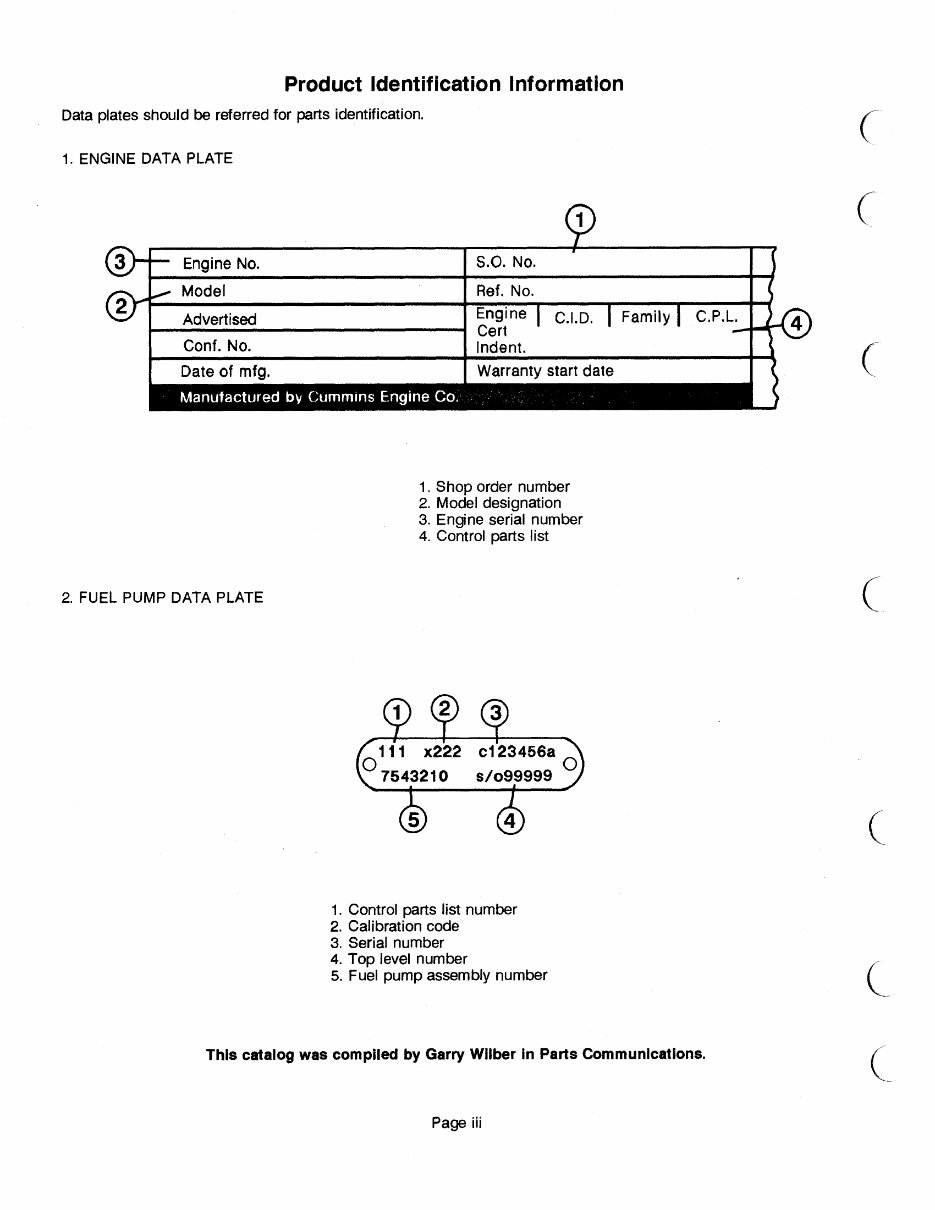

Product Identification Information Data plates should be referred for parts identification. 1. ENGINE DATA PLATE S.O. No. Engine No. Ref. No. Model Engine I C.I.D. I Family C.P.L. Indent. Advertised Conf. No. Date of mfg. Warranty start date 1. Shop order number 2. Model designation 3. Engine serial number 4. Control parts list 2. FUEL PUMP DATA PLATE TT'? 0 111 x222 c123456a 7543210 s/o99999 1. Control parts list number 2. Calibration code 3. Serial number 4. Top level number 5. Fuel pump assembly number This catalog was compiled by Garry Wilber in Parts Communications. Page iii

Customer Service Information This standard Parts Catalog contains parts information for the following Cummins Engine Model(s): KT19C D192027CX02 CPL 444 S.O. 68887 Certain basic engine components have been matched to give optimum performance to your engine. The part numbers listed in this catalog for these components are for a standard engine configuration. When ordering any of the Control Parts List (CPL) components listed below, please order by part description and engine serial number. Reference to the CPL number stamped on the engine data (name) plate will also help identify the proper service parts for your engine. Control Parts List (CPL) Components Camshaft Page 61 Piston, engine Page 60 Cylinder Head Page 69 Turbocharger Page 65 Injector Page 63 Exhaust, manifold Page 75 USER INFORMATION . Parts numbers appearing in ( ) are for identification purposes only and should not be used when ordering service replacement parts. . The reference numbers appearing on the art pages is for publication use only. . Assembly content is shown by part number indentation. . Options are engineered production part groupings, specifically used for compiling engine orders. . Option numbers are for reference only and are not sold for service. . Use assembly and not option content to determine service parts replacement. ALWAYS SPECIFY ENGINE MODEL AND SERIAL NUMBER WHEN ORDERING PARTS FROM THIS CATALOG Engine Model Engine Serial No. MFG Make Model Chassis No. Fuel Pump Assembly No. Injector No. Belt, Fan Belt, Water Pump Belt, Gen Element, Fuel Filter Full Flow Lub. Filter Air Cleaner By-Pass Lub. Filter Special Equipment Page iv

C Table of Contents Page No. Page ' No. Accessory Drive 3 Starter Mounting 71 Accessory Drive Pulley Alternator Mounting 2 25 Throttle Lever Turbocharger 81 65 Breather Location 21 Turbocharger Mounting 76 Cam Follower 15 Vibration Damper 22 Camshaft And Gear Camshaft Idler Gear Corrosion Resistor Cover Plate Crankshaft & Main Bearings 61 8 82 47 11 Water Inlet Connection Water Manifold Water Outlet Connection Water Pump 83 85 86 89 Cylinder Block 5, 7 Option Number Index A-1 Cylinder Head 69 Part Number Index B-1 Cylinder Head Mounting 67 Dipstick 54 Dipstick Tube 52 Exhaust Elbow 90 Exhaust Manifold/turbo Mtg 75 Fan Drive Arrangement 30 Flywheel 44 Flywheel Housing 35 Front Engine Support 27 Fuel Filter 33 Fuel Pump 39 Fuel Pump Drive 38 Fuel Shutoff Valve 43 Fuel Tubing 41 Gear Cover Mounting 29 Hand Hole Covers 53 Head Gasket Set - Single 92 Injector 63 Injector Mounting 18 Intake Manifold 48, 49 Intake Manifold Mounting 50 Lifting Arrangement 70 Lubricating Oil Pump 17 Mag Pickup Location Plug 36 Mounting 61 Oil Cooler 79 Oil Cooler Connection 80 Oil Fill Location 37 Oil Filter 51 Oil Pan 57, 59 Oversize Head Gasket 67 Piston & Connecting Rod 60 Pump Idler 8 Rocker Levers 13 Starter 72 Page 1

Group No. 09.03 Accessory Drive Pulley Option No. AD4007 a d400gh Ref No. Req Part Number Part Name Remarks ACCESSORY DRIVE PULLEY OPTION AD4007 Pulley to drive alternator. Right side of engine. For use with the one piece aluminum gear cover. 1 3002331 1 Pulley, Alternator Page 2

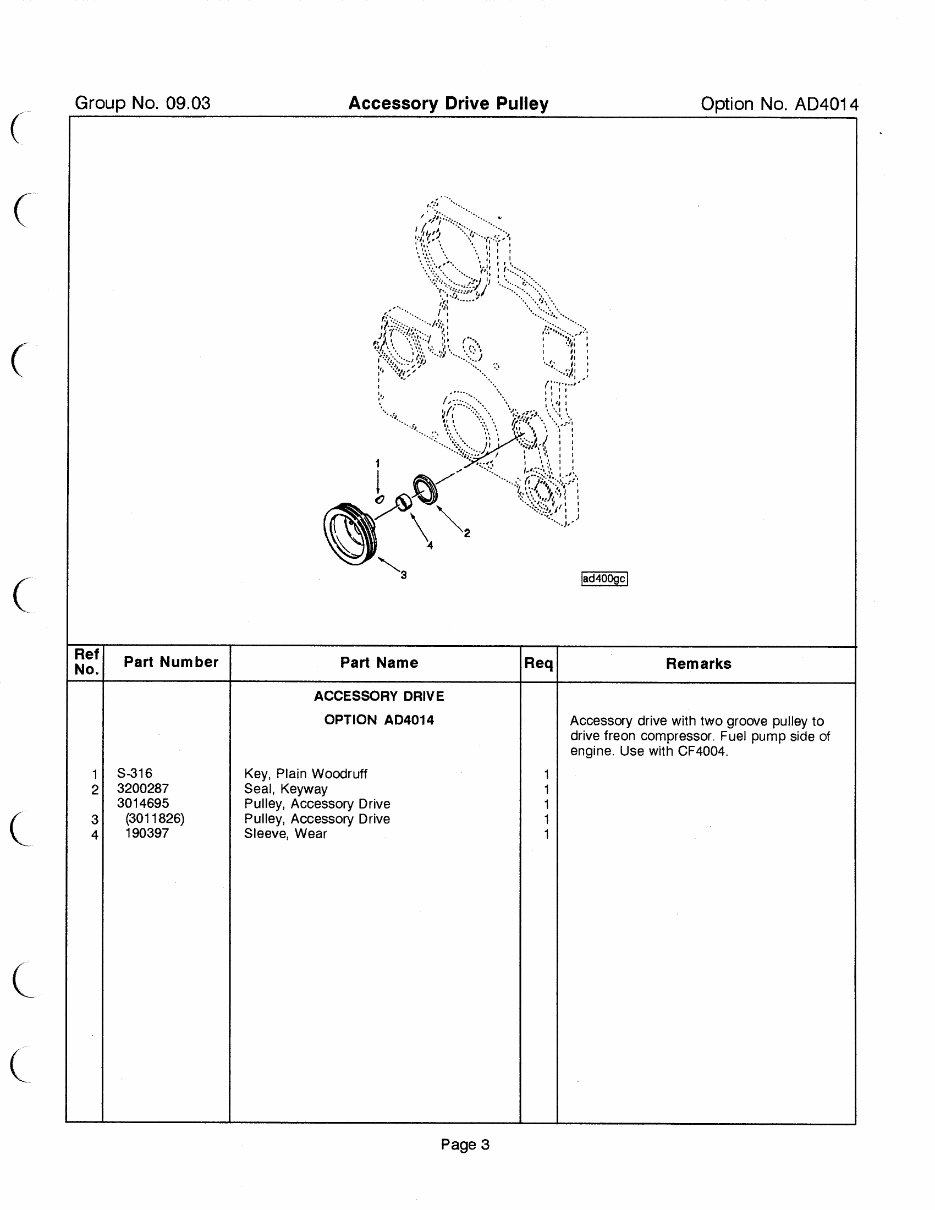

ad400gc Group No. 09.03 Accessory Drive Pulley Option No. AD4014 Ref No. Part Number S-316 2 3200287 3014695 3 (3011826) 4 190397 Part Name ACCESSORY DRIVE OPTION AD4014 Key, Plain Woodruff Seal, Keyway Pulley, Accessory Drive Pulley, Accessory Drive Sleeve, Wear Req Remarks Accessory drive with two groove pulley to drive freon compressor. Fuel pump side of engine. Use with CF4004. Page 3

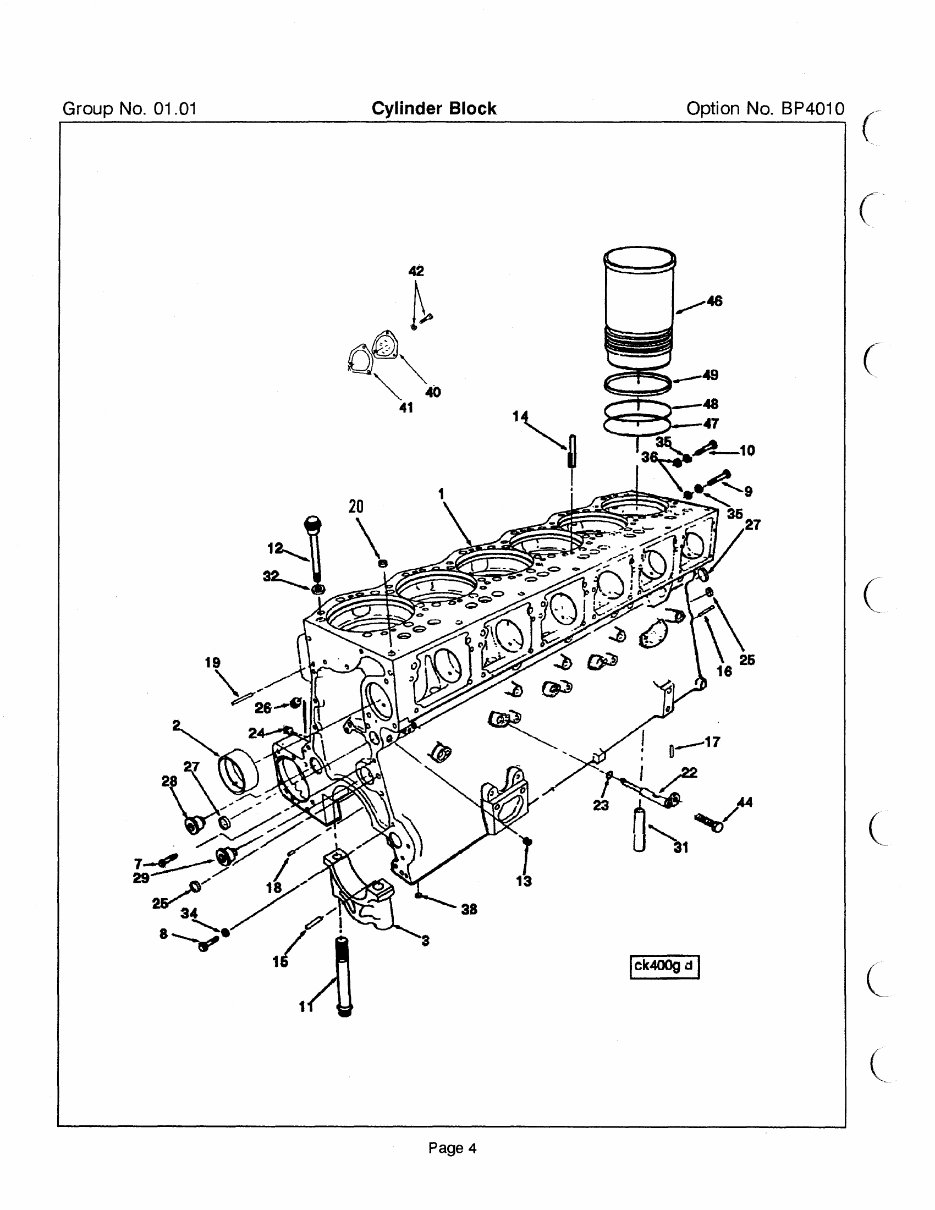

Group No. 01.01 Option No. BP4010 Cylinder Block Page 4
