BMW N74 Engine Workshop Repair Service Manual

Revision Date: 08/10 N74 Engine Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 N74 Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 N74 Engine Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 Horse Power and Torque Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Engine Components/Systems Overview . . . . . . . . . . . . . . . . . . . . . . .11 Engine Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Engine designation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Engine identification and number . . . . . . . . . . . . . . . . . . . . . . . . . .13 Engine Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Engine Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Cylinder Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Cylinder Head Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Oil Sump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Crankcase Ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Register Ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 Oil Separation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Crankshaft . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 Crankshaft Bearings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 Connecting Rods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 Pistons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 Camshaft . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 Chain Tensioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 Valve Train . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 VANOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Camshafts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Roller Cam Followers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Valves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Belt Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 Oil Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 Oil Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 Oil Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 Pressure Limiting Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28 Oil Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28 Subject Page Table of Contents Initial Print Date: 12/09

Oil Cooling .................................................28 Oil Spray Nozzles ...........................................28 Oil spray nozzles for piston crown cooling ...................29 Oil spray nozzles for timing chain lubrication ................29 Oil Level Measurement ......................................29 Engine Cooling ................................................30 Coolant Pumps .............................................32 Main coolant pump ......................................32 Auxiliary water pump for exhaust turbochargers ..............32 Expansion Tank .............................................32 Charge Air Cooling ............................................33 Auxiliary Coolant Pump for Charge Air Cooling .................35 Charge-air Cooler ...........................................35 Engine Control Unit .........................................36 Intake Air Duct ................................................36 Turbocharging ................................................37 Exhaust Turbocharger .......................................37 Charging Pressure Control ...................................39 Blow-off control ..........................................39 Charge Air Cooling ..........................................40 Intake Manifold ................................................40 Exhaust System ...............................................41 Exhaust Manifold ...........................................42 Exhaust Emissions ..........................................42 Secondary Air System .......................................42 Secondary air pump ......................................42 Secondary air valve .......................................43 On-board diagnosis of secondary air system ................43 Vacuum System ...............................................44 Fuel Injection .................................................46 High Pressure Pump ........................................48 Hydraulic Circuit Diagram ....................................50 Injectors ......................................................51 Outward-opening Piezo Injector ..............................51 Control Unit ...................................................51 Subject Page

Subject Page BLANK PAGE

N74 Engine Model: F01/F02 Production: From Start of Production After completion of this module you will be able to: • Describe the features of the N74B60U0 engine • Describe the specifications of the N74 engine • Identify the internal and external components of the N74 engine 4 N74 Engine

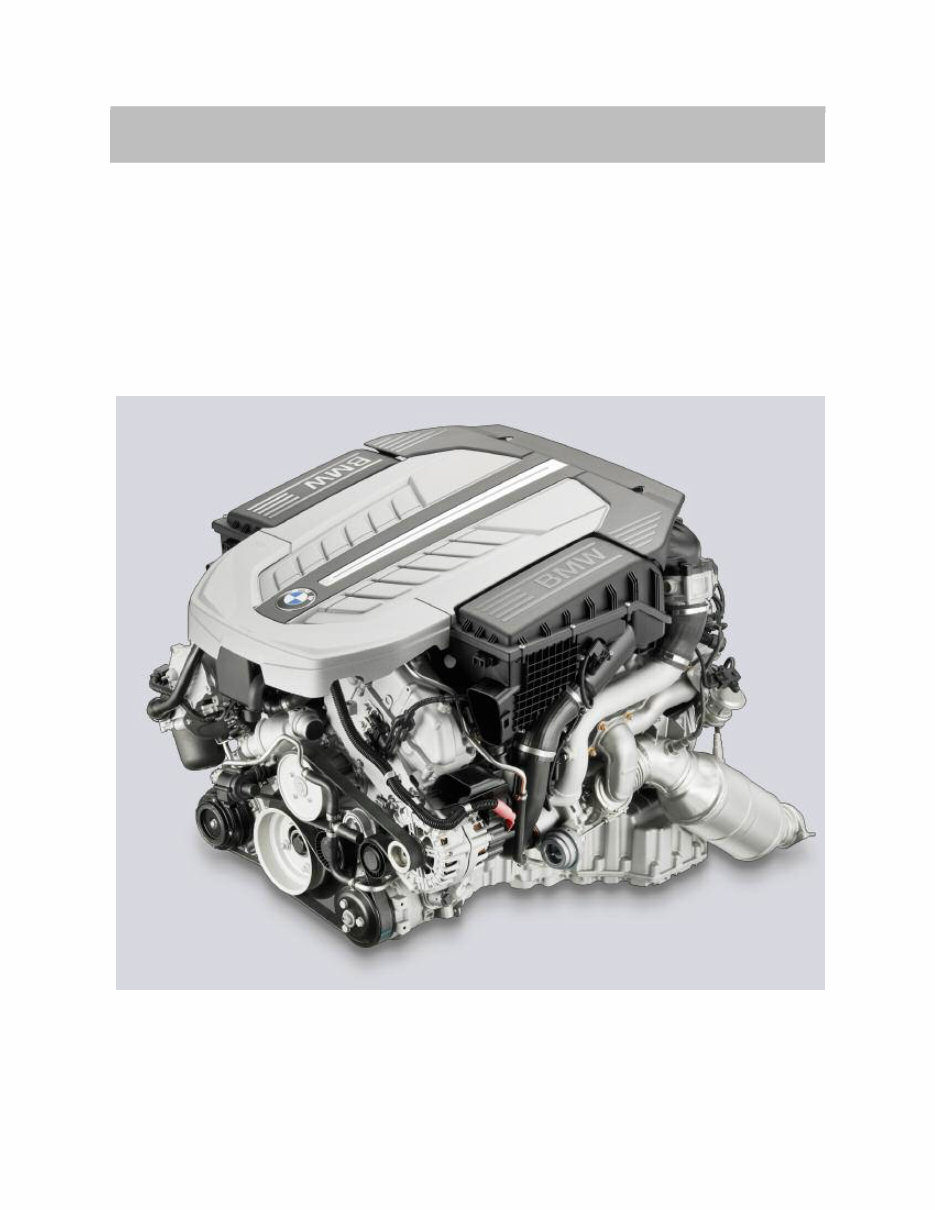

5 N74 Engine N74 Engine The N74 engine is the successor to the N73 engine, but shares many technical features with the N63 engine. Thus the N74 engine also has high precision injection featuring outward-opening piezo injectors located centrally in the combustion chamber and twin turbochargers with indirect charge air cooling. On the N74 engine, however, the exhaust turbochargers are located on the outside of the engine. N74B60U0 engine Introduction

6 N74 Engine Models with the N74 engine were launched to the US market in the September 2009. History The following chart list all previous BMW Twelve-cylinder gasoline engines. Model Model series Engine Power output in kw/bhp Torque in Nm 760i F01 N74B60U0 400/535 750 760Li F02 N74B60U0 400/535 750 Engine Model Model series Displacement in cm³ Power output in kW/ bhp Torque in Nm Engine control system Introduced- discontinued M70B50 750i E32 4988 220/300 450 ME1.2 5/87-9/90 M70B50 850i E31 4988 220/300 450 ME1.7 4/90-11/94 M70B50 750i E32 4988 220/300 450 ME1.7 9/90-11/94 S70B56 850Csi E31 5576 208/381 550 ME1.7.1 10/92-9/97 M73B54 750i E32 5379 240/326 490 ME5.2 9/94-9/01 M73B54 850Ci E31 5379 240/326 490 ME5.2 9/94-9/99 N73B60 760i E65 5972 327/445 600 MED9.2.1 + HPFI 9/02-9/08 N73B60 760Li E66 5972 327/445 600 ED9.2.1 + HPFI 9/02-9/08

7 N74 Engine N74 Engine Features The N74 engine also shares many other common features with the N63 engine, such as a volumetric-flow-controlled oil pump and a camshaft drive with tooth-roller type chains. By using the latesttechnology, it has been possible to increase power output substantially, while at the same time reducing fuel consumption – Efficient Dynamics in fact. Index Explanation 1 Camshaft drive with toot-roller type chain 2 High pressure pump for high precision injection 3 Charge air cooling for indirect charge air cooling 4 Outward-opening piezo injector 5 Volumetric-flow-controlled oil pump 6 Exhaust turbocharger 7 Charging pressure control by means of wastegate valves

8 N74 Engine Technical Data N73B60O1 N74B60U0 Type V12 60° V12 60° Firing order 1-7-5-11-3-9- 6-12-2-8-4-10 1-7-5-11-3-9- 6-12-2-8-4-10 Displacement [cm³] 5972 5972 Bore / stroke [mm] 89/80 89/80 Power output at engine speed [kW/bhp] [rpm] 320/435 6000 400/535 5250-6000 Torque at engine speed [Nm/lb-ft] [rpm] 600/400 3950 750/550 1500-5000 Power output per liter [kw/l] 53.58 66.98 Cutoff speed [rpm] 6500 6500 Compression ratio 11.5 10.0 Maximum Boost bar NA (Naturally Aspirated) 0.7 Distance between cylinders [mm] 98 98 Valves per cylinder 4 4 Diameter of intake valve [mm] 35.0 33.2 Diameter of exhaust valve [mm] 29 29 Diameter of main bearing journals of the crankshaft [mm] 70 65

9 N74 Engine N73B60O1 N74B60U0 Diameter of connecting rod bearing journals of the crankshaft [mm] 54 54 Fuel specification [RON] 98 95 Fuel [RON] 91-98 91-98 Engine control system 2 x MED 9.2.1 1 x VALVETRONIC control unit 2 high-pressure fuel injection valve control units (HPFI) 2 x MSD87-12 Exhaust emission standard US LEVII ULEV II

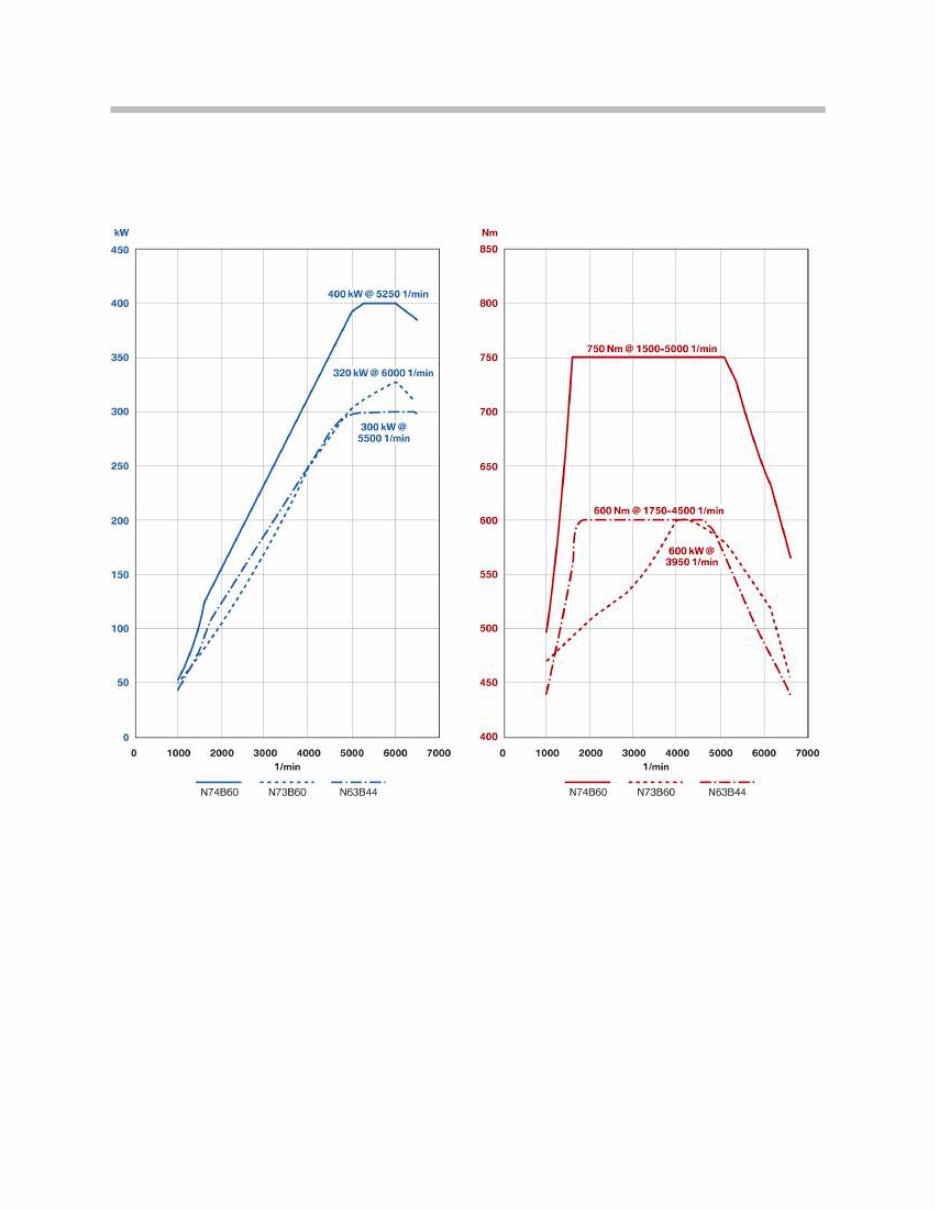

10 N74 Engine Horse Power and Torque Diagram Full load diagram for the N74B60 engine, compared with the N73B60 and N63B44 engines
