2-1
2. Product specifications
2. Product Specifications
2-1. Detailed Specifications
2-1. Product specifications
Item UN**F8000*F
General Information Product (LCD, LED, PDP) LED
Series 8
Display Inch 46" / 55" / 60" / 65" / 75"
Resolution 1,920 x 1,080
Ultra Clear Panel Yes
Video Picture Engine 3D HyperReal Engine
Clear Motion Rate 1200
Dynamic Contrast Ratio Mega Contrast
Micro Dimming Micro Dimming Ultimate
Precision Black (Local Dimming) Yes
Wide Color Enhance (Plus) Yes
Auto Motion Plus 120/240Hz 240Hz
Film Mode Yes
Natural Mode Support Yes
Audio Dolby Dolby Digital Plus / Dolby Pulse
SRS / DNSe+ DNSe+
dts 2.0 + Digital Out / DTS Premium Audio DTS Premium Audio
3D Sound Yes
Sound Customizer Yes
Speaker Type Down Firing + Full Range
Sound Output (RMS) 40W(10x2, woofer 10x2)
Woofer Yes
Smart TV 2.0 Smart Hub Yes
Smart Guide Yes
movies & TV shows Yes (US)
Apps Yes
Social Yes
Photos, Clips & Music Yes
Family Story Yes
Fitness Yes
Kids Yes
ACR(Advertisement) Yes
Samsung Sports Experience (SSE) Yes
Samsung Smart View Yes
2-2
2. Product specifications
Item UN**F8000*F
Smart TV 2.0 Recommendation Bar Yes
Web Browser Yes
Smart Interaction 2.0 Camera Built-in Yes
Face Recognition Yes
Hand Gesture Recognition Yes
Voice Recognition (Embedded) Yes
Voice Recognition (Server) Yes
NLU (Natural Language Understanding) Yes
Camera App Yes
Smasung TV Apps supported Yes
Feature Samsung 3D Yes
3D Converter Yes
History Yes
MultiTasking Yes
Smart Evolution Support Yes
Smart Phone Remote Support Yes
"Allshare
(Contens Sharing, Screen Mirroring)"
Yes
ConnectShare (USB 2.0) Movie
RVU Yes (Direct TV ready)
WiFi Direct Yes
Wireless LAN Built-in Yes
BT HID Bulit-in Yes
USB HID Support Yes
Sound Share Yes
OSD Language English, Spanish, French
User Interface Golden bridge
Digital Noise Filter Yes
MHL Yes
InstaPort 5 (HDMI Quick Switch) Yes
HDMI 1.4 3D Auto Setting Yes
HDMI 1.4 A / Reture Ch. Support Yes
EPG Yes
Anynet+ (HDMI-CEC) Yes
BD Wise Plus Yes
Auto Channel Search Yes
Auto Power Off Yes
Auto Volume Leveler Yes
Cation (Subtitle) Yes
2-3
2. Product specifications
Item UN**F8000*F
Feature Clock & On/Off Timer Yes
Game Mode Yes
Picture-In-Picture Yes
Sleep Timer Yes
V-Chip Yes
Embeded POP Yes
System DTV Tuner ATSC / Clear QAM
Analog Tuner Yes
Input & Output HDMI 4
USB 3
Component In (Y/Pb/Pr) 1
Composite In (AV) 2 (1 Common Use for Component Y)
Ethernet (LAN) 1
Digital Audio Out (Optical) 1
Audio Out (Mini Jack) 1
RF In(Terrestrial/Cable input) 1
RS232C (AV CONTROL) Yes
IR Out Yes
Design Design Metal
Bezel Type SNB
Slim Type Slim 2
Front Color Black
Stand Type Arch
Push & Pull Camera Yes
ECO Eco Mark Energy Star
Eco Sensor Yes
Accessory 3D Active Glasses (Included) 4SSG-5100GB
IR Blaster Cable (Included) Yes
Remote Controller Model TM1390
Battery (for Remote Control) Yes
Mini Wall Mount Support Yes
Ultra Slim Wall Mount Soupport Yes
Vesa Wall Mount Support Yes
Slim Gender Cable 1AV, 1 Component(AV share), 1L/R
Power Cable Yes
User manual Yes
E-maual Yes
2-4

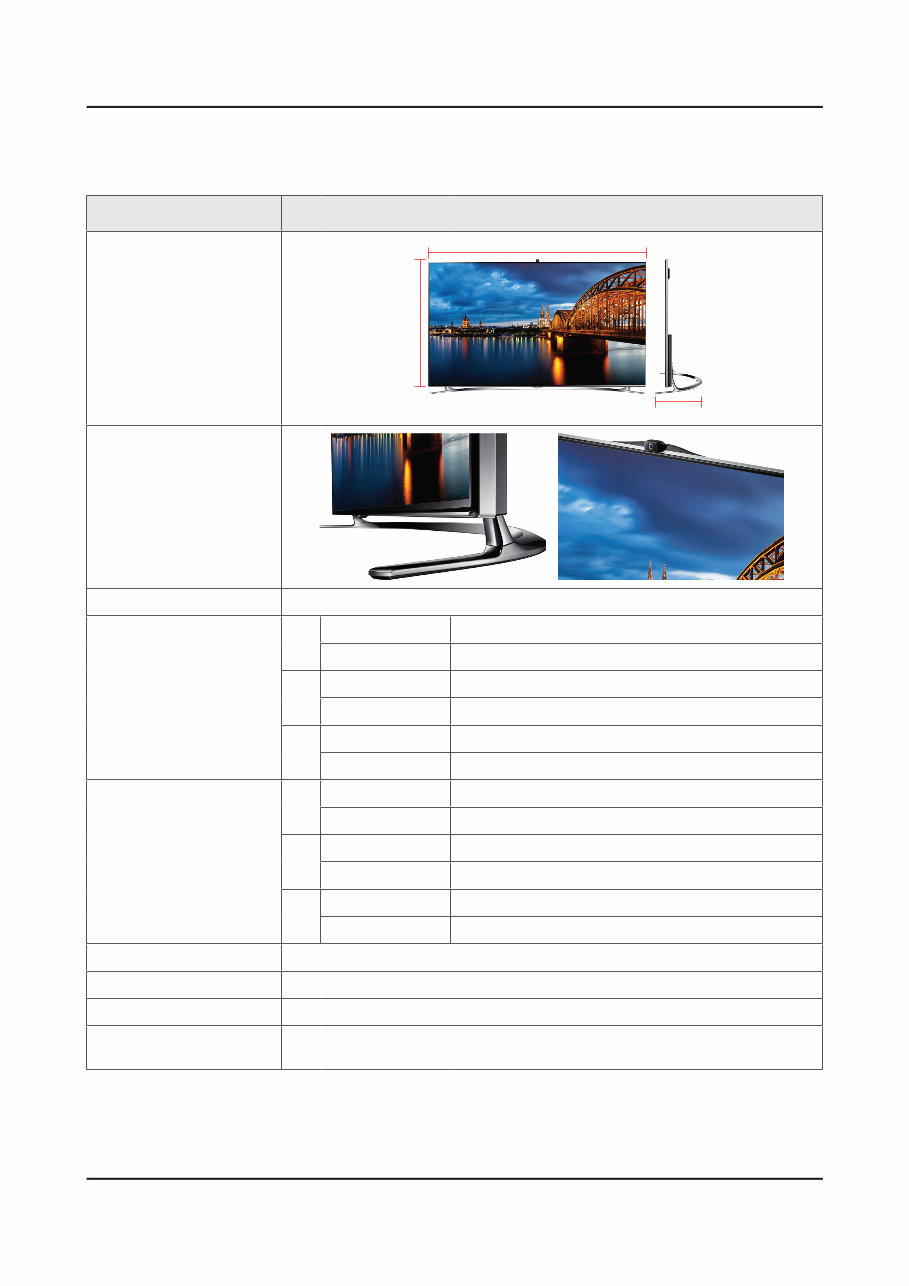

2. Product specifications
2-2. Detailed Specifications
2-1-1. Model Comparison
Model UN**F8000BF
Front View
W
D
* W : Width H : High D : Depth
H
Detail View
Front Color Black
Dimensions
(W x H x D)
46"
Set with Stand 40.66 x 24.78 x 10.15 inches
Set without Stand 40.66 x 23.5 x 1.37 inches
55"
Set with Stand 48.2 x 29.0 x 12.22 inches
Set without Stand 48.2 x 27.74 x 1.37 inches
60"
Set with Stand 53.02 x 32.0 x 13.52 inches
Set without Stand 53.02 x 30.63 x 1.51 inches
Weight
46"
Set with Stand 30.86 Ibs / 14.0 kg
Set without Stand 28.22 Ibs / 12.8 kg
55"
Set with Stand 40.34 Ibs / 18.3 kg
Set without Stand 37.04 Ibs / 16.8 kg
60"
Set with Stand 48.94 Ibs / 22.20 kg
Set without Stand 45.08 Ibs / 20.45 kg
Panel Type Ultra Clear Panel
Internal Memory 2 G
DDR 1024 Mbtyp
Feature
3D / MoIP / Media Bridge / Allshare / Internet TV / Built-in Wi-Fi / Full Browser /
Bluetooth
2-5

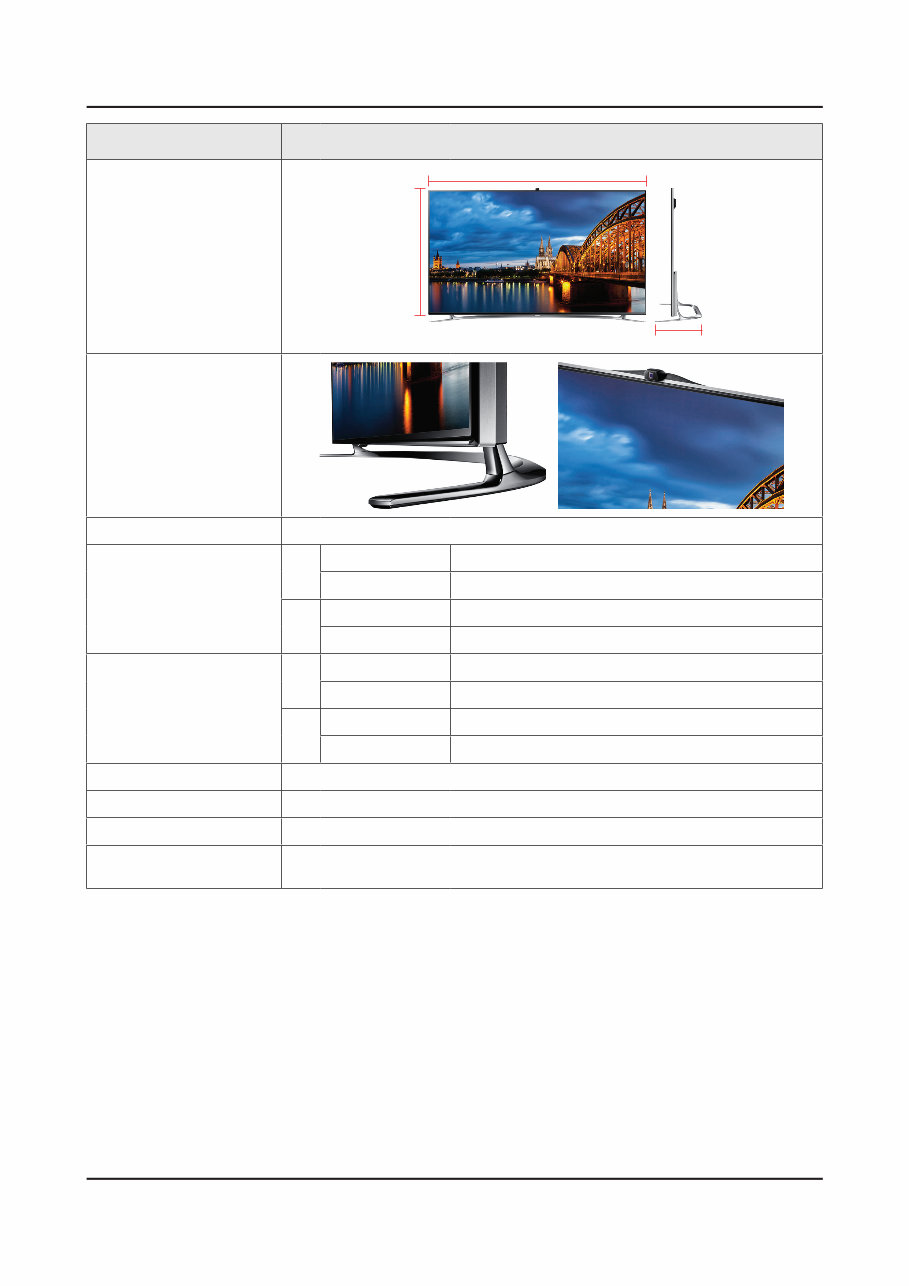

2. Product specifications
Model UN65F8000BF / UN75F8000BF
Front View
W
D
* W : Width H : High D : Depth
H
Detail View
Front Color Black
Dimensions
(W x H x D)
65"
Set with Stand 65.76 x 39.42 x 16.09 inches
Set without Stand 65.76 x 37.90 x 1.57 inches
75"
Set with Stand 56.98 x 34.40 x 14.50 inches
Set without Stand 56.98 x 32.98 x 1.51 inches
Weight
65"
Set with Stand 59.30 Ibs / 26.9 kg
Set without Stand 54.23 Ibs / 24.6 kg
75"
Set with Stand 94.13 Ibs / 42.7 kg
Set without Stand 79.14 Ibs / 35.9 kg
Panel Type Ultra Clear Panel
Internal Memory 2 G
DDR 1024 Mbtyp
Feature
3D / MoIP / Media Bridge / Allshare / Internet TV / Built-in Wi-Fi / Full Browser /
Bluetooth
