VA-7 July, 2000 1 SERVICE NOTES Issued by RES First edition SN00040 K6018385 Printed in Italy (AB00) (AD) Copyright ' 2000 by ROLAND CORPORATION All rights reserved. No parts of this publication may be reproduced in any form whithout the written permission of ROLAND CORPORATION. Specifications Keyboard:61 keys, synthesizer action, velocity-sensitive, Aftertouch Controllers:Tempo/Data dial, D Beam Controller, Bender/Modulation Lever, Touch Controller (Ribbon Controller), Master Volume knob, Keyboard/Accomp Balance knob, M-FX knob (Multi-effect control) Tone generation: PCM: 128-voice polyphonic, GM2/GS compatible, 32 multitimbral parts, 3,649 sounds (48MB worth of PCM samples) 116 Drum Sets incl. oriental Drum sets. VariPhrase: 4 Phrase lines, realtime change of Formant, Pitch and Time Stretch, 48 Factory Phrases (16 MB), 16 User phrases (max. 8 MB in RAM) Digital effects:Reverb (8 types), Chorus (8 types), Delay (10 types), Parametric EQ, M-FX (DSP, 89 types) Arranger (automatic accompaniment):128 Music Styles in ROM, 64 Disk Link Styles from Zip or floppy disk, Disk User style (instant access to one Style on Zip/Floppy disk), 16 Acoustic Styles, Style Orchestrator & Morphing. 8-track User Styles Composer, SMF-to-Style Converter Memories: 128 User Programs, 4 programmable One Touch memories for each Style, 5 Super Tones memories for instant Tone access (with programmable User level) Display: Backlit VGA Touch Screen (LCD), new graphic user interface with animated icons Navigation: Virtual band (interactive Easy Routing), automatic and/or via button Song and Style navigation system on Zip Sequencer: Realtime SMF Player (with Minus-One function), Easy 2-track recorder, 16-track sequencer with extensive editing function, Song Header Post Edit, Lyrics display Data storage: Zip drive (IDE/ATAPI), floppy disk drive (2DD/2HD), realtime load from Zip & FDD, File types managed: Styles, Song SMF, User Program, MIDI sets, VariPhrases Amplification: 25 + 25W output power, 2-way Bass Reflex System Connections: Output (L/mono, Right), Input (L/mono, Right), VariPhrase Sampling Input & Gain, Sustain, Foot pedal (expression), Foot switch, Foot Controller (FC-7), 2 x Phones Power Supply: 100V~240 (universal) Dimension: 1190(W) x 197 (H) x 406 (D) mm Weight: 16, 5 Kg Accessories: See details on page 9 Options: PK-5 Dynamic MIDI Pedal, FC-7 Foot Controller, MSA/MSD/MSE series floppy disks (Roland & third-party), RH-25/50 Headphones, DP-2 Pedal switch, DP-6 Pedal switch (pino type), BOSS FS-5U Foot Switch, EV-5 Expression pedal, BOSS FV-300L Foot Volume/Expression pedal, KC- 100/300/500 Keyboard Amplifiers Iomega' is a registered trademark. Zip™ is a trademark of Iomega Corporation. All other trademarks mentioned in this manual are the property of the respective companies. va-7 v-arranger keyboard TABLE OF CONTENTS Page SPECIFICATIONS 1 LOCATION OF CONTROLS 2 EXPLODED VIEW (TOP) 3 PARTS LIST OF EXPLODED VIEW (TOP) 4 PARTS LIST OF EXPLODED VIEW (BOTTOM) 4 EXPLODED VIEW (BOTTOM) 5 WIRING DIAGRAM 6 KEYBOARD PARTS LIST 7 PARTS LIST 7/9 HOW TO SAVE THE SYSTEM PROGRAM OR THE TEST PROGRAM ONTO FLOPPY DISK. 10 HOW TO UPDATE THE SYSTEM PROGRAM OR THE TEST PROGRAM BY FLOPPY DISK. 11 HOW TO UPDATE THE VARIPHRASE PROGRAM BY ZIP DISK 11 TEST MODE 11/15 CALIBRATION PROCEDURE TO REPLACE THE PITCH BENDER 15 HOW TO ENTER THE TOUCH SCREEN CALIBRATION 15 HOW TO INIZIALIZE THE FLASH AREA 15 HOW TO LOAD THE 6th LANGUAGE 16 CHANGE INFORMATION (MODULE XPGS-6 PCB ASSY) 16 BLOCK DIAGRAM 17 MAIN PCB ASSY 18 CIRCUIT DIAGRAM (MAIN PCB ASSY) 19 CIRCUIT DIAGRAM (MAIN PCB ASSY/Beam Control Block) / (MAIN PCB ASSY/Keyscan Block) 20 CIRCUIT DIAGRAM (MAIN PCB ASSY/Memory Bank Block) 21 CIRCUIT DIAGRAM (MAIN PCB ASSY/2nd Uart Contr. Block) / (MAIN PCB ASSY/LCD Contr. Block) 22 CIRCUIT DIAGRAM (MAIN PCB ASSY/FDC & IDE Contr. Block) 23 MODULE XPGS-6 PCB ASSY 24 CIRCUIT DIAGRAM (XPGS-6 PCB ASSY / CPU_MEM Section) 25 CIRCUIT DIAGRAM (XPGS-6 PCB ASSY / SOUND Section) 26 POTENTIOMETER PCB ASSY & CIRCUIT DIAGRAM 27 LCD CONTROL PCB ASSY & CIRCUIT DIAGRAM 27 VARIPHRASE VE-VP1 PCB ASSY 28 CIRCUIT DIAGRAM (VARIPHRASE VE-VP1 PCB ASSY) 29 PHONES PCB ASSY & CIRCUIT DIAGRAM 30 AUDIO PCB ASSY 30 CIRCUIT DIAGRAM (AUDIO PCB ASSY) 31 SWITCH D-BEAM PCB ASSY & CIRCUIT DIAGRAM 32 CONTROL PCB ASSY 32 CIRCUIT DIAGRAM (CONTROL PCB ASSY) 33 FC-7 PCB ASSY & CIRCUIT DIAGRAM 34 CONTROL VE-VP1 PCB ASSY 34 CIRCUIT DIAGRAM (CONTROL VE-VP1 PCB ASSY) 35 EQUALIZER PCB ASSY & CIRCUIT DIAGRAM 36 AMPLIFIER PCB ASSY 36 CIRCUIT DIAGRAM (AMPLIFIER PCB ASSY) 37 MIDI PCB ASSY & CIRCUIT DIAGRAM 38 D-BEAM PCB ASSY & CIRCUIT DIAGRAM 39 RIBBON PCB ASSY & CIRCUIT DIAGRAM 39 INVERTER PCB ASSY & CIRCUIT DIAGRAM 39 RIGHT & LEFT CONTACT PCB ASSY & CIRCUIT DIAGRAM 40

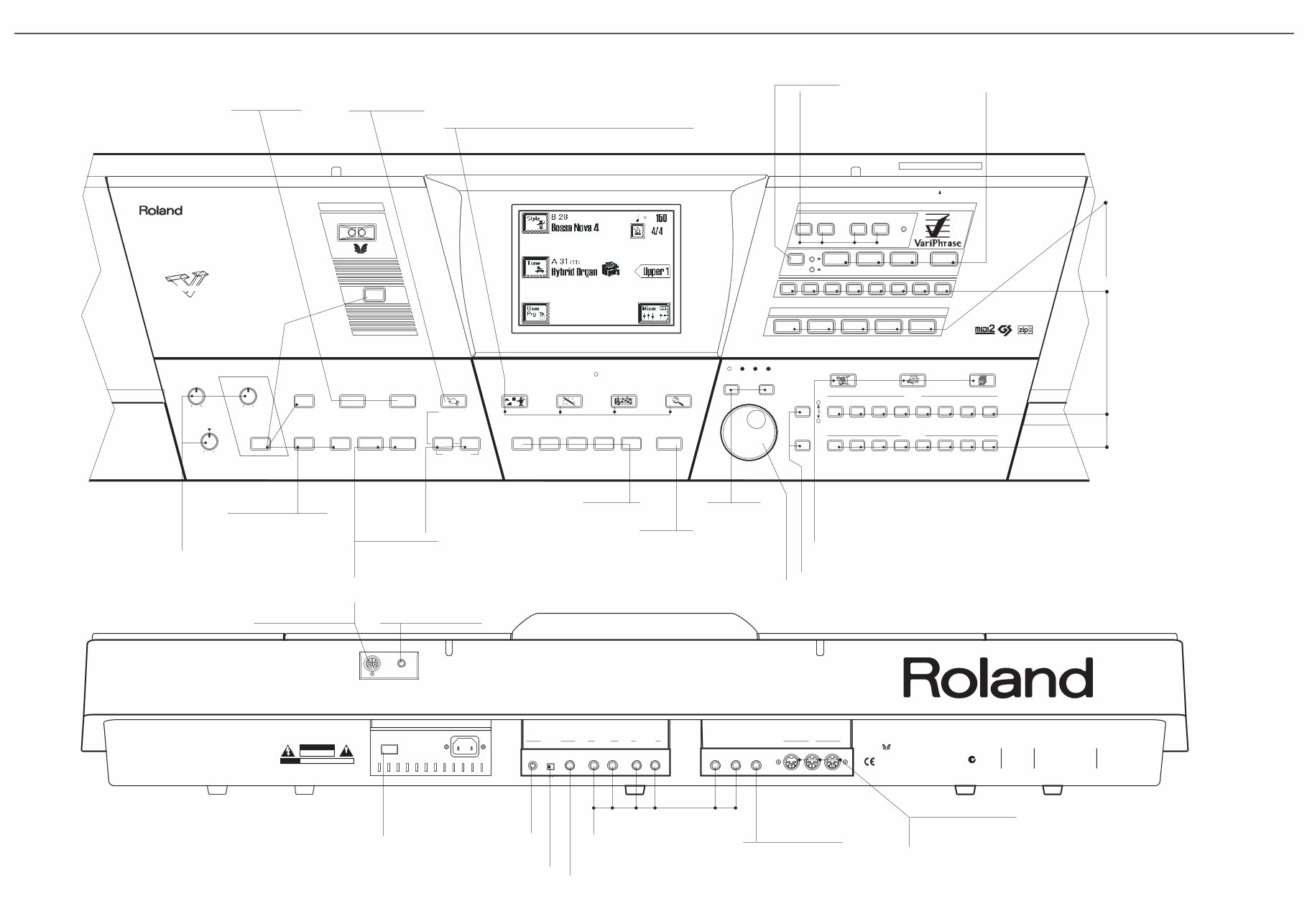

2 Cod. K2478295 MONO Cod. K2478334 “1” Cod. K2478296 STYLE Cod. K2478327 “1” Cod. K2478321 “5” Cod. K2478300 “5” Cod. K2478325 BACKGR. Cod. K2478317 STEP Cod. K2478292 “2” Cod. K2478297 TONE Cod. K2478328 “2” Cod. K2478322 “6” Cod. K2478301 MELODIC Cod. K2478318 ENCODE Cod. K2478293 “3” Cod. K2478298 USER PROG. Cod. K2478329 “3” Cod. K2478323 “7” Cod. K2478302 RHYTH. Cod. K2478319 CAPTURE Cod. K2478294 “4” Cod. K2478299 “4” Cod. K2478324 “8” Cod. K2478303 USER Cod. K2478320 BUTTON 12x8 WHITE BUTTON 12x8 WHITE BUTTON 20x10 WHITE BUTTON 12x8 DARK GREY D-RK KNOB BLK EVQ-VEM F01-24B ENCODER Cod. 01013223 BUTTON 12x8 WHITE BUTTON 16x10 WHITE Cod. K2478305 Cod. 22485303 Cod. K2478304 BUTTON 20x10 WHITE BUTTON 20x10 WHITE INSIDE MODE VARIPHRASE SUPER TONES SAMPLING INPUT OVER POLY BACKGROUND 2 BACKGROUND 3 RHYTHMIC 2 USER 2 SYNC A B 1 2 3 4 5 6 7 8 VA-7 VA-7 KEYBOARD MODE USER PROGRAM ORCHESTRATOR ONE TOUCH INTRO ORIGINAL BAND VIRTUAL COMPOSER SONG MENU FUNCTION STYLE DATA DISK DATA FREE PANEL TEMPO TEMPO/ TAP BANK GROUP PART A C B PIANO REED PIPE SYN LEAD SYN PAD SYN SFX ETHNIC PERCUSSIVE SFX CHR PERC ORGAN GUITAR BASS BRASS ORCHESTRA ENSEMBLE TONE USER PROGRAM USER PROGRAM EFFECTS CONTROLLERS VOLUME BALANCE MIN MAX MIN MAX KEYBOARD ACCOMP FILL VARIATION ENDING START/STOP NUMBER MELODY ON/OFF ON/OFF SYNC OTHER ARRANGER PIANO DOWN UP INTELL 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 V-ARRANGER KEYBOARD 128 VOICE POLYPHONY V-ARRANGER KEYBOARD 128 VOICE POLYPHONY V- Arranger M-VALUE M-FX D BEAM CONTROLLER 1 1 2 2 3 3 4 4 5 5 6 7 8 STEP ENCODE CAPTURE MONO GROUP BACKGROUND MELODIC RHYTHMIC USER POWER ON TRANSPOSE GENERAL LCD CONTRAST MIC LINE FC7 PEDAL MIN MAX THRU IN OUT PEDAL SWITCH FOOTSWITCH R R INPUT L / MONO L / MONO MIDI FOOT FOOT SUSTAIN STEREO OUT STEREO OUT STEREO IN STEREO IN VARIPHRASE GAIN LEVEL AC ATTENTION: RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN N225 "THIS CLASS (B) DIGITAL APPARATUS COMPLIES WITH CANADIAN INTERFERENCE-CAUSING EQUIPMENT REGULATIONS“ "CET APPAREIL NUMERIQUE DE LA CLASSE (B) RESPECTE LE REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA" The D Beam has been licensed by Interactive Light, Inc WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. POWER ON POWER ON VA-7 ON /OFF Cod. K2478308 Cod. K2478291 MEL. INTELL Cod. K2478307 BUTTON 16x10 WHITE BUTTON 20x10 DARK GREY BUTTON 20x10 BUTTON 20x10 WHITE BUTTON 20x10 DARKGREY Cod. K2478326 ORCH. Cod. K2478330 S. COMP. Cod. K2478332 VIRT. B. Cod. K2478331 FUNC. M. Cod. K2478333 Cod. K2478313 Cod. K2478314 BUTTON 16x10 DARK GREY BUTTON 20x10 WHITE ROT. POT. RK09K12A0A2AAc DIN SOCKET YKF51-5001 ROT. POT. 5KB 90°-MONO SSSF11209K SLIDE SWITCH POWER SWITCH KNOB (BLACK) JACK SOCKET HLJ0520-01-010 JACK SOCKET YKB 21-5006 DIN SOCKET 3PZ YKF51-5046 W/IVORY POINTER D. 12 H. 18,5 BLACK KNOB SYNC Cod. K2478310 OTHER Cod. K2478309 ARRANGER Cod. K2478315 Cod. 13279988 Cod. 13429648 Cod. J3219101 Cod. 13159180 Cod. K2478258 Cod. 13449126 Cod. 13449252 Cod. 13429273 DOWN Cod. K2478311 UP Cod. K2478312 PIANO Cod. K2478316 Cod. K2478306 JACK SOCKET HLJ0520-01-110 Cod. 13449125 VA-7 July, 2000 LOCATION OF CONTROLS REAR VIEW

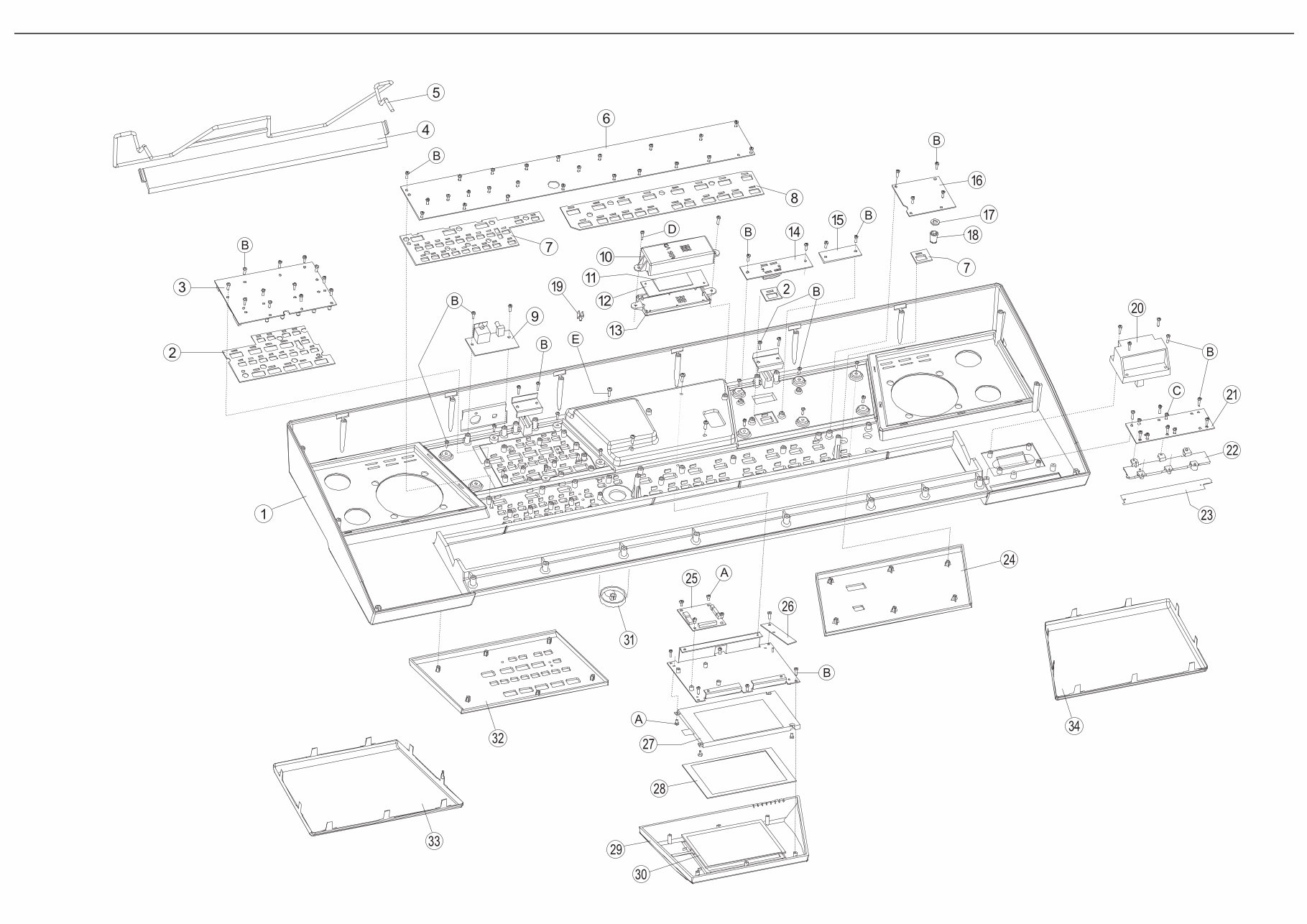

3 VA-7 July, 2000 EXPLODED VIEW ( TOP)

4 VA-7 July, 2000 No. Part No. Description 1 7770126000 VARN. + SILK. TOP CABINET 2 3 22208320 MUSIC SCORE HOLDER 4 7770109000 CONTROL VE-VP1 PCB ASSY 5 K2128126 BLACK MUSIC REST 6 7 K2268165 LEFT VIBRATION DAMPER PL45N 8 7770102000 FC-7 PCB ASSY 9 10 11 00900901 INVERTER PCB ASSY INVERTER MODULE CXA-M10AL 7711203000 12 K2248128 PROTECTING BOX BASE F/INVERTER 13 14 CONTROL PCB ASSY F/D-BEAM SWITCH D-BEAMPCB ASSY 7700609000 7770108000 K2268164 RIGHT VIBRATION DAMPER PL45N K2248127 K2268166 7770104000 PROTECTING BOX COVER F/INVERTER VIBR. DUMPER F/VARIPH. CONTROL B. CONTROL PCB ASSY 15 16 K2478291 BLK KNOB W/IVORY POINTER D.12 18,5 17 K2248150 FELT WASHER I/D 7 E/D 13 TH. 1,5 18 K2238127 DIFFUSER FOR LED 19 20 7770107000 RIBBON PCB ASSY 21 K2198105 SENSOR SUPPORT 22 23 24 7770129000 VARN.+SILK. RIGHT TEMPLATE F/TOP CBNT 25 7770101000 LCD CONTROL PCB ASSY 26 27 28 29 30 31 32 33 34 TERMISTOR ASSY LCD LM320191 (SHARP) ASSY BLACK ANTIDUST COVER PL45N LCD VARN. COVER F/LCD TOUCH SCREEN EMU601A2MA16 SENSOR D-RK KNOB BLK VARN.+SILK. LEFT TEMPLATE F/TOP CBNT LEFT LOUDSPEAKER GRILL (BLACK) RIGHT LOUDSPEAKER GRILL (BLACK) 7770125000 7711210000 K2248152 7770128000 02126390 22485303 7770130000 K2248154 K2248153 01121790 7770106000 70564101 RIBBON SENSOR POTENTIOMETER PCB ASSY TURBOLESS PITCH BENDER PBH0201 A B C D E J2289186 J2289193 J2289108 J2289125 J2289116 (SCREW) SCREW 3,5x16 TCPR TFR H.8 BRUN SELF LOCK. SCREW M3x6 TC TC H.6 SELF LOCK. SCREW M3x10 TCTC H.6 SCREW 2,9x10 TC TC PR TROP SELF TAP. SCREW 3,5x13 TCTC No. Part No. Description 1 7770127000 VARN.+ SILK. BOTTOM CABINET 2 3 7700417000 61-KEY KEYBOARD ASSY TP9S-AT 4 J2359101 SPACER 3M ART. SJ5012 5 K2458145 SWITCHING POWER SUPPLY SWM -80 6 7 7700401000 AMPLIFIER ASSY 8 7770112000 VARIPHRASE VE-VP1 PCB ASSY 9 10 11 7770132000 MODULE XPGS-6 PCB ASSY 12 7770105000 MIDI PCB ASSY 13 14 AUDIO PCB ASSY WOOFER SPEAKER D. 90mm 7770113000 K2418117 7770114000 EQUALIZER PCB ASSY 7770110001 K2478258 MAIN-BOARD ASSY POWER SWITCH KNOB (BLACK) 15 16 K2418118 TWEETER SPEAKER W/CABLES 17 18 K1188130 TWEETER SUPPORT 19 20 22165134 BRASS BUSHING 21 7700420000 BOUNCE - TO - AFTERTOUCH ASSY 22 23 J2409102 FLOPPY D. DRIVER JU-257 A786P J2409105 ZIP DRIVER IDE 7770103000 PHONES PCB ASSY J2159102 K2228103 22265242 PLASTIC RIVET SR3055 SPEAKER GASKET 108/88 TH.2 RUBBER GUIDE BUSHING A G B H C I D E F J2289186 J2289130 J2289193 J2289213 J2289108 J2289125 J2289118 J2289102 J2289230 (SCREW) SCREW 3,5x16 TCPR TFR H.8 BRUN. SELF LOCK. SCREW M3x6 TC TC H.6 SELF TAP. SCREW 3,9x16 TCTC SELF LOCK. SCREW M3x10 TCTC H.6 SCREW 2,9x10 TCTCPR TROP SCREW 2,9x16 TCTCPR BRUN SELF TAP. SCREW 2,9x10 TCTC SCREW 2,9x13 TCTCPR TROP NYLON SCREW M3x12 G030MA012 PARTS LIST OF EXPLODED VIEW (BOTTOM) PARTS LIST OF EXPLODED VIEW (TOP)

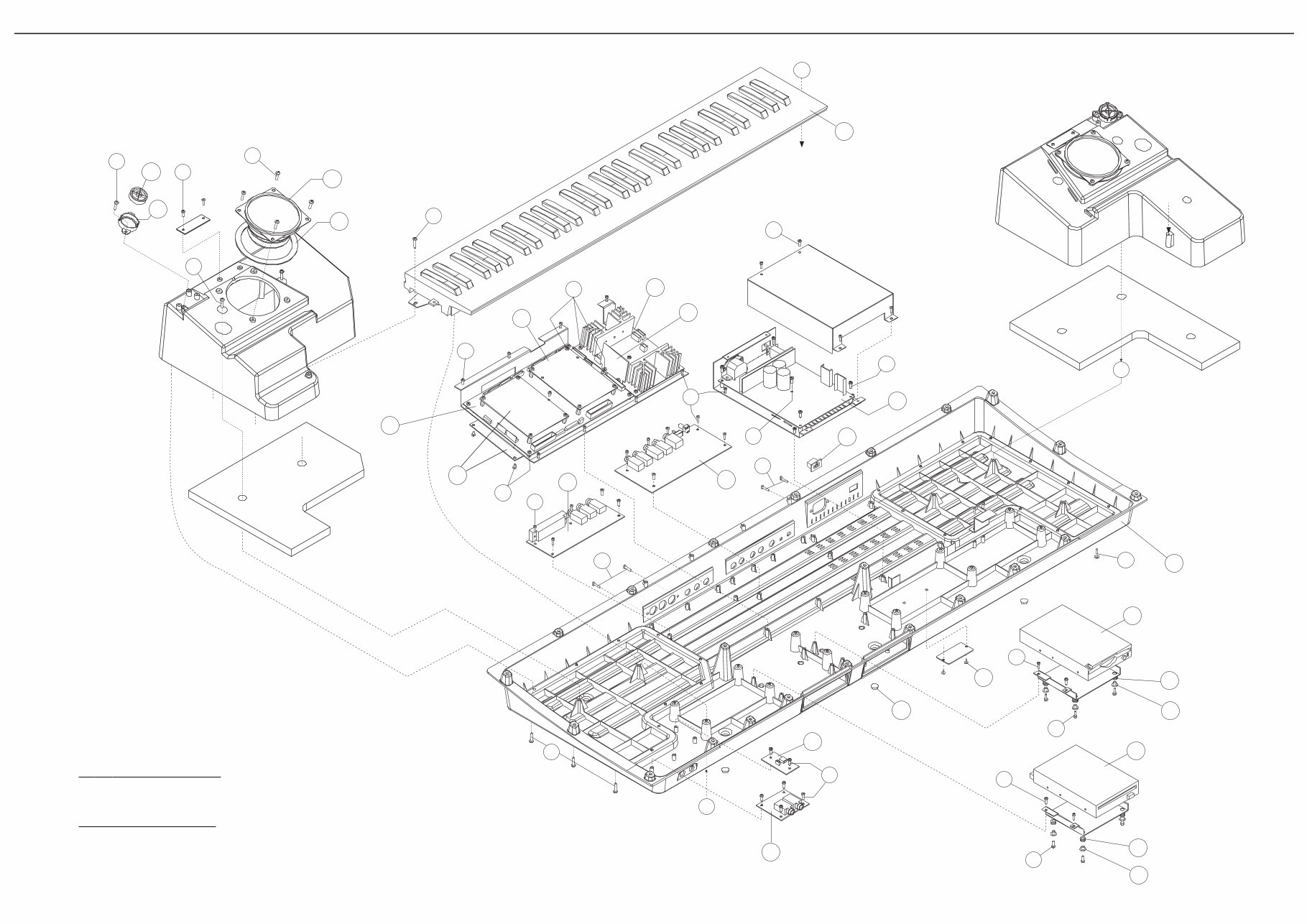

5 VA-7 July, 2000 1 2 3 4 * * 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 19 20 20 21 23 22 A I D E F G A A A B B B B B B D D A A A B C C G H * EXPLODED VIEW (BOTTOM) ST AR T PRODUCTION : MODULE XPGS-6 BOARD code 7770111000 no service (Below the iron support) MASS PRODUCTION: (From Serial n. Z N6 5325 July 2000 ): MODULE XPGS-6 BOARD code 7770132000 (On the Main Board) For details see Change information on page 16. *

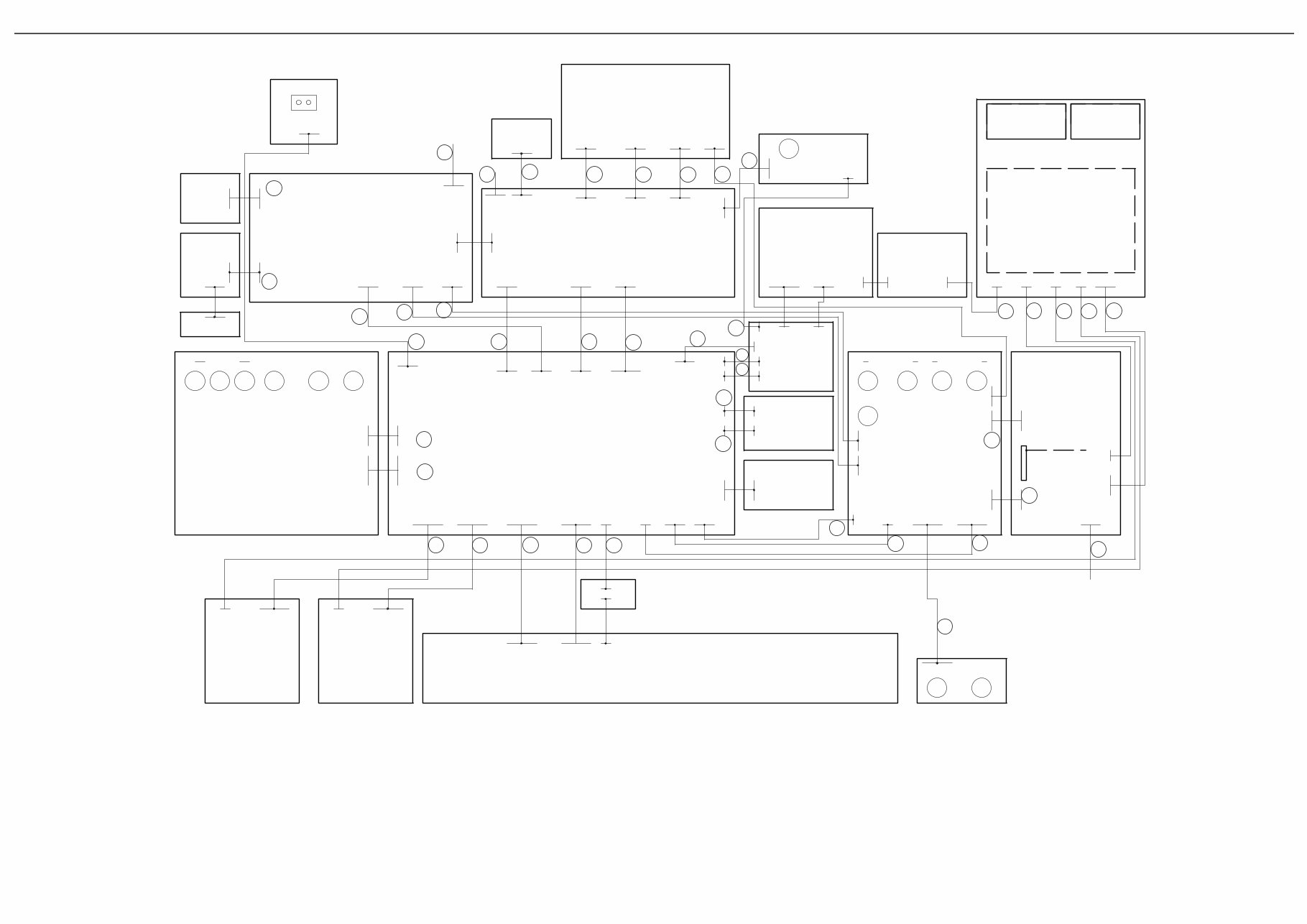

6 VA-7 July, 2000 BENDER LCD KEYBOARD PCB GRAPHIC 1/4 VGA SWITCHING POWER SUPPLY SWM- 80 INLET POWER SWITCH 7 FDD 61 KEYS +5V CFL LAMP INVERTER CXA-M10A-L TDK 4 4 4 4 IN OUT THRU EXPRESS . PEDAL FOOT SWITCH SUSTAIN SWITCH LCD CONTRAS T D D D J J J 8 9 MIDI PCB ASSY Volume MAIN PCB ASSY 4 9 PCB ASSY L(MONO) R J J 9 AUDIO PCB ASSY Volume 4 CN1 9 8 11 11 XPGS-6 PHONES J 6 FC7 PCB ASSY CN17 +5V 34 4 34 16 16 16 16 CN10 CN11 CN15 CN16 6 9 6 3 8 8 CN2 CN1 CN1 12 CN4 11 53254-041 0 CN2 53014-091 0 53014-111 0 5045-08A 5045-09A 5045-08 A 5045-09 A 53014-121 0 53014-101 0 53014-111 0 53014-041 0 53253-111 0 34V P1.27 M AMPC1.2716P AMPC1.2716P 53014-0310 53014-091 0 5045-09A 5045-06A 53253-111 0 CN1 CN2 CN11 CN12 CN4 CN9 10 CN1 CN4 CN3 CN29 CN2 CN6 CN2 POTENTIOMETER PCB ASSY CONTROL PCB ASSY MIDI STEREO OUT CN2 6 5 7 CN5 7 5045-07A CN10 CN1 4 SPEAKERS 7 CN4 CN3 4 +17V POWER AMP. PCB ASSY 7 CN1 53014-071 0 4 CN6 L(MONO) R J J STEREO IN CN8 5045-05 A CN6 AC CN5 CN2 CN3 CN6 4 CN4 +5V +5V;+12V;-1 2V IDE 40 4 CN22 40 40V P1.27 M CN21 CN2 53014-041 0 53014-071 0 7 RIBBON TP9S-AT 5045-06A 5045-05A 5045-07A 5045-07A 5045-04A 5045-04A EQU PCB ASSY CN25 40 KX14-40K11D LCD CONTR. PCB ASSY CN24 7 B7B-PH-K- S VARIPHRASE 5045-09 A CN9 53014-081 0 53014-141 0 CN7 CN8 8 14 TOUCH SCREEN CN7 CN1 52043-0410 006216012100808 CN23 53014-131 0 13 13 CN2 53014-1310 7 B7B-PH-K- S CN6 CN27 53014-031 0 3 CN5 53014-0310 40 KX15-40K3 D CN6 VARIPHRASE CONTROL PCB ASSY 53014-051 0 53014-051 0 CN26 CN3 3 CN4 53014-0310 53014-031 03 CN3 CN5 CN3 53014-141 0 53014-081 0 5 CN2 CN3 12 11 53014-121 0 53014-111 0 3 CN13 53014-031 0 53014-121 0 53014-111 0 53014-071 0 12 11 7 CN15 CN16 CN17 53014-031 0 CN4 3 CN12 5 53014-041 0 CN5 53014-041 0 CN15 53014-071 0 7 D.BEAM PCB ASSY 53014-031 0 CN3 4 4 RIBBON PCB ASSY CN2 5597-08AP B SWITCH D.BEAM PCB ASSY 4 4 53014-041 0 53014-0410 CN11 CN1 53014-041 0 53014-121 0 53014-101 0 CN7 CN8 53014-081 0 CN10 53014-081 0 11 5045-05 A 3 4 53014-031 0 76382-404 AFTER TOUCH I/F PCB ASSY CN402 CN401 Aft ZIP 100 PHONES J MIC/LINE IN J A PCB ASSY 3 4 20 1 2 9 4 6 3 5 7 8 PHONES PCB ASSY 9 10 11 12 13 14 15 15 15 15 15 16 16 16 16 18 18 18 17 17 17 19 19 19 21 19 22 25 23 24 26 17 WIRING DIAGRAM 1 00783234 BENDER CABLE (35) (W4PC P.2) 2 K3468155 4P CABLE 2R/2N (28) 2C D/R 3 K3468217 4P CABLE (72/96) -1C 4PC 4 K3468218 4P CABLE (72) -2C D/D 5 K2468106 7P CABLE (12) -2C D/R 6 K3468219 7P CABLE (32) -2C D/R 7 K3468171 9P CABLE (22) -2C D/R 8 K3468198 34P FLAT CABLE (18) -2C 9 J3469143 1P CONN. AWG18 (10) - YELLOW 10 7697212001 6P CABLE (64) -2C 11 7697220001 8P CABLE (32) -2C 12 7695108001 16P FLAT CABLE (24) -2C 13 7697223001 16P FLAT CABLE (38) -2C 14 K3468220 40P FLAT CABLE CM.18 -2C D/D 15 7770116000 WIRING ASSY (W/5 CABLE ASSY) 16 7770118000 WIRING ASSY (W/4 CABLE ASSY) 17 7770117000 WIRING ASSY (W/5 CABLE ASSY) 18 7770119000 WIRING ASSY (W/3 CABLE ASSY) 19 7770120000 WIRING ASSY (W/4 CABLE ASSY 20 7698907000 4P CABLE ASSY (6) -2C P.2 21 7699415000 3P CABLE ASSY (44) -2C P.2 22 7770121000 3P CABLE ASSY 2V/1R (38) -2C 4P D/R 23 7770122000 4P CABLE ASSY (32) 2C P.2 D/R 24 7770123000 5P CABLE ASSY (12) -2C P.2 D/R 25 7770124000 3P CABLE ASSY 2N/1R (54) -2C 4P D/D 26 7700424000 11P CABLE ASSY (12) -2C P.2

VA-7 July, 2000 7 CASING Q.ty # 7770126000 VARN.+SILK. TOP CBNT VA-7 1 # 7770127000 VARN.+SILK. CONDUCTIVE BOTTOM CBNT VA-7 1 # 7770128000 VARN. COVER F/LCD VA-7 1 # 7770129000 VARN.+SILK. RIGHT TEMPLATE F/TOP CBNT 1 # 7770130000 VARN.+SILK. LEFT TEMPLATE F/TOP CBNT 1 # 02126390 TOUCH SCREEN SENSOR EMU601A2MA16 1 # K2248153 RIGHT LOUDSPEAKER GRILL (BLACK) VA-7 1 # K2248154 LEFT LOUDSPEAKER GRILL (BLACK) VA-7 1 # K2128126 BLACK MUSIC REST VA-7 1 22208320 MUSIC SCORE HOLDER 1 KNOB BUTTON 22485303 D-RK KNOB BLK 1 # K2478291 BLACK KNOB W/IVORY POINTER D.12 H.18.5 3 K2478258 POWER SWITCH KNOB (BLACK) 1 # K2478334 BUTTON 12X8 WHITE (MONO) 1 # K2478292 BUTTON 12X8 WHITE (STEP) 1 # K2478293 BUTTON 12X8 WHITE (ENCODE) 1 # K2478294 BUTTON 12X8 WHITE (CAPTURE) 1 # K2478295 BUTTON 12X8 DARK GREY (GROUP) 1 # K2478296 BUTTON 12X8 WHITE (1) 3 # K2478297 BUTTON 12X8 WHITE (2) 3 # K2478298 BUTTON 12X8 WHITE (3) 3 # K2478299 BUTTON 12X8 WHITE (4) 3 # K2478300 BUTTON 12X8 WHITE (5) 3 # K2478301 BUTTON 12X8 WHITE (6) 3 # K2478302 BUTTON 12X8 WHITE (7) 3 # K2478303 BUTTON 12X8 WHITE (8) 3 # K2478304 BUTTON 12X8 WHITE 2 # K2478305 BUTTON 12X8 DARK GREY 2 # K2478306 BUTTON 16X10 WHITE 5 # K2478307 BUTTON 16X10 WHITE (MELODY INTELL) 1 # K2478308 BUTTON 16X10 WHITE (ON/OFF) 2 # K2478309 BUTTON 16X10 WHITE (OTHER) 1 # K2478310 BUTTON 16X10 WHITE (SYNC) 1 # K2478311 BUTTON 16X10 DARK GREY (DOWN) 1 # K2478312 BUTTON 16X10 DARK GREY (UP) 1 # K2478313 BUTTON 20X10 WHITE 1 # K2478314 BUTTON 20X10 DARK GREY 2 # K2478315 BUTTON 20X10 WHITE (ARRANGER) 1 # K2478316 BUTTON 20X10 WHITE (PIANO) 1 # K2478317 BUTTON 20X10 WHITE (BACKGROUND) 1 # K2478318 BUTTON 20X10 WHITE (MELODIC) 1 # K2478319 BUTTON 20X10 WHITE (RHYTHMIC) 1 # K2478320 BUTTON 20X10 WHITE (USER) 1 # K2478321 BUTTON 20X10 WHITE (1) 1 # K2478322 BUTTON 20X10 WHITE (2) 1 # K2478323 BUTTON 20X10 WHITE (3) 1 # K2478324 BUTTON 20X10 WHITE (4) 1 # K2478325 BUTTON 20X10 WHITE (5) 1 # K2478326 BUTTON 20X10 WHITE (ONE TOUCH) 1 # K2478327 BUTTON 20X10 WHITE (STYLE) 1 # K2478328 BUTTON 20X10 WHITE (TONE) 1 # K2478329 BUTTON 20X10 WHITE (USER PROGRAM) 1 # K2478330 BUTTON 20X10 DARKGREY (ORCHESTRATOR) 1 # K2478331 BUTTON 20X10 DARK GREY (VIRTUAL BAND) 1 # K2478332 BUTTON 20X10 DARK GREY (SONG COMPOS.) 1 # K2478333 BUTTON 20X10 DARK GREY (FUNCTION M.) 1 SWITCH J3169105 SWITCH TP-1101A / EVQ-PAE 05 R SW1=>23, 42, 44, 45=>62 on CB / SW25=>41, SW65=>69 on CVP / 67 SW43 on PB / SW24 on CDBM # 13159180 SLIDE SWITCH SSSF11209K SW1 on AB 1 JACK, SOCKET 13449252 JACK SOCKET YKB 21-5006 YK1, 2 on PHB / YK6 on AB 3 PARTS LIST VA-7 (100V/117V/230V/230VE/240VA) When ordering any parts listed in the parts list,please specify the following items in the order sheet. QTY PART NUMBER DESCRIPTION MODEL NUMBER Ex. 10 22575241 Sharp Key C-20/50 15 2247017300 Knob (orange) DAC-15D Failure to completely fill the above items with correct number and description will result in delayed or even undelivered replacement. CONSIDERATION ON PARTS ORDERING AB = Audio Board AFT = Bounce to AFT B. AMP B= Amplifier Board CB = Control Board CVP = Control Variphrase B. DBM = D-Beam Board EQ B = Equalizer Board FC7 = FC7 Board I B = Inverter Board LB = Left Contact B. LCD = LCD Control Board MB = Main Board MIDI = Midi Board PAB = Power Amp. Board PB = Potentiometer Board PHB = Phones Board RB = Right Contact B. NOTE: # The parts marked " # ’’ are new (Initial Parts). A The parts marked " A ’’ are new (Initial Parts).for RES but already used by RJA The parts marked have Safety - Related characteristics. Use only listed parts for replacement. << EMI >> Component for EMC. Note : Replacement should be made on a unit basis. No replacements available for individual parts. Replacement only be a unit. ! ! SAFETY PRECAUTIONS : The parts marked have safety-related characteristics. Use only listed parts for replacement. ! KEYBOARD PARTS LIST 61 KEY TP9S/AT KEYBOARD ASSY code 7700417000

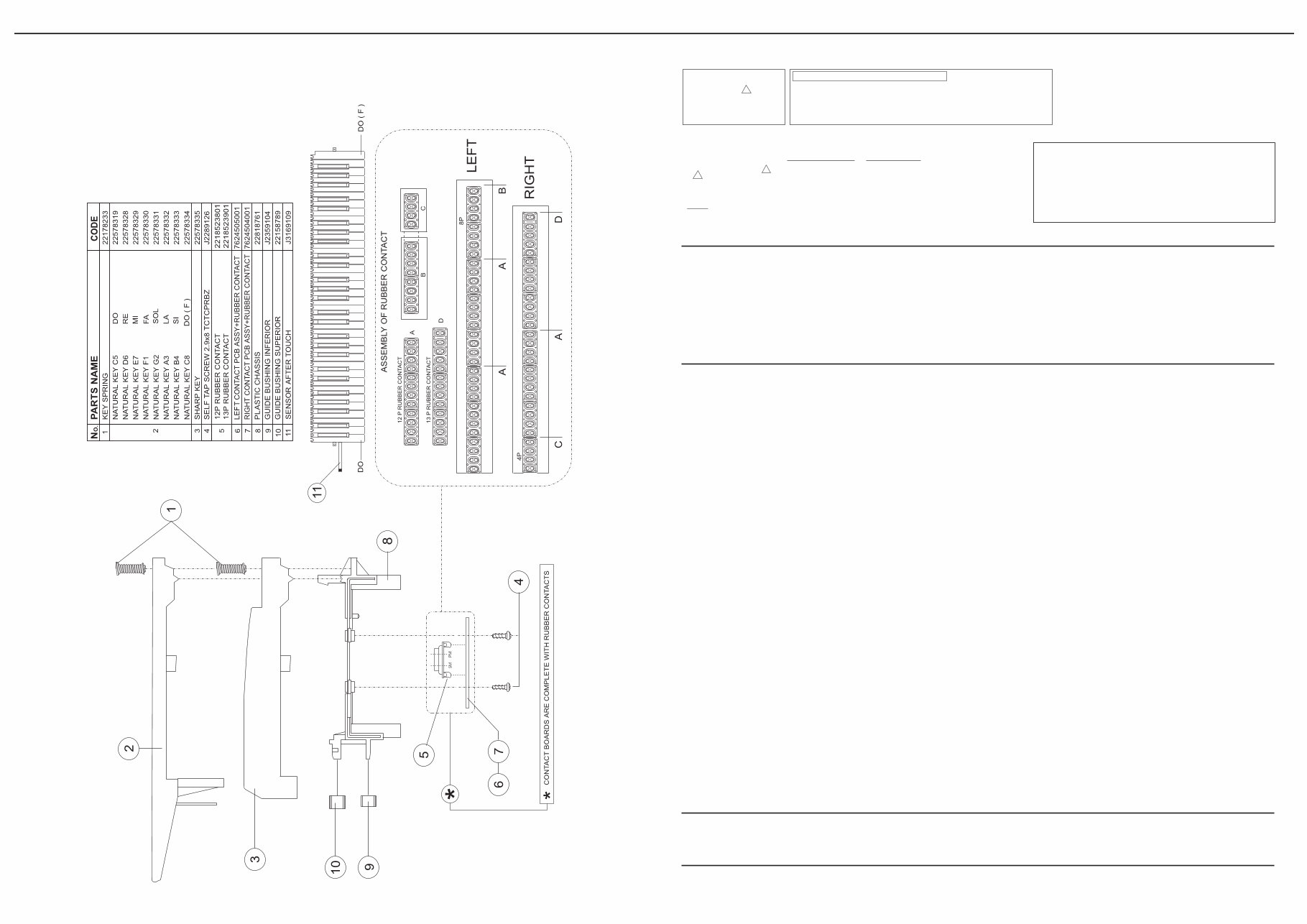

8 VA-7 July, 2000 13449125 JACK SOCKET HLJ0520-01-110 YK2, 3, 4, 5 on AB / YK2, 3 on MIDI 6 13449126 JACK SOCKET HLJ0520-01-010 YK4 on MIDI 1 13429273 DIN SOCKET 3PZ YKF51-5046 YK5 on MIDI 1 13429648 DIN SOCKET YKF51-5001 YK3 on FC7 1 DISPLAY UNIT Note : 7711210000 LCD LM320191(SHARP) ASSY E-600 1 DISK DRIVE UNIT Note : J2409102 FLOPPY D. DRIVER JU-257 A786P 1 Note : # J2409105 ZIP DRIVER IDE 1 BENDER UNIT Note : 70564101 TURBOLESS PITCH BENDER PBH0201 1 SPEAKER K2418117 WOOFER SPEAKER D.90 MM 2 K2418118 TWEETER SPEAKER W/CABLES 2 KEYBOARD ASSY 7700417000 61-KEY KEYBOARD ASSY TP9S-AT 1 NOTE: For details, refer to KEYBOARD PARTS LIST (Page 7) POWER SUPPLY UNIT Note : # K245814501 SWITCHING POWER SUPPLY SWM-80 1 PCB ASSY 7700401000 AMPLIFIER ASSY EM-2000 1 7700420000 BOUNCE-TO-AFTERTOUCH ASSY 1 7700609000 CONTROL PCB ASSY F/ D-BEAM 1 7711203000 INVERTER PCB ASSY 1 # 7770101000 LCD CONTROL PCB ASSY VA-7 1 # 7770102000 FC-7 PCB ASSY VA-7 1 # 7770103000 PHONES PCB ASSY VA-7 1 # 7770104000 CONTROL PCB ASSY VA-7 1 # 7770105000 MIDI PCB ASSY VA-7 1 # 7770106000 POTENTIOMETER PCB ASSY VA-7 1 # 7770107000 RIBBON PCB ASSY VA-7 1 # 7770108000 SWITCH D-BEAM PCB ASSY VA-7 1 # 7770109000 CONTROL VE-VP1 PCB ASSY VA-7 1 # 7770125000 TERMISTOR ASSY VA-7 1 # 7770132000 MODULE XPGS-6 PCB ASSY VA-7 1 # 7770112000 VARIPHRASE VE-VP1 PCB ASSY VA-7 1 # 7770113000 AUDIO PCB ASSY VA-7 1 # 7770114000 EQUALIZER PCB ASSY VA-7 1 # 7770110001 MAIN BOARD PCB ASSY VA-7 1 7624504001 RIGHT CONTACT PCB ASSY W/RUBBER CH. 1 7624505001 LEFT CONTACT PCB ASSY W/RUBBER CH. 1 IC 00900901 INVERTER MODULE CXA-M10AL on IB 1 15229718RI I.C. PHOTO-COUPLER 6N 137 IC6 on MIDI 1 # K525816410 I.C. K525816410 64M STYLE VA-7 IC19 on MB 1 # K525816310 I.C. K525816310 (MASK ROM) IC4 on MB 1 J5159114 I.C.. 74 HC 14 IC11 on CB 1 15169550RI I.C. 74 HC138 DIP CMOS IC7, 8, 9, 10 on CB 4 J5159107 I.C. 74 HC574 CMOS IC6 on CB 1 00232645 I.C. TC7W14F FLAT IC23 on MB 1 15259701 I.C. 74 HC 00 FLAT CMOS IC6 on MB 1 J5259127 I.C. 74 HC 10 FLAT IC29 on MB 1 K5258109 I.C. 74 HC 74 FLAT CMOS IC8 on MB 1 J5259102 I.C. 74 HC 273 FLAT CMOS IC40 on MB 1 J5259128 I.C. 74 HC 393 FLAT IC28 on MB 1 00343823 I.C. M60205-0601FP (CUSTOM IC) IC3 on MB 1 00129278 I.C. SSC1080 FOB (CUSTOM IC) IC10 on MB 1 00788356 I.C. M38881M2-058FP IC13 in MB 1 J5259110 I.C. HM62256LFP-7T FLAT SRAM IC12 on MB 1 J5259120 I.C. HM5118160CJ-6 FLAT IC21 on MB 1 # J5259137 I.C. TE28F160S570 FLASH IC20 on MB (Blank) 1 15199780 I.C. HD63266FP-64A FDC IC16 on MB 1 J5259116 I.C.SED1335F0B (LCD CONTROLLER) IC11 on MB 1 15159113 I.C. 4051 BCP CMOS IC4 on PB 1 15259884 I.C. TC7S08F MOS CMOS IC15 on MB 1 15259885 I.C. TC7S32F CMOS IC7, 14, 39 on MB 3 15259887 I.C. TC7SU04F FLAT CMOS IC22, 37 on MB 2 J5169105 I.C. TC7W08F FLAT IC36 on MB 1 15249104 I.C. TC7S04F FLAT IC38 on MB 1 00232634 I.C. TC7W74F IC37 on MB 1 00236845 I.C. TC 74VHC245F IC31, 32 on MB 2 # J5259136 I.C. TC 7W34FU IC41, 42, 43, 44 on MB 4 15169334 I.C. 74 LS 05 N IC5 on MIDI 1 15219183 I.C. M51953 AL (STANDING) IC5 on MB 1 15189251 I.C. M5218 P (OP AMP) IC1, 2 on PB 2 E E E 15189210 I.C. BA 5218 (OP AMP) IC9, 15, 16 on AB 3 15189186 I.C. UPC 4570C (OP AMP) IC3 on PB / IC1, 3 on EQB / IC2 on LCD 4 15289105 I.C. UPC 4570G (OP AMP) IC8, 12 on AB / IC1, 26, 27 on MB 5 15189189 I.C. UPC 4570HA VERT. (OP.AMP.) IC10 on DBM 1 15199904 I.C. M51953 BL (STANDING) IC5, 6 on AB 2 J5189102 I.C. TD 62593 AP DIP IC5 on MB 1 00458312 I.C. NJM 2360M FLAT IC1 on LCD 1 01451578 I.C. AK4324-VF-E2 DAC IC11 on AB 1 # 01780112 I.C. AK4522-VF CEM AD/DA IC4 on AB 1 # 15289117 NJM 5532MD-TE1 OP AMP IC7, 10, 14 on AB 3 15199286 I.C. AN78L05M FLAT (REG.R) IC2 on AB 1 # J5259133 I.C. TA7805 AF IC3 on AB 1 J5199101 I.C. TDA 7350 (POWER AMP) IC6, 7 on AMP.B 2 # 7770115000 I.C. IDE IC33 on MB (Programmed) 1 TRANSISTOR 15119155RI TRANSISTOR BC/560-B Q5 on AB / Q9 on MIDI / Q1 on AMP.B 3 15119154RI TRANSISTOR BC/549-B Q2 on AMP.B / Q12=>35 on CB / Q1, 3 MIDI 17 15129114 TRANSISTOR 2SC-1815GR Q1, 2, 3 on LCD / Q3, 17 on DBM 4 15119113 TRANSISTOR 2SA-1015 GR Q4, 5 on LCD 2 15319101 TRANSISTOR 2SC-2412K Q1, 2, 4, 6, 7 on AB 5 15309101 TRANSISTOR 2SA-1037KR Q7 on MB 1 15129427 TRANSISTOR 2SC-2235Y Q16 on DBM 1 15139124 TRANSISTOR 2SK-363 GR FET Q3 on AB 1 15119163 TRANSISTOR RN2227 Q1=>11, 26 on CB 12 15329104 TRANSISTOR 2SK-368GR FET CHIP Q8 on MB 1 DIODE 15019159RI DIODE 1N-4148 on CB / on CVP / D54 on PB / D1, 2, 3, 4, 7 on MIDI / D1=>64 on LB / D65=>122 on RB / D2 on AMP.B / D27 on SW DBM 209 15339105 DIODE DAN-202K D13, 14 on MB / D1 on AB 3 15339108 DIODE DA-204K D4 on AB / D1=>8, 16 on MB 10 00893912 DIODE SFPB-56 CHIP D1 on LCD 1 15339109 DIODE DAP 202K CHIP D12, 15 on MB 2 # J5339102 DIODE RB706F-40T106 D1 on AB 1 15029320RI LED DIODE TLHG4401 - GREEN D87, 147, 148, 149, 169 on CB 5 01341623 DIODE LED TLN 201 D216 on DBM 1 01342578 PHOTO DIODE TPS 708 D215 on DBM 1 # J5029111 LED DIODE L-59SRSGW-CC D36=>43, 60=>67, 84, 85 on CB 18 # J5029112 LED DIODE 5 L-53 SRD-D / RED D89,143, 146, 150, 171, 179 on CB / all on CVP 37 # J5029113 LED DIODE 5 L-53 SED / ORANGE D88, D170, D90, 91, 138 =>142, 126, 172,127 =>132, 173 on CB / D129 on PB / D105 on SWDBM / D122, 123 on CVP 22 J5019106 ZENER DIODE BZX55C 5.1V D1, 3 on PB / D10 on MB 3 J5019116 DIODE TRANSIL BZW04-5V8B D3 on RB 1 J5019105 DIODE 1N 4002 D3 on AB / D1 on AMP.B 2 RESISTOR J3919104 RESISTOR ARRAY EXB-A10E-103-J RA1, 2, 6=>10, 15, 27, 28, 29, 30, 31 on MB 13 J3919107 RESISTOR ARRAY EXB-V8V-101-JV RA12, 13, 44, 45 on MB 4 J3919108 RESISTOR ARRAY EXB-V8V-103-JV RA3, 4, 5, 11, 14, 16, 32, 33, 35 on MB 9 J3919109 RESISTOR ARRAY EXB-V8V-470-JV RA17=>26 on MB 10 J3919111 RESISTOR ARRAY EXB-V8V-391-JV RA34 on MB 1 # J3919112 RESISTOR ARRAY EXB-A10E-102-J on MB 3 # J3919114 RESISTOR ARRAY EXB-V8V-330-JV RA37, 38, 40, 41 on MB 4 13819132RI UNINFL.RES. 100 OHM 0.6W 5% R1, 2, 4, 5 on PB 4 13819131RI UNINFL.RES. 10 OHM 0.6W 5% R51, 52 on AB / R82 on DBB 3 J3809155 UNINF. RESISTOR 2200 0.6W 5% R20, 21 on LCD 2 J3809153 UNINFL.RESISTOR 0.22 0.6W 5% R1 on LCD 1 J3809134 UNINFL.RES. 27 OHM 0.6W 5% R32 on CB 1 J3809150 UNINFL.RES. 33 OHM 1/4W 5% R62=>78, 80, 81, 82, 83, 84, 85, on CB / R116, 117 on AB 25 # J3809157 THERMISTOR NTC 10K PH 5% on TB 1 POTENTIOMETER 13289186 ROT.POT. 10KB 11K1130 VR1 on PB 1 00459901 ROT. POT. 10KB 14K 1230 VR3 on PB 1 13289185 ROT. POT. 10KB 11K1130 VR2 on PB 1 13299206 TRIMMER POT. EVND 8AA03B24 VR1 on MB 1 13299227RI TRIM.POT. 22KOHM 5X10 H CERMET VR11, 12 on AMP.B 2 J3219101 ROT.POT. 5KB 90° - MONO VR1 on FC7 1 13279988 ROT.POT. RK09K12A0A2AAC VR1 on AB CAPACITOR 01015912 POL. COND. 0805 2.2N 5% C21 on AB 1 15359774 POLYEST.COND. 0805 680P 5% C40 on AB 1 # 01349378 COND. TANTALIUM TCFGA0J475M8R C20 on AB 1 J3629144 ELCTRL.COND. 470UF 16V AX C22 on CB 1 13639154 ELECTRL.COND.-V 1000UF 16V C48 on DBM 1 J3629117 ELECTRL.COND.-V 4700UF 25V C3, 47 on AMP.B 2 J3629103 ELECTRL.COND. 100U 25V P5 C1, 2 on AMP.B / C25, 36, 37, 54, 55, 62, 63, 74, 75, 76 on AB / C69, 70 on MB / C1 on MIDI 15 J3629147 ELECTR. COND. 220U 25V P.5 C114, 115 on AB / C9, 10, 46, 43 on AMP.B 6 J3629133 ELECTROL.COND. 22U 25V P5 C18, 38 on AB / C12, 42 on AMP.B 4 J3629135 ELECTRL. COND. 470U 35V P5 C2 on IB 1 J3629132 ELECTRL.COND. 100U 50V P5 C2, 4 on LCD 2 J3629104 ELECTRL.COND. 10U 50V P5 C7, 10, 14, 17, 27, 35, 42, 47, 50 on AB / C8 on AMP.B 10 J3629105 ELECTRL.COND. 47U 50V P5 C39 on AB / C1, 3, 7, 8 on LCD 5 J3629106 ELECTRL.COND. 4.7U 63V P5 C24 on AB 1 !

VA-7 July, 2000 9 J3629107 ELECTRL.COND. 1UF 100V P5 C116 on AB / C5, 13 on EQB3 3 J5369103 ELECTR. COND. RV2 100U 16V (SMD) C71, 203, 216, 219, 215 on MB 5 J5369104 ELECTR. COND. RV2 10U 16V (SMD) C2, 38 on MB 2 J5369105 ELECTR. COND. RV3 33U 16V (SMD) C1, 15, 17, 93, 96, 118, 147, 148, 175, 176, 202 on MB 11 J5369102 ELECTR.COND. RV2 47U 16V SMD C188, 201 on MB 2 J5369106 ELECTR. COND. RV2 1U 50V (SMD) C68 on MB 1 J3629149 ELECTR.COND. 100U 16V H.7 C17, 19 on PB 2 J3629143 ELECTR. COND. 10U 16V H.7 C44, 45 on DBM 2 J3629137 ELECTR. COND. 33U 16V H.7 C4, 8, 12 on PB / C21 on CB 4 J3629150 ELECTR.COND. 47U 16V H.7 C19 on CB 1 J3629142 ELECTR. COND. 1U 63V H.7 C8 on RB / C43 on DBM 2 13649103J0 UNPOL.COND. 10U 16 P5 C102, 105, 109, 113, 117, 118 on AB / C60, 75 on AMP.B 8 # 00239412 POLYEST.COND. AMZV0050J122 0200 C53, 61 on AB 2 # 00239390 POLYEST.COND. AMZV0050J561 0200 C64, 56 on AB 2 INDUCTOR, COIL, FILTER <<EMI>> 22448240 NOISE SUP. BL02RN2-R62 L1=>6 on PHB 6 <<EMI>> 12449370 NOISE SUP. SBT-0160W L4, 7, 11, 12, 13 on AB / L5, 7, 9, 10, 11 on MIDI 10 <<EMI>> 12449326 NOISE SUP. SBT-0460 L6, 12 on MIDI / L4 on FC7 3 <<EMI>> 13529187 NOISE SUP. ELKTR391CA FL1 on PB / FL1=>7 on FC7 8 <<EMI>> J2399103 CHIP NOISE SUP. ELKS471FA FL2=>10 on MB 8 <<EMI>> J2399104 CHIP NOISE SUP. EXCCL4532U1 L2=>9, 18, 39, 40, 41, 42, 44, 51, 52, 53 on MB / L10 on AB 19 <<EMI>> 00452034 CHIP NOISE SUP. BK2125HM102 L21=>38, 43 on MB 19 <<EMI>> 00907856 NOISE SUP. BLM21A601SPT CHIP L3, 5, 6 on AB 3 <<EMI>> 12449449 INDUCTOR RCH-875-151K L1 on LCD 1 CRYSTAL, RESONATOR 00894023 X-TAL 20.000 MHZ MA-406 X1 on MB 1 00894034 X-TAL 16.000 MHZ MA-406 X2 on MB 1 RELAY 12439224RI RELAY DS2YS-12V RL1 on AMP.B / RL1 on AB 2 ENCODER 01013223 EVQ-VEM F01-24B ENCODER ENC1 on CB 1 CONNECTOR 13419677RI 16P FEM. CONNECTOR AMP 1.27 CN15, 16 on MB / CN3 on LB / CN4 on RB 4 13429325 7P FEMALE CONN. P.2.5 JST CN1 on EQB 1 J3429123 8P FEM. CONNECTOR IL-404-08S-LW CN1 on RB 1 01454112 12P CONN. 006216012100808 CN1 on LCD 1 # J3429125 FEMALE CONNECTOR 52043-0410 CN7 on LCD 1 13439479RI MALE CONN.AMP 6W STANDING CN6 on PB 1 13369550RI 40P MALE CONN. P. 1.27 CN22 on MB 1 13419676RI 8P MALE CONN. P/2.5 MOLEX CN2 on MIDI / CN6 on MB 2 13369688RI 4P MALE CONN. P 2.5 M CN1 on IB / CN1, 3 on AMP.B 3 J3439103 6P MALE CONNECTOR P 2.5 M CN2 on AMP.B / CN 1 on PHB / CN4 on AB 3 J3439106 9P MALE CONNECTOR P 2.5 M CN1 on MIDI / CN9, 10 on MB / CN9 on AB 4 J3439109 5P MALE CONNECTOR P 2.5 M CN8 on AB 1 J3439113 7P MALE CONNECTOR P 2.5 M CN10 on AB / CN4, 5 on AMP.B 3 J3439120 4P MALE CONN. P.2 M CN2 on RB / CN29 on MB / CN12 on AB / CN3 on PB 4 J3439122 8P MALE CONNECTOR P.2 M CN2 on FC7 / CN3 on AB / CN7 on MB 3 J3439125 5P MALE CONNECTOR P.2 M CN26 on MB 1 J3439151 9P MALE CONNECTOR P.2 M CN11 on AB 1 J3439141 10P MALE CONNECTOR P.2 M CN1 on MB 1 J3439143 34P MALE CONN. P. 1.27 M CN17 on MB 1 J3439124 10P MALE CONN. P. 2 M 90° CN8 on CB 1 J3439126 12P MALE CONN. P.2 M CN1 on MB / CN1 on CVP 2 J3439146 11P MALE CONNECTOR P.2 M CN3, 25 on MB / CN2 on CVP 3 J3439147 14P MALE CONNECTOR P.2 M CN8 on MB / CN5 on AB 2 J3429120 3P MALE CONNECTOR P.2 M CN13 on AB/CN5 on LCD/CN2, 27 on MB/CN4 on CVP/CN401 on AFT 6 J3439148 7P MALE CONNECTOR P.2 M CN3 on CVP / CN21 on MB 3 13369592 7P MALE CONNECTOR P.2.5 JST CN6 on LCD 1 J3439159 4P MALE CONN. 53254 90° P.2 CN2 on PB 1 J3439162 13P MALE CONN. P.2 M CN23 on MB / CN2 on LCD 2 J3439168 4P MALE CONNECTOR 76384-404 CN402 on AFT 1 13369568 B3B-PH-K-S CONNECTOR CN4 on LCD / CN3 on FC7 2 13369503 B7B-PH-K-S CONNECTOR CN6 on LCD / CN24 on MB 2 01349645 2P MALE CONNECTOR S2(4-2.3)B-XH-A CN2 on IB 1 J3439171 4P MALE CONNECTOR 90° P.2 M CN6, 11 on CB / CN5 on PB / CN1 on CDBM 4 # 02230034 KX14-40K5D CONNECTOR CN11 on MB 1 # J3439172 8P MALE CONNECTOR 90°P.2 M CN10 on CB 1 # J3439173 7P MALE CONNECTOR 90°P.2 M CN17 on CB 1 # J3439174 9P MALE CONNECTOR 90°P.2 M CN4 on PB 1 # J3439175 11P MALE CONNECTOR 90° P.2 M CN1 on PB / CN16 on CB 2 # J3439176 12P MALE CONNECTOR 90°P.2 M CN7, 15 on CB 2 WIRING, CABLE 00783234 BENDER CABLE (35) (W4PC P.2) For details refer to WIRING DIAGRAM on page 6. 1 K3468155 4P CABLE 2R/2N (28) 2C D/R   1 # K3468217 4P CABLE (72/96) -1C 4PC   1 # K3468218 4P CABLE (72) -2C D/D   1 # K2468106 7P CABLE (12) -2C D/R   1 # K3468219 7P CABLE (32) -2C D/R   1 K3468171 9P CABLE (22) -2C D/R   1 K3468198 34P FLAT CABLE (18) -2C   1 J3469143 1P CONN. AWG18 (10) - YELLOW   2 7697212001 6P CABLE (64) -2C   1 7697220001 8P CABLE (32) -2C   1 7695108001 16P FLAT CABLE (24) -2C   1 7697223001 16P FLAT CABLE (38) -2C   1 # K3468220 40P FLAT CABLE CM.18 -2C D/D   1 # 7770116000 WIRING ASSY (W/5 CABLE ASSY)   1 # 7770118000 WIRING ASSY (W/4 CABLE ASSY)   1 # 7770117000 WIRING ASSY (W/5 CABLE ASSY)   1 # 7770119000 WIRING ASSY (W/3 CABLE ASSY)   1 # 7770120000 WIRING ASSY (W/4 CABLE ASSY)   1 7698907000 4P CABLE ASSY (6) -2C P.2   1 7699415000 3P CABLE ASSY (44) -2C P.2   1 # 7770121000 3P CABLE ASSY 2V/1R (38) -2C 4P D/R   1 # 7770122000 4P CABLE ASSY (32) 2C P.2 D/R   1 # 7770123000 5P CABLE ASSY (12) -2C P.2 D/R   1 # 7770124000 3P CABLE ASSY 2N/1R (54) -2C 4P D/D   1 7700424000 11P CABLE ASSY (12) -2C P.2   1 SCREW J2289102 SELF TAP.SCREW .9X10 TC TC 4 J2289202 SELF TAP.SCREW 2.9X16 C C 3 J2289116 SELF TAP.SCREW 3.5X13 TC TC 4 J2289213 SELF TAP.SCREW 3.9X16 TC TC 2 J2289126 SELF TAP.SCREW 2.9X 8 TCTCPRBZ 4 J2289125 SCREW 2.9X10 TC TC PR TROP 121 J2289130 SCREW 2.9X13 TC TC PR TROP 4 J2289131 SELF TAP.SCREW 3.5X16 TCTCPRBZ 5 J2289108 SELF LOCK.SCREW M3X10 TCTC H.6 12 J2289147 SELF LOCK.SCREW M3X12 TCTC H.6 2 J2289193 SELF LOCK.SCREW M3X6 TC TC H.6 36 # J2289230 NYLON SCREW M3X12 G030MA012 1 J2289149 SCREW 3X20 TC TFR H.7 4 J2289186 SCREW 3.5X16 TCPR TFR H.8 BRUN 71 PACKING # K2638234 RIGHT POLYSTH. END SIDE VA-7 1 # K2638235 LEFT POLYSTH. END SIDE VA-7 1 # K2638236 CENTRAL LDPE PROTECTION VA-7 1 K2678119 CARTENE ENVELOPE HD CM.170X56 1 K2678102 POLYETH. ENVELOPE 5X45 1 K2678106 POLYETH.ENVELOPE 4OX55 1 # K2618229 OUTER PACKING VA-7 1 MISCELLANEOUS # K2148114 HEXAGONAL ROD M3 6X14 8 J2289113 NUT 3MA H.3 2 J2139111 FLAT WASHER I/D 3X7 TH. 0.6 4 J2139102 TOOTHED WASHER I/D 3 2 22165134 BRASS BUSHING 8 K2168114 LED SPACER H.1.8 E.D.9 18 00453223 LED SPACER H. 7 E.D. 5 2 # K2168117 LED SPACER H.1.5 D.E.5.5 59 K216810801 SPACER F/LED H. 5.5 - E/D 5.5 5 J2359101 SPACER 3M ART. SJ5012 5 22265242 RUBBER GUIDE BUSHING 8 J2159102 PLASTIC RIVET SR3055 2 K2228103 SPEAKER GASKET 108/88 TH.2 2 K2248150 FELT WASHER I/D 7 E/D 13 TH.1.5 3 # K2248152 BLACK ANTIDUST COVER PL45N LCD 1 # K2268164 RIGHT VIBRATION DAMPER PL45N 1 # K2268165 LEFT VIBRATION DAMPER PL45N 1 # K2268166 VIBRATION DAMPER F/VARIPH. CONTROL B. 1 12199584 FIXING SUPPORT M1698 2 01121790 RIBBON SENSOR 1 K2198105 SENSOR SUPPORT EM-20 1 K2248127 PROTECTING BOX COVER F/INVERTER 1 K2248128 PROTECTING BOX BASE F/INVERTER 1 K1188130 TWEETER SUPPORT EM2000/EG101 2 01343089 D-BEAM CONTROLLER ESCT BLK 1 # K2238127 DIFFUSER FOR LED 10 K253810302 FUSE WARNING LABEL 1 ACCESSORIES # 7770131000 ZIP DISK DEMO/STYLE/SONG/SAMPLE VA-7 1 # 7770136000 ZIP DISK DEMO/STYLE/SAMPLE VA-7 (only for US market) 1 K6018109 MIDI GUIDE 1 # K6018390 OWNER’S MANUAL (E) VA-7 1 # K6018391 MIDI IMPLEMENTATION MANUAL VA-7 1 # K6018396 OWNER’S MANUAL (D) VA-7 1 # K6018397 OWNER’S MANUAL (F) VA-7 1 # 7770133000 SYSTEM UPDATE DISK VA-7 1 # 7770134000 TEST UPDATE DISK VA-7 1 # 7770135000 VARIPHRASE UPDATE ZIP DISK VA-7 1 J3439150 MAINS CABLE H05VV+POL.. SOCKET (230V) 1 J3439128 CABLE 498/3 SJT 2X18 AWG-C17 (117V) 1 13499152RI CABLE BS/13/H05VV-F3G0 75-V (230VE) 1 J3439167 MAINS CABLE SAA/2-H05VV5 2X1-C17 (240VA) 1 ! ! ! !

10 VA-7 July, 2000 HOW T O SA VE - HOW T O VERSION UP Since VA-7 has a flash memory for the System program registration, and a flash memory for the Variphrase program registration you can update: -the System program or the test program by floppy disks -the Variphrase program by zip disk (VA-7 formatted) Item Required VA-7 System Program up disk (code: 7770133000) VA-7 Test program disk (code: 7770134000) VA-7 VP Program up disk (code: 7770135000) A TTENTION: The Test program was not installed in this instrument (otherwise it would have occupied too much memory space). If you want to install it, you have to load the Test Program from the "VA-7 Test program disk" you’ve been provided with. W ARNING: Loading the Test Program causes the System Program of your VA-7 to be lost. Therefore every time you want to carry out some checks in your VA-7 and consequently have to install the related Test Program, we strongly recommend you to make a back-up copy of your VA-7 current System program, according to the procedure described in the << How to save the System V ersion or the T est Program onto Floppy disk >> paragraph. Of course, once you’ve completed your checks, you’ll have to reload the System Program (that had been erased when installing the Test Program), as described in the << How to update the System Program or the T est Program by floppy disk >> paragraph. How to visualize the System Program version Turn the instrument on while keeping the [PIANO + ONE TOUCH + INTRO] buttons pressed, the display shows: You can check the instrument software version, pressing the [BANK/1] button. After a few seconds the display shows: To exit from this screen display, turn the instrument off. VA -7 Virtual Arranger Ver. XX . XX Day Month Day no. Time Year CPU Bios Version: Ver. XX . XX Flash : xxxxxxxx Size : xxxxxxx byte ***SYSTEM MENU*** BANK1: SYSTEM VERSION BANK2: SYSTEM LOAD BANK3: SYSTEM SAVE How to save the System program or the T est Program onto Floppy Disk. Insert a formatted Floppy Disk in which youll save either the System Program or the Test Program Turn the instrument on while keeping the [PIANO] + [ONE TOUCH] + [INTRO] buttons pressed. The display shows: Choose in the menu the option SYSTEM SAVE pressing [BANK/3] button The display shows: Choose in the menu the option  CONTINUE pressing [NUMBER/1] button The display shows: Then after a few seconds the display will show: When the program saving operation has been completed it will be confirmed by the System saving COMPLE- TED message appearing on the display. To go back to the initial program, after a few seconds you have to turn the instrument off and then on again. ***SYSTEM SAVE*** System size [ BYTE ] XXXXXXX Checksum Calculation ...... DONE System saving ...... COMPLETED << TURN THE INSTRUMENT AGAIN >> ***SYSTEM SAVE*** System size [ BYTE ] XXXXXXX Checksum Calculation ...... DONE System saving ...... XXXXXXX ATTENTION ! ! Do not turn instrument off ***SYSTEM SAVE*** NUMBER1: CONTINUE NUMBER2: EXIT ***SYSTEM MENU*** BANK1: SYSTEM VERSION BANK2: SYSTEM LOAD BANK3: SYSTEM SAVE
