Service Manual DIGITAL COLOR LASER MFP CLX-3185 Series 3185/3185N/3185W/3185FN/3185FW 5. Memory : 128MB(3185)/256MB(3185N/W/FN/FW) 6. One 10/100 base Tx Network connector (3185N/W/FN/FW) Wireless LAN: 802.11b/g/n (3185W/FW) 7. Toner cartridge - Black : 1K (initial) / 1.5K (sales) - Color : 0.7K (initial) / 1K (sales) 8. Cassette 150 sheets ADF 15 sheets (3185FN/FW) 9. Color : Black 1. Speed - Mono : Up to 16 ppm in A4 (17 ppm in Letter) - Color : Up to 4 ppm in A4 (4 ppm in Letter) 2. Printing Resolution - Max. 2400x600 dpi effective output 3. Processor - CHORUS3 (360Mhz), Proprietary SOC 4 Printer language emulation : SPL-Color (3185)/SPL,PCL-Color(3185N/W/FN/FW) The keynote of Product Downloaded from www.Manualslib.com manuals search engine

1.1 Safety warning …………………………………………………… 1-1 1.2 Caution for safety ………………………………………………… 1-2 1.3 ESD precautions ………………………………………………… 1-5 2.1 Product Specifications …………………………………………… 2-1 2.1.1 Product Overview …………………………………………… 2-1 2.1.2 Prouduct Specification ……………………………………… 2-2 2.1.3 Model Comparison Table …………………………………… 2-12 2.2 System Overview ………………………………………………… 2-13 2.2.1 System Structure …………………………………………… 2-13 2.2.2 H/W description ……………………………………………… 2-26 2.2.3 CRUM ………………………………………………………… 2-33 2.3 S/W Structure and Descriptions ……………………………… 2-34 2.3.1 Architecture ………………………………………………… 2-34 2.3.2 Language Monitor …………………………………………… 2-34 2.3.3 Status Monitor ……………………………………………… 2-34 2.3.4 Network Interface …………………………………………… 2-35 2.3.5 Printer Driver <-> Status Monitor ………………………… 2-35 2.3.6 System F/W Flow …………………………………………… 2-36 2.3.7 Alarm Shortage ……………………………………………… 2-37 2.3.8 Error status…………………………………………………… 2-37 2.3.9 CRUM Overview …………………………………………… 2-38 2.3.10 Initailize Flow ……………………………………………… 2-39 3.1 Precautions when replacing parts ……………………………… 3-1 chapter 1 Precautions chapter 2 Product Specification and feature Contents chapter 3 Disassembly and Reassembly Downloaded from www.Manualslib.com manuals search engine

3.1.1 Precautions when assembling and disassembling ……… 3-1 3.1.2 Preautions when handling PBA …………………………… 3-1 3.1.3 Releasing Plastic Latches ………………………………… 3-1 3.2 Parts for Maintenance and Repair ……………………………… 3-2 3.2.1 Replacement interval for parts with a limited life ………… 3-2 3.2.2 Printer Cleaning……………………………………………… 3-3 3.3 Information Related to Disassembly and Assembly ………… 3-4 3.3.1 Special service parts ……………………………………… 3-4 3.3.2 Screws used in the printer ………………………………… 3-5 3.4 Disassembly Procedure ………………………………………… 3-8 3.4.1 Cover ………………………………………………………… 3-8 3.4.2 ADF Assy (Only 4 in 1 model) ……………………………… 3-9 3.4.3 OPE unit ……………………………………………………… 3-11 3.4.4 Sheet ADF …………………………………………………… 3-12 3.4.5 Scanner Assy ………………………………………………… 3-13 3.4.6 CIS unit ……………………………………………………… 3-14 3.4.7 Middle Cover ………………………………………………… 3-15 3.4.8 Wireless LAN PBA (Only wireless model) ……………… 3-17 3.4.9 ITB …………………………………………………………… 3-18 3.4.10 Fuser………………………………………………………… 3-19 3.4.11 HVPS board ………………………………………………… 3-20 3.4.12 Main PBA …………………………………………………… 3-20 3.4.13 SMPS board ……………………………………………… 3-21 3.4.14 LSU Unit …………………………………………………… 3-21 3.4.15 Holder Pad ………………………………………………… 3-22 3.4.16 Transfer roller Assy ………………………………………… 3-23 3.4.17 Pick up roller ……………………………………………… 3-24 3.4.18 Main drive unit ……………………………………………… 3-25 4.1 Alignment and Adjustments ……………………………………… 4-1 4.1.1 Control Panel overview …………………………………… 4-1 chapter 4 Alignment and troubleshooting Contents Downloaded from www.Manualslib.com manuals search engine

4.1.2 Understanding The Status LED …………………………… 4-3 4.1.3 Paper path …………………………………………………… 4-4 4.1.4 Menu Map …………………………………………………… 4-9 4.1.5 F/W Upgrade ………………………………………………… 4-13 4.1.6 Tech Mode …………………………………………………… 4-14 4.1.7 EDC Mode …………………………………………………… 4-19 4.1.8 Periodic Defective Image …………………………………… 4-23 4.1.9 Error Message ……………………………………………… 4-24 4.2 Troubleshooting ……………………………………………… 4-29 4.2.1 Procedure of Checking the Symptoms …………………… 4-29 4.2.2 Troubleshooting Checklist ………………………………… 4-30 4.2.3 Solving General Printing Problems ……………………… 4-31 4.2.4 Solving Print Quality Problems …………………………… 4-39 4.2.5 Common Windows Problems ……………………………… 4-57 4.2.6 Common Macintosh Problems …………………………… 4-58 4.2.7 Common Linux Problems ………………………………… 4-59 4.2.8 Major Problems Trouble shooting ………………………… 4-53 4.2.9 Fax & Phone Problems (only 4 in 1) ……………………… 4-67 4.2.10 Copy Problems …………………………………………… 4-76 4.2.11 Scanner, OPE problems ………………………………… 4-80 5.1 Block Diagram …………………………………………………… 5-1 5.2 Connection diagram (4 in 1) …………………………………… 5-2 Connection diagram (3 in 1) …………………………………… 5-3 6.1 Tools for Troubleshooting ……………………………………… 6-1 6.2 Acronyms and Abbreviations …………………………………… 6-2 6.3 Select a location for the printer ………………………………… 6-4 6.4 A4 ISO 19752 Standard Pattern ………………………………… 6-5 Contents chapter 6 Reference information chapter 5 System diagram Downloaded from www.Manualslib.com manuals search engine

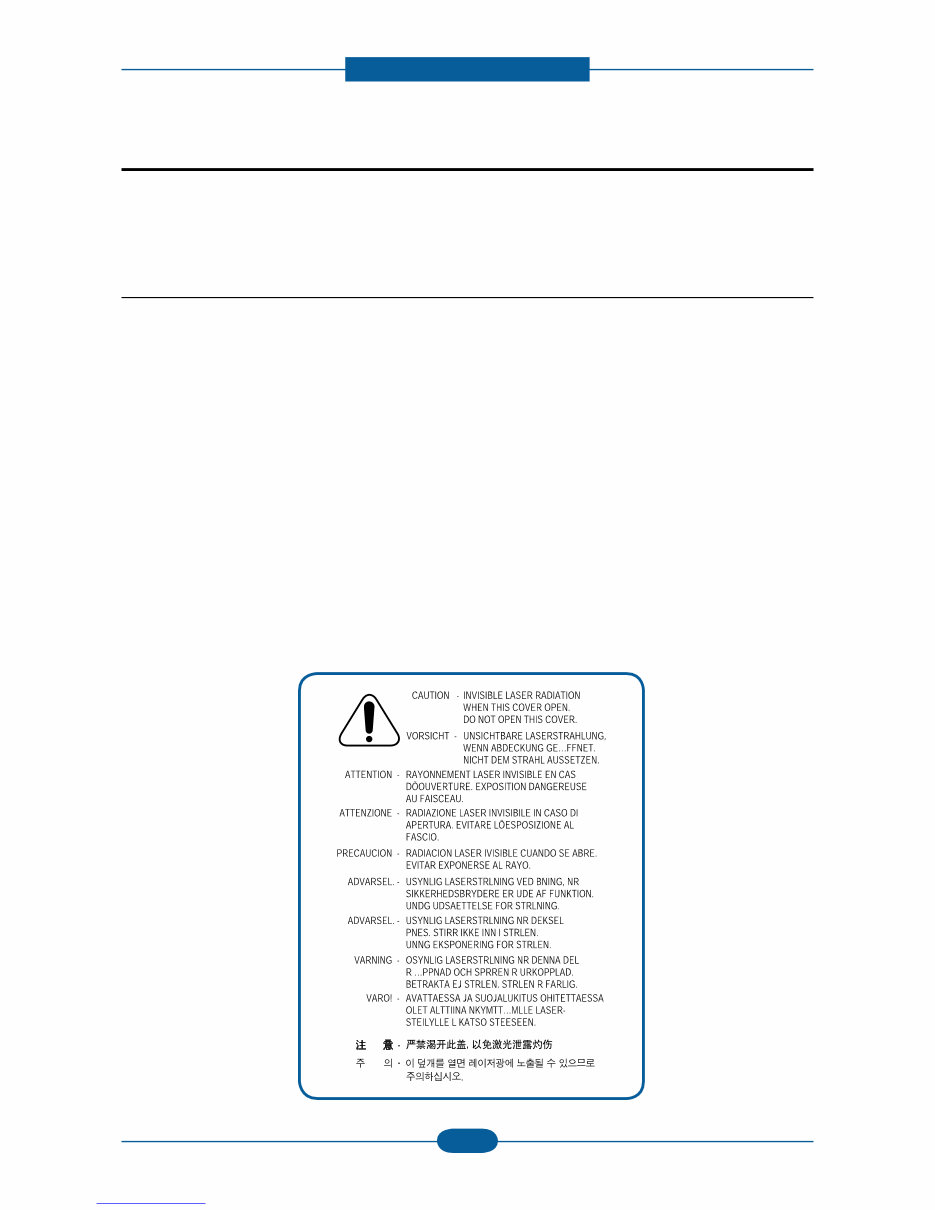

Precautions Service Manual 1-1 Samsung Electronics In order to prevent accidents and damages to the equipment please read the precautions listed below carefully before servicing the product and follow them closely. 1.1 Safety warning (1) Only to be serviced by a factory trained service technician. High voltages and lasers inside this product are dangerous. This product should only be serviced by a factory trained service technician. (2) Use only Samsung replacement parts. There are no user serviceable parts inside the product. Do not make any unauthorized changes or additions to the product as these could cause the product to malfunctions and create an electric shocks or fire hazards. (3) Laser Safety Statement The product is certified in the U.S. to conform to the requirements of DHHS 21 CFR, chapter 1 Subchapter J for Class 1(1) laser products, and elsewhere, it is certified as a Class I laser product con- forming to the requirements of IEC 825. Class I laser products are not considered to be hazardous. The laser system and product are designed so there is never any human access to laser radiation above a Class I level during normal operation, user maintenance, or prescribed service condition. Warning >> Never operate or service the product with the protective cover removed from Laser/Scanner assembly. The reflected beam, although invisible, can damage your eyes. When using this product, these basic safety pre-cautions should always be followed to reduce risk of fire, electric shock, and personal injury. 1. Precautions Downloaded from www.Manualslib.com manuals search engine

Precautions Service Manual 1-2 Samsung Electronics 1.2 Caution for safety 1.2.1 Toxic material This product contains toxic materials that could cause illness if ingested. (1) If the LCD control panel is damaged, it is possible for the liquid inside to leak. This liquid is toxic. Contact with the skin should be avoided. Wash any splashes from eyes or skin immediately and contact your doctor. If the liquid gets into the mouth or is swallowed, see a doctor immediately. (2) Please keep imaging unit and toner cartridge away from children. The toner powder contained in the imaging unit and toner cartridge may be harmful, and if swallowed, you should contact a doctor. 1.2.2 Electric shock and fire safety precautions Failure to follow the following instructions could cause electric shock or potentially cause a fire. (1) Use only the correct voltage, failure to do so could damage the product and potentially cause a fire or electric shock. (2) Use only the power cable supplied with the product. Use of an incorrectly specified cable could cause the cable to overheat and potentially cause a fire. (3) Do not overload the power socket, this could lead to overheating of the cables inside the wall and could lead to a fire. (4) Do not allow water or other liquids to spill into the product, this can cause electric shock. Do not allow paper clips, pins or other foreign objects to fall into the product, these could cause a short circuit leading to an electric shock or fire hazard. (5) Never touch the plugs on either end of the power cable with wet hands, this can cause electric shock. When servicing the product, remove the power plug from the wall socket. (6) Use caution when inserting or removing the power connector. When removing the power connector, grip it firmly and pull. The power connector must be inserted completely, otherwise a poor contact could cause overheating possibly leading to a fire. (7) Take care of the power cable. Do not allow it to become twisted, bent sharply around corners or wise damaged. Do not place objects on top of the power cable. If the power cable is damaged it could overheat and cause a fire. Exposed cables could cause an electric shock. Replace the damaged power cable immediately, do not reuse or repair the damaged cable. Some chemicals can attack the coating on the power cable, weakening the cover or exposing cables causing fire and shock risks. (8) Ensure that the power sockets and plugs are not cracked or broken in any way. Any such defects should be repaired immediately. Take care not to cut or damage the power cable or plugs when moving the machine. (9) Use caution during thunder or lightning storms. Samsung recommends that this machine be disconnected from the power source when such weather conditions are expected. Do not touch the machine or the power cord if it is still connected to the wall socket in these weather conditions. (10) Avoid damp or dusty areas, install the product in a clean well ventilated location. Do not position the machine near a humidifier or in front of an air conditioner. Moisture and dust built up inside the machine can lead to overheating and cause a fire or cause parts to rust. (11) Do not position the product in direct sunlight. This will cause the temperature inside the product to rise possibly leading to the product failing to work properly and in extreme conditions could lead to a fire. (12) Do not insert any metal objects into the machine through the ventilator fan or other part of the casing, it could make contact with a high voltage conductor inside the machine and cause an electric shock. Downloaded from www.Manualslib.com manuals search engine

Precautions Service Manual 1-3 Samsung Electronics 1.2.3 Handling precautions The following instructions are for your own personal safety to avoid injury and so as not to damage the product. (1) Ensure the product is installed on a level surface, capable of supporting its weight. Failure to do so could cause the product to tip or fall. (2) The product contains many rollers, gears and fans. Take great care to ensure that you do not catch your fingers, hair or clothing in any of these rotating devices. (3) Do not place any small metal objects, containers of water, chemicals or other liquids close to the product which if spilled could get into the machine and cause damage or a shock or fire hazard. (4) Do not install the machine in areas with high dust or moisture levels, beside on open window or close to a humidifier or heater. Damage could be caused to the product in such areas. (5) Do not place candles, burning cigarettes, etc on the product, These could cause a fire. 1.2.4 Assembly / Disassembly precautions Replace parts carefully and always use Samsung parts. Take care to note the exact location of parts and also cable routing before dismantling any part of the machine. Ensure all parts and cables are replaced correctly. Please carry out the following procedures before dismantling the product or replacing any parts. (1) Check the contents of the machine memory and make a note of any user settings. These will be erased if the main board or network card is replaced. (2) Ensure that power is disconnected before servicing or replacing any electrical parts. (3) Disconnect interface cables and power cables. (4) Only use approved spare parts. Ensure that part number, product name, any voltage, current or temperature rating are correct. (5) When removing or re-fitting any parts do not use excessive force, especially when fitting screws into plastic. (6) Take care not to drop any small parts into the machine. (7) Handling of the OPC Drum - The OPC Drum can be irreparably damaged if it exposed to light. Take care not to expose the OPC Drum either to direct sunlight or to fluorescent or incandescent room lighting. Exposure for as little as 5 minutes can damage the surface of the photoconductive properties and will result in print quality degradation. Take extra care when servicing the product. Remove the OPC Drum and store it in a black bag or other lightproof container. Take care when working with the Covers (especially the top cover) open as light is admitted to the OPC area and can damage the OPC Drum. - Take care not to scratch the green surface of OPC Drum Unit. If the green surface of the Drum Cartridge is scratched or touched the print quality will be compromised. Downloaded from www.Manualslib.com manuals search engine

Precautions Service Manual 1-4 Samsung Electronics 1.2.5 Disregarding this warning may cause bodily injury (1) Be careful with high temperature components. The fuser unit works at a high temperature. Use caution when working on the product. Wait for the fuser to cool down before disassembly. (2) Be careful when working around the rotating parts. When operating a product, keep all bodily items and clothing away from moving parts [e.g. ﬁngers, hair, tie, etc.] (Paper feeding entrance, motor, fan, etc.). (3) When moving the product : - When transporting/installing the equipment, employ four persons and be sure to hold the lifting handles. - Be sure not to hold the movable parts or units (e.g. the control panel, DADF) when transporting the equipment. - Be sure to use a dedicated outlet with 110V/220V power input. - The equipment must be grounded for safety. - Select a suitable place for installation. Avoid excessive heat, high humidity, dust, vibration and direct sunlight. - Provide proper ventilation since the equipment emits a slight amount of ozone. - The equipment must be installed near the socket outlet and must be accessible. - Be sure to ﬁx and plug in the power cable securely after the installation so that no one trips over it. Downloaded from www.Manualslib.com manuals search engine

Precautions Service Manual 1-5 Samsung Electronics 1.3 ESD precautions Certain semiconductor devices can be easily damaged by static electricity. Such components are commonly called “Electrostatically Sensitive (ES) Devices” or ESDs. Examples of typical ESDs are: integrated circuits,some field effect transistors, and semiconductor “chip” components. The techniques outlined below should be followed to help reduce the incidence of component damage caused by static electricity. Caution >>Be sure no power is applied to the chassis or circuit, and observe all other safety precautions. 1. Immediately before handling a semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, employ a commercially available wrist strap device, which should be removed for your personal safety reasons prior to applying power to the unit under test. 2. After removing an electrical assembly equipped with ESDs, place the assembly on a conductive surface, such as aluminum or copper foil, or conductive foam, to prevent electrostatic charge buildup in the vicinity of the assembly. 3. Use only a grounded tip soldering iron to solder or desolder ESDs. 4. Use only an “anti-static” solder removal device. Some solder removal devices not classified as “anti-static” can generate electrical charges sufficient to damage ESDs. 5. Do not use Freon-propelled chemicals. When sprayed, these can generate electrical charges sufficient to damage ESDs. 6. Do not remove a replacement ESD from its protective packaging until immediately before installing it. Most replacement ESDs are packaged with all leads shorted together by conductive foam, aluminum foil, or a comparable conductive material. 7. Immediately before removing the protective shorting material from the leads of a replacement ESD, touch the protective material to the chassis or circuit assembly into which the device will be installed. 8. Maintain continuous electrical contact between the ESD and the assembly into which it will be installed, until completely plugged or soldered into the circuit. 9. Minimize bodily motions when handling unpackaged replacement ESDs. Normal motions, such as the brushing together of clothing fabric and lifting one’s foot from a carpeted floor, can generate static electricity sufficient to damage an ESD. Downloaded from www.Manualslib.com manuals search engine

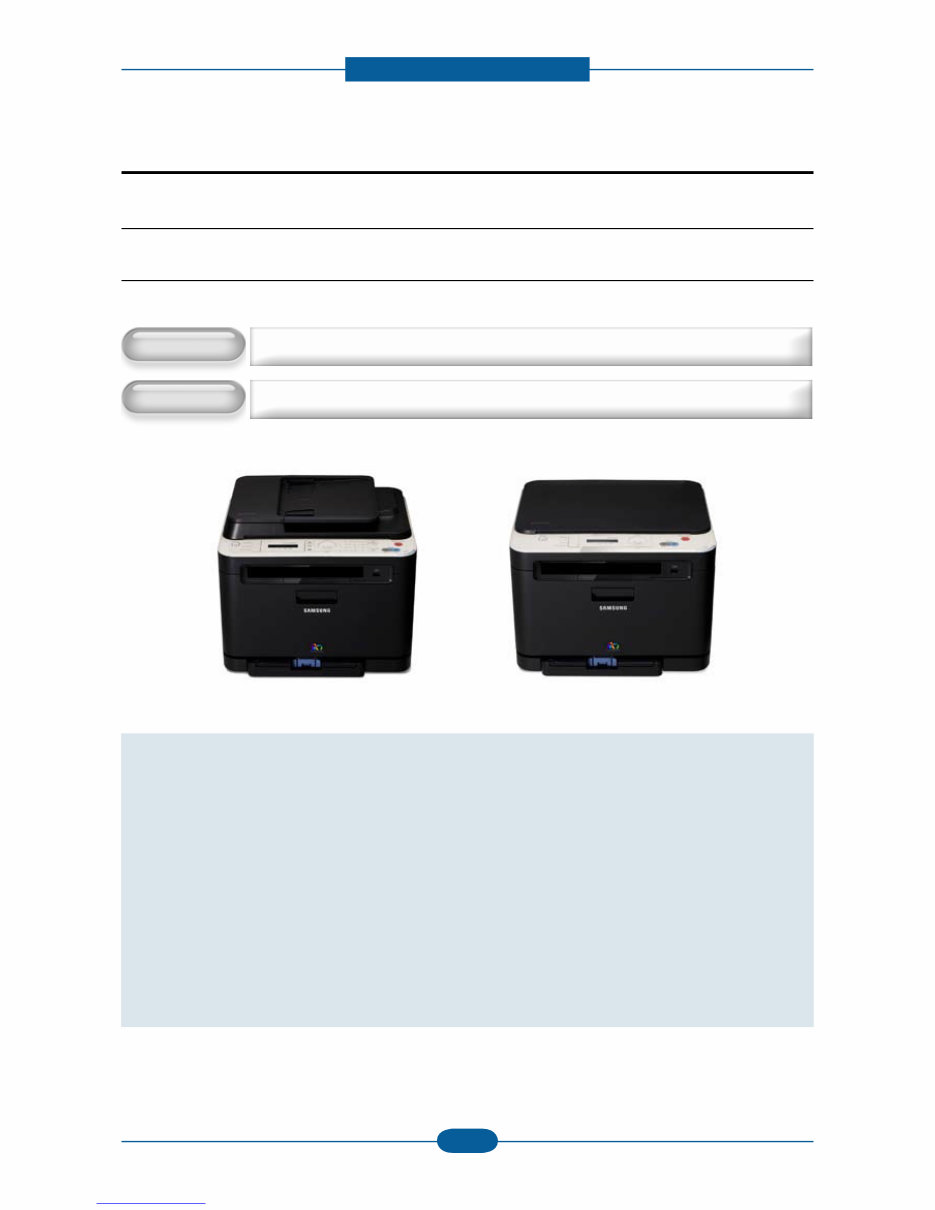

Product spec and feature Service Manual 2-1 Samsung Electronics 2.1 Product Speciﬁcations 2.1.1 Product Overview 2. Product spec and feature Concept Target The smallest & quietest C-MFP in the world Home & SOHO CLX-3185FN/3185FW (4 in 1 model) CLX-3185/3185N/3185W (3 in 1 model) 1. Speed - Mono : Up to 16 ppm in A4 (17 ppm in Letter) - Color : Up to 4 ppm in A4 (4 ppm in Letter) 2. Printing Resolution - Max. 2400x600 dpi effective output 3. Processor - CHORUS3 (360Mhz), Proprietary SOC 4 Printer language emulation : SPL-Color (3185)/SPL,PCL-Color(3185N/W/FN/FW) 5. Memory : 128MB(3185)/256MB(3185N/W/FN/FW) 6. One 10/100 base Tx Network connector (3185N/W/ FN/FW) Wireless LAN: 802.11b/g/n (3185W/FW) 7. Toner cartridge - Black : 1K (initial) / 1.5K (sales) - Color : 0.7K (initial) / 1K (sales) 8. Cassette 150 sheets ADF 15 sheets (3185FN/FW) 9. Color : Black Downloaded from www.Manualslib.com manuals search engine
