Apple Power Mac G4 Server (Quicksilver 2002/ED) Service & Repair Manual

Service Source K Power Mac G4/ Macintosh Server G4 Power Mac G4 (AGP Graphics/Gigabit Ethernet/Digital Audio/ QuickSilver/QuickSilver 2002/QuickSIlver 2002ED), Power Mac G4 (PCI Graphics), Macintosh Server G4

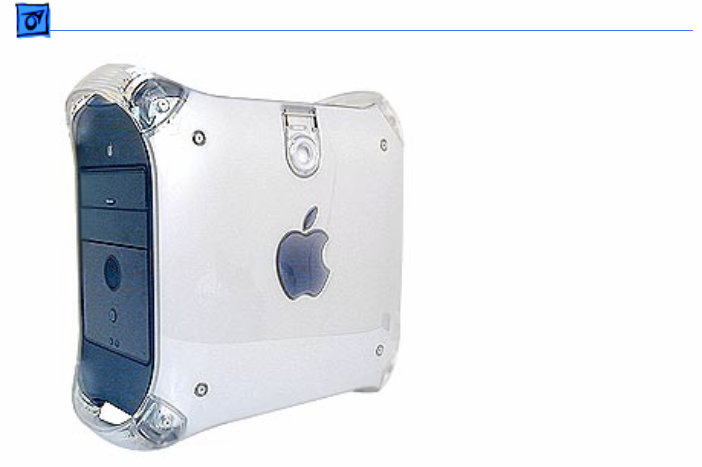

Basics Product Description - 1 | Overview Product Description The Power Mac G4 is the first Power Mac computer based on the PowerPC G4 processor. Some configurations also include support for wireless networking, dual-channel USB, Gigabit Ethernet, dual processing, digital audio, and a wake/sleep power management feature.

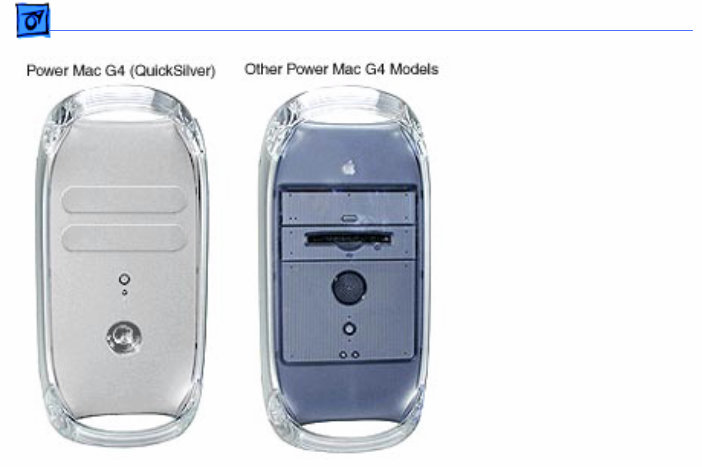

Basics Identifying Versions of the Power Mac G4 - 2 Identifying Versions of the Power Mac G4 There are six models of Power Mac G4 computers: AGP Graphics, PCI Graphics, Gigabit Ethernet, Digital Audio, QuickSilver, and QuickSilver 2002. Power Mac G4 (QuickSilver and QuickSilver 2002) computers are easy to identify. Unlike other Power Mac G4 models, these models have a silver-colored case. They also have a recessed speaker on the front panel.

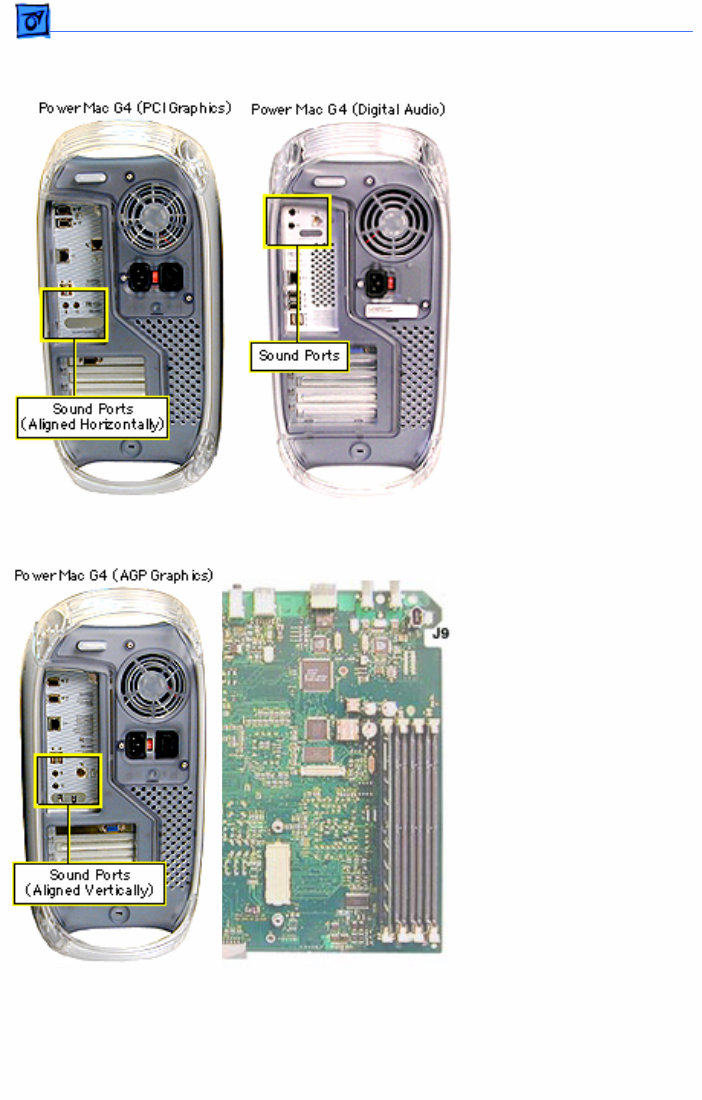

Basics New Technologies - 3 To identify the other Power Mac G4 models, check the I/O panel at the back of the computer. The sound ports align horizontally in the lower half of the I/O panel on PCI Graphics models and vertically on AGP Graphics/ Gigabit Ethernet models. On Digital Audio models, the sound ports are in the upper half of the I/O panel. In addition, Digital Audio models include four expansion slots, instead of three slots on PCI/AGP Graphics/Gigabit Ethernet models. To further distinguish Gigabit Ethernet models from AGP Graphics models, check the logic boards. AGP Graphics boards include an internal FireWire connector at J9; Gigabit Ethernet boards do not include the connector. New Technologies While the Power Mac G4 family of computers all use the innovative PowerPC G4 processor, they also include a range of other new hard- ware and architectures. For information on the latest technolgies, check the Apple Knowledge Base.

Basics Standard Configurations - 4 | Features Standard Configurations Processor • 350 MHz,400 MHz, 450 MHz, 466 MHz, 500 MHz, 533 MHz, 733 MHz, 800 MHz, 867 MHz, 933 MHz, or 1 GHz PowerPC G4 processor; dual processors on some configurations • Velocity Engine vector processing unit with 162 integrated Single Instruction Multiple Data (SIMD) instructions • Full 128-bit internal memory data paths • Powerful floating-point unit supporting single-cycle, double-precision calculations • Data stream prefetching operations supporting four

Basics Standard Configurations - 5 simultaneous 32-bit data streams • L2 or L3 cache • 100-MHz system bus (PCI Graphics/AGP Graphics/ Gigabit Ethernet) or 133-MHz system bus (QuickSilvers/Digital Audio) Memory • 64, 128, 256, or 512 MB of PC-100 SDRAM (PCI Graphics/AGP Graphics/Gigabit Ethernet) or 64, 128, 256, or 512 MB of PC-133 SDRAM (QuickSilvers/Digital Audio) • Four DIMM slots (PCI Graphics/AGP Graphics/Gigabit Ethernet) or three DIMM slots (QuickSilvers/Digital Audio)

Basics Standard Configurations - 6 Storage • One of the following hard drives: 10, 13, 20, 27, 30, 40, 60, or 80 GB Ultra ATA • One of the following optical drives: – CD-ROM drive – CD-RW drive – DVD-ROM drive – DVD-RAM drive – DVD-R/CD-RW drive – DVD/CD-RW drive • Optional 100 or 250 MB Zip drive • Three 3.5-inch hard drive expansion bays – One ATA drive preinstalled in standard configurations – Support for up to two internal ATA drives – Support for up to three internal SCSI drives

Basics Standard Configurations - 7 Graphics Support • Video card installed in a dedicated graphics slot (either a PCI slot or an AGP slot) • Support for up to 1,600 by 1,200 pixel resolution at 32 bits per pixel and up to 85-Hz refresh rate • 15-pin mini D-Sub VGA connector • ADC connector for digital flat-panel display (not available on PCI Graphics computers) • Support for independent video output to two monitors (with NVIDIA TwinView video card)

Basics Standard Configurations - 8 Electrical Requirements and Agency Approvals • Line voltage: 115V AC (90V to 132V AC) or 230V AC (180V to 264V AC) • Frequency: 47 to 63 Hz, single phase • Maximum continuous power (not including display): 200W EPA ENERGY STAR and Blue Angel compliant (some configurations) Environmental Requirements • Operating temperature: 50° to 95° F (10° to 35° C) • Storage temperature: -40° to 116° F (-40° to 47° C) • Relative humidity: 5% to 95% noncondensing • Maximum altitude: 10,000 feet (3,048 m)
