VOLVO DD25B ASPHALT COMPACTOR Service and Repair Manual

DD25B 2.6 t 25 hp VOLVO DOUBLE DRUM COMPACTORS

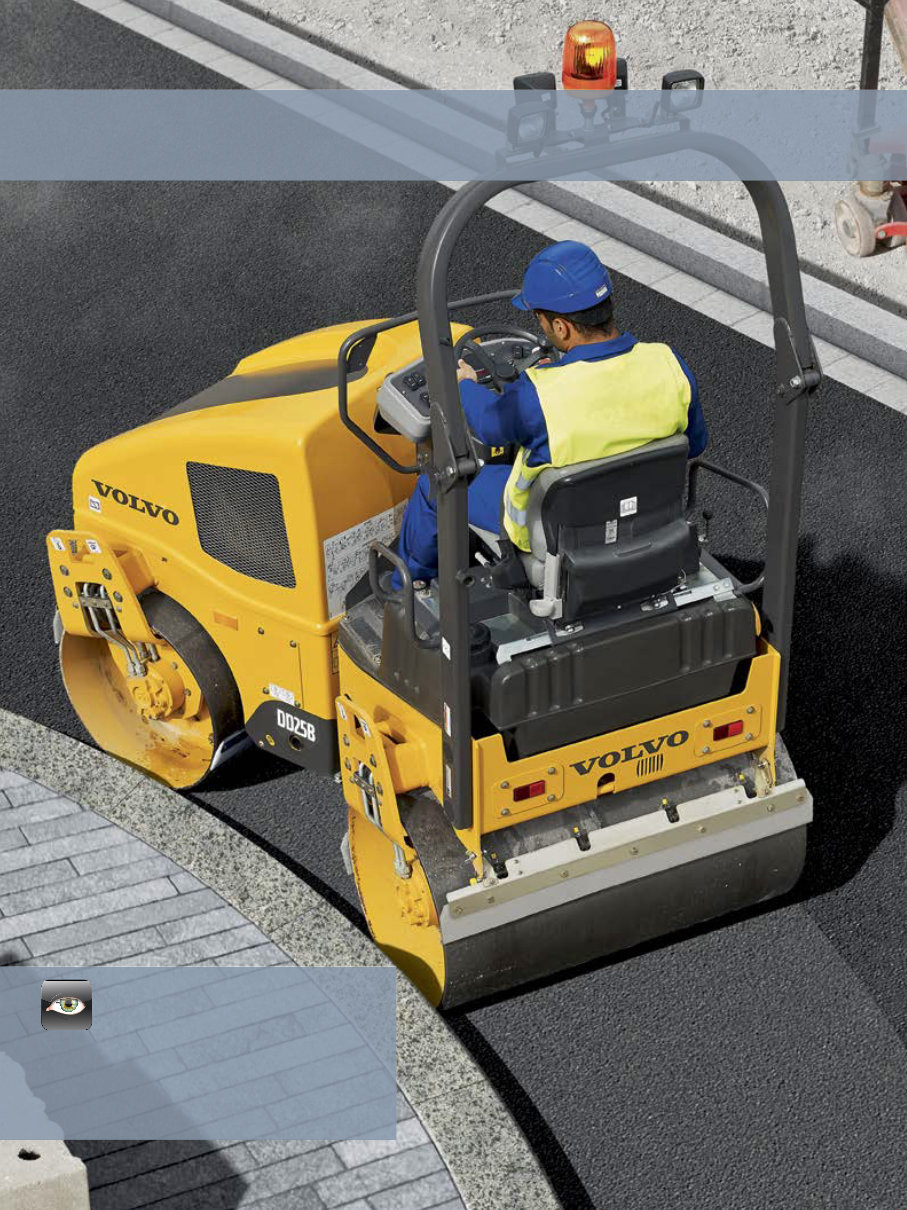

PERFORMANCE YOU CAN COUNT ON. 360° visibility With an optimally positioned sliding seat, angled drum mounts and a sloping hood design, the DD25B provides industry-leading, all-around visibility. Whether rolling forwards or in reverse, the operator has a clear view of the drum edges and surroundings – delivering precise compaction and improved safety.

3 Introducing the DD25B, a highly efficient double drum compactor designed to increase performance and reduce fuel consumption on small scale compaction projects. Featuring the new Volvo D1.7A engine, this machine meets the strict Stage IV/ Tier 4 Final emissions regulations without adding an exhaust after-treatment system. Experience increased machine performance and enhanced productivity with Volvo. High performance With Volvo’s high frequency compaction, the DD25B can travel faster while still maintaining the correct impact spacing necessary for high productivity and a smooth finish. The frequency can be adjusted from 3,300 vpm to 4,000 vpm to cater for different applications. Pressurized water system The DD25B boasts an industry-leading water tank capacity. A rust-proof, pressurized water system provides consistent flow to the front and rear drum surfaces – eliminating asphalt pick-up. Fine filters behind each of the eight spray nozzles minimize clogging and ensure correct fan spray coverage – providing ideal wetting of the drum surface. Reduced fuel consumption The Volvo D1.7A engine is perfectly matched to the DD25B’s hydraulic system – delivering high performance and a 7% reduction in fuel consumption. Optimized for efficiency The new Volvo D1.7A (18.5 kW/25 hp) engine effectively meets the stringent Stage IV/ Tier 4 Final emissions regulations without the cost or complexity of an exhaust after-treatment system. The optimized eccentric system ensures a powerful performance – equivalent to machines fitted with a bigger engine.

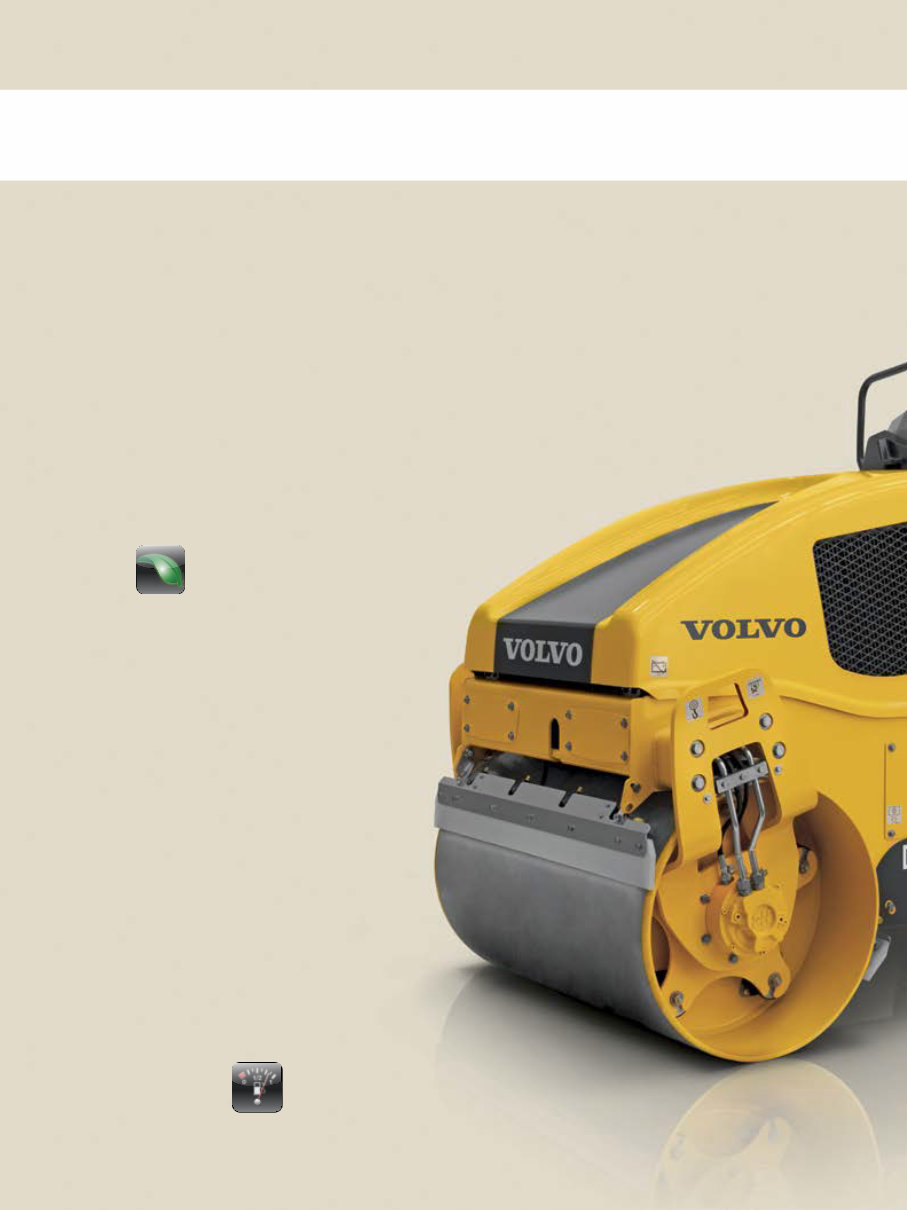

4 THE VOLVO EXPERIENCE. Urethane drum wipers Front and rear drum wipers are made of urethane – increasing effectiveness and component lifetime as well as reducing maintenance requirements. Engine compartment For easy maintenance access, the hinged engine hood tilts forward – providing wide access to the engine and hydraulic components at ground level. Water level indicator The operator can easily monitor the water tank level from the seat. Intermittent water spray The DD25B boasts an industry-leading water tank capacity. The operator can adjust the time between water sprays to the drums to conserve water and reduce refilling downtime. Auto start vibration Vibration engages automatically when the FSR lever is moved out of neutral and disengages when the lever is put in the stop position. This eliminates the risk of accidental damage to the mat. Optimized for efficiency The new Volvo D1.7A engine delivers high performance while meeting the stringent Stage IV/ Tier 4 Final emissions regulations without an exhaust after-treatment system. Reduced fuel consumption The Volvo D1.7A engine is perfectly matched to the DD25B’s hydraulic system – delivering high performance and a 7% reduction in fuel consumption.

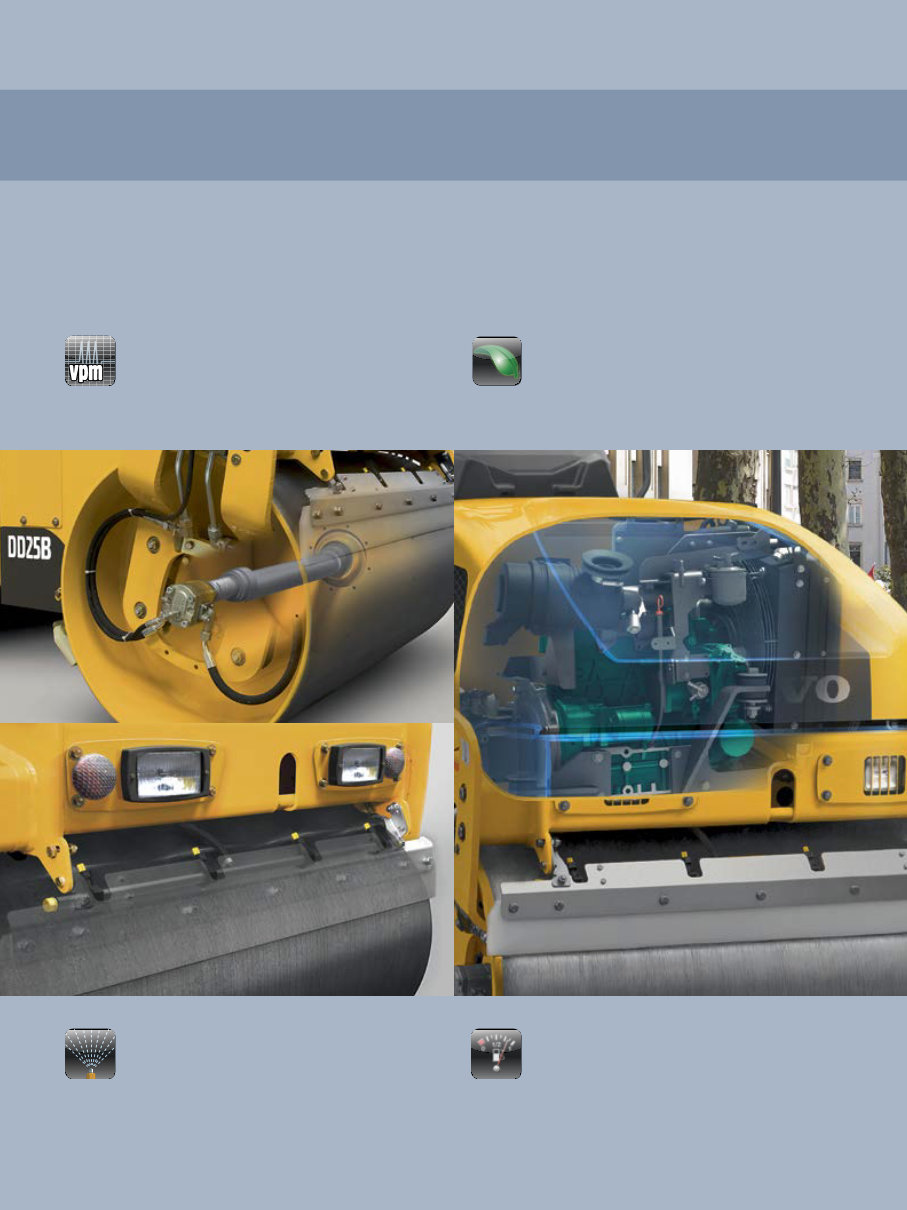

5 Quick removal of nozzles Water nozzles can be quickly removed without the need for tools – increasing machine uptime and water system performance. Machined drums Machined drums with chamfered edges are perfectly round in order to produce a smooth, mark-free mat. High performance With Volvo’s high frequency compaction, the DD25B can travel faster while still maintaining the correct impact spacing necessary for high productivity and a smooth finish. 360° visibility With an optimally positioned sliding seat and a sloping engine hood design, the operator will experience industry-leading, all-around visibility. Maintenance-free bearings Maintenance-free eccentric bearings are lubricated for life and built to tolerate high temperatures and rotation speeds. Pressurized water system A rust-proof, pressurized water system provides consistent flow to the drum surfaces – eliminating asphalt pick-up.

6 Maintain your productivity. Easy-access engine compartment The engine hood can be easily opened for daily maintenance and inspection. The hinged engine hood design is lightweight and tilts forward with the aid of two gas struts giving wide access to the engine and hydraulic components. Dealer support comes standard Your local Volvo dealer backs you and your operation with a ready supply of genuine Volvo parts that are perfectly matched to your machine. Your dealer is also ready to help you stay working with expert, trained service and support. Volvo machines are built to last. That’s why all service points on the DD25B are easy to access for fast maintenance and reduced downtime. The lightweight engine hood opens effortlessly for daily inspection. Combined with Volvo’s excellent service support, your DD25B will keep you rolling longer.

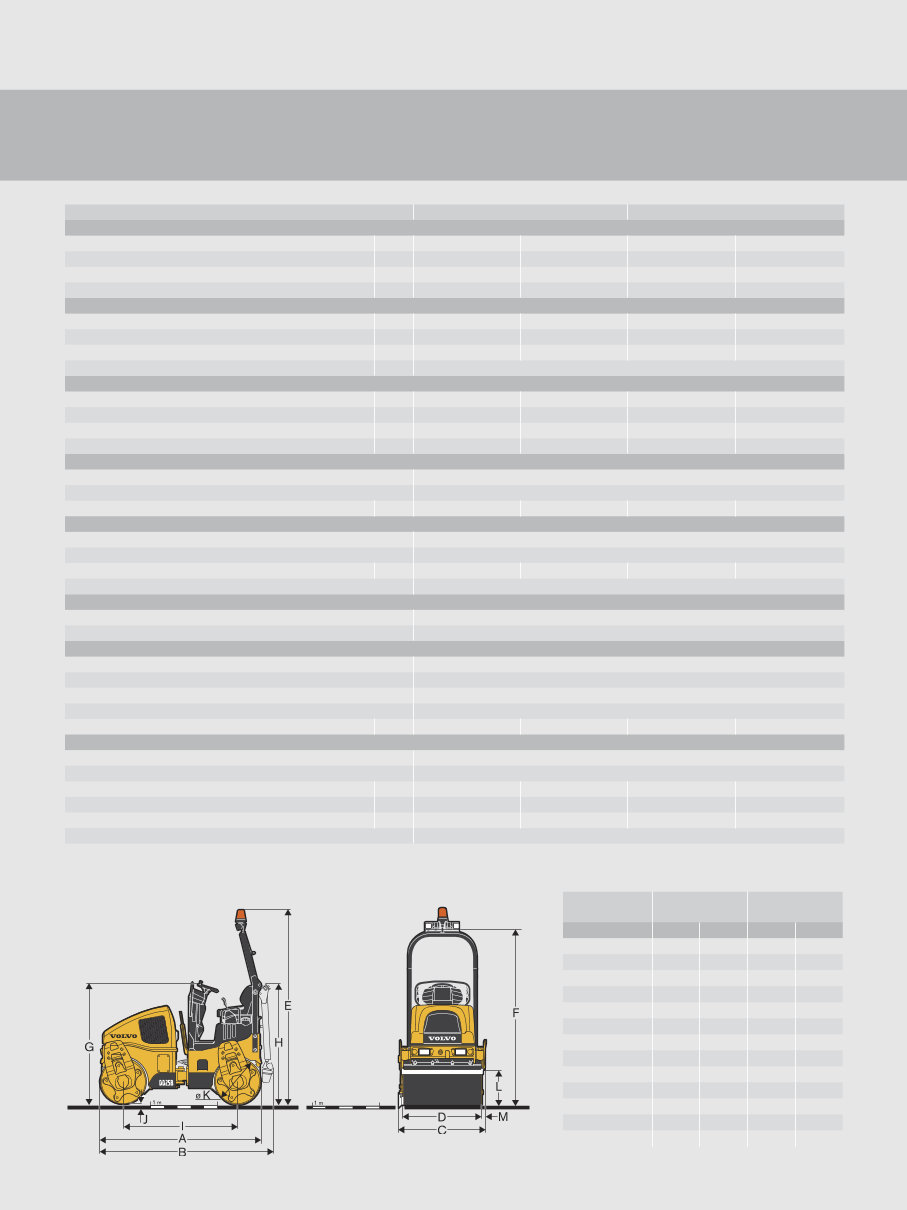

7 Specifications. Model DD25B Narrow Drum DD25B Wide Drum Machine weights (w/ ROPS) Operating weight kg lb 2 515 5,545 2 620 5,776 Weight @ front drum kg lb 1 211 2,670 1 270 2,800 Weight @ rear drum kg lb 1 304 2,875 1 360 2,998 Shipping weight kg lb 2 359 5,201 2 470 5,445 Drum Width mm in 1 000 39.4 1 200 47.2 Diameter mm in 700 27.5 700 27.5 Shell thickness mm in 13 0.51 13 0.51 Finish Machined Vibration Frequency Hz vpm 55/66.7 3,300/4,000 55/66.7 3,300/4,000 Nominal amplitude mm in 0.54 0.0210 0.5 0.0197 Centrifugal force high kN lb 37.5 8,430 40.6 9,127 low 25.5 5,732 27.7 6,227 Propulsion Type Closed-loop hydrostatic Drum drive Radial piston Travel speed km/h mph 0 – 10.3 0 – 6.4 0 – 10.3 0 – 6.4 Engine Make / model Engine Tier 4 Final - Volvo D1.7A Engine type 3-cylinder diesel Rated power @ installed speed kW hp 18.4 @ 2,200 rpm 25 @ 2,200 rpm 18.4 @ 2,200 rpm 25 @ 2,200 rpm Electrical 12 volts, 70 A alternator Brakes Service Hydrostatic Parking secondary Spring-applied, hydraulic release on each drum Water system Type Pressurized Nozzles 4 per drum Filtration Inlet and nozzle ﬁltration Drum wipers Spring-loaded, self-adjusting urethane wipers Water tank capacity l gal 260 69 260 69 Miscellaneous Articulation angle ° + / - 30 Oscillation angle ° + / - 10 Inside turning radius (to drum edge) mm in 2 800 110 2 800 110 Fuel tank capacity l gal 40 10.6 40 10.6 Hydraulic oil capacity l gal 27 7.2 27 7.2 Gradeability (theoretical) % 30 DIMENSIONS DD25B Narrow Drum DD25B Wide Drum mm in mm in A 2 420 95.3 2 420 95.3 B 2 540 100.0 2 540 100.0 C 1 090 42.9 1 290 50.8 D 1 000 39.4 1 200 47.2 E 2 955 116.3 2 955 116.3 F 2 650 104.3 2 650 104.3 G 1 870 73.6 1 870 73.6 H 2 020 79.5 2 020 79.5 I 1 720 67.7 1 720 67.7 J 13 0.5 13 0.5 K 700 27.6 700 27.6 L 490 19.3 490 19.3 M 45 1.8 45 1.8

Ref. No. VOE2210009320 English-22 Printed in USA, 01/2014 USA Volvo, Shippensburg Copyright © 2014 Volvo Volvo Construction Equipment is different. Our machines are designed, built and supported in a different way. That difference comes from an engineering heritage of over 180 years. A heritage of thinking ﬁrst about the people who actually use the machines. About how to help them be safer, more comfortable, more productive. About the environment we all share. The result of that thinking is a growing range of machines and a global support network dedicated to helping you do more. People around the world are proud to use Volvo. Not all products are available in all markets. Under our policy of continuous improvement, we reserve the right to change speciﬁcations and design without prior notice. The illustrations do not necessarily show the standard version of the machine. volvo construction equipment

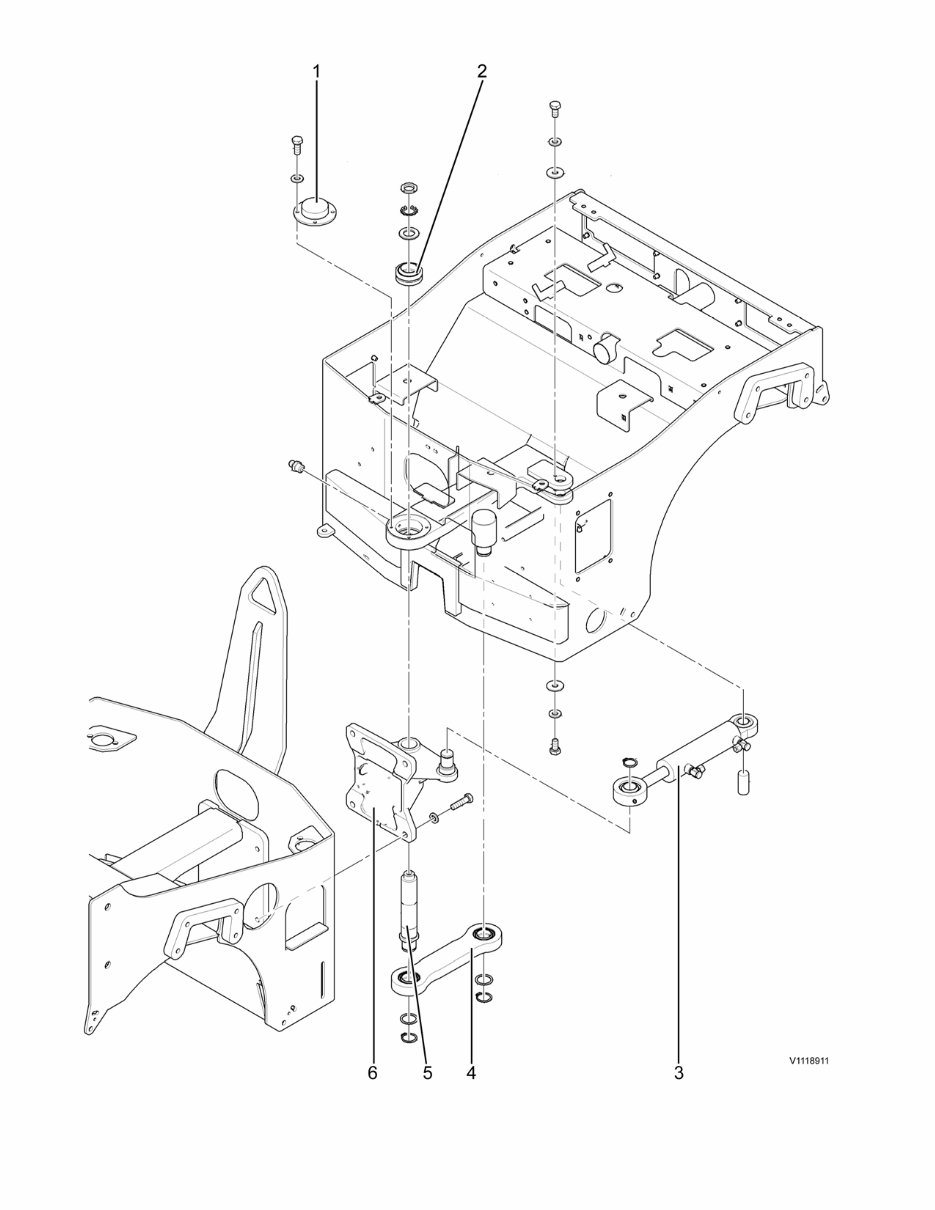

Articulation hinge, component location Figure 1 Articulated steering joint

Position Description 1 Protective cap 2 Spherical bearing 3 Steering cylinder 4 Articulation bar 5 Bolts 6 Steering link part
