TB153FR Book No. BJ2Z004 S/N 15820004-

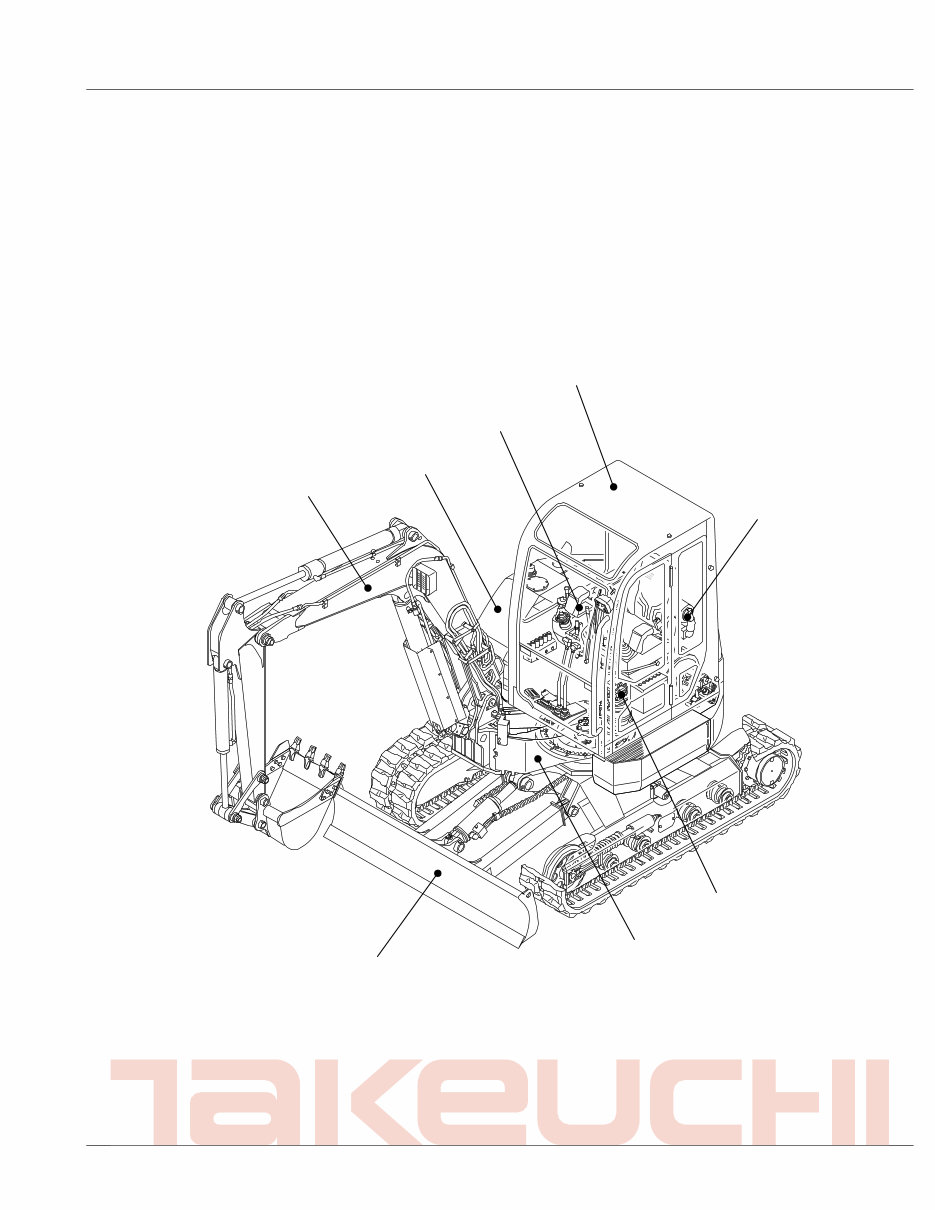

Index
Ref. 0 Page 0
TB153FR
Book No. BJ2Z004
Serial No.15820004-
10
8
1
2
5
3
4
6
INDEX
Item Part number Description Q'ty Chan. Serial No. Serv. Remarks
1 UNDERCARRIAGE
2 TURNTABLE & CONTROL LEVER
3 ENGINE & ELECTRICAL SYSTEM
4 HYDRAULIC PIPNG & TANK
5 COVER & CAB
6 HOE ATTACHMENT
7 DECAL & TOOL
8 HYDRAULIC DEVICE
10 ENGINE(4TNV88-PTBZ1)
2008.4.21
Reference:0 Page:0
TB153FR Book No. BJ2Z004 S/N 15820004-

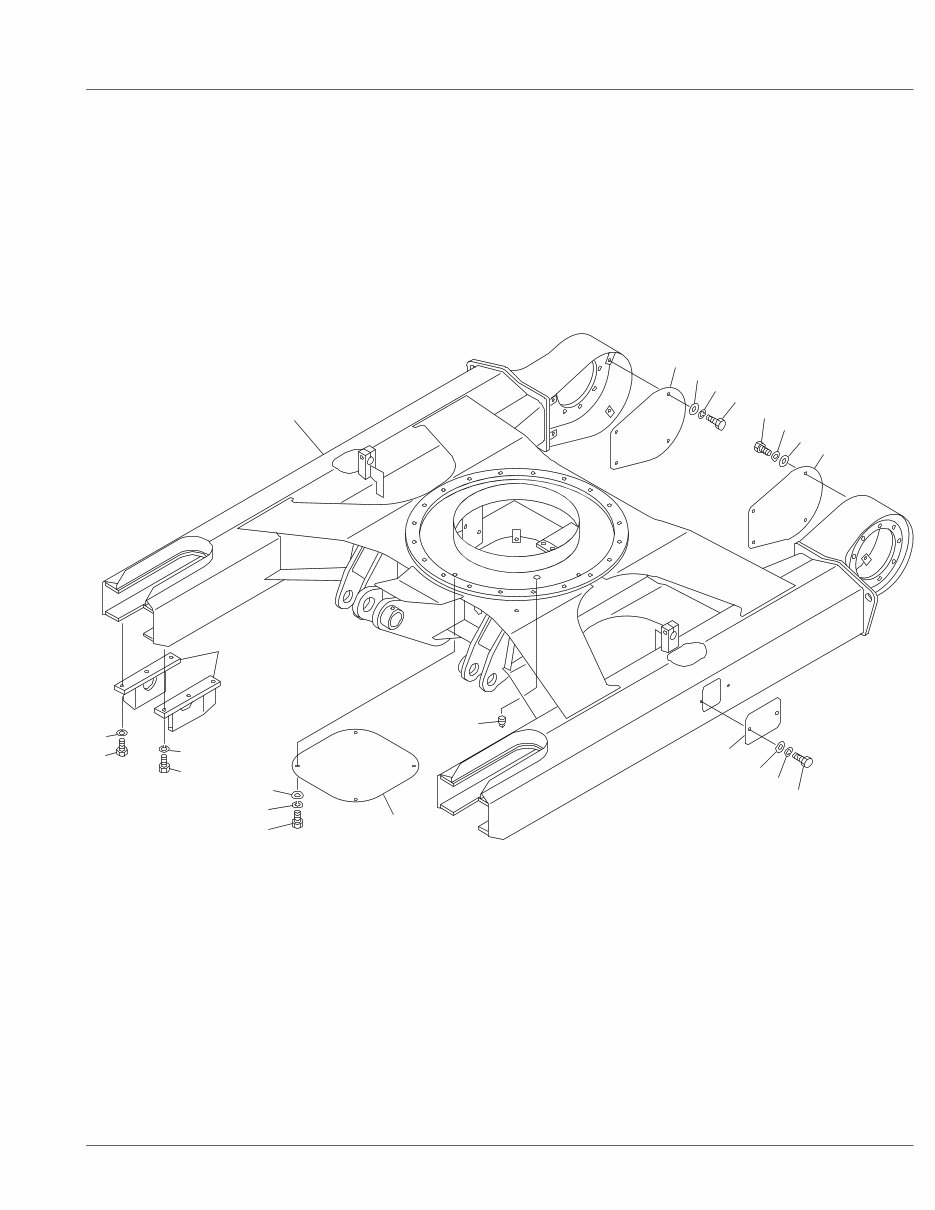

LOWER FRAME
Ref. J2A010 Page 1-1
J2A010 S=1/14
2
10
8
6
5
7
9
4
11
6
3
8
10
13
14
8
6
10
2
13
14
12
1
LOWER FRAME
Reference:J2A010 Page:1-1
Item Part number Description Q'ty Chan. Serial No. Serv. Remarks
FRAME ASSY, lower (rubber) X03910-11000-0
FRAME ASSY, lower (steel) X03910-11500-0
1 X *****-***** FRAME 1
2 03910-04002 COVER 2
3 03910-04003 COVER 1
4 05610-17400 COVER 2
5 11000-40816 BOLT 4
6 11000-41020 BOLT 12
7 11400-20008 WASHER, spring 4
8 11400-20010 WASHER, spring 12
9 11411-10008 WASHER 4
10 11411-10010 WASHER 12
11 15087-10010 PLUG 1
12 04610-00700 GUIDE, shoe 4 steel
13 11010-41230 BOLT 12 steel
14 11400-20012 WASHER, spring 12 steel
J2a010
TB153FR Book No. BJ2Z004 S/N 15820004-

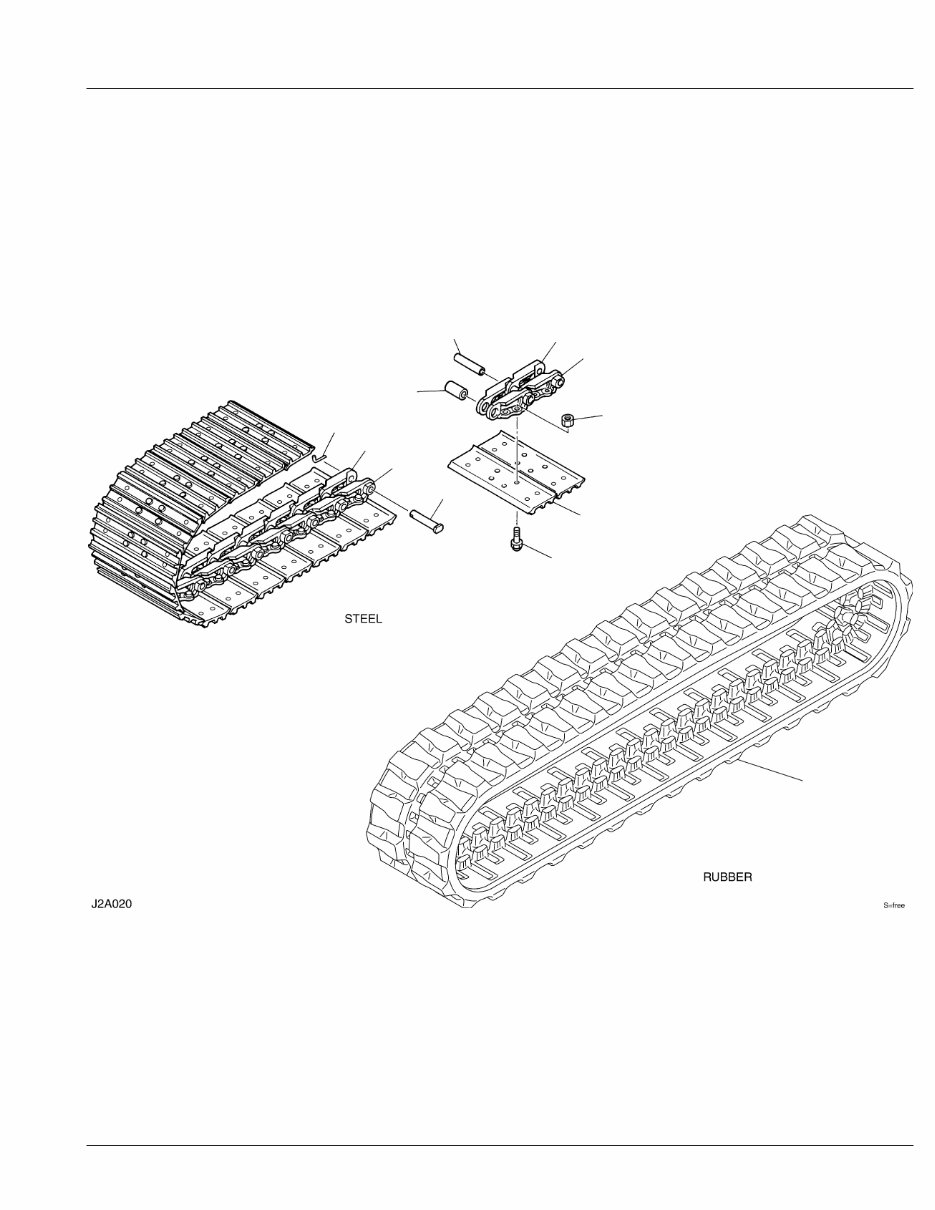

CRAWLER BELT
6
2
5
8
4
7
12
3
9
11
10
1
Ref J2A020 Page 1-2
CRAWLER BELT
Item Part number Description Q'ty Chan. Serial No. Serv. Remarks
0 1914051600 BELT ASSY, steel crawler 2 X19140-51600-0
1 1914039001 LINK (R.H.) 37
2 1914039002 LINK (L.H.) 37
3 1914039003 LINK, master (R.H.) 1
4 1914039004 LINK, master (L.H.) 1
5 1914039012 BUSHING 38
6 1914039006 PIN, track 37
7 1914039007 PIN, master 1
8 1914039008 PIN 1
9 1914039009 BOLT 152
10 1914033010 NUT 152
11 1914051611 PLATE, shoe 38
12 1914065610 BELT, rubber crawler 2
J2a020
Reference:J2A020 Page:1-2
TB153FR Book No. BJ2Z004 S/N 15820004-

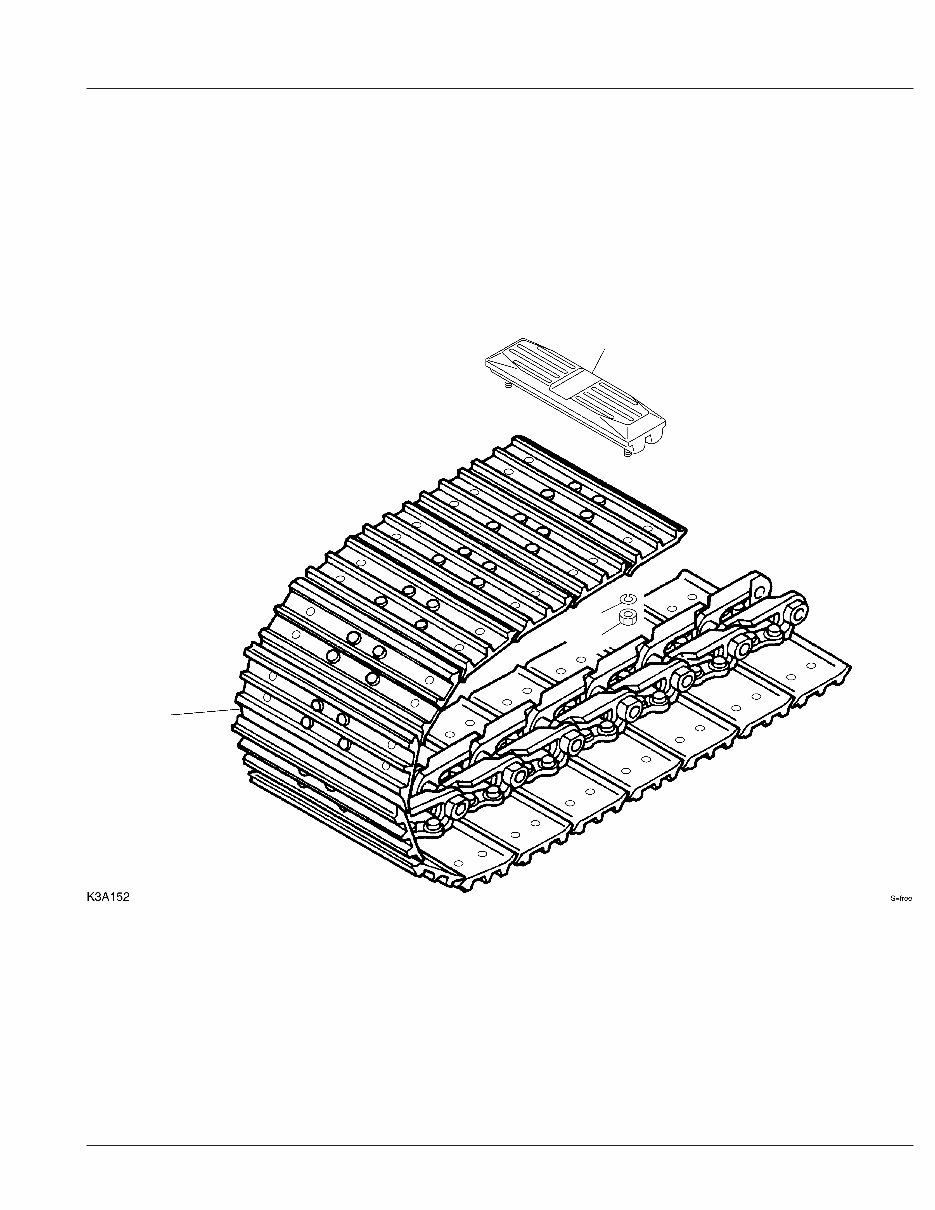

CRAWLER BELT (with rubber pads)
12
14
13
1
Ref K3A152 Page 1-3
CRAWLER BELT (with rubber pads)
Item Part number Description Q'ty Chan. Serial No. Serv. Remarks
0 1914051700 BELT ASSY, steel crawler (with rubber
pads)
2 X19140-51700-0
1 1914051600 BELT, steel crawler 1
12 1914400500 PAD, rubber 38
13 1130020012 NUT 4
14 1140020012 WASHER, spring 4
K3a153
Reference:K3A152 Page:1-3
TB153FR Book No. BJ2Z004 S/N 15820004-

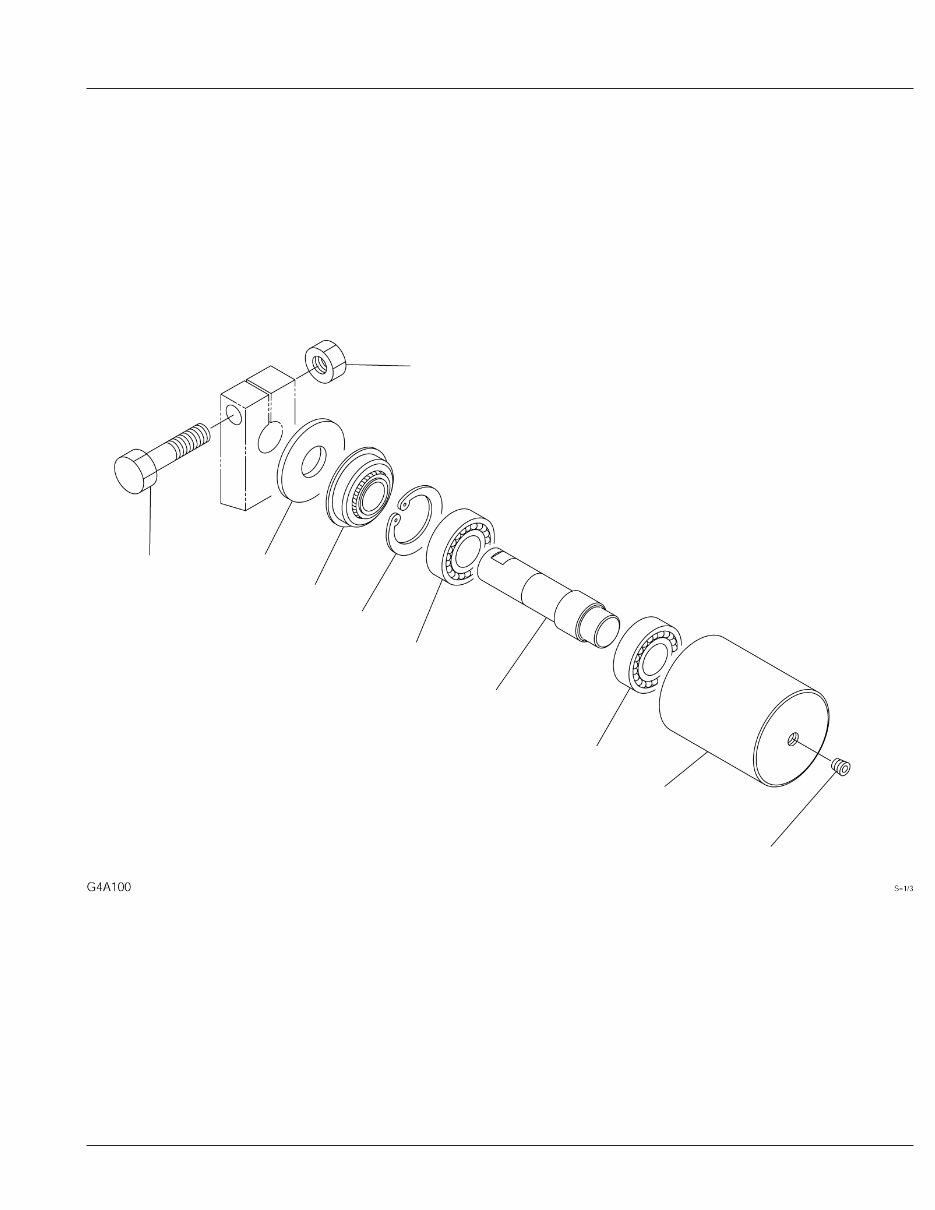

CARRIER ROLLER
9
3 8
4
6
5
5
2
1
7
Ref G4A100 Page 1-4
