Takeuchi TB145 Compact Excavator Illustrated Master Parts List Manual ! (SN: 14510004 and up)
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual

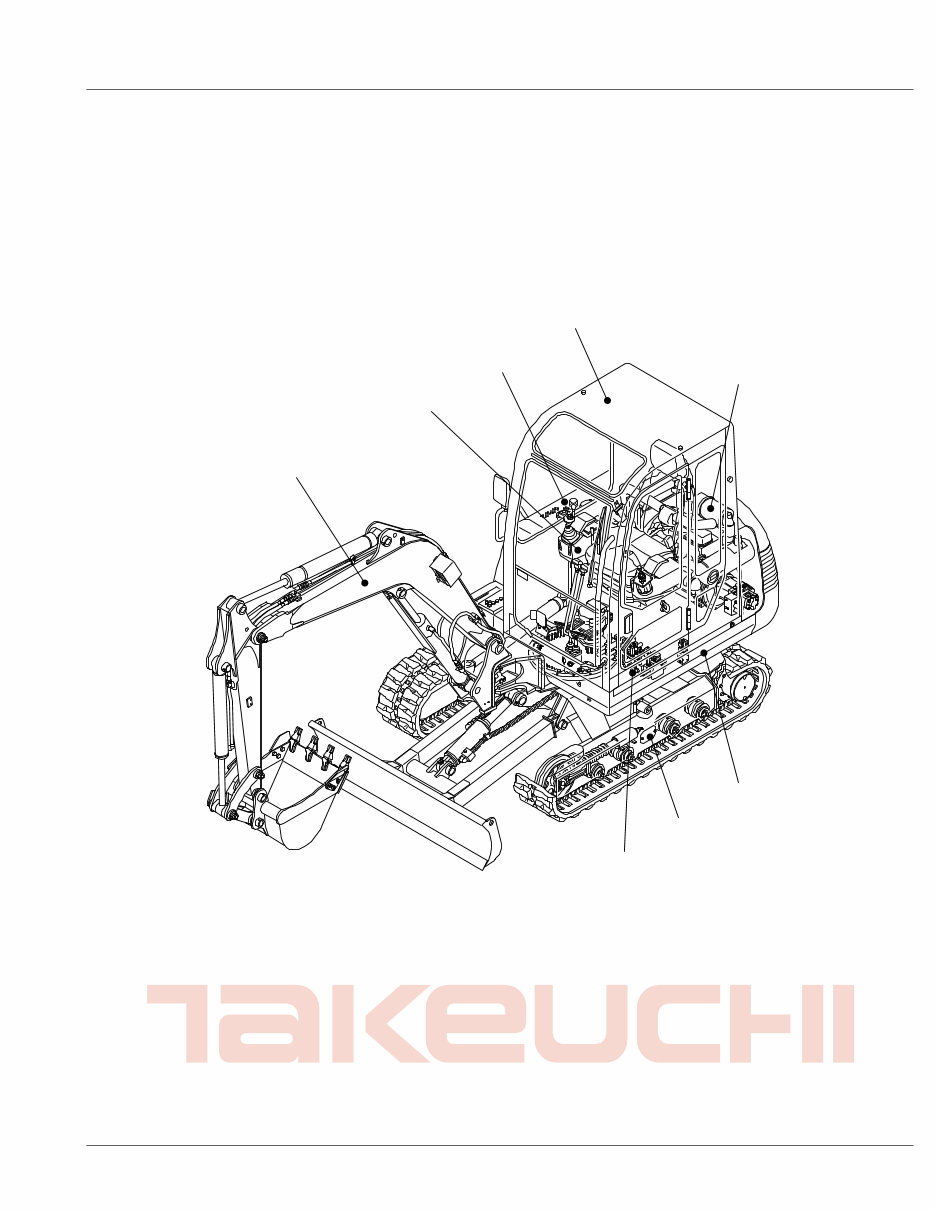

TB145 Book No. BK3Z010 S/N 14510004-
Index
Ref. 0 Page 0
TB145
Book No.BK3Z010
Serial No.14510004-
10
5
4
3
6
1
8
1
2
INDEX
Item Part number Description Q'ty Chan. Serial No. Serv. Remarks
1 UNDERCARRIAGE
2 TURNTABLE & CONTROL LEVER
3 ENGINE & ELECTRICAL SYSTEM
4 HYDRAULIC PIPNG & TANK
5 COVER & CAB
6 HOE ATTACHMENT
7 DECAL & TOOL
8 HYDRAULIC DEVICE
10 ENGINE 4TBNE88-(E)TB(1)
ENGINE 4TNV88-QTB,QTB1
ENGINE 4TNV88-QTBC
2008.7.11
Reference:0 Page:0
TB145 Book No. BK3Z010 S/N 14510004-

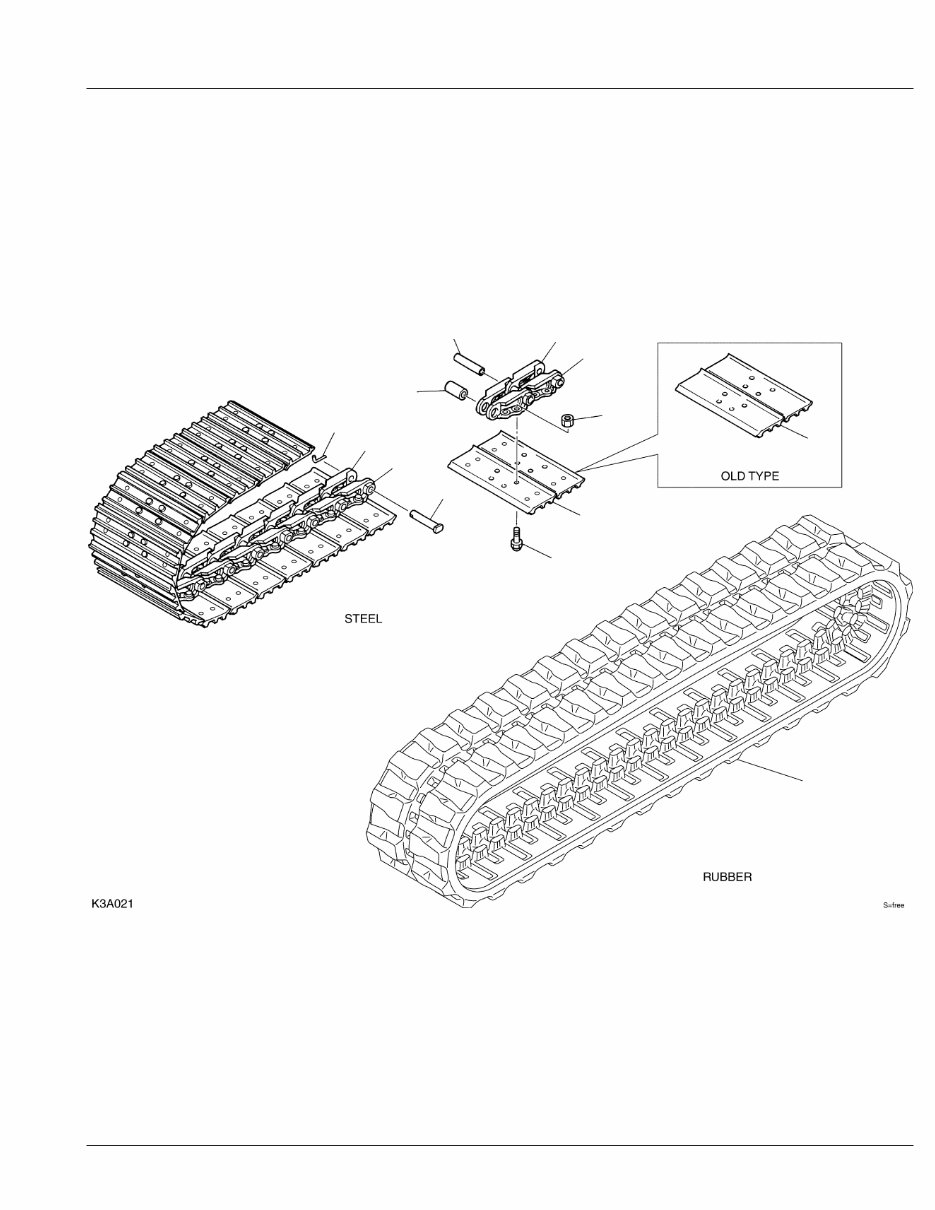

CRAWLER BELT
6
1
2
5
10
8
11
11
3
4
7
9
12
Ref K3A021 Page 1-2
CRAWLER BELT
Item Part number Description Q'ty Chan. Serial No. Serv. Remarks
0 1914051300 BELT, steel crawler
(380wide)
2 old type X19140-51300-0
1914051600 BELT, steel crawler
(400wide)
2 (H) new type X19140-51600-0
1914051400 BELT, steel crawler
(460wide)
2 X19140-51400-0
1 1914039001 LINK (R.H.) 37
2 1914039002 LINK (L.H.) 37
3 1914039003 LINK, master (R.H.) 1
4 1914039004 LINK, master (L.H.) 1
5 1914039012 BUSHING 38
6 1914039006 PIN, track 37
7 1914039007 PIN, master 1
8 1914039008 PIN 1
9 1914039009 BOLT 152
10 1914033010 NUT 152
11 1914051311 PLATE, shoe 38 old type 380wide
1914051611 PLATE, shoe 38 new type 400wide
1914051411 PLATE, shoe 38 460wide
12 1914065200 BELT, rubber crawler 2 14510004~14512398 X19140-65200-0
1914065400 BELT, rubber crawler 2 (H) 14512399~14512798 X19140-65400-0
1914065500 BELT, rubber crawler 2 (H) (L) 14512799~14515681 X19140-65500-1
1914065610 BELT, rubber crawler 2 (H) 14515682~14516264 X19140-65610-0
1914065500 BELT, rubber crawler 2 (H) (L) 14516265~14516941 X19140-65500-1
1914065610 BELT, rubber crawler 2 (H) 14516942~ X19140-65610-0
K3a025
Reference:K3A021 Page:1-2
TB145 Book No. BK3Z010 S/N 14510004-

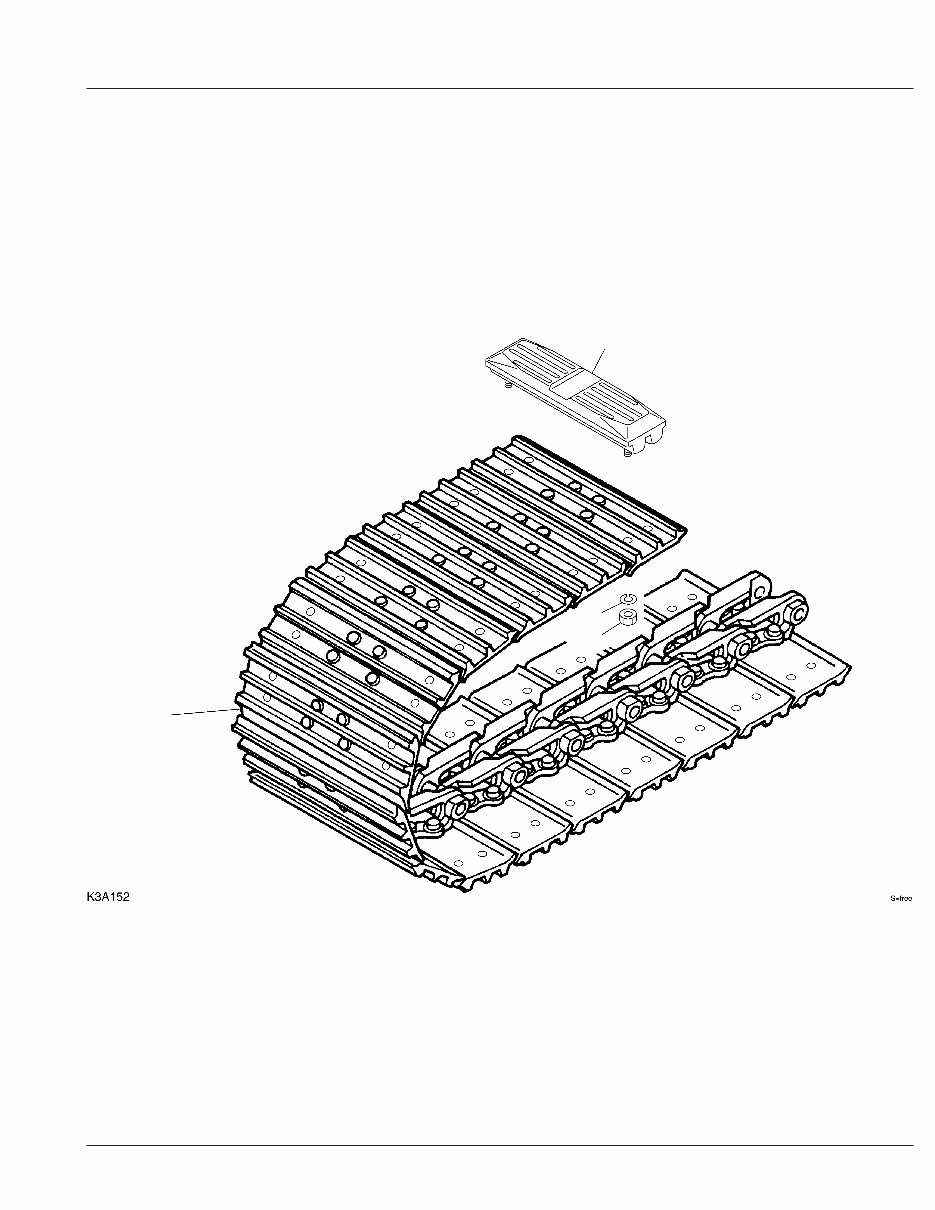

CRAWLER BELT (with rubber pads)
12
14
13
1
Ref K3A152 Page 1-3
CRAWLER BELT (with rubber pads)
Item Part number Description Q'ty Chan. Serial No. Serv. Remarks
0 1914051700 BELT ASSY, steel crawler (with rubber
pads)
2 X19140-51700-0
1 1914051600 BELT, steel crawler 1
12 1914400500 PAD, rubber 38
13 1130020012 NUT 4
14 1140020012 WASHER, spring 4
K3a153
Reference:K3A152 Page:1-3
TB145 Book No. BK3Z010 S/N 14510004-

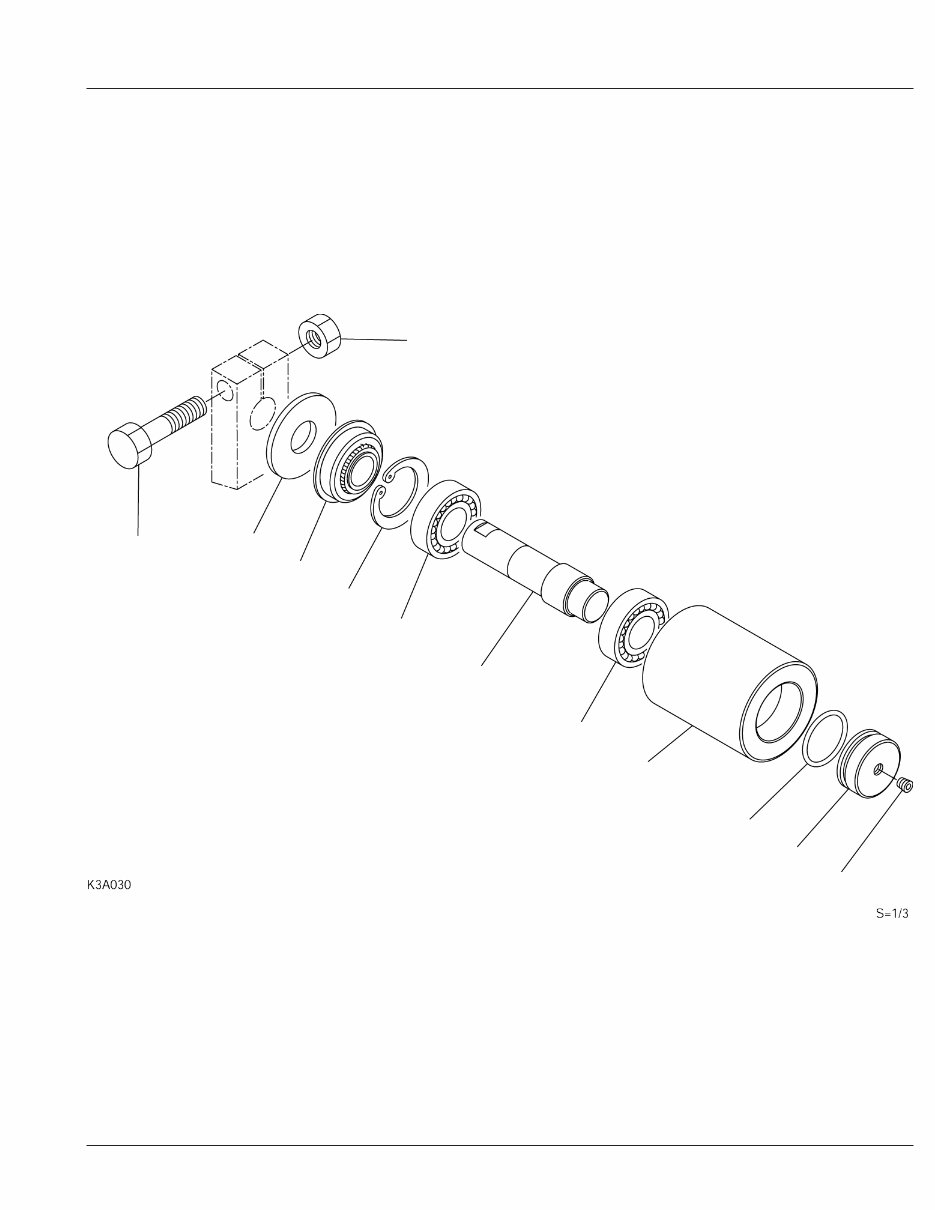

CARRIER ROLLER (14510004-14513278)
1
10
12
11
3
6
9
7
7
2
8
4
Ref K3A030 Page 1-4
CARRIER ROLLER (14510004-14513278)
Item Part number Description Q'ty Chan. Serial No. Serv. Remarks
ROLLER ASSY, carrier X04612-01000-0
0-1 0461201100 ROLLER SUB ASSY 2
1 0461200200 ROLLER 1
2 0461201200 SHAFT 1
3 0141201300 COVER 1
4 0171200400 COVER 1
6 1431203062 SEAL 1
7 1300006206 BEARING 2
8 1420100500 O-RING 1
9 1221000062 RING, snap 1
10 1501810001 PLUG 1
11 1101051665 BOLT 2
12 1130550016 NUT 2
K3a031
Reference:K3A030 Page:1-4
TB145 Book No. BK3Z010 S/N 14510004-

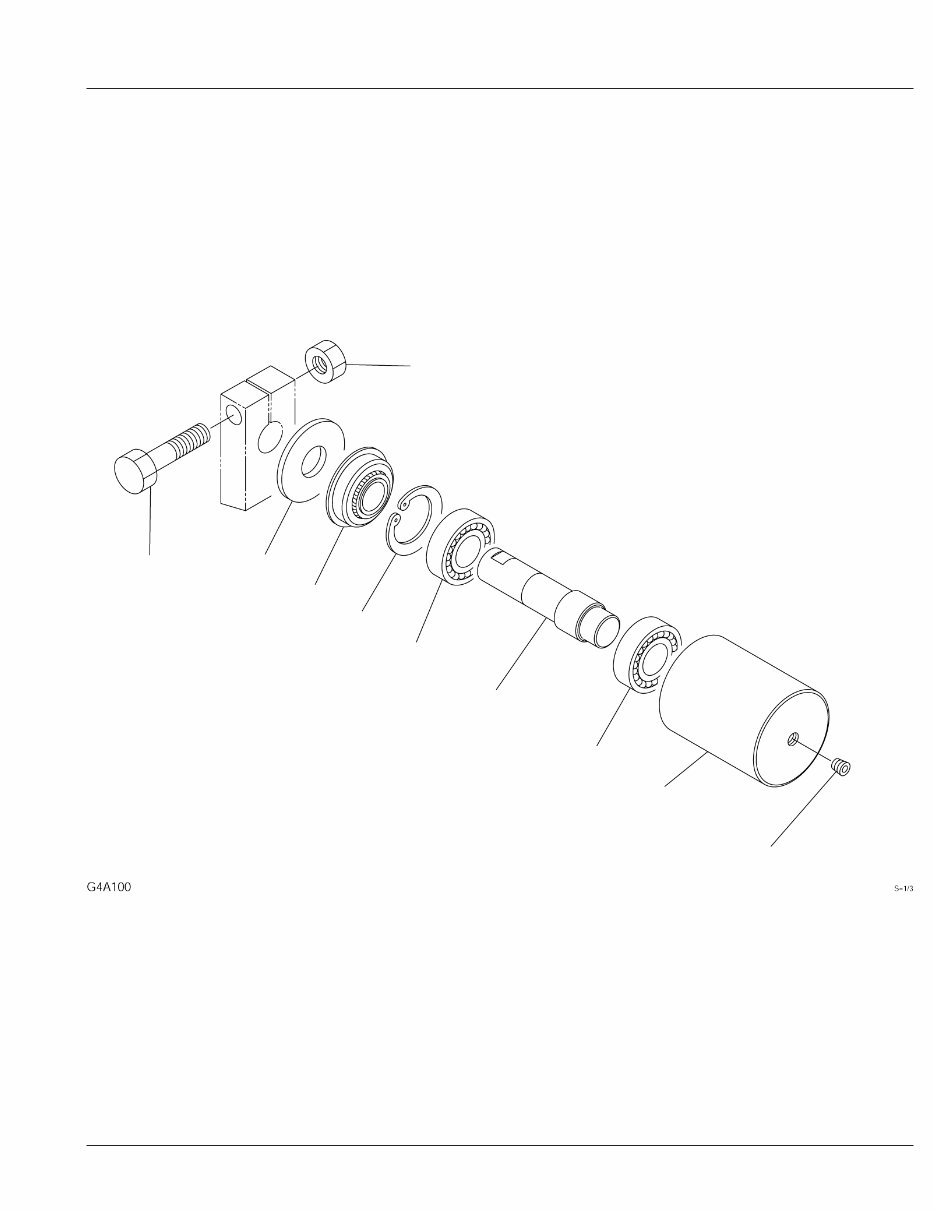

CARRIER ROLLER (14513279-)
9
3 8
4
6
5
5
2
1
7
Ref G4A100 Page 1-5
