Product Catalog \ AGRICULTURAL \ AGRICULTURE \ MINI CRAWLER EXCAVATORS \ 8052 00802000-00803370
9802/5406 \ A ATTACHMENTS \ A02 BUCKETS

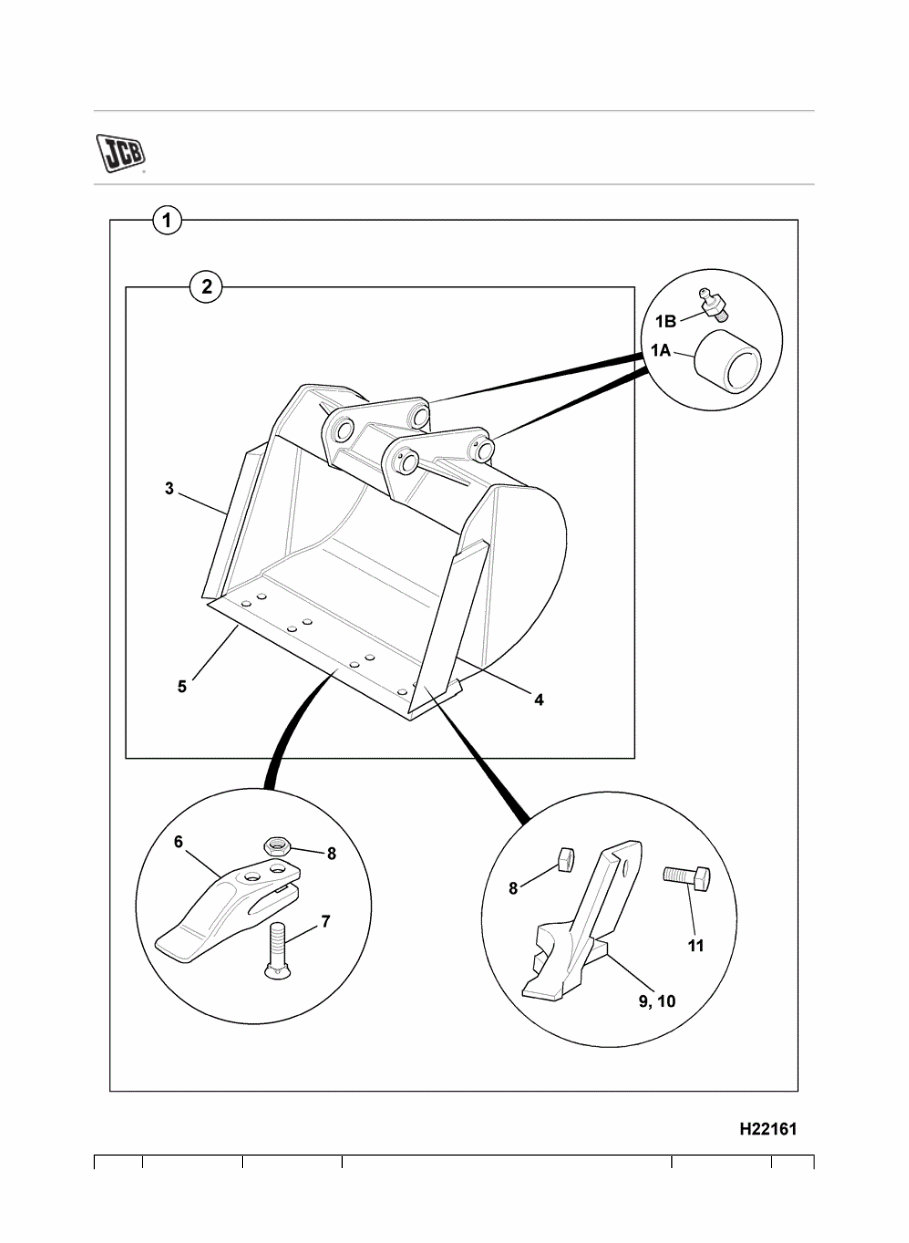

9802/5406 A2-1-1 BUCKET STANDARD
2016/8/3 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=7b78fdd0...
Item Part # Change No Description Usage Code QTY
1 528/03800 Bucket 350mm, std profile 1
1 528/04200 Bucket 450mm, std profile 1
1 528/04000 Bucket 400mm, std profile 1
1 528/04400 Bucket 600mm, std profile 1
1 528/04600 Bucket 750mm, std profile 1
1 234/29010 Bucket 300mm Wide 1
1A G65/0 Bush Pivot 4
1B 1450/0001 Nipple Grease, Straight 1/8 BSP 4
2 **** None serviced part 1
3 ::141/00633 Sidecutter left hand 1
4 ::141/00634 Sidecutter right hand 6
5 ::331/18331 Toeplate 280mm wide 6 holes (Weld-On) 1
5 ::141/00431 Toeplate 346mm wide 6 holes (Weld-On) 1
5 :::141/00432 Toeplate 396mm wide 6 holes (Weld-On) 1
5 ::141/00433 Toeplate 446mm wide 6 holes (Weld-On) 1
5 ::141/00434 Toeplate 596mm wide 8 holes (Weld-On) 1
5 ::::141/00435 Toeplate 746mm wide 10 holes (Weld-On) 1
6 :531/03205
Tooth
For 300mm,350mm,400mm and 450mm buckets
3
6 ****
'See Remark'
For 600mm bucket
4
6 ****
'See Remark'
For 750mm bucket
5
7 :826/00303
Bolt Plough
For 300mm,350mm,400mm and 450mm buckets
6
7 ****
'See Remark'
For 600mm bucket
8
7 ****
'See Remark'
For 750mm bucket
10
8 :1340/0701
Nut
For 300mm,350mm,400mm and 450mm buckets
6
8 ****
'See Remark'
For 600mm bucket
8
8 ****
'See Remark'
For 750mm bucket
10
9 531/03208 Sidecutter double flange right hand 2
10 531/03209 Sidecutter double flange left hand 2
11 1305/0714Z Bolt 2
2016/8/3 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=7b78fdd0...
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ MINI CRAWLER EXCAVATORS \ 8052 00802000-00803370
9802/5406 \ A ATTACHMENTS \ A02 BUCKETS

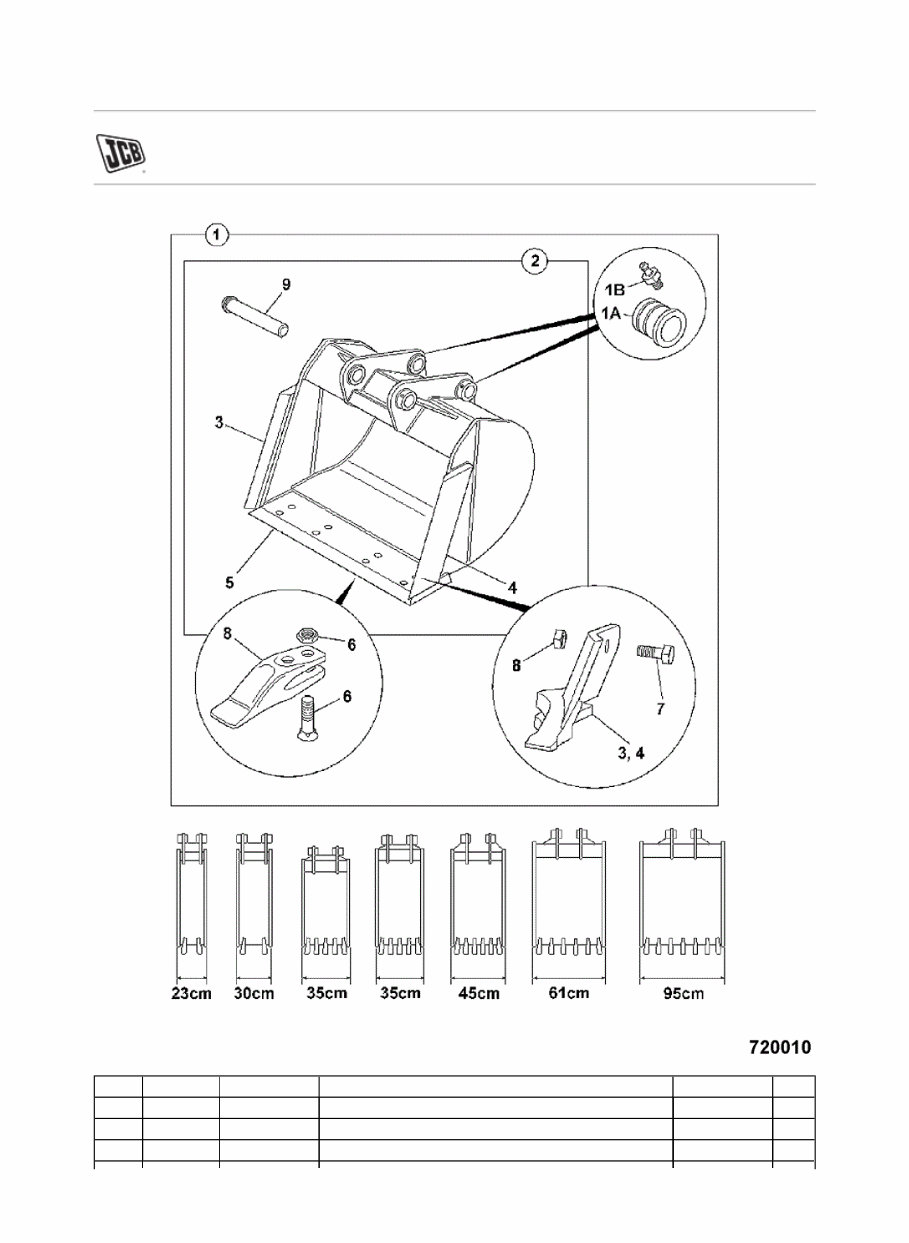

9802/5406 A2-1-2 BUCKET, OPTIONS
Item Part # Change No Description Usage Code QTY
1 **** Bucket 9in (230mm) 1
1 531/24500 Bucket 12in (305mm) 1
1 993/39500 Bucket 350mm wide 1
2016/8/3 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=8f0e281d...
1 531/19100 Bucket 16in 1
1 531/23500 Bucket 18in (455mm) 1
1 531/23800 Bucket 24in (610mm) 1
1 531/19500 Bucket 36in (950mm) 1
1 522/07500 Superseded Bucket (900MM) 1
1 980/90178 Bucket 900mm Gen Purp 805/806 1
1A :G65/0 Bush Pivot 4
1A :809/10032
Bush Spring
Use with 12" bucket
4
1B :1450/0001 Nipple Grease, Straight 1/8 BSP 4
2 ****
None serviced part
Bucket
1
3 :531/03209
Sidecutter double flange left hand
Double flange
1
4 :531/03208
Sidecutter double flange right hand
Double flange
1
5 :993/99016 Toeplate 1
5 :531/24703 Toeplate 280mm wide 6 holes (Weld-In) 1
5 :531/23301 Toeplate 430mm wide 6 holes 1
5 :531/23601 Toeplate 585mm wide 8 holes 1
5 :531/16902 Toeplate 925mm wide 10 holes 1
5 :522/07701
Shell
for 522/07500
1
6 :826/00303
Bolt Plough
Use with double flange side cutter
4
6 :1340/0701 Nut 4
7 :1305/0714 Bolt 2
7 :1340/0701 Nut 2
8 :531/03205 Tooth 0
9 990/88201
Pin pivot 230mm
230mm bucket only
1
9 911/16600
Pin pivot 305mm
305mm bucket only
1
2016/8/3 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=8f0e281d...
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ MINI CRAWLER EXCAVATORS \ 8052 00802000-00803370
9802/5406 \ A ATTACHMENTS \ A02 BUCKETS

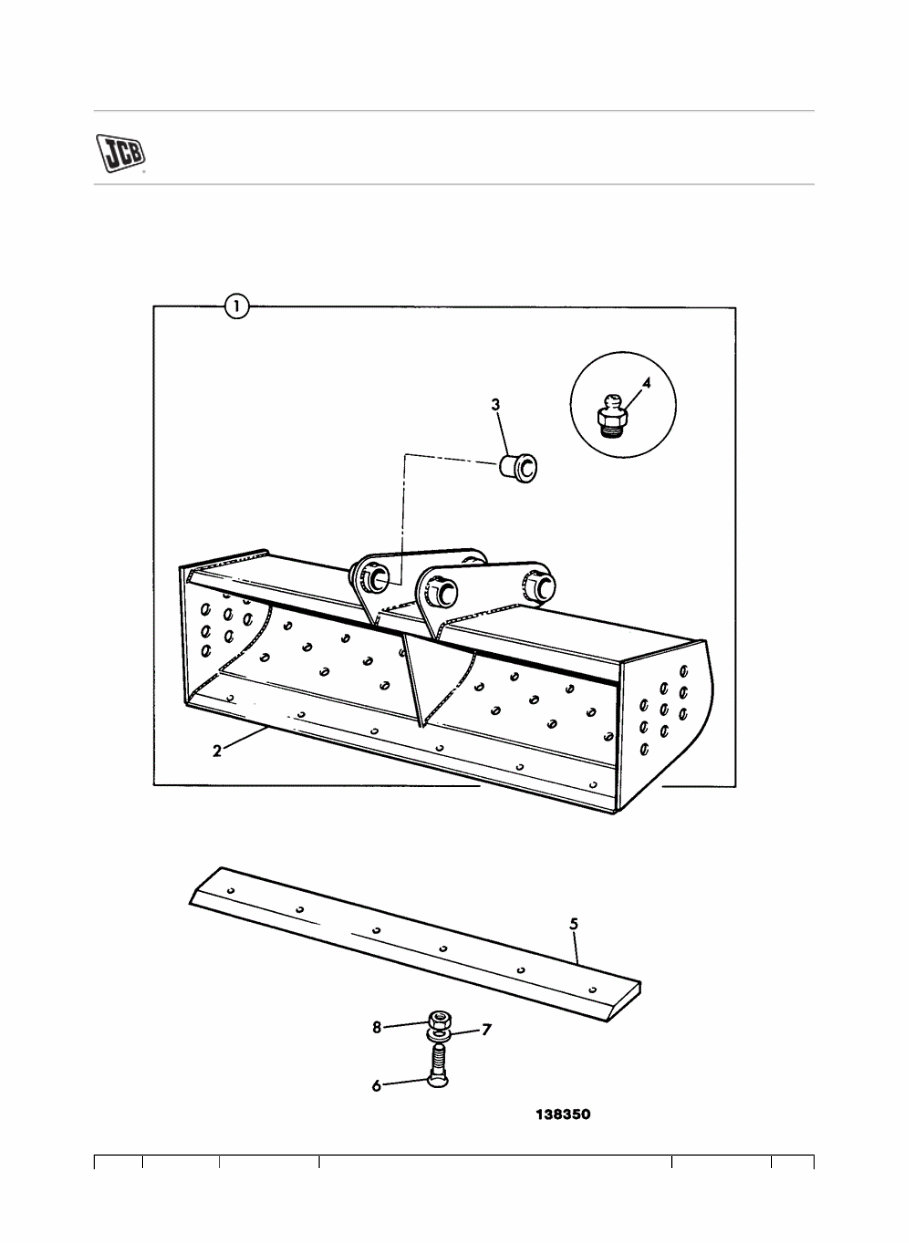

9802/5406 A2-1-4 BUCKET GRADING
2016/8/3 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=f6bbc8c4...
Item Part # Change No Description Usage Code QTY
1 980/86061 Bucket grading,1524mm wide 1
2 :993/32301 Toeplate 1505mm wide 6 holes (Weld-In) 1
3 :G65/0 Bush Pivot 4
4 :1450/0002 Nipple Grease, Straight 1/4 4
5 993/32302
Toeplate 1505mm wide 6 holes (Bolt on)
Bolt on type
1
6 826/00303 Bolt Plough 6
7 1416/0011 Washer 6
8 1340/0701Z Nut 3/4 6
2016/8/3 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=f6bbc8c4...
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ MINI CRAWLER EXCAVATORS \ 8052 00802000-00803370
9802/5406 \ A ATTACHMENTS \ A02 BUCKETS

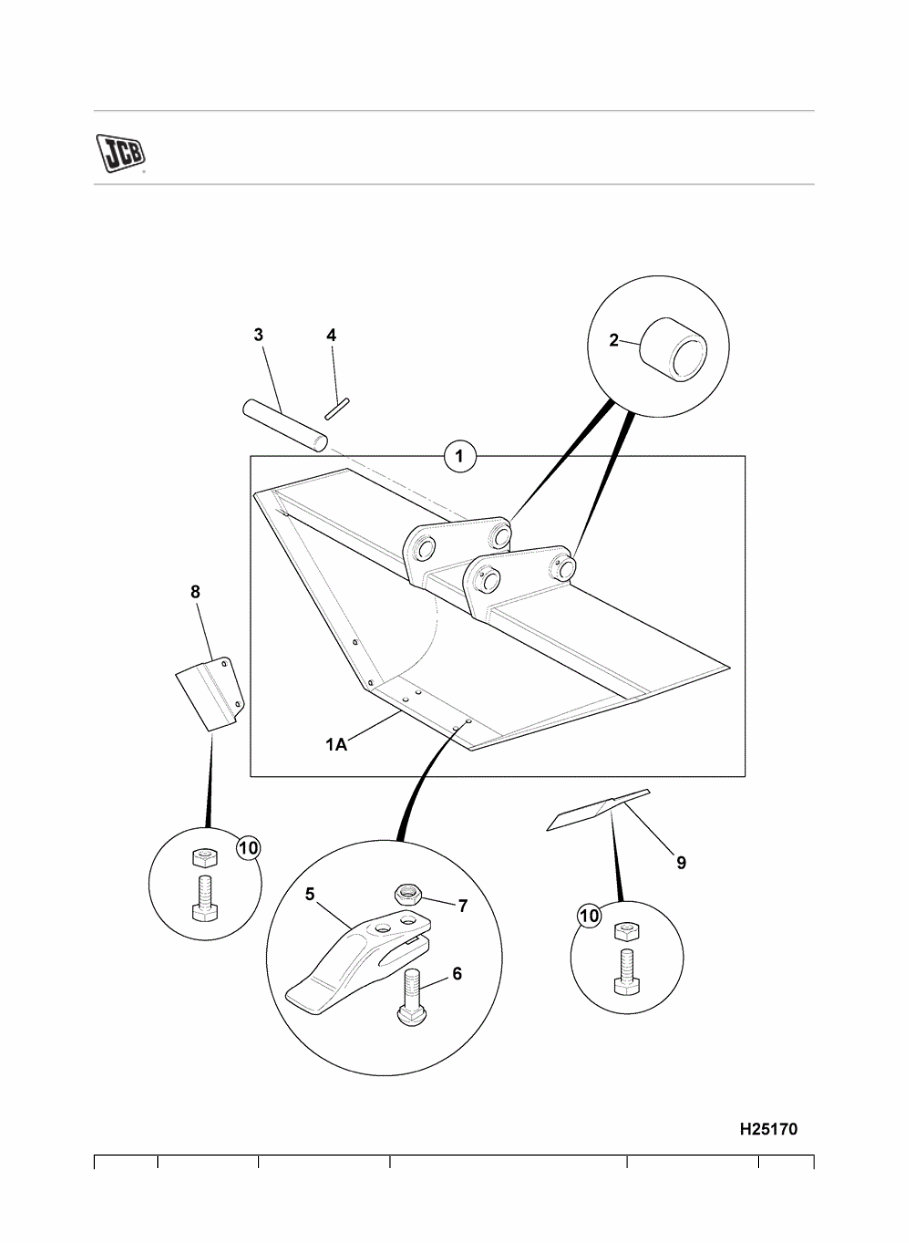

9802/5406 A2-1-5 BUCKET, TAPERED
2016/8/3 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=c54e6bd4...
Item Part # Change No Description Usage Code QTY
1 537/16200 Bucket ditching tapered 1
1A :537/16203 Toeplate 1
2 G65/0 Bush Pivot 4
3 911/00500 Pin pivot 2
4 530/14001 Pin hair 2
5 531/03205 Tooth 0
6 826/00303 Bolt Plough 0
7 1340/0701 Nut 0
8 535/00103 Sidecutter 1
9 535/00102 Sidecutter 1
10 990/14900 Bolt with nut 1
2016/8/3 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=c54e6bd4...
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ MINI CRAWLER EXCAVATORS \ 8052 00802000-00803370
9802/5406 \ A ATTACHMENTS \ A02 BUCKETS

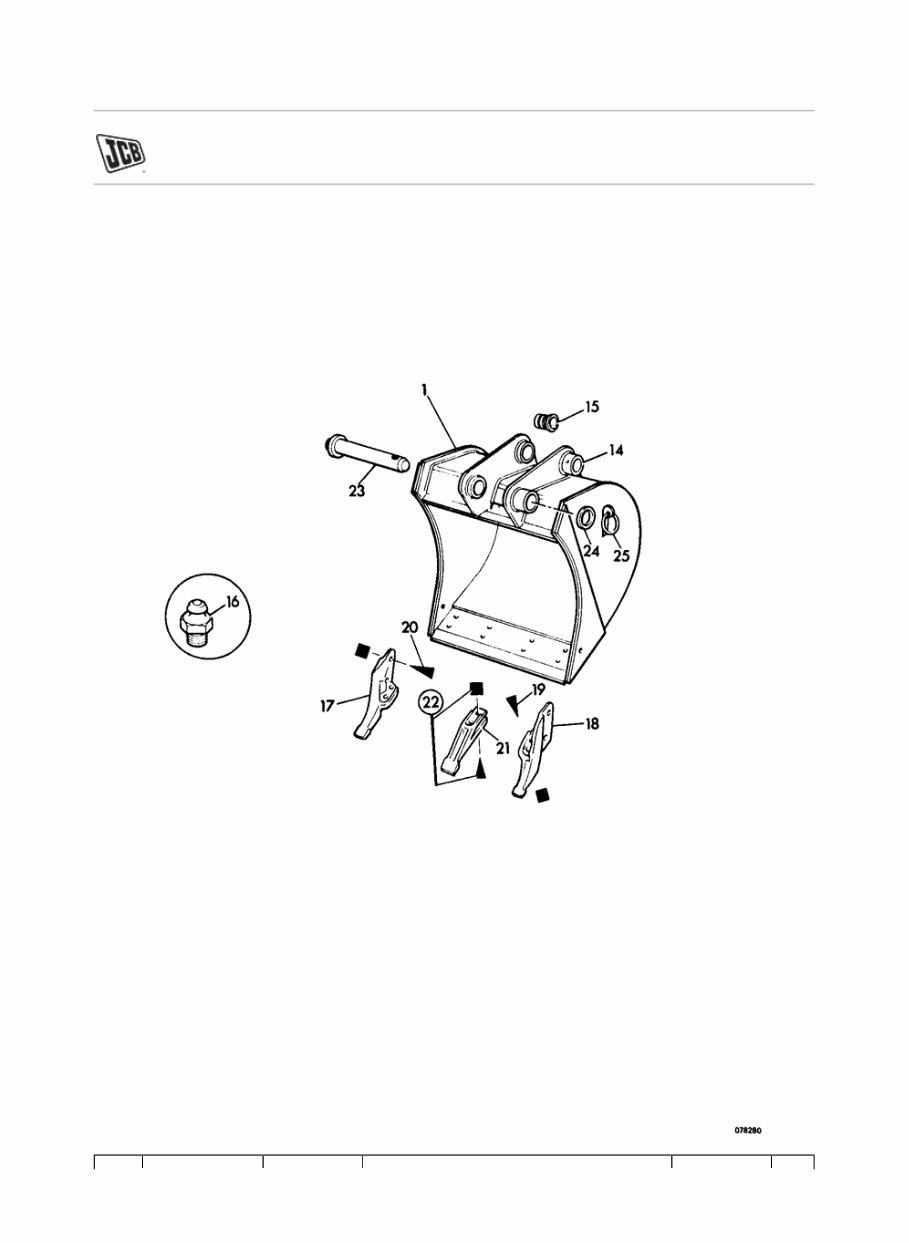

9802/5406 A2-1-7 BUCKET 900MM GEN PURPOSE
2016/8/3 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=d7a9ece8...
Item Part # Change No Description Usage Code QTY
A 980/90178 Bucket 900mm Gen Purp 805/806 1
1 :335/09609 Bucket WA 1
14 ::1096/2002 Boss pivot 4
15 :G65/0 Bush Pivot 4
16 :1450/0001A Nipple grease 4
17 :531/03209 Sidecutter double flange left hand 1
18 :531/03208 Sidecutter double flange right hand 1
19 :826/00303 Bolt Plough 4
19 :1340/0701 Nut 4
20 :1305/0714 Bolt 2
20 :1340/0701 Nut 2
21 :531/03205 Tooth 0
22 :826/00303 Bolt Plough 0
22 :1340/0701Z Nut 3/4 0
23 ****
'See Remark'
SEE B4-3-1
1
24 823/00470 Washer 2
25 826/00512A Pin 2
2016/8/3 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=d7a9ece8...
