Service Manual
INTRODUCTION
To insure a long life for the machine and the engine and to prevent failure and prob-
lems, proper operation, maintenance and repairs are indispensable.
This service manual includes an “outline,” “structure and operation,” “inspection and
adjustment,” “disassembly and assembly,” “standard maintenance,” and “repair and re-
placement of parts” of the machine which are necessary to carry out the inspections and
repairs in the repair shop.
We hope that this manual helps you to efficiently and effectively carry out repairs by
providing and accurate description of the product and the correct repair techniques.
CONTENTS
1. Precautions on Maintenance
2. Outline
3. Attachment
4. Engine
5. Main Pump
6. Hydraulic Oil Filter
7. Control Valve
8. Joystick
9. Slew Motor
10. Travelling Motor
11. Hydraulic Cylinder
12. Swivel Joint
13. Crawler
14. Spring Case and Grease Cylinder
15. Idler
16. Sprocket
17. Track Roller
18. Electrical Equipment
19. Troubleshooting
1 PRECAUTIONS ON MAINTENANCE
1. Correct operation
Correct operation means to follow the correct “procedure” and “method.”
Procedure focuses on speed and accuracy of each job.
In the method, are addressed what type of facility, tools, instruments, materials, oil should
be used, how and which part should be checked, adjusted or disassembled, and what
matters to attend to.
2. Precautions on operation
1. Safety check
Check that stoppers and sleepers are correctly installed for the vehicle jack-up
operation.
2. Preparation
Prepare all of the tools and inspect and adjust the instruments.
3. For efficiency
1) Understand the state before disassembly.
What is the problem? Is disassembly absolutely necessary?
2) Before disassembly
Determine whether match marks are necessary. For the electrical system, disconnect
the cable from the battery terminal.
3) Precautions for disassembly
In stead of checking all of the disassembled parts at once, check each part
individually as it is disassembled. When removing the hydraulic unit or the hoses,
mount a dust cap on the connection.
4) Repair of disassembled parts
Keep the disassembled parts in order. Clearly distinguish the parts to be replaced
with new parts from those to be reused. Packings, seals, rings, split pins must be
replaced.
NOTE:
Electrical equipment, rubbers and V belts (which are easily affected by water and
oil) must be handled carefully in order to prevent soiling them.
5) Clean disassembled parts
Thoroughly clean the disassembled parts.
6) Assembly
Perform the assembly correctly (tightening torque, application of Three Bond,
screw lock, grease, use of seal tape, etc.). Also install the hose correctly.
1-1

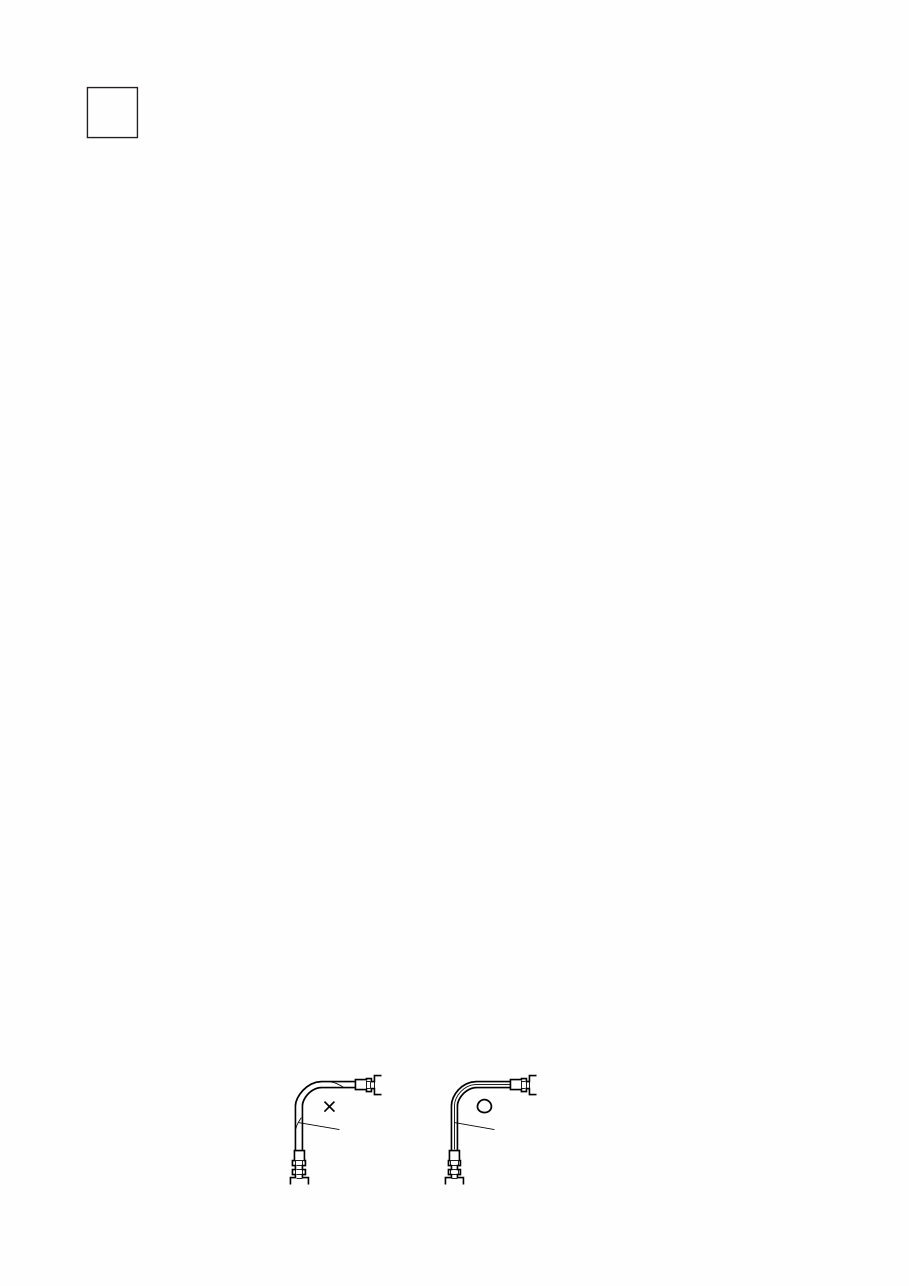

Hose mark Hose mark
2 OUTLINE
CONTENTS
2-1 Location of serial No.
2-2 Name of each part
2-3 Dimensions and specification
2-4 Weight list
2-5 Oil and grease supply points
2-6 List of supply oil and grease
2-7 When to repair
2-8 Hydraulic circuit diagram

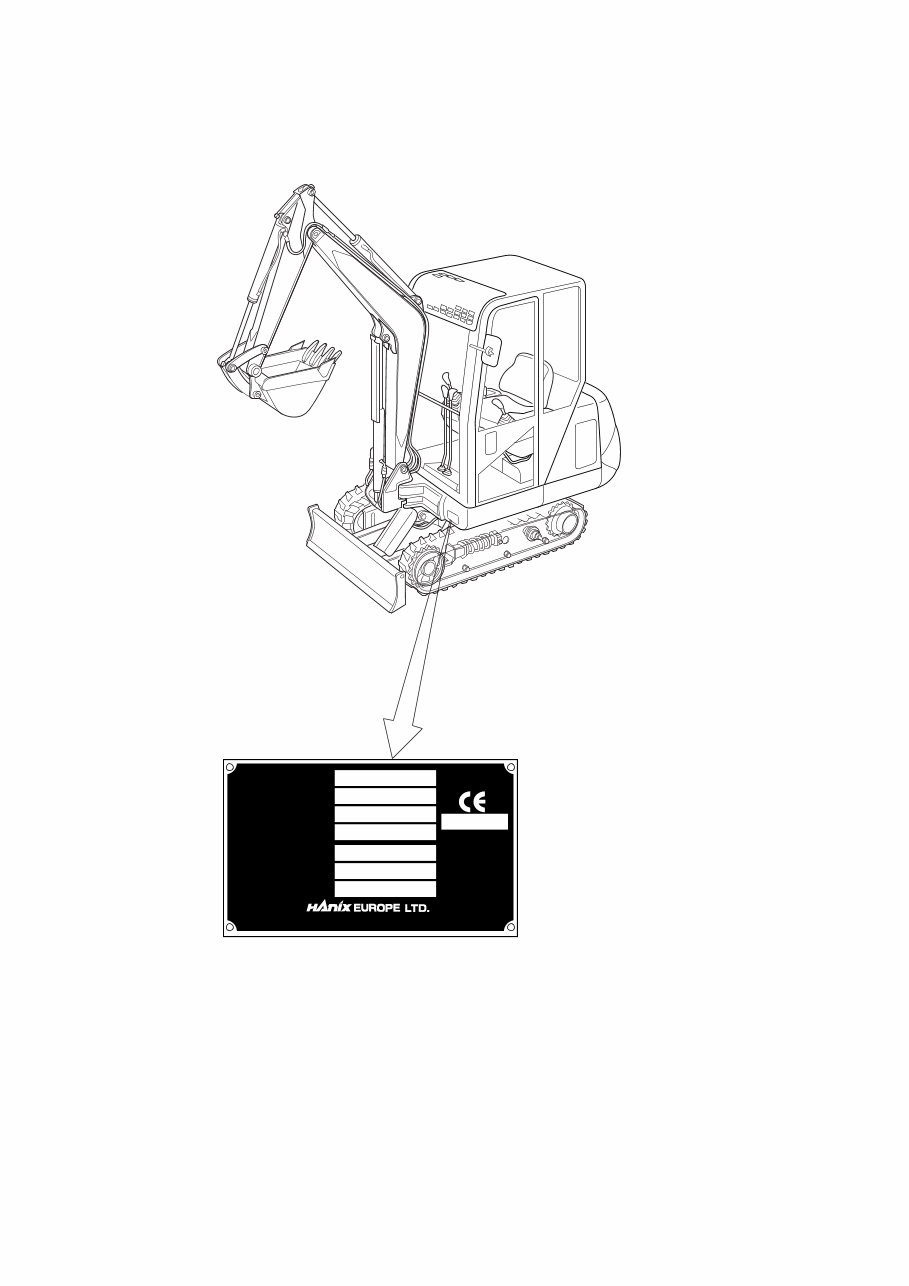

2-1 Location of Serial Number
2-1
Model name
Serial No.
MACHINE MODEL
NO.
WEIGHT
YEAR
MODEL
NO.
POEWER
ENGINE
Oldham Street,Denton,Manchester M34 3SW,United Kingdom.
MADE IN U.K.

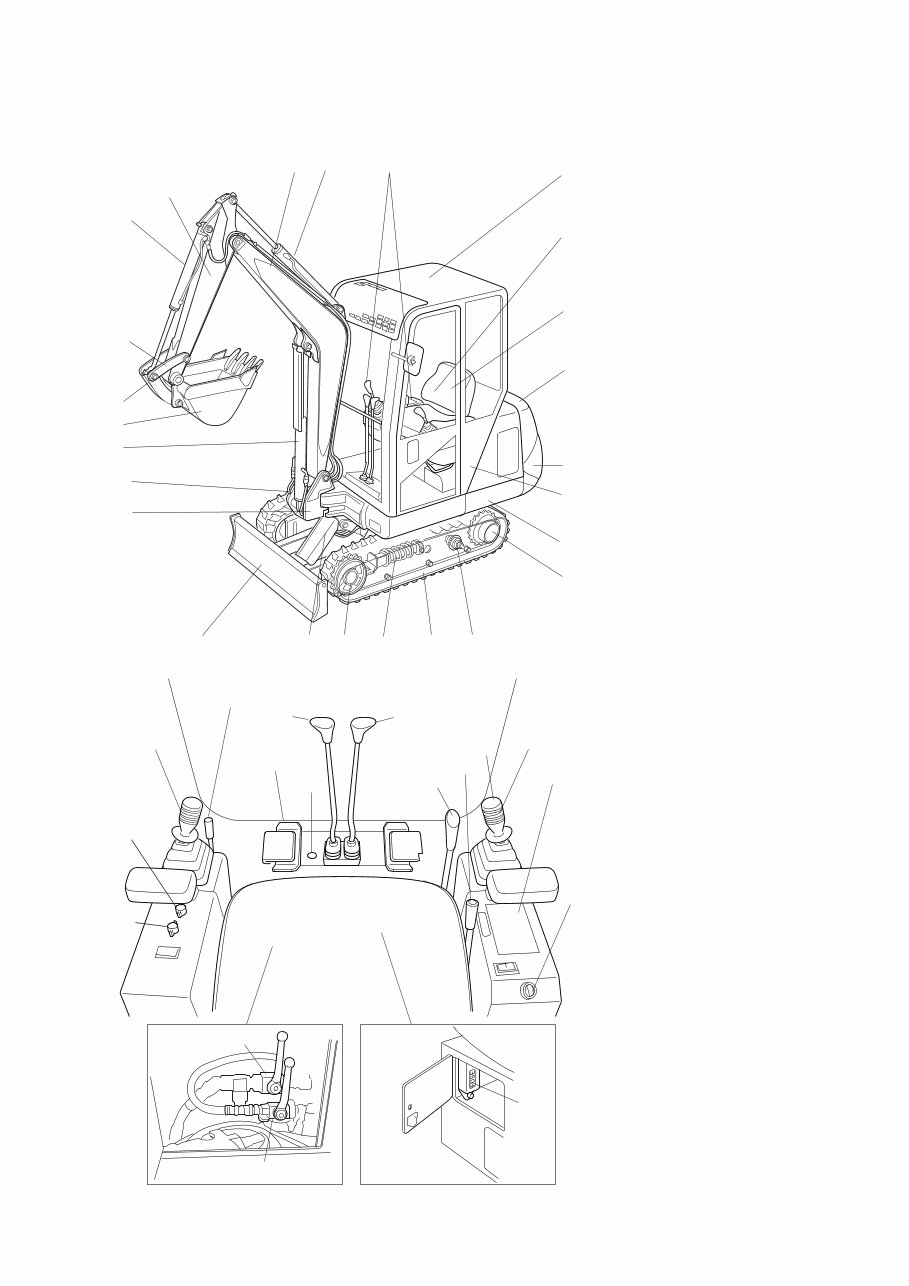

2-2 Name of each part
1. Boom
2. Boom cylinder
3. Arm cylinder
4. Arm
5. Bucket cylinder
6. Bucket links
7. Dump link
8. Bucket
9. Swing frame
10. Engine cover
11. Fuel tank
12. Hydraulic tank
13. Roof
14. Counter weight
15. Operator's seat
16. Crawler
17. Dozer blade
18. Dozer cylinder
19. Drive/Track motor
20. Track roller
21. Front idler
22. Grease cylinder
23. Swing post
24. Swing cylinder
25. Operation levers
1. Meter unit
2. Starter switch
3. Horn switch
4. Fuse box
5. Right operation lever
6. Left operation lever
7. Accelerator lever
8. Dozer operation lever
9. Right travelling lever
10. Left travelling lever
11. Swing pedal
12. P.T.O. pedal
13. Operation lock lever
14. Swing lock pin
15. P.T.O. select lever
16. Heater switch(for Cabin)
17. Wiper switch(for Cabin)
18. Manual boom lowering lever
2-2
5
6
7
8
1
4
2
23
17
18 21
24
22 20
19
9
16
10
14
3
11
12
25
15
13
14
8
7
14
10 9
2
5
4
6
3
1
13
12
15
17
16

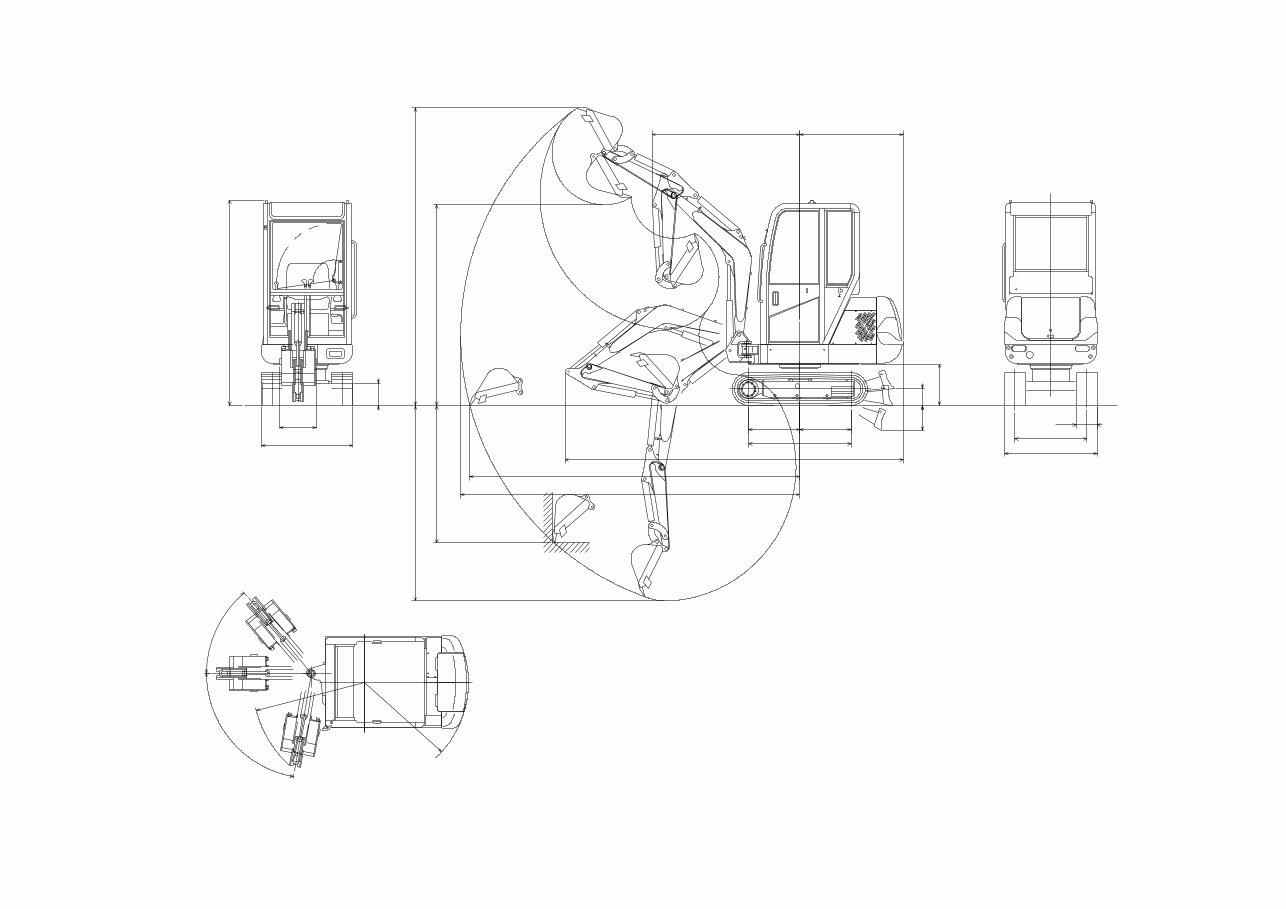

2-3 Dimensions and Specifications
2-3
435
270
185
240
400
1000(Width)
2260(Height)
230
790
1020
565
565
1130
3720
3635
3730
3250 2175
2180 1535
1630 1140
50°
80°
R1140
R1235
1235(L80°SWING)
2-4
Model Unit H15B-2
Cabin rubber 1570(3461)
Cabin steel 1620(3571)
Standard bucket capacity m
3
(ft
3
) 0.04(1.41)
Standard bucket width mm(in) 400(15.7)
Type MITSUBISHI L3E
Displacement cc(in
3
) 952(58.1)
Rated output kW(ps)/min
-1
12.5(17)/2400
Max.digging depth mm(in) 2150(84.6)
Max. digging depth with blade down mm(in) 2290(90.2)
Max.vertical digging depth mm(in) 1510(59.4)
Max.digging height mm(in) 3275(129)
Max.dumping height mm(in) 2205(86.8)
Max.digging radius mm(in) 3730(147)
Min.turning radius front mm(in) 1630(64.2)
swing mm(in) 1235(48.6)
Rear end radius mm(in) 1140(44.9)
Boom swing angle Angle Left80°/Right50°
Overall length mm(in) 3720(146)
Overall width mm(in) 1020(40.2)
Overall height mm(in) 2260(89.0)
Dozer(width×height) mm(in) 1000×240(39.4×9.4)
Travelling speed km(mile)/h 2.1(1.3)/3.9(2.4)
Slew speed min
-1
11.5
Gradeability Angle 30°
Max.digging force(bucket) kN(lbf) 14.4(3237)
Max.digging force(arm) kN(lbf) 8.8(1978)
Ground Cabin rubber 27.4(3.97)
pressure Cabin steel 27.4(3.97)
Shoe width×tumbler center mm(in) 230×1130(9.1×44.5)
Type of travelling motor Piston shoe-in type
Crawler tension system Grease cylinder
Type of hydraulic pump Gear×3
Main pump oil flow Qty. r(in
3
・galon)/min 15.7(958・3.45・4.15US)×3
P.T.O oil flow Qty. r(in
3
・galon)/min 31.4(1916・6.9・8.3US)
Pressure P1,P2,P3 MPa(psi) 18.6(2700)
Hyd.oil capacity r(in
3
・galon) 24(1465・5.3・6.3US)
Engine oil capacity r(in
3
・galon) 3.6(220・0.79・0.95US)
Fuel capacity r(in
3
・galon) 20(1220・4.4・5.3US)
Cooling water capacity r(in
3
・galon) 4.3(262・0.95・1.14US)
Noise level LwA/LpA dB
Engine
Working range
Performance
Dimensions Undercarriage
Hydraulic
pressure
Capacity
Machine
weight
Kg(lb)
KPa(psi)
2-4 Weight list
2-5
Part name Part name
Boom 58(128) Slew bearing 17.7(39)
Arm 24.5(54) Track frame 101(223)
Bucket 32.3(71.2) Dozer 36.5(80.5)
Dump link 3.6(7.9) Crawler(steel) 74(163)×2
Bucket link(R) 1.6(3.5) Crawler(rubber) 51(113)×2
Bucket link(L) 1.9(4.2) Idler 8(18)×2
Boom joint pin 1.8(4) Adjust cylinder 10.6(23)×2
Arm joint pin 1.9(4.2) Track roller 2.9(6.4)×6
Bucket pin 0.8(1.8)×2 Sprocket 4(9)×2
Swing post 24.5(54) Slew motor 23(51)
Swing post pin 3.2(7) Turning motor 14(31)×2
Swing frame 162(357) Joystick 3.5(8)×2
Hydraulic oil tank 29(64) Console box 9.6(21)×2
Fuel tank 16(35.3) Engine 94(207)
Engine cover(A) 17.6(38.8) Radiator 6.9(15.2)
Engine cover(B) 2.7(6) Battery 12.5(15)
Counter weight 83(183) Seat plate 12(26.5)
Operator cabin 200(441) Swivel joint 8(18)
Boom cylinder 12.5(28) Pump 5.4(12)
Arm cylinder 12(26) Control valve 24(53)
Bucket cylinder 12(26) TOPS ROOF 85(187)
Swing cylinder 12.5(28) CABIN 200(441)
Dozer cylinder 8.5(18.7)
Unit: kg(lb)
