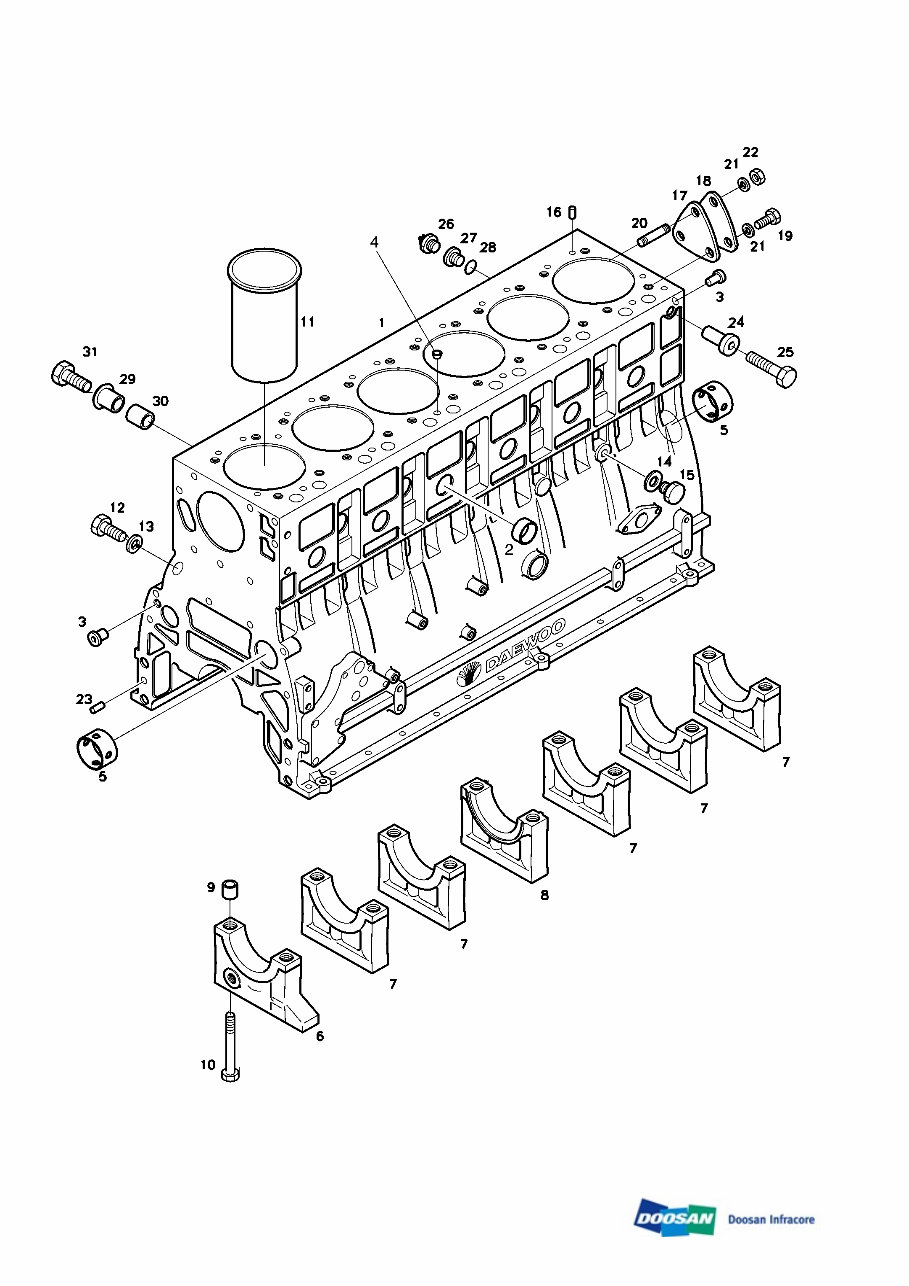

Fig. 011 CYLINDER BLOCK
SOLAR 220LC-III
Fig. 011 CYLINDER BLOCK
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
- 65.01101-6041D CYLINDER BLOCK ASS'Y 1
1 65.01101-0041 BLOCK;CYLINDER 1 D
2 06.15091-0326 PLUG;CORE 9 D
3 65.91606-0041 PLUG;CORE 2 D
3 65.91020-0013 PLUG;CORE 1 D
4 65.91001-0002 PLUG 2 D
5 65.04410-0017 BUSH;CAM SHAFT 4 D
6 65.01105-1164 CAP;BEARING(NO.7) 1 D
7 65.01105-1160 CAP;BEARING NO.1.2.3.5.6 5 D
8 65.01105-1156 CAP;BEARING(NO.4) 1 D
9 65.91710-0035 RING;LOCATING 14 D
10 65.90020-0035 BOLT;BEARING 12.9T 14 D ~500482
10 65.90020-0035B BOLT;BEARING CAP 14 D 500483~
11 65.01201-0020 LINER;CYLINDER 6 ~500523 I 65.01201-0050 6
11 65.01201-0050 LINER;CYLINDER 6 500524~
12 65.90310-0048 SCREW;PLUG M10X1.5 6
13 06.56180-0714 RING;SEAL 1
14 65.90310-0091 SCREW;PLUG M12X1.5X20 1
15 06.56190-0704 RING;SEAL 1
16 06.22022-0907 PIN;DOWEL 6M6X10 6
17 65.96601-0042 GASKET;END COVER 1
18 65.91605-0006 COVER;END 1
19 06.01913-3114 BOLT ASS'Y M8X22 2
20 06.06225-0704 BOLT;STUD M8X20 1
21 06.16731-2107 WASHER 1
22 06.11063-8214 NUT 1
23 06.22220-1212 PIN;SPIRAL LOCK 8X24 2
24 65.91701-0148 SPACER 1
25 06.01013-9517 BOLT;HEX M16X60 1
26 65.27441-7007 SWITCH;OIL PRESSURE 1
27 65.98130-0030 ADAPTER 1
28 06.56180-0714 RING;SEAL 1
29 65.91701-0273 RING;SPACER 1
30 65.91701-0088 SPACER 1
31 06.01283-7524 BOLT;HEX. M16X65 1
1
SOLAR 220LC-III

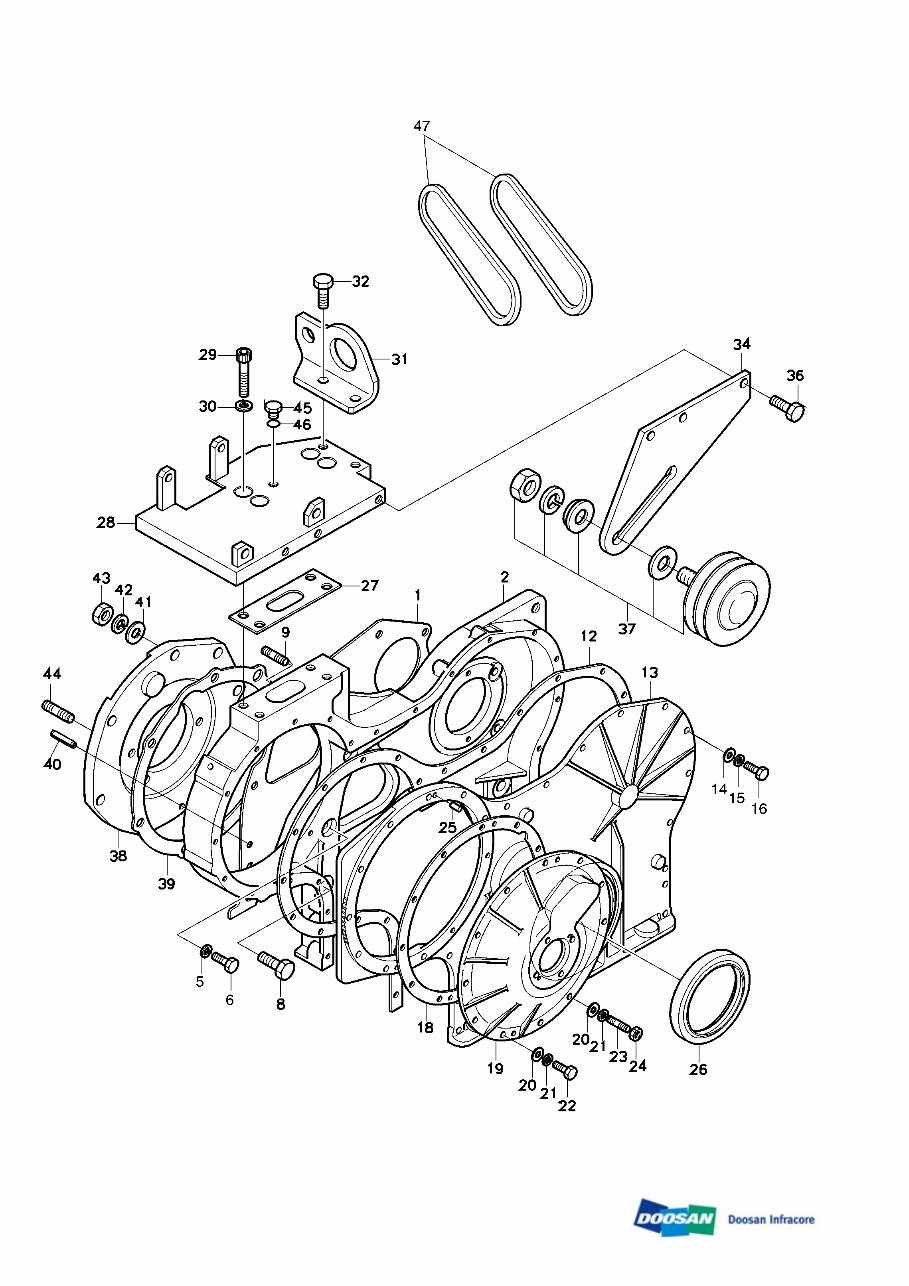

Fig. 012 TIMING GEAR CASE
SOLAR 220LC-III
Fig. 012 TIMING GEAR CASE
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
1 65.01903-0021 GASKET(TIMING GEAR CASE) 1
2 65.01304-0010 CASE;TIMING GEAR 1
5 06.16731-2107 WASHER 6
5 06.16731-2107 WASHER 1
6 06.01283-7113 BOLT;HEX. M8X1.25X20 5 ~940222 I 06.01913-3113 5
6 06.01913-3113 BOLT ASS'Y M8X20 5 940223~
6-1 06.06225-0704 BOLT;STUD M8X20 1
6-2 06.11063-8214 NUT 1
7 06.16731-2108 WASHER;SPRING 1
8 06.01733-4311 BOLT;HEX. M12X1.5X30 4 ~940222 I 06.01943-3317 4
8 06.01943-3317 BOLT ASS`Y M12X1.5X30 4 940223~
9 65.90201-0048 BOLT;STUD 1
10 06.06225-0809 BOLT;STUD M10X35 6
11 06.06225-0810 BOLT;STUD M10X40 2
12 65.01903-0113 GASKET(TIMING GEAR CASE 1
13 65.01305-5028B TIMING GEAR CASE COVER A 1
16 06.01923-2914 BOLT ASS`Y M6X22 13
18 65.01903-0029 GASKET(TIMING GEAR CASE 1
19 65.01307-5009 TIMING GEAR CASE COVER 1
20 06.15010-2309 WASHER;PLAIN 2
21 06.16731-2105 WASHER 2
22 06.01283-6918 BOLT;HEX. M6X35 9 ~940222 I 06.01923-2918 C
22 06.01923-2918 BOLT ASS`Y M6X35 9 940223~
23 06.06225-0502 BOLT;STUD M6X16 2
24 06.11063-8212 NUT 2
25 06.22022-0908 PIN;DOWEL 6m6X12 2
25 06.22022-0907 PIN;DOWEL 6M6X10 2
26 65.01510-0018 SEAL;CRANK SHAFT(FRONT) 1 ~400043 I 65.01510-0026 1
26 65.01510-0026 SEAL;CRANK SHAFT(FRONT) 1 400044~
27 65.54903-0013 GASKET 1
28 65.54302-5013 BRACKET;AIRCON 1 ~309999
28 65.54302-5014 BRACKET;AIRCON 1 400001~ I 65.54302-5015A 1
28 65.54302-5015A BRACKET;AIRCON 1 500352~
29 06.02090-0511 BOLT;SOCKET M10X22 4
30 06.16731-2108 WASHER;SPRING 4
31 65.54306-0010 BRACKET 1
1
SOLAR 220LC-III
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
32 06.01283-7213 BOLT;HEX. M10X1.5X20 2 ~9400222 I 06.01913-3213 2
32 06.01913-3213 BOLT ASS`Y M10X20 2 9400223~
34 65.95840-0007 BRACKET;IDLE PULLEY 1 ~500351 I 65.95840.0024 1
34 65.95840-0024 BRACKET;IDLE PULLEY 1 500352~
36 06.01283-7213 BOLT;HEX. M10X1.5X20 3 ~9400222 I 06.01913-3213 3
36 06.01913-3213 BOLT ASS`Y M10X20 3 9400223~
37 65.95800-6014 IDLE PULLEY ASS'Y 1
38 65.11401-5007 MOUNTING FLANGE ASS'Y 1
39 65.11902-0006 GASKET 1 ~500220
39 65.11902-0018A GASKET;MOUNTING FLANGE 1 500221~
40 06.22220-1110 PIN;SPRING 1
41 06.15010-2312 WASHER;PLAIN 7
42 06.16731-2108 WASHER;SPRING 7
43 06.11063-8215 NUT;HEX. M10 7
44 65.90201-0059 BOLT;STUD M10X35 4
45 65.90310-0033 SCREW;PLUG 1 500352~
46 06.56180-0714 RING;SEAL 1 500352~
47 65.96801-0059 V-BELT 2X13.0X1600 2 0241~
2
SOLAR 220LC-III

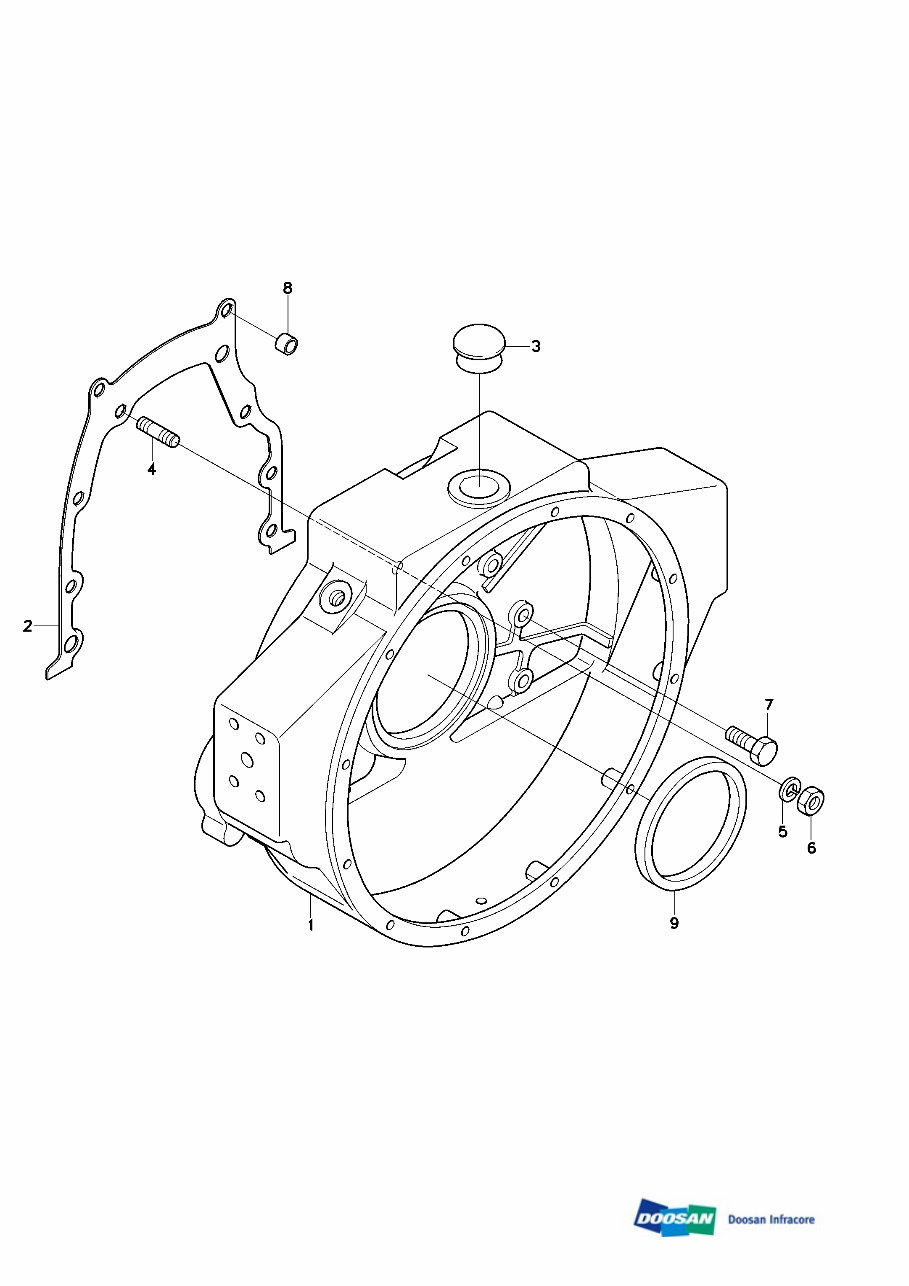

Fig. 013 FLY WHEEL HOUSING
SOLAR 220LC-III
Fig. 013 FLY WHEEL HOUSING
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
1 65.01401-0177 HOUSING;FLYWHEEL 1
2 65.01903A0178 GASKET;FLYWHEEL HOUSING 1
3 65.96002-0003 PLUG;RUBBER 2
4 06.06176-8309 BOLT,STUD 1
5 06.16731-2109 WASHER;SPRING A12 1
6 06.11063-9216 NUT;HEX. M12X1.5 1
7 06.01943-3319 BOLT ASS'Y M12X1.5X40 9
8 65.91710-0023 RING;INTERMEDIATE 2
9 65.01510-0020 SEAL;CRANK SHAFT(REAR) 1 ~9800006 I 65.01510-0141 1
9 65.01510-0141 OIL SEAL;RR 1 9800007~
1
SOLAR 220LC-III

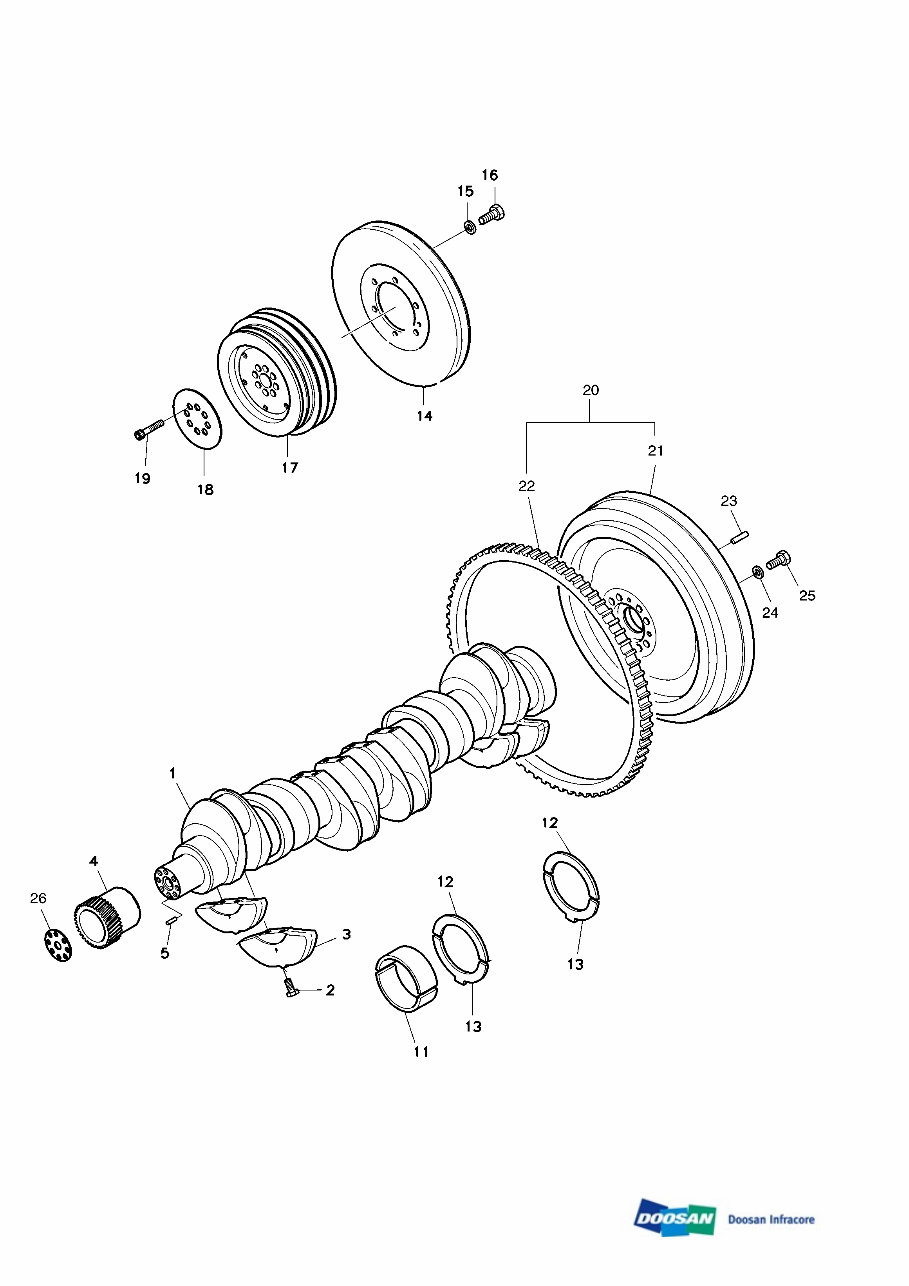

Fig. 014 CRANK SHAFT
SOLAR 220LC-III
Fig. 014 CRANK SHAFT
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
- 65.02101-7024 CRANK SHAFT ASS'Y 1
1 65.02101-0024 SHAFT;CRANK 1 D
2 65.90430-0014A BOLT;CRANK SHAFT 12 D
3 65.02110-0011 WEIGHT;BALANCE 6 D
4 65.02115-0007 GEAR;CRANK SHAFT 1
5 06.22022-0912 PIN;DOWEL 1
11 65.01110-6351 METAL;MAIN STD 7
11 65.01110-6352 METAL;MAIN 0.25 7 US
11 65.01110-6353 METAL;MAIN 0.50 7 US
11 65.01110-6354 METAL;MAIN 0.75 7 US
11 65.01110-6355 METAL;MAIN 1.00mm 7 US
12 65.01150-0015 WASHER;THRUST(UPPER) 2
12 65.01150-0019 WASHER;THRUST(0.25) 2 OS
12 65.01150-0020 WASHER;THRUST(0.50) 2 OS
12 65.01150-0021 WASHER;THRUST(UPP) 0.75mm 2 OS
12 65.01150-0022 WASHER;THRUST(UPP) 1.00mm 2 OS
13 65.01150-0016 WASHER;THRUST(LOWER) STD. 2
13 65.01150-0023 WASHER;THRUST(LOWER) 0.25 2 OS
13 65.01150-0024 WASHER;THRUST(LOWER) 0.50 2 OS
13 65.01150-0025 WASHER;THRUST(LOW) 0.75mm 2 OS
13 65.01150-0026 WASHER;THRUST(LOW) 1.00mm 2 OS
14 65.02201-7028 DAMPER;VIBRATION 1
15 06.16044-0210 WASHER;SPRING 8
16 06.01283-7113 BOLT;HEX. M8X1.25X20 8
17 65.02601-0088 PULLEY;V-BELT 1 ~309999 I 65.02601-0133 1
17 65.02601-0133 PULLEY;V-BELT 1 400001~
18 65.90720-0022 WASHER 1
19 06.02106-0620 BOLT;SOCKET HEAD 8
20 65.02301-5028 FLY WHEEL ASS'Y 1 ~400015
20 65.02301-5062 FLY WHEEL ASS'Y 1 400016~
21 65.02301-0160 WHEEL;FLY 1 ~400015
21 65.02301-0215 WHEEL;FLY 1 400016~
22 65.02310-0010A GEAR;STARTER RING 1
23 06.22220-1208 PIN;SPIRAL LOCK 8X16 1 ~9800008 I 06.22022-1010 1
23 06.22022-1010 PIN;DOWEL 1 9800009~
24 06.16731-2110 WASHER;SPRING 6
1
SOLAR 220LC-III
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
25 65.90001-0084 BOLT;HEX. M14X1.5X40 6
26 65.01505-0030 COVER;DUST 1
2
SOLAR 220LC-III
