2009 Volkswagen Tiguan SEL Utility SPECIAL CAUTIONS SPECIAL CAUTIONS AIR BAGS Refer to Procedure Explanation 29 for Supplemental Restraint/Air Bag Special Cautions. Refer to Procedure Explanation 29 for Supplemental Restraint/Air Bag Special Cautions. Refer to Procedure Explanation 29 for Supplemental Restraint/Air Bag Special Cautions. Refer to Procedure Explanation 29 for Supplemental Restraint/Air Bag Special Cautions. Refer to Procedure Explanation 29 for Supplemental Restraint/Air Bag Special Cautions. ELECTRICAL COMPONENTS Ignition must be in off position before any electrical repair or washing of engine is performed. Obtain radio anti -theft security code before performing any electrical repair. Ignition must be in off position before any electrical repair or washing of engine is performed. Obtain radio anti -theft security code before performing any electrical repair. Ignition must be in off position before any electrical repair or washing of engine is performed. Obtain radio anti -theft security code before performing any electrical repair. Ignition must be in off position before any electrical repair or washing of engine is performed. Obtain radio anti -theft security code before performing any electrical repair. Ignition must be in off position before any electrical repair or washing of engine is performed. Obtain radio anti -theft security code before performing any electrical repair. Ignition must be in off position before any electrical repair or washing of engine is performed. Obtain radio anti -theft security code before performing any electrical repair. SUSPENSION Manufacturer advises that some new fasteners must be used whenever old fasteners are loosened or removed. Manufacturer advises that some new fasteners must be used whenever old fasteners are loosened or removed. Manufacturer advises that some new fasteners must be used whenever old fasteners are loosened or removed. Manufacturer advises that some new fasteners must be used whenever old fasteners are loosened or removed. Manufacturer advises that some new fasteners must be used whenever old fasteners are loosened or removed. Manufacturer advises that some new fasteners must be used whenever old fasteners are loosened or removed. WELDING Before initiating any repair involving the use of an electric welder, the ignition must be in the off position and both battery terminals as well as ABS card disconnected. Before initiating any repair involving the use of an electric welder, the ignition must be in the off position and both battery terminals as well as ABS card disconnected. Before initiating any repair involving the use of an electric welder, the ignition must be in the off position and both battery terminals as well as ABS card disconnected. Before initiating any repair involving the use of an electric welder, the ignition must be in the off position and both battery terminals as well as ABS card disconnected. Before initiating any repair involving the use of an electric welder, the ignition must be in the off position and both battery terminals as well as ABS card disconnected. Before initiating any repair involving the use of an electric welder, the ignition must be in the off position and both battery terminals as well as ABS card disconnected. Manufacturer Advises that Laser Welding is Used on Some Welded Panels in the Manufacturing Process of this Vehicle. Please see Manufacturer 's Body Service Manual for Specific Repair Instructions. Manufacturer Advises that Laser Welding is Used on Some Welded Panels in the Manufacturing Process of this Vehicle. Please see Manufacturer 's Body Service Manual for Specific Repair Instructions. Manufacturer Advises that Laser Welding is Used on Some Welded Panels in the Manufacturing Process of this Vehicle. Please see Manufacturer 's Body Service Manual for Specific Repair Instructions. Manufacturer Advises that Laser Welding is Used on Some Welded Panels in the Manufacturing Process of this Vehicle. Please see Manufacturer 's Body Service Manual for Specific Repair Instructions. Manufacturer Advises that Laser Welding is Used on Some Welded Panels in the Manufacturing Process of this Vehicle. Please see Manufacturer 's Body Service Manual for Specific Repair Instructions. Manufacturer Advises that Laser Welding is Used on Some Welded Panels in the Manufacturing Process of this Vehicle. Please see Manufacturer 's Body Service Manual for Specific Repair Instructions. ©1998-2006 Mitchell International, Inc. All Rights Reserved. PDF processed with CutePDF evaluation edition www.CutePDF.com

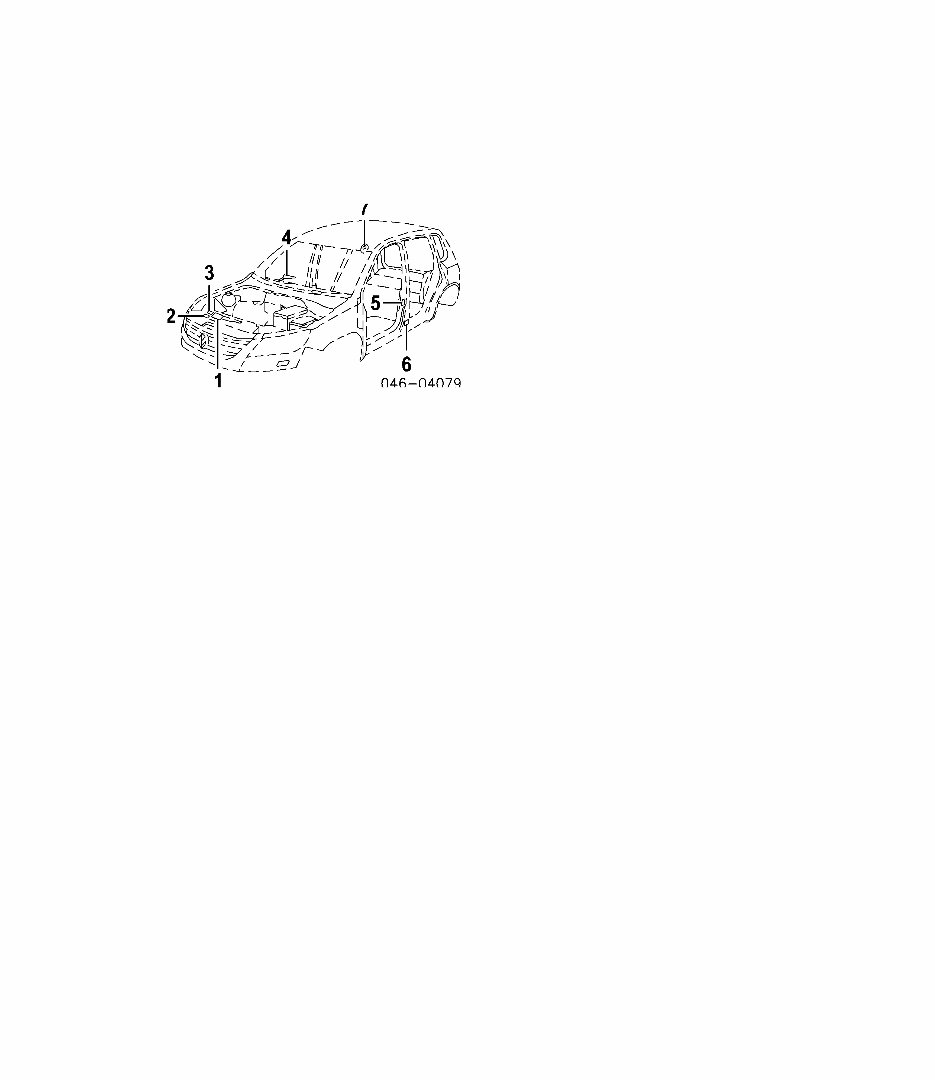

2009 Volkswagen Tiguan SEL Utility INFORMATION LABELS INFORMATION LABELS 1 Label , Engine Caution 701 010 492 B $11.50 2 Label , Heater Caution¶ 1K0 010 372 R ¶Order by Application 3 Label , A/C Caution 5N0 010 607 A $3.30 4 Label , Child Safety 1J0 010 404 B $6.60 5 Label , Child Seat¶ 3C0 010 492 K $6.00 6 Label , Tire Pressure¶ 5N0 010 468 B $6.00 7 Label , Unleaded Fuel¶ 1K0 010 497 C $3.30 ¶Order by Application Label , Jack Caution N.A. ©1998-2006 Mitchell International, Inc. All Rights Reserved.

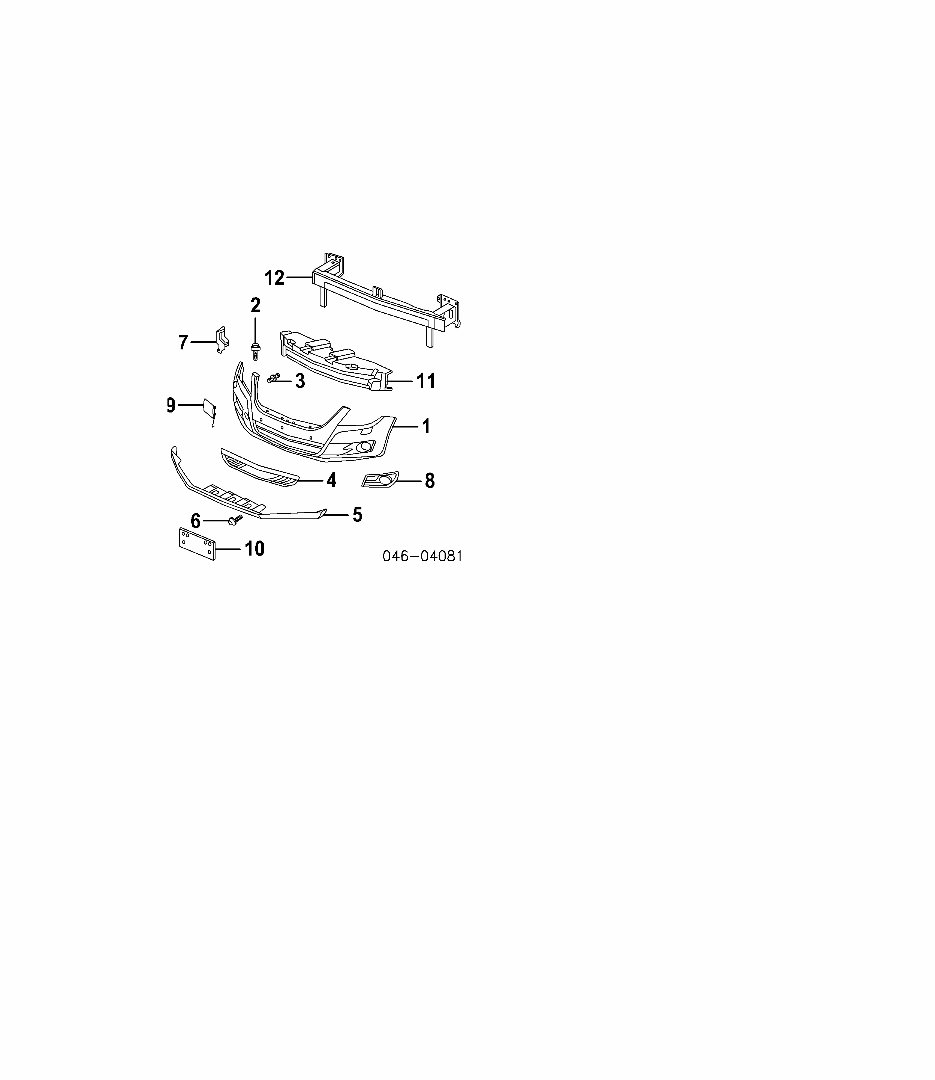

2009 Volkswagen Tiguan SEL Utility FRONT BUMPER FRONT BUMPER Procedures 1 and 28 TYPE 1 Refinish Bumper Cover 2.5 Refinish Tow Eye Cover .2 Refinish Parking Aid Sensor .2 R&I Bumper Cover #1.2 #Includes R&I Grille O/H Bumper Cover Assy (Includes R&I) #3.2 #Includes R&I Grille & Side Marker Lamps Add to R&R Bumper Cover or O/H Bumper Assy w/Fog Lamps .4 w/Headlamp Washer .4 w/Parking Aid .6 NOTE: All Parts in this section are included in O/H unless noted otherwise. NOTE: All Parts in this section are included in O/H unless noted otherwise. NOTE: All Parts in this section are included in O/H unless noted otherwise. NOTE: All Parts in this section are included in O/H unless noted otherwise. 1 Cover , Bumper (P) w/Headlamp Washer #3.2 5N0 807 217 AB GRU $377.00 w/o Headlamp Washer #3.2 5N0 807 217 AA GRU $377.00 (P) Paint to Match #Includes R&I Grille & Side Marker Lamps Cover , H/Lamp Washer-See Front Lamps Section 2 Bolt, Upper R N 908 259 01 $0.70 ©1998-2006 Mitchell International, Inc. All Rights Reserved. 1

2009 Volkswagen Tiguan SEL Utility L N 908 259 01 $0.70 3 Rivet, Mounting (2/Side) R N 038 549 4 $0.30 L N 038 549 4 $0.30 4 Spoiler, Lower¶ w/Parking Aid Sensors #.4 5N0 805 901 9B9 $110.00 w/o Parking Aid Sensors #.4 5N0 805 903 A 9B9 $110.00 ¶Order by Application #w/Bumper Cover Removed 5 Trim, Spoiler 5N0 807 532 AV3 $79.50 6 Grille, Bumper .2 5N0 853 677 B 9B9 $90.00 7 Cover , Side¶ w/Fog Lamps R .2 5N0 853 666 C 9B9 $59.50 L .2 5N0 853 665 C 9B9 $59.50 w/o Fog Lamps R .2 5N0 853 666 9B9 $59.50 L .2 5N0 853 665 9B9 $59.50 ¶Order by Application 8 Bracket, Bumper R #.2 5N0 807 942 A $8.40 L #.2 5N0 807 941 A $8.40 #w/Bumper Cover Removed, Not Included in O/H 9 Cover , Tow Eye (P) R .1 5N0 807 241 A GRU $16.50 (P) Paint to Match 10 Bracket, License .2 5N0 807 287 A 9B9 $59.50 11 Absorber, Impact IOH 5N0 807 248 A $59.50 12 Bar, Reinforcement #.4 5N0 807 109 C $225.00 #w/Bumper Cover Removed, Not Included in O/H 13 Sensor, Parking Aid (P) Outer R #.1 1T0 919 297 A GRU $110.00 L #.1 1T0 919 297 A GRU $110.00 Center, (2/Side) R #.1 3C0 919 275 S GRU $97.50 L #.1 3C0 919 275 S GRU $97.50 (P) Paint to Match #w/Bumper Cover Removed, Not Included in O/H 14 Seal , Sensor Outer R 1T0 919 133 B $0.30 L 1T0 919 133 B $0.30 Center, (2/Side) R 1T0 919 133 C 9B9 $0.30 L 1T0 919 133 C 9B9 $0.30 15 Harness, Parking Aid¶ 5N0 971 095 $79.50 ¶Order by Application ©1998-2006 Mitchell International, Inc. All Rights Reserved. 2

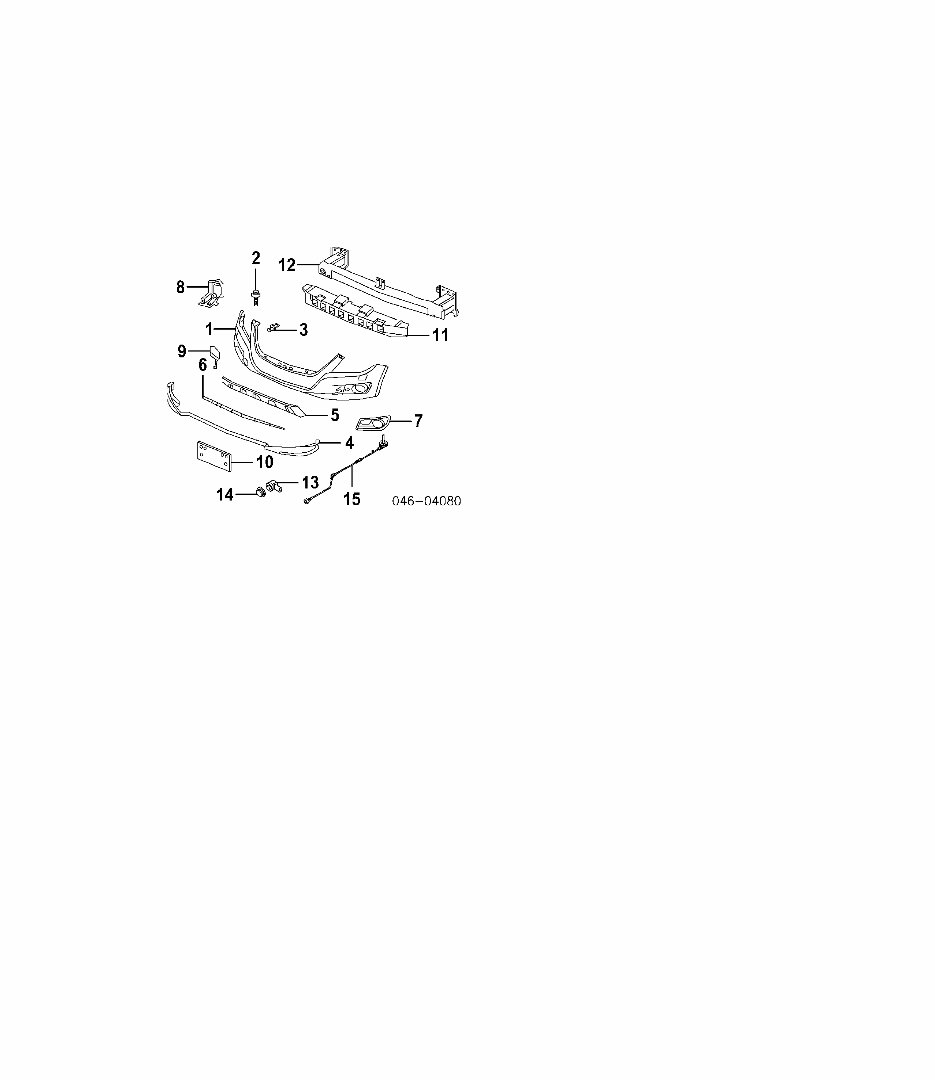

2009 Volkswagen Tiguan SEL Utility Control Unit, Parking Aid-See Side Body Section TYPE 2 Refinish Bumper Cover 2.5 Refinish Tow Eye Cover .2 R&I Bumper Cover #1.2 #Includes R&I Grille O/H Bumper Cover Assy (Includes R&I) #3.2 #Includes R&I Grille & Side Marker Lamps Add to R&R Bumper Cover or O/H Bumper Assy w/Fog Lamps .4 w/Headlamp Washer .4 NOTE: All Parts in this section are included in O/H unless noted otherwise. NOTE: All Parts in this section are included in O/H unless noted otherwise. NOTE: All Parts in this section are included in O/H unless noted otherwise. NOTE: All Parts in this section are included in O/H unless noted otherwise. 1 Cover , Bumper (P) w/ H/Lamp Washer #3.2 5N0 807 217 G GRU $377.00 w/o H/Lamp Washer #3.2 5N0 807 217 F GRU $375.00 (P) Paint to Match #Includes R&I Grille & Side Marker Lamps Cover , H/Lamp Washer-See Front Lamps Section 2 Bolt, Upper R N 908 259 01 $0.70 ©1998-2006 Mitchell International, Inc. All Rights Reserved. 3

2009 Volkswagen Tiguan SEL Utility L N 908 259 01 $0.70 3 Rivet, Mounting (2/Side) R N 038 549 4 $0.30 L N 038 549 4 $0.30 4 Grille, Bumper .2 5N0 853 677 9B9 $110.00 5 Spoiler, Lower¶ Type 1 #.4 5N0 805 903 9B9 $110.00 Type 2 #.4 5N0 805 901 D GRU $377.00 ¶Order by Application #w/Bumper Cover Removed 6 Bolt, Mounting (a) N 909 747 01 $0.30 (a) As Required 7 Bracket, Cover R #.2 5N0 807 942 $8.40 L #.2 5N0 807 941 $8.40 #w/Bumper Cover Removed, Not Included in O/H 8 Cover , Side¶ w/Fog Lamps R .2 5N0 853 666 A 9B9 $59.50 L .2 5N0 853 665 A 9B9 $59.50 w/o Fog Lamps R .2 5N0 853 666 9B9 $59.50 L .2 5N0 853 665 9B9 $59.50 ¶Order by Application 9 Cover , Tow Eye (P) R .1 5N0 807 241 GRU $16.50 (P) Paint to Match 10 Bracket, License .2 5N0 807 287 9B9 $59.50 11 Absorber, Impact IOH 5N0 807 248 A $59.50 12 Bar, Reinforcement¶ #.4 5N0 807 109 B $225.00 ¶Order by Application #w/Bumper Cover Removed, Not Included in O/H ©1998-2006 Mitchell International, Inc. All Rights Reserved. 4

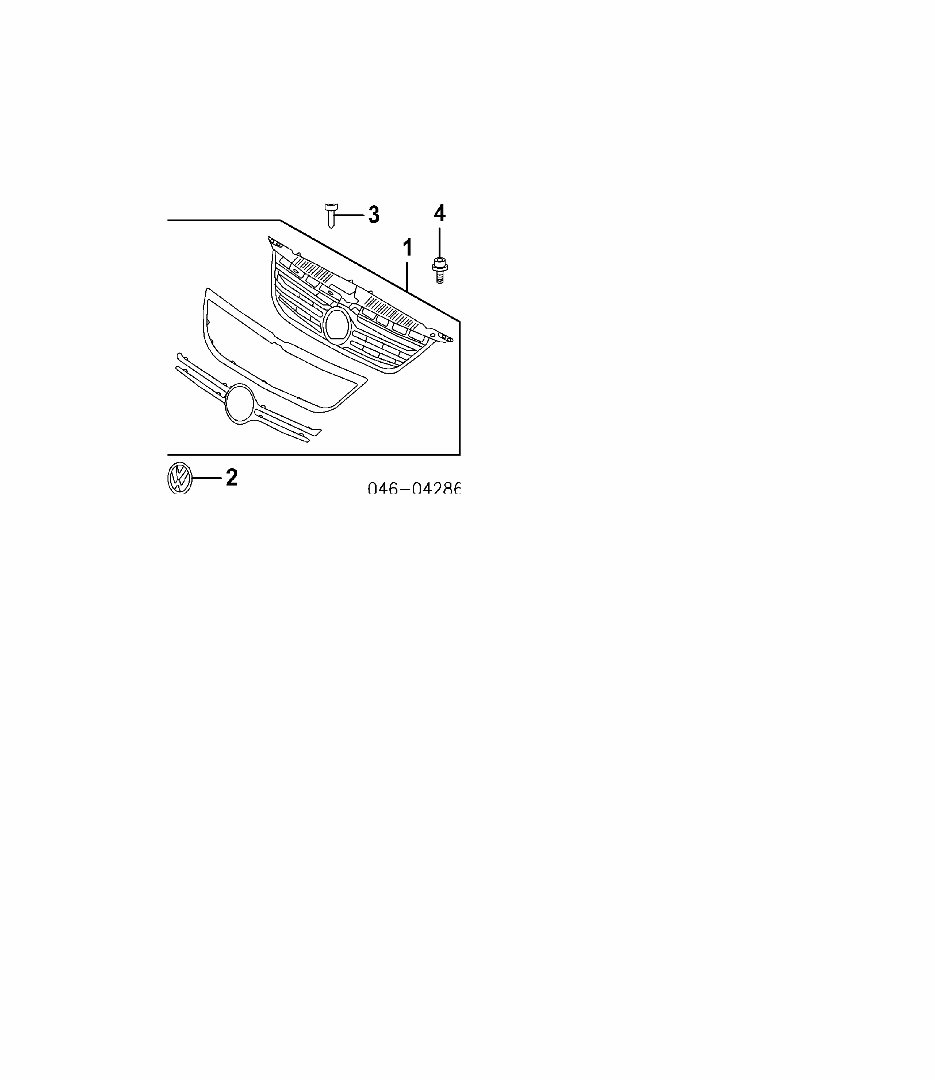

2009 Volkswagen Tiguan SEL Utility GRILLE GRILLE R&I Grille Assy .3 1 Grille 2009 To 3-09 .3 5N0 853 651 A 2ZZ $199.00 From 4-09 .3 5N0 853 651 C 2ZZ $284.00 2010 .3 5N0 853 651 C 2ZZ $284.00 2 Emblem, Grille (Adhesive) .2 1K5 853 600 MQH $51.90 3 Rivet, Grille (4) N 903 463 02 $0.90 4 Bolt, Mounting N 908 259 01 $0.70 ©1998-2006 Mitchell International, Inc. All Rights Reserved.

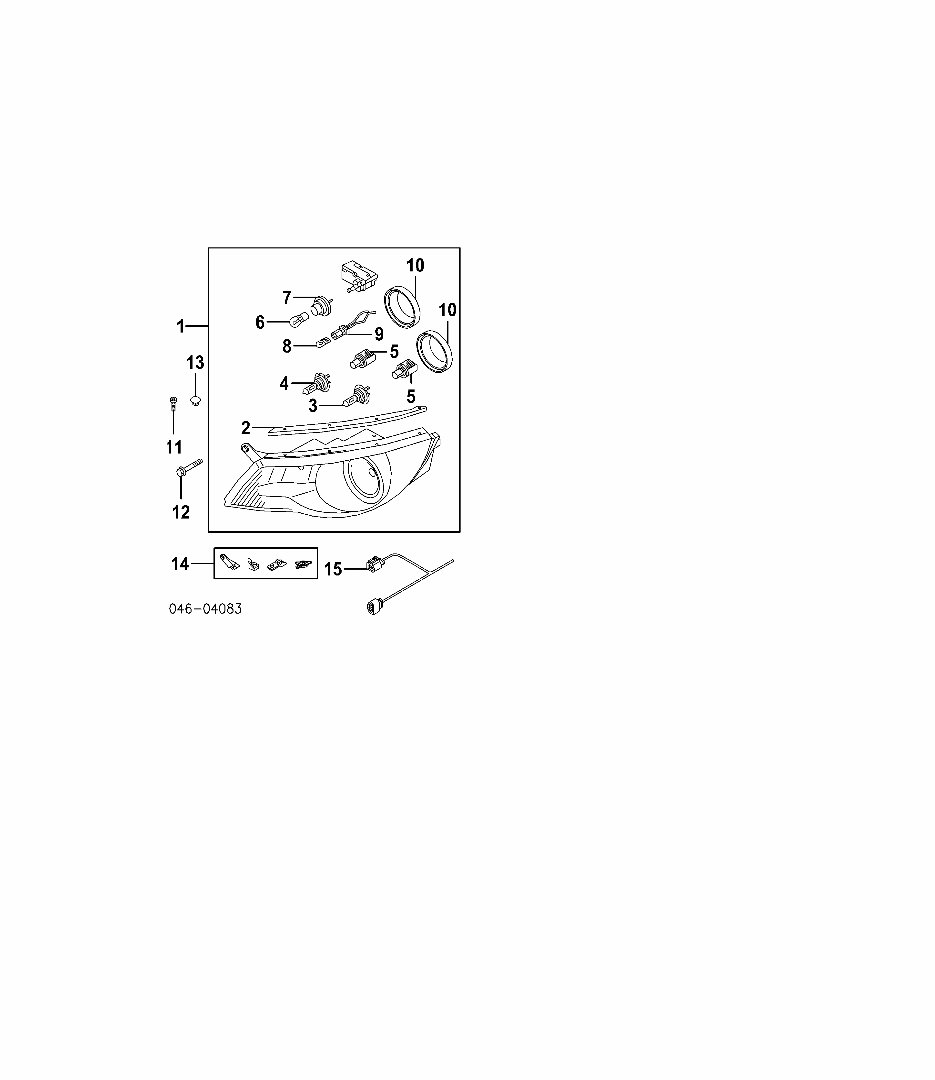

2009 Volkswagen Tiguan SEL Utility FRONT LAMPS FRONT LAMPS COMBINATION LAMP HALOGEN Aim Lamps .4 R&I Combination Lamp Assy R .3 L .3 NOTE: R&R Does Not include aim lamps. 1 Lamp Assy, Combination 2009 To VIN 9025000 R .3 5N1 941 032 Q $260.00 L .3 5N1 941 031 Q $260.00 From VIN 9025001 R .3 5N1 941 032 AC $260.00 L .3 5N1 941 031 AC $260.00 2010 R .3 5N1 941 032 AC $260.00 L .3 5N1 941 031 AC $260.00 2 Gasket, Lamp¶ R 5N0 941 120 $45.30 L 5N0 941 119 $45.30 3 Bulb, Low Beam¶ R #.2 N 103 201 01 $19.80 L #.2 N 103 201 01 $19.80 4 Bulb, High Beam¶ R #.2 N 103 201 02 $16.50 L #.2 N 103 201 02 $16.50 5 Socket, Lamp¶ Low Beam R 5M0 941 109 A $16.50 ©1998-2006 Mitchell International, Inc. All Rights Reserved. 1
