04_SEQUOIA_U (L/O 0309) 1 2004 SEQUOIA from Sep. ’03 Prod. (OM34423U) OPERATION OF INSTRUMENTS AND CONTROLS Overview of instruments and controls Instrument panel overview 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Instrument cluster overview 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Indicator symbols on the instrument panel 7 . . . . . . . . . . . . . . . . . . . . . . . SECTION 1 − 1

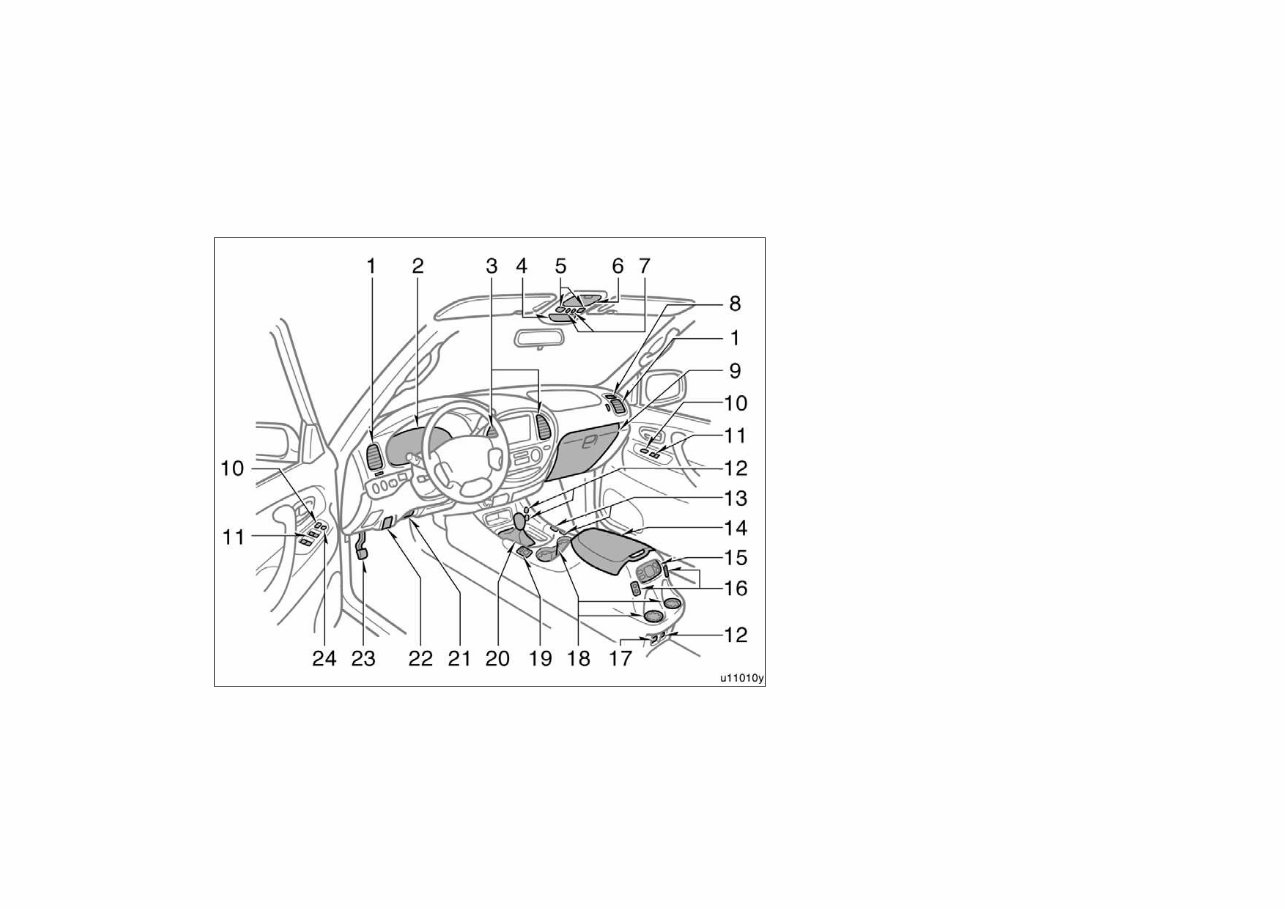

04_SEQUOIA_U (L/O 0309) 2 2004 SEQUOIA from Sep. ’03 Prod. (OM34423U) 1. Side vents 2. Instrument cluster 3. Center vents 4. Multi −information display 5. Personal lights 6. Garage door opener box or auxiliary box 7. Electric moon roof switches 8. Side defroster outlet 9. Glove box 10. Power door lock switches 11. Power window switches 12. Power outlets 13. Seat heater switches 14. Rear console box 15. Rear air conditioning controls 16. Headphone input jacks and headphone volume control dials 17. Input terminal adapter 18. Cup holders 19. Power rear view mirror control switches 20. Front drive control lever 21. Lower vent Instrument panel overview

04_SEQUOIA_U (L/O 0309) 3 2004 SEQUOIA from Sep. ’03 Prod. (OM34423U) 22. Hood lock release lever 23. Parking brake pedal 24. Window lock switch

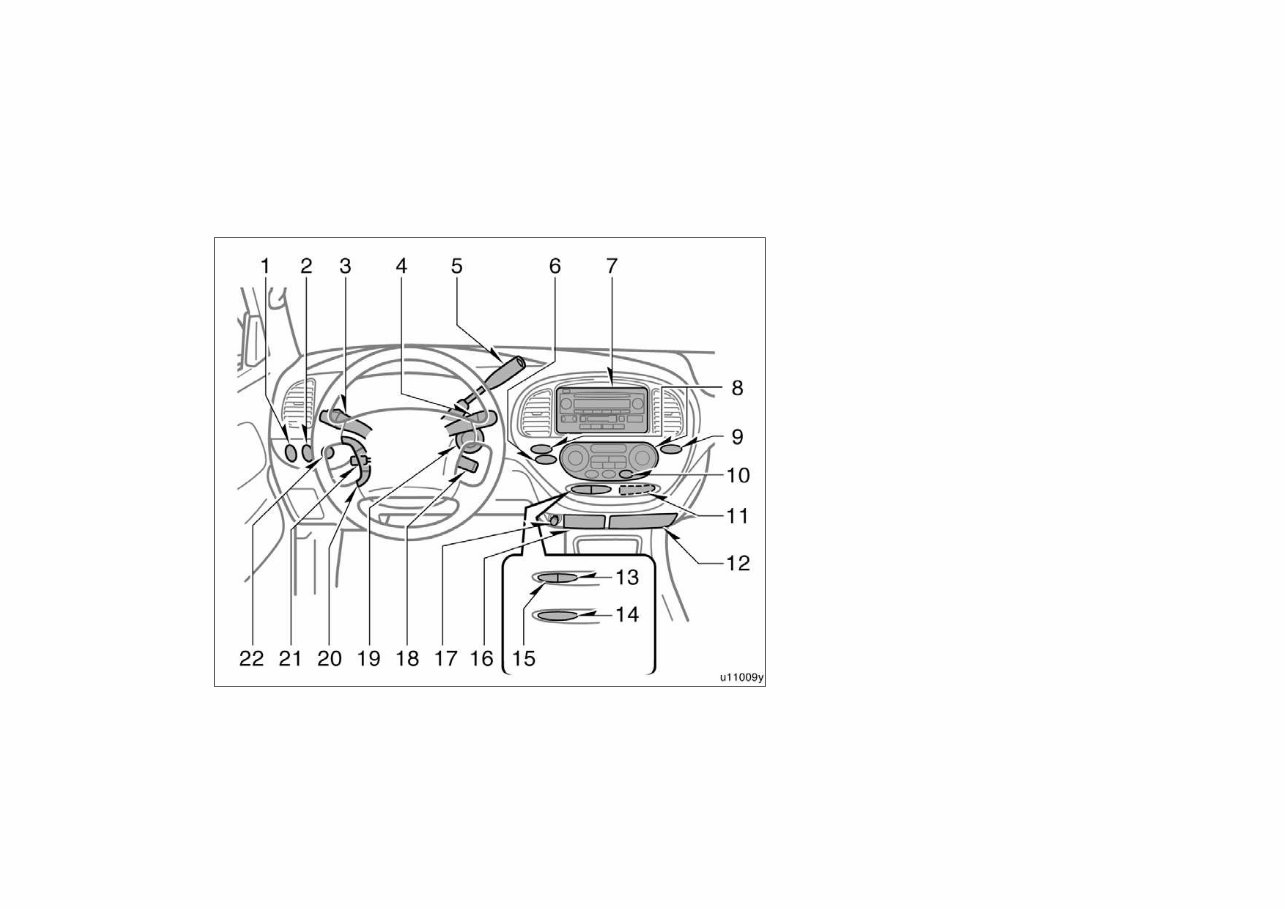

04_SEQUOIA_U (L/O 0309) 4 2004 SEQUOIA from Sep. ’03 Prod. (OM34423U) 1. Power back window switch 2. Power outlet main switch 3. Headlight, turn signal and front fog light switches 4. Wiper and washer switches 5. Automatic transmission selector lever 6. Emergency flasher switch 7. Car audio 8. Air conditioning controls 9. Front passenger’s seat belt reminder light 10. Back window and rear view mirror defogger switch 11. Clock 12. Cup holder 13. Center differential lock switch (four−wheel drive models) 14. “TRAC OFF” switch (two−wheel drive models) 15. “4WD” switch 16. Ashtray 17. Cigarette lighter 18. Cruise control switch 19. Ignition switch

04_SEQUOIA_U (L/O 0309) 5 2004 SEQUOIA from Sep. ’03 Prod. (OM34423U) 20. Audio remote control switches 21. Tilt steering lock release lever 22. Instrument panel light control knob

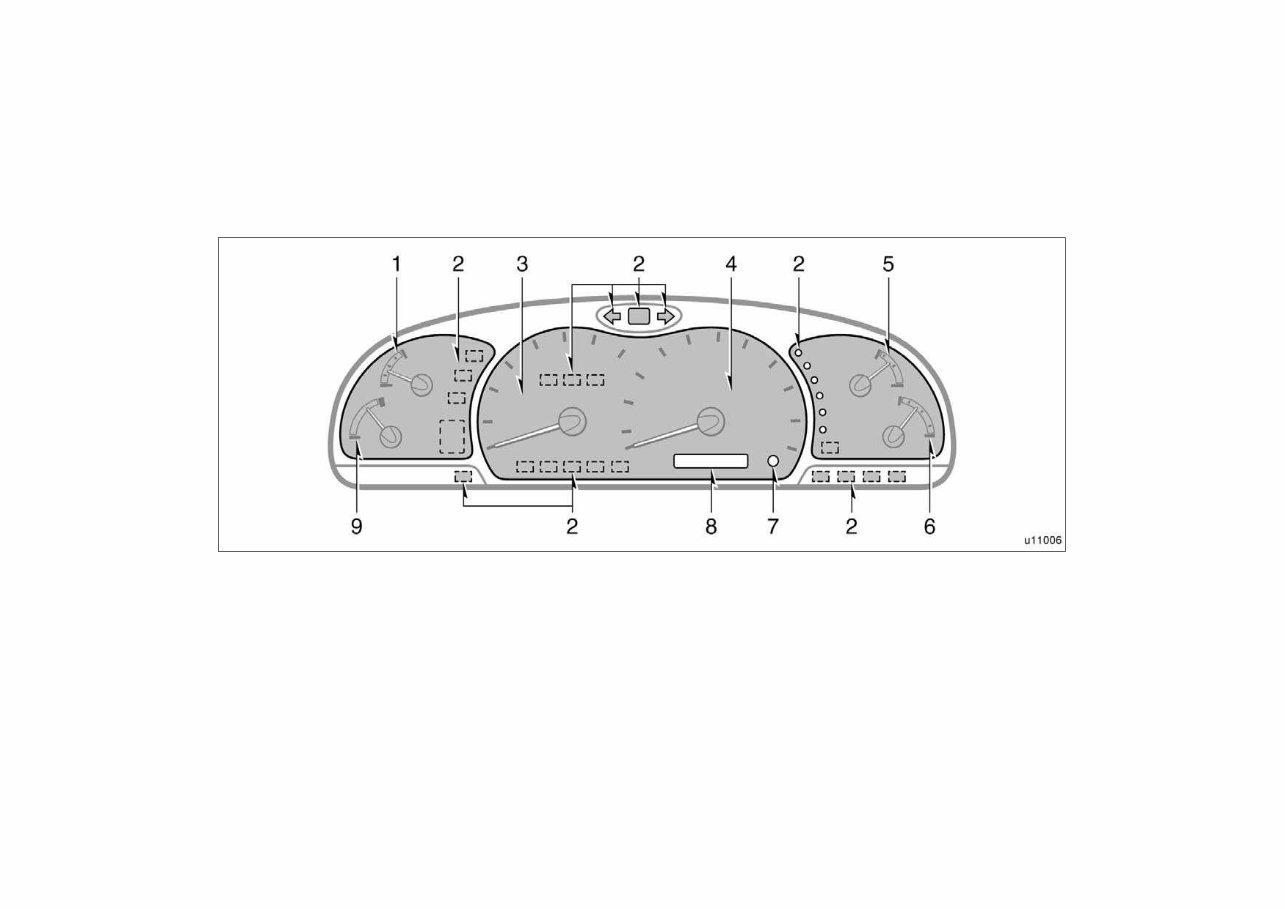

04_SEQUOIA_U (L/O 0309) 6 2004 SEQUOIA from Sep. ’03 Prod. (OM34423U) 1. Oil pressure gauge 2. Service reminder indicators and indicator lights 3. Tachometer 4. Speedometer 5. Volt meter 6. Fuel gauge 7. Trip meter reset knob 8. Odometer and two trip meters 9. Engine coolant temperature gauge Instrument cluster overview

04_SEQUOIA_U (L/O 0309) 7 2004 SEQUOIA from Sep. ’03 Prod. (OM34423U) or Driver’s seat belt reminder light *1 Discharge warning light *1 Low fuel level warning light *1 Brake system warning light *1 Malfunction indicator lamp *1 Anti −lock brake system warning light *1 Automatic transmission fluid temperature warning light *1 SRS warning light *1 Unengaged “Park” warning light *1 Open door warning light *1 Low windshield washer fluid level warning light *1 Front passenger’s seat belt reminder light *1 Vehicle stability control system/traction control system (two−wheel drive models) or active traction control system (four−wheel drive models) warning light *1 Engine immobilizer/theft deterrent system indicator light Indicator symbols on the instrument panel

04_SEQUOIA_U (L/O 0309) 8 2004 SEQUOIA from Sep. ’03 Prod. (OM34423U) Cruise control indicator light *2 *1 : For details, see “Service reminder indicators and warning buzzers” on page 134 in Section 1−6. *2 : If this light flashes, see “Cruise control” on page 159 in Section 1−7. Four−wheel drive and center differential lock indicator lights Automatic transmission indicator lights Traction control system off indicator light (two−wheel drive models) Vehicle stability control system off indicator light (four−wheel drive models) Slip indicator light Headlight high beam indicator light Overdrive−off indicator light Turn signal indicator lights

04_SEQUOIA_U (L/O 0309) 9 2004 SEQUOIA from Sep. ’03 Prod. (OM34423U) OPERATION OF INSTRUMENTS AND CONTROLS Keys and Doors Keys 10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Engine immobilizer system 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Side doors 14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Power windows 24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Power back window 27 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back door 29 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Hood 31 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Theft deterrent system 32 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fuel tank cap 33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Electric moon roof 35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SECTION 1 − 2

04_SEQUOIA_U (L/O 0309) 10 2004 SEQUOIA from Sep. ’03 Prod. (OM34423U) Your vehicle is supplied with the two kinds of keys. 1. Master keys (black)—These keys work in every lock. Your Toyota dealer will need it to make you a new key with a built −in transponder chip. 2. Sub key (gray)—This key also works in every lock. A transponder chip for engine immobilizer system has been placed in the head of the master and sub keys. These chips are needed to enable the system to function correctly, so be careful not to lose these keys. If you make your own duplicate key, you will not be able to cancel the system or start the engine. Since the side doors can be locked with- out a key, you should always carry a spare master key in case you accidentally lock your keys inside the vehicle. NOTICE When using a key containing a transponder chip, observe the following precautions: z When starting the engine, do not use the key with a key ring resting on the key grip and do not press the key ring against the key grip. Otherwise the engine may not start, or may stop soon after it starts. Keys
