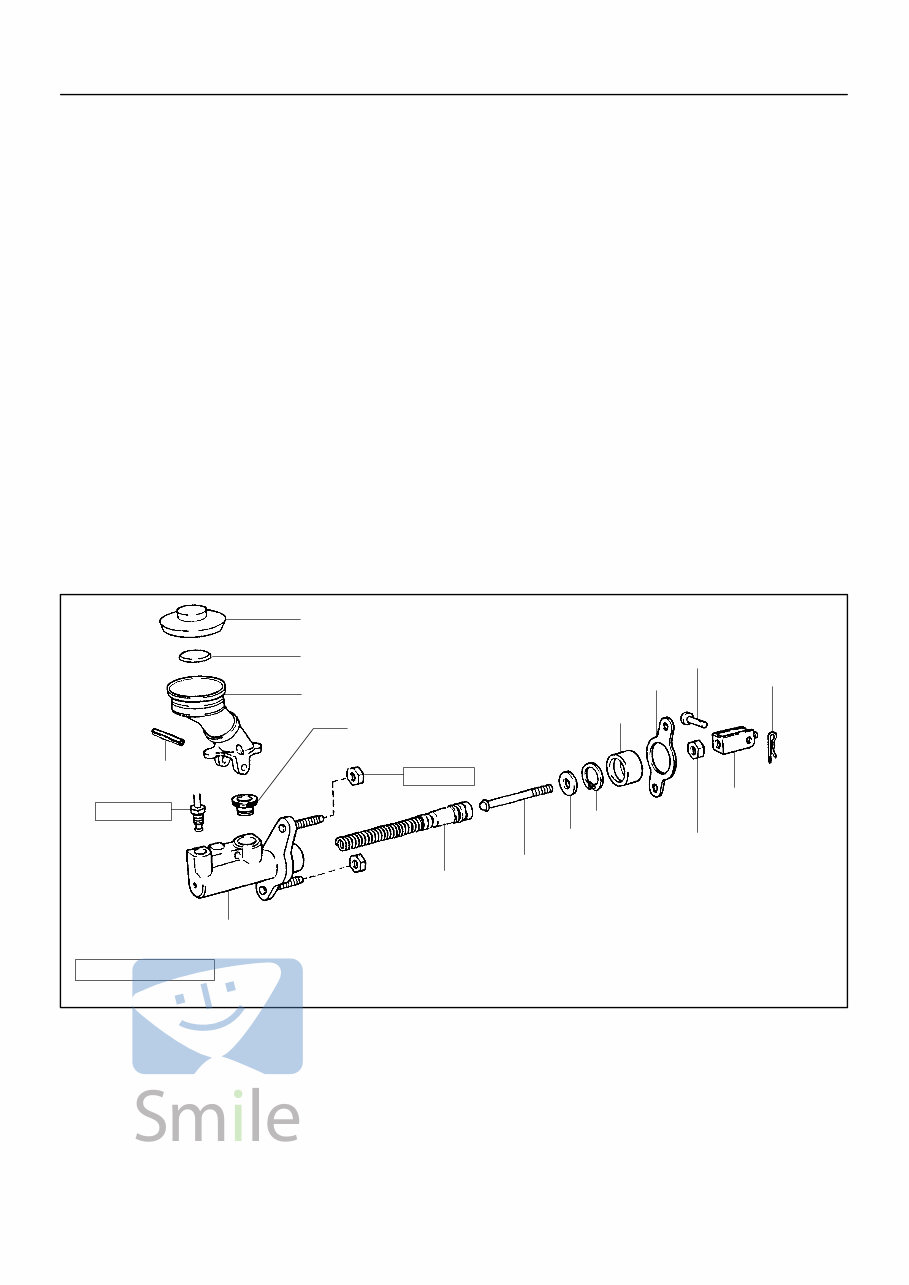

IN00U−36 N17080 Filler Cap Float Reservoir z Grommet Clip Slotted Spring Pin : Specified torque z Non−reusable part Cylinder Piston Push Rod Washer Snap Ring Boot z Gasket Lock Nut Clevis Pin Clevis N·m (kgf·cm, ft·lbf) 12 (120, 9) 15 (155, 11) − INTRODUCTION HOW TO USE THIS MANUAL IN−1 1 Author: Date: 1996 LAND CRUISER (RM451U) HOW TO USE THIS MANUAL GENERAL INFORMATION 1. INDEX An INDEX is provided on the first page of each section to guide you to the item to be repaired. To assist you in finding your way through the manual, the section title and major heading are given at the top of every page. 2. PRECAUTION At the beginning of each section, a PRECAUTION is given that pertains to all repair operations contained in that section. Read these precautions before starting any repair task. 3. TROUBLESHOOTING TROUBLESHOOTING tables are included for each system to help you diagnose the problem and find the cause. The fundamentals of how to proceed with troubleshooting are described on page IN−18. Be sure to read this before performing troubleshooting. 4. PREPARATION Preparation lists the SST (Special Service Tools), recommended tools, equipment, lubricant and SSM (Spe- cial Service Materials) which should be prepared before beginning the operation and explains the purpose of each one. 5. REPAIR PROCEDURES Most repair operations begin with an overview illustration. It identifies the components and shows how the parts fit together. Example: Brought to you by BirfMark Brought to you by BirfMark Version 1.11 - 03/16/2010

Illustration: what to do and where 21. CHECK PISTON STROKE OF OVERDRIVE BRAKE (a) Task heading : what to do SST 09350−30020 (09350−06120) Set part No. Component part No. Detailed text : how to do task (b) Piston stroke: 1.40 Ċ 1.70 mm (0.0551 Ċ 0.0669 in.) Specification Place SST and a dial indicator onto the overdrive brake piston as shown in the illustration. Measure the stroke applying and releasing the compressed air (392 ɦ 785 kPa, 4 ɦ 8 kgf/cm 2 or 57 ɦ 114 psi) as shown in the illustration. IN−2 − INTRODUCTION HOW TO USE THIS MANUAL 2 Author: Date: 1996 LAND CRUISER (RM451U) The procedures are presented in a step−by−step format: S The illustration shows what to do and where to do it. S The task heading tells what to do. S The detailed text tells how to perform the task and gives other information such as specifications and warnings. Example: This format provides the experienced technician with a FAST TRACK to the information needed. The upper case task heading can be read at a glance when necessary, and the text below it provides detailed information. Important specifications and warnings always stand out in bold type. 6. REFERENCES References have been kept to a minimum. However, when they are required you are given the page to refer to. 7. SPECIFICATIONS Specifications are presented in bold type throughout the text where needed. You never have to leave the procedure to look up your specifications. They are also found in Service Specifications section for quick ref- erence. 8. CAUTIONS, NOTICES, HINTS: S CAUTIONS are presented in bold type, and indicate there is a possibility of injury to you or other people. S NOTICES are also presented in bold type, and indicate the possibility of damage to the components being repaired. S HINTS are separated from the text but do not appear in bold. They provide additional information to help you perform the repair efficiently. 9. SI UNIT The UNITS given in this manual are primarily expressed according to the SI UNIT (International System of Unit), and alternately expressed in the metric system and in the English System. Example: Torque: 30 N·m (310 kgf·cm, 22 ft·lbf) Brought to you by BirfMark Brought to you by BirfMark Version 1.11 - 03/16/2010

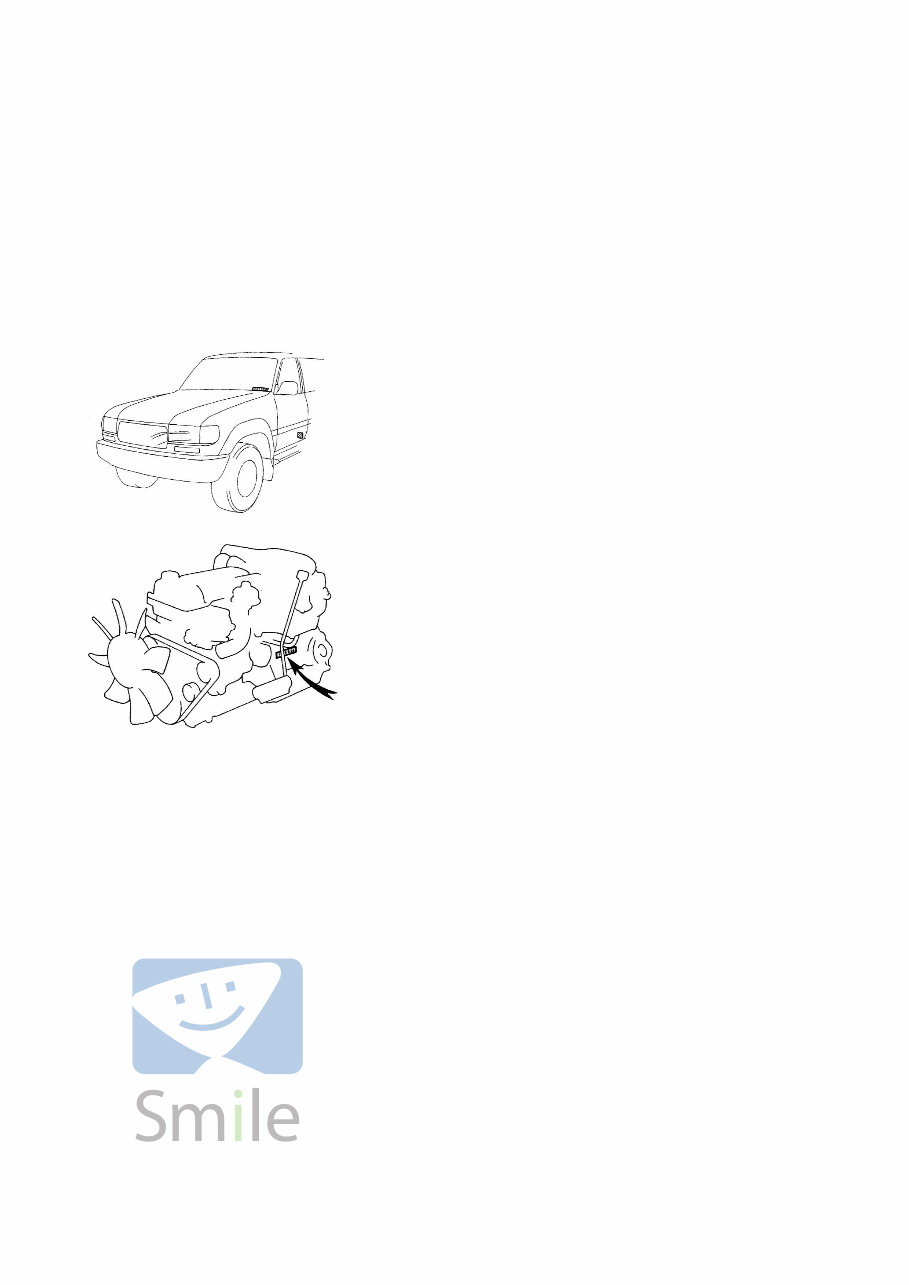

IN04P−14 Z04707 A B P03780 − INTRODUCTION IDENTIFICATION INFORMATION IN−3 3 Author: Date: 1996 LAND CRUISER (RM451U) IDENTIFICATION INFORMATION VEHICLE IDENTIFICATION AND ENGINE SERIAL NUMBER 1. VEHICLE IDENTIFICATION NUMBER The vehicle identification number is stamped on the vehicle identification number plate and the certification label, as shown in the illustration. A: Vehicle Identification Number Plate B: Certification Label 2. ENGINE SERIAL NUMBER The engine serial number is stamped on the engine block, as shown in the illustration. Brought to you by BirfMark Brought to you by BirfMark Version 1.11 - 03/16/2010

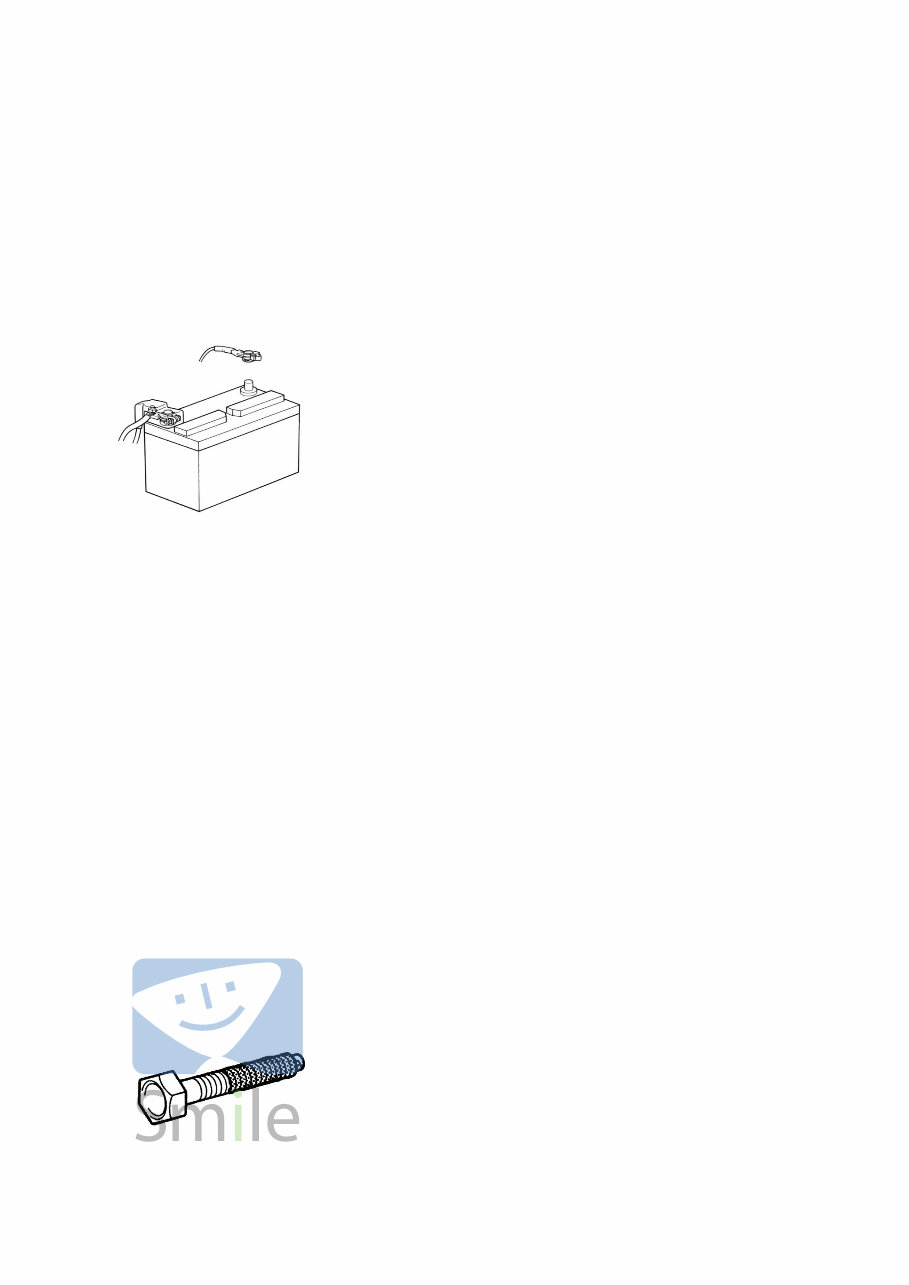

IN0CO−12 FI1066 Z11554 Seal Lock Adhesive IN−4 − INTRODUCTION REPAIR INSTRUCTIONS 4 Author: Date: 1996 LAND CRUISER (RM451U) REPAIR INSTRUCTIONS GENERAL INFORMATION BASIC REPAIR HINT (a) Use fender, seat and floor covers to keep the vehicle clean and prevent damage. (b) During disassembly, keep parts in the appropriate order to facilitate reassembly. (c) Installation and removal of battery terminal: (1) Before performing electrical work, disconnect the negative (−) terminal cable from the battery. (2) If it is necessary to disconnect the battery for inspection or repair, first disconnect the negative (−) terminal cable. (3) When disconnecting the terminal cable, to prevent damage to battery terminal, loosen the cable nut and raise the cable straight up without twisting or prying it. (4) Clean the battery terminals and cable ends with a clean shop rag. Do not scrape them with a file or other abrasive objects. (5) Install the cable ends to the battery terminals after loosening the nut, and tighten the nut after installation. Do not use a hammer to tap the cable ends onto the terminals. (6) Be sure the cover for the positive (+) terminal is properly in place. (d) Check hose and wiring connectors to make sure that they are connected securely and correctly. (e) Non−reusable parts (1) Always replace cotter pins, gaskets, O−rings, oil seals, etc. with new ones. (2) Non−reusable parts are indicated in the component illustrations by the ”z” symbol. (f) Precoated parts Precoated parts are bolts, nuts, etc. that are coated with a seal lock adhesive at the factory. (1) If a precoated part is retightened, loosened or caused to move in any way, it must be recoated with the specified adhesive. (2) When reusing precoated parts, clean off the old adhesive and dry with compressed air. Then apply the specified seal lock adhesive to the bolt, nut or threads. Brought to you by BirfMark Brought to you by BirfMark Version 1.11 - 03/16/2010

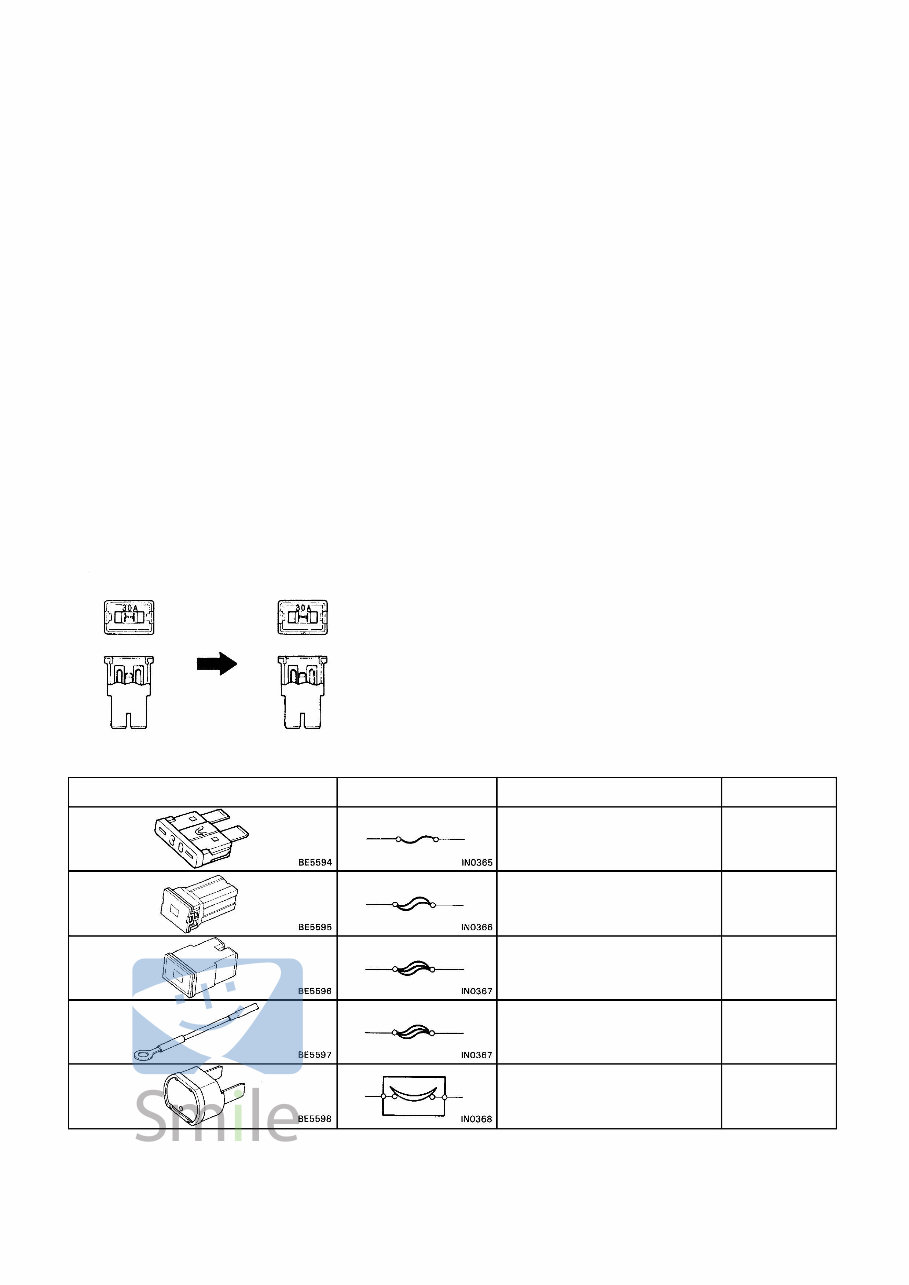

BE1367 Medium Current Fuse and High Current Fuse Equal Amperage Rating V00076 Abbreviation Part Name Symbol Illustration FUSE MEDIUM CURRENT FUSE HIGH CURRENT FUSE FUSIBLE LINK CIRCUIT BREAKER FUSE M−FUSE H−FUSE FL CB − INTRODUCTION REPAIR INSTRUCTIONS IN−5 5 Author: Date: 1996 LAND CRUISER (RM451U) (3) Precoated parts are indicated in the component illustrations by the ”L” symbol. (g) When necessary, use a sealer on gaskets to prevent leaks. (h) Carefully observe all specifications for bolt tightening torques. Always use a torque wrench. (i) Use of special service tools (SST) and special service materials (SSM) may be required, depending on the nature of the repair. Be sure to use SST and SSM where specified and follow the proper work procedure. A list of SST and SSM can be found in Preparation section in this manual. (j) When replacing fuses, be sure the new fuse has the correct amperage rating. DO NOT exceed the rating or use one with a lower rating. ~ iJ <> ~ o~ BE5594 IN0365 ~ ~ BE5595 IN0366 ~ ~ BE5596 IN0367 ~ ~ BE5597 IN0367 ~ BE5598 SN0368 Brought to you by BirfMark Brought to you by BirfMark Version 1.11 - 03/16/2010

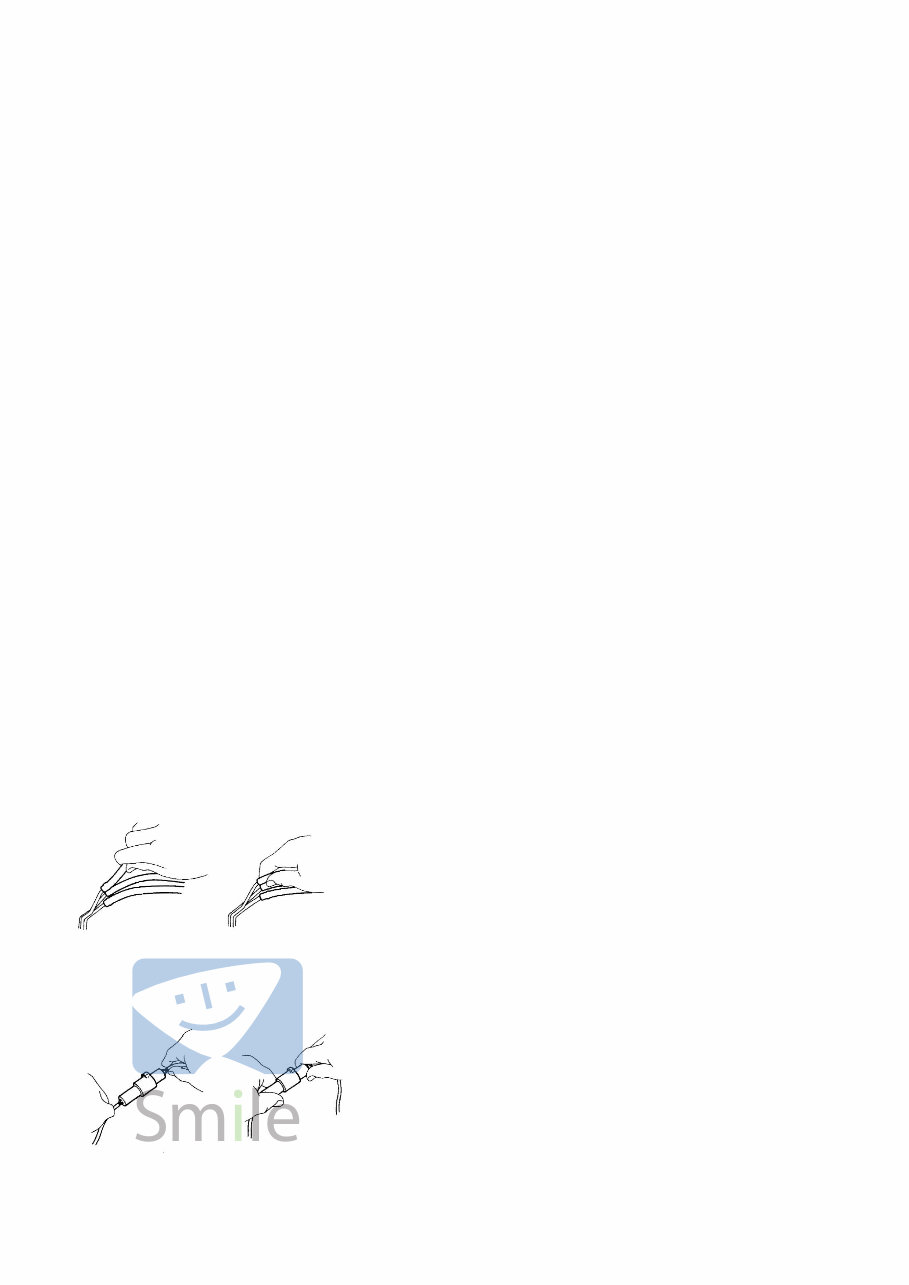

IN0253 WRONG CORRECT IN0252 WRONG CORRECT IN−6 − INTRODUCTION REPAIR INSTRUCTIONS 6 Author: Date: 1996 LAND CRUISER (RM451U) (k) Care must be taken when jacking up and supporting the vehicle. Be sure to lift and support the vehicle at the proper locations (See page IN−8). S Cancel the parking brake on the level place and shift the transmission in Neutral (or N position). S When jacking up the front wheels of the vehicle at first place stoppers behind the rear wheels. S When jacking up the rear wheels of the vehicle at first place stoppers before the front wheels. S When either the front or rear wheels only should be jacked up, set rigid racks and place stoppers in front and behind the other wheels on the ground. S After the vehicle is jacked up, be sure to support it on rigid racks . It is extremely dangerous to do any work on a vehicle raised on a jack alone, even for a small job that can be finished quickly. (l) Observe the following precautions to avoid damage to the following parts: (1) Do not open the cover or case of the ECU unless absolutely necessary. (If the IC terminals are touched, the IC may be destroyed by static electric- ity.) (2) To disconnect vacuum hoses, pull off the end, not the middle of the hose. (3) To pull apart electrical connectors, pull on the connector itself, not the wires. (4) Be careful not to drop electrical components, such as sensors or relays. If they are dropped on a hard floor, they should be replaced and not reused. (5) When steam cleaning an engine, protect the elec- tronic components, air filter and emission−related components from water. (6) Never use an impact wrench to remove or install temperature switches or temperature sensors. Brought to you by BirfMark Brought to you by BirfMark Version 1.11 - 03/16/2010

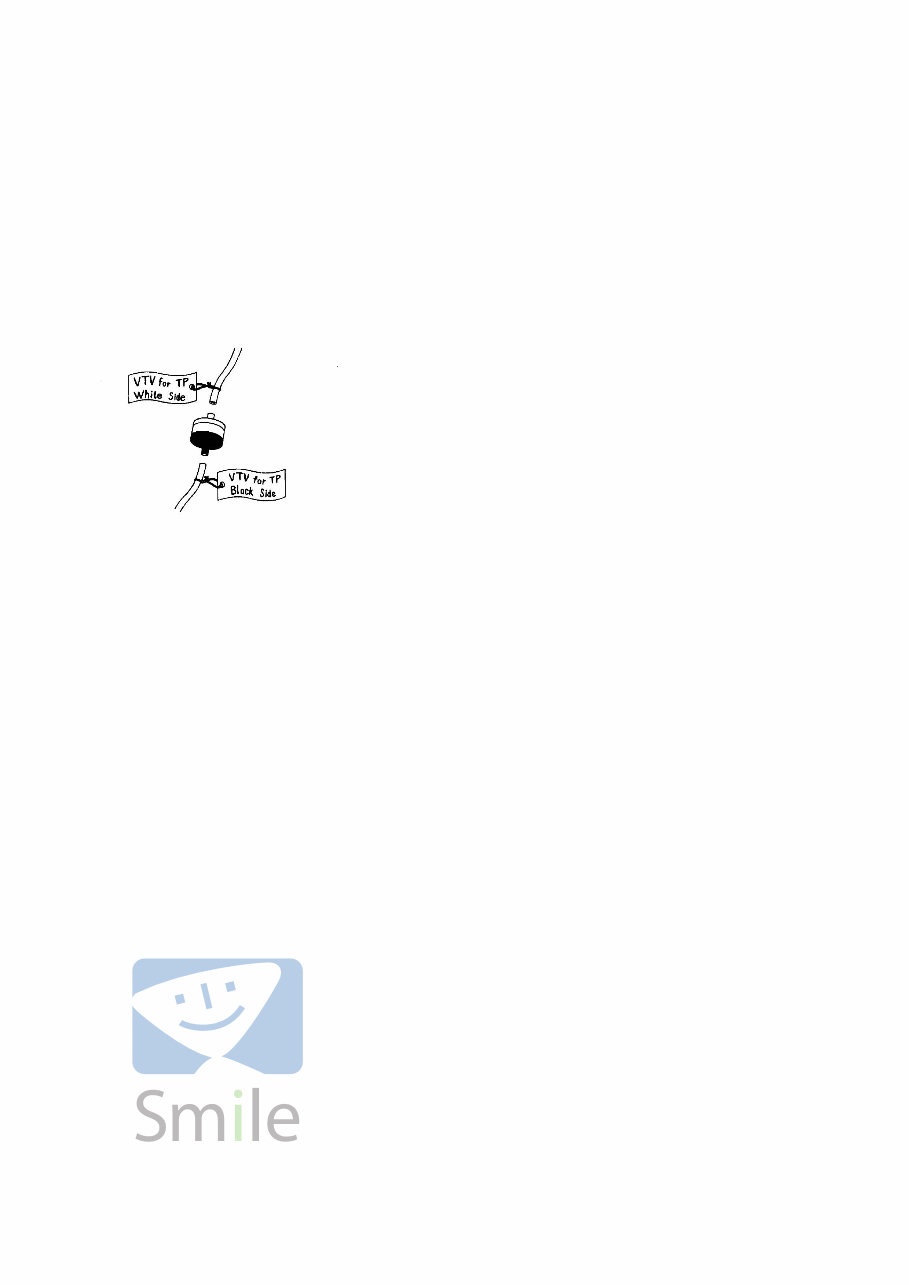

IN0002 Example − INTRODUCTION REPAIR INSTRUCTIONS IN−7 7 Author: Date: 1996 LAND CRUISER (RM451U) (7) When checking continuity at the wire connector, in- sert the tester probe carefully to prevent terminals from bending. (8) When using a vacuum gauge, never force the hose onto a connector that is too large. Use a step−down adapter for adjustment. Once the hose has been stretched, it may leak air. (m) Installation and removal of vacuum hose: (1) When disconnecting vacuum hoses, use tags to identify how they should be reconnected to. (2) After completing a job, double check that the vacuum hoses are properly connected. A label under the hood shows the proper layout. (n) Unless otherwise stated, all resistance is measured at an ambient temperature of 20°C (68°F). Because the resistance may be outside specifications if measured at high temperatures immediately after the vehicle has been run- ning, measurement should be made when the engine has cooled down. Brought to you by BirfMark Brought to you by BirfMark Version 1.11 - 03/16/2010

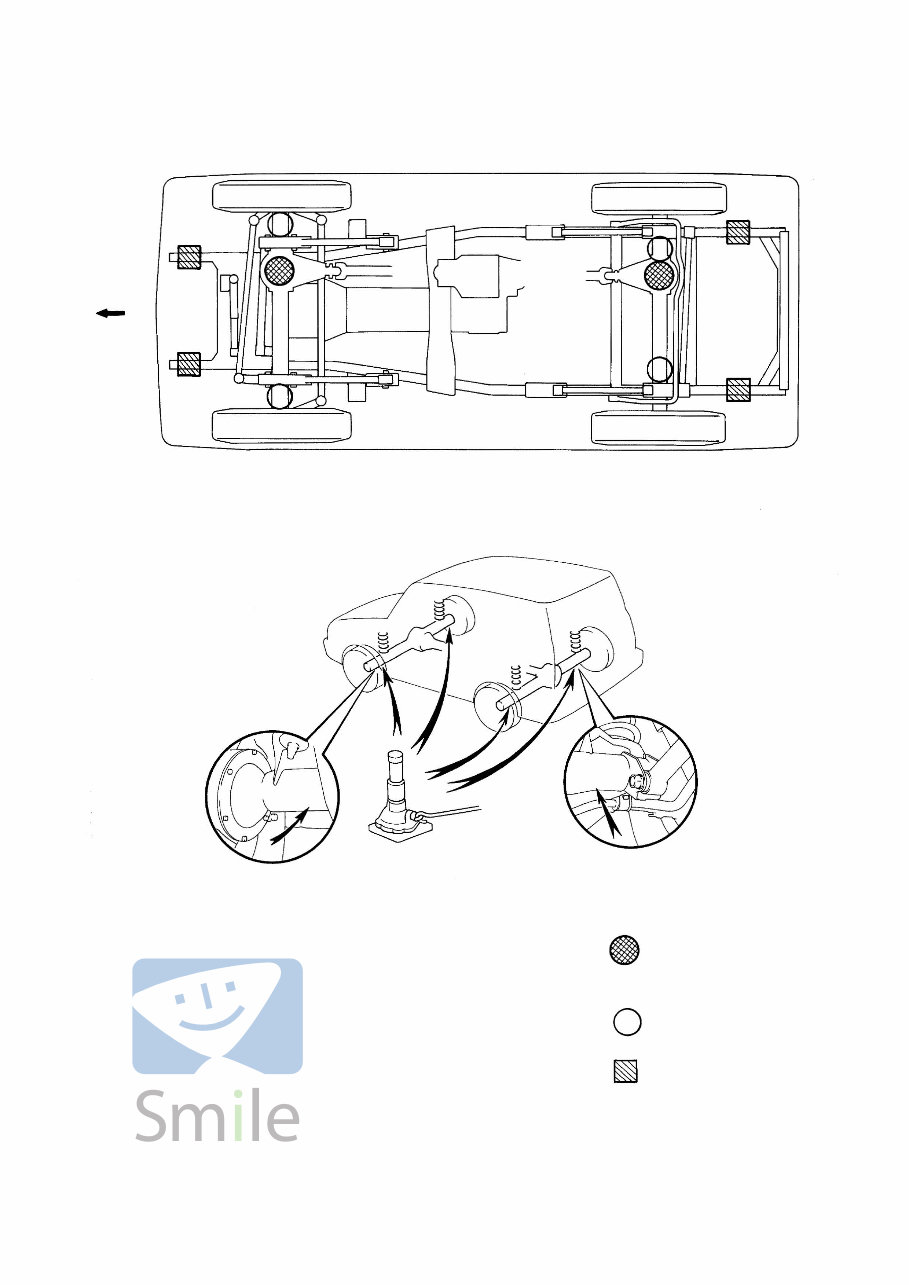

IN0H2−01 Z00796 SUPPORT POSITION Rear ......................................... Under rear differential Safety stand .......................................................................... JACK POSITION SCREW TYPE JACK POSITION Front Front ........................................ Under front differential IN−8 − INTRODUCTION REPAIR INSTRUCTIONS 1996 LAND CRUISER (RM451U) VEHICLE LIFT AND SUPPORT LOCATIONS o ~ Brought to you by BirfMark Brought to you by BirfMark Version 1.11 - 03/16/2010

IN0IO−01 BO4111 Negative Cable − INTRODUCTION FOR ALL OF VEHICLES IN−9 9 Author: Date: 1996 LAND CRUISER (RM451U) FOR ALL OF VEHICLES PRECAUTION 1. FOR VEHICLES EQUIPPED WITH SRS AIRBAG AND SEAT BELT PRETENSIONER (a) The LAND CRUISER is equipped with an SRS (Supple- mental Restraint System), such as the driver airbag and front passenger airbag assembly. Failure to carry out service operations in the correct se- quence could cause the supplemental restraint system to unexpectedly deploy during servicing, possibly leading to a serious accident. Further, if a mistake is made in servicing the supplemental restraint system, it is possible the SRS may fail to operate when required. Before servicing (including removal or installation of parts, inspection or replacement), be sure to read the following items carefully, then follow the correct procedure described in this manual. (b) GENERAL NOTICE (1) Malfunction symptoms of the supplemental restraint system are difficult to confirm, so the diagnostic trouble codes become the most important source of information when troubleshooting. When troubleshooting the supplemental restraint system, always inspect the diagnostic trouble codes before disconnecting the battery (See page DI−240). (2) Work must be started after 90 seconds from the time the ignition switch is turned to the ”LOCK” position and the negative (−) terminal cable is discon- nected from the battery. (The supplemental restraint system is equipped with a back−up power source so that if work is started within 90 seconds of disconnecting the negative (−) terminal cable from the battery, the SRS may deploy.) When the negative (−) terminal cable is discon- nected from the battery, memory of the clock and audio systems will be cancelled. So before starting work, make a record of the contents memorized by the each memory system. Then when work is finished, reset the clock and audio systems as before. To avoid erasing the memory of each memory system, never use a back−up power supply from anoth- er battery. Brought to you by BirfMark Brought to you by BirfMark Version 1.11 - 03/16/2010
