© Renault s.a.s 2008 "The repair methods given by the manufacturer in this document are based on the technical specifications current when it was prepared. The methods may be modified as a result of changes introduced by the manufacturer in the production of the various component units and accessories from which his vehicles are constructed." All copyrights reserved by Renault. The reproduction or translation in part of whole of the present document, as well as the use of the spare parts reference numbering system, are prohibited without the prior written consent of Renault. 77 11 322 002 FEBRUARY 2009 Edition Anglaise X84, and J84 0 General vehicle information 01A VEHICLE MECHANICAL SPECIFICATIONS 01C VEHICLE BODYWORK SPECIFICATIONS 01D MECHANICAL INTRODUCTION 02A LIFTING EQUIPMENT 03B COLLISION 04B CONSUMABLES - PRODUCTS 04E PAINT

Scénic II - Section 0 Contents Page Scénic II - Section 0 ContentsPage 01A VEHICLE MECHANICAL SPECIFICATIONS Vehicle: Specifications 01A-1 01C VEHICLE BODYWORK SPECIFICATIONS Vehicle: Identification 01C-1 Vehicle clearances: Adjustment values 01C-2 01D MECHANICAL INTRODUCTION Vehicle: Precautions for repair 01D-1 Tightening torques: General information 01D-3 02A LIFTING EQUIPMENT Vehicle: Towing and lifting 02A-1 03B COLLISION Damaged vehicle: Collision fault finding 03B-1 Vehicle damaged at front: Description 03B-4 Vehicle damaged at side: Description 03B-6 Vehicle damaged at rear: Description 03B-8 04B CONSUMABLES - PRODUCTS Vehicle: Parts and ingredients for the repairwork 04B-1 04E PAINT Anti-corrosion protection product Description 04E-1 03B COLLISION

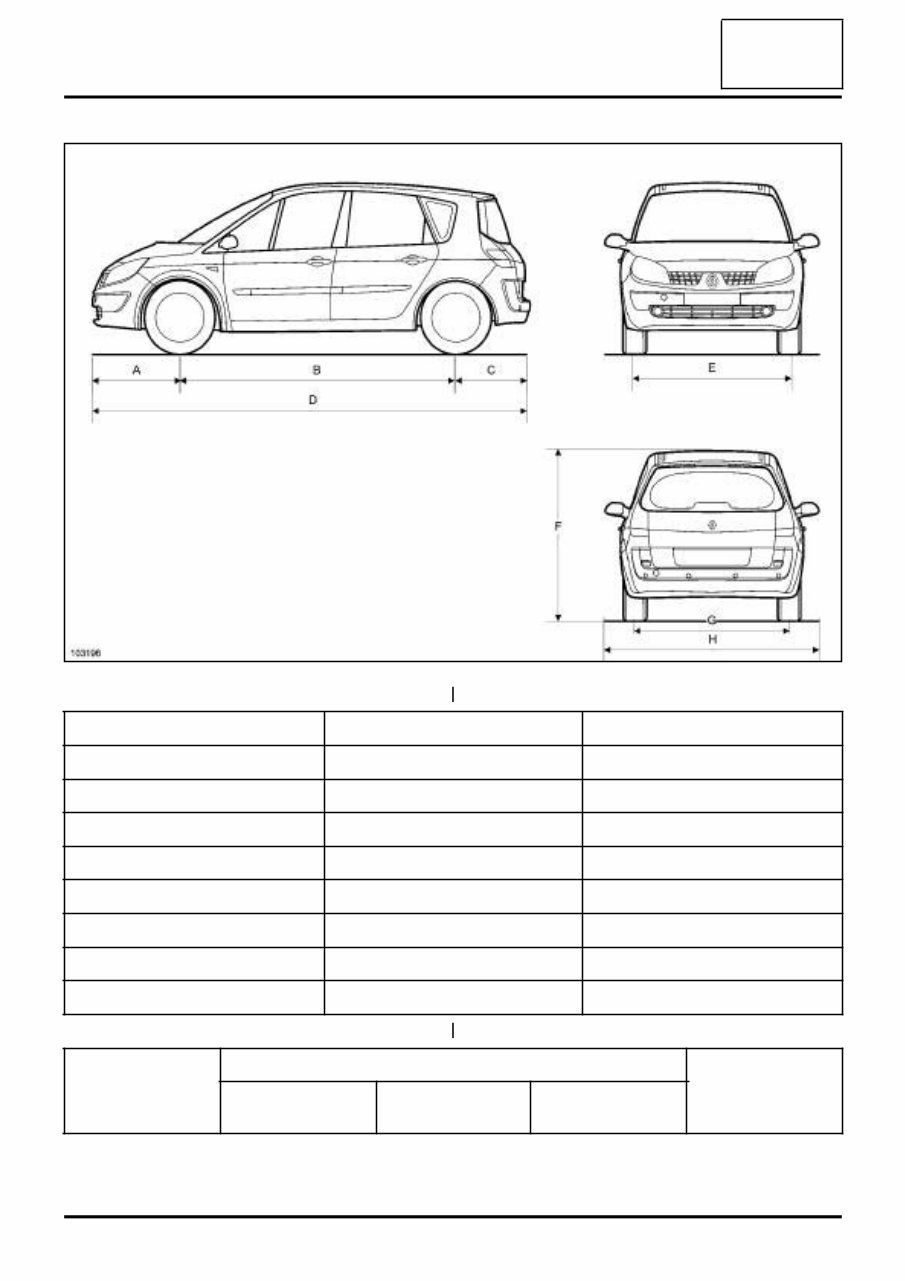

01A- 1 VEHICLE MECHANICAL SPECIFICATIONS Vehicle: Specifications 01A Dimensions in metres 103196 Scénic Scénic long version (A ) 0.851 0.851 (B ) 2.685 2.736 (C ) 0.723 0.906 (D ) 4.259 4.493 (E) 1.514 1.506 (F) (unladen) 1.620 1.636 (G) 1.514 1.506 (H ) 2.088 2.088 Vehicle type Engine Gearbox type Engine type Engine suffix Cubic capacity (cc)

01A- 2 VEHICLE MECHANICAL SPECIFICATIONS Vehicle: Specifications 01A JM0B JM0H JM1A K4J 730 1390 JH3 JM0C JM0J JM1B K4M 761 1598 DP0 JM0Y 764 JR5 JM1R 766 TL4 JM0C JM0J JM1B 782 JR5 JM0U JM05 JM1N F4R 770 1998 ND0 JM0U JM05 JM1N JM1M JM1U 771 DP0 JM0W JM1T 776 ND0 JM0F JM0T K9K 722 1461 JR5 JM1F 724 JM02 JM13 728 JM1E 732 TL4

01A- 3 VEHICLE MECHANICAL SPECIFICATIONS Vehicle: Specifications 01A VEHICLE IDENTIFICATION Example: JM0F J: Bodywork type - J: 5-door MPV M: Project code 0F: Engine suffix JM1D JM14 F9Q 803 1870 DP0 JM1D JM14 JM15 JM17 804 ND0 JM0G JM12 JM1G 812 JM1K M9R 700 1995 PK4 721 AJ0

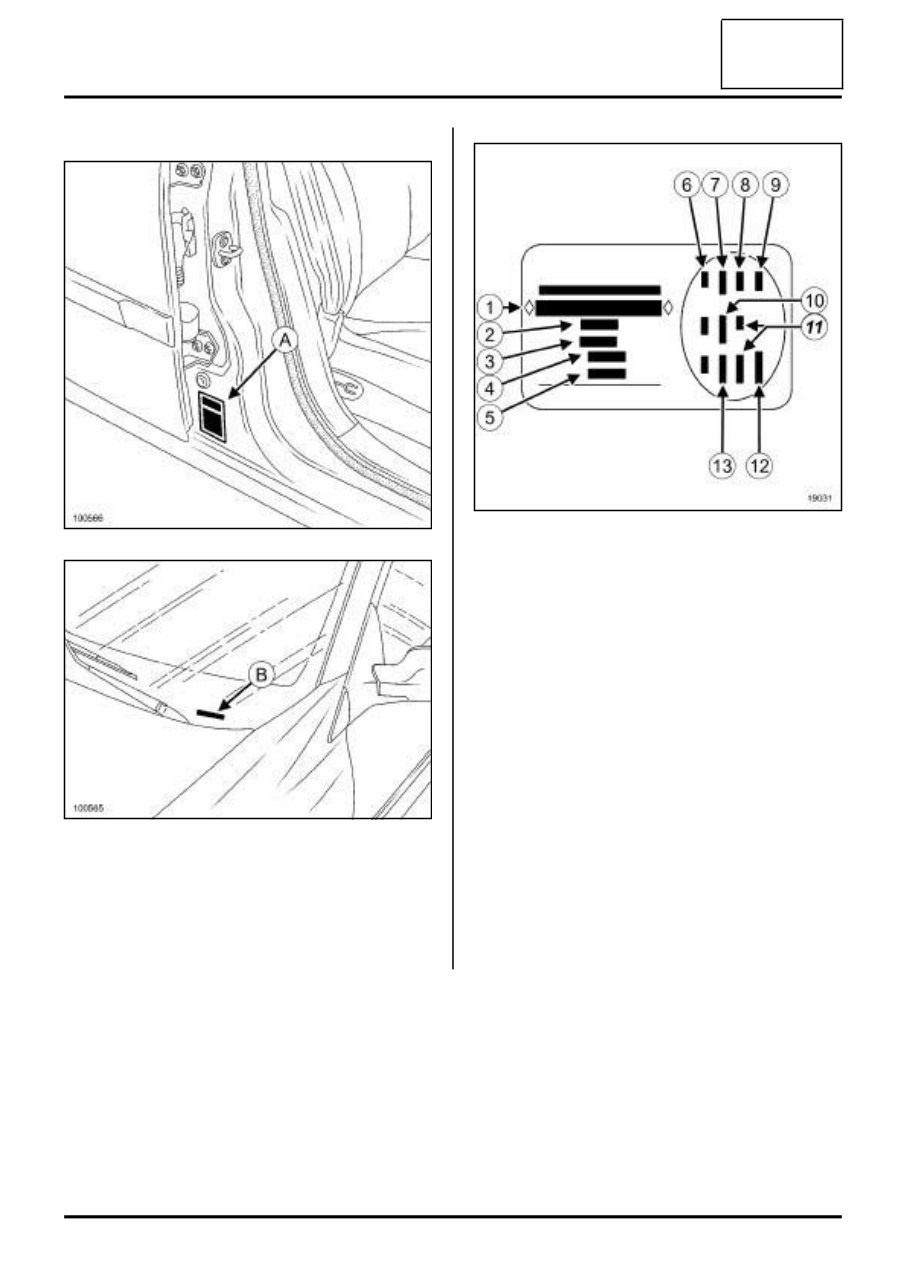

01C-1 VEHICLE BODYWORK SPECIFICATIONS Vehicle: Identification 01C LOCATION OF VEHICLE IDENTIFICATION PLATE Plate (A): 100566 100565 19031 (1) Vehicle type and type number; this information also appears on marking (B) (2) MPAW (Vehicle's Maximum Per- missible All-up Weight) (3) GTW (Gross train weight, vehicle under load with trailer) (4) Maximum permissible front axle load (5) Maximum permissible rear axle load (6) Technical vehicle specifications (7) Paintwork reference number (8) Equipment level (9) Vehicle type (10) Upholstery code (11) Additional equipment details (12) Production number (13) Interior tr im code

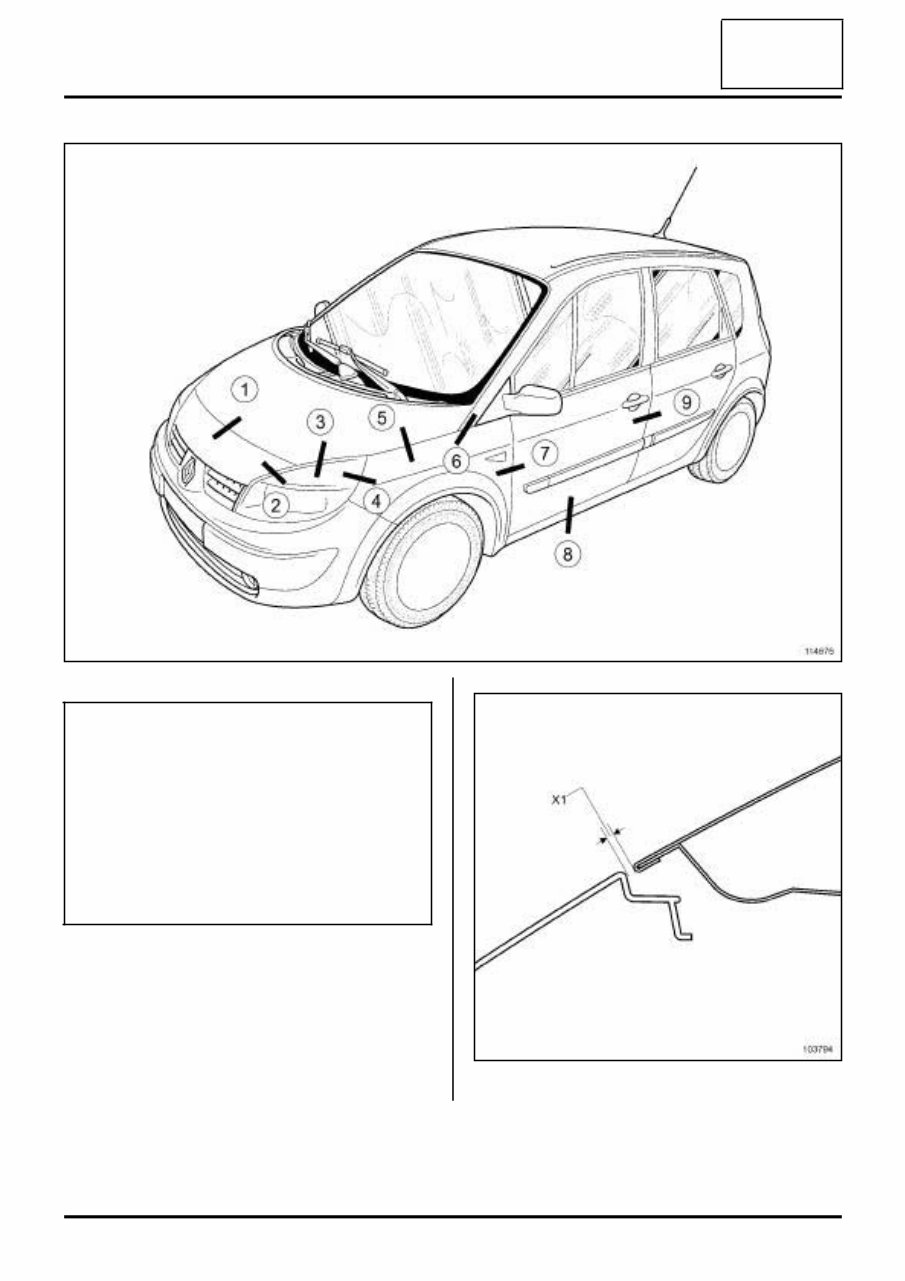

01C-2 VEHICLE BODYWORK SPECIFICATIONS Vehicle clearances: Adjustment values 01C All values are given in millimetres. Section 1 (X1) = 3.5 mm ± 1.5 114676 WARNING The clearance values are given for information purposes. When adjusting, certain rules have to be followed: - maintain symmetry with respect to the opposite side, - ensure the flush fitting is correct, - check correct operation of the opening, and water/ air-tightness. 103794

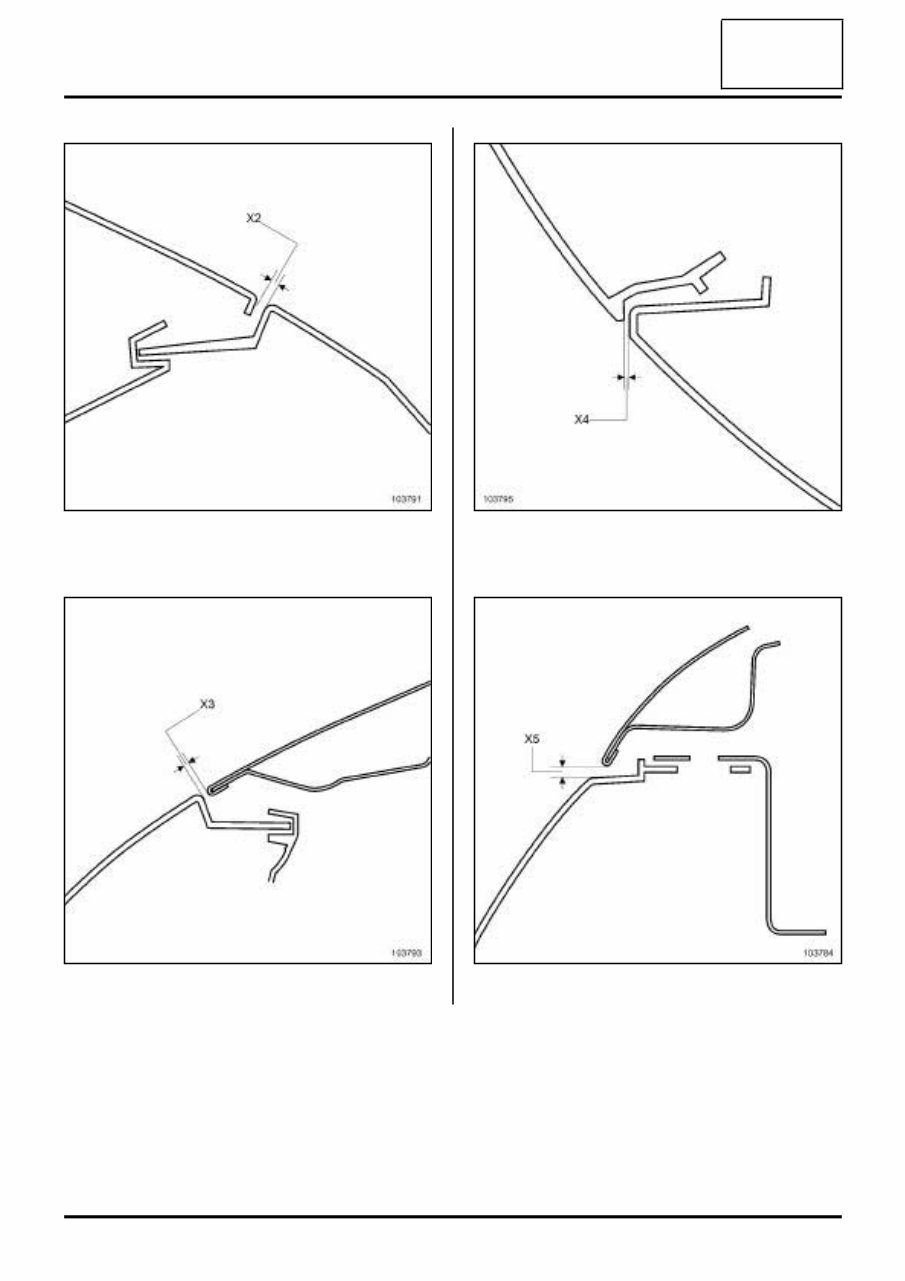

01C-3 VEHICLE BODYWORK SPECIFICATIONS Vehicle clearances: Adjustment values 01C Section 2 (X2 ) = 3.5 mm ± 1.5 Section 3 (X3 ) = 3.5 mm ± 2 Section 4 (X4) = 2 mm ± 2 Section 5 (X5) = 4.5 mm ± 1.5 103791 103793 103795 103784

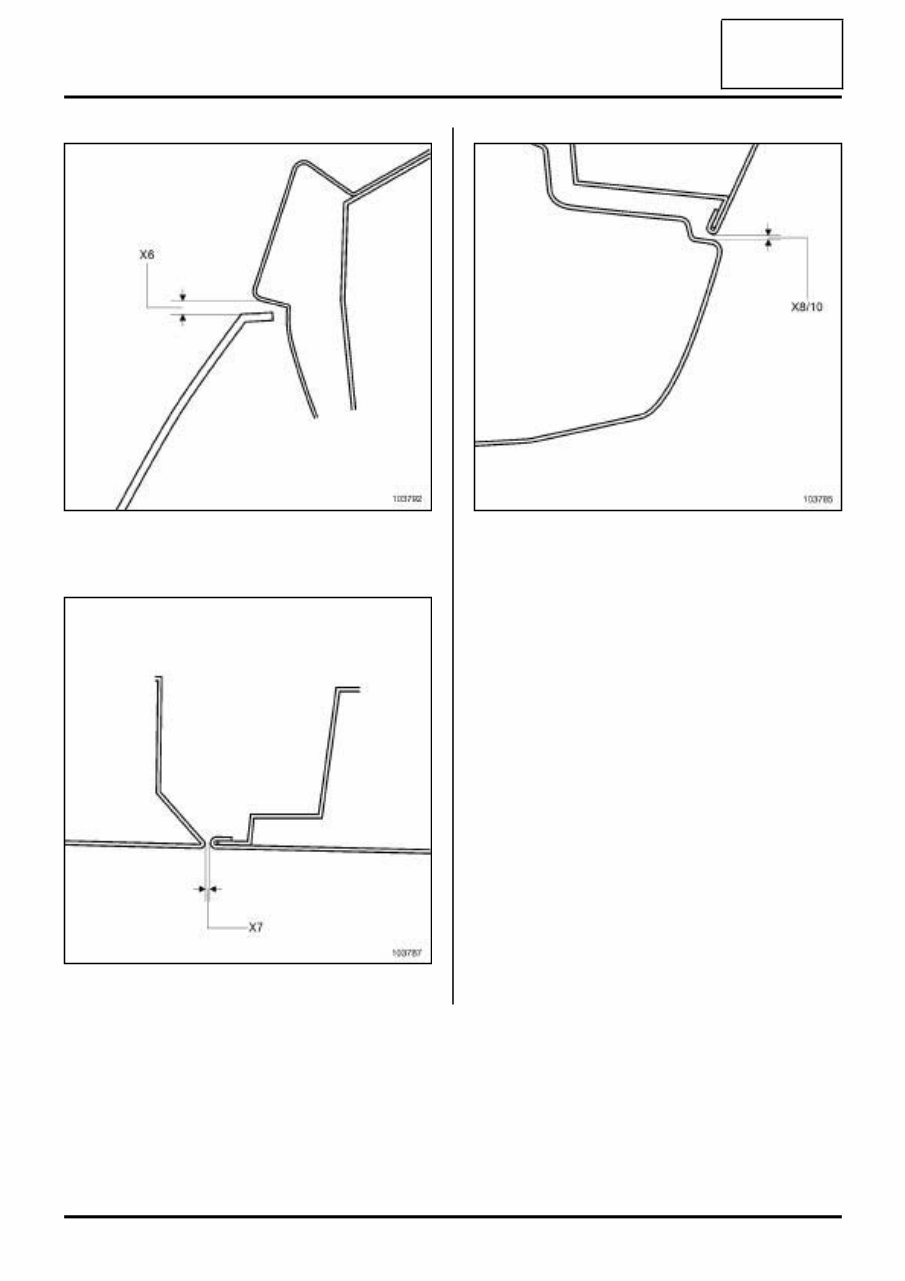

01C-4 VEHICLE BODYWORK SPECIFICATIONS Vehicle clearances: Adjustment values 01C Section 6 (X6 ) = 4.5 mm ± 1.5 Section 7 (X7 ) = 4 mm ± 1 Section of 8/10 (X8/10) = 4.5 mm ± 1.5 103792 103787 103785

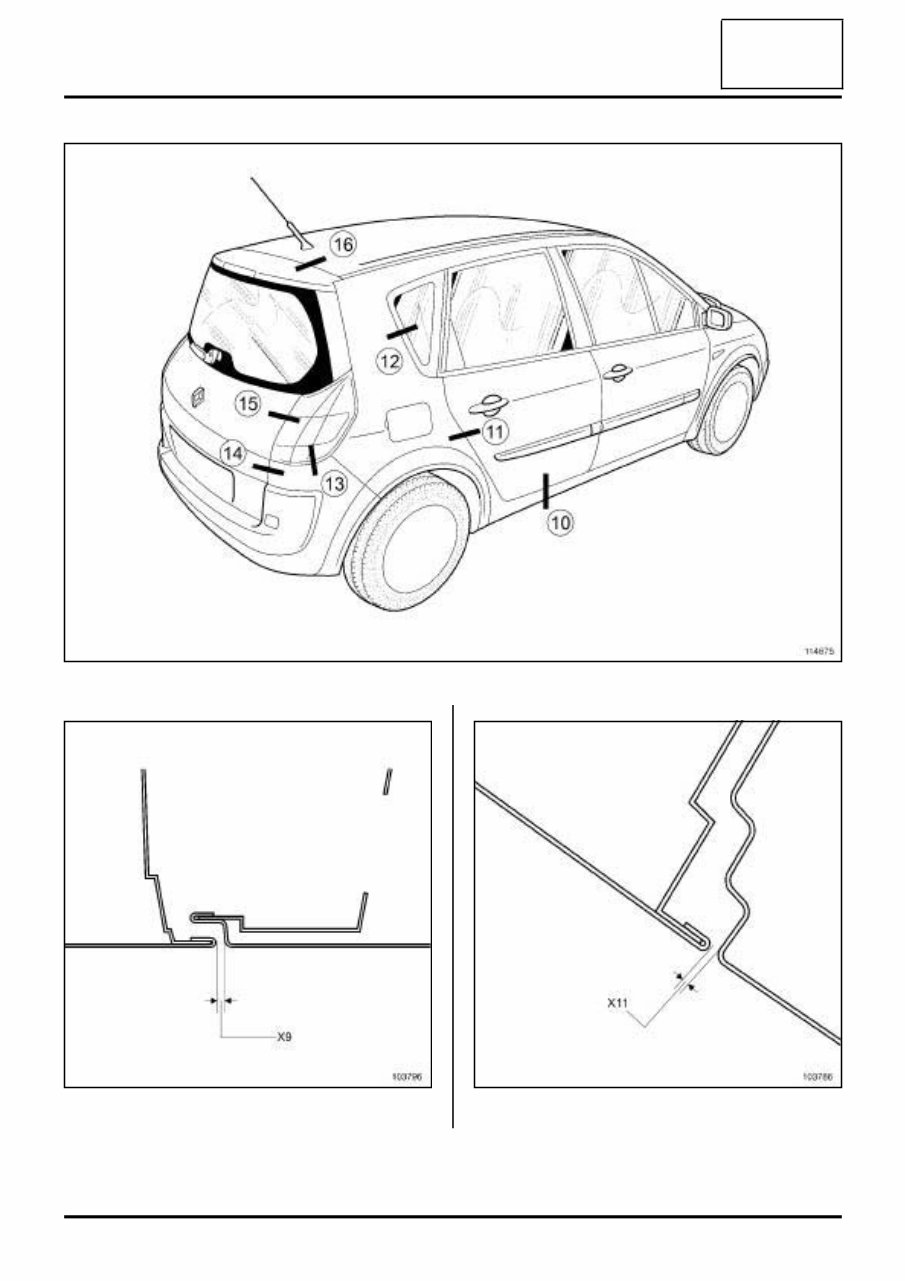

01C-5 VEHICLE BODYWORK SPECIFICATIONS Vehicle clearances: Adjustment values 01C Section 9 (X9 ) = 4.2 mm ± 1 Section 11 (X11) = 4 mm ± 1 114675 103796 103786
