2008-2016 RENAULT KANGOO II
SERVICE AND REPAIR MANUAL
- 1 -
1/3 AND 2/3 REAR BENCH SEAT BASE TRIM: REMOVAL - REFITTING
REMOVAL
1. REMOVAL PREPARATION OPERATION
Remove the complete rear bench seat Complete rear bench seat: Removal - Refitting Complete rear bench seat:
Removal - Refitting .
2. OPERATION FOR REMOVAL OF PART CONCERNED
- 2 -
Remove:
the retaining sections( 1) ,
the "foam - trim" assembly for the 1/3 and 2/3 rear bench seat cushion.
1- 1/3 REAR BENCH SEAT CUSHION TRIM:
- 3 -

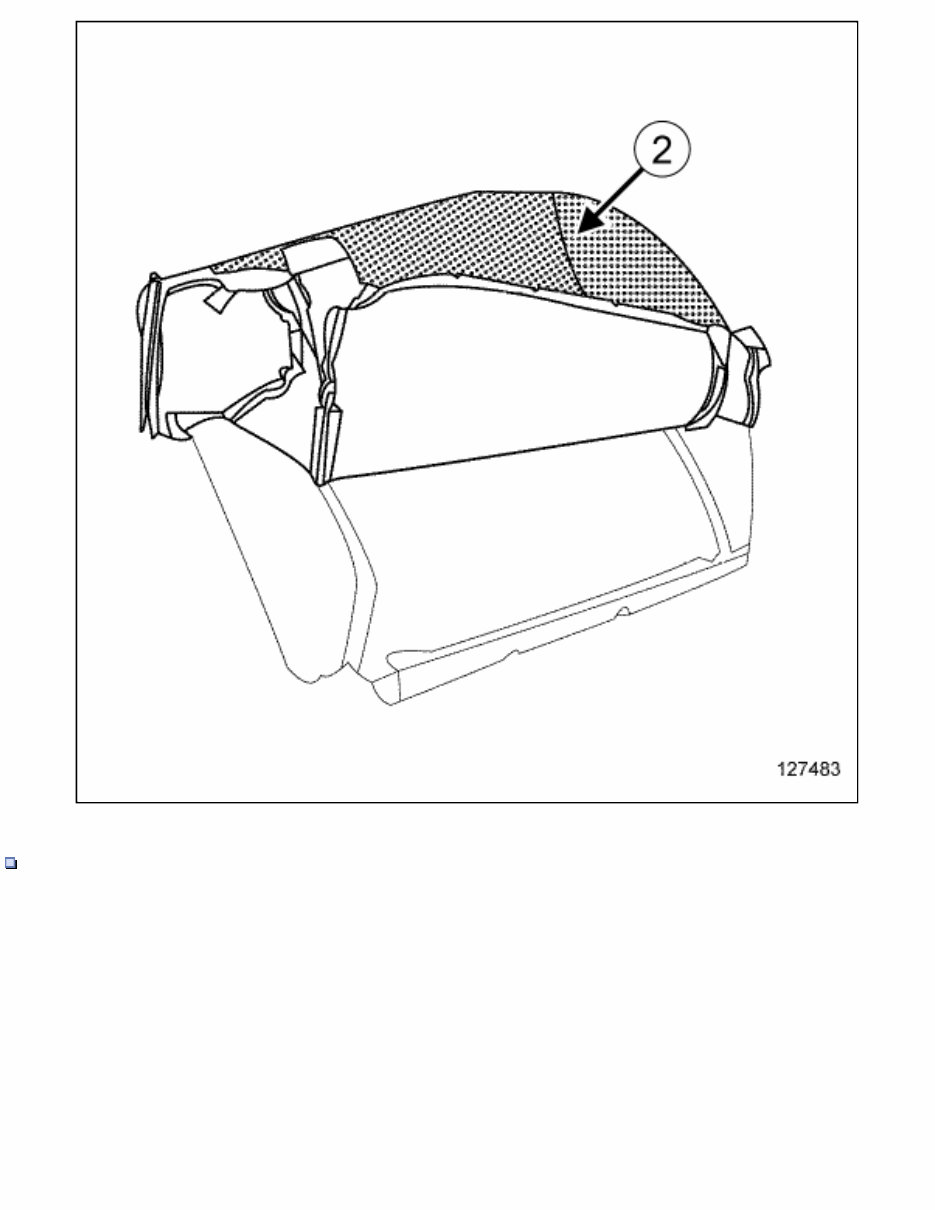

Remove the 1/3 rear bench seat cushion trim(2) .
2- 2/3 REAR BENCH SEAT CUSHION TRIM:
- 4 -

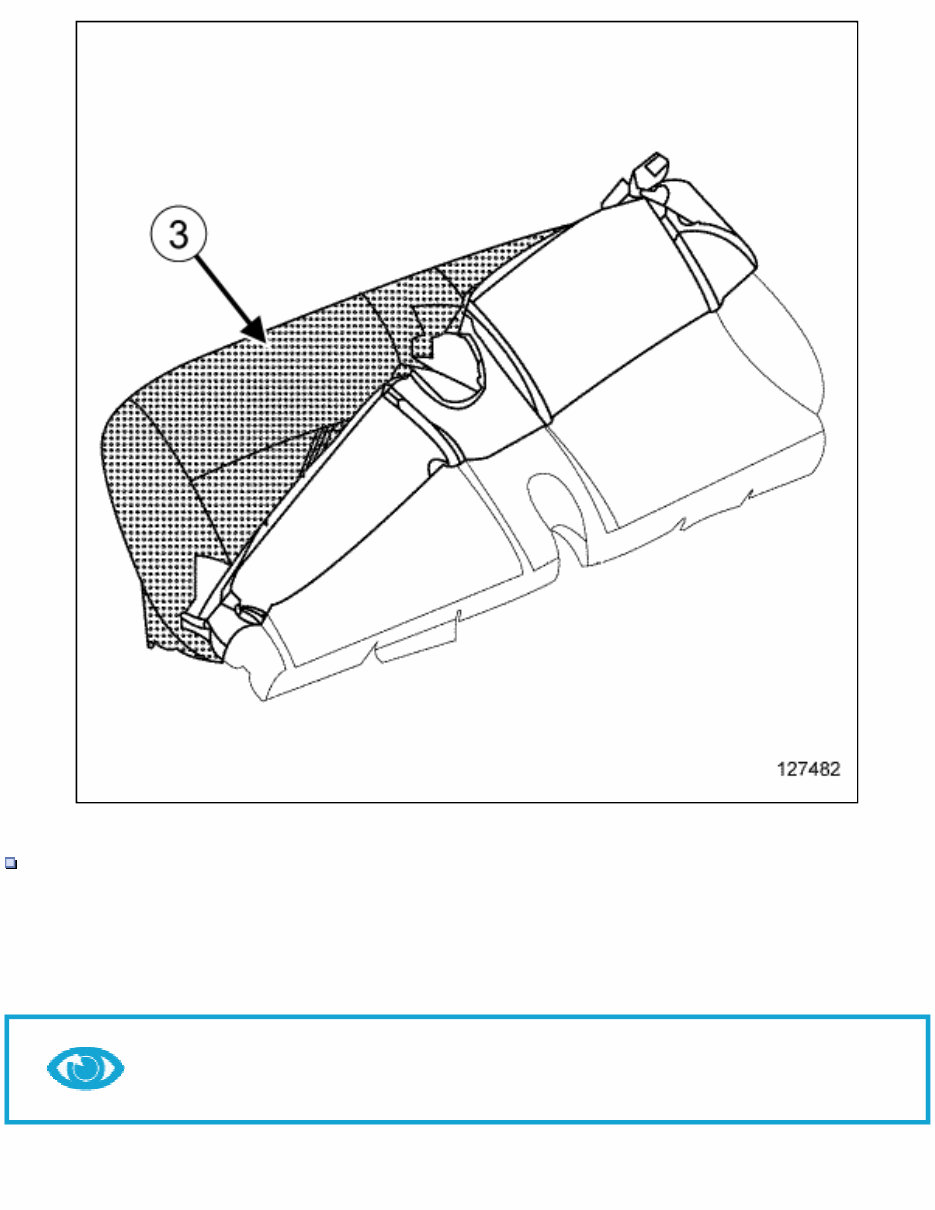

Remove the 2/3 rear bench seat cushion trim(3) .
Note:
Hold the velcro strips while separating the "foam-trim" .
- 5 -
REFITTING
1. REFITTING OPERATION FOR PART CONCERNED
Note:
Before refitting the 1/3 and 2/3 rear bench seat cushion trim, check that the velcro
strips are properly attached to the foam.
1- 1/3 REAR BENCH SEAT CUSHION TRIM:
Refit the 1/3 rear bench seat cushion trim(2) .
2- 2/3 REAR BENCH SEAT CUSHION TRIM:
Refit the 2/3 rear bench seat cushion trim(3) .
Refit:
the "foam - trim" assembly for the 1/3 and 2/3 rear bench seat cushions,
the retaining strips( 1) .
2. FINAL OPERATION.
Refit the entire rear bench seat Complete rear bench seat: Removal - Refitting Complete rear bench seat: Removal -
Refitting .
Repair-70x17x02x09-01x37-1-6-1.xml
XSL version : 3.02 du 22/07/11
- 1 -
1/3 AND 2/3 REAR BENCH SEATBACK FRAME: REMOVAL - REFITTING
REMOVAL
1. REMOVAL PREPARATION OPERATION
Remove:
the complete rear bench seat (see 76A, Rear seat frames and mechanisms , Complete rear bench seat:
Removal - Refitting ) ,
the 1/3 and 2/3 rear bench seat seatback trim 1/3 and 2/3 rear bench seatback trim: Removal - Refitting ,
the 1/3 and 2/3 rear bench seat base frame(see 1/3 and 2/3 rear bench seat base: Removal - Refitting) .
2. OPERATION FOR REMOVAL OF PART CONCERNED
Remove:
the rear bench seat mechanism (see 76A, Rear seat frames and mechanisms , Rear bench seat mechanism:
Removal - Refitting ) ,
the rear seat belt stalks Rear seat belt buckle: Removal - Refitting (88C, Airbag and pretensioners),
the rear central seatbelt Rear centre seat belt: Removal - Refitting (88C, Airbag and pretensioners),
the 1/3 and 2/3 rear bench seat base frame.
REFITTING
1. REFITTING OPERATION FOR PART CONCERNED
Refit:
the 1/3 and 2/3 rear bench seat seatback frame,
the rear central seatbelt Rear centre seat belt: Removal - Refitting (88C, Airbag and pretensioners),
the rear seat belt stalks Rear seat belt buckle: Removal - Refitting (88C, Airbag and pretensioners),
the rear bench seat mechanism (see 76A, Rear seat frames and mechanisms , Rear bench seat mechanism:
Removal - Refitting ) .
2. FINAL OPERATION.
Refit:
the 1/3 and 2/3 rear bench seat base frame(see 1/3 and 2/3 rear bench seat base: Removal - Refitting) ,
the 1/3 and 2/3 rear bench seat seatback trim 1/3 and 2/3 rear bench seatback trim: Removal - Refitting ,
the complete rear bench seat (see 76A, Rear seat frames and mechanisms , Complete rear bench seat:
Removal - Refitting ) .
- 2 -
Repair-70x15x04x08-01x37-1-4-1.xml
XSL version : 3.02 du 22/07/11
- 1 -
1/3 AND 2/3 REAR BENCH SEATBACK TRIM: REMOVAL - REFITTING
Special tooling required
Pliers for zip fasteners. Car. 1558
REMOVAL
1. REMOVAL PREPARATION OPERATION
Remove:
the complete rear bench seat Complete rear bench seat: Removal - Refitting ,
the rear left-hand side seat belt buckle Rear side seat belt: Removal - Refitting (88C, Airbags and pretensioners).
2. OPERATION FOR REMOVAL OF PART CONCERNED
- 2 -

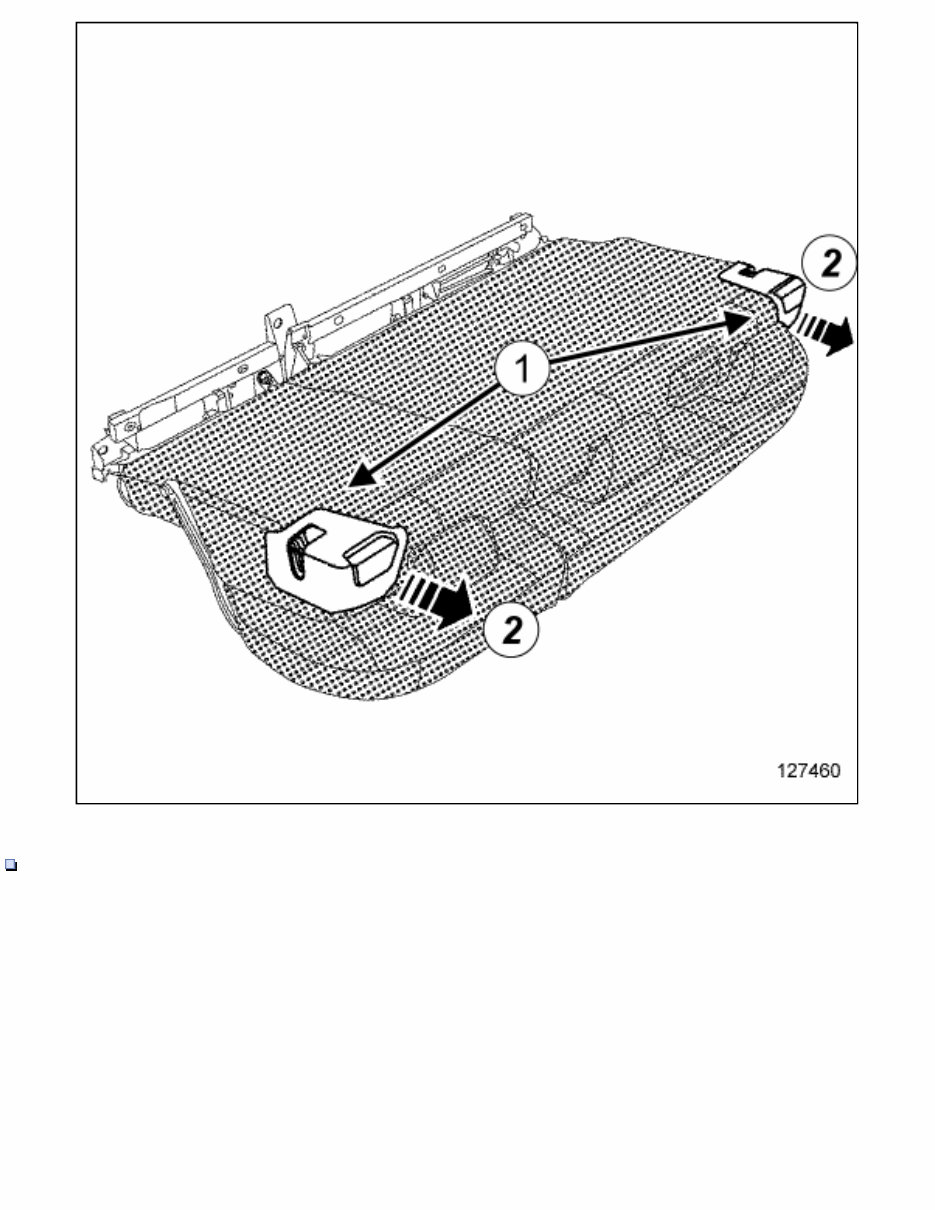

Remove the trims(1) at (2) .
