WM 0X00IN ELIMINATING NOISE SYMPTOMS - OVERVIEW OF MATERIALS FOR ELIMINATING DISTURBING NOISES (EXCEPT PANAMERA S EXECUTIVE, PANAMERA EXECUTIVE, PANAMERA 4 S EXECUTIVE, PANAMERA TURBO EXECUTIVE, PANAMERA TURBO S, PANAMERA TURBO S EXECUTIVE, PANAMERA GTS, PANAMERA 4S SPORT EDITION) > GENERAL INFORMATION > SYMPTOMS Disturbing noises, such as rattling, creaking, clicking or squeaking, which occur mainly in the interior of the vehicle while driving. WM 0X00IN ELIMINATING NOISE SYMPTOMS - OVERVIEW OF MATERIALS FOR ELIMINATING DISTURBING NOISES (EXCEPT PANAMERA S EXECUTIVE, PANAMERA EXECUTIVE, PANAMERA 4 S EXECUTIVE, PANAMERA TURBO EXECUTIVE, PANAMERA TURBO S, PANAMERA TURBO S EXECUTIVE, PANAMERA GTS, PANAMERA 4S SPORT EDITION) > GENERAL INFORMATION > CAUSES AND REMEDIAL ACTION Cause Noises can occur due to: the pairing of different materials component tolerances and relative movements of components while driving or dust and dirt. Remedial action Information Various materials for different areas of application are listed below for eliminating disturbing noises. Make sure to have a good stock of materials available, depending on how often various noise complaints are reported on vehicles . Before using the material/adhesive tape, clean the affected area of the vehicle to remove any dust and grease. WARNING: Non-heat-resistant materials Risk of fire → Avoid contact with hot components or sources of ignition. The overview is constantly updated with new materials. WM 0X00IN ELIMINATING NOISE SYMPTOMS - OVERVIEW OF MATERIALS FOR Service Manual: 0X - COMPLETE VEHICLE - GENERAL -- PANAMERA (970)

ELIMINATING DISTURBING NOISES (EXCEPT PANAMERA S EXECUTIVE, PANAMERA EXECUTIVE, PANAMERA 4 S EXECUTIVE, PANAMERA TURBO EXECUTIVE, PANAMERA TURBO S, PANAMERA TURBO S EXECUTIVE, PANAMERA GTS, PANAMERA 4S SPORT EDITION) > GENERAL INFORMATION > TOOLS AND MATERIALS Lubricants, Teflon Spray 000.043.204.40 → Silicone compound Spraying can (200 ml container) Used on door locks, for example 000.043.206.65 → Krytox, grease Tube (50 ml container) Used on hardtop latches, for example 000.043.207.56 → Polylub, grease Tube (50 ml container) Used on the guide mechanism for the panorama roof, for example 000.043.204.21 → Lock cylinder grease Spraying can (25 ml container) Used on lock cylinders, for example 999.917.557.00 → Special sliding compound, liquid Krytox Bottle (30 ml container) Used on seals, for example 000.043.207.16 → Teflon Spray, sliding compound Spraying can (300 ml container) Used on running rails/Targa roof air deflector, for example Acoustic foam , 2 components 999.915.337.40 → Acoustic foam, 2 components Spraying can (200 ml container) Used on the body front section ==> body cavities, for example Felt , self-adhesive 993.555.545.00 → Felt strips 15 mm wide, 2 mm thick, 1, 345 mm long Used on rear-wall lining, for example 999.551.138.40 → Felt strips (3 pieces) 25 mm wide, 1 mm thick, 25 mm long Used on protective panel for A-pillar, for example 997.561.509.00 → Felt strips 26 mm wide, 1 mm thick, 62 mm long Used on convertible top/roof frame, for example

964.555.565.00 → Felt strips 25 mm wide, 1 mm thick, 730 mm long Used on middle part of seat backrest/roof lining, for example 000.043.207.44 → Felt strips 30 mm wide, 1 mm thick, 5, 000 mm long Used on convertible top/roof frame, for example 999.551.173.40/New → Felt strips 35 mm wide, 5 mm thick, 22 mm long Used on side trim panel, for example 999.551.140.40 → Felt strips 35 mm wide, 5 mm thick, 45 mm long Used on side skirt, for example Textile fabric , self-adhesive 999.551.169.40 → Textile fabric, damping strips 7 mm wide, 1 mm thick, 1, 000 mm long Used on the Carrera GT, for example 999.551.170.40 → Textile fabric 15 mm wide, 1 mm thick, 1, 000 mm long Used on carpet in footwell, for example 999.551.134.40 → Textile fabric 20 mm wide, 1 mm thick, 65 mm long Used on metal clips for trim panels, for example Base strap/plastic foam , self-adhesive 999.911.227.40 → Base strap/plastic foam 23 mm wide, 3 mm thick, 10, 000 mm long Used on the fuel tank cover, for example 999.911.201.40/New → Sealing strap 10 mm wide, 3 mm thick, 1, 000 mm long Used on door panel, for example 999.911.695.40 → Plastic foam strips, sealing strip 30 mm wide, 10 mm thick, 680 mm long Used on the front wheel housing liner, for example 997.555.895.00 → Plastic foam strips 15 mm wide, 15 mm thick, 640 mm long Used for woofer in door panel area, for example 999.911.664.40 → Plastic foam strips 20 mm wide, 15 mm thick, 680 mm long

Used on the front wheel housing liner, for example 993.556.245.00 → Plastic foam strips, sound absorber 36 mm wide, 25 mm thick, 830 mm long Used on sound absorber for bottom of rear window, for example Protective film, transparent rubber , self-adhesive 996.537.237.00 → Protective film, transparent 7 mm wide, 1 mm thick, 95 mm long Used on rear side section, for example 999.911.738.40 → Adhesive film, black, 3 ea. 10 mm wide, 1 mm thick, 30 mm long Used on spoiler drive, protects against soiling, for example Teflon tape , self-adhesive 000.043.207.27 → Teflon tape, 5 strips on roll 4 mm wide, 1, 600 mm long Used on Targa roof, for example 000.043.204.83 → Teflon tape 19 mm wide, 16, 500 mm long Used on front/rear trim panel, for example Double-sided adhesive tape/plastic foam 000.043.206.04 → Double-sided adhesive tape, 1-mm thick plastic foam 8 mm wide, 1 mm thick, 4, 000 mm long Used to secure molding, for example 000.043.207.26 → Double-sided adhesive tape, 1-mm thick plastic foam 8 mm wide, 1 mm thick, 3, 000 mm long Used on hood compartment lid, for example 000.043.207.63/New → Double-sided adhesive tape, Tesafix 4965, high-temperature resistant 19 mm wide, 5, 000 mm long Used on A-pillar trim, for example 000.043.113.00/New → Double-sided adhesive tape, 1-mm thick plastic foam 19 mm wide, 5, 000 mm long Used on molding in sill cover area, for example WM 0X00IN OVERVIEW OF A, B AND C MARKETS (EXCEPT PANAMERA EXECUTIVE, PANAMERA 4S SPORT EDITION, PANAMERA 4 EXECUTIVE) > OVERVIEW OF A, B AND C MARKETS Information For vehicles as of model year 2011 Because of different fuel octane ratings, the change intervals for oil, spark plugs and air cleaner have

been adapted to suit the various markets. Markets Countries A markets AndorraBelgium, Bosnia and HerzegovinaGermanyDenmarkFinland, FranceGreece, Great BritainIreland, Iceland, ItalyCroatiaLiechtenstein, LuxembourgMalta, MonacoNetherlands, NorwayAustriaPoland, PortugalSweden, Switzerland, Serbia and MontenegroSlovakia, Slovenia, SpainCzech RepublicHungary B markets Armenia, AustraliaBahrain, Brunei, BulgariaEstoniaFrench PolynesiaGhanaIndonesia, IsraelJapan, JordanCanada, Kazakhstan, Qatar, KuwaitLatvia, Lebanon, LithuaniaMalaysia, MoldovaNew Caledonia, New ZealandOmanPhilippinesReunion, Romania, RussiaSaudi Arabia, Singapore, Sri Lanka, South Korea, SyriaTaiwan, Thailand, TurkeyUkraine, USAUAE (Abu Dhabi, Dubai), VietnamBelarusCyprus C markets Egypt, Algeria, Angola, Argentina, Aruba (etc. Caribbean), AzerbaijanBahamas, Bangladesh, Barbados, BrazilChile, China, Costa RicaDominican RepublicEcuador, El SalvadorFrench GuianaGuadeloupe, GuatemalaHaiti, Dutch Antilles, Honduras, Hong KongIndia, Iraq, IranJamaica (it Caribbean), YemenCameroon, Cayman Islands, Kenya, ColumbiaLesotho, LibyaMorocco, Martinique (F), Mauritius, MexicoNamibia, Nigeria, NicaraguaPakistan, Panama, Paraguay, Peru, Puerto RicoZimbabwe, South Africa, SwazilandTrinidad and Tobago, TunisiaUruguayVenezuelaWestern Sahara WM 0X01IN ALARM SYSTEM: CHECKING OPERATION OF INDICATORS (EXCEPT PANAMERA S EXECUTIVE, PANAMERA EXECUTIVE, PANAMERA 4 S EXECUTIVE, PANAMERA TURBO EXECUTIVE, PANAMERA GTS, PANAMERA 4S SPORT EDITION, PANAMERA 4 EXECUTIVE) > ALARM SYSTEM: CHECKING OPERATION OF INDICATORS > CHECKING OPERATION OF INDICATORS Read out the fault memory and activate systems on the unlocked vehicle (see previous point in sales check). 1. Lock the vehicle with the remote control. A warning tone must not be emitted by the alarm system horn shortly after locking the vehicle (not relevant for USA). 2. If a warning tone is emitted, open and close all doors and outer lids one after the other (not relevant for USA). 3. As soon as the vehicle is locked, the LED in the driver's door panel must flash quickly for 2 seconds and then start to flash slowly. Fault display: 4. LED flashes quickly for 2 seconds, lights up for 28 seconds and then flashes slowly: Connect the System Tester and read out the fault memory. 5. WM 0X01IN CHECKING VEHICLE IDENT. NO. FOR CONFORMITY (EXCEPT PANAMERA S EXECUTIVE, PANAMERA EXECUTIVE, PANAMERA 4 S EXECUTIVE, PANAMERA TURBO EXECUTIVE, PANAMERA TURBO S EXECUTIVE, PANAMERA GTS, PANAMERA 4S SPORT EDITION, PANAMERA 4 EXECUTIVE) > CHECKING VEHICLE IDENT. NO. FOR CONFORMITY

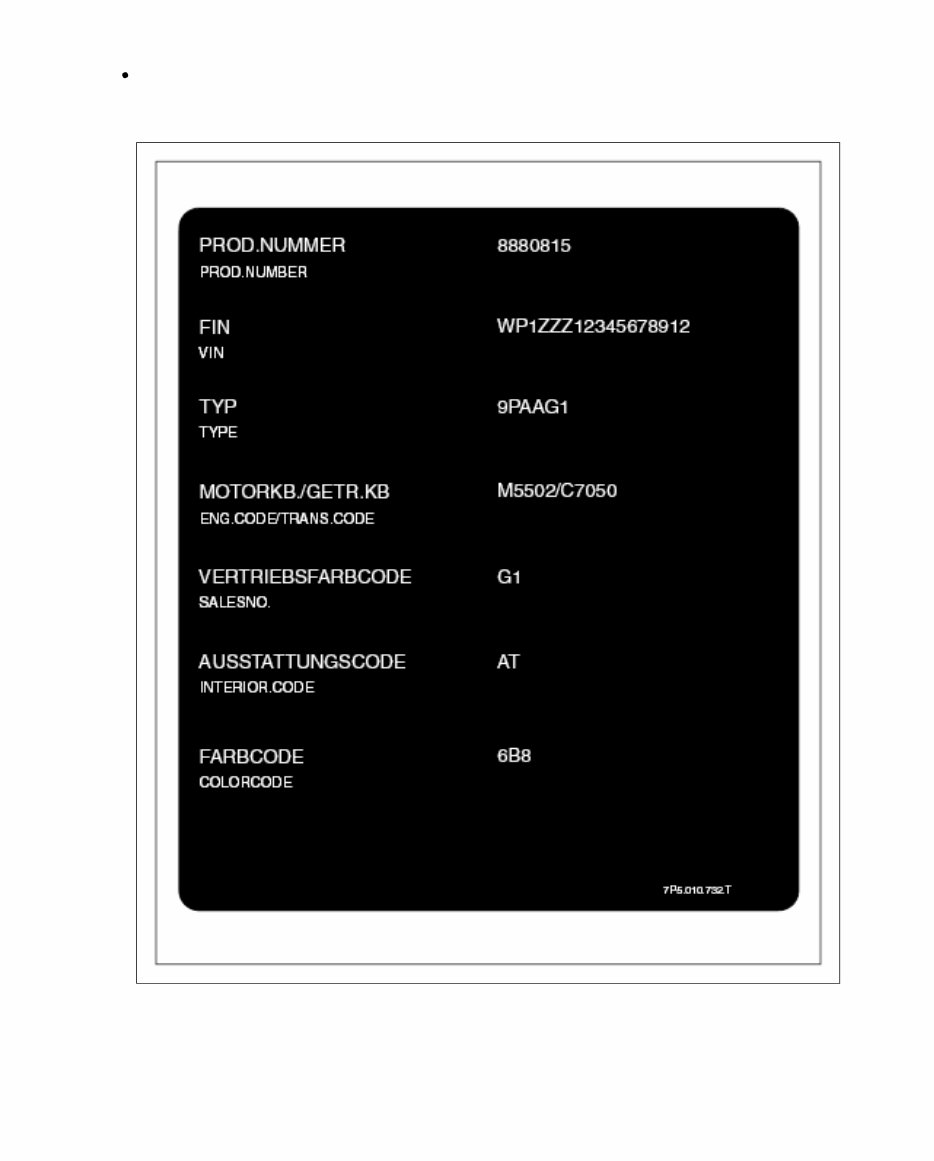

Information The adhesive label for the on-board literature is included with the vehicle registration documents and can be found in the glove compartment . Fig 1: Identifying Adhesive Label Courtesy of PORSCHE CARS NORTH AMERICA, INC. Check that the following vehicle identification numbers are identical. Then stick the adhesive label provided with the vehicle into the on-board literature (Guarantee and Maintenance booklet).

Check Vehicle Ident. No. on lower left of windscreen. Vehicle Ident. No. stamped on the bodyshell, in the front right footwell. Vehicle Ident. No. on the adhesive label in the glove box. Vehicle Ident. No. in the vehicle registration documents. WM 0X01IN CHECKING EXTERIOR EQUIPMENT AND PAINTWORK (EXCEPT PANAMERA S EXECUTIVE, PANAMERA EXECUTIVE, PANAMERA 4 S EXECUTIVE, PANAMERA TURBO EXECUTIVE, PANAMERA TURBO S EXECUTIVE, PANAMERA GTS, PANAMERA 4S SPORT EDITION, PANAMERA 4 EXECUTIVE) > CHECKING EXTERIOR EQUIPMENT AND PAINTWORK Information The following items can be checked by simple visual inspection, no assembly work required. Check whether transport protection has been completely removed and ensure that no film remains in the body joints or under seals. 1. WM 0X01IN CHECKING EXTERIOR EQUIPMENT AND PAINTWORK (EXCEPT PANAMERA S EXECUTIVE, PANAMERA EXECUTIVE, PANAMERA 4 S EXECUTIVE, PANAMERA TURBO EXECUTIVE, PANAMERA TURBO S EXECUTIVE, PANAMERA GTS, PANAMERA 4S SPORT EDITION, PANAMERA 4 EXECUTIVE) > CHECKING EXTERIOR EQUIPMENT AND PAINTWORK > CHECKING EXTERIOR EQUIPMENT Check vehicle for secure fit of accessories such as trim strips, doors mirrors, front and rear spoilers. 1. Check underbody for noticeable areas where undersealing material is missing (e.g. scrapes). 2. Check lower side member of body flange for deformation of jacking points. 3. Check outer shell of vehicle for noticeable soiling by cavity sealing wax. 4. WM 0X01IN CHECKING EXTERIOR EQUIPMENT AND PAINTWORK (EXCEPT PANAMERA S EXECUTIVE, PANAMERA EXECUTIVE, PANAMERA 4 S EXECUTIVE, PANAMERA TURBO EXECUTIVE, PANAMERA TURBO S EXECUTIVE, PANAMERA GTS, PANAMERA 4S SPORT EDITION, PANAMERA 4 EXECUTIVE) > CHECKING EXTERIOR EQUIPMENT AND PAINTWORK > CHECKING PAINTWORK Check outer shell of vehicle for noticeable sheetmetal damage such as dents and bulges. 1. Check painted surfaces of vehicle for noticeable defects such as scores, scratches, notches, scrapes, pores, bubbles or signs that the bodywork is coming through the paint. 2. WM 0X01IN CHECKING GLAZING (EXCEPT PANAMERA S EXECUTIVE, PANAMERA EXECUTIVE, PANAMERA 4 S EXECUTIVE, PANAMERA TURBO EXECUTIVE, PANAMERA TURBO S EXECUTIVE, PANAMERA GTS, PANAMERA 4S SPORT

EDITION, PANAMERA 4 EXECUTIVE) > CHECK GLAZING Information The following items can be checked by simple visual inspection, no assembly work required. Check that transport protection has been completely removed and ensure that no film remains in the body joints or under seals. 1. Check vehicle glazing for stone damage and scratches. 2. Check surrounds and rubber sections of vehicle glazing for any damage and cracks. 3. WM 0X01IN CHECKING LIDS AND DOORS (EXCEPT PANAMERA S EXECUTIVE, PANAMERA EXECUTIVE, PANAMERA 4 S EXECUTIVE, PANAMERA TURBO EXECUTIVE, PANAMERA TURBO S EXECUTIVE, PANAMERA GTS, PANAMERA 4S SPORT EDITION, PANAMERA 4 EXECUTIVE) > CHECKING LIDS AND DOORS > FUNCTION TEST ON FRONT LID LOCK Information The lid lock does not have an emergency release. When working close to the front apron and on the various parts of the lock, carry out the following function test before closing the lid: Check that the release cable is clipped fully into the brackets provided. 1. Lock the lower part of the lid lock with a screwdriver. 2. Release the lid lock using the lever in the passenger compartment. 3. Perform a visual inspection to check that the lock releases correctly. 4. WM 0X01IN CHECKING LIDS AND DOORS (EXCEPT PANAMERA S EXECUTIVE, PANAMERA EXECUTIVE, PANAMERA 4 S EXECUTIVE, PANAMERA TURBO EXECUTIVE, PANAMERA TURBO S EXECUTIVE, PANAMERA GTS, PANAMERA 4S SPORT EDITION, PANAMERA 4 EXECUTIVE) > CHECKING LIDS AND DOORS > CHECKING LID LOCK, FRONT AND REAR Check that the lid locks engage when the lids (front and rear) are closed by engaging the upper parts of the lock and that they disengage again when the lid releases are activated. WM 0X01IN CHECKING LIDS AND DOORS (EXCEPT PANAMERA S EXECUTIVE, PANAMERA EXECUTIVE, PANAMERA 4 S EXECUTIVE, PANAMERA TURBO EXECUTIVE, PANAMERA TURBO S EXECUTIVE, PANAMERA GTS, PANAMERA 4S SPORT EDITION, PANAMERA 4 EXECUTIVE) > CHECKING LIDS AND DOORS > CHECKING SAFETY HOOK, FRONT LID Check that the front lid is held down by the safety hook (locking hook) after the lid lock is opened. Check that the return spring on the upper part of the lock pulls the safety hook back as far as the

stop. WM 0X01IN CHECKING LIDS AND DOORS (EXCEPT PANAMERA S EXECUTIVE, PANAMERA EXECUTIVE, PANAMERA 4 S EXECUTIVE, PANAMERA TURBO EXECUTIVE, PANAMERA TURBO S EXECUTIVE, PANAMERA GTS, PANAMERA 4S SPORT EDITION, PANAMERA 4 EXECUTIVE) > CHECKING LIDS AND DOORS > FUNCTION TEST ON REAR-LID CLOSING AID Check that the closing aid automatically pulls the rear lid into the lock when you close the rear lid. WM 0X01IN CHECKING LIDS AND DOORS (EXCEPT PANAMERA S EXECUTIVE, PANAMERA EXECUTIVE, PANAMERA 4 S EXECUTIVE, PANAMERA TURBO EXECUTIVE, PANAMERA TURBO S EXECUTIVE, PANAMERA GTS, PANAMERA 4S SPORT EDITION, PANAMERA 4 EXECUTIVE) > CHECKING LIDS AND DOORS > FUNCTION TEST ON AUTOMATIC REAR LID Information Detailed information on the opening and closing process can be found in the Driver's Manual. → "Owner's Manual" Check that the rear lid can be opened using the remote control and the release options in the vehicle. Open the rear lid with the remote control. 1. Close the rear lid by pressing the button on the rear lid. 2. Open the rear lid by actuating the switch on the driver's door. 3. Open the rear lid by actuating the release handle on the outside of the rear lid. 4. WM 0X01IN CHECKING LIDS AND DOORS (EXCEPT PANAMERA S EXECUTIVE, PANAMERA EXECUTIVE, PANAMERA 4 S EXECUTIVE, PANAMERA TURBO EXECUTIVE, PANAMERA TURBO S EXECUTIVE, PANAMERA GTS, PANAMERA 4S SPORT EDITION, PANAMERA 4 EXECUTIVE) > CHECKING LIDS AND DOORS > FUNCTION TEST ON DOOR LOCKS Check that the door locks engage in two stages when the doors are closed and that they disengage again when the door handles are operated (inside and outside). WM 0X01IN CHECKING LIDS AND DOORS (EXCEPT PANAMERA S EXECUTIVE, PANAMERA EXECUTIVE, PANAMERA 4 S EXECUTIVE, PANAMERA TURBO EXECUTIVE, PANAMERA TURBO S EXECUTIVE, PANAMERA GTS, PANAMERA 4S SPORT EDITION, PANAMERA 4 EXECUTIVE) > CHECKING LIDS AND DOORS > FUNCTION TEST ON TANK CAP LOCK Lock the vehicle. Check that the tank cap is locked by the tank cap lock in the closed position.

WM 0X01IN CHECKING OPERATION OF ELECTRICAL EQUIPMENT AS WELL AS WARNING AND INDICATOR LIGHTS (EXCEPT PANAMERA S EXECUTIVE, PANAMERA EXECUTIVE, PANAMERA 4 S EXECUTIVE, PANAMERA TURBO EXECUTIVE, PANAMERA GTS, PANAMERA 4S SPORT EDITION, PANAMERA 4 EXECUTIVE) > CHECKING OPERATION OF ELECTRICAL EQUIPMENT AS WELL AS WARNING AND INDICATOR LIGHTS Turn ignition key and check function of warning and indicator lights (visual inspection). Actuate power windows and check operation. Check that the rear window heater is working. Adjust heater blower and fans to high and low and check the air vents for air throughput. Front seats and back seats: check operation. Check audio function. Check operation of door mirror, check adjustment options. Check operation of orientation lights. Check operation of luggage compartment lights. Check operation of interior lights. Actuate central locking and check operation. Operate cigarette lighter and check that it is working. WM 0X01IN CHECKING VEHICLE EQUIPMENT FOR COMPLETENESS (EXCEPT PANAMERA S EXECUTIVE, PANAMERA EXECUTIVE, PANAMERA 4 S EXECUTIVE, PANAMERA TURBO EXECUTIVE, PANAMERA TURBO S, PANAMERA TURBO S EXECUTIVE, PANAMERA GTS, PANAMERA 4S SPORT EDITION, PANAMERA 4 EXECUTIVE) > VEHICLE EQUIPMENT Check that the items listed below are in the vehicle. Designation Number Limitations Position in the vehicle Warning triangle 1x Country-specific Trim panel for rear lock support Addition warning triangle 1x Country-specific Stored in luggage compartment First-aid kit and warning triangle 1x Country-specific Trim panel for rear lock support On-board folder containing technical information Driver's 1x Standard Glove box (1) (2) (3) (4)
