TRANSMISSION SERVICING - M/T
1993-94 MANUAL TRANSMISSION SERVICING General Motors
IDENTIFICATION
FWD TRANSAXLE
FWD MANUAL TRANSAXLE APPLICATION
RWD TRANSMISSION
RWD MANUAL TRANSMISSION APPLICATION
Model
(1)
Transaxle
Beretta NVT550 Or Isuzu 76mm
Cavalier NVT550 Or Isuzu 76mm
Corsica NVT550 Or Isuzu 76mm
Lumina (1993) Getrag 284
Metro Suzuki
Prizm Toyota
Storm Isuzu 76mm
Achieva NVT550 Or Isuzu 76mm
Cutlass Calais Muncie 5TM40 Or Isuzu 76mm
Grand Am NVT550 Or Isuzu 76mm
Grand Prix
1993 Getrag 284
1994 NVT550 Or Isuzu 76mm
LeMans (1993, 4 & 5-Speed) F16
Saturn (All Models)
SOHC MP2
DOHC MP3
(1)
Unless noted, all are 5-speed.
Model Transmission
Camaro
5-Speed Borg-Warner 77mm
6-Speed Borg-Warner 85mm
1994 Chevrolet Lumina
TRANSMISSION SERVICING - M/T 1993-94 MANUAL TRANSMISSION SERVICING General Motors
1994 Chevrolet Lumina
TRANSMISSION SERVICING - M/T 1993-94 MANUAL TRANSMISSION SERVICING General Motors
LUBRICATION
SERVICE INTERVALS
Corvette
Change fluid in overdrive unit every 30,000 miles.
Metro
Under normal driving conditions, transaxle fluid does not need replacing. Under severe driving
conditions, replace fluid every 12,000 miles or 12 months.
Prizm
Transaxle fluid only needs replacing when transaxle is overhauled.
Saturn
Change fluid at 6000 miles. After initial oil change, no regular service is required.
Storm
Replace transaxle fluid every 30,000 miles under normal driving conditions. Under severe driving
conditions, change fluid every 15,000 miles.
All Others
Fluid replacement is not required, except at time of overhaul. Check fluid level at each engine oil
change.
CHECKING FLUID LEVEL
Camaro, Corvette, Firebird, Metro, Prizm & Storm
Corvette (6-Speed) ZF S6- 40 95mm
Firebird
5-Speed Borg-Warner 77mm
6-Speed Borg-Warner 85mm
CAUTION: On Camaro and Firebird, DO NOT remove reverse shift lever
pin (largest hex-shaped bolt) on LEFT side of case. Removing
this bolt may damage the transmission.
1994 Chevrolet Lumina
TRANSMISSION SERVICING - M/T 1993-94 MANUAL TRANSMISSION SERVICING General Motors
Check lubricant level at filler plug hole on right side of transmission. Lubricant should be level
with bottom of filler plug hole. Add lubricant as necessary to bring to correct level.
All Others
Park vehicle on level surface. Check fluid level when fluid is COLD. Fluid should be at FULL
mark on dipstick. See Fig. 1 . Drain plug is below dipstick tube.
1994 Chevrolet Lumina
TRANSMISSION SERVICING - M/T 1993-94 MANUAL TRANSMISSION SERVICING General Motors

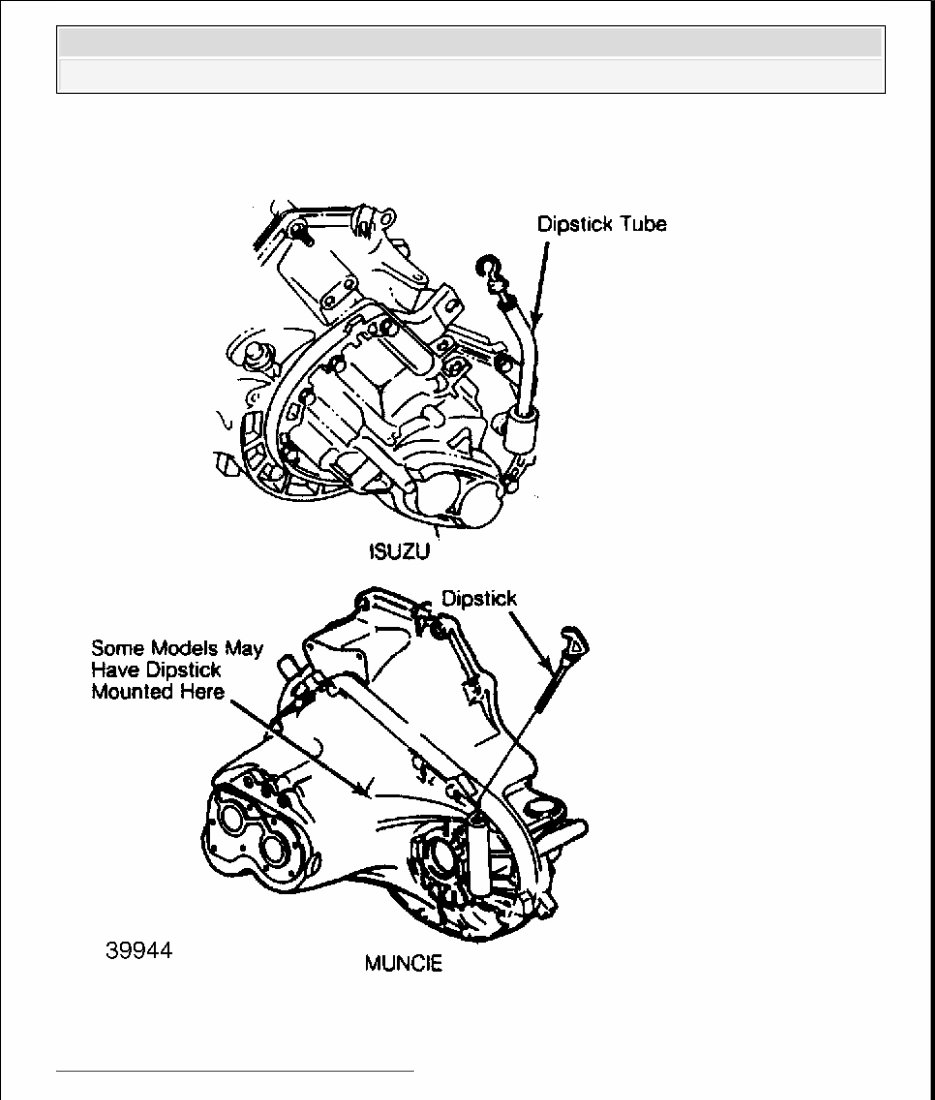

Fig. 1: Checking Transaxle Fluid Level
Courtesy of GENERAL MOTORS CORP.
1994 Chevrolet Lumina
TRANSMISSION SERVICING - M/T 1993-94 MANUAL TRANSMISSION SERVICING General Motors
FLUID CAPACITY & RECOMMENDED FLUID
FLUID CAPACITIES
ADJUSTMENTS
GEAR SHIFT LINKAGE (LEMANS ONLY)
LeMans
1. Disconnect negative battery cable. Position gearshift lever in Neutral. Loosen shift rod
clamp bolt. See Fig. 2 . Remove adjustment hole plug from shift lever cover. See Fig. 3 .
Application
(1)
Qts. (L)
Camaro & Firebird
(2)
3.0 (2.8)
LeMans 2.2 (2.0)
Metro 2.5 (2.4)
Prizm 2.7 (2.6)
Saturn 2.6 (2.5)
Storm 2.0 (1.9)
All Others
(3)
2.0 (1.9)
(1)
Fluid capacities listed are approximate. Always use procedure specified under
CHECKING FLUID LEVEL when filling transaxle/transmission.
(2)
Dexron-II.
(3)
In all vehicles except Corvette, use Synchromesh Transmission Fluid (GM 12345349).
In Corvette, use SAE 5W-30 (GM 1052931).
WARNING: When battery is disconnected, vehicle computer and memory
systems may lose memory data. Driveability problems may
exist until computer systems have completed a relearn cycle.
See the COMPUTER RELEARN PROCEDURES article in the
GENERAL INFORMATION section.
1994 Chevrolet Lumina
TRANSMISSION SERVICING - M/T 1993-94 MANUAL TRANSMISSION SERVICING General Motors
