Precaution for Supplemental Restraint System (SRS) "AIR BAG" and
"SEAT BELT PRE-TENSIONER"
NISD0000000014906745
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with a front seat belt,
helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collisions.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” sections of this Service
Manual.
WARNING:
Always observe the following items for preventing accidental activation:
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in the event of a
collision that would result in air bag inflation, it is recommended that all maintenance and repair be performed by
an authorized NISSAN/INFINITI dealer.
Improper repair, including incorrect removal and installation of the SRS, can lead to personal injury caused by
unintentional activation of the system. For removal of Spiral Cable and Air Bag Module, see “SRS AIR BAG”.
Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Service Manual.
SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC)
AND HAMMERS
WARNING:
Always observe the following items for preventing accidental activation:
When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the ignition/power
switch ON or engine running, never use air or electric power tools or strike near the sensor(s) with a hammer.
Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing serious injury.
When using air or electric power tools or hammers, always switch the ignition/power switch OFF, disconnect the
12V battery or batteries, and wait at least 3 minutes before performing any service.
Precaution for Procedure without Cowl Top Cover

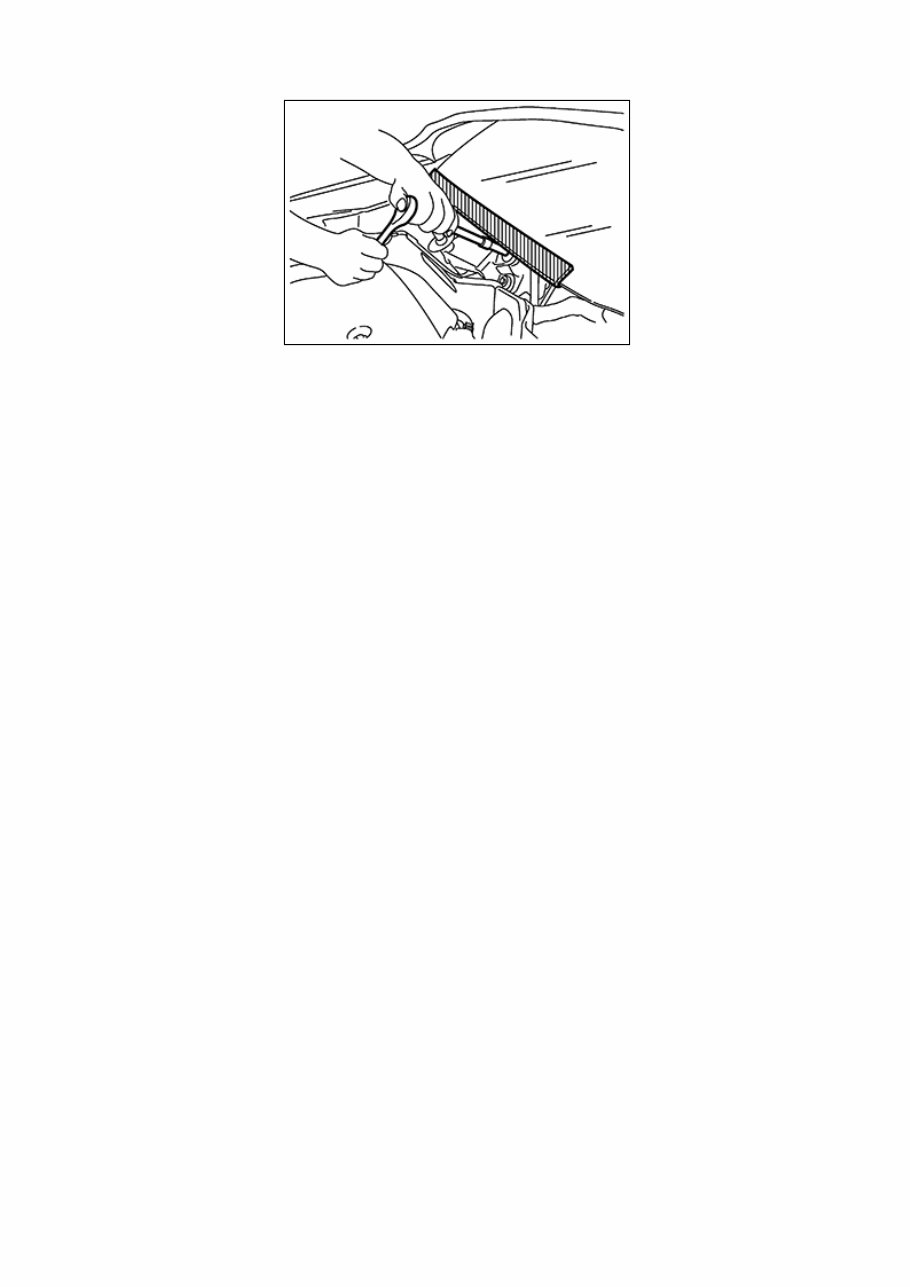

When performing the procedure after removing cowl top cover, cover the lower end of windshield with urethane, etc. to prevent
damage to windshield.
NISD0000000014900121-01-PIIB3706J
Precaution for Brake System
WARNING:
Clean any dust from the front brake and rear brake with a vacuum dust collector. Do not blow with compressed air.
CAUTION:
Brake fluid use refer to Fluids and Lubricants.
Do not reuse drained brake fluid.
Do not spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe it off
immediately and wash with water if it gets on a painted surface.
Always clean with new brake fluid when cleaning the master cylinder, brake caliper and other components.
Do not use mineral oils such as gasoline or light oil to clean. They may damage rubber parts and cause improper
operation.
Always loosen the brake tube flare nut with a flare nut wrench.

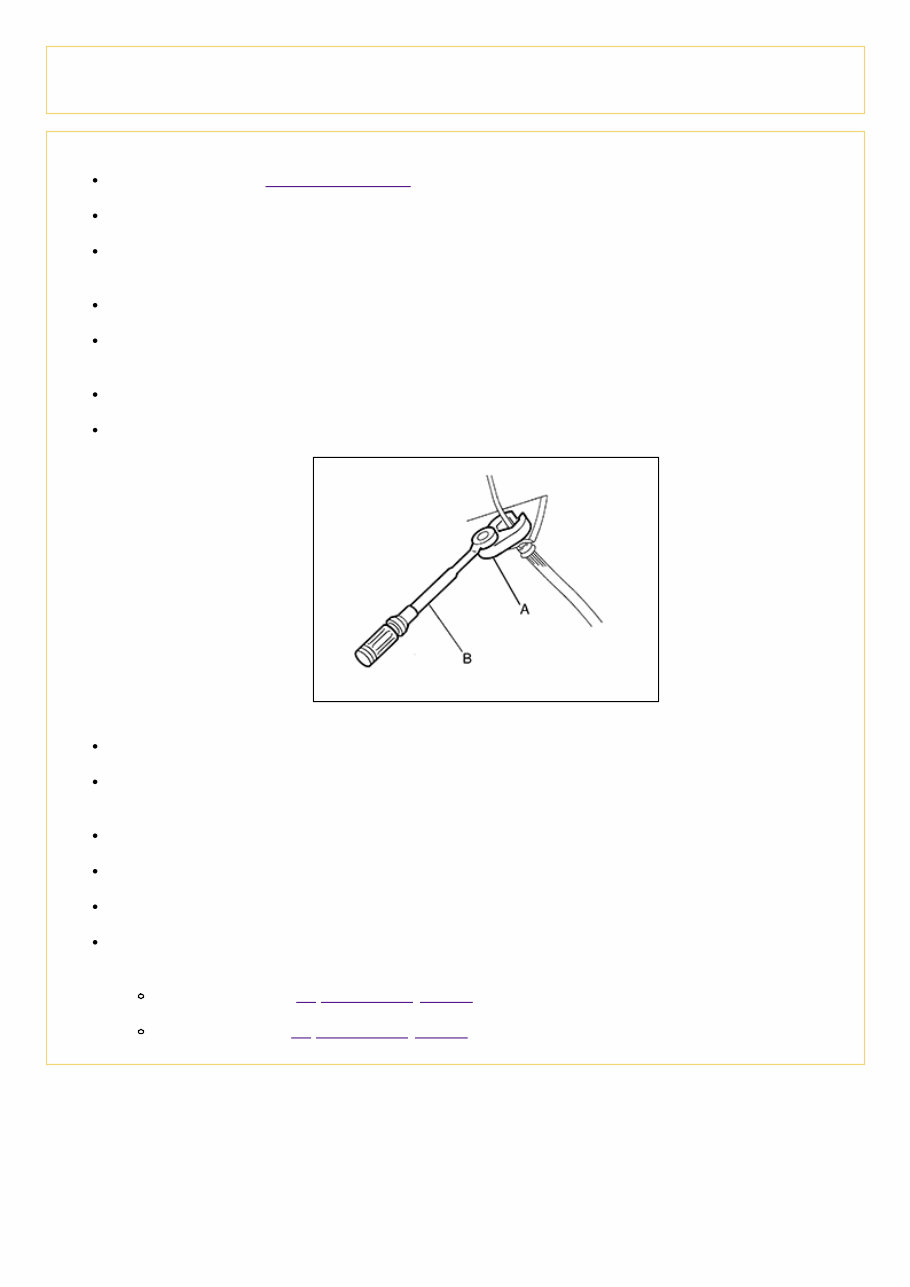

Tighten the brake tube flare nut to the specified torque using a crowfoot (A) and a torque wrench (B).
NISD0000000014900122-01-JPFIA0001ZZ
Always confirm the specified tightening torque when installing the brake pipes.
Turn the ignition switch OFF and disconnect the ABS actuator and electric unit (control unit) connector or the
battery negative terminal before performing the work.
Always connect the battery terminal when moving the vehicle.
Check that no brake fluid leakage is present after replacing the parts.
Check for bends, cracks and damage to the brake pedal. Adjust brake pedal if it is outside the standard value.
Burnish the brake contact surfaces after refinishing or replacing rotors, after replacing pads, or if a soft pedal
occurs at very low mileage.
Front brake: refer to Inspection and Adjustment.
Rear brake: refer to Inspection and Adjustment.
Special Service Tool
NISD0000000014900123
The actual shape of the tools may differ from those illustrated here.

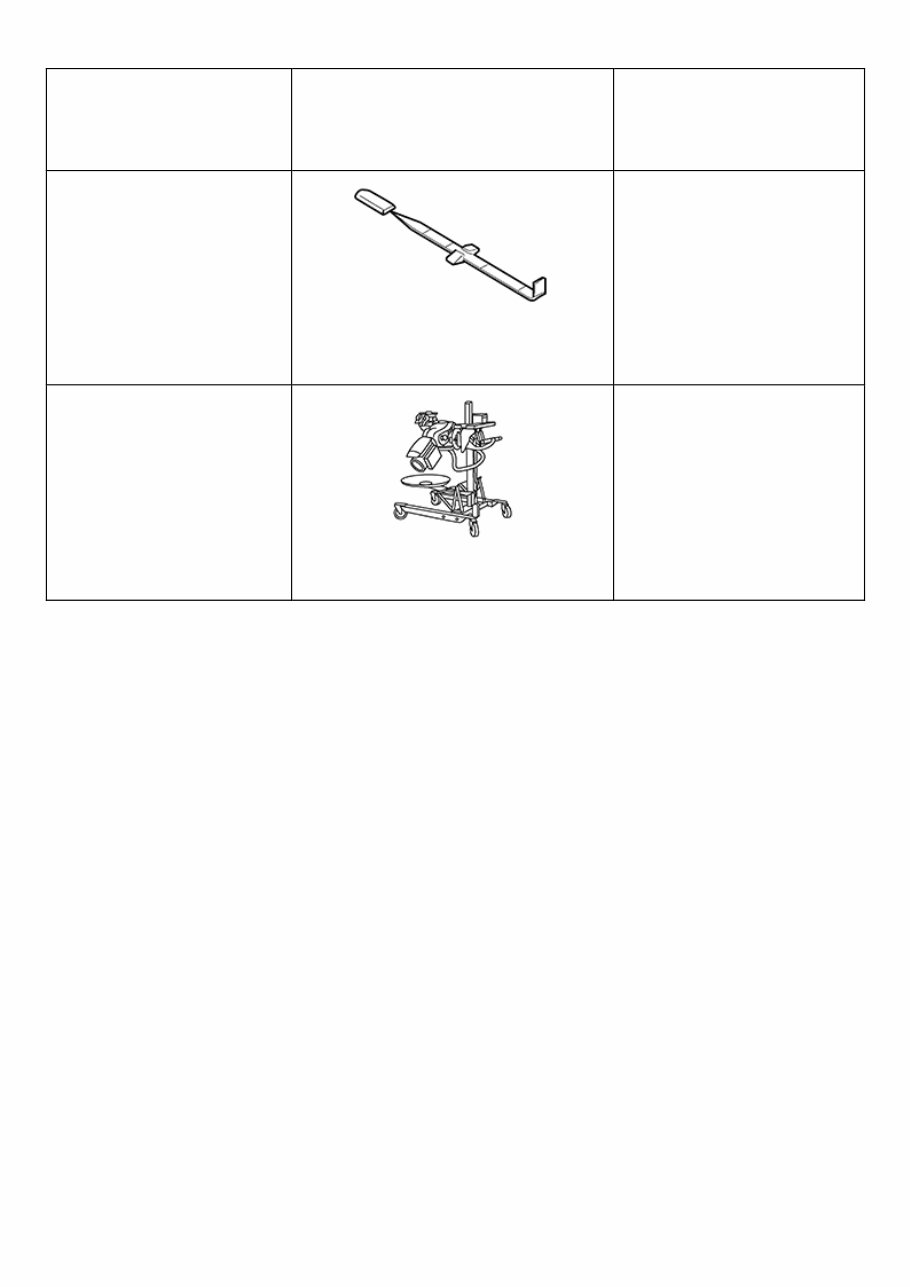

Tool number
(TechMate No.)
Tool name
Description
—
(J-46532)
Brake height tool
NISD0000000014900123-01-
FIA0227E
Measuring brake pedal height
38-PFM92
( — )
Pro-Cut™ PFM Series Lathe
NISD0000000014900123-02-
WFIA1169ZZ
Refinishing rotors
Commercial Service Tool

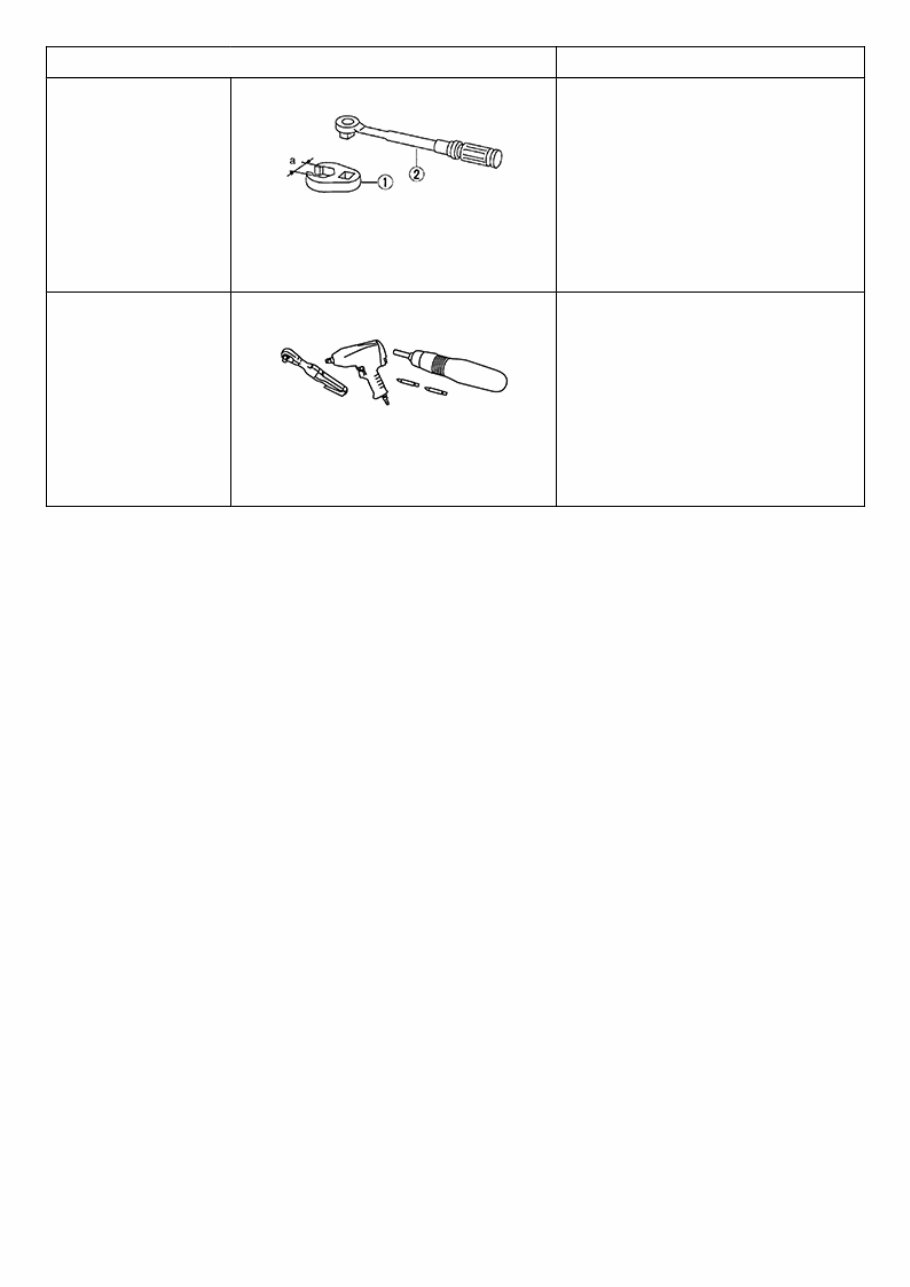

Tool name Description
1. Flare nut crowfoot
2. Torque wrench
NISD0000000014900124-01-S-
NT360
Tightening brake tube flare nuts
a: 10 mm (0.39 in)/12 mm (0.47 in)
Power tool
NISD0000000014900124-02-
PIIB1407E
Loosening nuts, screws and bolts
Wiring Diagram
NISD0000000015244140
Refer to Wiring Diagram.
Inspection
INSPECTION
Uneven wear

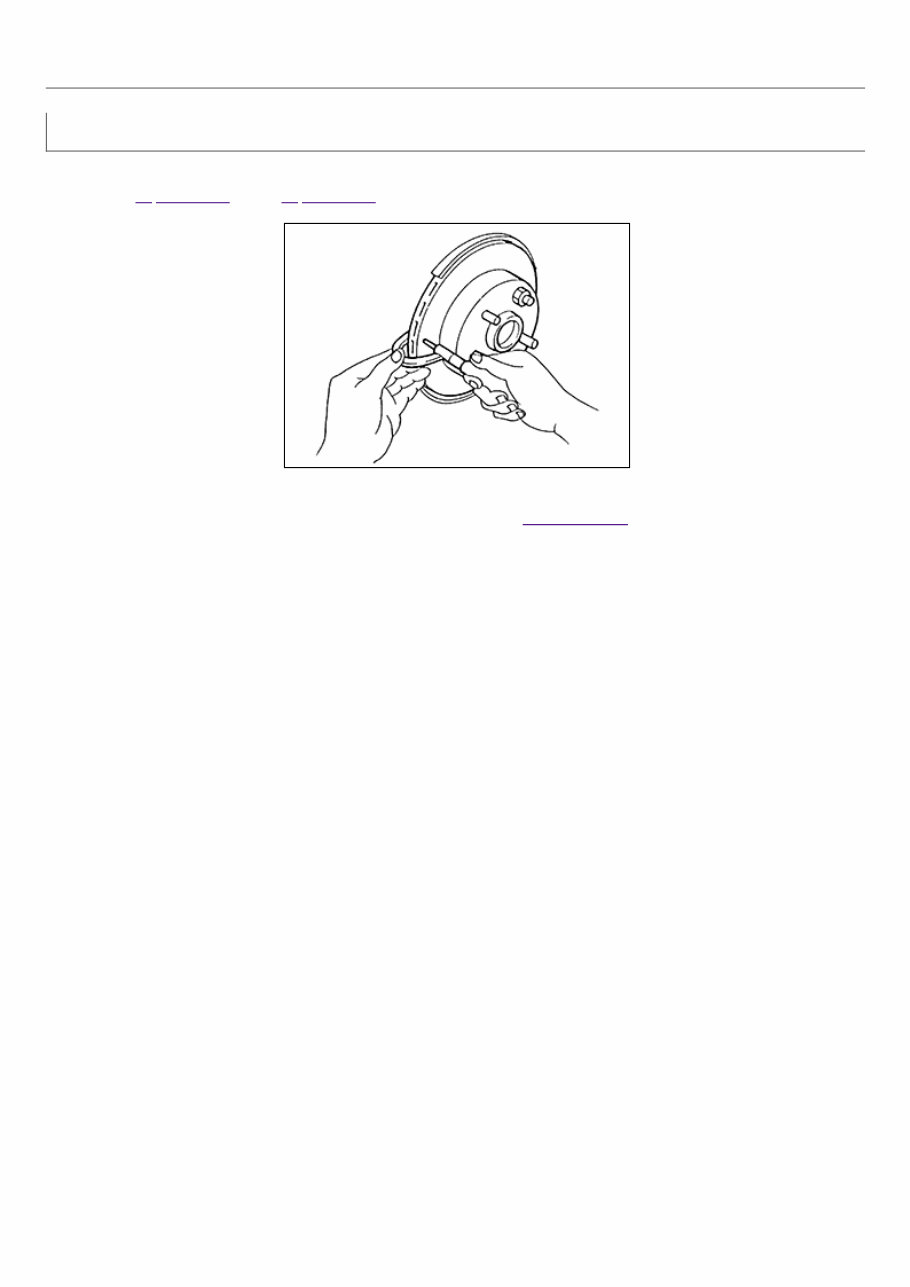

Check for uneven wear of the disc brake rotor using a micrometer. Replace the disc brake rotor if the thickness is below the wear
limit. Refer to Exploded View (FWD) Exploded View (AWD).
NISD0000000014900129-01-SBR020B
Thickness variation (measured at 8 positions) : Refer to Rear Disc Brake.
Inspection
INSPECTION
Uneven Wear
Check for uneven wear of the disc brake rotor using a micrometer. Replace the disc brake rotor if the thickness is below the wear
limit. Refer to Exploded View (FWD) Exploded View (AWD).
NISD0000000014900128-01-SBR020B
Thickness variation (measured at 8 positions) : Refer to Front Disc Brake.
Inspection
Check for brake fluid leakage from the following areas:
Master cylinder mounting face
Reservoir tank mounting face
Brake tube and brake tube connections
Brake hose and brake hose connections
NOTE:
If any brake fluid leakage is found, repair as necessary.
Use the chart below to find the cause of the symptom. If necessary, repair or replace these parts.
Reference page
Inspection and Adjustment,
Inspection and Adjustment
Inspection
and
Adjustment,
Inspection
and
Adjustment
Inspection
and
Adjustment,
Inspection,
Inspection
and
Adjustment,
Inspection
Inspection
and
Adjustment,
Inspection,
Inspection
and
Adjustment,
Inspection
Inspection
and
Adjustment,
Inspection
and
Adjustment
Inspection
and
Adjustment,
Inspection
and
Adjustment
Inspection
and
Adjustment,
Inspection
and
Adjustment
Inspection
and
Adjustment,
Inspection,
Inspection
and
Adjustment,
Inspection
NVH
Troubleshooting
Chart (AWD)
NVH
Troubleshooting
Chart (AWD)
NV
Trouble
Ch
Possible cause and
SUSPECTED PARTS
Brake
pad -
damaged
Brake
pad -
uneven
wear
Shims
damaged
Disc brake
rotor
imbalance
Disc brake
rotor
damage
Disc brake
rotor runout
Disc brake
rotor
deformation
Disc brake
rotor
deflection
Disc brake
rotor rust
Disc brake
rotor
thickness
variation
PROPELLER
SHAFT
DIFFERENTIAL
FRONT
SUSPEN
Symptom BRAKE
Noise × × × × × ×
Shake × × ×
Shimmy,
Shudder
× × × × × × × ×
×: Applicable
