HAC-4 General Refrigerant Precaution ............................ 194 Refrigerant Connection ......................................... 194 Service Equipment ............................................... 197 COMPRESSOR .............................................. 199 General Precautions ............................................ 199 FLUORESCENT LEAK DETECTOR ............... 200 General Precautions ............................................ 200

DIAGNOSIS AND REPAIR WORKFLOW HAC-5 < BASIC INSPECTION > [AUTOMATIC AIR CONDITIONER] C D E F G H J K L M A B HAC N O P BASIC INSPECTION DIAGNOSIS AND REPAIR WORKFLOW Work Flow INFOID:0000000000954626 DETAILED FLOW 1.LISTEN TO CUSTOMER COMPLAINT Listen to customer complaint. (Get detailed information about the conditions and environment when the symptom occurs.) >> GO TO 2. 2.VERIFY THE SYMPTOM WITH OPERATIONAL CHECK Verify the symptom with operational check. Refer to HAC-6, "Description & Inspection" . >> GO TO 3. 3.GO TO APPROPRIATE TROUBLE DIAGNOSIS Go to appropriate trouble diagnosis (Refer to HAC-108, "Diagnosis Chart By Symptom" below). >> GO TO 4. 4.REPAIR OR REPLACE Repair or replace the specific parts. >> GO TO 5. 5.FINAL CHECK Final check. Is the inspection result normal? YES >> CHECK OUT NO >> GO TO 3.

HAC-6 < BASIC INSPECTION > [AUTOMATIC AIR CONDITIONER] INSPECTION AND ADJUSTMENT INSPECTION AND ADJUSTMENT Description & Inspection INFOID:0000000000954627 DESCRIPTION The purpose of the operational check is to check if the individual system operates properly. INSPECTION PROCEDURE Memory Function 1. Turn temperature control dial (driver side) clockwise until 30.0°C is displayed. 2. Press ON/OFF switch. 3. Turn ignition switch OFF. 4. Turn ignition switch ON. 5. Press AUTO switch. 6. Confirm that the set temperature remains at previous temperature. 7. Press ON/OFF switch. If NG, go to trouble diagnosis procedure for HAC-116, "Inspection procedure" . If OK, continue the check. Blower 1. Turn fan control dial clockwise. Blower should operate on low speed. 2. Turn fan control dial clockwise again, and continue checking blower speed until all speeds are checked. 3. Leave blower on max. speed. If NG, go to trouble diagnosis procedure for HAC-62, "Diagnosis Procedure" . If OK, continue the check. Discharge Air (MODE switch and DEF switch) 1. Press MODE switches and DEF switch. 2. Each position indicator should illuminate. 3. Confirm that discharge air comes out according to the air distribution table. Refer to HAC-15, "System Description" . If NG, go to trouble diagnosis procedure for HAC-47, "Diagnosis Procedure" . If OK, continue the check. NOTE: Confirm that the magnet clutch is engaged (sound or visual inspection) and intake door position is at FRE when the D/F or DEF is selected. Discharge Air (High-level ventilator switch) 1. Press high-level ventilator switch. High-level ventilator switch indicator should illuminate. Conditions : Engine running at normal operating temperature JPIIA0082GB

INSPECTION AND ADJUSTMENT HAC-7 < BASIC INSPECTION > [AUTOMATIC AIR CONDITIONER] C D E F G H J K L M A B HAC N O P 2. Confirm that discharge air comes out. 3. Press high-level ventilator switch again. High-level ventilator indicator should not illuminate. If NG, go to trouble diagnosis procedure for HAC-50, "Diagnosis Procedure" . If OK, continue the check. Intake Air 1. Press recirculation (REC) switch. Recirculation indicator should illuminate. 2. Press fresh (FRE) switch. Fresh indicator should illuminate. 3. Listen for intake door position change. (Slight change of blower sound can be heard.) If NG, go to trouble diagnosis procedure for HAC-59, "Diagnosis Procedure" . If OK, continue the check. NOTE: Confirm that the magnet clutch is engaged (sound or visual inspection) and intake door position is at FRE when the D/F or DEF is selected. Temperature Decrease 1. Turn temperature control dial (driver side) counterclockwise until 16.0°C is displayed. 2. Check for cold air at discharge air outlets. If NG, go to trouble diagnosis procedure for HAC-109, "Inspection procedure" . If OK, continue the check. Temperature Increase 1. Turn temperature control dial (driver side) clockwise until 30.0°C is displayed. 2. Check for hot air at discharge air outlets. If NG, go to trouble diagnosis procedure for HAC-111, "Inspection procedure" . If OK, continue the check. A/C Switch 1. Press AUTO switch and A/C switch. 2. A/C switch indicator will turn ON. • Confirm that the magnet clutch engages (sound or visual inspection). Auto Mode 1. Press AUTO switch and A/C switch. 2. AUTO switch indicator will turn ON. • Confirm that discharge air and blower speed will depend on ambient, in-vehicle, and set temperatures. If NG, go to trouble diagnosis procedure for HAC-89, "Diagnosis Procedure" , then if necessary, trouble diagnosis procedure for HAC-66, "Diagnosis Procedure" . If all operational checks are OK (symptom cannot be duplicated), go to Incident Simulation Tests in GI-38, "Work Flow" and perform tests as outlined to simulate driving conditions environment. If symptom appears, refer to HAC-108, "Diagnosis Chart By Symptom" and perform applicable trouble diagnosis procedures. AUXILIARY MECHANISM Temperature Setting Trimmer The trimmer compensates for differences in range of ±3°C between temperature setting (displayed digitally) and temperature felt by customer. Operating procedures for this trimmer are as follows: 1. Begin self-diagnosis STEP-5 mode. Refer to HAC-27, "Diagnosis Description" . 2. Turn fan control dial clockwise to set system in auxiliary mode. 3. Display shows “61” in auxiliary mechanism. It takes approximately 3 seconds to enable setting operation. 4. Turn temperature control dial (driver side) as desired. Temperature will change at a rate of 0.5°C each time a dial is turned. CAUTION: • A decimal point is not indicated on the display.

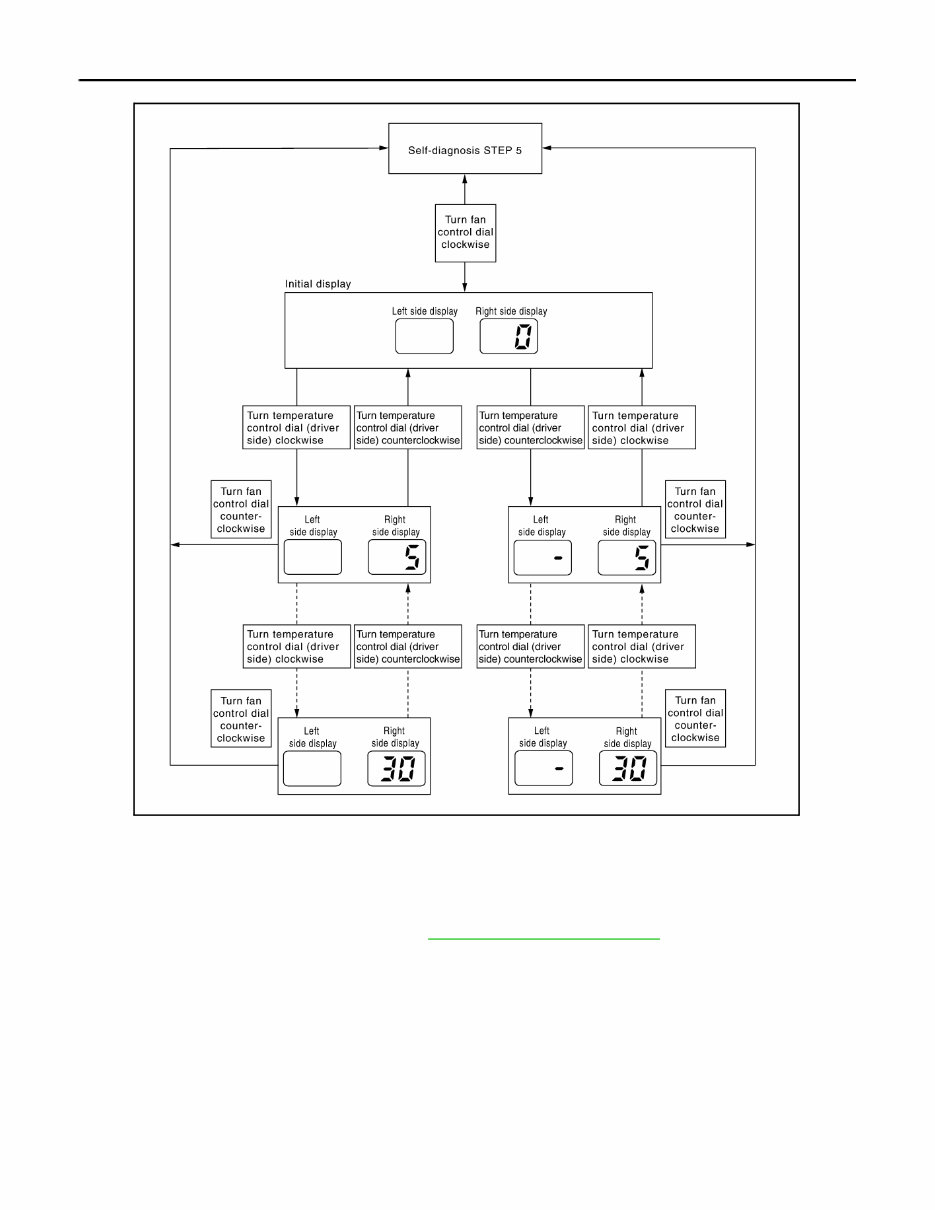

HAC-8 < BASIC INSPECTION > [AUTOMATIC AIR CONDITIONER] INSPECTION AND ADJUSTMENT • Negative value is displayed on the left side display. When battery cable is disconnected or battery voltage is below 10 V, trimmer operation is canceled. Tempera- ture set becomes that of initial condition, i.e. 0°C. Foot Position Setting Trimmer Wind distribution ratio in FOOT mode can be set. Operating procedures for this trimmer are as follows: 1. Begin self-diagnosis STEP-5 mode. Refer to HAC-27, "Diagnosis Description" . 2. Turn fan control dial clockwise to set system in auxiliary mode. 3. Press ON/OFF switch as desired. JPIIA0089GB

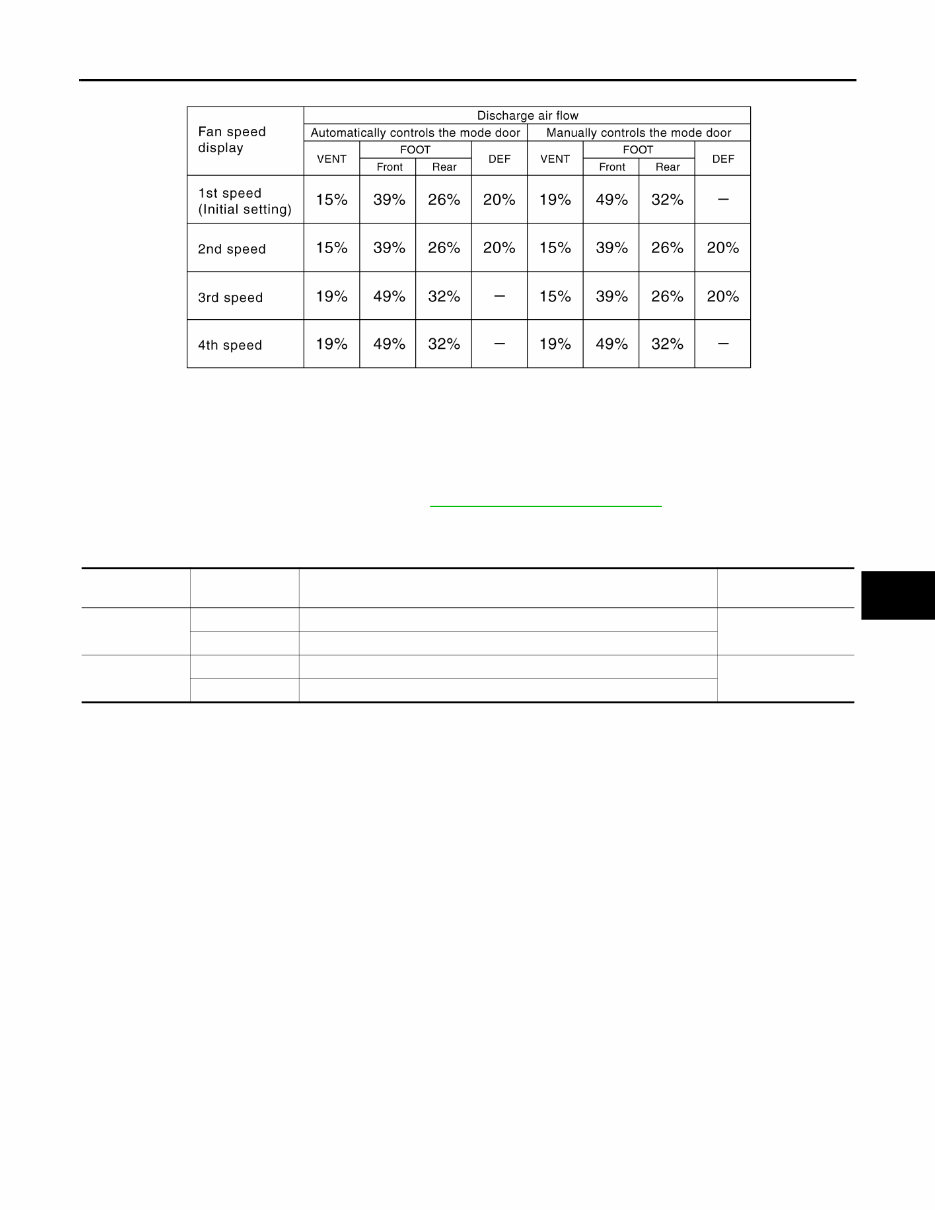

INSPECTION AND ADJUSTMENT HAC-9 < BASIC INSPECTION > [AUTOMATIC AIR CONDITIONER] C D E F G H J K L M A B HAC N O P When battery cable is disconnected or battery voltage is below 10 V, trimmer operation is canceled. Wind distribution ratio set becomes that of initial condition. Inlet Port Memory Function When ignition switch is turned from OFF to ON, inlet port can be set to AUTO or manual. Operating procedures for this trimmer are as follows: 1. Begin self-diagnosis STEP-5 mode. Refer to HAC-27, "Diagnosis Description" . 2. Turn fan control dial clockwise to set system in auxiliary mode. 3. Press recirculation (REC) and fresh (FRE) switch as desired. When battery cable is disconnected or battery voltage is below 10 V, memory function is canceled. Memory function set becomes that of initial condition. JPIIA0105GB Switch LED status of REC/FRE switch Setting status Setting changeover method REC ON Manual REC status is memorized. (Initial setting) REC SW: ON OFF AUTO control FRE ON Manual FRE status is memorized. FRE SW: ON OFF AUTO control (Initial setting)

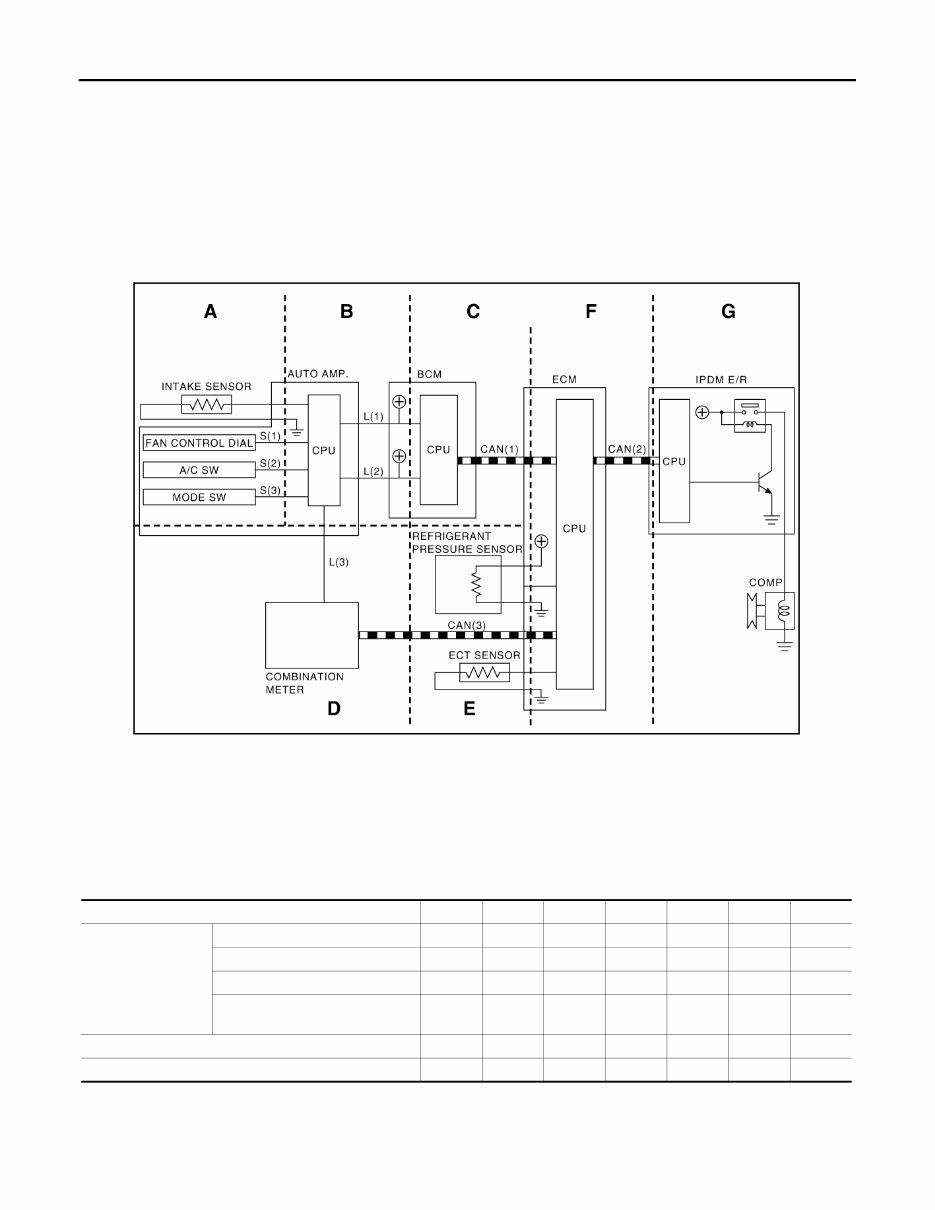

HAC-10 < FUNCTION DIAGNOSIS > [AUTOMATIC AIR CONDITIONER] COMPRESSOR CONTROL FUNCTION FUNCTION DIAGNOSIS COMPRESSOR CONTROL FUNCTION Description INFOID:0000000000954628 PRINCIPLE OF OPERATION Compressor is not activated. Functional circuit diagram Functional initial inspection chart Component Part Location INFOID:0000000001070367 ENGINE COMPARTMENT L (1) : Fan SW signal S (3) : Defogger signal L (2) : A/C SW signal CAN (1) : A/C signal L (3) : Engine coolant temperature signal CAN (2) : Compressor request signal S (1) : Fan ON signal CAN (3) : Engine coolant temperature signal S (2) : A/C SW signal JSIIA0306GB Location A B C D E F G CONSULT-III ECM DATA MONITOR Yes Yes Yes BCM DATA MONITOR Yes IPDM E/R DATA MONITOR Yes COMBINATION METER DATA MONITOR Yes AUTO ACTIVE TEST Yes Self-diagnosis function (except CAN diagnosis) Yes Yes
