Description This volume explains “Removal, Disassembly, Installation, Inspection and Adjustment” and “Trouble Diagnoses”.
Terms The captions WARNING and CAUTION warn you of steps that must be followed to prevent personal injury and/or damage to some part of the vehicle. WARNING indicates the possibility of personal injury if instructions are not followed. CAUTION indicates the possibility of component damage if instructions are not followed. BOLD TYPED STATEMENTS except WARNING and CAUTION give you helpful information. Standard value: Tolerance at inspection and adjustment. Limit value: The maximum or minimum limit value that should not be exceeded at inspection and adjustment.
Units NISB0000000013834632 The UNITS given in this manual are primarily expressed as the SI UNIT (International System of Unit), and alternatively expressed in the metric system and in the yard/pound system. Also with regard to tightening torque of bolts and nuts, there are descriptions both about range and about the standard tightening torque. “Example” Range Outer Socket Lock Nut : 59 - 78 N·m (6.0 - 8.0 kg-m, 43 - 58 ft-lb) Standard Drive Shaft Installation Bolt : 44.3 N·m (4.5 kg-m, 33 ft-lb)
Contents NISB0000000013834633 THE CONTENTS are listed on the first page of each section. THE TITLE is indicated on the upper portion of each page and shows the part or system. THE PAGE NUMBER of each section consists of two or three letters which designate the particular section and a number (e.g. “BR-5”). THE SMALL ILLUSTRATIONS show the important steps such as inspection, use of special tools, knacks of work and hidden or tricky steps which are not shown in the previous large illustrations. Assembly, inspection and adjustment procedures for the complicated units such as the automatic transaxle or transmission, etc. are presented in a step-by-step format where necessary.

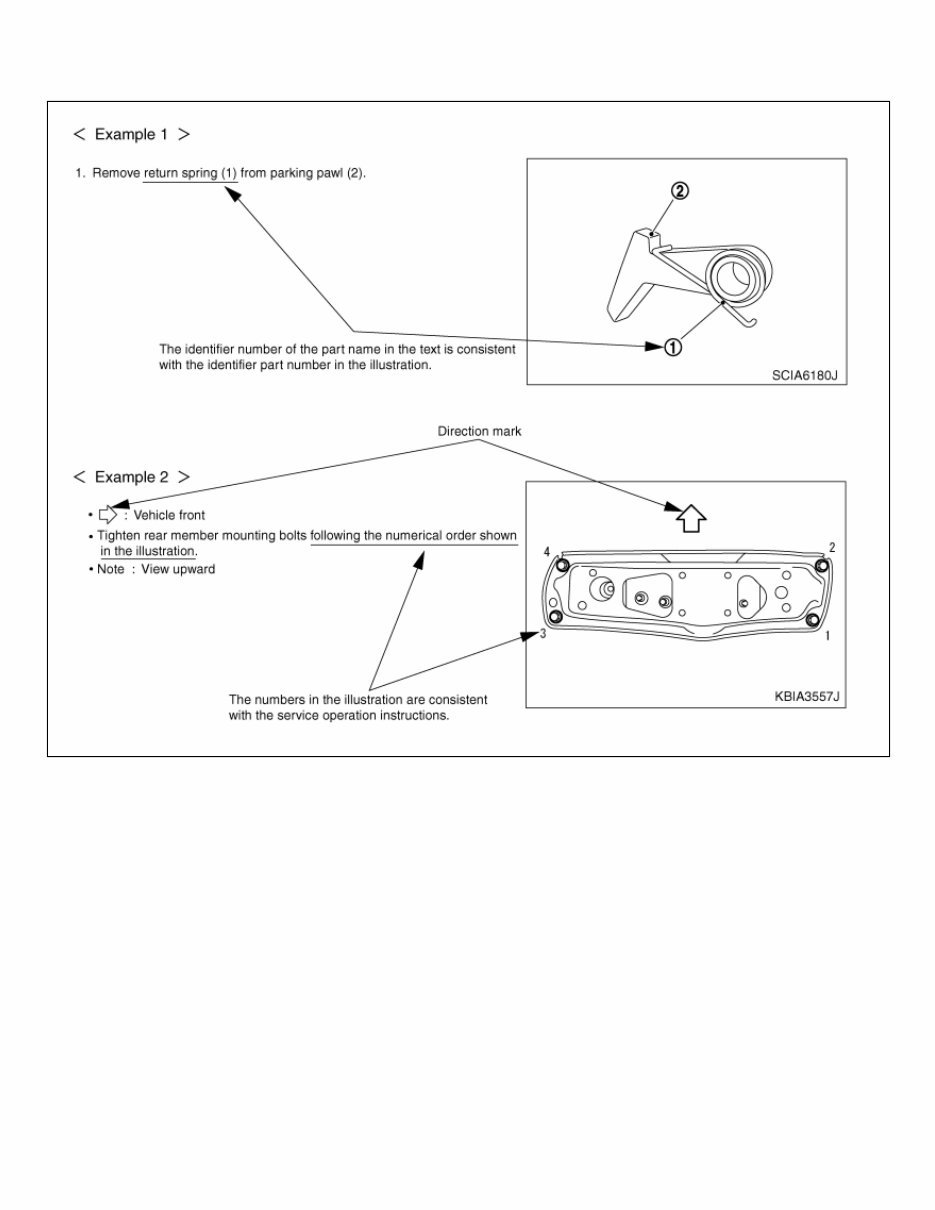

Relation between Illustrations and Descriptions The following sample explains the relationship between the part description in an illustration, the part name in the text and the service procedures. NISB0000000013834634-01-SAIA0519E
Components NISB0000000013834635 THE LARGE ILLUSTRATIONS are exploded views (see the following) and contain tightening torques, lubrication points, section number of the PARTS CATALOG (e.g. SEC. 440) and other information necessary to perform repairs. The illustrations should be used in reference to service matters only. When ordering parts, refer to the appropriate PARTS CATALOG. Components shown in an illustration may be identified by a circled number. When this style of illustration is used, the text description of the components will follow the illustration. NISB0000000013834635-01-PFIA0511GB 1. Cap 2. Bleeder valve 3. Cylinder body 4. Piston seal 5. Piston 6. Piston boot 7. Sliding pin 8. Sliding pin boot 9. Bushing 10. Torque member : Apply rubber grease. : Apply brake fluid. : N·m (kg-m, in-lb) : Always replace after every disassembly SYMBOLS
NISB0000000013834635-02-AIA0749E
Description NOTE: Trouble diagnoses indicate work procedures required to diagnose problems effectively. Observe the following instructions before diagnosing. Before performing trouble diagnoses, read the “Work Flow” in each section. After repairs, re-check that the problem has been completely eliminated. Refer to Component Parts and Harness Connector Location for the Systems described in each section for identification/location of components and harness connectors. When checking circuit continuity, ignition switch should be OFF. Refer to the Circuit Diagram for quick pinpoint check. If you need to check circuit continuity between harness connectors in more detail, such as when a sub-harness is used, refer to Wiring Diagram in each individual section and Harness Layout in PG section for identification of harness connectors. Before checking voltage at connectors, check battery voltage. After accomplishing the Diagnosis Procedures and Electrical Components Inspection, check that all harness connectors are reconnected as they were.

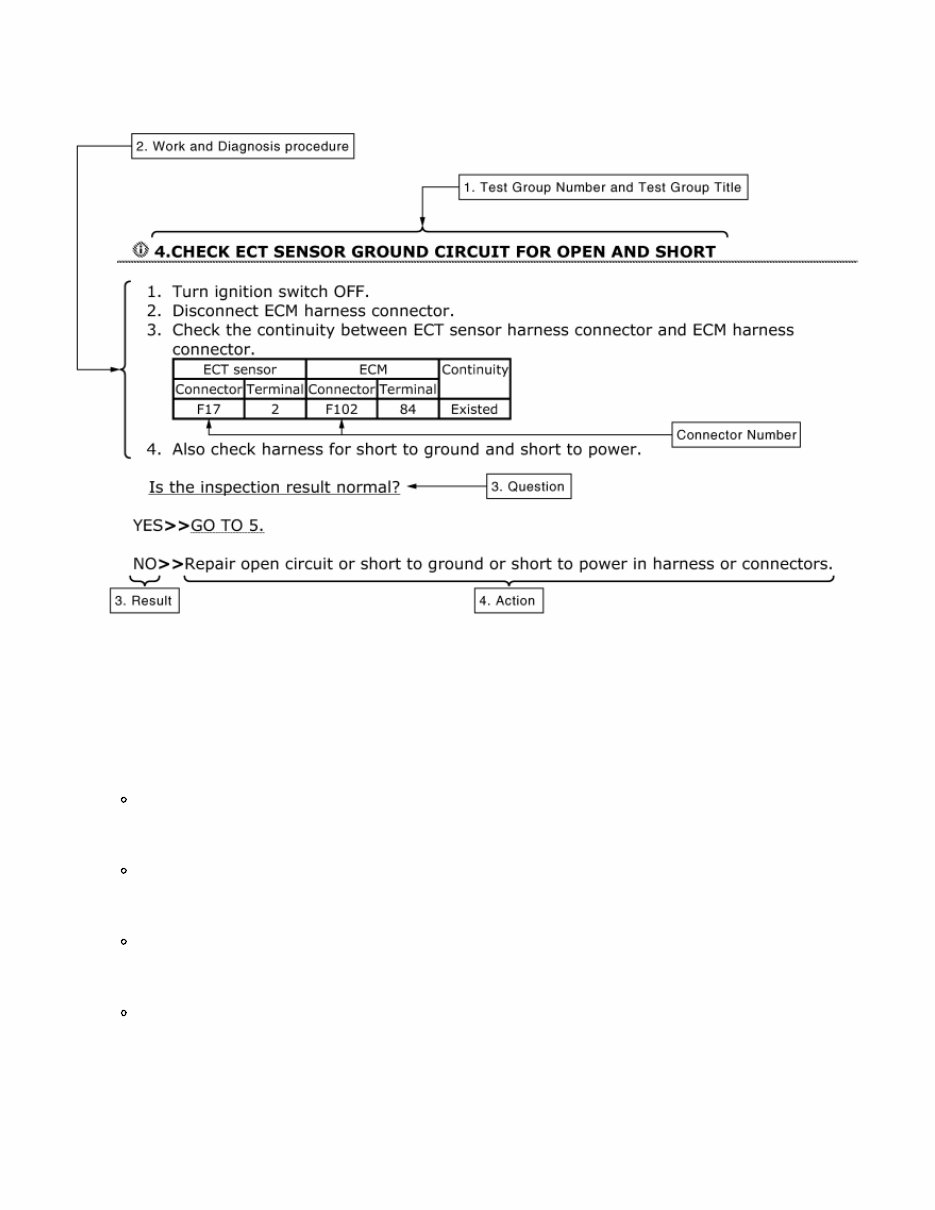

How to Follow Test Groups in Trouble Diagnosis NISB0000000013834637-01-JPAIA0021GB 1. Test group number and test group title Test group number and test group title are shown in the upper portion of each test group. 2. Work and diagnosis procedure Start to diagnose a problem using procedures indicated in enclosed test groups. 3. Questions and results Questions and required results are indicated in test group. 4. Action Next action for each test group is indicated based on result of each question.

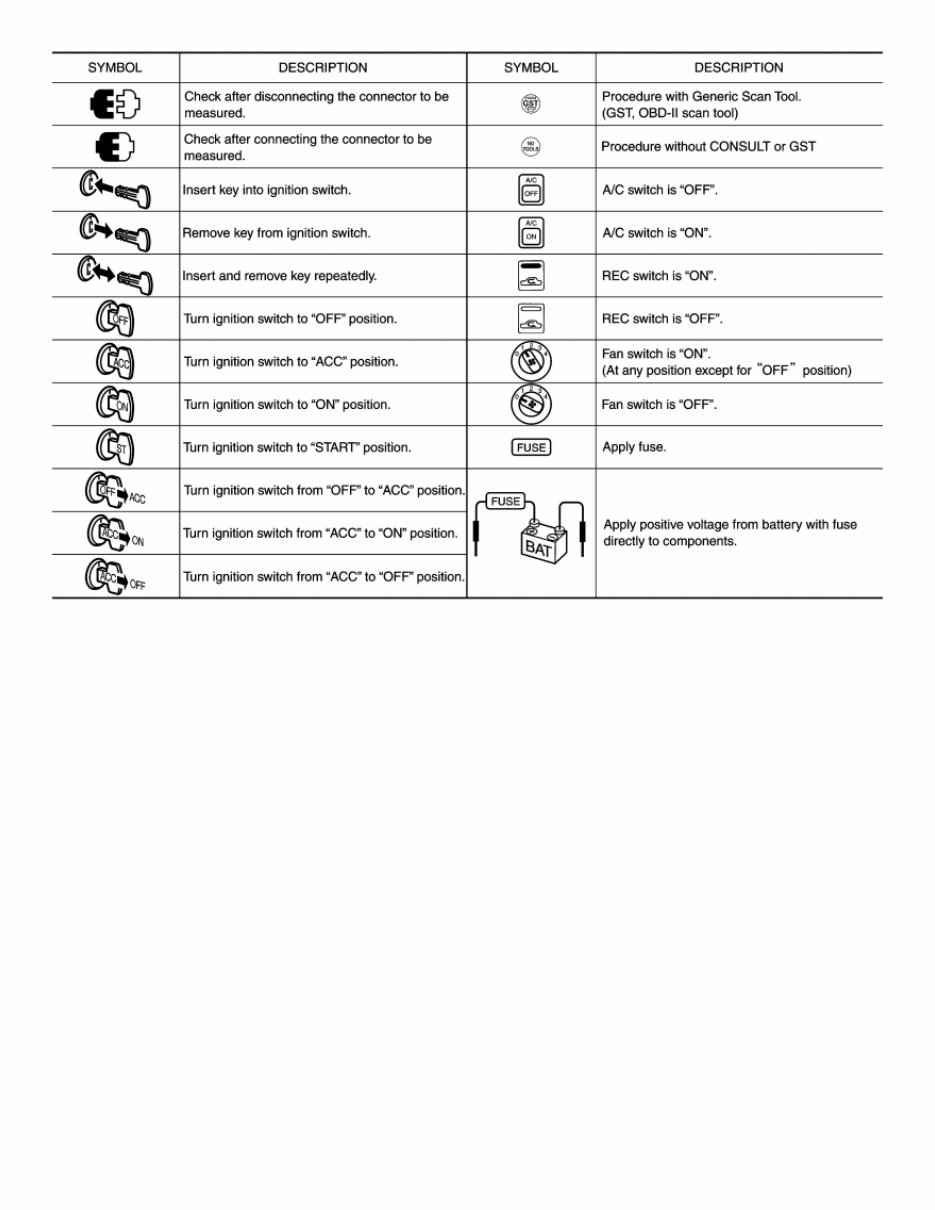

Key to Symbols Signifying Measurements or Procedures NISB0000000013834638-01-JPAIA0982GB
When it comes to maintaining and repairing your Nissan Pathfinder, having a reliable and comprehensive repair manual is essential. The 2019 Nissan Pathfinder Service & Repair Manual is your go-to guide for all troubleshooting and replacement procedures recommended by the manufacturer.
With step-by-step instructions, clear images, and exploded-view illustrations, this manual allows you to take a Do-It-Yourself approach to fixing problems on your vehicle. No need to spend time and money at the repair shop, as the manual provides all the information you need to keep your vehicle in top condition.
Regular maintenance is crucial for the durability of your Nissan Pathfinder, and this manual makes it easy to stay on top of it. With the manufacturer's recommended troubleshooting charts and replacement procedures, you can increase your vehicle's reliability and save on costly repairs in the long run.
The 2019 Nissan Pathfinder Service & Repair Manual is also incredibly convenient. No more flipping through hundreds of pages or dealing with greasy, torn, or lost pages. Easily search for specific information, take screenshots, and bookmark pages for future reference. Plus, it is compatible with any electronic device, including computers, smartphones, and tablets.
If you prefer a physical copy, you can easily print out the manual. With the added bonus of being printable, this manual is a must-have for any Nissan Pathfinder owner. Get your hands on the 2019 Nissan Pathfinder Service & Repair Manual and take control of your vehicle's maintenance and repairs today.
