2017 Nissan Pathfinder (R52) Service & Repair Manual

ACC-1 ENGINE C D E F G H I J K L M SECTION ACC A ACC N O P CONTENTS ACCELERATOR CONTROL SYSTEM PRECAUTION .............................................. 2 PRECAUTIONS .................................................. 2 Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TEN- SIONER" .................................................................. 2 REMOVAL AND INSTALLATION ............... 3 ACCELERATOR PEDAL ASSEMBLY .............. 3 Exploded View ......................................................... 3 Removal and Installation ......................................... 3 Inspection ................................................................ 3 SERVICE DATA AND SPECIFICATIONS (SDS) ............................................................ 5 SERVICE DATA AND SPECIFICATIONS (SDS) .................................................................. 5 Accelerator Control .................................................. 5 Revision: August 2016 2017 Pathfinder

ACC-2 < PRECAUTION > PRECAUTIONS PRECAUTION PRECAUTIONS Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER" INFOID:0000000013833326 The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collision. Information necessary to service the system safely is included in the SR and SB section of this Service Manual. WARNING: • To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in the event of a collision which would result in air bag inflation, it is recommended that all mainte- nance and repair be performed by an authorized NISSAN/INFINITI dealer. • Improper repair, including incorrect removal and installation of the SRS, can lead to personal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag Module, see the SR section. • Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness connectors. PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS WARNING: • When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the Ignition ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing serious injury. • When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the battery or batteries, and wait at least three minutes before performing any service. Revision: August 2016 2017 Pathfinder

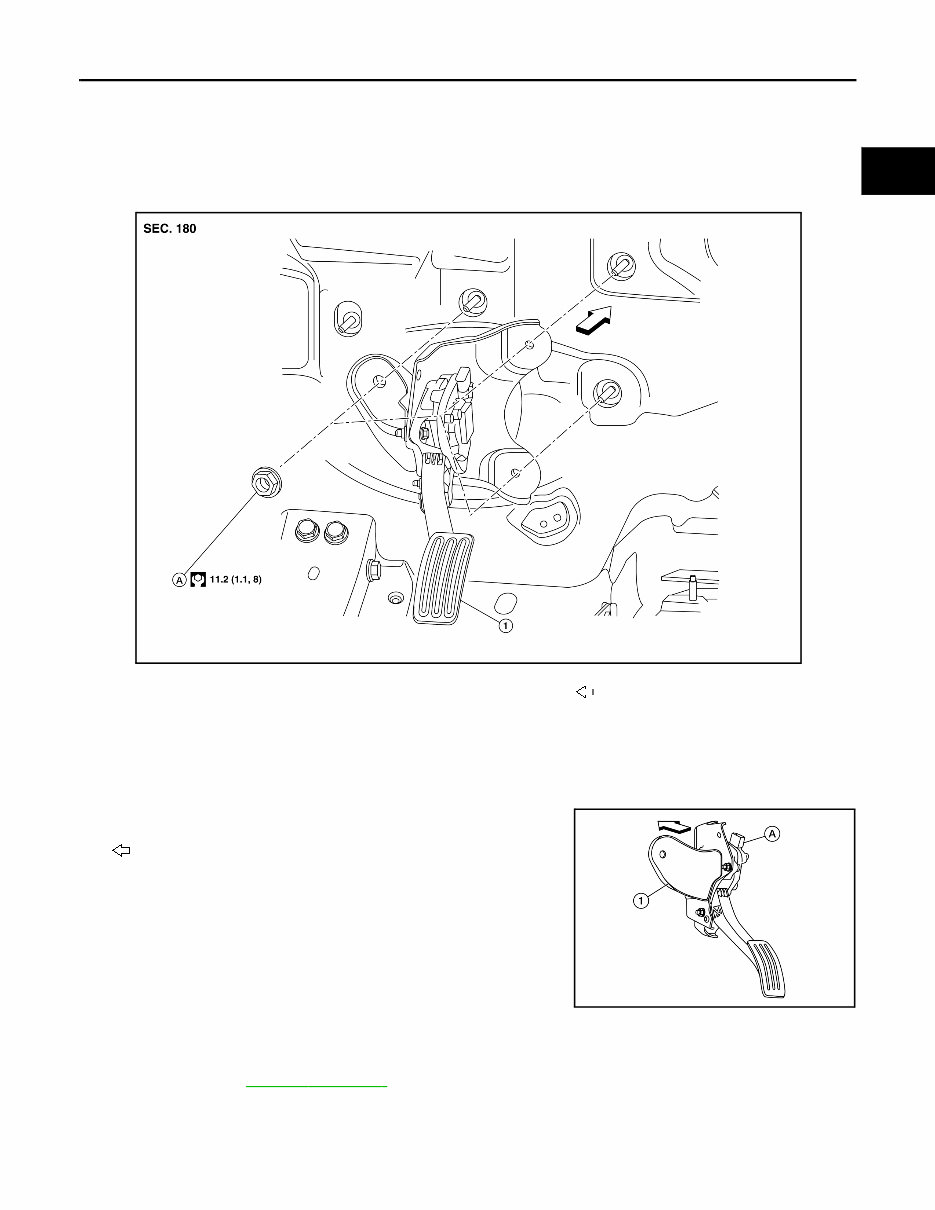

ACCELERATOR PEDAL ASSEMBLY ACC-3 < REMOVAL AND INSTALLATION > C D E F G H I J K L M A ACC N P O REMOVAL AND INSTALLATION ACCELERATOR PEDAL ASSEMBLY Exploded View INFOID:0000000013833327 Removal and Installation INFOID:0000000013833328 REMOVAL 1. Remove three accelerator pedal assembly nuts. 2. Disconnect harness connector (A) from the accelerator pedal assembly (1). : Front 3. Remove the accelerator pedal assembly. CAUTION: • Do not disassemble accelerator pedal assembly. • Do not drop or impact accelerator pedal assembly. • Do not expose accelerator pedal assembly to water. INSTALLATION Installation is in the reverse order of removal. NOTE: For inspection, refer to ACC-3, " Inspection " . Inspection INFOID:0000000013833329 INSPECTION AFTER INSTALLATION 1. Accelerator pedal assembly A. Nut Front ALBIA0775GB ALBIA0776GB Revision: August 2016 2017 Pathfinder

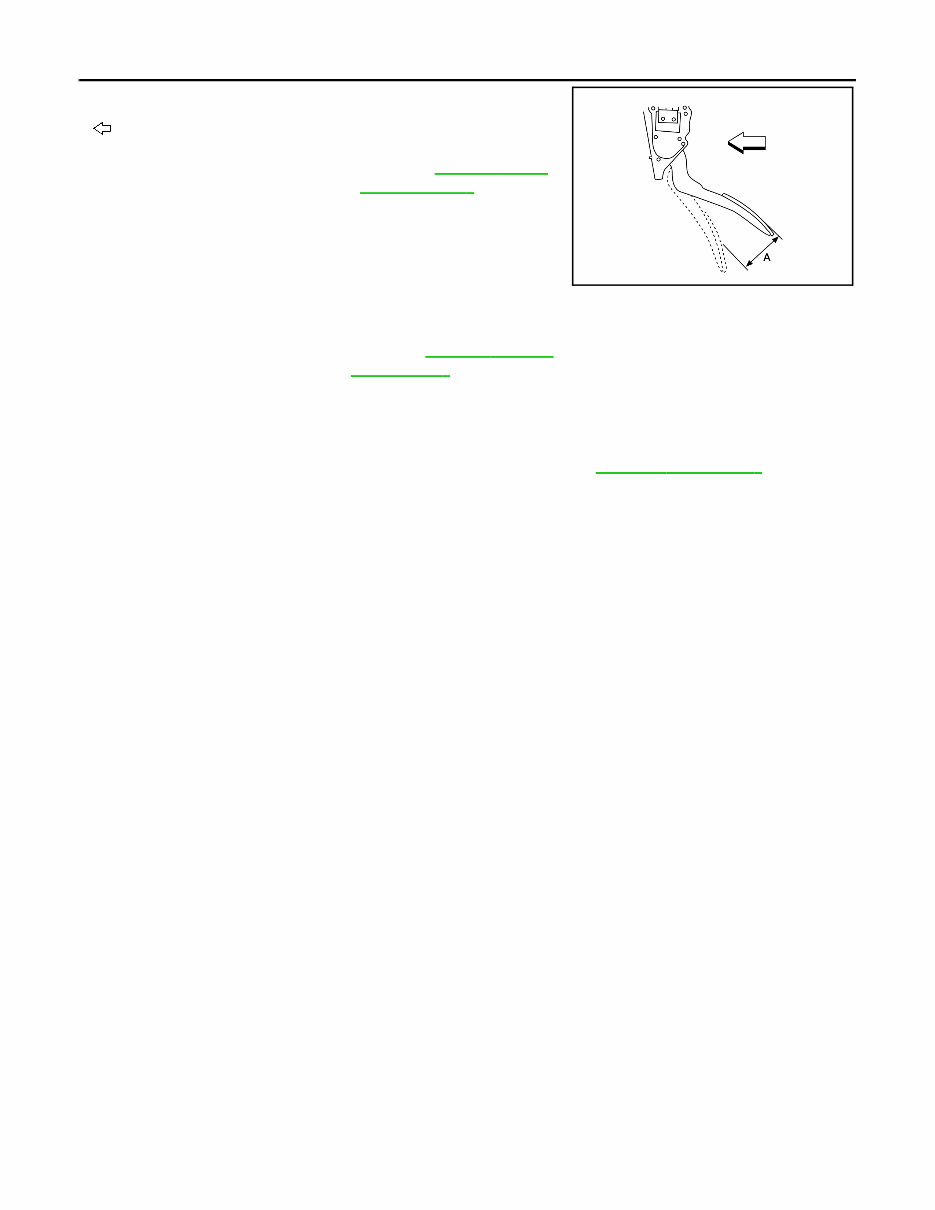

ACC-4 < REMOVAL AND INSTALLATION > ACCELERATOR PEDAL ASSEMBLY • Check that the accelerator pedal moves smoothly within the speci- fied range. : Front • Check the accelerator pedal height. • Depress and release the accelerator pedal to check that it returns quickly and smoothly to the original released position. CAUTION: • Whenever the harness connector of the accelerator pedal position sensor has been disconnected, perform "Accelerator Pedal Released Position Learning". Refer to EC-181, " Description " . • The accelerator pedal should operate smoothly without catching when the pedal operating force is released. The pedal should return smoothly to the fully raised position. The spring should be free from damage. Accelerator pedal stroke (A) : Refer to ACC-5, " Accel- erator Control " . ALBIA0798ZZ Accelerator pedal height : Refer to ACC-5, " Acceler- ator Control " . Revision: August 2016 2017 Pathfinder

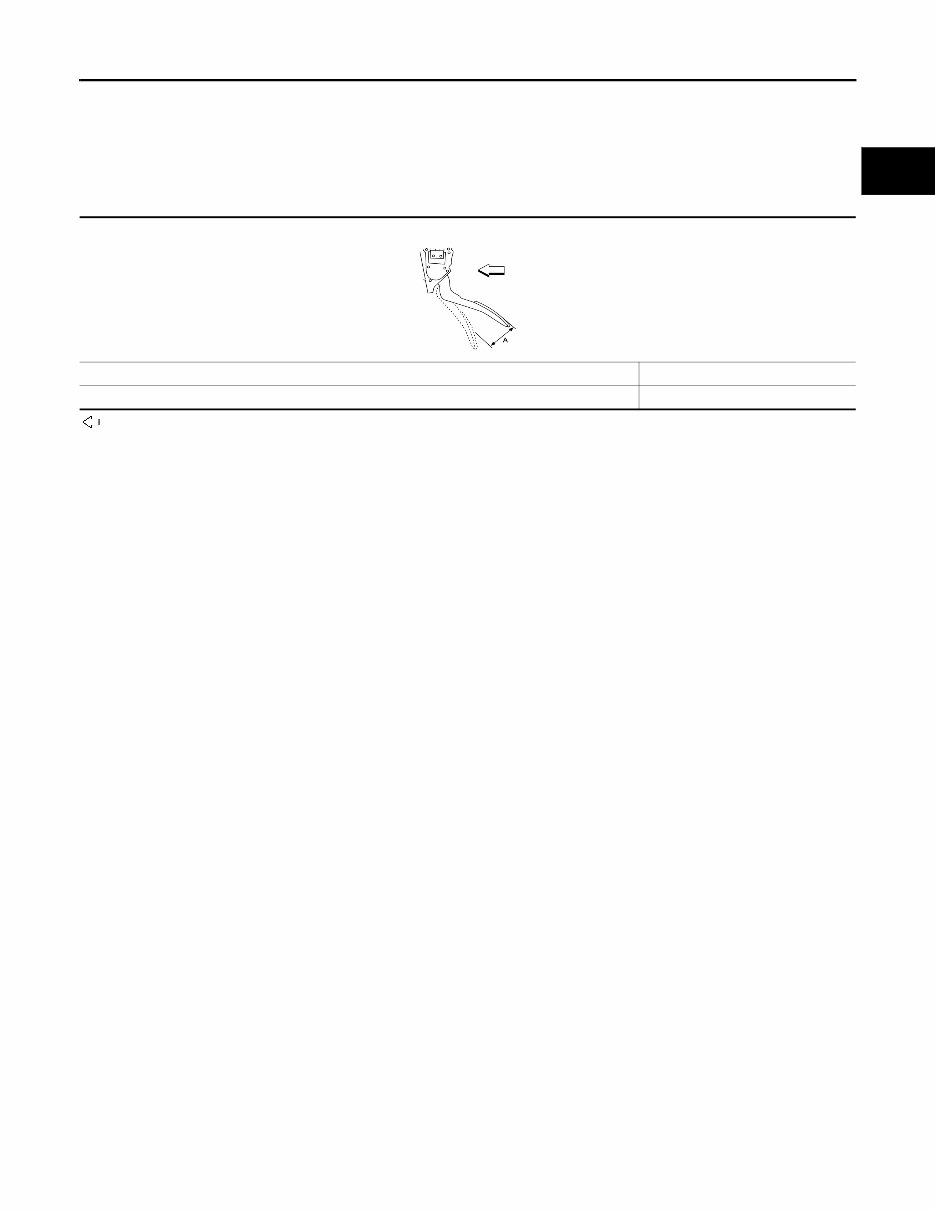

SERVICE DATA AND SPECIFICATIONS (SDS) ACC-5 < SERVICE DATA AND SPECIFICATIONS (SDS) C D E F G H I J K L M A ACC N P O SERVICE DATA AND SPECIFICATIONS (SDS) SERVICE DATA AND SPECIFICATIONS (SDS) Accelerator Control INFOID:0000000013833330 Unit: mm (in) : Front Accelerator pedal stroke (A) 50.5 - 53.5 (1.99 - 2.11) Accelerator pedal height 164.2 - 174.2 (6.46 - 6.86) ALBIA0798ZZ Revision: August 2016 2017 Pathfinder
