LU-1 ENGINE LUBRICATION SYSTEM B ENGINE CONTENTS C D E F G H I J K L M SECTION LU A LU PREPARATION .......................................................... 2 Special Service Tools .............................................. 2 LUBRICATION SYSTEM ........................................... 3 Lubrication Circuit ................................................... 3 ENGINE OIL .............................................................. 4 Inspection ................................................................ 4 OIL LEVEL AND CONTAMINATION .................... 4 OIL LEAK ............................................................. 4 OIL PRESSURE CHECK ..................................... 4 Changing Engine Oil ............................................... 5 OIL FILTER ................................................................ 6 Removal and Installation ......................................... 6 REMOVAL ............................................................ 6 INSTALLATION .................................................... 6 INSPECTION AFTER INSTALLATION ................ 6 OIL PUMP .................................................................. 7 Removal and Installation ......................................... 7 REMOVAL ............................................................ 7 INSTALLATION .................................................... 7 Disassembly and Assembly ..................................... 7 DISASSEMBLY .................................................... 7 INSPECTION AFTER DISASSEMBLY ................. 7 ASSEMBLY .......................................................... 8 SERVICE DATA AND SPECIFICATIONS (SDS) ....... 9 Standard and Limit ................................................... 9 OIL PRESSURE ................................................... 9 OIL PUMP ............................................................ 9 OIL CAPACITY ..................................................... 9 TIGHTENING TORQUE ....................................... 9

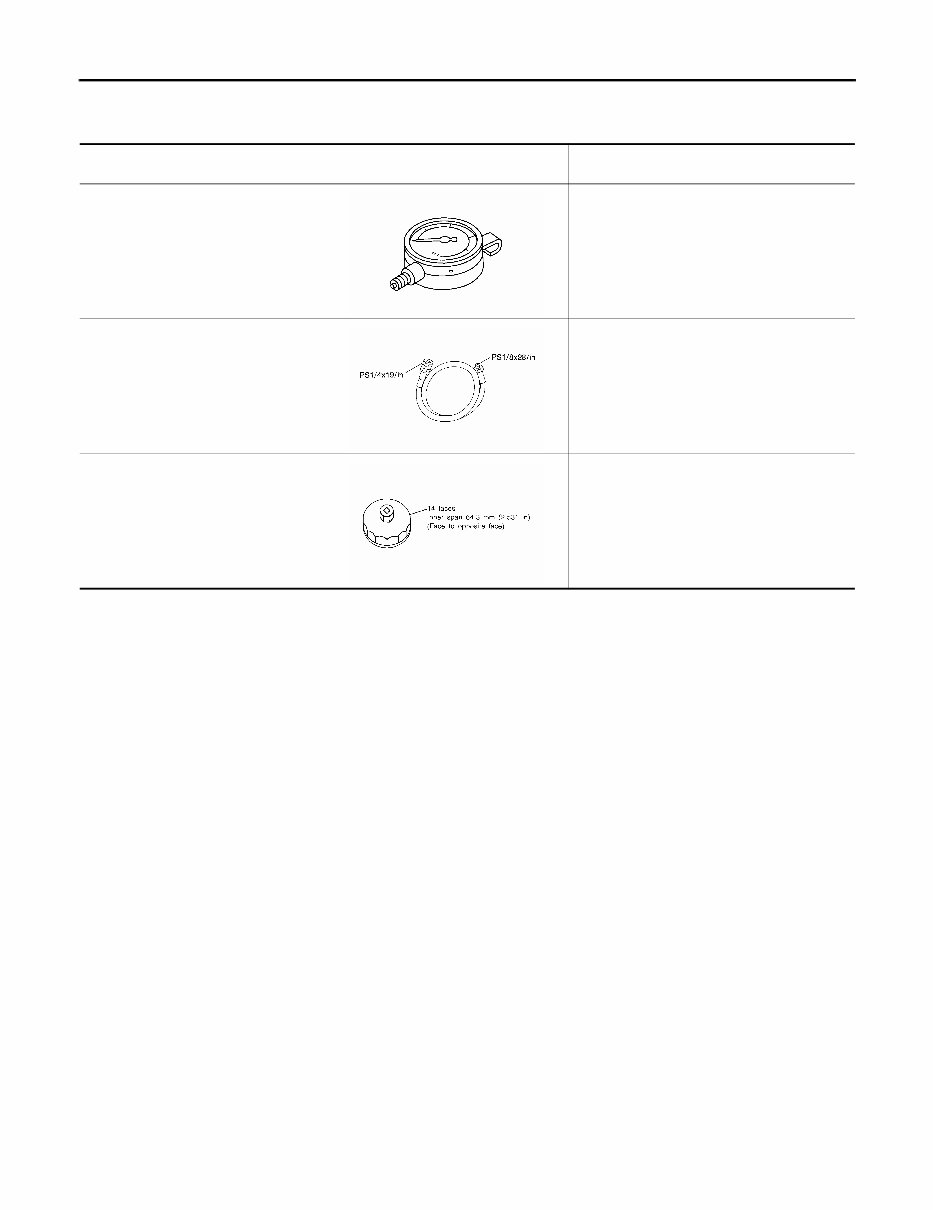

LU-2 PREPARATION PREPARATION PFP:00002 Special Service Tools EBS00OIH Tool number Tool name Description ST25051001 Oil pressure gauge Measuring oil pressure Maximum measuring range: 2,452 kPa (24.5 bar, 25 kg/cm 2 , 356 psi) ST25052000 Hose Adapting oil pressure gauge to cylinder block KV10115801 Oil filter wrench Removing oil filter S-NT050 S-NT559 S-NT772

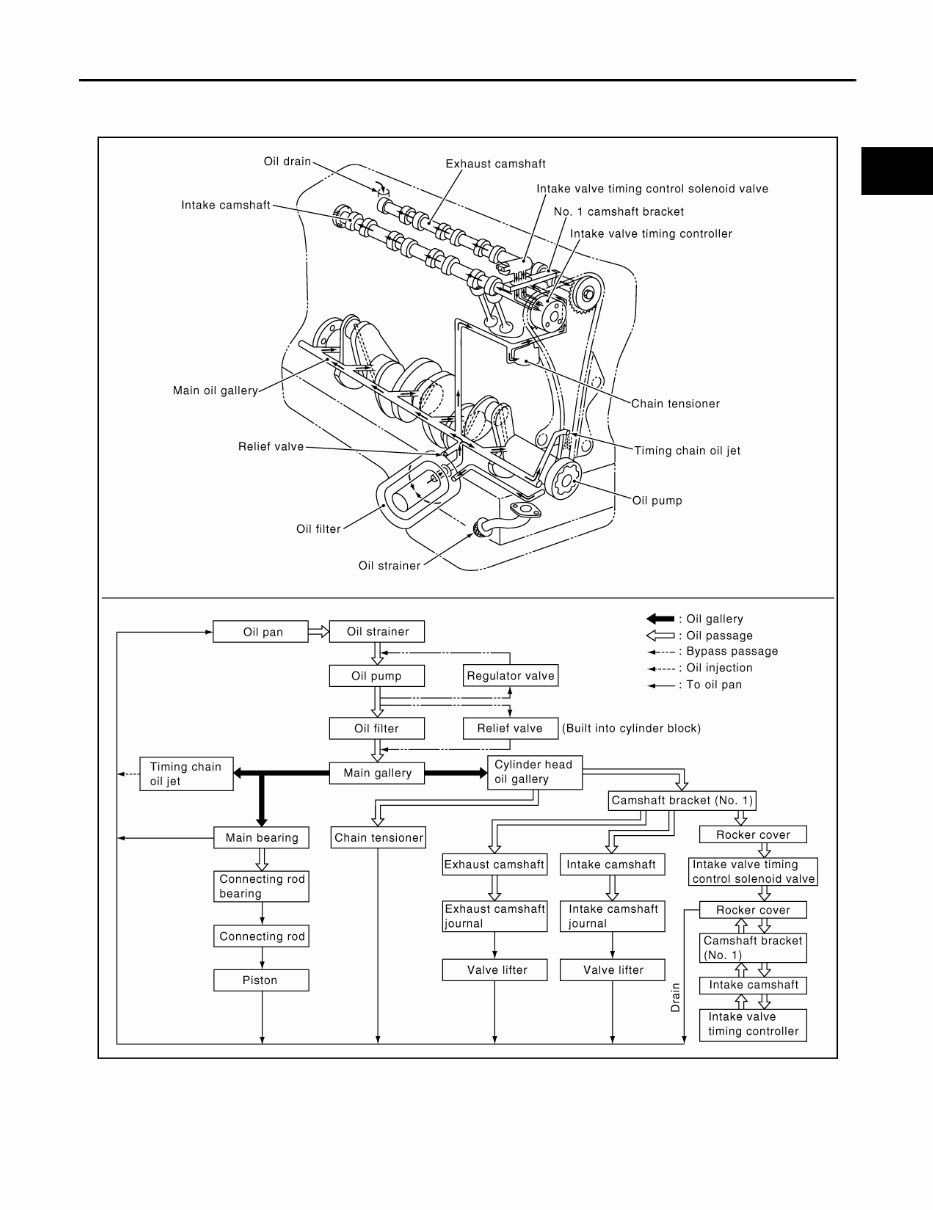

LUBRICATION SYSTEM LU-3 C D E F G H I J K L M A LU LUBRICATION SYSTEM PFP:15010 Lubrication Circuit EBS00OII PBIC1465E

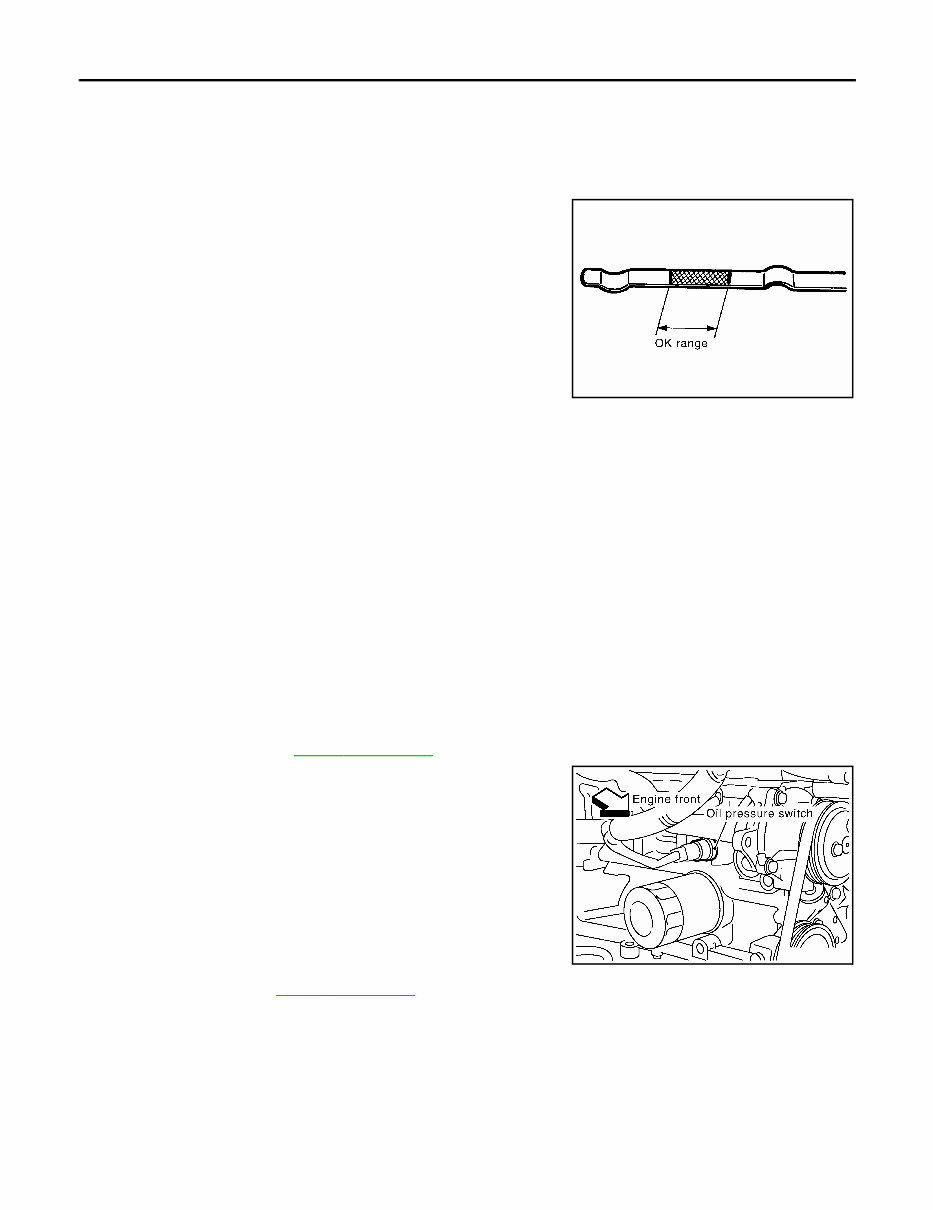

LU-4 ENGINE OIL ENGINE OIL PFP:KLA92 Inspection EBS00OIJ OIL LEVEL AND CONTAMINATION ● Before starting the engine, put vehicle horizontally and check the oil level. If the engine is already started, stop it and allow 10 minutes before checking. ● Check that the oil level is within the range shown in the figure. ● If oil level is outside the range, adjust level. ● Check the oil for white turbidity or remarkable contamination. ● If the oil becomes turbid and white, it is highly probable that it is contaminated with coolant. Find the cause and repair. ● When oil level gauge is inserted in guide, apply engine oil to rub- ber seal of grip. OIL LEAK Check the following parts for engine oil leaks. ● Oil pan ● Oil pan drain plug ● Oil pressure switch ● Oil filter ● Front cover ● Cylinder head front cover ● Mating surfaces of cylinder block and cylinder head ● Mating surfaces of cylinder head and rocker cover OIL PRESSURE CHECK WARNING: ● Be careful not to burn yourself, as the engine oil is hot. ● Oil pressure check should be done in “Parking” or “Neutral” position. 1. Check the engine oil level. 2. Remove oil filter. Refer to LU-6, " OIL FILTER " . 3. Remove oil pressure switch and connect an oil pressure gauge. 4. Install oil filter. Refer to LU-6, " OIL FILTER " . 5. After warming up the engine, check that oil pressure corresponding to the engine speed is produced. NOTE: Low oil temperature creates high pressure. PBIC1466E PBIC1467E

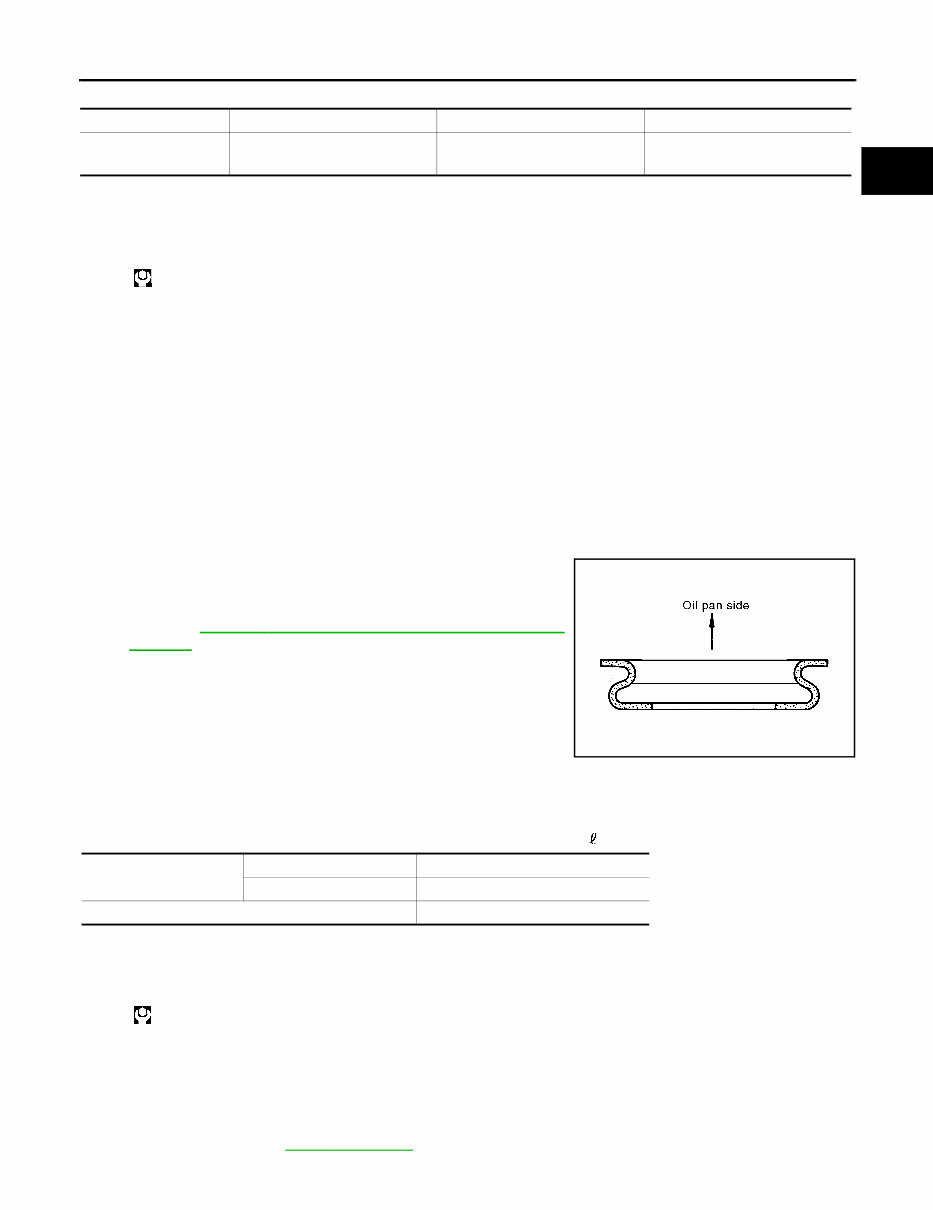

ENGINE OIL LU-5 C D E F G H I J K L M A LU Engine oil pressure [When oil temperature is 80 °C (176 °F)] 6. After checking the oil pressure, install oil pressure switch as follows: a. Remove old sealant on the switch and engine. b. Apply thread sealant and tighten. Use Genuine Liquid Gasket or equivalent. CAUTION: Be careful not to get burned when engine or engine oil is heated. Changing Engine Oil EBS00OIK WARNING: ● Be careful not to burn yourself, as the engine oil is hot. ● Prolonged and repeated contact with used engine oil may cause skin cancer: try to avoid direct skin contact with used oil. If skin contact is made, wash thoroughly with soap or hand cleaner as soon as possible. 1. Warm up engine, and check for oil leakage from engine components. 2. Stop engine and wait for 10 minutes. 3. Remove oil filler cap, and remove drain plug. 4. Drain engine oil. 5. Install drain plug. Refill with new engine oil. ● Install drain plug washer in the direction shown in figure. ● Oil specification and viscosity: Refer to MA-12, " RECOMMENDED FLUIDS AND LUBRI- CANTS " . Oil capacity (Approximate): Unit: (Imp qt) CAUTION: ● Be sure to clean drain plug and install with new washer. ● The refill capacity depends on the oil temperature and drain time. Use these specifications for ref- erence only. Always use the dipstick to determine when the proper amount of oil is in the engine. 6. Warm up engine and check area around drain plug and oil filter for oil leakage. 7. Stop engine and wait for 10 minutes. 8. Check oil level. Refer to LU-4, " Inspection " . Engine speed (rpm) Idle speed 2,000 6,000 Engine oil pressure kPa (bar, kg/cm 2 , psi) Approx. 44.1 (0.441, 0.45, 6.4) or more Approx. 265 (2.65, 2.7, 38) or more Approx. 373 (3.73, 3.8, 54) or more : 18.7 - 20.5 N·m (1.9 - 2.0 kg-m, 14 - 15 ft-lb) PBIC1468E Drain and refill With oil filter change 3.0 (2-5/8) Without oil filter change 2.8 (2-1/2) Dry engine (engine overhaul) 3.5 (3-1/8) Oil pan drain plug: : 29.4 - 39.2 N·m (3.0 - 3.9 kg-m, 22 - 28 ft-lb)
